Intense Cool AU4010F0 - Air-conditioner ROWENTA - Free user manual and instructions

Product type	Mobile air conditioner
Brand	Rowenta
Model	Intense Cool AU4010F0
Dimensions (W × H × D)	350 × 705 × 350 mm
Weight	22.5 kg
Power supply	220-240 V, 50 Hz
Refrigerant	R290 (175 g)
Nominal cooling power	2000 W (7000 Btu/h)
Energy class	A
Noise level	65 dB(A)
Operating modes	Cooling, dehumidification, fan
Fan speeds	3 (Low, Medium, High)
Timer	1 to 24 hours
Remote control	Yes (AAA batteries not included)
Water tank capacity	Manual or continuous drainage
Air filter	Washable, clean every 100 hours
Safety	Refrigerant leak protection, automatic shut-off when tank full
Repairability	Contact an authorized center, do not disassemble yourself

Frequently Asked Questions - Intense Cool AU4010F0 ROWENTA

How do I install the exhaust hose for cooling mode?

Attach the exhaust nozzle to the connector without a notch, then slide the other connector into the air outlet at the back. Unroll the hose and place the nozzle in an open window. For semi-permanent installation, drill a hole in the wall and use the provided wall bracket. Ensure the exhaust hose is not blocked.

What should I do if the 'FULL' indicator lights up?

The internal tank is full. Drain the water by removing the rubber plug from the bottom drain opening and collecting the water in a basin. In dehumidification mode, use continuous drainage with a 3/4 inch hose.

How do I clean the air filters?

Turn off and unplug the appliance. Remove the air filters (diagram 2). Clean them with a vacuum cleaner, water, or a soft dry cloth. Let them dry completely before reinstalling. It is recommended to clean them every 100 hours of use.

Why won't the appliance start?

Wait 3 minutes after a stop, as a protection device prevents immediate restart. Check that the plug is properly connected. If the 'FULL' indicator is lit, drain the water. Ensure the air intake grille is open.

How do I use the timer?

For automatic shut-off, when the appliance is running, press the timer button and set the time (1-24h) using the + and - buttons. For automatic start, press timer in standby mode and set the start time. The appliance will start in the last used mode.

Can I use the appliance without an exhaust hose?

In fan mode, no hose is needed. In cooling mode, the exhaust hose is essential to expel hot air outside. In dehumidification mode, do not connect the exhaust hose but install continuous drainage.

What type of batteries should I use for the remote control?

The remote control uses 2 AAA or LR03 1.5V batteries. Respect the polarity indicated. Remove the batteries if the remote is not used for more than a month.

What should I do if 'E1' or 'E2' is displayed?

These error codes indicate a malfunction. Contact an authorized service center. Do not attempt to repair yourself, as the appliance contains flammable R290 refrigerant gas.

Why does the appliance stop after a few minutes?

This may be due to a set temperature too high, a closed air intake grille, blocked air outlets, or dirty filters. Check these points. If the problem persists, consult the manual.

How do I continuously drain water in dehumidification mode?

Remove the drain cover and the rubber plug inside. Feed a 3/4 inch drain hose through the ring of the stopper and screw the stopper back onto the drain outlet. Direct the hose to a floor drain or sink.

USER MANUAL Intense Cool AU4010F0 ROWENTA

Technical line drawing of a heat exchanger unit with cooling fins and a heating element (no text or symbols)

Schéma 1

- NETTOYAGE ET ENTRETIEN

Diagram of a portable electronic device with ventilation grilles and control panel (no text or symbols)

Schéma 2

MODE D'EMPLOI

Simple line drawing of a cylindrical object with a triangular cutout, labeled (15) below (no text or symbols on the object itself)

Simple line drawing of two overlapping circular objects with a string, labeled (16) below (no text or symbols on the shapes)

Installation 1 - Installation mobile

Diagram showing airflow control mechanism with labeled components and hand gesture pointing to a device

Schémas 3 et 4

Line drawing of three indoor air conditioner units with hoses, showing different installation states (no text or symbols)

Schéma 5

Installation semi-permanente

in the window pere in the woo- dan kickboard of a french window. in the wall : you are recommended to insulate the section of wall using suitable insulation

MAX100 cm MIN35 cm

Schémas 7 et 8

VIDANGE CONTINUE

Top-down schematic of an electrical or mechanical device layout with no visible text, numbers, or symbols.

Illustration of a hand operating a computer interface with cables and components (no text or symbols visible)

Please read the instruction manual and safety instructions carefully before using the appliance and keep the instruction manual for reference.

For your safety, this appliance complies with all applicable standards and regulations (Low Voltage, Electromagnetic Compatibility, Environmental directives, etc.).

	WARNING(Risk of fire)	This unit uses a flammable refrigerant.If refrigerant leaks and comes in contact with fire or heating part, it will create harmful gas and there is risk of fire.
	Read the OPERATING INSTRUCTIONS carefully before operation
	Service personnel are required to carefully read the OPERATING INSTRUCTIONS and INSTALLATION MANUAL before operation
	Further information is available in the OPERATING INSTRUCTIONS,INSTALLATION MANUAL, and the like

Model name Symbol AU4010F0 Unit
Refrigerant R290
Total refrigerant amount 175 g
Global warming potential GWP 3 kg CO2 eq
Climate class 16 – 35 °C
Cooling capacity	P_rated for cooling	7000 Btu/h
		2000	W
Energy efficiency cooling	EER_d	2.6
Energy Efficiency Class		A
Cooling power input	P_EER	0.8 kW
Voltage/frequency		220-240V / 50Hz	V/Hz
Power consumption in thermostat-off mode	P_TO	1.0	W
Power consumption in standby mode	P_SB	0.5	W
Electricity consumption	Q_SD	0.8 kWh/h
Sound Power Level	L_WA	65	dB(A)
dimensions	WxHxD	350 x 705 x 350	mm
weight		22.5	Kg

SAFETY INSTRUCTIONS

WARNING:

- If the power cord is damaged it must be replaced by the manufacturer, the manufacturer's after-sales service

department or a similarly qualified person, to avoid danger.

• Before use, always check that the appliance, plug and power cord are in good condition.
• The device must be used under normal operating conditions as defined in these instructions.
• Switch off and unplug the appliance before filling, cleaning or moving.
• For maintenance and adjustment operations, please refer to the user guide supplied with the manual.

For countries subject to European regulations (CE) :

- This device can be used by children provided that they are at least 8 years old, as well as by people lacking experience and knowledge or whose physical, sensorial or mental abilities are reduced, if they have been properly trained and duly informed of the risks involved. Children should not clean or perform maintenance procedures on the appliance unsupervised.

• Children shall not play with the appliance.

For other countries :

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- Regulations on the disposal of oil and cooling agents when the unit is discarded must be respected.

- Do not use your device near inflammable objects and products and generally maintain a minimum distance of 50 cm between your device and all objects (walls, curtains, aerosol cans, etc.)

- The remote control uses 3 x 1,5 V batteries (LR03 or AAA).

- Batteries are to be inserted with the correct polarity as shown in the battery compartment.

- The battery terminals must not be short-circuited.

- Keep away from fire.

- IMPORTANT: you are advised to switch off and unplug the appliance when not in use. When storing the appliance for a longer period of time, please remove the batteries from the remote control.

• Put the device in standby mode and unplug the device from the mains prior to replacing the battery.
• Follow the battery manufacturer's instructions when installing new batteries.
• Please find more information in the User Guide document to activate the battery.

Specific instructions regarding appliances with R290 gas

• This appliance contains approximately 0.175 kg of R290 refrigerant gas. The maximum refrigerant charge amount is 0.3 kg; R290 refrigerant gas complies with European environmental directives.
  • The mimum rated airflow is 270m3/h;
• A surface area greater than 9 m2 (with ceiling height >2m) is necessary for the installation, use and storage of the appliance
• Stagnation of possible leaks of refrigerant gas in unventilated rooms could lead to fire or an explosion hazard should the refrigerant come in contact with electric heaters, stoves or other sources of ignition.
• Use care when storing the appliance to prevent mechanical faults.
• Only persons authorized by an accredited agency certifying their competence to handle refrigerants in compliance with sector legislation should work on refrigerant circuits.
• Maintenance and repairs requiring the assistance of other qualified personnel must be carried out under the supervision of specialists in the use of inflammable refrigerants.
• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater)
• Do not pierce or burn.
• Be aware that refrigerants may not contain an odour.

PRECAUTIONS OF USE

This appliance is designed for household use only. It should not be used for industrial applications. The appliance must be installed in accordance with the regulations in force in your country. The working temperature is between 16°C and 35°C.

Do not pull on the power cord or the appliance, even when unplugging it from a wall socket.

Always unroll the power cord completely before use.

Do not use the appliance in a dusty room or a location where there is a risk of fire.

Never put objects inside the appliance (e.g. needles, etc.).

Do not use an extension lead.

Never use the appliance in an inclined or horizontal position. Place the appliance on a flat stable surface.

Do not place heavy items or children on top of the appliance.

Do not cover the appliance.

Do not cover the air inlet and/or outlet grills.

Do not touch the appliance with wet hands.

Stop your appliance by using the (A) button before unplugging it.

Do not use the appliance outdoors.

The warranty will be invalidated if damage occurs due to incorrect use.

- TRANSPORTATION

• Caution: your device includes a refrigerating compressor; laying the device flat could lead to malfunctions.
  • After transportation, do not turn on the appliance for at least one hour before starting it.

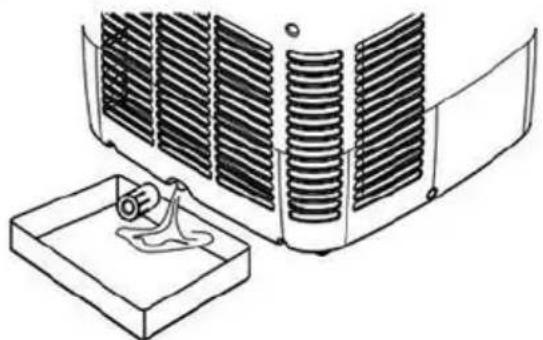

- STORAGE

• If you do not use the device, it must be placed in a well-ventilated area where the room corresponds to the room area as specified for operation and away from humidity.
• Before storage, be sure to pull out the rubber plug of the drain port underside (#10), and allow the water to drain out in a basin. (fig. 1) Run the unit in fan mode only for a few hours to dry any moisture on the coils to prevent mold.

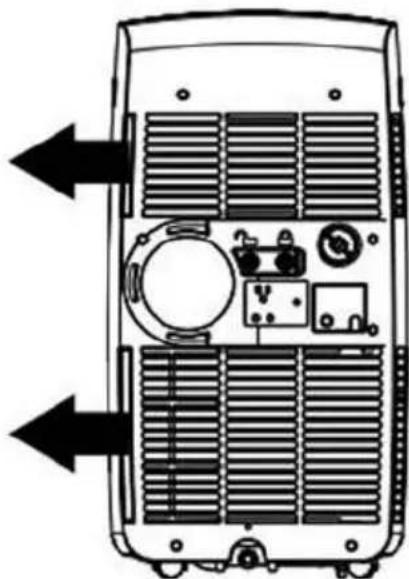

Technical line drawing of a heat exchanger unit with cooling fins and a heating element (no text or symbols)

Fig.1

- CLEANING & MAINTENANCE

Before cleaning or maintenance, turn the appliance off and always unplug the appliance.

Cleaning: Wipe with a soft dry cloth. Never wash the air conditioner with water. Never use volatile substance such as gasoline or polishing powder to clean the appliance.

Air filters maintenance: It is necessary to clean the air filters after using it for about 100 hours. Stop the appliance and then pull back the air filters. (fig.2) Use a vaccum cleaner, water or a soft dry cloth to clean the filters, and then reinstall it.

Diagram of a portable electronic device with ventilation grilles and control panel (no text or symbols)

Fig.2

OPERATING INSTRUCTIONS

The electrical facilities of the room, as well as the installation and use of the appliance must comply with the standards in force in your country.

Before first use, ensure that the voltage, frequency and power of your appliance are suitable for your electrical supply.

Your device must operate with an earthed power socket. It is a class I appliance.

Before switching on your appliance, ensure that:

• The appliance is positioned in accordance with the instructions in this manual;
• The air intake and outlet grills are completely unobstructed;
• The appliance is placed on a stable horizontal surface;

Do not place under a clothesline or any other object likely to cause water to fall in the product.

N.B.: You are advised to unplug the appliance when not in use.

INSTALLATION INSTRUCTIONS

1 2 3 4

5 6 7 8 10 9 11

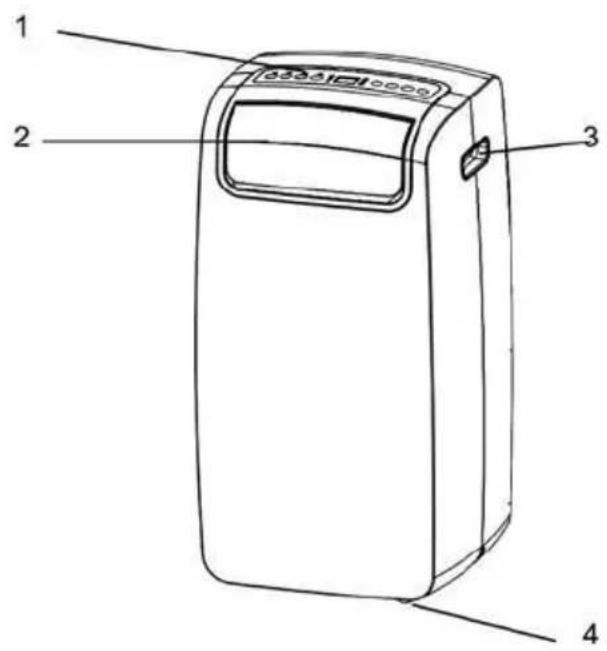

1. Control panel
2. Air outlet
3. Handle hole
4. Caster

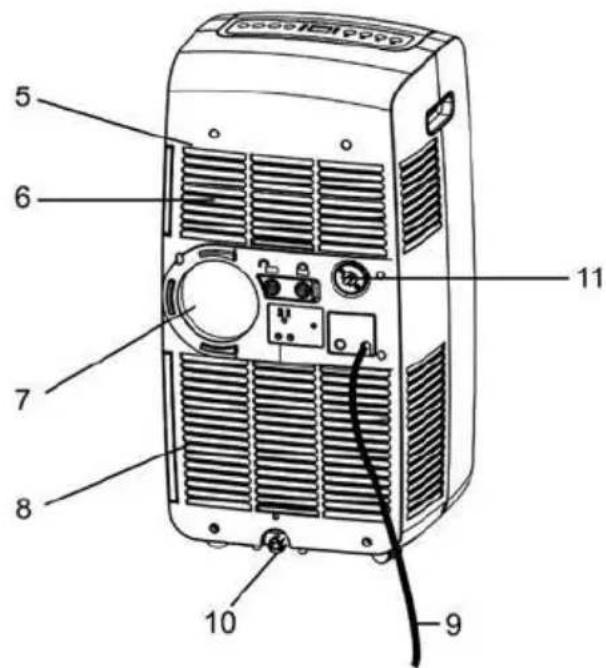

5. Air filter
6. Air intake (Evaporator)
7. Air outlet (Heat exchange)
8. Air intake (Condenser)
9. Power supply cord
10. Water outlet drain
11. Water outlet drain (Dehumidify mode only)

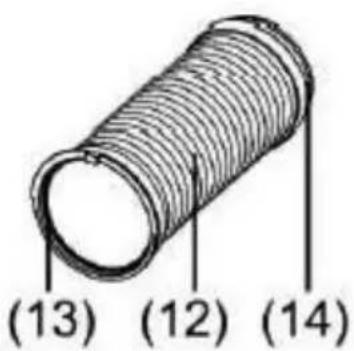

12. Exhaust hose
    13&14. Exhausted connectors
13. Exhaust nozzle
14. Wall flange accessory and cap

Note : Please esure if the water outlet drain is well installed before use.

(13) (12) (14)

Simple line drawing of a cylindrical object with a triangular cutout, labeled (15) below (no text or symbols on the object itself)

Simple line drawing of two overlapping circular objects with a handle, labeled (16) below (no text or symbols on the shapes)

Installation 1 - mobile installation

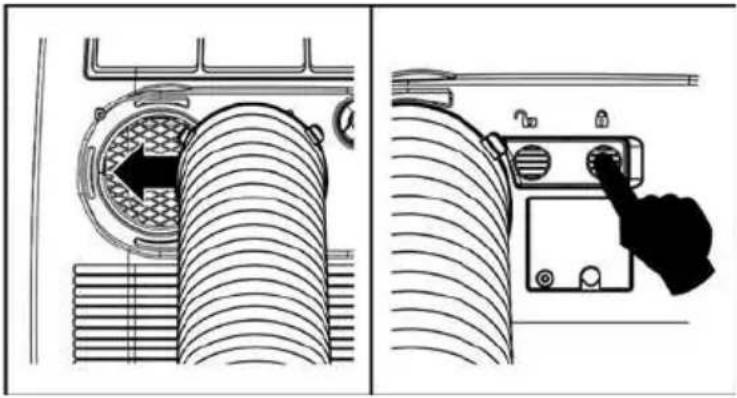

1/ Click the exhausted nozzle (#15) to the exhausted connector without notches (#14)
2/ Slide the other exhausted connector (#13) to the air outlet (#9) on the rear of the unit and push the rocker switch to fix the assembly firmly. (Fig 3 &4) Extend hose (#13) to desired length and position the exhausted nozzle (#15) through an open window as shown on fig.5.

Diagram illustrating airflow control mechanism with labeled components and hand gesture

Fig. 3 & 4

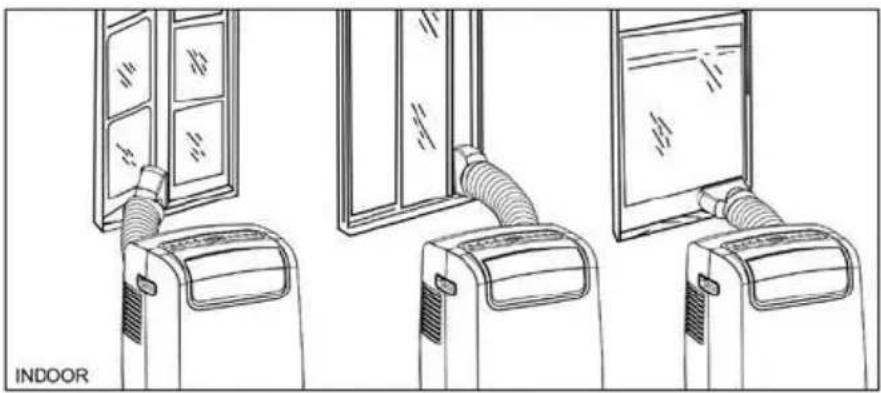

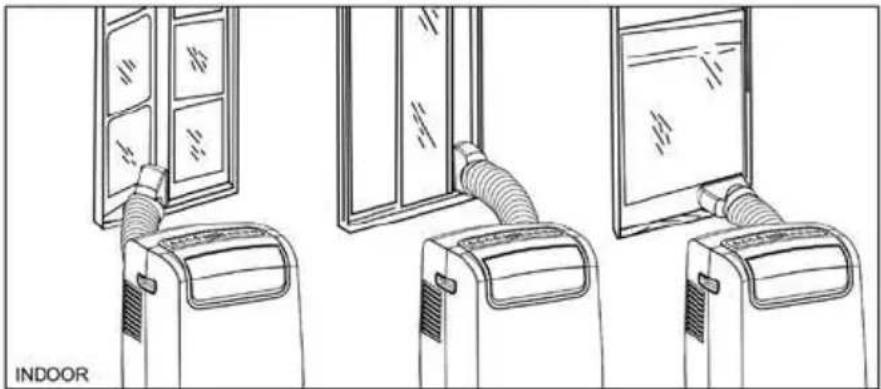

Line drawing of indoor air conditioner unit with three different configurations (no text or symbols)

Fig. 5

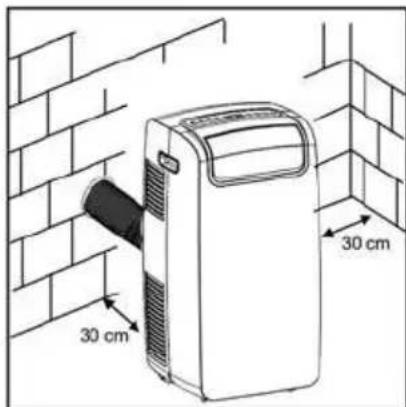

Semi-permanently installation

If required, your appliance can also be installed semi permanently (Fig. 6)

Proceed as follows:

• Drill a hole in an outside wall or through a window pane. Ensure the MIN / MAX dimensions for the hole size and its position are adhered to. (Fig. 7 and 8)
• Fit the wall flange accessory (#16) provided in the hole.
• Insert another end of the hose assembly to the fixture previously fit on the wall a shown in (Fig. 6)

When the hose is not in use, place the cap (#16) on connector to cover the hole on the wall.

NOTE: When installing the air conditioner semi permanently, to maintain the balance of air pressure between indoors and outdoors always leave an internal door slightly open.

30 cm 30 cm

Fig. 6

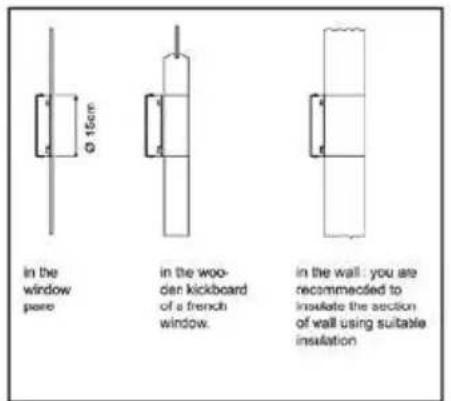

in the window pane in the woo- den kickboard of a french window. in the wall : you are recommended to insulate the section of wall using suitable insulation

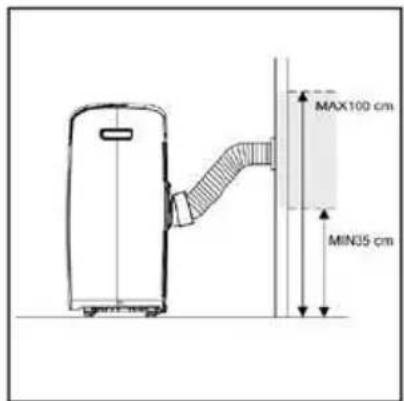

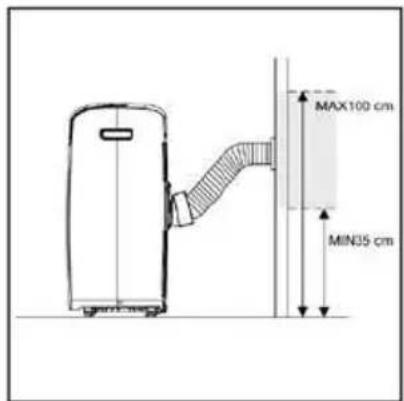

MAX100 cm MIN35 cm

Fig. 7&8

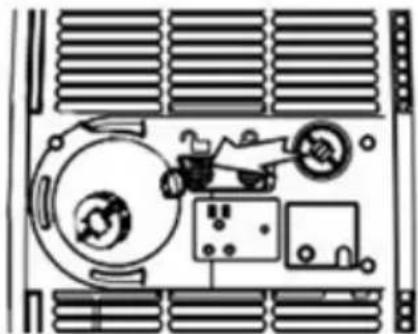

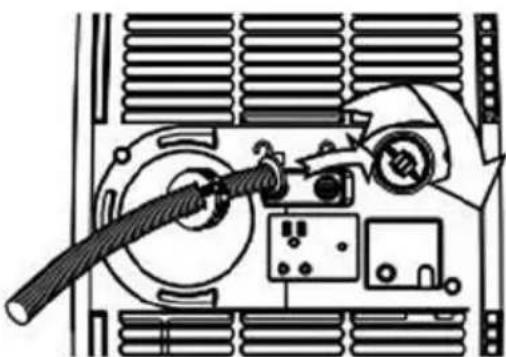

CONTINUOUS DRAINAGE

To use the unit in dehumidifying mode, you will need to settle continuous drainage as follow. Note: the drain hose is not included. You will need a drain hose size 3/4

Top-down schematic of an electronic device layout with no visible text or symbols

1. Take out drain cover from the drainage outlet. (evacuation #11)
2. Remove the soft rubber stopper inside the stopper.

Illustration of a computer setup with a hand holding a cable, surrounded by monitors and equipment (no text or symbols visible)

1. Make the drainage pipe go through the ring of the stopper.
2. Screw the stopper back to the drainage outlet.

The water can now be continuously drained through the hose into a floor drain or sink.

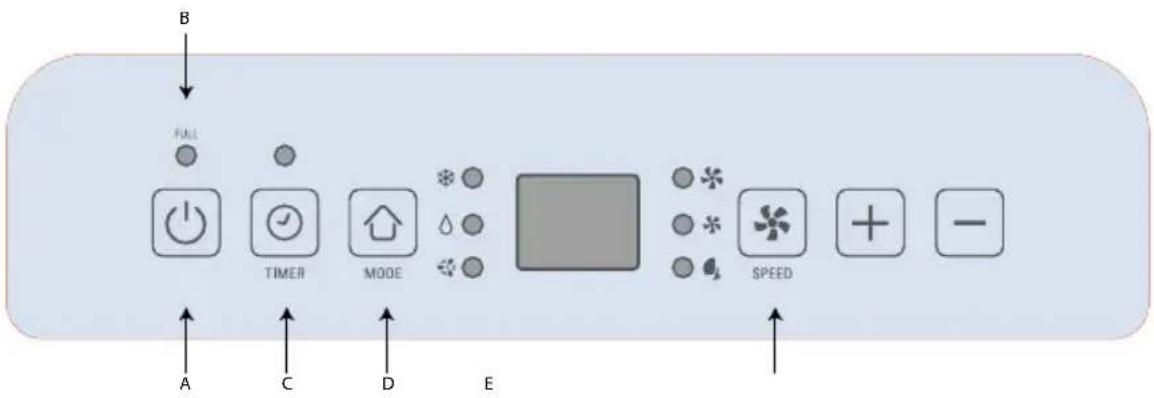

CONTROL PANEL

B FULL TIMER MODE SPEED A C D E + -

Make sure to open the louver (#2) before using.

Power Control (A)

The power control turns the unit on and off. After switching the air conditioner off, you must wait 3 minutes before switching it back on again.

Warning Light "FULL" (B)

Condensed water may accumulate in the unit.

If the internal tank becomes full, the warning light will come on and the unit will stop operating until the unit has been drained (evacuation #10). To drain the unit, refer to storage instructions p.2. If you are using the unit on dehumidifying mode, make sure to install continuous drainage properly (refer to continuous drainage p.17)

Mode Control (C)

The mode control has three settings. A green light indicates which mode is currently being used.

- Cooling mode: During the cooling mode the air is cooled and hot air is expelled through the heat exhaust hose (#13). Adjust fan speed and air temperature to suit your desired comfort level. Use the buttons (-) and (+) to set the desired temperature between 16 and 32^ C . After 10 seconds the display will revert to room temperature.

Note: the air exchange hoses must vent outside the room when using cooling mode.

- Dehumidify mode: Air is dehumidified as it passes through the unit, without being in full cooling mode. In this mode, If temperature is higher than 25^ C, fan speed can be adjusted; otherwise, fan speed is fixed to "low".

In this mode, do not connect the exhaust hose and let the warm air return to the room. You will need to install a drainage hose (evacuation #11), with the water discharging to the outside. (please see the paragraph p.17)

• Fan Mode : air is circulated throughout the room with no cooling.

Note: Unit doesn't need to be vented in fan mode. Adjust fan speed to suit your desired comfort level.

Fan Speed Control (D)

The fan speed control has three settings: High, Medium and Low.

Timer (E)

Auto turn OFF: with the machine in running mode, press the timer button. Then set the desired working time in hours before shut down by pressing the "+" or "-" buttons.

Auto turn ON: With the machine in OFF mode, press the timer button. Then set the desired time delay ON in hours by pressing the "+" or "-" buttons before the unit automatically starts running in the latest used mode.

The time is adjustable between 1 to 24 hours

Remote control

The remote control uses 2 x AAA or LR03 1.5V batteries which are not included.

To change the remote's battery, remove the cover on the back of the remote controller and insert batteries with the (+) and (-) poles pointing in the proper direction.

Remove the batteries if the remote control is not used for a month or longer.

Remote control operations are identical to the functions on the control panel.

TROUBLESHOOTING

Trouble Analysis
The appliance does not start - Please wait 3	minutes and start again,protector device may be preventing unit from working.- The plug is not properly plugged.
The appliance stops running during operation -	Set temperature is too high.- The louver is not opened.- Air outlets are blocked by obstacles or hose is obstructed- Air inlets (filters) are blocked by dust
The appliance does not run and water full indicator is lit	- Water needs to be drained : please refer to paragraph “control panel – B”- Drainage hose is obstructed or twisted
LEDs display “E1” or “E2” - Please refer to a $	specific Approved Service Centre.

SHOULD A PROBLEM ARISE

Never dismantle the appliance yourself because R290 gas requires specific agreement for repairing. A poorly repaired appliance may be dangerous for the user.

Do not use the appliance and contact a specific Approved Service Centre if:

• The appliance has broken.
- Unit or its power cord is damaged,
- If your appliance does not work properly.

You can find a list of specific Approved Service Centres on Rowenta website.

HELP PROTECT THE ENVIRONMENT!

Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a waste collection point or an approved service centre so that it can be disposed of correctly.

Do not throw away the batteries with your household waste: instead, bring them to anyone of the special battery collection points.

These instructions can also be found on our internet site www.rowenta.com

Technical line drawing of a heat exchanger unit with cooling fins and a heating element (no text or symbols)

Abb. 1

Diagram of a portable electronic device with ventilation grilles and control panel (no text or symbols)

Abb. 2

BEDIENUNGSANLEITUNG

Simple line drawing of a cylindrical object with a curved handle, labeled (15) below (no text or symbols on the object itself)

Installation 1 – mobile Installation

Diagram showing airflow control mechanism with labeled components and hand gesture pointing to a device

Abb. 3 & 4

Line drawing of three indoor air purifiers with hoses, one opening a door (no text or symbols)

Abb. 5

Halbpermanente Installation

in the window pane in the woo- dan kickboard of a french window. in the wall : you are recommended to insulate the section of wall using suitable insulation

MAX100 cm MIN35 cm

Abb. 7 & 8

KONTINUIERLICHES ENTLEEREN

Top-down schematic of a vehicle's front view showing dashboard, steering wheel, and control panel (no text or labels)

Diagram of a computer setup with a hand operating a drive, showing components like a battery and control panel (no text or labels)

Technical line drawing of a heat exchanger unit with cooling fins and a heating element (no text or symbols)

Fig. 1

- LIMPIEZA Y MANTENIMIENTO

Diagram of a portable electronic device with ventilation grilles and control panel (no text or symbols)

Fig. 2.

Simple line drawing of a cylindrical object with a triangular cutout, labeled (15) below (no text or symbols on the object itself)

Simple line drawing of two overlapping circular objects with a string, labeled (16) below (no text or symbols on the shapes)

Diagram showing airflow control mechanism with labeled components and hand gesture pointing to a device

Fig. 3 y 4

Line drawing of three indoor air purifiers with hoses, one mounted on a cabinet, against a window (no text or symbols)

Fig. 5

in the window space in the woo- den kickboard of a french window. in the wall : you are recommended to insulate the section of wall using suitable insulation

MAX100 cm MIN35 cm

Fig. 7 y 8

DESAGÜE CONTINUO

Top-down schematic of an electronic device layout with components like a motor, battery, and control panel (no text or labels)

Illustration of a hand operating a computer with cables and equipment (no text or symbols visible)

Technical line drawing of a heat exchanger unit with cooling fins and a heating element (no text or symbols)

Fig. 1

Diagram of a device rear panel with ventilation grilles and control buttons (no text or labels)

Fig. 2.

Simple line drawing of a cylindrical object with a triangular cutout, labeled (15) below (no text or symbols on the object itself)

Diagram illustrating airflow or ventilation system with labeled components and a hand cursor pointing to a control panel.

Fig. 3 e 4

Line drawing of three indoor air purifiers with hoses, one mounted on a cabinet, against a window (no text or symbols)

Fig. 5

in the window pane in the woo- den kickboard of a french window. in the wall : you are recommended to insulate the section of wall using suitable insulation

MAX100 cm MIN35 cm

Fig. 7 e 8

DRENAGEM CONTÍNUA

Top-down schematic of a vehicle's front view showing dashboard, steering wheel, and control panel (no text or labels)

Illustration of a server rack with a hand holding a cable and a camera, no text or symbols present

Technical line drawing of a heat exchanger unit with cooling fins and a heating element (no text or symbols)

Fig. 1

Diagram of a device rear panel with ventilation grilles and control buttons (no text or labels)

Fig. 2.

Simple line drawing of a cylindrical object with a triangular cutout, labeled (15) below (no text or symbols on the object itself)

Simple line drawing of two overlapping circular objects with a handle, labeled (16) below (no text or symbols on the shapes)

Diagram showing airflow control mechanism with labeled components and hand cursor pointing to a device

Fig. 3 e 4

Line drawing of three indoor air purifiers with hoses, showing different installation states (no text or symbols)

Fig. 5

in the window pane in the woo- den kickboard of a french window. in the wall : you are recommended to insulate the section of wall using suitable insulation

MAX100 cm MIN35 cm

Fig. 7 e 8

SCARICO CONTINUO

Top-down schematic of an electronic device layout with no visible text or symbols

Illustration of a mechanical assembly with a tool interacting with a device panel (no text or symbols visible)

Technical line drawing of a heat exchanger unit with cooling fins and a heating element (no text or symbols)

Fig. 1

- REINIGING EN ONDERHOUD

Diagram of a portable electronic device with ventilation grilles and control panel (no text or symbols)

Fig. 2.

BEDIENINGSINSTRUCTIES

Simple line drawing of a cylindrical object with a triangular cutout, labeled (15) below (no text or symbols on the object itself)

Diagram showing airflow control mechanism with labeled components and hand gesture pointing to a device

Fig. 3 & 4

Line drawing of three indoor air purifiers with hoses, one mounted on a cabinet, against a window (no text or symbols)

Fig. 5

Semipermanente installatie

in the window pere in the woo- den kickboard of a french window. in the wall : you are recommended to insulate the section of wall using suitable insulation

MAX100 cm MIN35 cm

Fig. 7 & 8

CONTINUE AFVOER

Top-down schematic of an electronic device layout with no visible text or symbols

Illustration of a server rack with a hand connecting cables to a control panel (no text or symbols visible)
