CME121523.3 - Coffee machine Emerio - Free user manual and instructions

USER MANUAL CME121523.3 Emerio

Modern stainless steel coffee maker with a black handle and digital display (no visible text or symbols on the device body)

Thermo-Kaffeeautomat (DE)

Coffee maker with thermos jug (EN)

CE

Inhalt – Teneur – Obsah – Content

HOUR MIN ON/OFF PROG MODE

BEDIENUNG

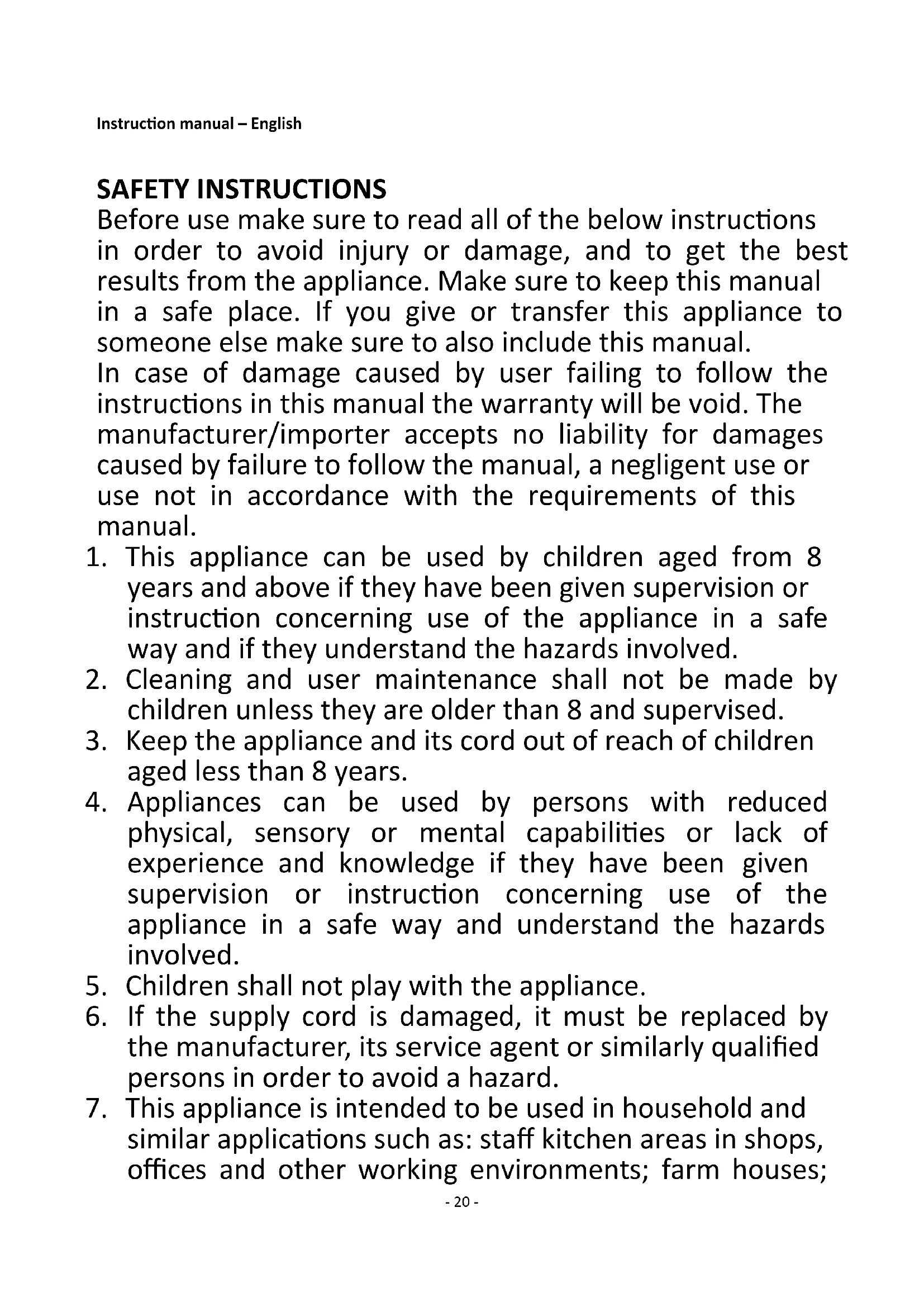

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
2. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
3. Keep the appliance and its cord out of reach of children aged less than 8 years.
4. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
5. Children shall not play with the appliance.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
7. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses;

by clients in hotels, motels and other residential type environment; bed and breakfast type environments.

1. Regarding the instructions for cleaning the surfaces which come in contact with food, please refer to the paragraph “CLEANING AND MAINTENANCE” of the manual.

2. Warning: Avoid spillage on the connector.

3. There is a potential risk of injuries from misuse.

4. The heating element surface is subject to residual heat after use.

5. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

6. Always plug the appliance into an earthed plug socket.

7. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

8. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

9. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

10. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

11. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

12. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

13. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

14. Never attempt to open the housing of the appliance, or

to repair the appliance yourself. This could cause electric shock.

1. Never leave the appliance unattended during use.

2. This appliance is not designed for commercial use.

3. Do not use the appliance for other than intended use.

4. Do not wind the cord around the appliance and do not bend it.

5. Fill the reservoir with water only – not with any other liquids.

6. If you want to make coffee several times consecutively, always switch off the device for about 5 minutes before operating again.

7. Use the appliance on a flat, dry and heat resistance surface.

PARTS DESCRIPTION

1. Lid of reservoir
2. Tray
3. Control Panel (see below)
4. Reservoir with water level indication
5. Thermos jug
6. Brewing chamber
7. Filter basket
8. Reusable mesh filter
9. Lid of thermos jug
10. Anti-drip function
11. Release button of thermos jug

1 2 3 4 5 6 7 8 9 10 11

CONTROL PANEL

TIMER 🔒 🔒 🔒 CLOCK

12:00

HOUR

MIN

ON/OFF

PROG

MODE

OPERATION

Before first-time use:

• Before using this device for the first time please carefully rinse all detachable components with warm water.
• Fill the reservoir with cold water to the maximum water level indication.
  • Afterwards brew water twice without coffee powder.

Use of the thermos jug

• To open the lid of the thermos jug, hold the jug handle with one hand, put fingers at two sides of the lid (hollowed parts) and rotate the lid anticlockwise in the arrow direction to "OPEN". To close the lid, just place back the lid and rotate it clockwise in the arrow direction to "CLOSE".
• The lid of the thermos jug has a safety feature that only when the release button is pressed down, the coffee can be poured out from the jug.
  • The thermos jug can keep the coffee warm during a period of time.

To percolate coffee:

1. Fill the reservoir with cold water.

2. Open the lid of the reservoir and fill it to the desired water level indication. The maximum capacity is 1.2L (approximate 10 cups).

3. Place the reusable mesh filter into the filter basket and place the filter basket into the brewing chamber. Use the measuring spoon to add the amount of coffee powder appropriate to the amount of cups you want to brew. Close the lid of the reservoir.

4. Now place the thermos jug on the tray of the appliance.

5. Plug the power cord into an appropriate outlet. The LED display will flicker a colon “:” and then the default time after you press any button once.

6. By pressing the button "MODE" once or more times, you can set the desired aroma intensity: Ⓞ→ Ⓞ∅

→ Ⓞ Ⓞ Ⓞ → Ⓞ ... . The more Ⓞ shown on the screen, the higher aroma intensity you will get in the coffee . If you don't set this, the appliance works in the default setting with only one Ⓞ shown on the screen. If you want to reset this when the appliance has started running or has been set automatic start, you have to first cancel the the appliance's running or automatic start, then change the mode for aroma intensity.

1. Start brewing coffee by pressing the ON/OFF switch once. The red indicator light ● will illuminate then. The lid of the thermos jug needs to be closed in order to unlock the drip stop function.

2. When brewing finished, the unit will be automatically shut off and stop working after about 2 minutes. You can manually press the ON/OFF switch again to switch on the appliance.

Note: The appliance is designed with an Anti-drip function. You can temporarily remove the jug and pour out coffee during brewing cycle without coffee dripping from the appliance within 30 seconds.

AUTOMATIC START FUNCTION

If you do not want the coffee maker to start operation immediately, for example now it is 5:10 pm, you hope that the coffee maker will automatically start at 8:15 in the evening, first follow steps 1 to 6 of above section,

and then you can set the automatic start function as follows:

1. Press PROG button one time, the word "CLOCK" is showed at the up-right corner of display.

2. Press the HOUR and MIN button continuously to set the current time (real clock), that is 17:10 (see Fig. 1).

Note: the time cycle is 24 hours.

1. Press PROG button again and the word TIMER shows on up-left corner of display.

2. Set the delayed starting time by pressing HOUR and MIN button repetitively, that is 20:15 (see Fig. 2).

Fig.1

Fig.2

1. Press the "ON/OFF" button twice, the blue indicator light ● will illuminate. The LED display will show the current clock. You may see the automatic start time by pressing PROG twice.

Note:

• You may cancel the automatic start function by pressing "ON/OFF" button once to stop machine, or pressing "ON/OFF" button twice to start brewing immediately.
• You can reset the present time and automatic start time by pressing the PROG button once or twice. Remember when there is a "CLOCK" displayed, you can modify the current time, and when "TIMER" is displayed, you can modify the automatic start time. If there is no word marking on top, the display shows the set current time.
• If you need to change the time setting midway, you have to press "ON/OFF" button first to exit from the automatic start function first and then reset the time.
• When the time is due, the indicator light changes from the blue one to the red one and the unit starts brewing. When brewing is finished, the coffee maker will be automatically shut off after 35 minutes if it is not manually switched off.

Descaling:

• Regularly descale the coffee maker. The intervals of descaling depend on the water hardness and frequency of operation. In case of average water hardness we suggest descaling every 3 or 4 months. Please use a commercially available decalcification agent.
• Fill 400 ml of water into the reservoir and add the necessary amount of decalcification agent in accordance with the dosing instructions.
• Let the decalcification agent sink in the coffee maker for about one hour. Switch on the unit after one hour and let the water pass through. After that you should brew water several times and rinse all detachable components, in order to clean off any residue.

CLEANING AND MAINTENANCE

• Before cleaning remove the mains plug and let the device cool down.
• Never immerse the device in water. Please use a slightly damp cloth to clean the surfaces.
• Avoid using acrid or scrubbing cleaning agents.
• Keep the coffee maker in a dry place out of reach from children when cooled off and cleaned.
• Do not wrap the cord around the device.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50/60Hz

Power: 800W

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

Our products are produced according to strict quality control standards. If this product does not function correctly, contact the retailer or the service address overleaf. The product comes with a 36-month guarantee, which commences on the day of purchase. A fee will be charged for repairs conducted after the warranty expires. Please retain your receipt as proof of purchase. The guarantee only covers faults caused by material and manufacturing defects. Misuse, improper use, use of force and third-party tampering or repairs shall void the warranty. We shall not be liable for any subsequent consequential damages. In addition, we shall not be liable for material damages or injuries resulting from incorrect use or failure to observe the safety information. Damage to accessories does not mean that the entire device will be exchanged free of charge. In the event of such damage, contact our customer service staff. A fee will be charged to replace broken glass or plastic parts. Damage to consumables or expendable parts as well as cleaning, maintenance or replacement of such parts is not covered by the warranty and a charge shall apply. Your statutory rights are not affected by this guarantee.

Note: In the event of a warranty claim, please send the defective device together with the purchase receipt and guarantee card with a description of the defect.
