USER MANUAL VideoFlex G4 XXL Laserliner

2020/01/14 20:12:05 2020/01/14 20:12:052020/01/14 20:12:05

1x = 20% 2x = 40% 3x = 60% 4x = 80% 5x = 100% 2020/01/14 20:12:05

2020/01/14 20:12:052020/01/14 20:12:052020/01/14 20:12:0500:00:002020/01/14 20:12:05

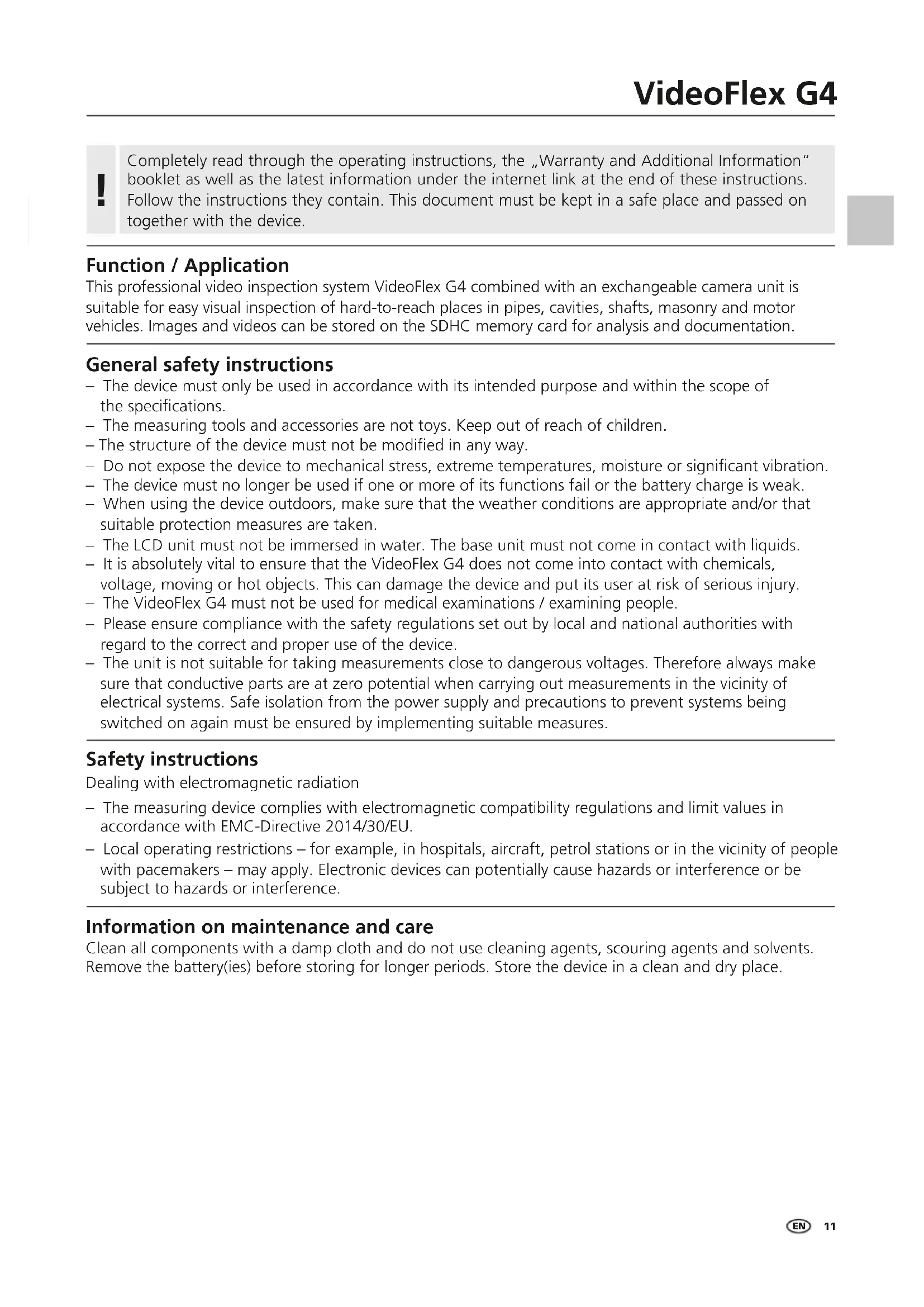

Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

VideoFlex G4 Function / Application This professional video inspection system VideoFlex G4 combined with an exchangeable camera unit is suitable for easy visual inspection of hard-to-reach places in pipes, cavities, shafts, masonry and motor vehicles. Images and videos can be stored on the SDHC memory card for analysis and documentation. General safety instructions – The device must only be used in accordance with its intended purpose and within the scope of the specications. – The measuring tools and accessories are not toys. Keep out of reach of children. – The structure of the device must not be modied in any way. – Do not expose the device to mechanical stress, extreme temperatures, moisture or signicant vibration. – The device must no longer be used if one or more of its functions fail or the battery charge is weak. – When using the device outdoors, make sure that the weather conditions are appropriate and/or that suitable protection measures are taken. – The LCD unit must not be immersed in water. The base unit must not come in contact with liquids. – It is absolutely vital to ensure that the VideoFlex G4 does not come into contact with chemicals, voltage, moving or hot objects. This can damage the device and put its user at risk of serious injury. – The VideoFlex G4 must not be used for medical examinations / examining people. – Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device. – The unit is not suitable for taking measurements close to dangerous voltages. Therefore always make sure that conductive parts are at zero potential when carrying out measurements in the vicinity of electrical systems. Safe isolation from the power supply and precautions to prevent systems being switched on again must be ensured by implementing suitable measures. Safety instructions Dealing with electromagnetic radiation – The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU. – Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference. Information on maintenance and care Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place. EN12

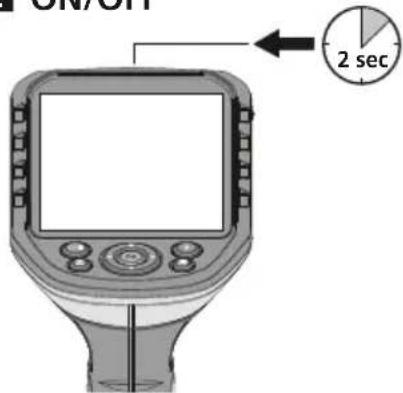

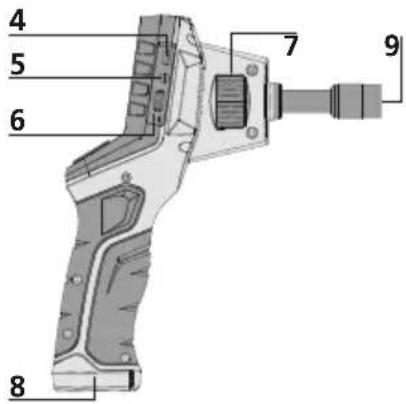

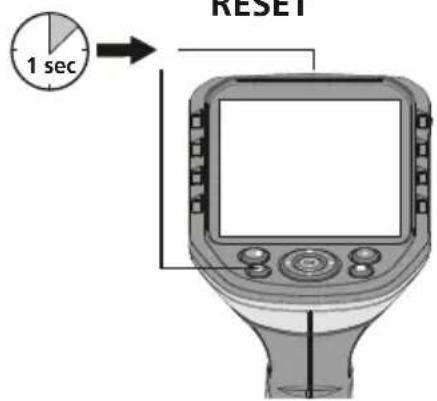

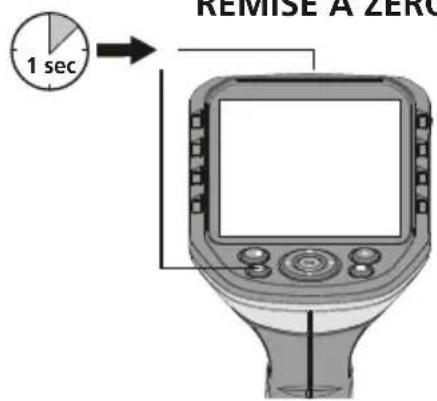

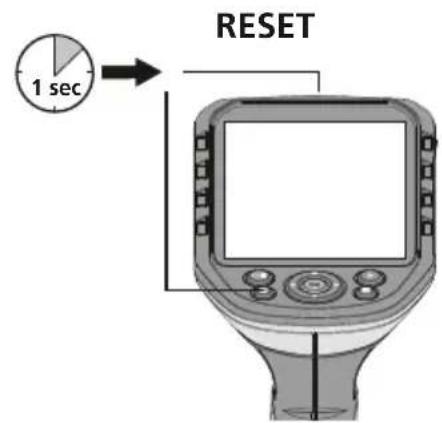

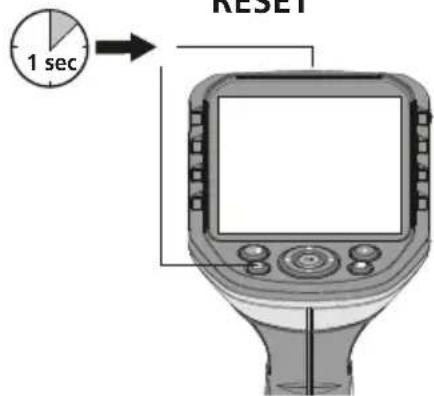

LCD ON/OFF Hot keys Type C USB interface Video output Micro SD card slot Camera unit with rotary control Battery compartment Camera unit connection Settings mode / Cancel Menu control / Zoom out Trigger / Record / Conrm Image / video selection

Rotation 180° / Mirroring / Delete recording Menu control / LED lighting – Menu control / Zoom in Menu control / LED lighting + Media gallery

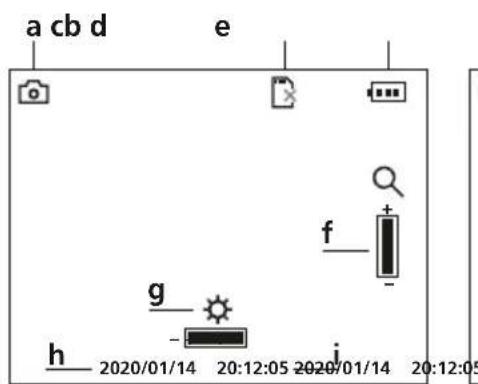

Image recording Insert SD card Battery status Video recording REC: Recording Zoom LED lighting Current date Current time 2020/01/14 20:12:05 2020/01/14 20:12:05

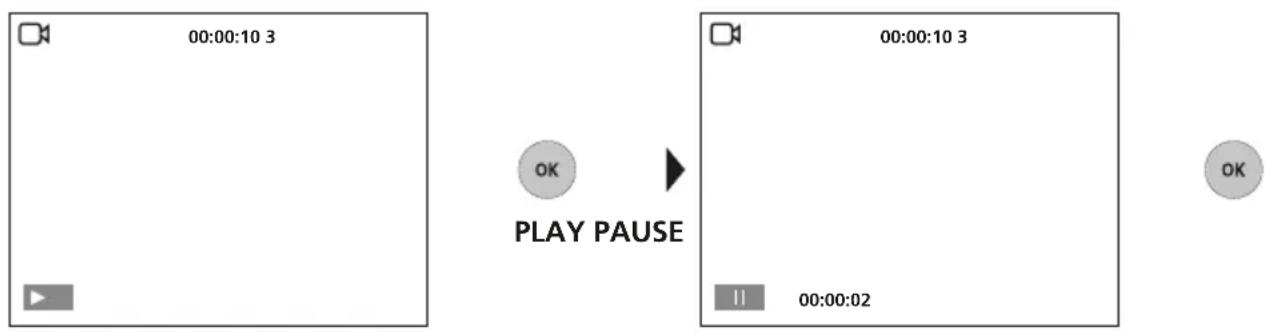

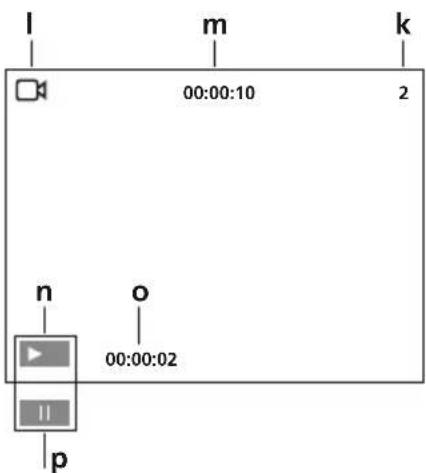

Image recording Number of image Video recording Recording time Play Play duration Pause j k kl m 00:00:101 2 n o 00:00:02

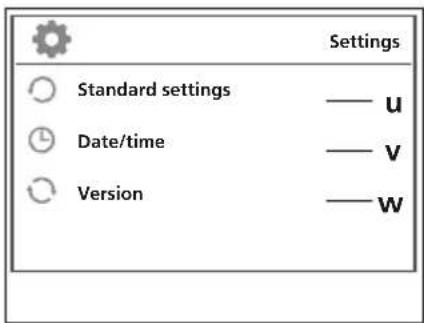

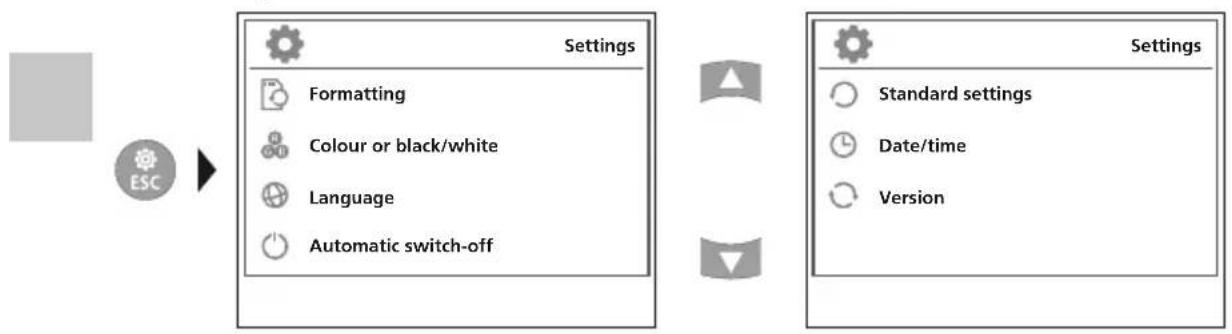

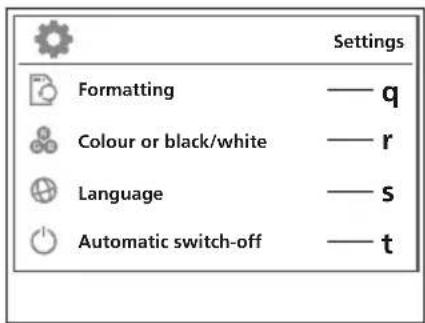

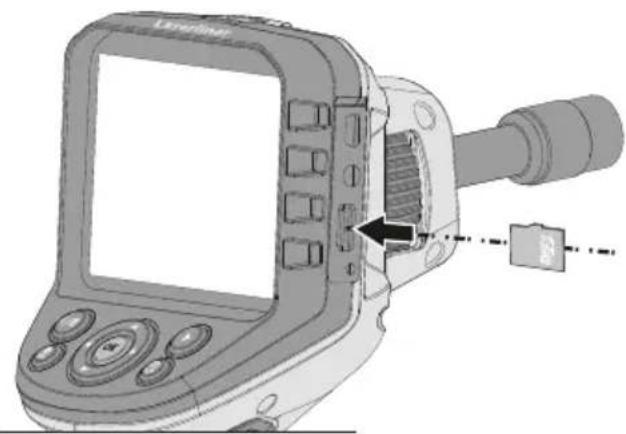

Inserting micro-SD card To insert a micro-SD card, rst open the rubber cover and then insert the memory card as illustrated. You cannot record anything without a storage medium. The device must be switched off before removing the micro-SD.

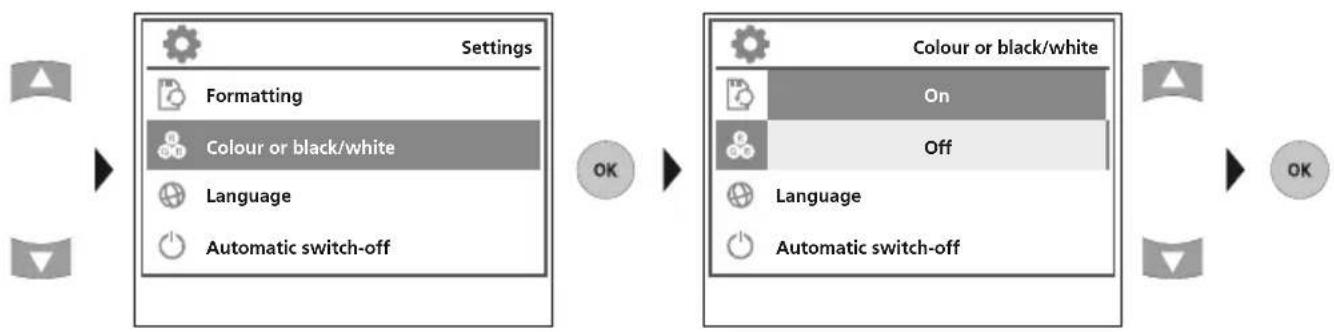

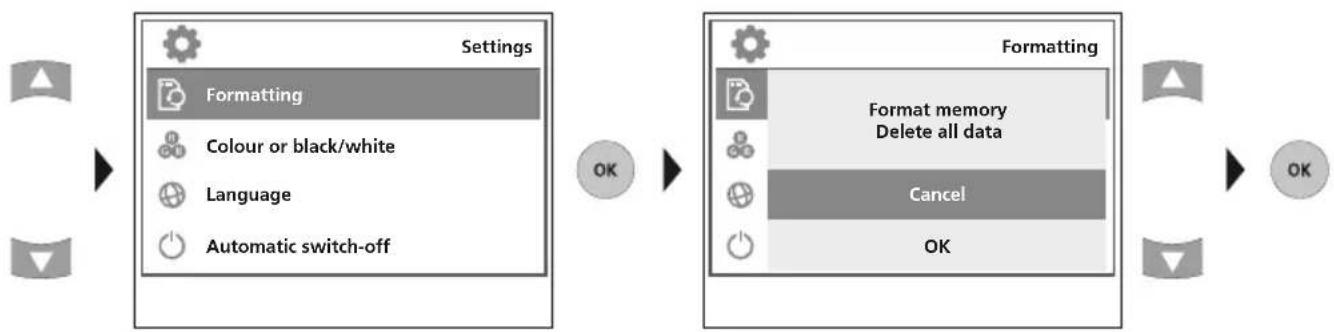

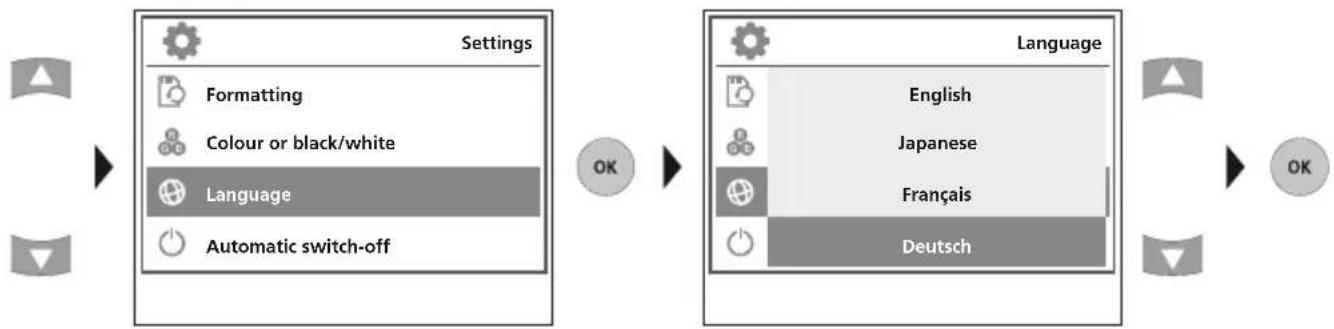

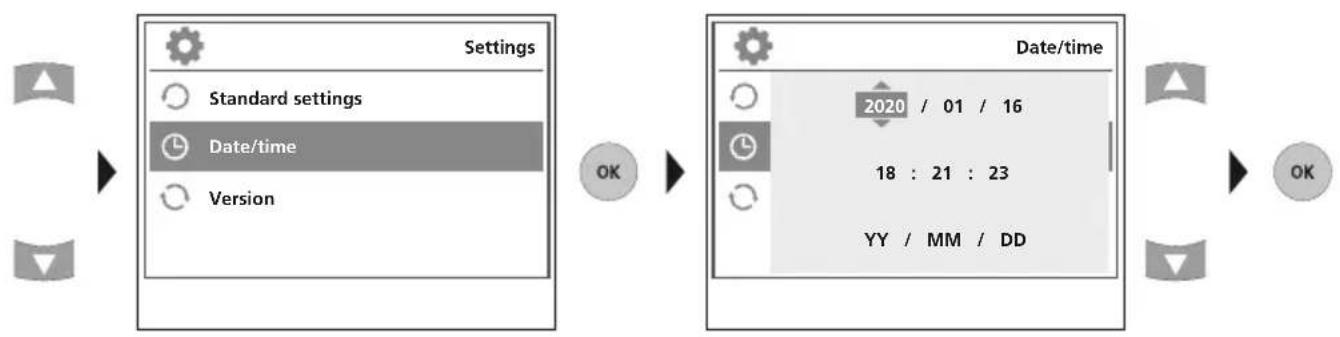

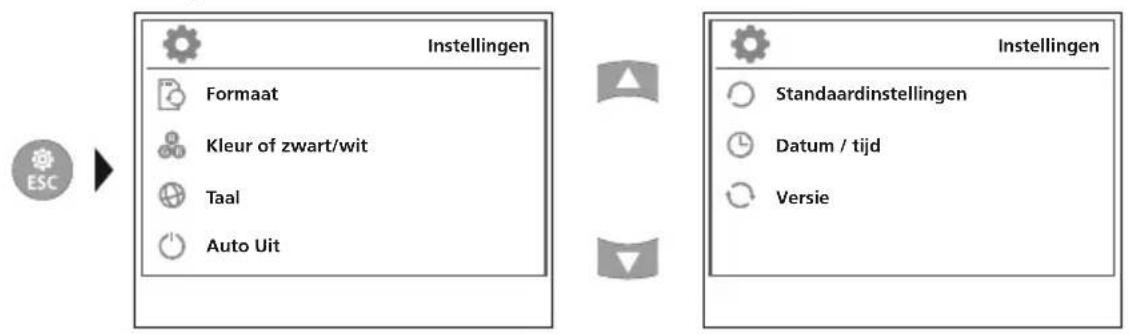

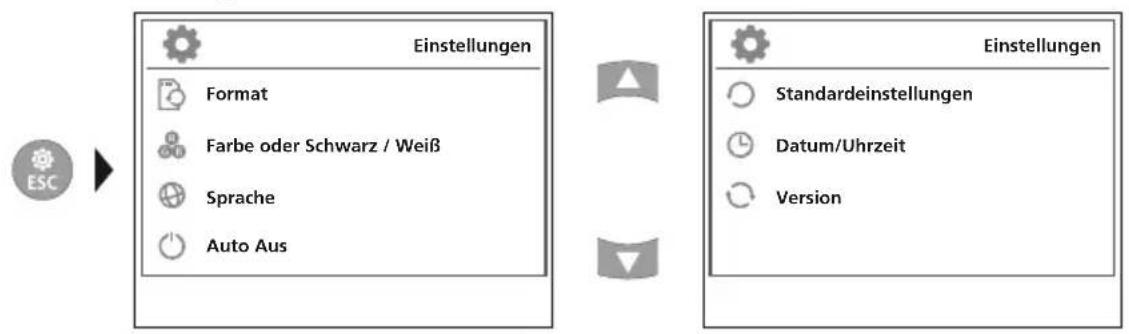

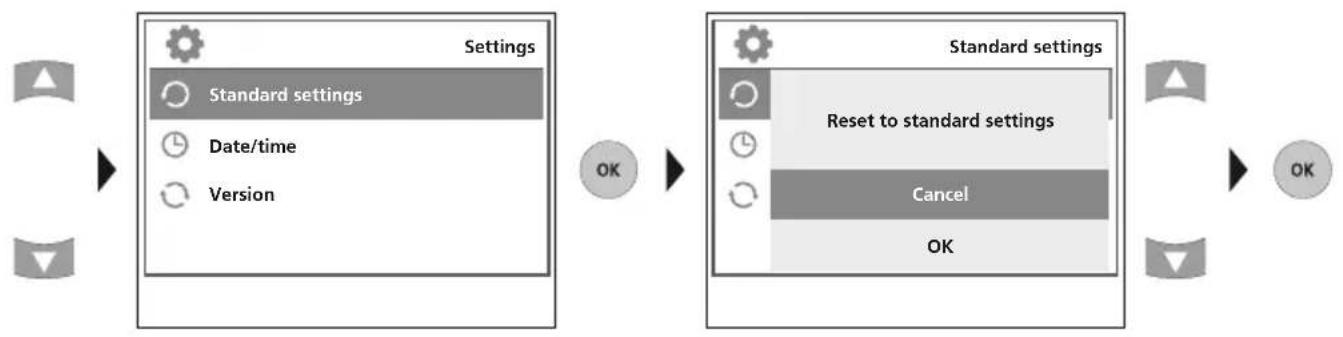

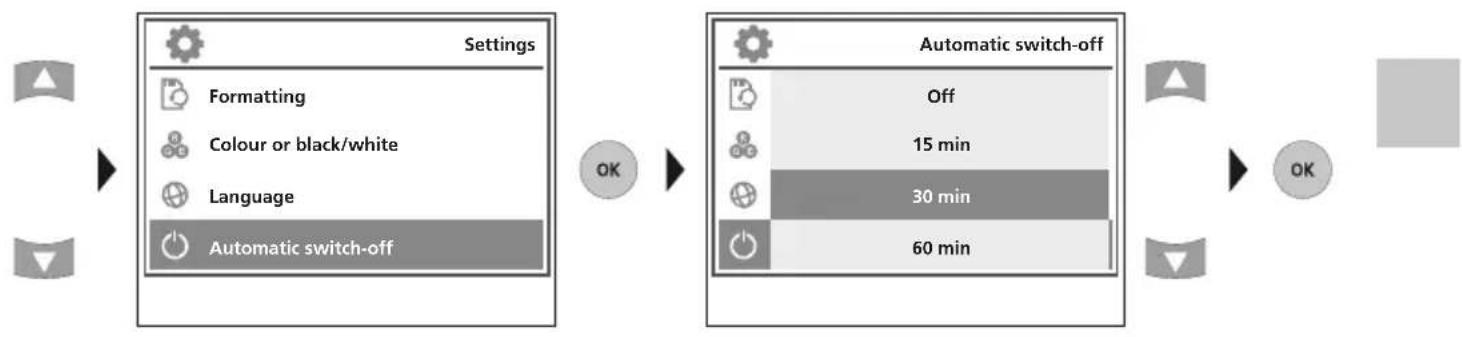

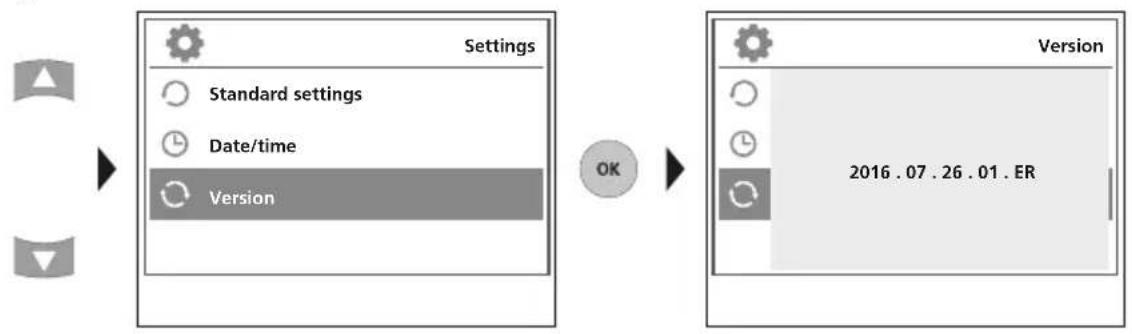

Off All data on the SD card will be deleted. This procedure cannot be undone. There is no further prompt to confirm deletion.

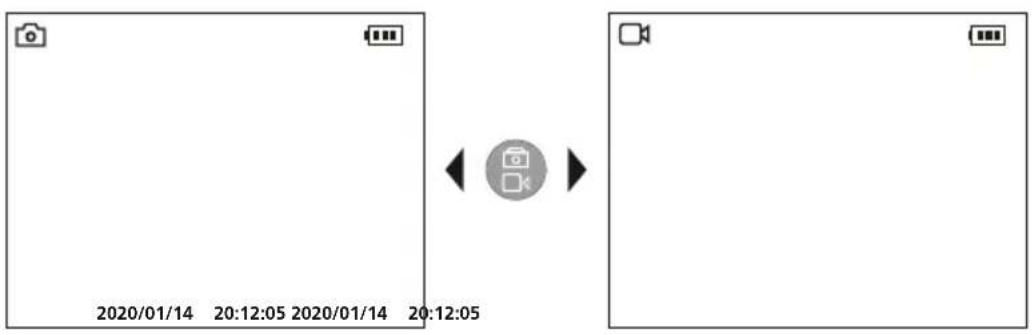

EN16 a. Image/video recording selection b. LED lighting c. Zoom

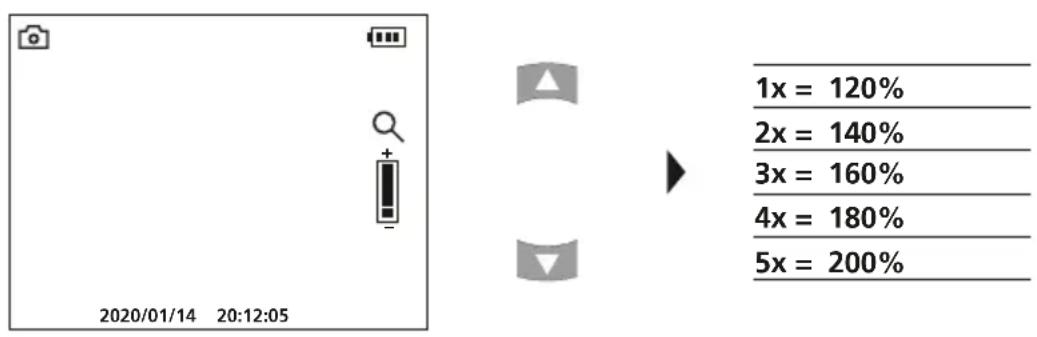

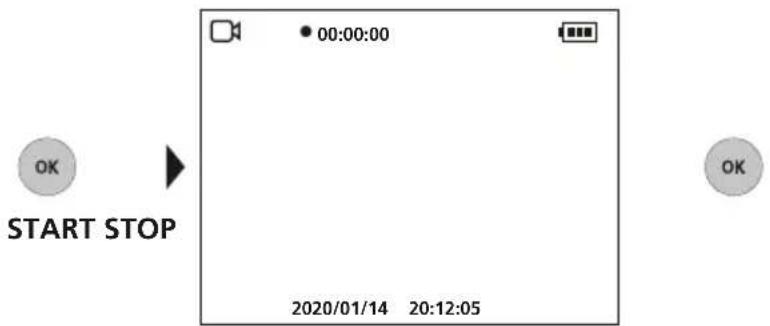

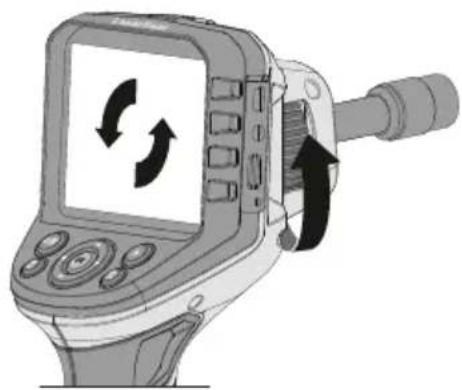

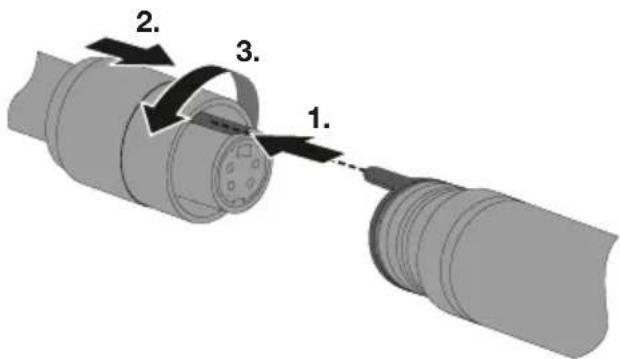

Record mode Still images/Video recordings Line up the camera head on the ex cable and move it to the required position. If lighting conditions are poor, switch on the LED lighting. Zoom in on distant or small objects. The manual image rotation function enables the image to be rotated by 180° on the monitor. Briey press the OK button to take a still image or make a video recording and save it to the SD card. Press the button again to stop recording. 2020/01/14 20:12:05

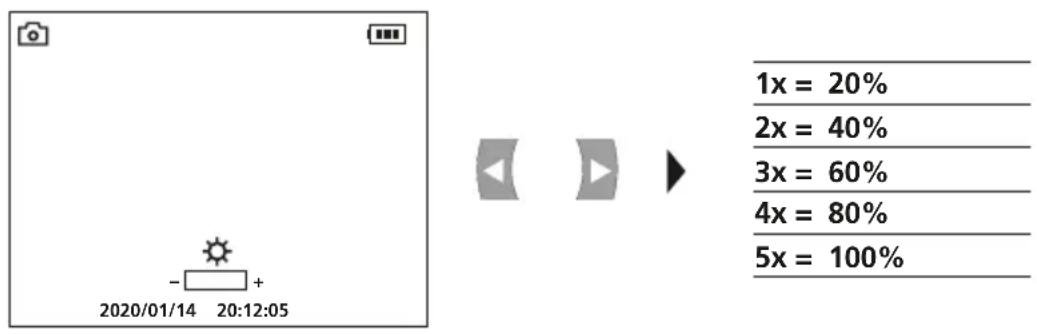

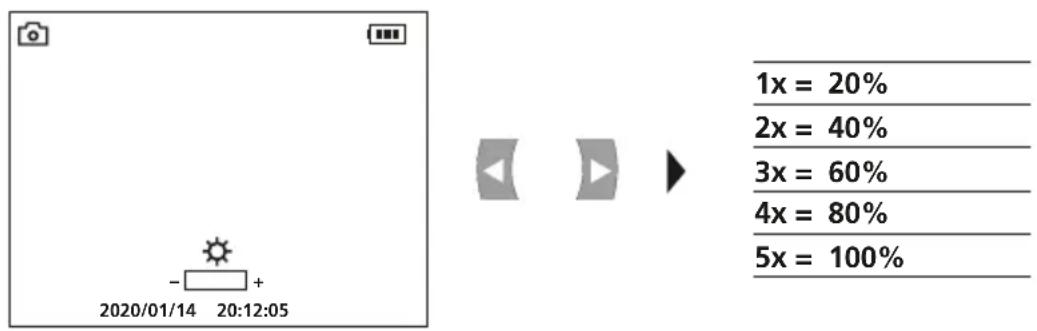

1x = 20% 2x = 40% 3x = 60% 4x = 80% 5x = 100% 2020/01/14 20:12:05

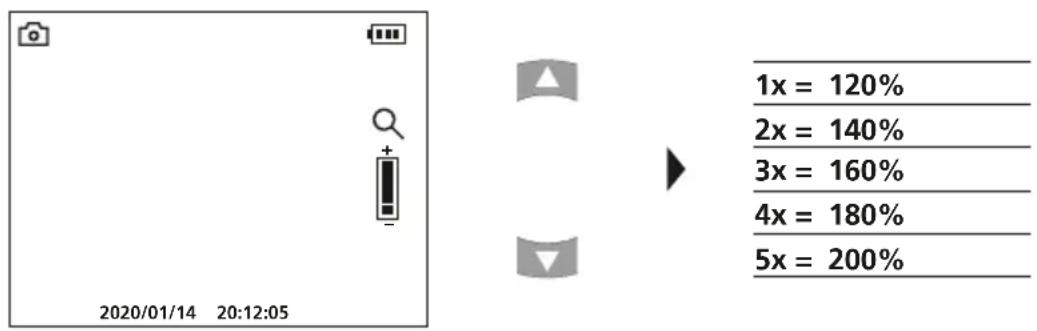

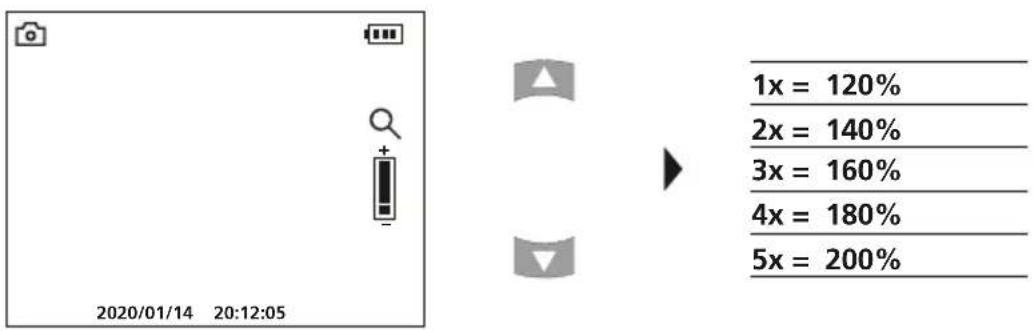

1x = 120% 2x = 140% 3x = 160% 4x = 180% 5x = 200% ENVideoFlex G4

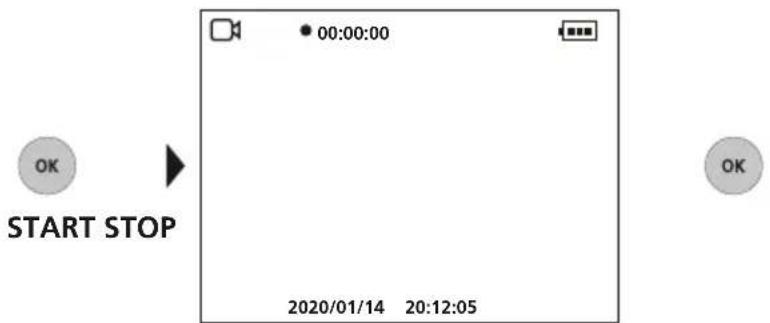

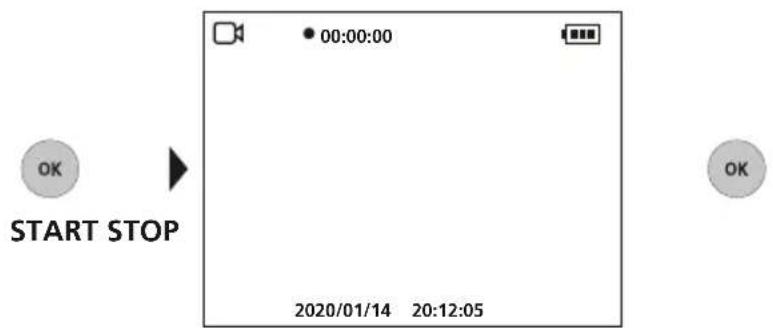

2020/01/14 20:12:052020/01/14 20:12:052020/01/14 20:12:0500:00:00e. Record still imagef. Start/stop video recordingd. Image rotation / Mirroring Manual image alignment with xed camera unit with exible camera unit1x = horizontal mirroring 2x = Rotation 180°3x = vertical mirroring4x = Original imageFrom the original imageSTART STOP2020/01/14 20:12:05

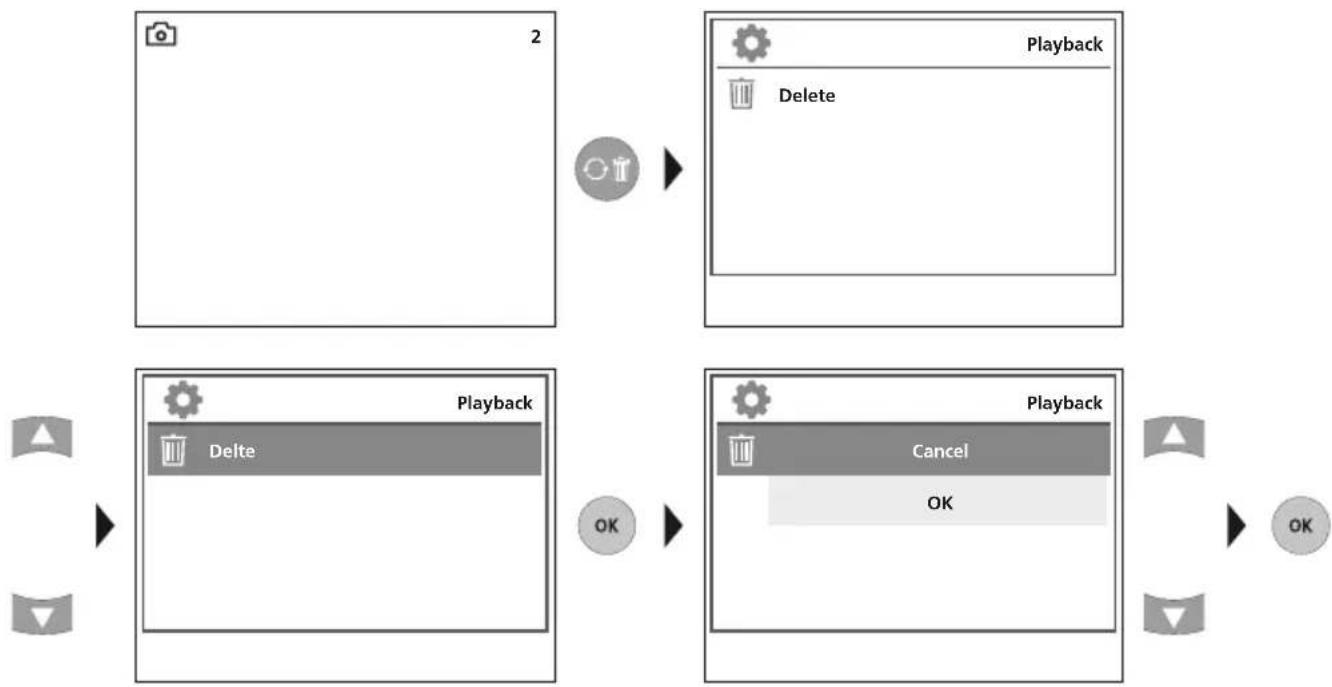

DeletePlaybackCancel DeltePlayback Recordings can only be deleted in full screen mode. Deleting cannot be undone.

All files and folders can be deleted by reformatting the data medium. Refer to „4 a. Format Data Medium“.

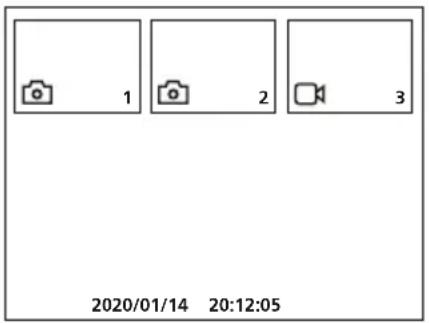

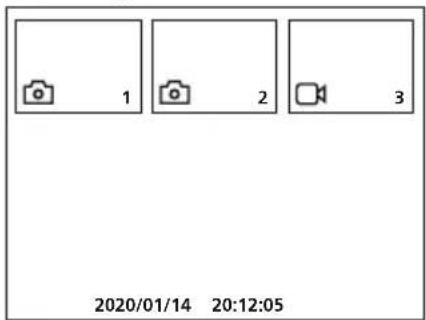

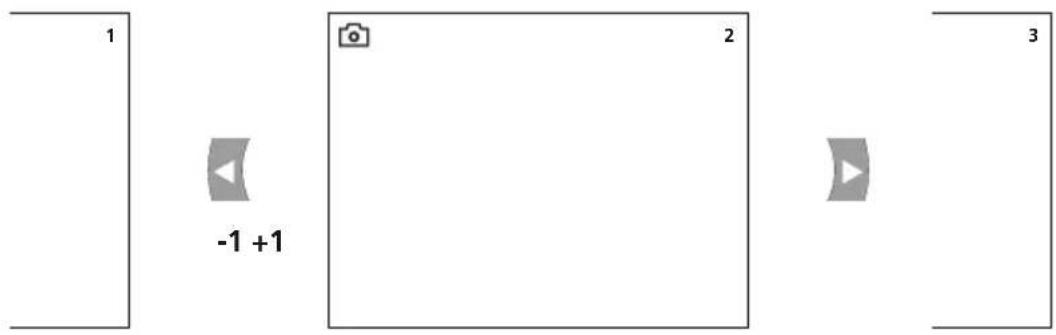

Playback mode Playback of still images/video recordings Press the „e“ button to call up the media gallery. Conrm with „OK“ to show the selected image or video in full screen mode. Use the arrow keys to navigate in the media gallery and full screen mode. Press the „f“ button to exit playback mode. 2020/01/14 20:12:05

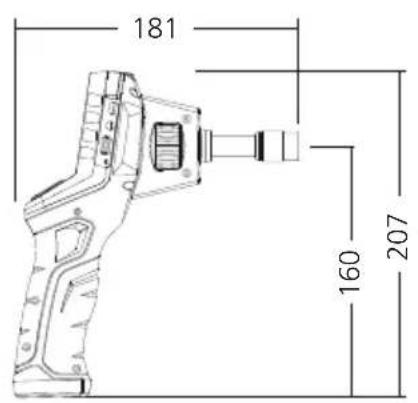

USB data transfer Data saved on the SD card can be transferred to PC either with a suitable card reader or directly via the USB port. Please refer to the manual supplied with your card reader for information about connecting your card adapter or card reader to a PC. Technical Data Technical revisions reserved. 21W09 Screen type 3.5” TFT colour display Display resolution 320 x 240 pixels Image/Video resolution 640 x 480 pixels Image format/Video format JPEG / AVI Memory Micro-SD memory card up to 16 GB Connections USB type C, RCA video output Power supply Li-ion battery pack 3.7V / 2.8Ah Operating time approx. 5 hours Operating conditions 0°C … 45°C, max. humidity 20 … 85% rH, no condensation, max. working altitude 4000 m above sea level Storage conditions -10°C … 60°C, max. humidity 80% rH Dimensions (W x H x D) 181 x 207 x 96 mm Weight 342 g (incl. battery pack) EU directives and disposal This device complies with all necessary standards for the free movement of goods within the EU. This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment. Further safety and supplementary notices at: http://laserliner.com/info?an=AGG Connect power supply/battery charger To charge the device, plug the supplied power supply/charger into the type C USB „4“ interface and connect it to a suitable power source. c. Playback PLAY PAUSE 00:00:10 300:00:10 300:00:02 Press the „ESC“ button to stop playback. EN20
