TG110281.1 - Grill plate Emerio - Free user manual and instructions

Product type	Electric grill plate
Brand	Emerio
Model	TG110281.1
Power supply	230 V ~ 50 Hz
Power	1500 W
Temperature setting	Adjustable thermostat from 1 to 5 with indicator light
Coating	Non-stick surface
Oil drip tray	Yes, removable and dishwasher safe
Handles	Insulated carrying handles
Power cord	Detachable with thermostat probe
Usage	Indoor, on a flat, heat-resistant surface
Safety	Automatic shut-off (via thermostat), overheat protection, grounded plug
Maintenance	Clean after cooling with a damp cloth; oil tray in dishwasher
Recommended utensils	Wood, nylon or plastic; do not use metal
Warranty	2 years
Country of origin	Netherlands (Emerio Holland B.V.)
Dimensions (approx.)	Not specified; estimated 40 x 30 x 10 cm
Weight (approx.)	Not specified; estimated 2.5 kg

Frequently Asked Questions - TG110281.1 Emerio

How to use the Emerio TG110281.1 grill plate for the first time?

Before first use, remove all packaging. Clean the plate with a damp cloth. Plug in the appliance and heat it empty for 10 minutes at medium temperature (position 2 or 3) to remove manufacturing odors. Let it cool, then clean again.

How to adjust the temperature on the Emerio grill?

Turn the temperature control knob to positions 1 to 5. The indicator light turns on when the element heats up and turns off when the temperature is reached. To turn off, set the knob to the 'OFF' position.

Can I use metal utensils on the non-stick surface?

No, only use wood, nylon or plastic utensils to avoid scratching the non-stick coating. Avoid cutting food directly on the plate.

How to clean the grill plate after use?

Unplug the appliance and let it cool completely. Wipe the plate with a damp cloth and mild dish soap. The oil tray can be washed in the dishwasher. Never immerse the cord or probe in water.

What to do if the appliance smokes during first use?

This is normal: slight smoke may occur due to residual protective oil. Ensure good ventilation and let it heat for 10 minutes. The smoke will disappear quickly.

Can the grill be used with charcoal or flammable materials?

No, this grill is electric and should not be used with charcoal, firelighters or any other flammable materials. Follow the safety instructions.

What is the power of the appliance and which socket to use?

The grill has a power of 1500 W and operates on a 230 V ~ 50 Hz socket. Use a grounded outlet. Avoid using an extension cord, but if necessary, it must be at least 10 A.

How to store the appliance after use?

Make sure the appliance is unplugged and completely cooled. Wind the cord without sharp bends. Store it in a dry place out of reach of children.

Can I wash the grill plate in the dishwasher?

No, the plate itself should not be washed in the dishwasher. Only the oil tray is dishwasher safe. For the plate, use a damp cloth.

What to do if the power cord is damaged?

If the cord is damaged, it must be replaced by the manufacturer, its service agent or a qualified person. Do not use the appliance with a damaged cord.

USER MANUAL TG110281.1 Emerio

Exterior view of a modern stainless steel heat exchanger or cooling unit (no text or symbols visible)

Teppanyaki grill (EN)

Teppan-yaki grill (DE)

Plaque chauffante teppanyaki (FR)

Teppan-yaki-grill (SE)

Teppanyaki grill (NL)

Teppan Yaki - grilli (FI)

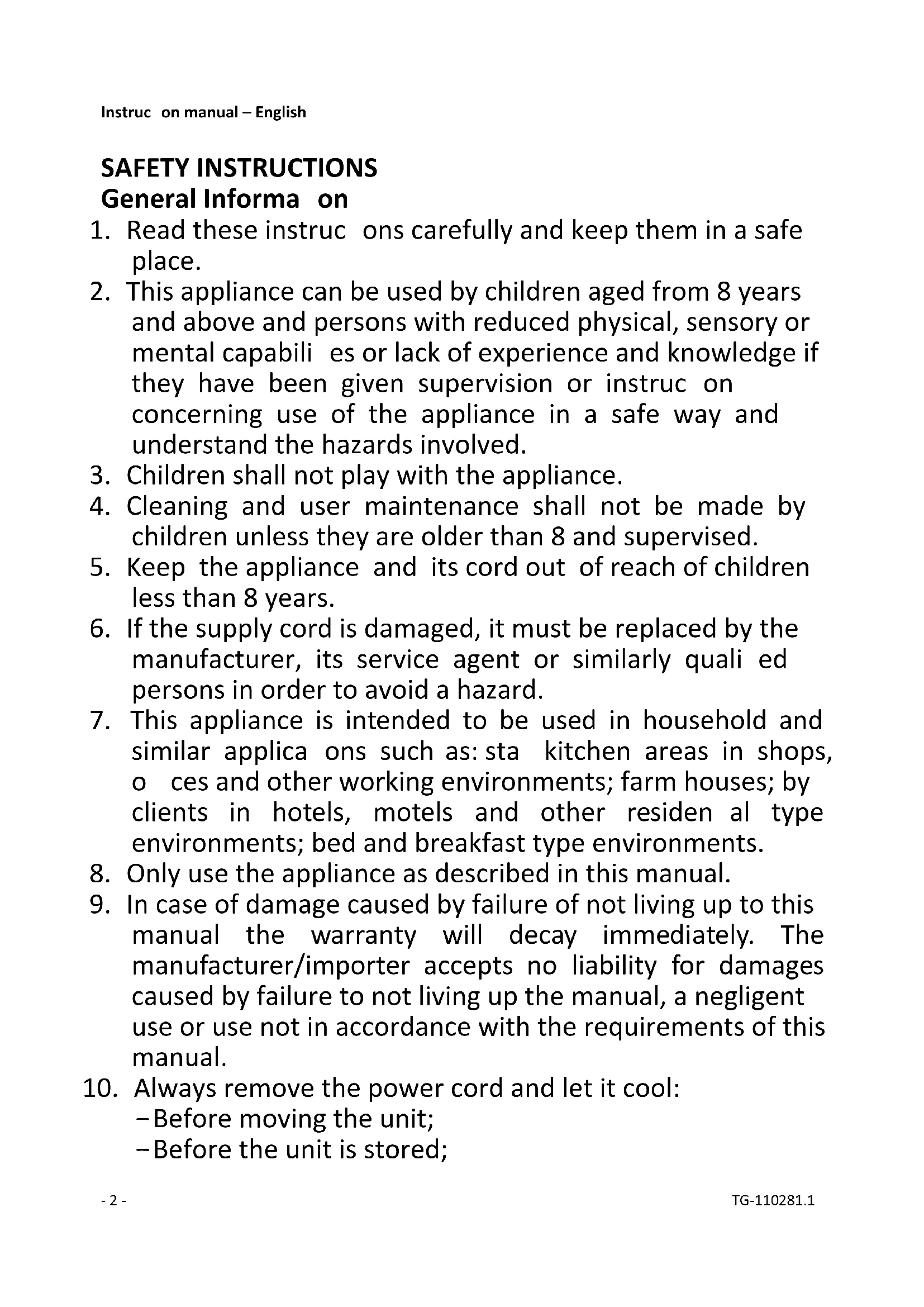

1. Read these instructions carefully and keep them in a safe place.

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruct on concerning use of the appliance in a safe way and understand the hazards involved.

3. Children shall not play with the appliance.

4. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

5. Keep the appliance and its cord out of reach of children less than 8 years.

6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

7. This appliance is intended to be used in household and similar applica ons such as: sta kitchen areas in shops, o ces and other working environments; farm houses; by clients in hotels, motels and other residen al type environments; bed and breakfast type environments.

8. Only use the appliance as described in this manual.

9. In case of damage caused by failure of not living up to this manual the warranty will decay immediately. The manufacturer/importer accepts no liability for damages caused by failure to not living up the manual, a negligent use or use not in accordance with the requirements of this manual.

10. Always remove the power cord and let it cool:

- Before moving the unit;

- Before the unit is stored;

• Before you go moun ng or dismantle parts;
• Before cleaning or maintenance work;

• A er use.

• Only have the appliance repaired by a qualified service centre.

Electricity and heat

1. Before use, check that the mains power supply voltage is the same and the voltage is the same as the voltage indicated on the appliance.
2. Always plug the appliance into an earthed plug socket.
3. Regularly check the power cord for damage.
4. Do not operate any appliance with a damaged cord or plug or a er the appliance malfunc ons, or is dropped or damaged in any manner. Return appliance to manufacturer or the nearest authorized service agent for examina on, repair or electrical or mechanical adjustment.
5. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
6. Make sure the power cord does not come into contact with hot surfaces or steam.
7. Always remove the plug from the plug socket before you move the appliance.
8. The machine should not be operated by means of an external mer-switch or by means of a separate system with remote control.
9. If an extension cord is absolutely necessary, a 10-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.
10. To avoid a circuit overload, do not operate another high voltage appliance on the same circuit.

11. To protect against electric shock do not immerse cord, plugs, or housing in water or other liquid.

12. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn o the appliance and do not use it again.

13. Do not use the appliance close to hot objects such as a stove or oven.

Using the appliance

1. The use of accessory a achment not recommended by the appliance manufacturer may cause injuries.
2. Only use the appliance indoors, in dry areas away from water.
3. Place the appliance on a stable, level surface from which it cannot fall o .
4. Use the appliance on a at, dry and heat resistance surface, not on varnished furniture.
5. Place the appliance at least 5cm o the wall or ammable objects (such as curtains, candles or towels).
6. Disconnect the mains plug: a er each me opera ng; if there is any interference with opera on; before cleaning.
7. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and openames.
8. Do not use the appliance if the mains cable or plug show signs of damage, if the appliance has fallen on the 00 or has other parts damaged. In such cases take the appliance to a specialist for checking and repair if necessary.
9. Close supervision is necessary for any appliance being used by or near children.
10. Never leave the appliance una ended during use.
11. It is necessary to keep this appliance clean because it is in direct contact with food.
12. Parts of the appliance become hot during use. Therefore, the appliance must only be held by the handle. Avoid touching the metal parts as they become very hot.
13. The heating element has been slightly greased and as a result the appliance might slightly smoke when switched

on for the rst me. A er a short while, this will cease. Let the appliance work for 10 minutes before rst use, this will remove the smell and smoke.

1. Always attach the probe to griddle before plugging cord into wall outlet. To disconnect, turn temperature control knob to "OFF", then remove plug from wall outlet.
2. Extreme cau on must be used when moving an appliance containing hot oil or other hot liquids.
3. Use extreme cau on when disposing hot grease.
4. The connector must be removed before the appliance is cleaned and the appliance inlet must be dried before the appliance is used again.
5. Only the appropriate connector must be used.
6. Warning: charcoal or similar combustible fuels must not be used with this appliance.
7. Warning!!

Please do not touch surface while in use. The accessible surface may get hot when the appliance is operating.

1. Regarding the instruc ons for cleaning the surfaces which come in contact with food or oil, please refer to the paragraphs “CLEANING INSTRUCTIONS” and “HINTS FOR CARE AND USE OF NON-STICK SURFACE”.

USING YOUR GRILL

1. Before rst use, see CLEANING INSTRUCTIONS and HINTS FOR CARE AND USE OF NON-STICK SURFACE.

2. Li the heating plate up, and insert the oil container into the slot in the center of the base. Place the heating plate onto the base, inserting the probe receptacle into the slot on the side of the base. Attach the thermostat connector into the unit. Make sure the temperature control faces upwards.

3. Connect the mains plug to a suitable socket.

4. Set the desired temperature by means of the temperature control 1/2/3/4/5. The indicator lamp lights up.

5. The unit, on its first use, might emit light smell. It is however of no consequence. Brie y ensure sufficient ven la on.

6. As soon as this temperature has been attained, the indicator light goes off.

7. When the grill has cooled down, the grill is heated up again automatically. The indicator light glows Il the set temperature is aained again.

8. Always turn the temperature control to "OFF", to switch off the grill.

9. Pull out the mains plug from the socket and pull out the thermostat connector from the unit.

10. Carry the grill only by the handles.

11. Let the grill cool down outside the reach of the children. Cau on: Grill surfaces are hot during use.

CLEANING INSTRUCTIONS

1. Unplug and allow it to cool completely before cleaning or moving.
2. Remove cord set (Do not immerse it in water), wipe with a damp cloth and dry thoroughly.
   Cau on: Probe and probe receptacle must always be completely dry before use.

Note: The oil container is dishwasher safe.

HINTS FOR CARE AND USE OF NON-STICK SURFACE

• To avoid scratching the non-s ck surface, do not stack objects on grill.
- Use medium to low heat for best cooking results. Very high temperatures can cause discolora on and shorten the life span of any non-sck surface. If higher temperatures are necessary, preheat on medium for a few minutes.
- Use only nylon, plas c or wooden utensils with care to avoid scratching the non-s ck surface. Never cut food on the grill.
- Remove stubborn stains with a plas c scouring pad and mild dish washing liquid.
- Do not use steel wool.

TECHNICAL DATA

Opera ng voltage: 230V \~ 50Hz

Power consump on: 1500W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during produc on or transporta on, please return the device to your dealer. In addi on to statutory legal rights, the purchaser has an op on to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to intervenants and repairs by third parties or the ongoing of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequent damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling

This marking indicates that this product should not be disposed with other household wastes throughout the 2012/19/EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collect on systems or contact the

retailer where the product was purchased. They can take this product for environmental safe recycling.

Emerio Holland B.V.

Zomervaart 1A

2033 DA Haarlem

The Netherlands

Customer service:

T: [phone]

E: [e-mail]
