LED Pinspot 2 - Effect machine Chauvet - Free user manual and instructions

Product type	Effect machine – LED projector
Brand	Chauvet
Model	LED Pinspot 2
Dimensions (L × W × H)	200 × 110 × 150 mm (7.87 × 4.33 × 5.90 in)
Weight	0.4 kg (0.8 lb)
Power supply	100–240 VAC, 50/60 Hz, universal
Operating current	0.1 A
Light source	1 white 3 W LED
LED lifespan	50,000 hours
Beam angle	5° (installed) or 9° (included)
Illuminance @ 2 m	5,700 lux (5°) / 1,335 lux (9°)
Max. external temperature	40 °C (104 °F)
Cooling	Convection
Protection rating	Indoor use only (IP not specified)
Box contents	Projector, additional lens (9°), set of 4 color gels, hanging bracket, quick reference guide
Connector	Fixed power cord (type according to region)
Safety	Do not open, do not look at the source, use a safety cable when hanging, do not connect to a dimmer
Maintenance	Disconnect before cleaning; use a dry, non-abrasive cloth
Use	Professional, indoor
Repairability	No user-serviceable parts; contact the manufacturer

Frequently Asked Questions - LED Pinspot 2 Chauvet

How to replace the lens of the LED Pinspot 2?

Remove the retaining ring by turning counterclockwise. Replace the lens with the supplied 9° lens. Be sure to reinstall the retaining ring to prevent the lens from falling when hanging.

Can I use a dimmer with this projector?

No, never plug this projector into a dimmer or rheostat. This could damage the unit and void the warranty.

What type of safety cable is recommended?

Use an appropriate safety cable, such as the Chauvet CH-05. Pass it through the mounting bracket and attach it to a load-bearing structure.

How to install the color gels?

Remove the retaining ring to access the lens. Place the gel between the lens and the ring, then screw the ring back on. Make sure it is secure.

What is the required power supply voltage?

The unit accepts a universal voltage of 100–240 VAC, 50/60 Hz. It automatically adapts.

Can I use this projector outdoors?

No, this projector is designed for indoor use only. Do not expose it to rain, moisture, or temperatures above 40 °C.

What is the minimum safe viewing distance?

Do not look at the light source from less than 2.7 meters (8.86 feet). Beyond that, prolonged viewing is safe.

How to clean the unit?

Disconnect the unit before cleaning. Use a soft, dry cloth. Do not use abrasive or liquid products.

What to do if the unit does not turn on?

First check that the power cord is properly plugged in and that the outlet is powered. If the problem persists, contact a qualified technician. Never open the unit yourself.

Where to find spare parts?

Spare parts (lenses, gels) are available from your Chauvet dealer or after-sales service. Use only genuine parts.

USER MANUAL LED Pinspot 2 Chauvet

QR code image containing encoded data, no visible human-readable text

Scan the QR code to access the product page, warranty terms, and the complete User Manual

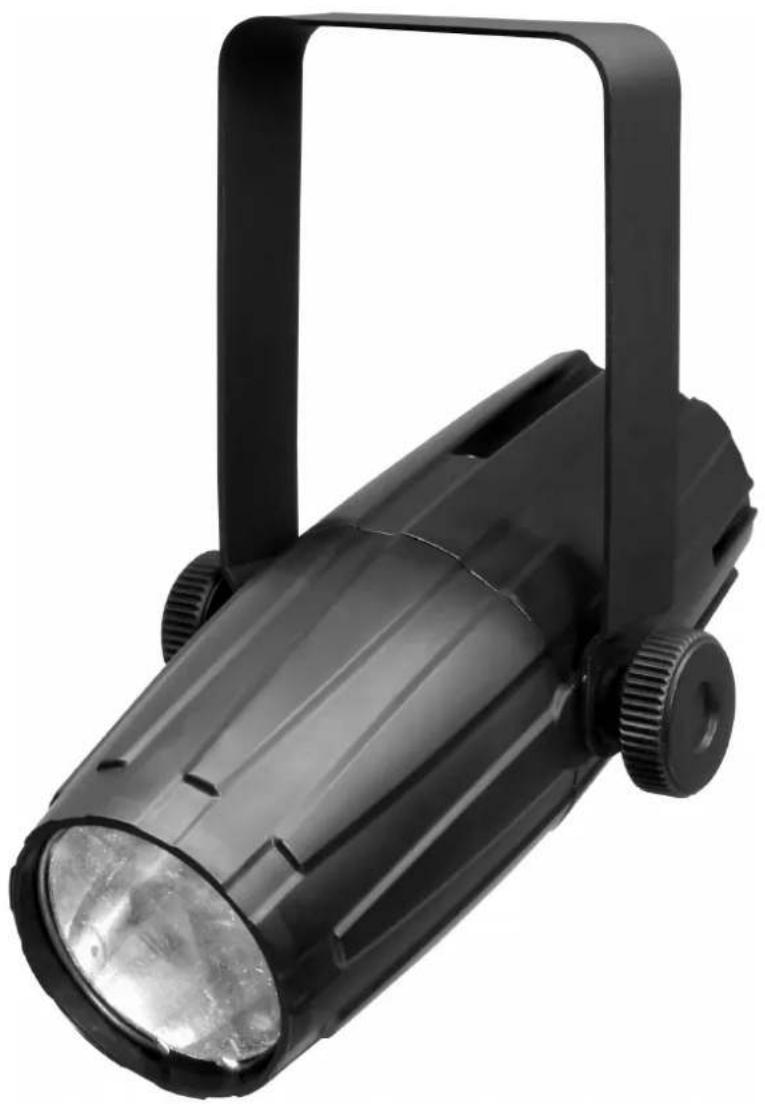

Black industrial lamp with adjustable handle and central lens (no text or symbols visible)

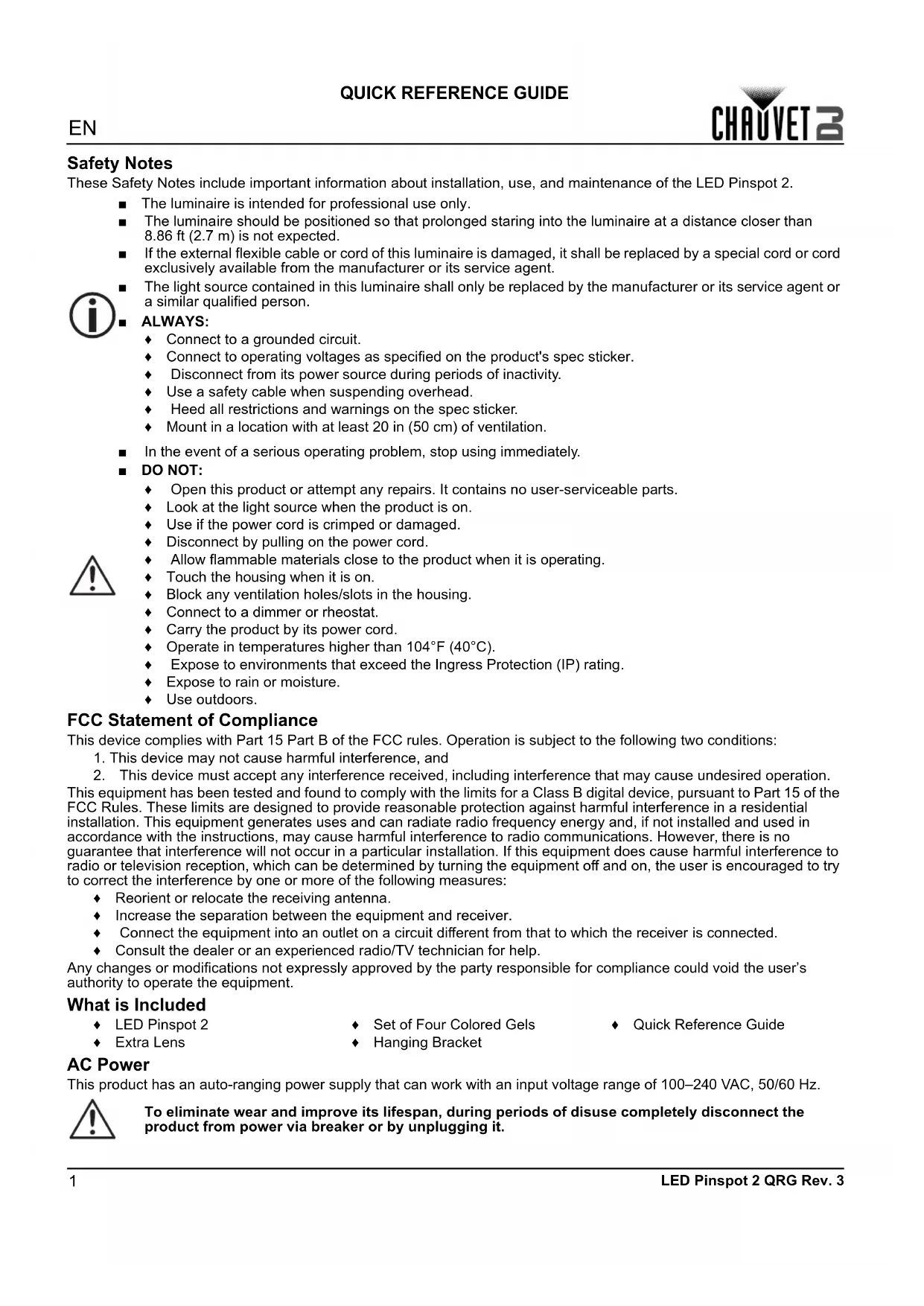

Safety Notes

These Safety Notes include important information about installation, use, and maintenance of the LED Pinspot 2.

■ The luminaire is intended for professional use only.
■ The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 8.86 ft (2.7 m) is not expected.
If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or its service agent.
■ The light source contained in this luminaire shall only be replaced by the manufacturer or its service agent or a similar qualified person.

■ ALWAYS:

◆ Connect to a grounded circuit.
- Connect to operating voltages as specified on the product's spec sticker.
♦ Disconnect from its power source during periods of inactivity.
◆ Use a safety cable when suspending overhead.
- Heed all restrictions and warnings on the spec sticker.
◆ Mount in a location with at least 20 in (50 cm) of ventilation.

■ In the event of a serious operating problem, stop using immediately.

■ DO NOT:

◆ Open this product or attempt any repairs. It contains no user-serviceable parts.
◆ Look at the light source when the product is on.
◆ Use if the power cord is crimped or damaged.
♦ Disconnect by pulling on the power cord.
- Allow flammable materials close to the product when it is operating.
◆ Touch the housing when it is on.
◆ Block any ventilation holes/slots in the housing.
◆ Connect to a dimmer or rheostat.
♦ Carry the product by its power cord.
♦ Operate in temperatures higher than 104°F (40°C).
♦ Expose to environments that exceed the Ingress Protection (IP) rating.
♦ Expose to rain or moisture.
Use outdoors.

FCC Statement of Compliance

This device complies with Part 15 Part B of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

♦ Reorient or relocate the receiving antenna.
♦ Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

What is Included

LED Pinspot 2
Extra Lens

◆ Set of Four Colored Gels
♦ Hanging Bracket

◆ Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

To eliminate wear and improve its lifespan, during periods of disuse completely disconnect the product from power via breaker or by unplugging it.

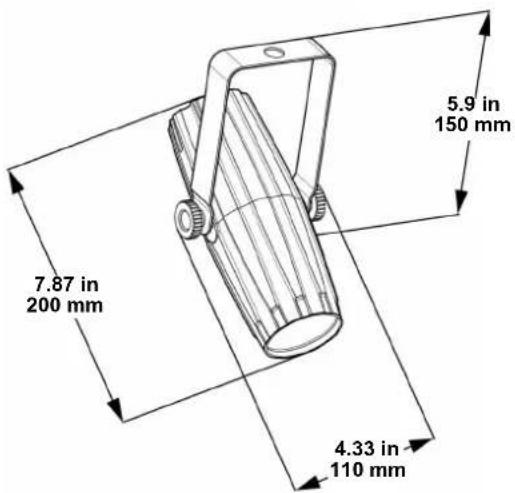

Product Dimensions

7.87 in 200 mm 5.9 in 150 mm 4.33 in 110 mm

Mounting

Before mounting this product, read the Safety Notes.

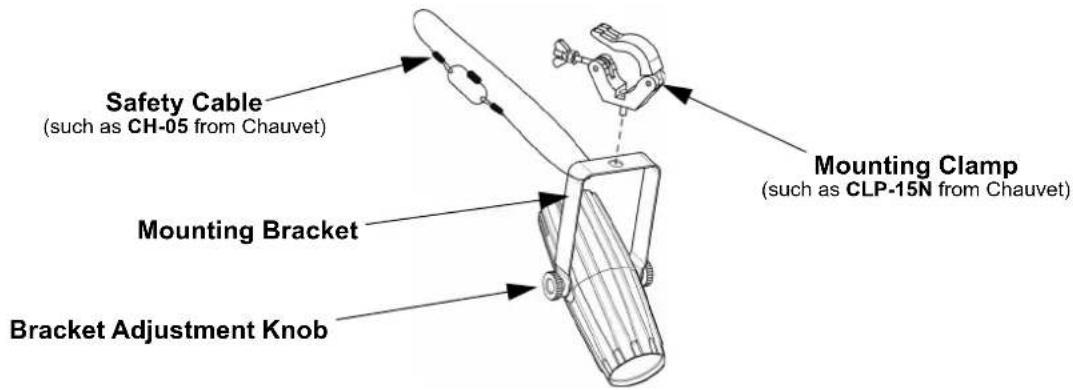

Mounting Diagram

Safety Cable (such as CH-05 from Chauvet) Mounting Bracket Bracket Adjustment Knob Mounting Clamp (such as CLP-15N from Chauvet)

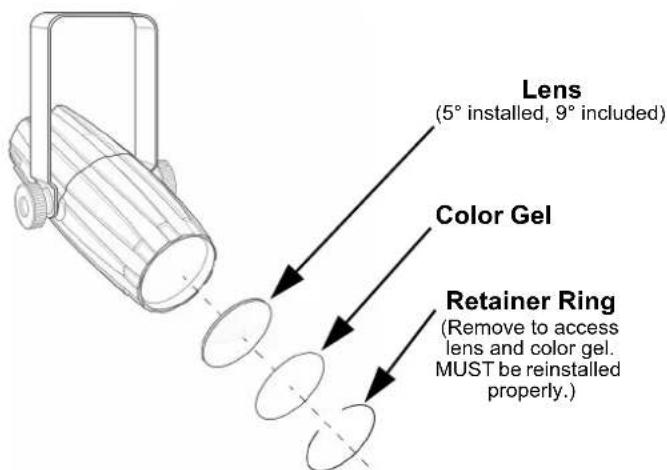

Lens Replacement

Lens (5° installed, 9° included) Color Gel Retainer Ring (Remove to access lens and color gel. MUST be reinstalled properly.)

If the retainer ring is not installed correctly, the lens will fall out. This creates a safety hazard for overhead mounting.

Technical Specifications

Dimensions and Weight

Length Width Height Weight

7.87 in (200 mm) 4.33 in (110 mm) 5.90 in (150 mm) 0.8 lb (0.4 kg)

Note: Dimensions in inches are rounded.

Power

Power Supply Type Range Voltage Selection
Switching (internal) 100–240 VAC, 50/60 Hz Auto-Ranging
Parameter 120 V, 60 Hz 230 V, 50 Hz
Consumption 6.0 W 7.0 W
Operating current	0.1 A	0.1 A
Power I/O	US/Canada	UK/Worldwide
Fixed Power Cord	Edison (US)	Local Plug

Light Source

Type	Color	Quantity	Power	Current	Lifespan
LED	White	1	3 W	700 mA	50,000 hours

Photometrics

Beam Angle	Illuminance @ 2 m
5° (installed)	5,700 lux
9° (included)	1,335 lux

Thermal

Maximum External Temp.	Cooling
104 °F (40 °C)	Convection

Ordering

Product	Item Code	UPC Number
LED Pinspot 2	07051488	781462218362

Notas de seguridad

Consommation 6,0 W 7,0 W

General Information Technical Support

Chauvet World Headquarters

Address: 3360 Davie Rd., Suite 509 Voice: [phone]

Davie, FL 33314 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetdj.com

Chauvet U.K.

Address: Pod 1 EVO Park Email: [e-mail]

Little Oak Drive, Sherwood Park

Nottinghamshire, NG15 0EB Website: www.chauvetdj.eu

UK

Voice: [phone]

Fax: [phone]

Chauvet Benelux

Address: Vaartlaan 9 Email: [e-mail]

9800 Deinze

Belgium Website: www.chauvetdj.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère Email: [e-mail]

91380 Chilly-Mazarin

France Website: www.chauvetdj.eu

Voice: [phone]

Chauvet Germany

Address: Bruno-Bürgel-Str. 11 Email: [e-mail]

28759 Bremen

Germany Website: www.chauvetdj.eu

Voice: [phone]

Chauvet Mexico

(Entrance by Calle 2)

Zona Industrial Lerma

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.

LED Pinspot 2 QRG ML6 Rev. 3
