SlimPAR Pro QZ12 USB - Effect machine Chauvet - Free user manual and instructions

Product type	LED effect light projector
Light source	RGBA LED (Red, Green, Blue, Amber)
DMX control modes	5, 6, or 11 channels
Power supply	100–240 VAC, 50/60 Hz (universal)
Max ambient temperature	40 °C
Protection rating	IP20 (indoor use only)
Operating modes	DMX, master/slave, automatic, sound, custom static colors
Functions	Dimmer, strobe, zoom, color macros, automatic programs, sound activation
Connectivity	3-pin DMX, USB port for D-Fi module (optional)
Included accessories	Power cord, gel frame, hanging bracket with mounting hardware, reference manual
Safety	Requires safety cable when hanging; do not expose to rain/humidity; hot surface
Maintenance	Disconnect before cleaning; do not open (no user-serviceable parts)
Replacement parts	Fuse (same type and rating)
Warranty	Limited, varies by country (see website)

Frequently Asked Questions - SlimPAR Pro QZ12 USB Chauvet

How to set the DMX address?

Use the buttons on the control panel to select the DMX mode (5-CH, 6-CH or 11-CH) and the starting address (d 1–512). Press ENTER to confirm.

How to use sound mode?

In the menu, select SND then choose Snd1 (4 colors) or Snd2 (11 colors). Adjust sensitivity (SENS) from 0 to 100 if needed.

How to replace the fuse?

Disconnect the unit. Use a screwdriver to open the fuse holder, remove the blown fuse and replace it with a fuse of the same type and rating. Close and reconnect.

How to connect multiple units in master/slave?

Connect the units in series via DMX. On the master unit, select an automatic or sound mode; on the slaves, set the DMX address to 001 (or slave mode per manual). See the full manual for details.

Can I control colors without a DMX console?

Yes, in standalone mode: select static colors (C-- with C1 to C15) or create your own custom colors via the U-- menu (manual adjustment R, V, B, A).

How to clean the unit?

Disconnect the unit before cleaning. Use a dry, soft cloth for the exterior. Do not use solvents or abrasive products.

What if the unit does not power on?

Check the power supply (outlet, fuse). Ensure the unit is properly connected and the voltage matches. If the fuse is blown, replace it. If the problem persists, contact technical support.

How to use the D-Fi USB module?

Plug the D-Fi USB module into the USB port of the unit after setting the DIP switches to the desired channel. The module takes over; wired DMX and buttons become inactive until unplugged.

What are important safety precautions?

Use a safety cable when hanging, do not connect to a dimmer/rheostat, do not cover ventilation slots, keep at least 50 cm distance from surfaces, and do not operate above 40 °C.

Where to find the full manual and updates?

Download the full user manual at www.chauvetdj.com. Information may change without notice.

USER MANUAL SlimPAR Pro QZ12 USB Chauvet

Technical line drawing of a mechanical device with circular components and a curved base (no text or symbols)

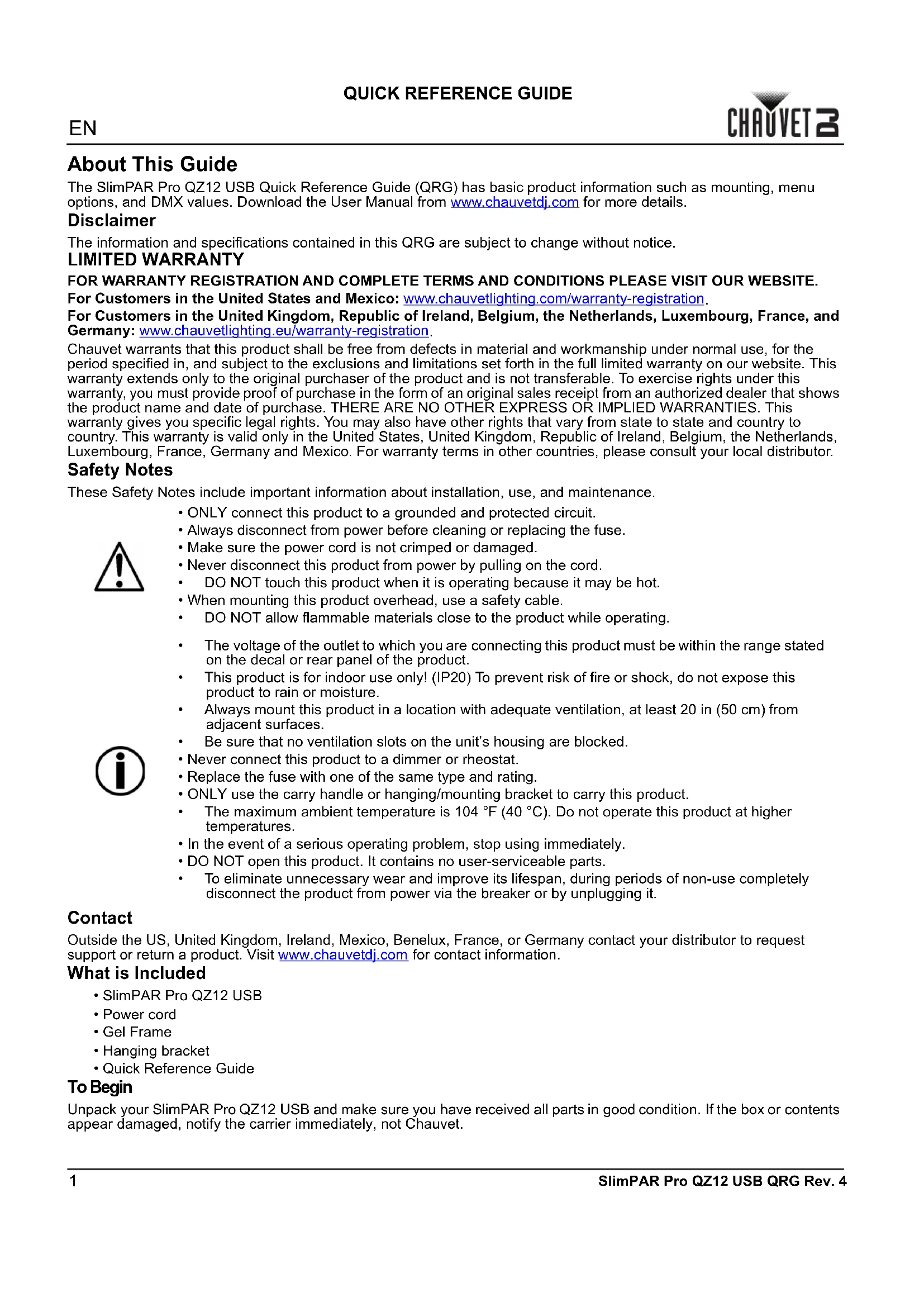

About This Guide

The SlimPAR Pro QZ12 USB Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetdj.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• ONLY connect this product to a grounded and protected circuit.
• Always disconnect from power before cleaning or replacing the fuse.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
  • DO NOT touch this product when it is operating because it may be hot.
• When mounting this product overhead, use a safety cable.
  • DO NOT allow flammable materials close to the product while operating.
• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
  • Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• Be sure that no ventilation slots on the unit's housing are blocked.
• Never connect this product to a dimmer or rheostat.
• Replace the fuse with one of the same type and rating.
• ONLY use the carry handle or hanging/mounting bracket to carry this product.
• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.
• In the event of a serious operating problem, stop using immediately.
• DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via the breaker or by unplugging it.

Contact

Outside the US, United Kingdom, Ireland, Mexico, Benelux, France, or Germany contact your distributor to request support or return a product. Visit www.chauvetdj.com for contact information.

What is Included

• SlimPAR Pro QZ12 USB
• Power cord
• Gel Frame
• Hanging bracket
• Quick Reference Guide

To Begin

Unpack your SlimPAR Pro QZ12 USB and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100-240 VAC, 50/60 Hz.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power Linking

For the maximum number of SlimPAR Pro QZ12 USB that can be linked at 120 V or at 230 V, see the User Manual or the Label on this product.

Fuse Replacement

1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the safety cap out of the housing.
4. Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same type and rating.
5. Re-insert the fuse holder and reconnect power.

Mounting

Before mounting this product, read the Safety Notes.

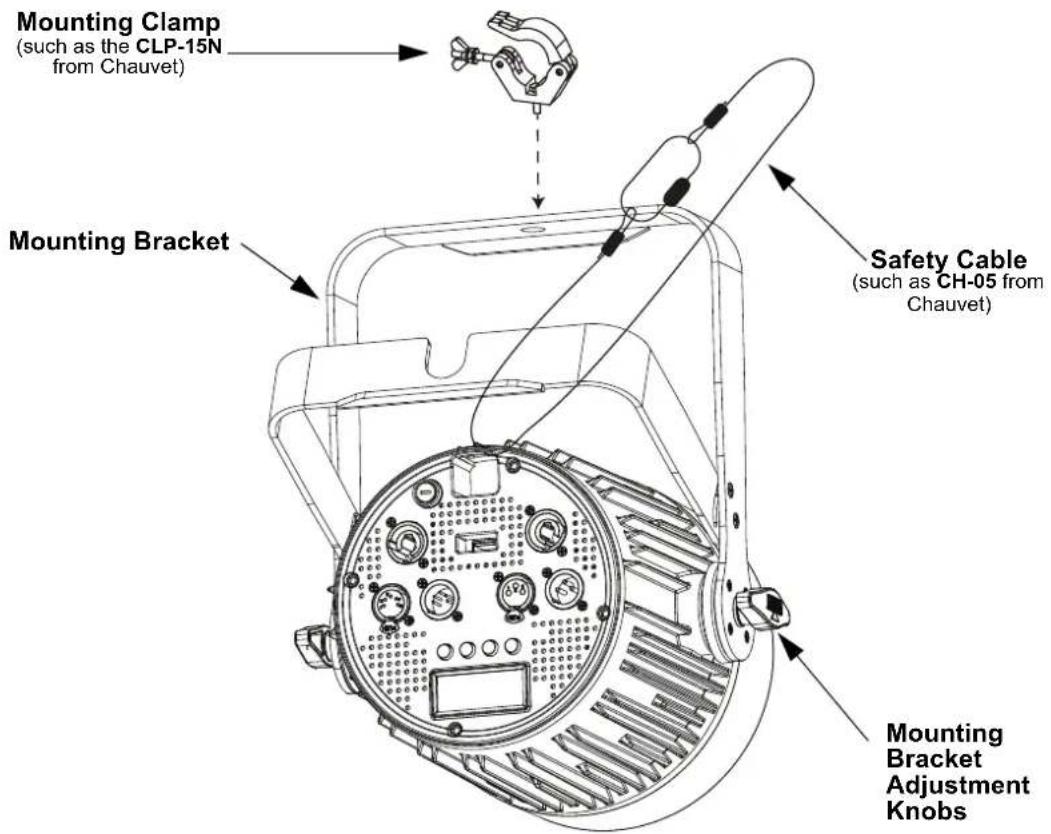

Mounting Diagram

Mounting Clamp (such as the CLP-15N from Chauvet) Mounting Bracket Safety Cable (such as CH-05 from Chauvet) Mounting Bracket Adjustment Knobs

Control Panel Description

BUTTON FUNCTION
	Exits from the current menu or function
	Navigates upwards through the menu list and increases the numeric value when in a function
	Navigates downwards through the menu list and decreases the numeric value when in a function
	Enables the currently displayed menu or sets the currently selected value into the selected function

Menu Map

MAIN LEVEL	PROGRAMMING LEVELS DESCRIPTION
5-CH d 1-5	12 5-channel DMX mode
6-CH d 1-5	12 6-channel DMX mode
11CH d 1-5	12 11-channel DMX mode
C-- C1-15	Static colors
ZOOM Z 0-255	Zooms in and out
P-- (automatic)	P1 5-color program (snap)
	P2 5-color program (fading)
	P3 11-color program (snap)
	P4 11-color program (fading)
S-- S 1-100	Program speed for P1-P4
Snd (sound-active)	Snd1	4-color program (sound-active)
	Snd2	11-color program (sound-active)
Sens	u 0-100 Sound sensitivity
U--	r000-255(red)	Custom static colors. Combine amber, red, green, and blue
	g000-255(green)
	b000-255(blue)
	A000-255(amber)
dIM	OFF	Dimmer speed settings
	dIM1
	dIM2
	dIM3
TEMP	XX	Displays the current temperature of the product

DMX Linking

The SlimPAR Pro QZ12 USB can work with a DMX controller. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX or dip switch configuration, download the DMX Primer from www.chauvetdj.com.

Starting Address

To ensure full access to all channels available in DMX mode, the highest recommended DMX address is 502.

Master/Slave Connection

The SlimPAR Pro QZ12 USB uses the DMX data connection for its Master/Slave made. Instructions for connecting and configuring this product for Master/Slave operation are in the User Manual.

D-Fi USB Connectivity

The SlimPAR Pro QZ12 USB is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from CHAUVET DJ. Simply set the DIP switch D-Fi receiving/transmitting channel, plug it into the USB port then set the product's DMX Personality and DMX Address. Further instructions for connecting and configuring this product for D-Fi USB operation are in the User Manual.

WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product.

Once plugged in, the D-Fi USB will take over the product. Wired DMX, manual display control/menu buttons will be unavailable until you unplug the D-Fi USB. The priority levels are:

1. D-Fi USB
2. Wired DMX
3. Manual Digital Display/Menu Buttons

DMX Values

11CH

CHANNEL FUNCTION VALUE PERCENT/SETTING
1 Dimmer 000				255 0-100%
2	R	e	d	000 255 0-100%
3	G	r	e e	n 255 0-100%
4	B	l	u e	255 0-100%
5	A	m	b e	r 255 0-100%		000
6 Color Macros				000 015 No Function
				016 255 Color Macros
7	S	t	r o	000 010 No Functionb e
				016 255 Strobe, Slow to Fast
8 Auto Program				000 031 No function
				032 063 Auto program 1
				064 095 Auto program 2
				096 127 Auto program 3
				128 159 Auto program 4
				160 191 Auto Program 5
				192 223 Auto Program 6
				224 255 Sound program
9	Program Speed			000 255 Slow to fast speed
	Sound Sensitivity			000 010 No function
				011 255	Low to high sensitivity

CHANNEL FUNCTION VALUE PERCENT/SETTING
10 Dimmer Speed	000 ⇔ 051 Dimmer Speed set from display
	052 ⇔ 101 Dimmer speed mode off
	102 ⇔ 152 Dimmer speed mode 1 fast
	153 ⇔ 203 Dimmer speed mode 2 medium
	204 ⇔ 255 Dimmer speed mode 3 slow
11 Zoom 000	⇔ 255 0–100%

6-CH

CHANNEL FUNCTION VALUE PERCENT/SETTING
1 Dimmer 000					255 0-100%
2	R	e	d		000 255 0-100%
3	G	r	e	e	n 255 0-100%
4	B	l	u	e	2550-100%
5	A	m	b	e	r 255 0-100%		000
6 Zoom	000				255 0-100%

5-CH

CHANNEL FUNCTION VALUE PERCENT/SETTING
1	R	e	d		000 255 0-100%
2	G	r	e	e	n 255 0-100%
3	B	l	u	e	2550-100%
4	A	m	b	e	r 255 0-100%		000
5 Zoom	000				255 0-100%
