Product type	Light effect machine (LED projector)
Brand	Chauvet
Model	Mini Kinta ILS
Power supply	100-240 VAC, 50/60 Hz (universal)
Light source	RGBW LEDs (Red, Green, Blue, White)
Number of DMX channels	4 channels
DMX protocol	DMX512
Control modes	DMX, master/slave, ILS, standalone, IRC-6, D-Fi USB
Connectivity	DMX (3-pin XLR), D-Fi USB, Infrared (IRC-6)
Max ambient temperature	40 °C (104 °F)
Protection rating	IP20 (indoor only)
Mounting	Adjustable bracket with adjustment knob, safety cable required
Ventilation	Maintain at least 50 cm from adjacent surfaces
Special functions	Strobe, motor rotation, automatic programs, sound-active mode, color chase
Compatibility	GigBAR Move+ILS (ILS mode)
Fuse	Replaceable (same type and rating)
Warranty	Limited, see website (valid in multiple countries)

Frequently Asked Questions - Mini Kinta ILS Chauvet

How to set the DMX address on the Mini Kinta ILS?

Press the Menu button until Addr is displayed. Use the Up/Down buttons to select the starting address (A001 to A509) and confirm with Enter.

How to use master/slave mode?

Set the slave unit to DMX mode with address A001, then set it to slave mode via the SLnd menu. Connect a DMX cable between the master (in standalone mode) and the slaves.

How to connect the D-Fi USB module?

Plug the D-Fi USB module into the dedicated USB port. The unit automatically switches to wireless mode. Set the transmit/receive channel via the module's DIP switches.

How to replace the fuse?

Unplug the unit. Use a flat-head screwdriver to lift the fuse holder cap. Replace the blown fuse with a fuse of the same type and rating. Replace the cap and plug back in.

What to do if the unit does not power on?

Check the power supply and fuse. Ensure the cord is not damaged. If the issue persists, contact technical support.

Can I use a light dimmer?

No, never connect this unit to a dimmer or rheostat. This could damage it. Use a direct power source.

How to clean the Mini Kinta ILS?

Always unplug the unit before cleaning. Use a dry, non-abrasive cloth. Do not expose to moisture or flammable products.

What are the automatic program modes?

The modes include Auto, FAdE, SnAP (with sound activation) and CoLo for manual color adjustment. Speed is adjustable.

How to use ILS mode with the GigBAR Move+ILS?

In the menu, select iLS1 to iLS4 to synchronize with the corresponding face of the GigBAR. Effects will follow the same rhythm and colors.

How to use the IRC-6 remote control?

Point the remote at the unit's IR sensor. Use the buttons to activate LEDs (BLIGHT), modes (AUTO, SCAND), adjust colors (R, G, B, A) and speed (+/-).

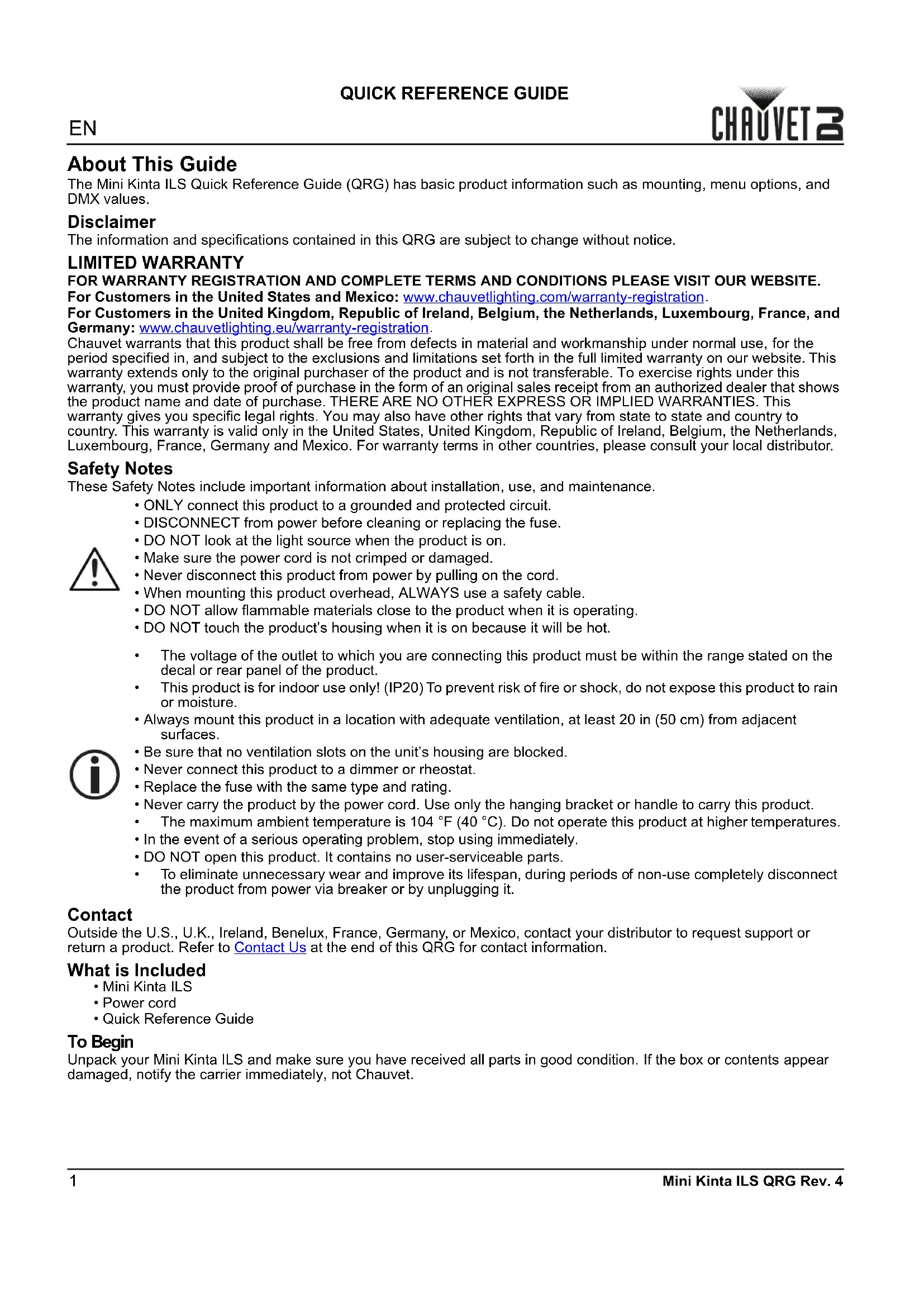

USER MANUAL Mini Kinta ILS Chauvet

About This Guide

The Mini Kinta ILS Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• When mounting this product overhead, ALWAYS use a safety cable.
• DO NOT allow flammable materials close to the product when it is operating.

• DO NOT touch the product's housing when it is on because it will be hot.

• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.

• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

- Be sure that no ventilation slots on the unit's housing are blocked.

- Never connect this product to a dimmer or rheostat.

- Replace the fuse with the same type and rating.

- Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product.

• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.

- In the event of a serious operating problem, stop using immediately.

- DO NOT open this product. It contains no user-serviceable parts.

- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• Mini Kinta ILS
• Power cord
• Quick Reference Guide

To Begin

Unpack your Mini Kinta ILS and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

AC Power

This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power Linking

It is possible to link up to 33 Mini Kinta ILS products at 120 V or 54 products at 230 V. Never exceed this number. Power-linking cords can be purchased separately.

Fuse Replacement

1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the safety cap out of the housing.
4. Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same type and rating.
5. Re-insert the fuse holder and reconnect power.

Mounting

Before mounting this product, read the Safety Notes.

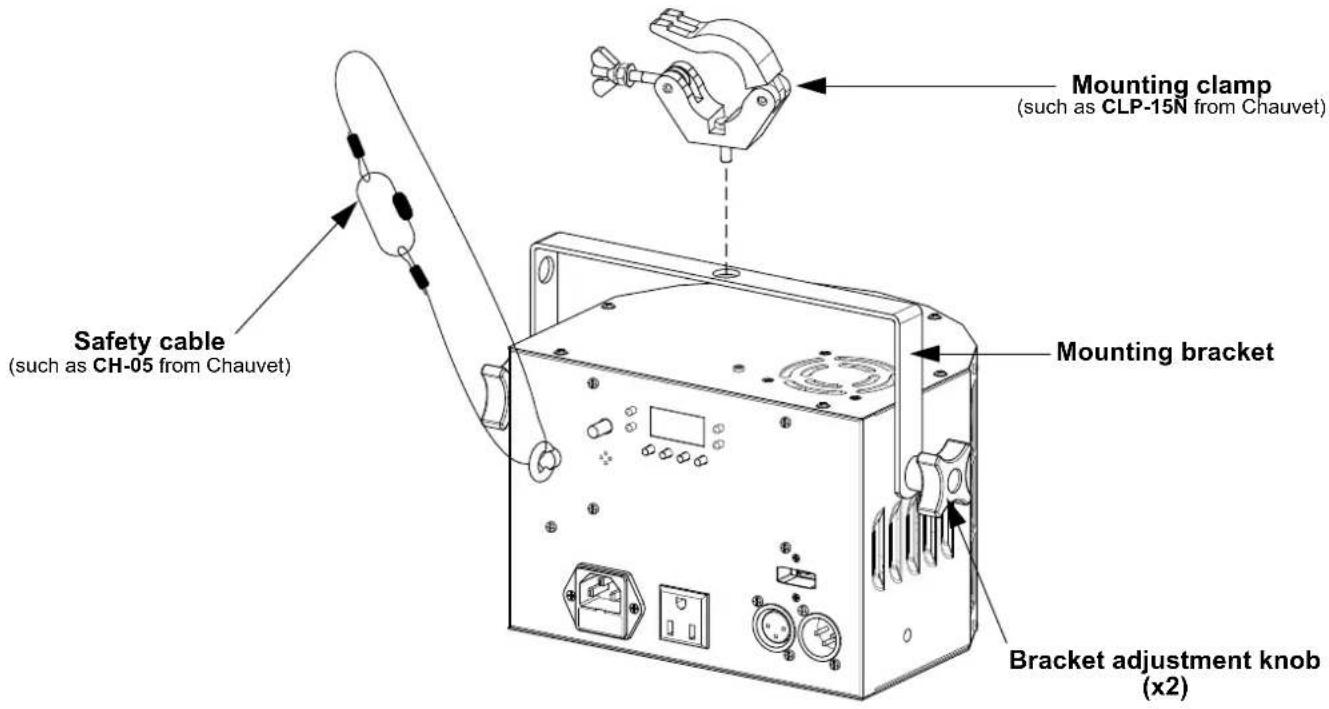

Mounting Diagram

Control Panel Description

Button Function
	Exits from the current menu or function
	Navigates upwards through the menu list and increases the numeric value when in a function
	Navigates downwards through the menu list and decreases the numeric value when in a function
	Enables the currently displayed menu or sets the currently selected value into the selected function

Menu Map

Refer to the Mini Kinta ILS product page on www.chauvetdj.com for the latest menu map.

Mode Programming Levels Description
DMX Addr A001-509 Sets DMX starting address
Slave SLnd		SL-1 Sets slave mode
ILS	iLS	iLS1-4 Sets ILS mode
Program	Auto	Aut	FAdE	Automatic program with sound-active function
			SnAP
Static	CoLo	r000-255		Adjust individual colors (red, green, blue, white)
		G000-255
		b000-255
		U000-255
		Str1		Strobe at 3 preset speeds (slow to fast)
		Str2
		Str3
Display Timeout	LED	on		Display turns off after inactivity
		oFF		Display stays on
Display Orientation	diSP	diSP		Normal display
		dS!p		Inverted display
Firmware	vEr	u______		Shows current firmware version

DMX Linking

The Mini Kinta ILS can work with a DMX controller. For information about the DMX protocol, download the DMX Primer from www.chauvetdj.com.

Starting Address

To ensure full access to all channels available in each DMX mode, the highest recommended DMX address is 509.

Master/Slave Connection

The Mini Kinta ILS uses the DMX data connection for its Master/Slave mode.

D-Fi USB Connectivity

The Mini Kinta ILS is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from CHAUVET DJ. Simply set the DIP switch D-Fi receiving/transmitting channel, plug it into the USB port then set the product's DMX Personality and DMX Address.

WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product.

Once plugged in, the D-Fi USB will take over the product. Wired DMX and manual display control/menu buttons will be unavailable until you unplug the D-Fi USB. The priority levels are:

1. D-Fi USB
2. Wired DMX
3. IRC-6 Remote Control
4. Manual Digital Display/Menu Buttons

Master/Slave Mode (D-Fi USB)

The D-Fi USB allows a single Mini Kinta ILS product (the "master") to control the actions of one or more Mini Kinta ILS products (the "slaves") without the need of a DMX controller or DMX cables. The master (transmitter) product will be set to operate in standalone mode, while the slave (receiver) products will be set to operate in DMX mode. Once set and connected, the slave products will operate in unison with the master product.

Configure the products as indicated below:

Slave products:

1. Press repeatedly until Addr shows on the display.
2. Press .
3. Use or to set the starting address to A001.
4. Press .
5. Set the D-Fi USB to receive on a specific channel, 1–16.
6. Plug in the D-Fi USB.
7. Finish setting and connecting all the slave products.

Master product:

1. Set the master product to operate in standalone mode.
2. Set the D-Fi USB to transmit on the D-Fi channel the slaves are receiving on.
3. Plug in the D-Fi USB.

- All products must be set to the same DMX personality, DMX address, and D-Fi channel.

• Configure all the slave products before configuring the master to transmit.
• Never connect a DMX controller to a D-Fi channel configured for Master/Slave operation because the controller may interfere with the signals from the master.

ILS Mode

ILS (Integrated Lighting System) provides 4 modes that synchronize with the GigBAR MOVE+ILS: Modes 1 and 3 synchronize with side 1 of the GigBAR MOVE+ILS, whereas modes 2 and 4 synchronize with side 2 of the GigBAR MOVE+ILS. When linked, effects will sync with the most similar effect on the selected side of the GigBAR MOVE+ILS: Kinta effects will sync with one of the kintas, moving heads will sync with one of the moving heads, and wash effects will sync with one of the pars. Laser effects will sync with the laser, and strobe effects will sync with the strobe effects regardless of ILS mode.

This product will synchronize with the kinta effect on the selected side of the GigBAR MOVE+ILS.

To set the Mini Kinta ILS to respond to an ILS signal:

1. Press repeatedly until iLS_ shows on the display.
2. Use or to select from iLS1 (side 1), iLS2 (side 2), iLS3 (side 1), or iLS4 (side 2).
3. Press .

DMX Values

Channel Function Value Percent/Setting
1 Color		000 ⇔ 005	No function
		006 ⇔ 020	Red
		021 ⇔ 035	Green
		036 ⇔ 050	Blue
		051 ⇔ 065	White
		066 ⇔ 080	Red and green
		081 ⇔ 095	Red and blue
		096 ⇔ 110	Red and white
		111 ⇔ 125	Green and blue
		126 ⇔ 140	Green and white
		141 ⇔ 155	Blue and white
		156 ⇔ 170	Red, green, and blue
		171 ⇔ 185	Red, green, and white
		186 ⇔ 200	Green, blue, and white
		201 ⇔ 215	Red, green, blue, and white
		216 ⇔ 230	Automatic 4-color chase
		231 ⇔ 255	Automatic 7-color chase
2 Strobe		000 ⇔ 005	No function
		006 ⇔ 255	Strobe, slow to fast
3 Motor rotation		000 ⇔ 000	No function
		001 ⇔ 127	Motor indexing
		128 ⇔ 255	Motor speed, slow to fast
4	Automatic/sound-active program (overrides Ch. 1-3)	000 ⇔ 004	No function
		005 ⇔ 200	Automatic program, slow to fast
		201 ⇔ 255	Sound-active program

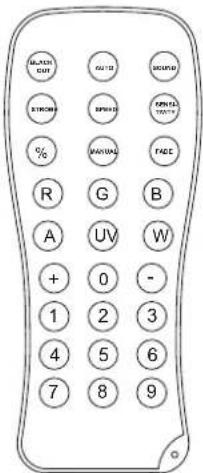

IRC-6

The Mini Kinta ILS can be operated with the CHAUVET Infrared Remote Control (IRC-6).

Button Function
	Turns LEDs on/off
	Enables auto mode
	Enables sound active mode
	Adjusts speed
	Adjusts strobe speed
	Activates the RGBW buttons when in Auto or Sound mode
	Turns on and off the red, green, blue, and white colors
<0>-<9>	1: Red 2: Red-white 3: Red-green 4: Green 5: Green-blue6: Blue 7: Red-blue 8: Green-white 9: Blue-white 0: RGBW
<+>	Increases values for controls as described above
<->	Decreases values for controls as described above

Acerca de esta guía

General Information Technical Support

Chauvet World Headquarters

Address: 3360 Davie Rd. Voice: [phone]

Davie, FL 33314 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetdj.com

Chauvet Europe Ltd

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetdj.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Europe BVBA

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetdj.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

France Website: www.chauvetdj.eu

Voice: [phone]

Chauvet Germany

(Entrance by Calle 2)

Zona Industrial Lerma Website: www.chauvetdj.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.

Mini Kinta ILS QRG ML6 Rev. 4
