Product type	Effect machine (scanner)
Brand	Chauvet
Model	Intimidator Scan 110
Power supply	100-240 VAC, 50/60 Hz (universal)
Maximum ambient temperature	40 °C (104 °F)
Protection rating	IP20 (indoor use only)
DMX modes	5 channels or 11 channels
DMX address	From A001 to A512
Pan	0 to 540°
Tilt	0 to 270°
Gobo wheel	8 gobos (open + 7 patterns)
Strobe	Slow to fast, random effects
Dimmer	0 to 100%
Manual control	Pan, Tilt, Gobo, Dimmer, Strobe (values 0-255)
Operating modes	DMX, master/slave, automatic, sound, manual
Compatible remote control	IRC-6 (infrared) from Chauvet DJ
Mounting	Hanging bracket with safety cable required
Grounding	Required, protected circuit
Fuse	Same type and amperage when replacing
Power daisy-chaining	Check label or manual for max quantity
Box contents	Fixture, power cord, hanging bracket, reference manual

Frequently Asked Questions - Intimidator Scan 110 Chauvet

How to set the starting DMX address?

Use the Addr menu and select a value between A001 and A512 using the arrow buttons, then confirm with ENTER.

How to replace the fuse?

Unplug the fixture, then using a flat-head screwdriver, lift the cap of the fuse holder. Replace the blown fuse with a fuse of the same type and amperage, then reassemble.

What are the available DMX modes?

The Intimidator Scan 110 offers two DMX modes: 5-channel mode (5Ch) and 11-channel mode (11Ch). The 11-channel mode provides precise control of pan, tilt, speed, gobo, strobe, dimmer, and motion macros.

How to use master/slave mode?

Connect multiple fixtures in a chain via DMX. Set one fixture as master (show or sound mode) and the others as slave (DMX address set to A001). The master controls the slaves.

Can I use a remote control?

Yes, the fixture is compatible with the IRC-6 infrared remote control from Chauvet DJ. You can download instructions at www.chauvetdj.com.

What is the maximum allowed ambient temperature?

The maximum ambient temperature is 40 °C (104 °F). Do not operate the fixture at higher temperatures.

How to clean the fixture?

Unplug the fixture before cleaning. Use a dry, non-abrasive cloth. Do not expose the fixture to rain or moisture.

What to do if the fixture stops responding?

Unplug the fixture, wait a few seconds, and plug it back in. If the problem persists, check the fuse. In case of serious malfunction, stop using the fixture immediately and contact technical support.

How to reverse the pan or tilt direction?

In the menu, go to PAn (pan reverse) or tILt (tilt reverse) and set to YES to reverse the movement.

Where to find the complete manual?

The detailed reference manual is available for free download at www.chauvetdj.com. It contains all installation, configuration, and maintenance information.

USER MANUAL Intimidator Scan 110 Chauvet

INTIMIDATOR SCAN 110

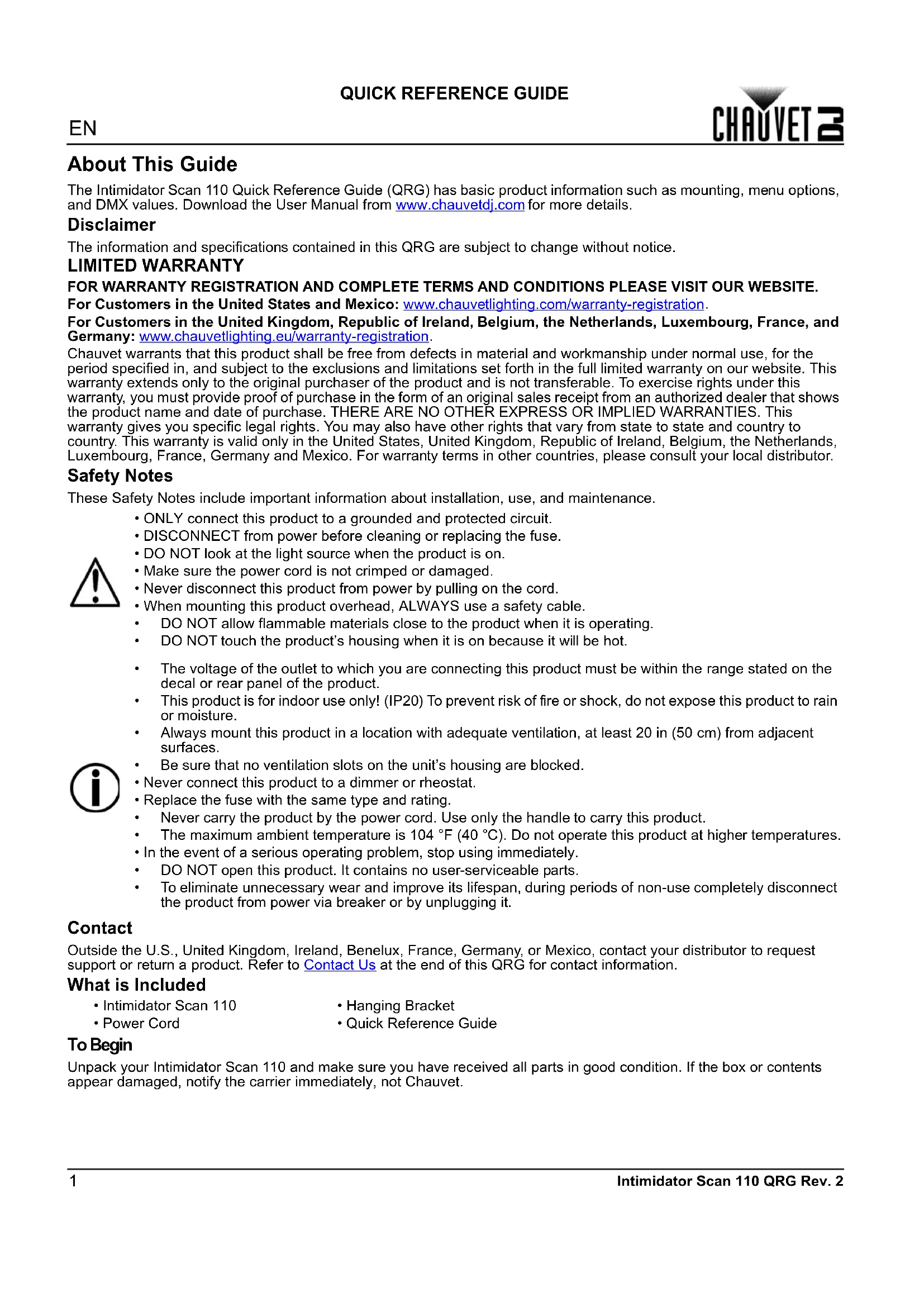

Quick Reference Guide

About This Guide

The Intimidator Scan 110 Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetdj.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• When mounting this product overhead, ALWAYS use a safety cable.

• DO NOT allow flammable materials close to the product when it is operating.
DO NOT touch the product's housing when it is on because it will be hot.
- The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
- This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
- Be sure that no ventilation slots on the unit's housing are blocked.
- Never connect this product to a dimmer or rheostat.
- Replace the fuse with the same type and rating.
• Never carry the product by the power cord. Use only the handle to carry this product.
• The maximum ambient temperature is 104\ °F ( 40\ °C ). Do not operate this product at higher temperatures.
- In the event of a serious operating problem, stop using immediately.
• DO NOT open this product. It contains no user-serviceable parts.
- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Contact

Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• Intimidator Scan 110

• Power Cord

• Hanging Bracket

• Quick Reference Guide

To Begin

Unpack your Intimidator Scan 110 and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

AC Power

This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power Linking

For the maximum number of Intimidator Scan 110 products that you can power link at each voltage, see the User Manual or the sticker on the product.

Fuse Replacement

1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the safety cap out of the housing.
4. Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same type and rating.
5. Re-insert the fuse holder and reconnect power.

Mounting

Before mounting this product, read the Safety Notes.

Mounting Diagram

Control Panel Description

Button Function
	Exits from the current menu or function
	Navigates upwards through the menu list and increases the numeric value when in a function
	Navigates downwards through the menu list and decreases the numeric value when in a function
	Enables the currently displayed menu or sets the currently selected value into the selected function

Menu Map

Mode Programming Levels Description
Address Addr A001-512 Sets the DMX starting address
Channel Mode	ChMd	5Ch		Selects the DMX personality
		11Ch
Show Mode ShMd		Auto SP 1-10 Selects		Auto mode and speed
		SoUn		Selects sound-active mode
Sensitivity	SEnS	0-100		Sets the sound sensitivity
Pan Reverse	PAn	no		Normal pan operation
		YES		Reverse pan operation
Tilt Reverse	tILt	no		Normal tilt operation
		YES		Reverse tilt operation
Manual Mode	MAnu	PAn	P 0-255	Manual pan control
		tILt	t 0-255	Manual tilt control
		Gobo	G 0-255	Manual gobo control
		dIMM	d 0-255	Manual dimmer control
		Stro	S 0-255	Manual strobe control
Version	uEr	u______		Displays current firmware version
Factory Reset	LoAd	no		Loads factory defaults
		YES

DMX Linking

The Intimidator Scan 110 can work with a DMX controller. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetdj.com.

Starting Address

To ensure full access to all channels available in each DMX mode, the highest recommended DMX address is 502.

Master/Slave Connection

The Intimidator Scan 110 uses the DMX data connection for its Master/Slave mode. Information about configuring the Intimidator Scan 110 for Master/Slave operation is in the User Manual, which is available from the Chauvet website.

IRC-6 (Infrared Remote Control)

The Intimidator Scan 110 can be operated with the CHAUVET IRC-6. For more information about the IRC-6, download instructions for the IRC-6 or the Intimidator Scan 110 User Manual from www.chauvetdj.com.

Gobos

DMX Values

11Ch

Channel Function Value Percent/Setting
1 Pan 000		⇔ 255	0–540°
2 Pan Fine 000		⇔ 255	Fine control of panning
3 Tilt 000		⇔ 255	0–270°
4 Tilt Fine 000		⇔ 255	Fine control of tilting
5 Pan/Tilt Speed 000		⇔ 255	Pan/Tilt speed, fast to slow
6 Gobo	Wheel (seeGobos_)	000 ⇔ 028	Open
		029 ⇔ 056	Gobo 1
		057 ⇔ 085	Gobo 2
		086 ⇔ 113	Gobo 3
		114 ⇔ 142	Gobo 4
		143 ⇔ 170	Gobo 5
		171 ⇔ 199	Gobo 6
		200 ⇔ 227	Gobo 7
		228 ⇔ 255	Gobo 8
7 Strobe		000 ⇔ 015	On
		016 ⇔ 131	Strobe, slow to fast
		132 ⇔ 139	On
		140 ⇔ 181	0–100%, slow to fast
		182 ⇔ 189	On
		190 ⇔ 231	100–0%, slow to fast
		232 ⇔ 239	On
		240 ⇔ 247	Random strobe
		248 ⇔ 255	On
8 Dimmer 000		⇔ 255	0–100%
9 Function		000 ⇔ 069	No function
		070 ⇔ 089	Blackout on pan/tilt move on
		090 ⇔ 109	Blackout on pan/tilt move off
		110 ⇔ 129	Blackout on gobo wheel move on
		130 ⇔ 149	Blackout on gobo wheel move off
		150 ⇔ 199	No function
		200 ⇔ 209	Reset all
		210 ⇔ 249	No function
		250 ⇔ 255	Sound-active program
10	Movement Macro	000 ⇔ 015	No function
		016 ⇔ 035	Movement macro 1
		036 ⇔ 055	Movement macro 2
		056 ⇔ 075	Movement macro 3
		076 ⇔ 095	Movement macro 4
		096 ⇔ 115	Movement macro 5
		116 ⇔ 135	Movement macro 6
		136 ⇔ 155	Movement macro 7
		156 ⇔ 175	Movement macro 8
		176 ⇔ 195	Movement macro 9
		196 ⇔ 215	Movement macro 10
		216 ⇔ 235	Movement macro 11
		236 ⇔ 255	Movement macro 12
11	Movement Macro Speed 000	⇔ 255	Movement macro speed, fast to slow

5Ch

Channel Function Value Percent/Setting
1 Pan 000		⇔ 255	0–540°
2 Tilt 000		⇔ 255	0–270°
3 Gobo Wheel (seeGobos____)		000 ⇔ 028	Open
		029 ⇔ 056	Gobo 1
		057 ⇔ 085	Gobo 2
		086 ⇔ 113	Gobo 3
		114 ⇔ 142	Gobo 4
		143 ⇔ 170	Gobo 5
		171 ⇔ 199	Gobo 6
		200 ⇔ 227	Gobo 7
		228 ⇔ 255	Gobo 8
4 Strobe		000 ⇔ 007	On
		008 ⇔ 250	Strobe, slow to fast
		251 ⇔ 255	On
5 Dimmer 000		⇔ 255	0–100%

Acerca de esta guía

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetdj.com

Chauvet Europe Ltd

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetdj.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Europe BVBA

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetdj.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

Email: [e-mail]

France Website: www.chauvetdj.eu

Voice: [phone]

Chauvet Germany

(Entrance by Calle 2)

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Zona Industrial Lerma Website: www.chauvetdj.mx

Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Follow the instructions to request support or to return a product. Visit our website for contact details.

Intimidator Scan 110 QRG Rev. 2 ML6

© Copyright 2018 Chauvet

All rights reserved

Printed in the P.R.C.

RoHS
