Product type	LED effect machine
Brand	Chauvet
Model	SlimPAR Q USB
Power supply	100-240 VAC, 50/60 Hz (universal power supply)
Power consumption	Approx 30 W (estimated)
Dimensions (approx.)	200 x 200 x 250 mm
Weight (approx.)	1.5 kg
Light sources	Quad-color LED (red, green, blue, amber)
Control modes	DMX (4, 5 or 10 channels), master/slave, stand-alone (automatic programs)
Main functions	Static colors (19 colors), automatic programs (4 types), strobe, dimming, color macros
DMX addressing	Starting address configurable from 1 to 508 (depending on mode)
Power linking	Possible up to 10 units at 120 V (estimated)
Max ambient temperature	45°C
Protection rating	IP65 (temporary outdoor use, do not immerse)
Mounting	Mounting bracket with adjustment handle, safety cable mandatory
Connectivity	DMX via 3-pin XLR, power via mains cord
Maintenance and cleaning	Unplug before cleaning, use a dry cloth
Safety	Grounding required, do not expose eyes to light source, use a safety cable, do not open the device
Spare parts and repairability	Replaceable fuse (same type and rating), no user-serviceable parts inside
General information	Limited warranty, online registration required. Manual available in multiple languages at chauvetdj.com

Frequently Asked Questions - SlimPAR Q USB Chauvet

How to set the DMX starting address?

Navigate the menu using the buttons until 4Ch, 5Ch or 10Ch is displayed. Use the arrows to select the mode then confirm. The starting address is displayed (e.g., d 1). Use the arrows to choose the address (1-508) and confirm.

How to configure master/slave mode?

Chain the units together with DMX cables. On the master unit, select an automatic program (P1 to P4) or a static color. On the slaves, set the DMX address to d 1 (or any address outside the master range) so they follow the master.

How to use custom static colors?

In the menu, select u----. Use the arrows to set the red (r: 0-255), green (g: 0-255), blue (b: 0-255) and amber (A: 0-255) values. Confirm each value.

What automatic programs are available?

Four programs: P1 (4 colors in snap), P2 (4 colors in pulse), P3 (19 colors in snap), P4 (19 colors in fade). Speed is adjusted via S-- (S 1-100).

How to set the dimmer speed?

In the menu, select diM. Choose from oFF (fast response), diM1, diM2 or diM3 (slow to fast). Confirm your choice.

How to activate the strobe?

In 10-channel DMX mode, use channel 7 (Strobe). Values 064-084 produce a slow to fast strobe. Values 000-010 disable the strobe.

What are the essential safety precautions?

The device MUST be connected to a grounded outlet. Never expose eyes directly to the light. Use a safety cable when mounting overhead. Do not immerse (IP65 however). Unplug before cleaning or replacing the fuse.

How to clean the device?

Unplug the device. Use a soft dry cloth to clean the exterior surface. Do not use solvents or abrasive products. Ensure ventilation slots are not blocked.

How to replace the fuse?

Unplug the device. Locate the fuse holder on the back panel. Remove it and replace the fuse with one of the same type and rating (usually indicated on the label). Never use a higher rated fuse.

Where to find the warranty and how to register it?

The limited warranty is detailed on Chauvet's website. To register, visit www.chauvetlighting.com/warranty-registration (USA/Mexico) or www.chauvetlighting.eu/warranty-registration (Europe). Keep your proof of purchase.

USER MANUAL SlimPAR Q USB Chauvet

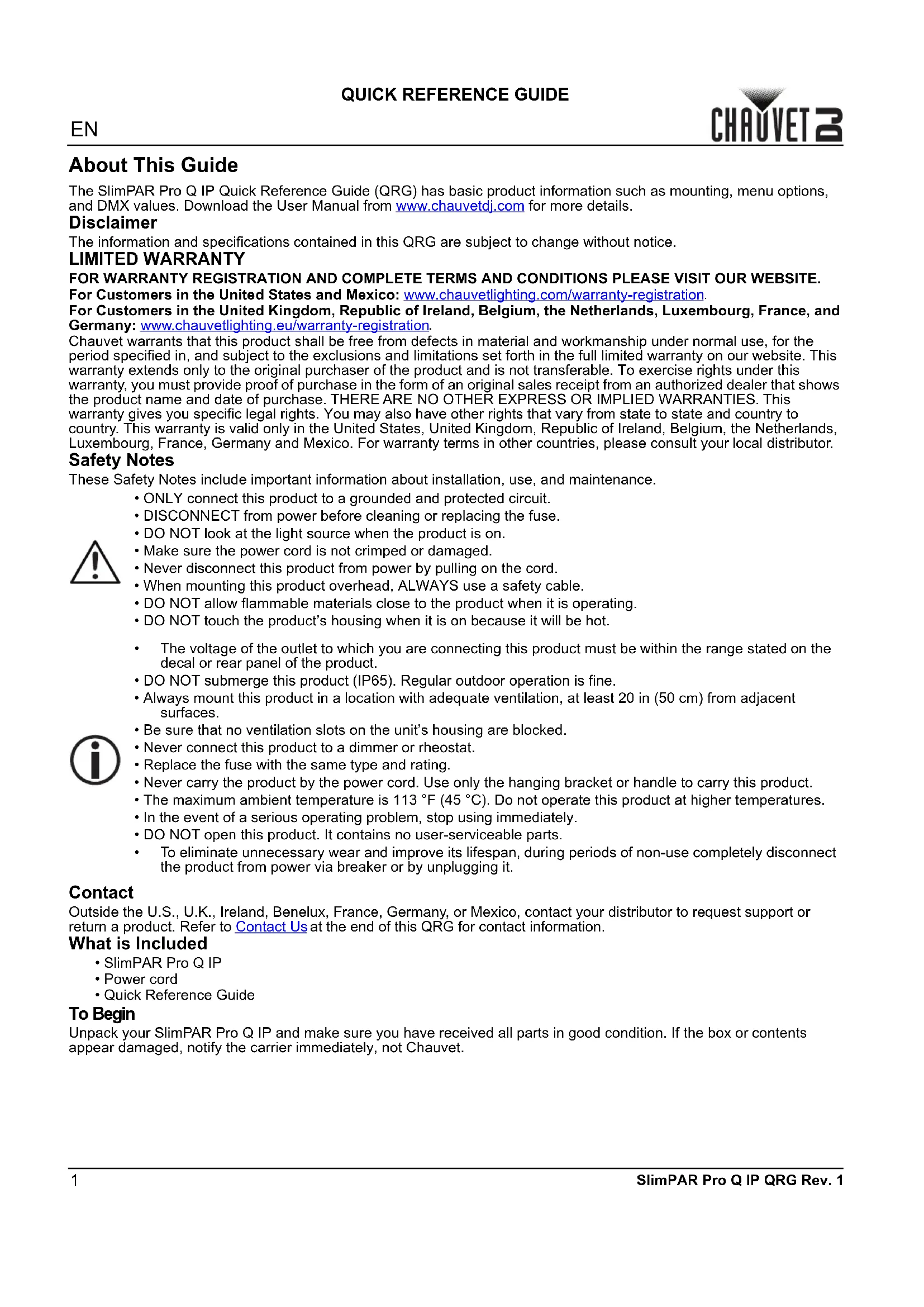

About This Guide

The SlimPAR Pro Q IP Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetdj.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• When mounting this product overhead, ALWAYS use a safety cable.
• DO NOT allow flammable materials close to the product when it is operating.

• DO NOT touch the product's housing when it is on because it will be hot.

• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.

• DO NOT submerge this product (IP65). Regular outdoor operation is fine.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• Be sure that no ventilation slots on the unit's housing are blocked.
• Never connect this product to a dimmer or rheostat.
• Replace the fuse with the same type and rating.
• Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product.
• The maximum ambient temperature is 113°F (45 °C). Do not operate this product at higher temperatures.
• In the event of a serious operating problem, stop using immediately.
• DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• SlimPAR Pro Q IP
• Power cord
• Quick Reference Guide

To Begin

Unpack your SlimPAR Pro Q IP and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

AC Power

This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power Linking

For the maximum number of SlimPAR Pro Q IP products that you can power link at each voltage, see the User Manual or the sticker on the product.

Mounting

Before mounting this product, read the Safety Notes.

Mounting Diagram

Control Panel Description

Button Function
	Exits from the current menu or function
	Navigates upwards through the menu list and increases the numeric value when in a function
	Navigates downwards through the menu list and decreases the numeric value when in a function
	Enables the currently displayed menu or sets the currently selected value into the selected function

Menu Map

Refer to the SlimPAR Pro Q IP product page on www.chauvetdj.com for the latest menu map.

Mode Programming Levels Description
DMX Mode	4Ch d 1-508			Sets the DMX personality5Ch d 1-506
	10Ch d 1-496
Static Colors C-- C 1-19 Quad chip should have 15 color minimum
Auto Programs	P--	P 1 4-color program (snap)
		P2 4-color program (pulse)
		P3 19-color program (snap)
		P4 19-color program (fading)
Auto Speed $-- S 1-100 Program speed for P1~P4
Dimmer	diM	oFF		Dimmer speed settings (slow to fast)
		diM1
		diM2
		diM3
Custom Color Mixing	u----	r 0-255		Custom static colorsCombines Red, Green, Blue, and Amber
		G 0-255
		b 0-255
		A 0-255
Control Mode	SEt	PASS	on	Locks display (passcode is,,,,,,),
			oFF
		rEST	no	Reset to factory default
			YES

DMX Linking

The SlimPAR Pro Q IP can work with a DMX controller. Instructions for connecting and configuring this product for DMX operation are in the User Manual. To learn more about DMX, download the DMX Primer from www.chauvetdj.com.

Starting Address

To ensure full access to all channels available in each DMX mode, the highest recommended DMX address is 503.

Master/Slave Connection

The SlimPAR Pro Q IP uses the DMX data connection for its Master/Slave mode. Information about configuring the SlimPAR Pro Q IP for Master/Slave operation is in the User Manual, which is available from the Chauvet website.

DMX Values

4CH	5CH	10CH	Function	Value	Percent/Setting
	1 1 Dimmer 000 ⇔ 255 0–100%
1	2	2	Red	000 ⇔ 255	0–100%
2 3 3 Green 000 ⇔ 255 0–100%
3	4	4	Blue	000 ⇔ 255	0–100%
4	5	5	Amber	000 ⇔ 255	0-100%
		6 Color	Macros	000 ⇔ 010 No function
				011 ⇔ 255	Color macros
		7 Strobe		000 ⇔ 010 No function
				064 ⇔ 084	Strobe, slow to fast
		8 Auto	Programs	000 ⇔ 005 No function
				006 ⇔ 068	Program 1, 4-color program (snap)
				069 ⇔ 131	Program 2, 4-color program (pulse)
				132 ⇔ 194	Program 3, 19-color program (snap)
				195 ⇔ 255	Program 4, 19-color program (fading)
		9	Program Speed	000 ⇔ 255	Slow to fast
		10	Dimmer Speed Mode	000 ⇔ 051	Dimmer speed set from display
				052 ⇔ 101	Off
				102 ⇔ 152 diM1
				153 ⇔ 203 diM2
				204 ⇔ 255	diM3
