BOB LED H3 - Effect machine Chauvet - Free user manual and instructions

Product Type	LED Flame Simulator
Brand	Chauvet
Model	BOB LED H3
Dimensions (L x W x H)	445 x 445 x 775 mm
Weight	2.3 kg
Power Supply	120 VAC, 60 Hz or 230 VAC, 50 Hz (fixed voltage)
Power Consumption	34 W
Fuse	F1AL, 250 V
LED Type	RGBAW+UV
Number of LEDs	3
Power per LED	2.2 W
LED Lifespan	50,000 hours
Operating Modes	Fixed colors, snap, fade, strobe
Remote Control	Infrared (compatible with IRC-6)
Mounting	Feet or chain suspension
Max Ambient Temperature	40 °C
Protection Rating	IP20 (indoor)
Warranty	Limited (see Chauvet website)
Package Contents	BOB LED H3, 3 removable feet, 1 suspension chain, reference manual

Frequently Asked Questions - BOB LED H3 Chauvet

How to attach the silk flame to the BOB LED H3?

Attach each magnetic strip of the fake silk flame to a silk fixing plate located on the base. Be careful not to damage the silk.

Can I use a remote control with this device?

Yes, the BOB LED H3 is compatible with the Chauvet IRC-6 infrared remote control. You can purchase this remote separately.

How to change the flame color?

Use the button on the control panel. Each press cycles through the preset colors (red, yellow, lime green, green, light blue, dark blue, magenta, UV, white) and the automatic snap or fade modes.

What is the power consumption of the BOB LED H3?

The device consumes 34 W, regardless of the supply voltage (120 V or 230 V). It is therefore very energy efficient.

How to install the device on the ceiling?

Use the provided suspension chain. Attach the three chain sections to the holes on the base. Ensure that the structure supports the weight (2.3 kg) and that the silk flame does not touch the chain.

What are the important safety instructions to follow?

Do not expose eyes directly to the light source. Use only indoors (IP20). Install at least 50 cm from surfaces for ventilation. Do not open the device, it contains no user-serviceable parts.

How to replace the fuse?

Unplug the device. Using a Phillips screwdriver, unscrew the cap of the fuse holder. Remove the blown fuse and replace it with a fuse of the same type (F1AL, 250 V). Screw the cap back on and plug in.

What are the available operating modes?

The device offers fixed colors (9 colors), a snap mode (automatic transition from one color to another without fading) and a fade mode (gradual transition). The speed of the automatic modes can be adjusted.

How to clean the device?

Always unplug the device before cleaning. Use a soft, dry cloth. Do not use liquids or aerosols. Ensure that the ventilation slots are not obstructed.

What to do if the device does not turn on?

Check that the device is plugged into an appropriate power outlet. Check the fuse (see question on replacement). If the problem persists, contact Chauvet customer service.

USER MANUAL BOB LED H3 Chauvet

BOBLED H3

Quick Reference Guide

Line drawing of a tripod-mounted fire cauldron with chains and a central canopy (no text or symbols)

CHAUVET B

About This Guide

The BOB LED H3 Quick Reference Guide (QRG) has basic product information such as operation and mounting. Visit www.chauvetdj.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• This product is not intended for permanent installation.
• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• When mounting this product overhead, ALWAYS use a safety cable.
• DO NOT allow flammable materials close to the product when it is operating.

• DO NOT touch the product's housing when it is on because it will be hot.

• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.

• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

- Be sure that no ventilation slots on the unit's housing are blocked.

- Never connect this product to a dimmer or rheostat.

- Replace the fuse with the same type and rating.

- Never carry the product by the power cord. Use only the hanging bracket to carry this product.

• The maximum ambient temperature is 104 °F ( 40 °C ). Do not operate this product at higher temperatures.

- In the event of a serious operating problem, stop using immediately.

- DO NOT open this product. It contains no user-serviceable parts.

- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• B O B L

- 1 suspension chain

E D H

83 removable legs

- 1 silk attachment

- Quick Reference Guide

To Begin

Unpack your BOB LED H3 and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

Product Description

The BOB LED H3 is a multi-colored flame simulator that does not produce heat. This LED-powered fixture simulates a flickering cauldron and can be changed to almost any color. The BOB LED H3 can either stand on included legs or hang from the included chains.

Overview

Magnetic strips Silk flame attachment Silk flame attachment Plates x 2 Mounting legs x 3 Flame base Attachment loops Chain attachment holes x 3 Hanging chains

AC Power

The BOB LED H3 has a fixed power supply that works with an input voltage range of 120 VAC, 60Hz or 230 VAC, 50Hz , depending on the specific model.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Fuse Replacement

1. Disconnect the product from power.
2. With a Philip's head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove the blown fuse.
4. Replace with a fuse of the same type and rating.
5. IScrew the fuse holder cap back in place and reconnect power.

Disconnect the product from the power outlet before replacing the fuse.

Operation

This product will stay on as long as it is plugged in. To use this product:

1. Attach the silk simulated flame attachment piece to the flame base.
2. Connect the product to a suitable power outlet.

Silk Flame Attachment

Attach each magnetic strip on the simulated silk flame to a silk attachment plate on the base. Be careful not to damage the silk.

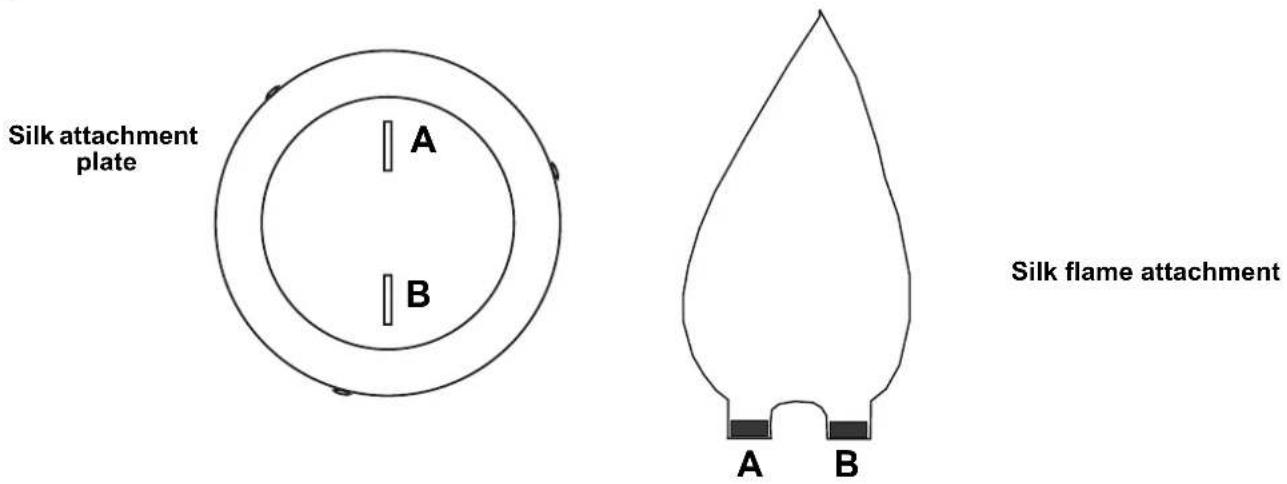

Silk attachment plate A B Silk flame attachment A B

Control Panel Description

Button Function
	Toggle between colors, snap, and fade mode
	Adjusts the speed of the snap and fade modes

LED Control

Button Action Function
	1 x press Red
	2 x press Yellow
	3 x press Lime green
	4 x press Green
	5 x press Light blue
	6 x press Dark blue
	7 x press Magenta
	8 x press UV
	9 x press White
	10 x press Automatically snaps through colors one by one
	11 x press Automatically fades from one color to another
	N/A Changes speed of snap from slow to fast and fade from fast to slow

Infrared Remote Control

The BOB LED H3 is fully compatible with the CHAUVET IRC-6. For more information on the IRC or to download instructions, go to www.chauvetlighting.com.

ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON

Button Function
	Turns LEDs on/off
	Enables snap and fade modes
	Enables strobe mode
	Increases and decreases speed
	Manual color mixing
<0>-<9>	Preset colors
<+>	Increases values for controls as described above
<->	Decreases values for controls as described above

Mounting

Before mounting this product, read the Safety Notes. The BOB LED H3 may be used with the chain suspensions or with the 3 surface mounting legs that are provided with the fixture. Make sure there is adequate room for ventilation when mounting this product.

Rigging

• Ensure that the structure can support the product's weight before mounting the product on to it. See the product's User Manual for Weight formation.
• Attach legs with included hardware, using a Philip's screwdriver. Attach legs one at a time.

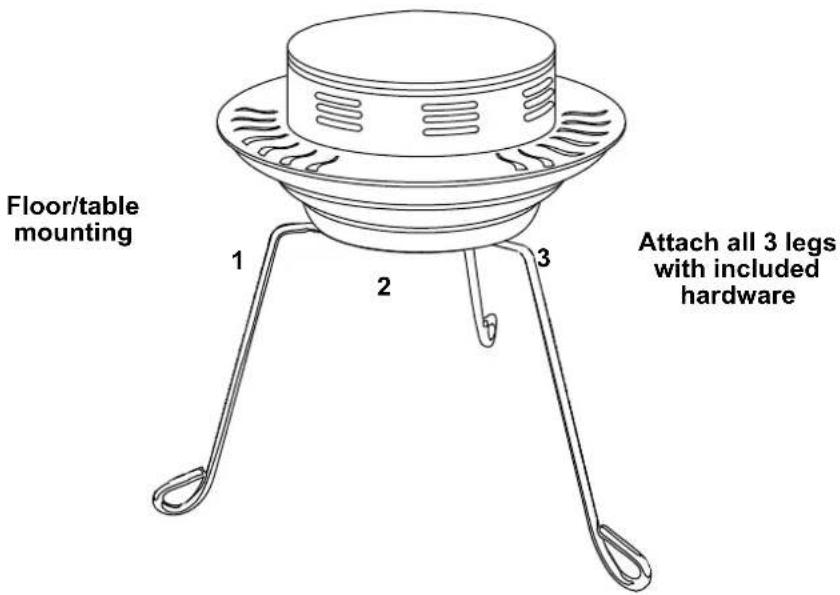

Floor/table mounting 1 2 3 Attach all 3 legs with included hardware

Mounting Diagram

Attach all 3 chain sections to holes on the base Hanging mounting 1 2 3

Ensure the silk flame is clear of the chain while hanging and during operation.

Technical Specifications

Dimensions and Weight

Length Width Height Weight
17.5 in (445 mm)	17.5 in (445 mm)	30.5 in (775 mm)	5 lb (2.3 kg)

Note: Dimensions in inches are rounded.

Power

Power Supply Type Range Voltage Selection
Fixed 120 VAC, 60 Hz or 230 VAC, 50 Hz Fixed
Parameter 120 V, 60 Hz 230 VAC, 50 Hz
Consumption 34 W 34W
Operating Current	0.3 A	0.1 A
Fuse	F1AL, 250 V	F1AL, 250 V
Power I/O	U.S./Worldwide	UK/Europe
Fixed	Edison (U.S.)	Local Plug

Light Source

Type	Color	Quantity	Power	Current	Lifespan
LED	RGBAW+UV	3	2.2 W	1 A	50,000 hours

Ordering

Product Name	Item Code	UPC Number
BOBLEDH3 (120 V)	09051957	781462223052
BOBLEDH3 (220V)	09051972	781462223205

Acerca de esta guía

Hand-drawn image of a remote control with labeled buttons arranged in a grid layout.

Botón Función

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

Bouton Fonction

Simple line drawing of a teardrop-shaped object with two labeled points A and B at the base (no text or symbols on the shape itself)

Diagram of a remote control with labeled buttons and indicators for signal or function

Simple line drawing of a teardrop-shaped object with two labeled points A and B at the base (no text or symbols on the shape itself)

Line drawing of a three-legged electric stove or fan with labeled parts (no text or symbols present)

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetdj.com

Chauvet Europe Ltd

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetdj.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Europe BVBA

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetdj.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère Email: [e-mail]

91380 Chilly-Mazarin

France Website: www.chauvetdj.eu

Voice: [phone]

Chauvet Germany

Address: Bruno-Bürgel-Str. 11 Email: [e-mail]

28759 Bremen

Germany Website: www.chauvetdj.eu

Voice: [phone]

Chauvet Mexico

(Entrance by Calle 2)

Zona Industrial Lerma Website: www.chauvetdj.mx

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Follow the instructions to request support or to return a product. Visit our website for contact details.

BOB LED H3 QRG ML6 Rev. 1

© Copyright 2022 Chauvet

All rights reserved
