EZpin Pack 4 - Effect machine Chauvet - Free user manual and instructions

Product Type	Wireless LED effect machine (pack of 4)
Brand	Chauvet
Model	EZpin Pack 4
Dimensions (per unit)	189 x 70 x 53 mm
Weight (per unit)	0.3 kg
Light Source	1 cool white LED 2 W
LED Life	50,000 hours
Beam Angle	3°
Field Angle	6°
Illuminance at 2 m	3,112 lux
Power Supply	Built-in rechargeable lithium-ion battery / Multi-charger 5 VDC, 2.4 A (4 outputs)
Charger Input Voltage	100-240 VAC, 50/60 Hz
Maximum Battery Life	Up to 10 hours
Charging Time	Approx. 7 hours
Maximum Ambient Temperature	40 °C
Protection Rating	IP20 (indoor use only)
Cooling	Natural convection
Control	Infrared remote control IRC-6 (included)
Remote Control Functions	On/off, dimming (+/-)
Pack Contents	4 EZpin, 4 USB cables, multi-charger, IRC-6 remote, 2 variable white gels, carrying bag, reference manual
Warranty	Limited warranty (see terms on Chauvet website)
Maintenance	Disconnect before cleaning; do not use flammable products
Safety	Do not open, do not expose to moisture, use a safety cable when elevated
UPC Code	781462218812

Frequently Asked Questions - EZpin Pack 4 Chauvet

How to turn each EZpin on and off?

Each EZpin turns on and off via the included IRC-6 remote control. The ON/OFF button on the remote activates or deactivates the LEDs of the entire pack.

What is the battery life?

The maximum battery life is 10 hours in continuous use. Full charging time is approximately 7 hours.

How to charge the batteries?

Use the provided multi-charger. Connect each EZpin via USB cable to the charger. The LED indicators on the EZpin turn red during charging and green once fully charged. Do not charge for more than 24 hours.

Can I use the EZpin Pack 4 outdoors?

No, the device is designed for indoor use only (IP20). Do not expose it to rain or moisture.

How to mount the EZpin at height?

Use a suitable mounting bracket and always a safety cable. Maintain a distance of at least 50 cm from adjacent surfaces for ventilation.

What to do if the device does not turn on?

Check that the battery is charged. If the battery is completely discharged, connect the charger and wait a few minutes before turning on. If the problem persists, contact Chauvet support.

How to clean the device?

Always disconnect the device before cleaning. Use a soft, dry cloth. Do not use flammable or abrasive products.

Can I use other remote controls?

The EZpin Pack 4 is only compatible with the Chauvet IRC-6 remote. Other infrared remotes may not work.

What to do if the battery heats up during charging?

Slight warmth is normal. If the battery becomes too hot, the charger may stop automatically. Let it cool before recharging. Do not charge in a closed container.

Where to find warranty and technical support?

The limited warranty is available at www.chauvetlighting.com/warranty-registration (for USA and Mexico) or www.chauvetlighting.eu/warranty-registration (for Europe). For support, contact your local dealer.

USER MANUAL EZpin Pack 4 Chauvet

The EZpin Pack 4 Quick Reference Guide (QRG) has basic product information such as mounting and technical specifications.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• When mounting this product overhead, ALWAYS use a safety cable.

• DO NOT allow flammable materials close to the product when it is operating.

- DO NOT touch the product's housing when it is on because it will be hot.

- The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.

- This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.

• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

- Be sure that no ventilation slots on the unit's housing are blocked.

- Never connect this product to a dimmer or rheostat.

• Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product.

• The maximum ambient temperature is 104\ °F ( 40\ °C ). Do not operate this product at higher temperatures.

- In the event of a serious operating problem, stop using immediately.

• DO NOT open this product. It contains no user-serviceable parts.

- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Contact

Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• 4 EZpin products
- 4 USB Cables
- Multi-Charger

- IRC-6

• 2 Variable White Gels

• C a r r y i n g

- Quick Reference Guide

B

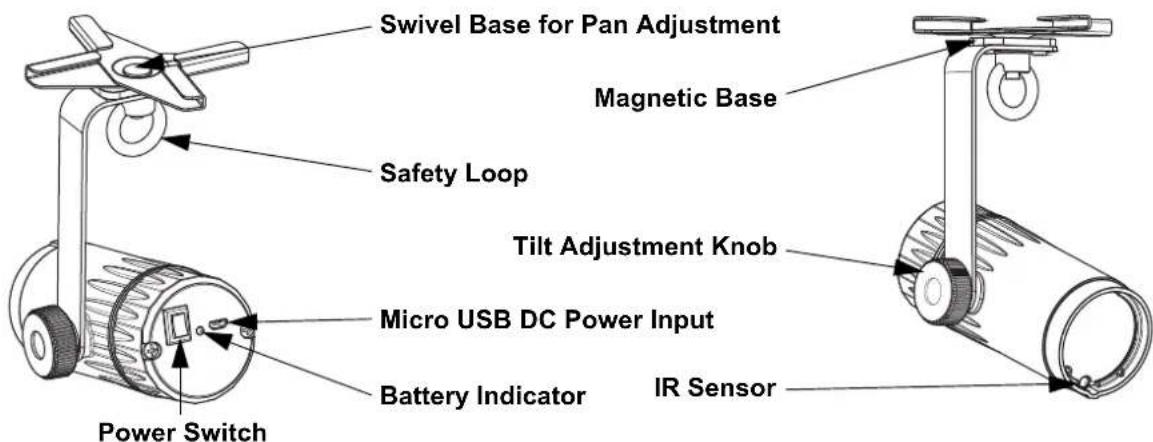

To Begin

Unpack your EZpin Pack 4 and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

Product Overview

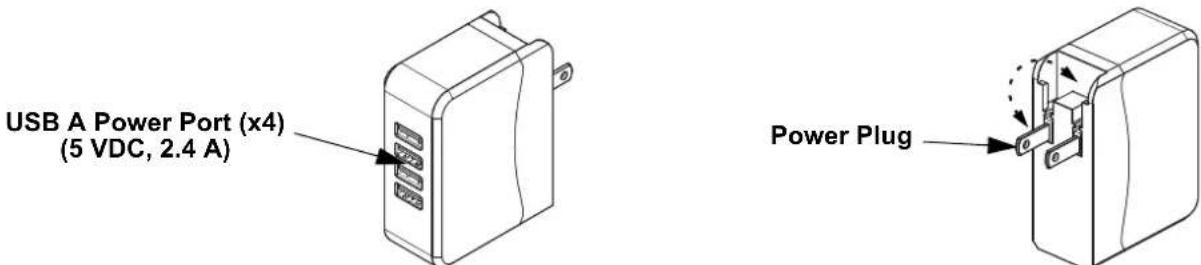

AC Power

This product has an external auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz. The output voltage is 5 VDC, 2.4 A (4 outputs).

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Multi-Charger Overview

Battery Power

Each EZpin product comes with a rechargeable lithium-ion battery for cable-free operation.

The indicator on the EZpin shows red when the battery is charging, and green when it is fully charged.

Do not charge the batteries in a closed container.

Battery Charge Notes

• Avoid depleting the battery below 10% .
  • For best results, charge the battery in a temperature between 32 °F (0 °C), and 95 °F (35 °C).
• When charging the battery, keep the product at least 1 m from any open flame or hot plate.
• If the battery is completely discharged, the device cannot be turned on immediately when the charger is connected. Allow a depleted battery to charge for a few minutes before turning on the device.
• While charging, the device may heat up. This is normal and should not affect the device's lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.
• Do not charge the batteries in a closed container.
• Do not charge the battery for more than 24 hours.

Battery Run Time

Maximum Run Time Recharge Time

Up to 10 hours 7 hours

Mounting

Before mounting this product, read the Safety Notes.

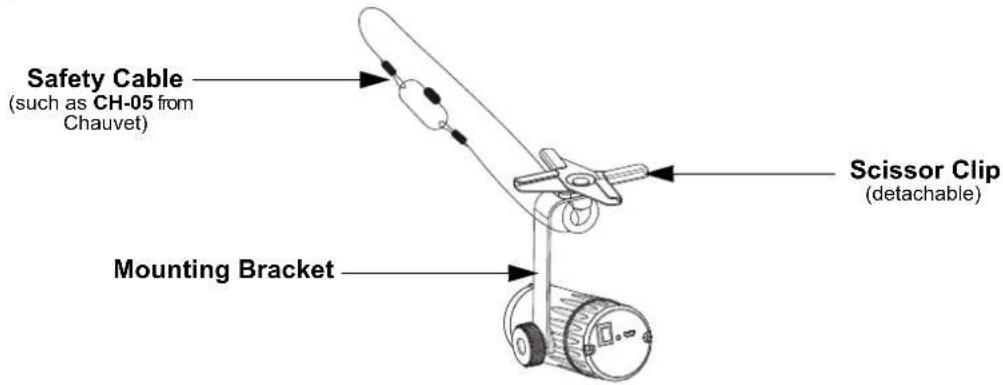

Mounting Diagram

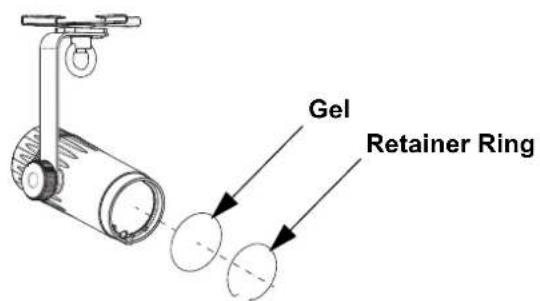

Gel Installation

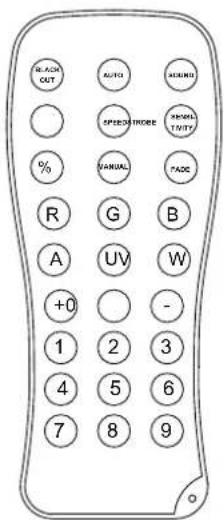

IRC-6 Remote (Infrared Remote Control)

The EZpin Pack 4 can be operated with the CHAUVET IRC-6.

The following IRC-6 buttons are used with the EZpin Pack 4:

- Turns LED on/off

<+> - Increases the dimmer value

<-> - Decreases the dimmer value

Technical Specifications

Dimensions and Weight

Length Width Height Weight

7.4 in (189 mm) 2.7 in (70 mm) 2.1 in (53 mm) 0.6 lb (0.3 kg)

Note: Dimensions in inches are rounded.

Power

Parameter EZpin Multi-Charger
Input Voltage Fixed Switching (internal)Range 5 VDC, 2.4 A 100 to 240 VAC, 50/60 HzVoltage Selection Fixed Auto-ranging
Parameter	120 V, 60 Hz			230 V, 50 Hz
Consumption	199 W			194 W
Operating current 2.8 A	1.6 A
Light Source
Type	Color	Quantity	Power	Current	Lifespan
LED	Cool white	1	2 W	725 mA	50,000 hours
Photometrics
Beam Angle	Field Angle			Illuminance @ 2 m
3°	6°			3,112
Thermal
Maximum External Temp.	Cooling
104 °F (40 °C)	Convection
Ordering
Product Name	Item Code			UPC Number
EZpin Pack 4	10051533			781462218812

Acerca de esta guía

IRC-6-Afstandsbediening (Infrarood Afstandsbediening)

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetdj.com

Chauvet Europe Ltd

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetdj.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Europe BVBA

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetdj.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

France Website: www.chauvetdj.eu

Voice: [phone]

Chauvet Germany

(Entrance by Calle 2)

Email: [e-mail]

Zona Industrial Lerma Website: www.chauvetdj.mx

Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Follow the instructions to request support or to return a product. Visit our website for contact details.

EZpin Pack 4 QRG Rev. 1 ML6

© Copyright 2018 Chauvet

All rights reserved

Printed in the P.R.C.

RoHS
