| Brand | Elica |
| Model | Galaxy P 80 XN |
| Product type | Decorative cooker hood |
| Width | 80 cm |
| Minimum installation height | 50 cm (electric hob) / 65 cm (gas or mixed hob) |
| Power supply | 220-240 V ~ 50 Hz |
| Maximum extraction power | 4 speeds + timed intensive speed (5 min) |
| Lighting | 2 halogen lamps 12 V - 20 W max, type G4 |
| Exhaust type | Extraction (external evacuation) or recirculation (with charcoal filter) |
| Exhaust connection diameter | Not specified (estimated: 120-150 mm) |
| Grease filter | Metal, dishwasher safe or hand washable (monthly or acoustic signal) |
| Charcoal filter | Washable (every 2 months) or non-washable (replace max 4 months) depending on model |
| Filter saturation signal | Yes (40 h for grease, 160 h for charcoal) |
| Automatic shut-off timer | Yes (20 min at speed 1, 15 min at speed 2, 10 min at speed 3, 5 min at intensive speed) |
| Weight | Not specified (estimated: approx. 15-20 kg) |
| Material | Stainless steel / glass (depending on finish) |
| Use | Domestic only |
| Safety | Automatic shutdown in case of overheating? Not mentioned; disconnect before maintenance |
| Available spare parts | Filters, lamps, power cable (via technical service) |
| Warranty | Not specified (standard according to retailer) |
Frequently Asked Questions - Galaxy P 80 XN ELICA
User questions about Galaxy P 80 XN ELICA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Range hood in PDF format for free! Find your manual Galaxy P 80 XN - ELICA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Galaxy P 80 XN by ELICA.
USER MANUAL Galaxy P 80 XN ELICA
EN Instruction on mounting and use


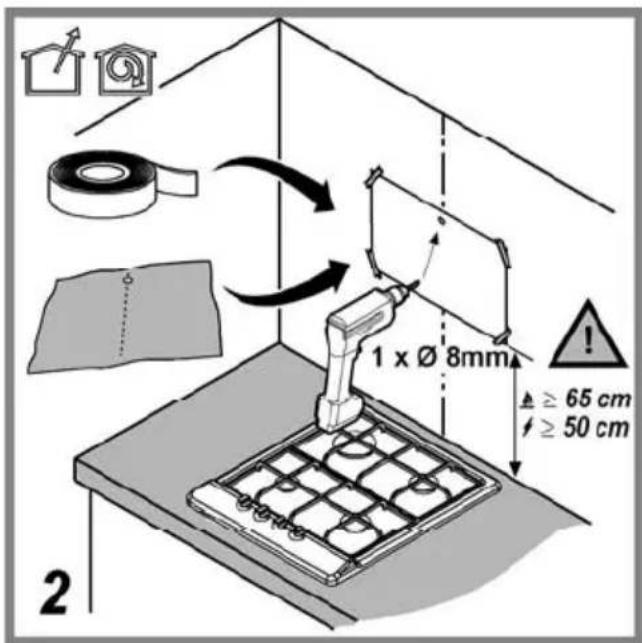

1 x Ø 8mm ≥ 65 cm ≥ 50 cm 2


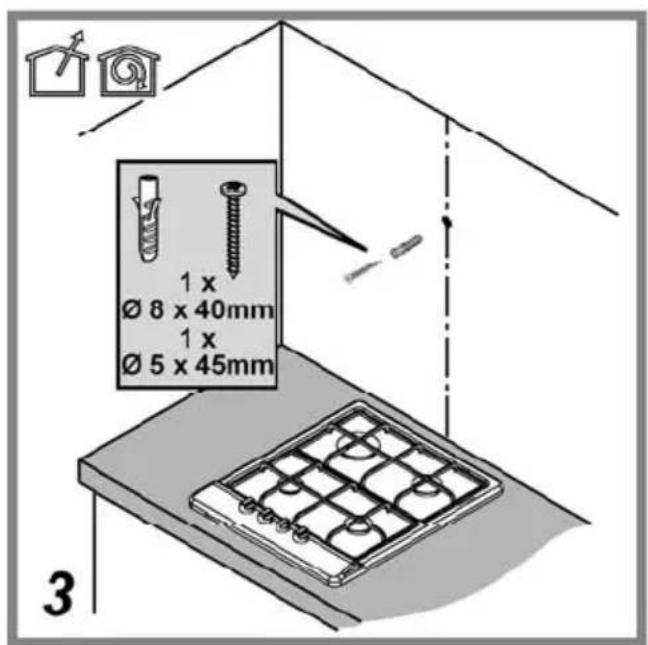

1 x Ø 8 x 40mm 1 x Ø 5 x 45mm 3


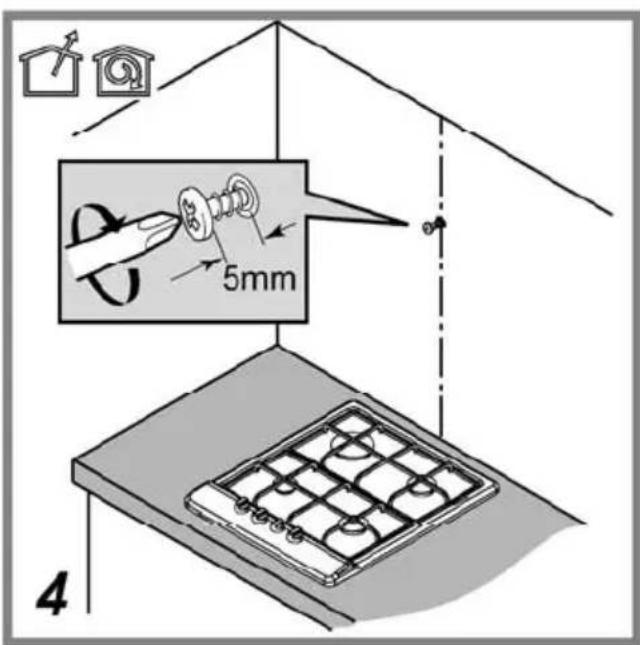

5mm 4


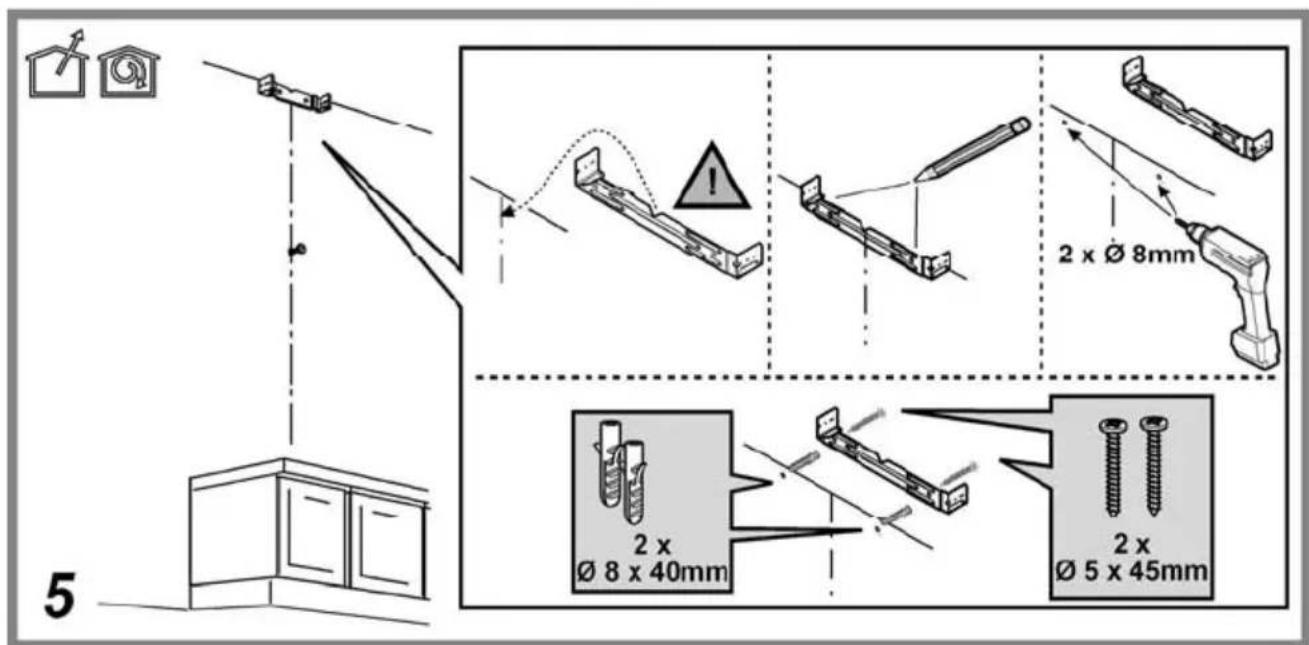

5 2 x Ø 8mm 2 x Ø 8 x 40mm 2 x Ø 5 x 45mm


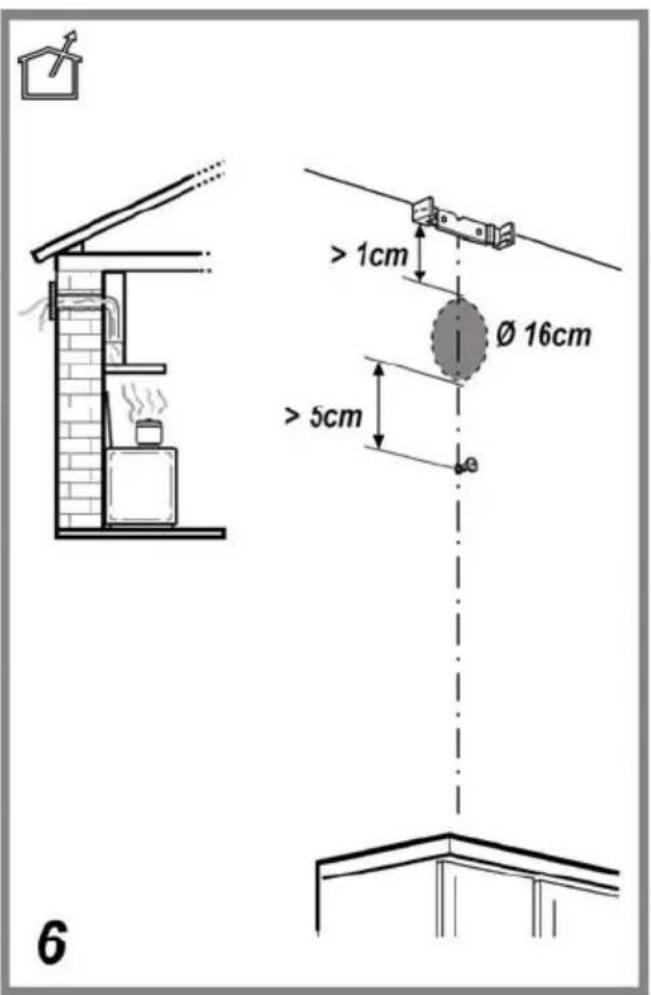

6 > 1cm Ø 16cm > 5cm


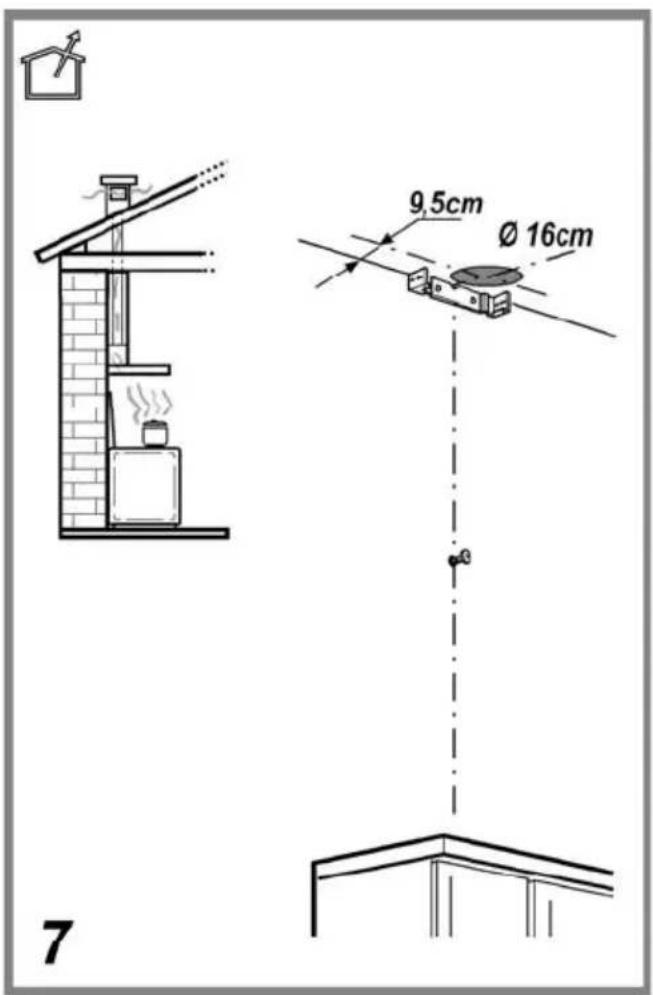

9.5cm Ø 16cm 7


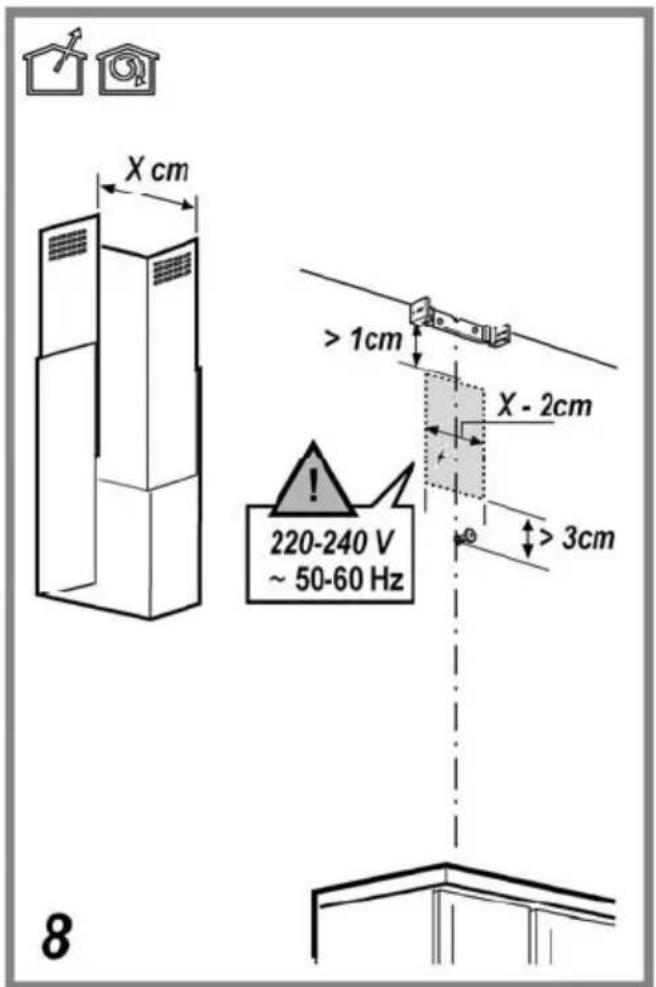

X cm >1cm X - 2cm 220-240 V ~ 50-60 Hz >3cm 8


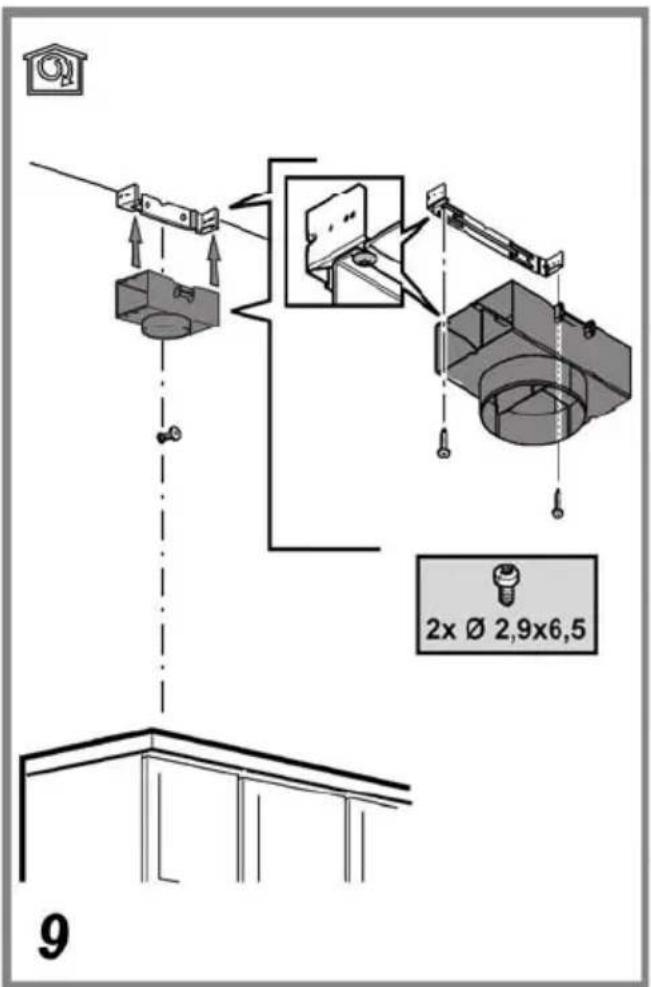

2x Ø 2,9x6,5 9


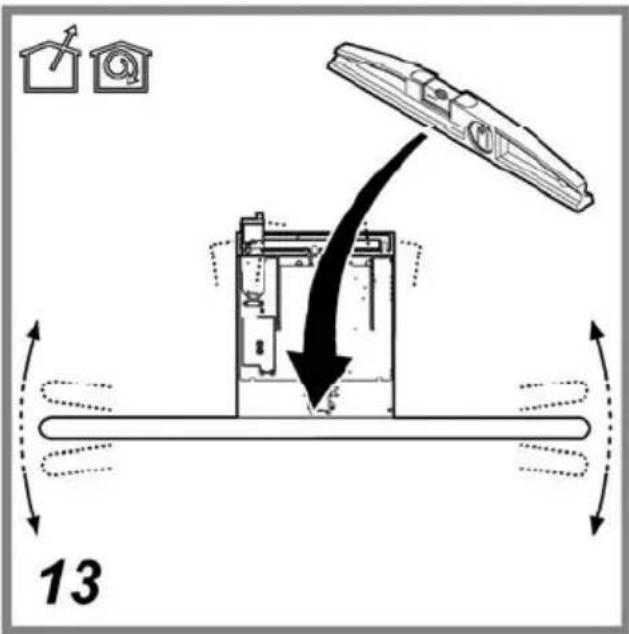

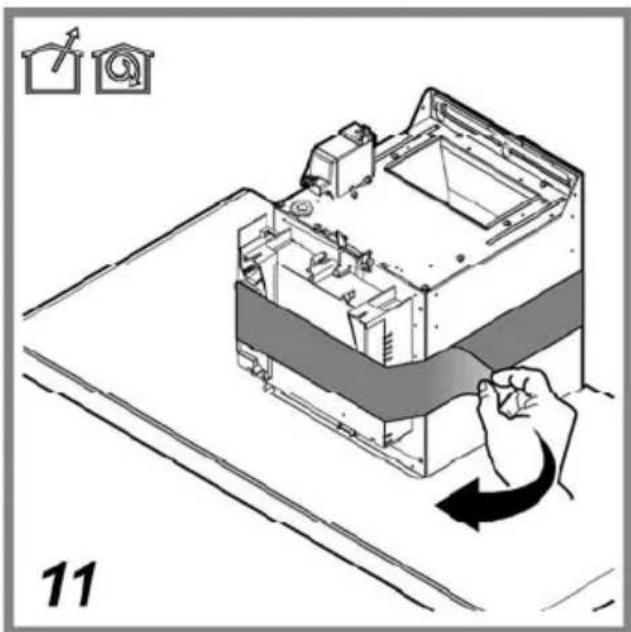

13


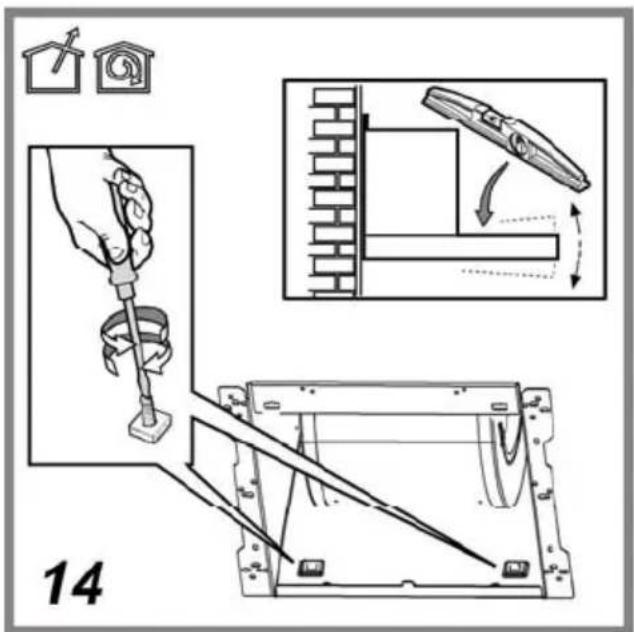

Diagram illustrating a tool application on a brick wall, showing step-by-step instructions and component placement.


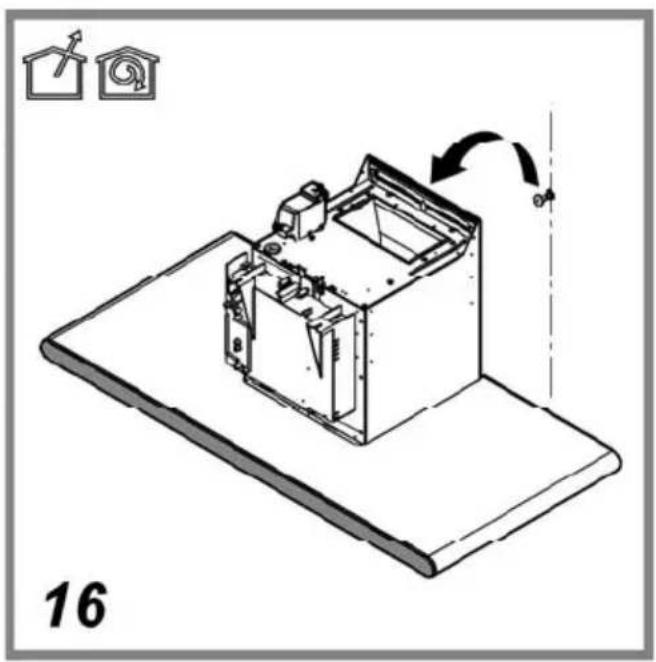

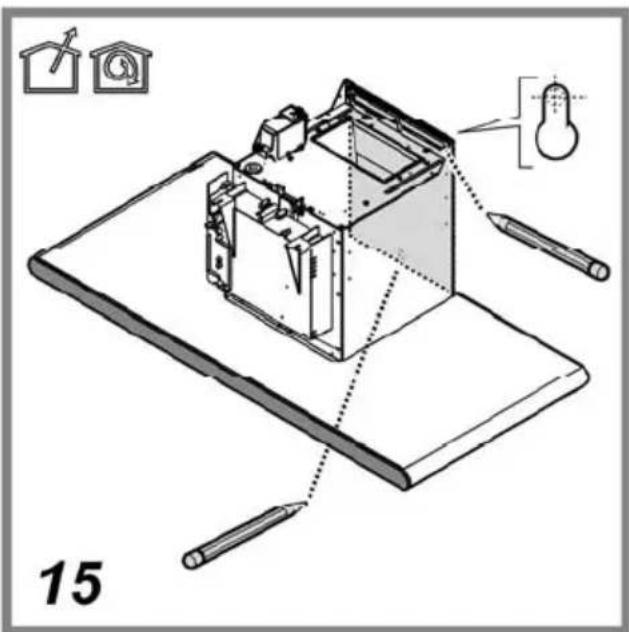

15


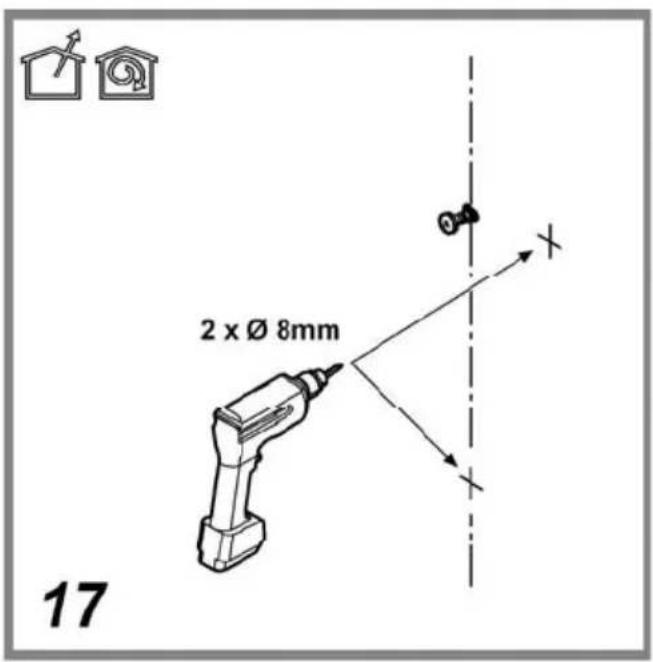

2 x Ø 8mm 17


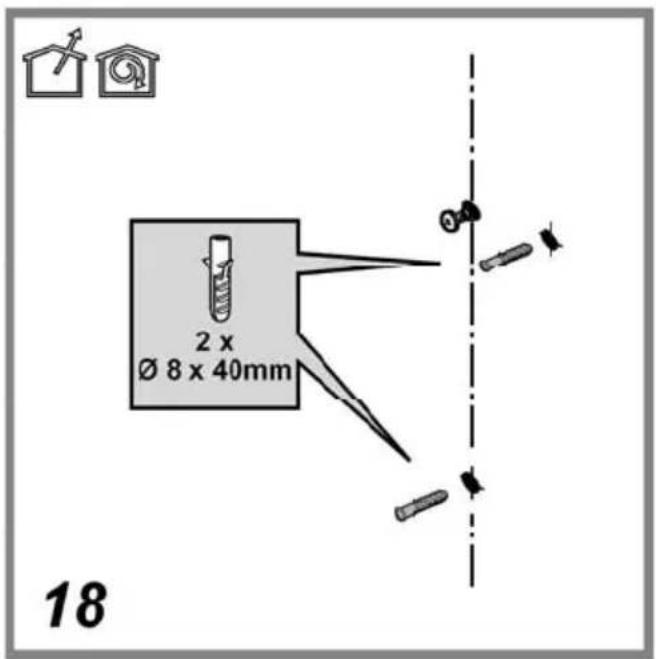

2 x Ø 8 x 40mm 18


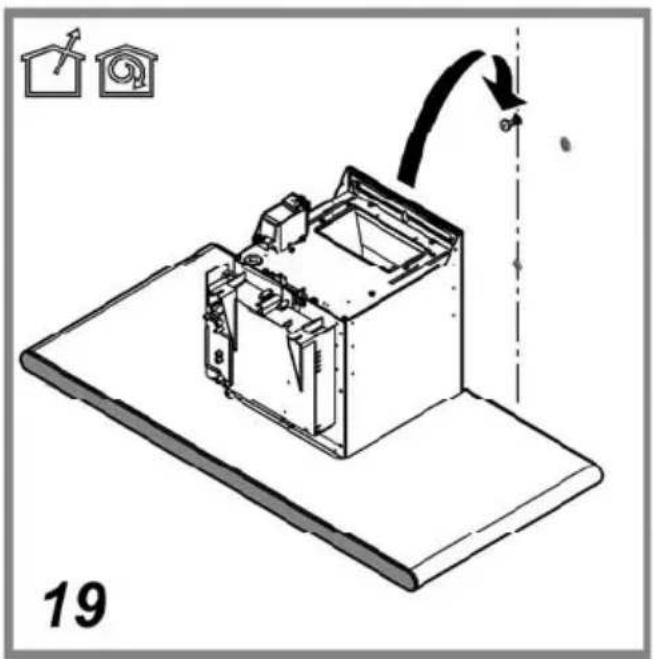

19


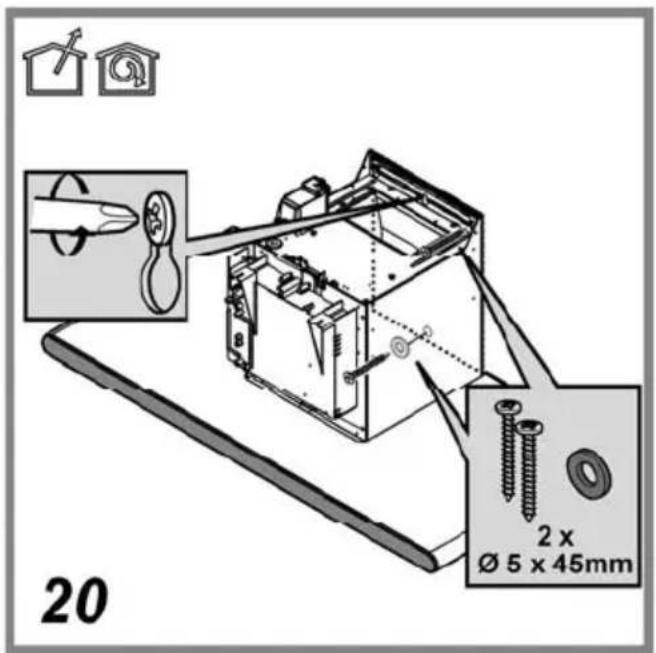

20 2 x Ø 5 x 45mm


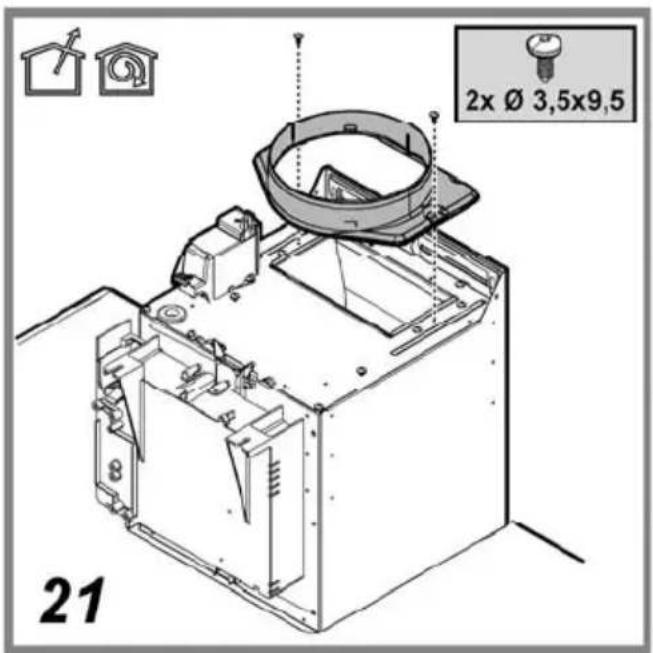

2x Ø 3,5x9,5 21


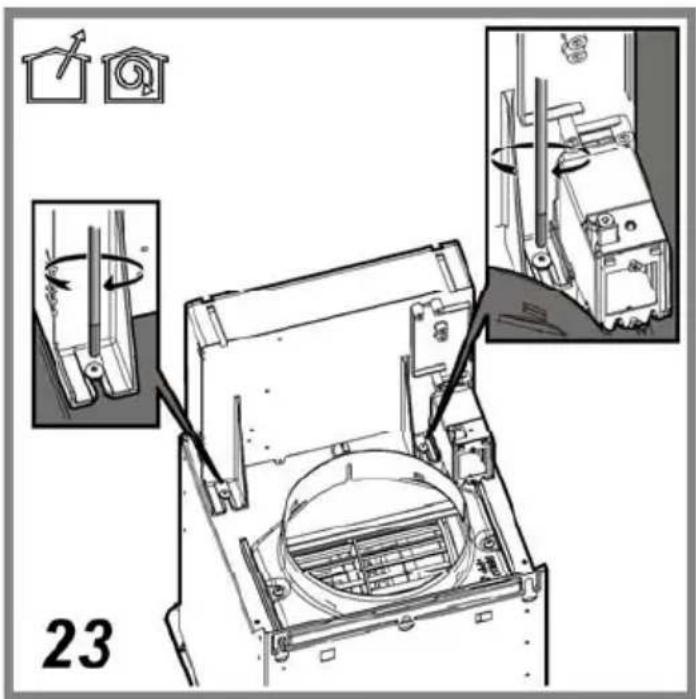

23


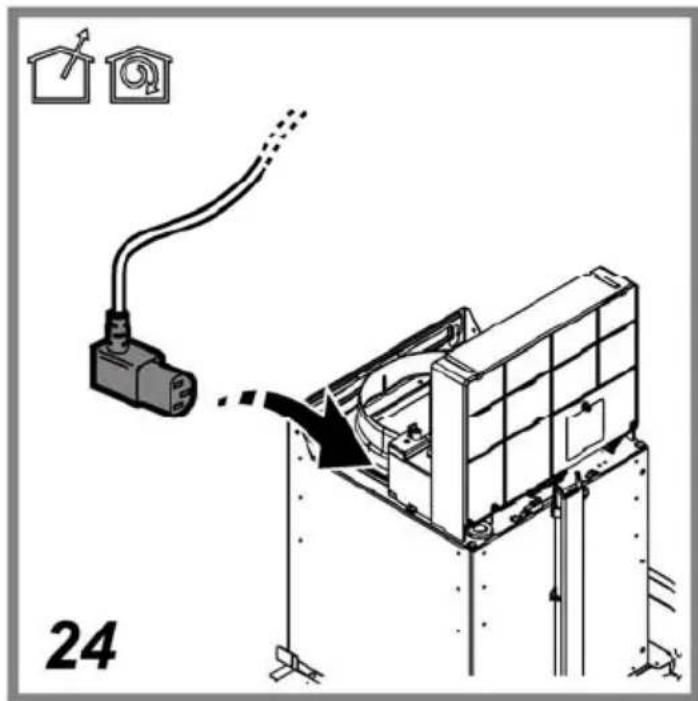

24


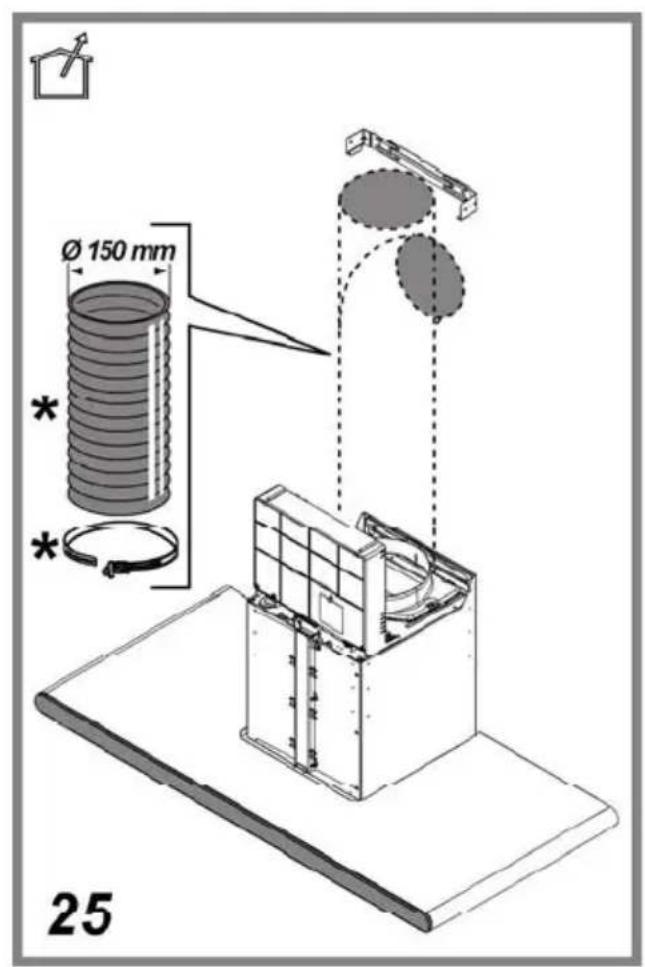

Ø 150 mm 25


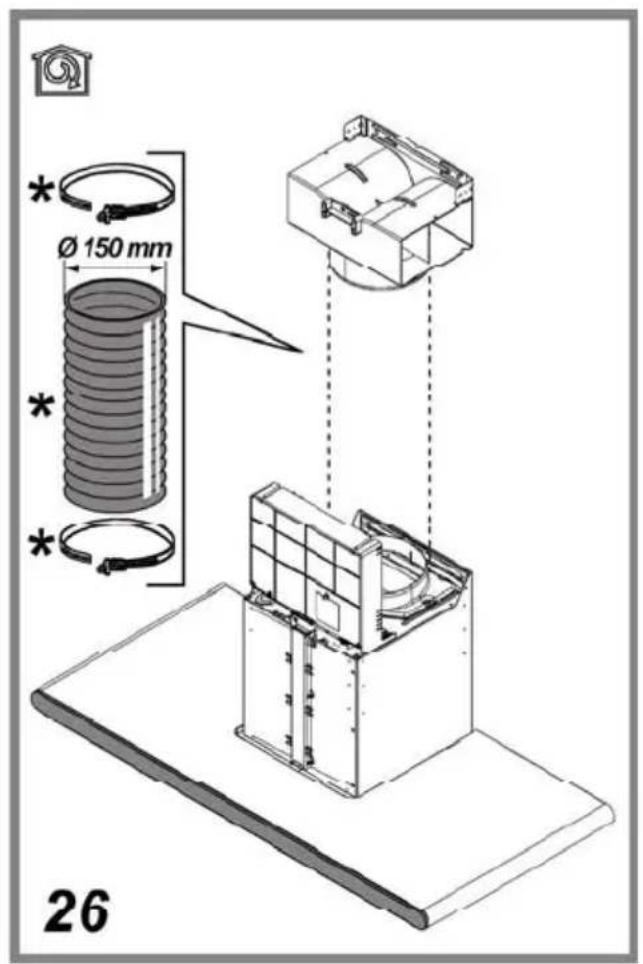

Ø 150 mm 26


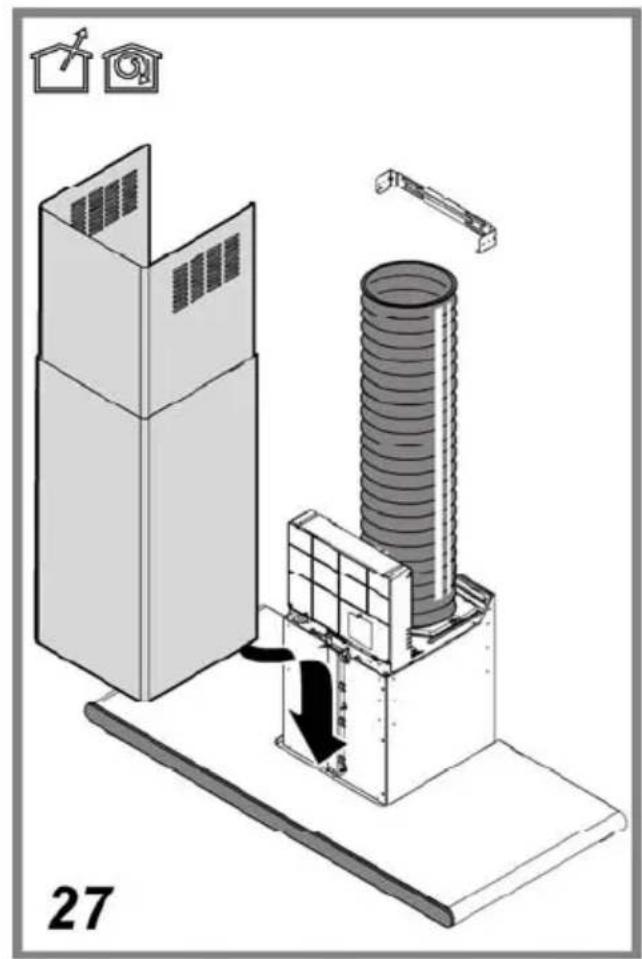

Isometric illustration of a mechanical device with a cylindrical component and a base, showing no text or symbols.


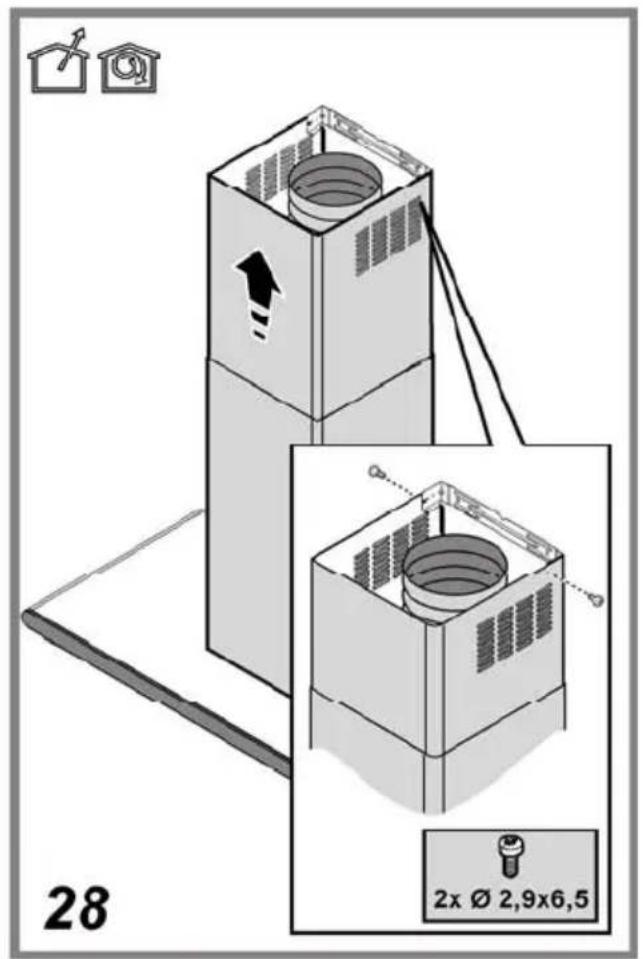

28 2x Ø 2,9x6,5
29.3


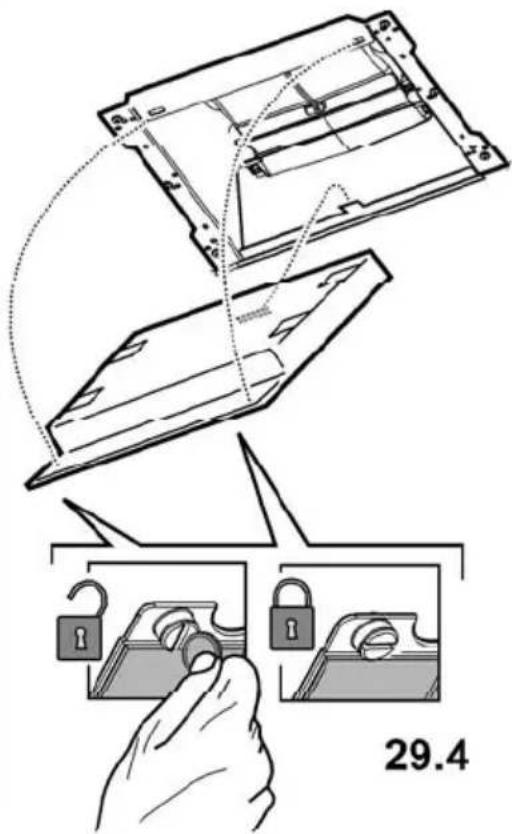

29.429


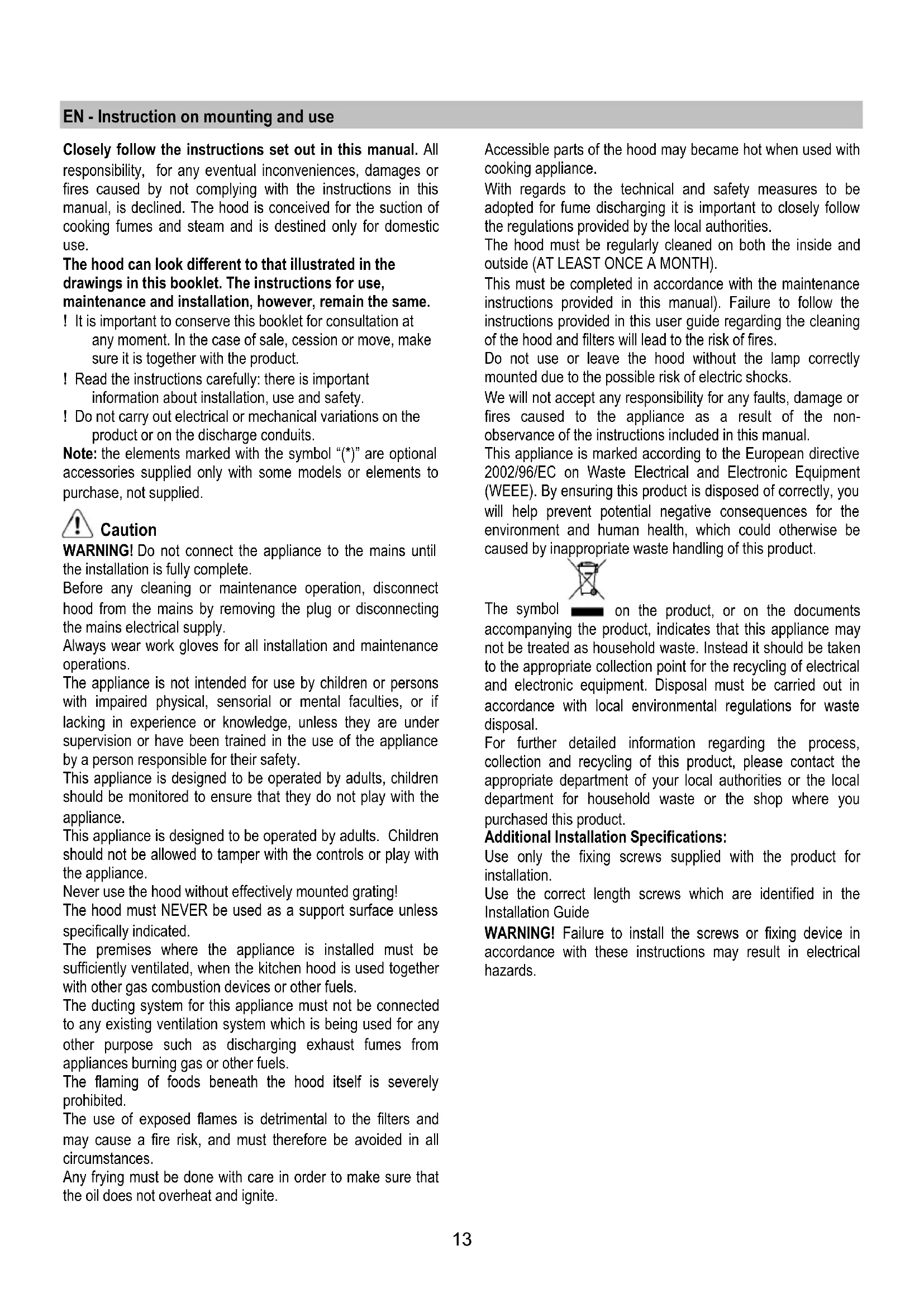

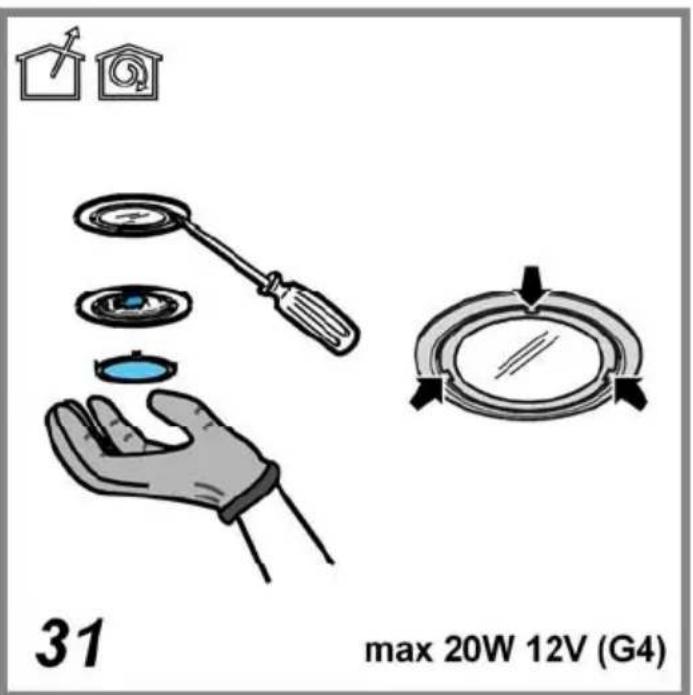

31 max 20W 12V (G4)EN - Instruction on mounting and use
Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The hood is conceived for the suction of cooking fumes and steam and is destined only for domestic use.
The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.
! It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
! Read the instructions carefully: there is important information about installation, use and safety.
! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
Note: the elements marked with the symbol “(*)” are optional accessories supplied only with some models or elements to purchase, not supplied.
Caution
WARNING! Do not connect the appliance to the mains until the installation is fully complete.
Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.
Always wear work gloves for all installation and maintenance operations.
The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.
This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance.
This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.
Never use the hood without effectively mounted grating!
The hood must NEVER be used as a support surface unless specifically indicated.
The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.
The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels.
The flaming of foods beneath the hood itself is severely prohibited.
The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.
Any frying must be done with care in order to make sure that the oil does not overheat and ignite.
Accessible parts of the hood may become hot when used with cooking appliance.
With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).
This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.
Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.
We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observance of the instructions included in this manual.
This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.
Additional Installation Specifications:
Use only the fixing screws supplied with the product for installation.
Use the correct length screws which are identified in the Installation Guide
WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
Use
The hood is designed to be used either for exhausting or filter version.
Ducting version
In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.
Attention! The exhausting pipe is not supplied and must be purchased apart.
Diameter of the exhausting pipe must be equal to that of the connection ring.
In the horizontal runs the exhausting pipe must be slightly slanted (about 10^ ) and directed upwards to vent the air easily from the room to the outside.
Attention! If the hood is supplied with active charcoal filter, then it must be removed.
Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).
Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.
Any responsibility in the matter is therefore declined.
! Use a duct of the minimum indispensable length.
! Use a duct with as few elbows as possible (maximum elbow angle: 90°).
! Avoid drastic changes in the duct cross-section.
! Use a duct as smooth as possible inside.
! The duct must be made of certified material.
Filter version
One active charcoal filter is needed for this and can be obtained from your usual retailer.
The filter removes the grease and smells from the extracted air before sending it back into the room through the upper outlet grid.
The models with no suction motor only operate in ducting mode, and must be connected to an external suction device (not supplied).
The connecting instructions are supplied with the peripheral suction unit.
Installation
The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers.
If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.
Electrical connection
The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.
Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.
The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service.
Mounting
Before beginning installation:
- Check that the product purchased is of a suitable size for the chosen installation area.
- Remove the charcoal (*) filter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want to use the hood in the filtering version.
- Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (*), guarantees (*), etc.), eventually removing them and keeping them.
- If possible, disconnect and move freestanding or slide-in range from cabinet opening to provide easier access to rear wall/ceiling. Otherwise put a thick, protective covering over countertop, cooktop or range to protect from damage and debris. Select a flat surface for assembling the unit. Cover that surface with a protective covering and place all canopy hood parts and hardware in it.
- In addition check whether near the installation area of the hood (in the area accessible also with the hood mounted) an electric socket is available and it is possible to connect a fumes discharge device to the outside (only suction version).
- Carry out all the masonry work necessary (e.g. installation of an electric socket and/or a hole for the passage of the discharge tube).
Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only.
Operation
Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.
T2. Speed decrease
Press "T2" button to decrease the speed from 4 (intensive) to 1.
Press "T2" button during operation at speed 1, the hood sets to OFF.
T3 Speed increase
Press T3 button and the hood sets from OFF to speed 1.
Press the button (hood ON) to increase the speed of the motor from 1 to 4 (intensive).
The respective LED goes on for each speed.
Speed 1 LED 1
Speed 2 LED 2
Speed 3 LED 3
Intensive speed LED 4 (flashing)
The intensive speed is timed. Standard timing is 5', at the end of which the hood sets to speed 2.
To deactivate the function before time is up press T2 button, the hood sets to speed 3.
T4 Speed timing
Speed timing is activated by pressing T4 button, when timing is up the hood switches off.
Timing is divided as follows:
Speed 1 - 20 minutes (LED 1 flashing)
Speed 2 - 15 minutes (LED 2 flashing)
Speed 3 - 10 minutes (LED 3 flashing)
Speed 4 - 5 minutes (LED 4 flashing)
During timed operation press T2 button and the hood quits the timed mode and decreases the speed.
Press T3 button and the hood quits the timed mode and increases the speed.
Press T4 button and the hood quits the timed mode maintaining the set speed.
Grease filter signal
After 40 hours of operation LED 1 flashes.
When such signal appears the grease filter installed needs to be washed.
To reset the signal, keep T4 button pressed for 5".
The hood gives out a "BEEP" and LED 1 stops flashing.
Charcoal filter signal
After 160 hours of operation LED 2 flashes.
When such signal appears the charcoal filter installed must be replaced.
To reset the signal, keep T4 button pressed for 5".
The hood gives out a "BEEP" and LED 2 stops flashing.
In case of contemporaneous signalling of both filters, LEDs 1 and 2 flash alternatively.
To reset, carry out the procedure described above for 2 times. The first time it resets the charcoal filter signal, the second time it resets the grease filter signal.
The charcoal filter signal is not active in the standard mode. In case the hood is used in filter version it is necessary to enable the charcoal filter signal.
Activating charcoal filter signal:
Set the hood to OFF and press T4 button for 5".
Once the button has been pressed, the LEDs related to the filter signals currently active light up.
The hood gives out a "BEEP" and LED 2 flashes for 2".
LEDs 1 and 2 remain on for about 2" before the hood goes back to OFF.
Deactivating charcoal filter signal:
Set the hood to OFF and press T4 button for 5".
Once the button has been pressed, the LEDs related to the filter signals currently active light up.
The hood gives out a "BEEP" and LED 2 switches off.
LED 1 remain on for about 2" before the hood goes back to OFF.
Maintenance
ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.
Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.
Cleaning
The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!
WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks.
Therefore, we recommend observing these instructions.
The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.
Grease filter
Traps cooking grease particles.
This must be cleaned once a month (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.
When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

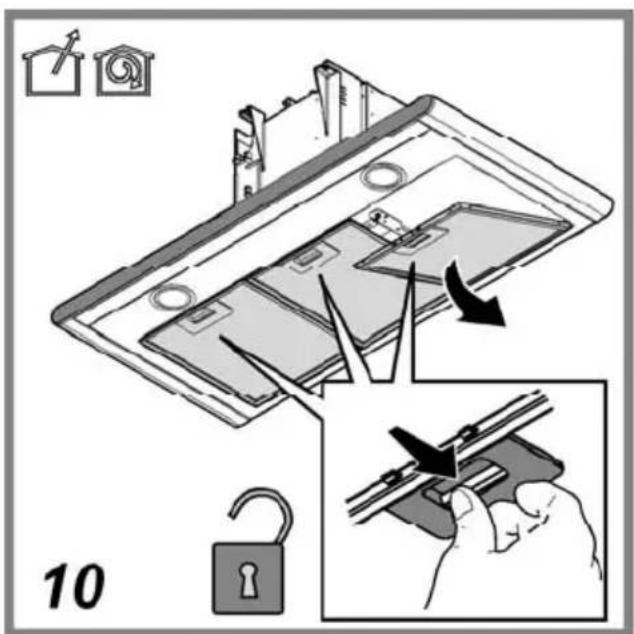

To remove the grease filter, pull the spring release handle.

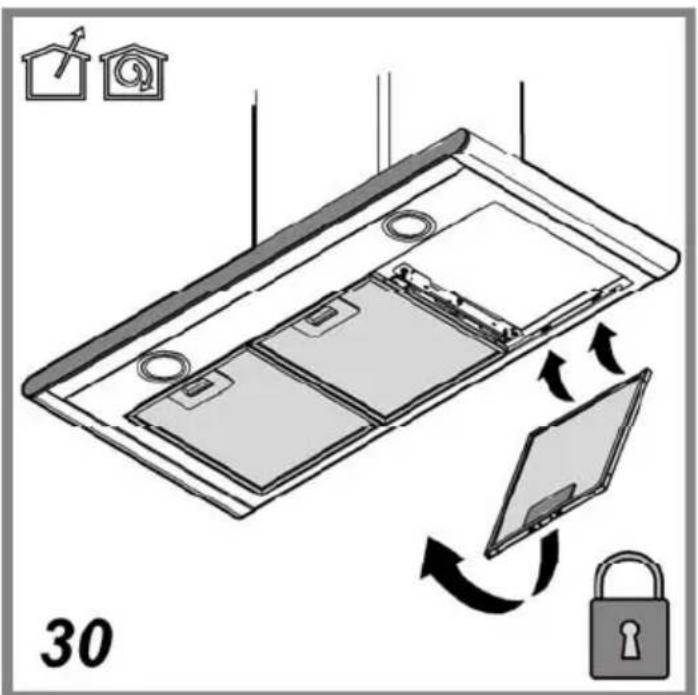

Fig. 10-30
Charcoal filter (filter version only)

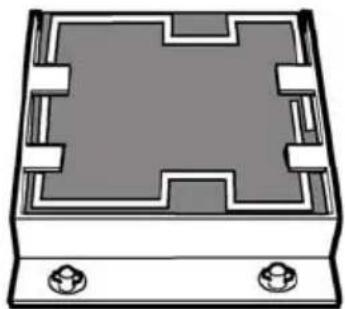

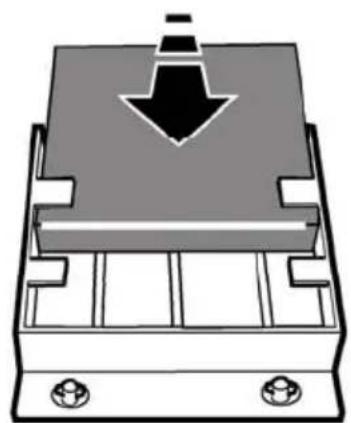

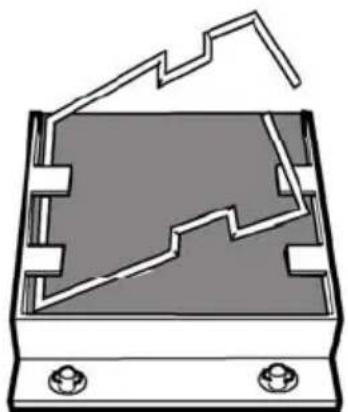

Fig. 29
It absorbs unpleasant odours caused by cooking.
The activated charcoal filter can be one of these types:
- Washable activated charcoal filter.
• NON-washable activated charcoal filter.
Washable activated charcoal filter
The charcoal filter can be washed once every two months (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using hot water and a suitable detergent, or in a dishwasher at 65^ C (if the dishwasher is used, select the full cycle function and leave dishes out).
Eliminate excess water without damaging the filter, then remove the mattress located inside the plastic frame and put it in the oven for 10 minutes at 100^ C to dry completely. Replace the mattress every 3 years and when the cloth is damaged.
NON-washable activated charcoal filter
The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.
In any case it is necessary to replace the cartridge at least every four months.
The charcoal filter may NOT be washed or regenerated.
Assembly
Hook the charcoal filter at the back on the metal tongue of the hood first, then on the front with the two knobs.
Disassembly
Remove the charcoal filter by turning the knobs fixing it to the hood by 90°.
Replacing lamps
Fig. 31
Disconnect the hood from the electricity.
Warning! Prior to touching the light bulbs ensure they are cooled down.
- Using a flat head screwdriver or equivalent tool, carefully pry loose the light cover.
- Remove the damaged light and replace with a new 12 Volt, 20 Watt (Maximum) halogen light made for a G-4 base SUITABLE FOR USE IN OPEN LUMINAIRES. Follow package directions and do not touch new light with bare hands.
- Reinstall the light cover. (it will snap shut).
If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.
Signal for skittent fettfilter
Etter 40 brukstimer blinker led-lys 1.
Signal for skittent kullfilter
Etter 160 brukstimer blinker led-lys 2.
Når dette signalet slås på, skal det installerte kullfilteret skiftes ut.
- Waste Electrical and Electronic Equipment (WEEE).
