Brand	Cameo
Model	CLSB83 (XLR 3-pin connectors)
Product Type	DMX 8-Channel Splitter/Booster
Protocol	DMX-512
DMX Inputs	2 (front and rear panel, wired in parallel)
DMX Input Connectors	XLR 3-pin male
DMX Thru Outputs	2 (front and rear panel, wired in parallel)
DMX Thru Output Connectors	XLR 3-pin female
DMX Outputs (galvanically isolated)	8, on XLR 3-pin female
Termination Resistor	Switchable on DMX THRU output (120 Ω)
LED Indicators	8 x Power, 8 x Signal
Controls	Power On/Off switch, Terminator button
Power Supply	Toroidal transformer, 230 V / 50 Hz, 15 W max
Dimensions (W x H x D)	483 x 44 x 160 mm
Weight	3 kg
Rack Mount	1 U, 19 inches
Included Accessories	Mains cable
Manufacturer Warranty	2 years (subject to conditions)
Maintenance and Cleaning	Use a dry cloth; disconnect before cleaning
Spare Parts	Replacement fuse (same type and rating)
General Information	Professional stage use; do not look at the light beam from less than 40 cm

Frequently Asked Questions - CLSB83 Cameo

What is the role of the Cameo CLSB83?

The CLSB83 is a DMX 8-channel splitter/booster that distributes a DMX signal to up to 8 independent chains, each capable of powering up to 32 DMX devices. It galvanically isolates each output to prevent ground loops.

What is the difference between the CLSB83 and CLSB85 models?

The CLSB83 uses XLR 3-pin connectors for all DMX inputs/outputs, while the CLSB85 uses XLR 5-pin connectors.

How to use the termination function (Terminator)?

Activate the 120 Ω termination resistor (button pressed) on the DMX THRU output of the last device in the chain of splitters/boosters. If you use only one splitter, also activate it.

Can I use the front and rear DMX inputs at the same time?

No, both inputs are wired in parallel (no Merge function). Connect only one DMX controller at a time, either to the front input or the rear input.

How many DMX devices can I connect to each output?

Each of the 8 outputs can power a DMX chain of 32 devices maximum. The last device in each chain must have termination activated.

How to know if an output is working?

The Signal LEDs (bottom row) light up when a DMX signal is present on the corresponding output. The Power LEDs indicate that the output is powered.

What type of DMX cable to use?

Use a standard DMX cable with XLR 3-pin connectors (for CLSB83). Observe the wiring: pin 1 = shield, pin 2 = DMX -, pin 3 = DMX +. Never connect the shield to the connector ground.

Can I use the device for home lighting?

No, this product is designed for professional stage use. It is not suitable for home lighting.

What to do if the fuse blows regularly?

Replace the fuse with an identical model (same rating). If the problem persists, consult an authorized repair center. Never replace with a fuse of a different rating.

How to clean the device?

Disconnect the device and clean it with a dry cloth. Do not use liquids or aerosols. Do not block the ventilation slots.

USER MANUAL CLSB83 Cameo

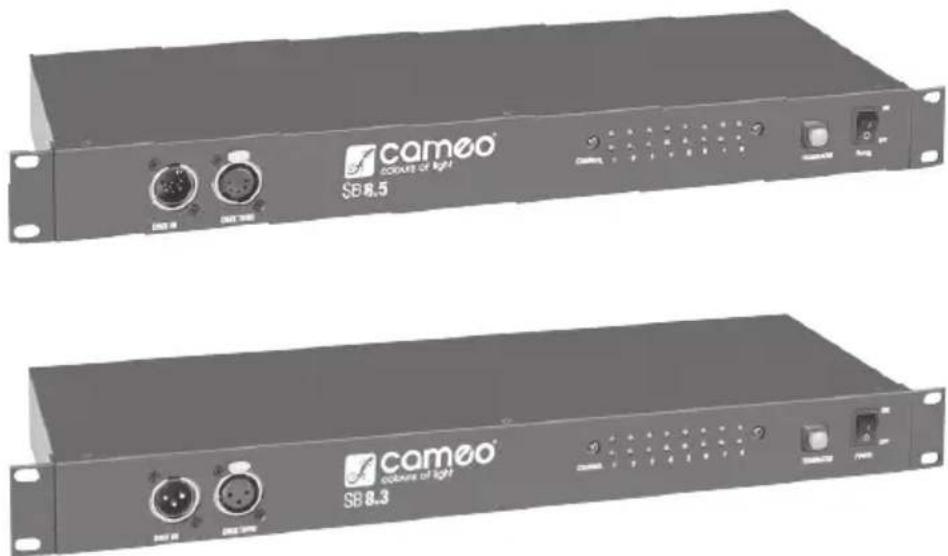

cameo colours of light SB 8.5 DAX IN DAX TIME cameo colours of light SB 8.3 DAX IN DAX TIME CAMERA 1 2 3 4 5 6 7 COMBINATION POWER OFF OFF

DMX SPLITTER / BOOSTER

8-CHANNEL

CLSB83 / CLSB85

Thank you for choosing this Cameo Light product!

We have designed this product to operate reliably over many years.

Please read this User's Manual carefully, so that you can quickly enjoy all the benefits of your DMX device from Cameo Light.

Learn more about Cameo Light on our website WWW.CAMEOLIGHT.COM.

DMX SPLITTER / BOOSTER

8-CHANNEL

CLSB83 / CLSB85

Two identical black camera module modules labeled 'camoo' with ports and connectors, shown from different angles (no readable text beyond branding)

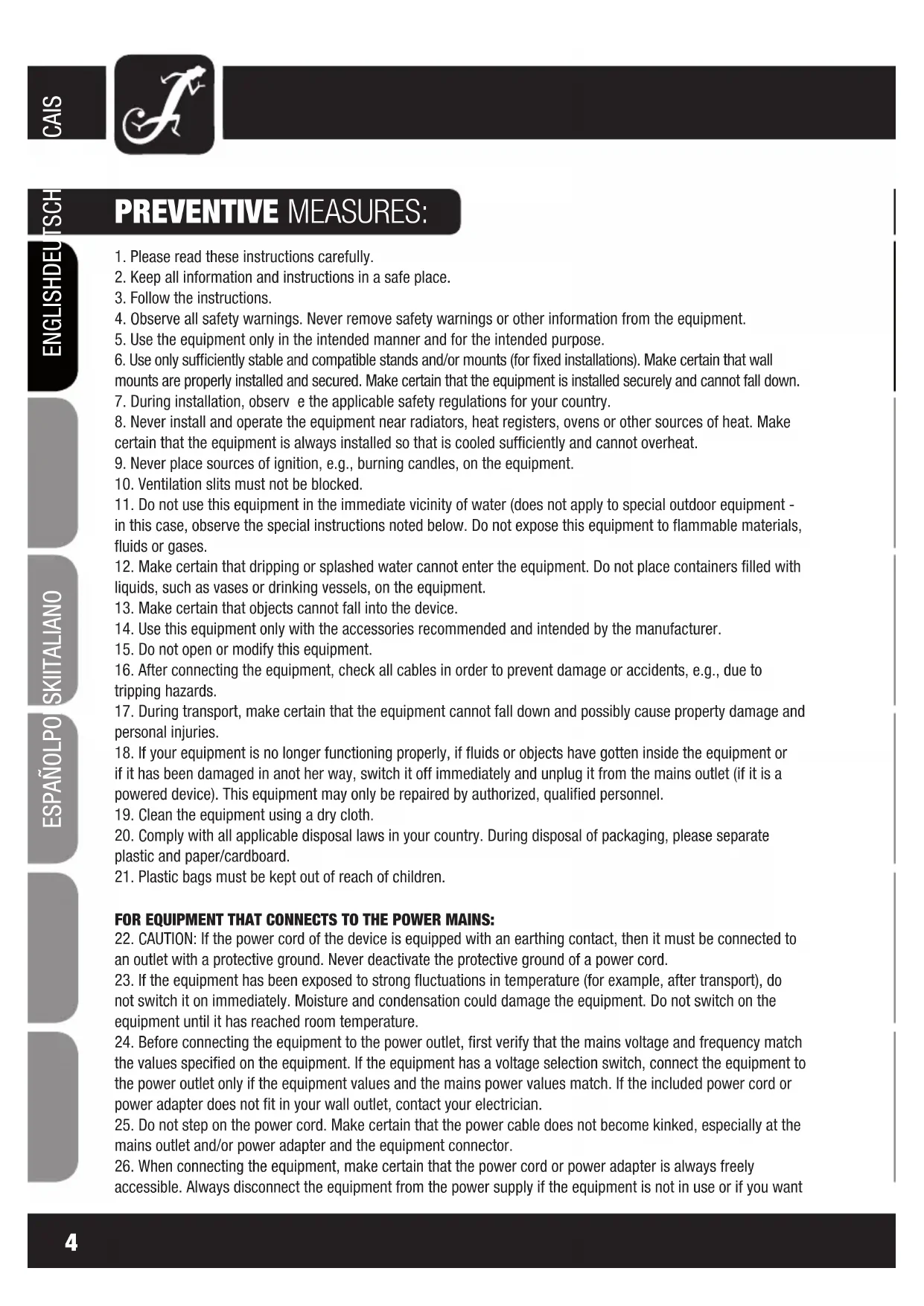

PREVENTIVE MEASURES:

1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Use the equipment only in the intended manner and for the intended purpose.
6. Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make certain that wall mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall down.
7. During installation, observ e the applicable safety regulations for your country.
8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.
9. Never place sources of ignition, e.g., burning candles, on the equipment.
10. Ventilation slits must not be blocked.
11. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in this case, observe the special instructions noted below. Do not expose this equipment to flammable materials, fluids or gases.
12. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with liquids, such as vases or drinking vessels, on the equipment.
13. Make certain that objects cannot fall into the device.
14. Use this equipment only with the accessories recommended and intended by the manufacturer.
15. Do not open or modify this equipment.
16. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
17. During transport, make certain that the equipment cannot fall down and possibly cause property damage and personal injuries.
18. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or if it has been damaged in anot her way, switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified personnel.
19. Clean the equipment using a dry cloth.
20. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic and paper/cardboard.
21. Plastic bags must be kept out of reach of children.

FOR EQUIPMENT THAT CONNECTS TO THE POWER MAINS:

1. CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.

2. If the equipment has been exposed to strong fluctuations in temperature (for example, after transport), do not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature.

3. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.

4. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the mains outlet and/or power adapter and the equipment connector.

5. When connecting the equipment, make certain that the power cord or power adapter is always freely accessible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want

SAFETY:

to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands.

1. Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this can shorten the useful life of the equipment.

2. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an authorised service centre.

3. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter from the power outlet.

4. If your device is equipped with a Volex power connector, the mating Volex equipment connector must be unlocked before it can be removed. However, this also means that the equipment can slide and fall down if the power cable is pulled, which can lead to personal injuries and/or other damage. For this reason, always be careful when laying cables.

5. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

CAUTION:

Never remove the cover, because otherwise there may be a risk of electric shock. There are no user serviceable parts inside. Have repairs carried out only by qualified service personnel.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock.

The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions.

CAUTION! IMPORTANT INFORMATION ABOUT LIGHTING PRODUCTS

1. Do not look into the beam from a distance of less than 40 cm.

2. Do not stare into the beam for extended periods at short-to-medium distances.

3. Do not view the beam directly with optical instruments such as magnifiers.

4. Under some circumstances, stroboscopic effects may trigger epileptic seizures in sensitive individuals! For this reason, persons who suffer from epilepsy should always avoid places where strobe lights are used.

The product has been developed for professional use in the field of event technology and is not suitable as household lighting.

INTRODUCTION:

8-CHANNEL DMX SPLITTER/BOOSTER

CLSB83 (3-pin XLR connectors)

CLSB85 (5-pin XLR connectors)

FEATURES:

• 19" Device with 1 height unit
• DMX input and DMX THRU jack on front and back
• 8 electrically isolated DMX outputs (splitter)
- Extension of a DMX chain (maximum of 32 devices) to 8 times 32 devices (booster)
- Switchable terminating resistor for DMX THRU
• Power and Signal LED for each channel

CONNECTIONS, CONTROLS AND INDICATORS:

FRONT PANEL

1 DMX IN 2 DMX THRU

1 DMX IN

Model CLSB83: DMX input with male 3-pin XLR jack for connection of a DMX controller.

Model CLSB85: DMX input with male 5-pin XLR jack for connection of a DMX controller.

Important Notice: The signal lines of the DMX inputs on front and back (no merge function) are parallel. To avoid malfunctions in DMX devices (LED projectors, moving heads, etc.), use exclusively either the DMX input on the front, or the DMX input on the rear panel to connect a DMX control unit.

2 DMX THRU

Model CLSB83: Female 3-pin XLR jack to route the DMX signal from the DMX input (DMX IN) on to another DMX splitter/booster.

Model CLSB85: Female 5-pin XLR jack to route the DMX signal from the DMX input (DMX IN) on to another DMX splitter/booster.

Important Notice: The signal lines of the DMX THRU sockets on the front and back are parallel (no splitter function). To avoid malfunctions, use exclusively either the DMX THRU socket on the front panel, or the DMX THRU socket on the rear panel to forward the DMX signal.

CHANNEL 1 2 3 4 5 6 7 8 3 4 5 TERMINATOR 6 ON OFF POWER

3 POWER LEDS CHANNEL 1 - 8

The LEDs of the upper LED row display the power supply of the channels 1 to 8.

4 SIGNAL LEDS CHANNEL 1 - 8

The LEDs of the lower LED row display if a DMX signal is present at the DMX output 1 to 8.

5 TERMINATOR

Switchable 120 ohm terminating resistor for the DMX THRU output jack. To avoid malfunctions, activate the terminating resistor only in the last device in a chain of splitter/booster by ensuring that the TERMINATOR switch is pressed. Activate the terminator also, if only one splitter/booster is used in a DMX-system.

6 POWER ON/OFF

On / Off switch for the power supply of the device.

CONNECTIONS, CONTROLS AND INDICATORS:

BACK PANEL (CLSB83 shown)

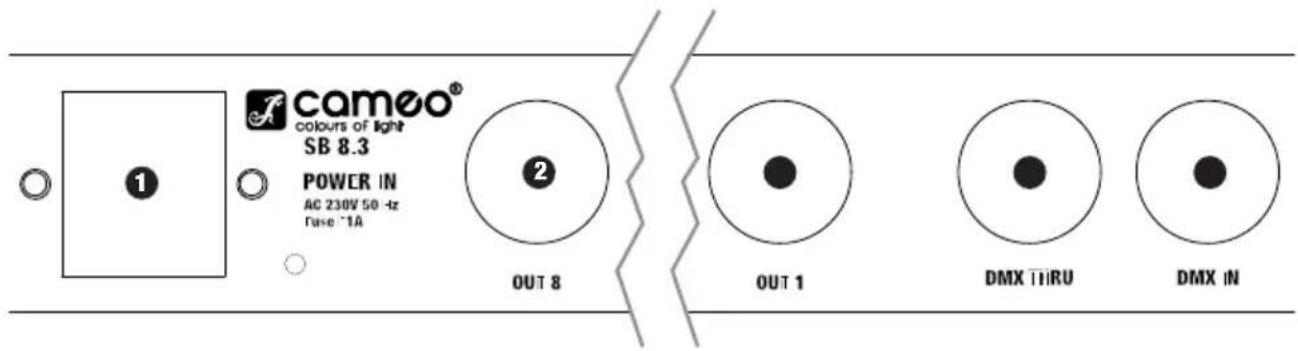

cameo® colours of light SB 8.3 POWER IN AC 230V 50 -1z Fuse "1A" OUT 8 OUT 1 DMX TIRU DMX IN

1 IEC POWER SOCKET WITH INTEGRAL FUSE HOLDER

Used to power the device. An appropriate power cord is included in the delivery.

IMPORTANT INFORMATION: BEFORE using this equipment, make certain that the mains voltage of your energy supplier and the operating voltage of the device match! Replace the fuse only with a fuse of the same type and rating (see label on the rear panel)!

If the fuse blows repeatedly, please contact an authorised service centre.

2 OUT 1 - OUT 8

Model CLSB83: DMX output with female 3-pin XLR jack for connecting a DMX device, or multiple DMX devices in a chain (up to 32 units). For the last DMX device (projector, moving head, etc.) in a DMX chain, always use a terminator (terminating resistor).

Model CLSB85: DMX output with female 5-pin XLR jack for connecting a DMX device, or multiple DMX devices in a chain (up to 32 units). For the last DMX device (projector, Moving Head, etc.) in a DMX chain, always use a terminator (terminating resistor).

3 DMX THRU

Model CLSB83: Female 3-pin XLR jack to route the DMX signal from the DMX input (DMX IN) on to another DMX splitter/booster.

Model CLSB85: Female 5-pin XLR jack to route the DMX signal from the DMX input (DMX IN) on to another DMX splitter/booster.

Important Notice: The signal lines of the DMX THRU sockets on the front and back are parallel (no splitter function). To avoid malfunctions, use exclusively either the DMX THRU socket on the front panel, or the DMX THRU jack on the rear panel to forward the DMX signal.

4 DMX IN

Model CLSB83: DMX input with male 3-pin XLR jack for connection of a DMX controller.

Model CLSB85: DMX input with male 5-pin XLR jack for connection of a DMX controller.

Important Notice: The signal lines of the DMX inputs on front and back (no merge function) are parallel. To avoid malfunctions in DMX devices (LED lights, moving heads, etc.), use exclusively either the DMX input on the front, or the DMX input on the rear panel to connect a DMX control unit.

DMXTECHNOLOGY:

DMX-512

DMX (Digital Multiplex) is the designation for a universal transmission protocol for communications between corresponding devices and controllers. A DMX controller sends DMX data to the connected DMX device(s). The DMX data is always transmitted as a serial data stream that is forwarded from one connected device to the next via the "DMX IN" and "DMX OUT" connectors (XLR plug-type connectors) that are found on every DMX-capable device, provided the maximum number of devices does not exceed 32 units. The last device in the chain needs to be equipped with a terminator (terminating resistor).

DMX CONNECTION:

DMX is the common "language" via which a very wide range of types and models of equipment from various manufacturers can be connected with one another and controlled via a central controller, provided that all of the devices and the controller are DMX-compatible. For optimum data transmission, it is necessary to keep the connecting cables between the individual devices as short as possible.

The order in which the devices are integrated in the DMX network has no influence on the addresses. Thus the device with the DMX address 1 can be located at any position in the (serial) DMX chain: at the beginning, at the end or somewhere in the middle. If the DMX address 1 is assigned to a device, the controller "knows" that it should send all data allocated to address 1 to this device regardless of its position in the DMX network.

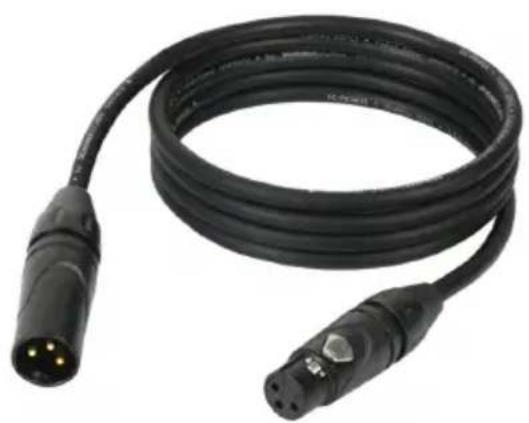

Coiled black electrical connector with two connectors (no text or symbols visible)

SERIAL CONNECTION OF MULTIPLE LIGHTS

1. Connect the male XLR connector (3-pin or 5-pin) of the DMX cable to the DMX output (female XLR socket) of the first DMX device (e.g. DMX controller).
2. Connect the female 3-pin XLR connector of the DMX cable connected to the first projector to the DMX input (male 3-pin socket) of the next DMX device. In the same way, connect the DMX output of this device to the DMX input of the next device and repeat until all devices have been connected.
   Please note that DMX units are fundamentally connected serially and that the connections should not be shared without an active splitter. The maximum number of DMX devices in a DMX chain should not exceed 32 units.

The Adam Hall 3 STAR, 4 STAR, and 5 STAR product ranges include an extensive selection of suitable cables.

CABLES, TERMINATORS, ADAPTERS:

DMX CABLES:

When fabricating your own cables, always observe the illustrations on this page. Never connect the shielding of the cable to the ground contact of the plug, and always make certain that the shielding does not come into contact with the housing of the XLR plug. If the shielding is connected to the ground, this can lead to short-circuiting and system malfunctions.

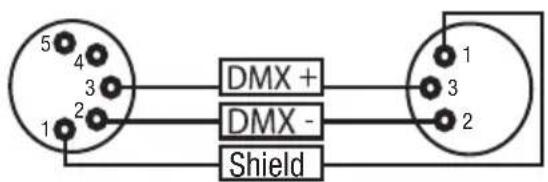

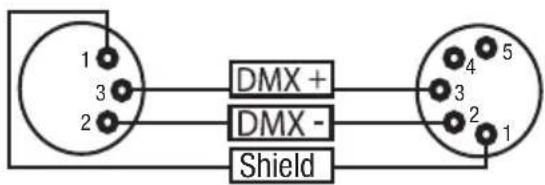

Pin Assignment:

DMX cable with 3-pin XLR connectors:

DMX cable with 5-pin XLR connectors:

5 4 3 2 1 DMX + DMX - Shield

Pins 4 and 5 are not used.

DMX TERMINATORS (TERMINATING RESISTORS):

To prevent system errors, the last device in a DMX chain needs to be equipped with a terminating resistor (120 ohm, 1/4 Watt).

3-pin XLR connector with a terminating resistor: K3DMXT3

5-pin XLR connector with a terminating resistor: K3DMXT5

Pin Assignment:

3-pin XLR connector:

r: 5-pin XLR con 1 2

1 2 3 4 5

CABLES, TERMINATORS, ADAPTERS:

DMX-ADAPTERS:

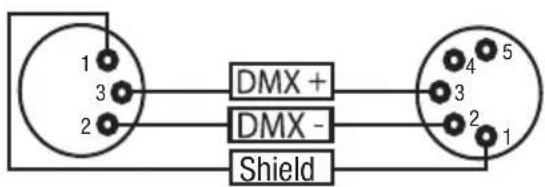

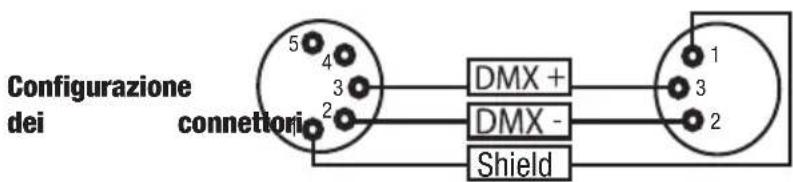

The combination of DMX devices with 3-pin connectors and DMX devices with 5-pin connectors in a DMX chain is possible with suitable adapters.

DMX Adapter 5-pin XLR male to 3-pin XLR female: K3DGF0020

Close-up of two black plastic audio/video connectors with three pins, shown in a U-shaped bundle (no text or symbols visible)

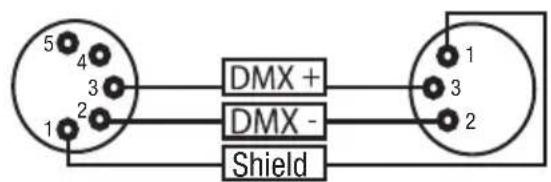

Pin Assignment:

5 4 3 2 1 DMX + DMX - Shield 1 3 2

Pins 4 and 5 are not used.

DMX Adapter 3-pin XLR male to 5-pin XLR female: K3DHM0020

Close-up of two black USB connectors with metallic leads, no visible text or symbols

Pin Assignment:

1 3 2 DMX + DMX - Shield 4 5 3 2 1

Pins 4 and 5 are not used.

WIRING EXAMPLE:

WIRING EXAMPLE:

SPECIFICATIONS:

Model Name: CLSB83 CLSB85

Product Type: DMX splitter/booster DMX splitter/booster
Type: DMX 512 protocol DMX 512 protocol
DMX Inputs: 2 (parallel) 2 (parallel)
DMX Input Connectors: 3-pin XLR male 5-pin XLR male
DMX Thru Outputs: 2 (parallel) 2 (parallel)
DMX Thru Output Connectors: 3-pin XLR female 5-pin XLR female
DMX Outputs: 8 (electrically Isolated)	8 (electrically Isolated)
DMX Output Connectors:	3-pin XLR female 5-pin XLR female
Controls:	Power On/Off, DMX Thru Terminator	Power On/Off, DMX Thru Terminator
Indicators:	8 x Power LED, 8 x Signal LED	8 x Power LED, 8 x Signal LED
Power Socket: IEC power socket IEC power socket
Power Supply:	transformer	transformer
Operating Voltage:	230 V AC, 50 Hz	230 V AC, 50 Hz
Power Consumption (max.):	15 W	15 W
Dimensions (W x H x D):	483 x 44 x 160 mm	483 x 44 x 160 mm
Weight:	3 kg	3 kg
Accessories included in package:	power cord	power cord

MANUFACTURER'S DECLARATIONS:

MANUFACTURER'S WARRANTY

This warranty extends to the CAMEO branded product you purchased from Adam Hall. The statutory warranty rights against the vendor shall not be affected by this warranty. Rather, this warranty gives you additional independent claims against Adam Hall.

With this warranty, Adam Hall ensures that products you have purchased from Adam Hall or Adam Hall partners, under normal use, are free of defects in material or workmanship for a period of 2 years from the date of purchase. The warranty period begins on the date of purchase. In order to assert a claim for warranty service, the proof of date of purchase is provided by the receipt bearing the date of purchase or the date of purchase on the delivery note. You are entitled to warranty service under the conditions and provisions set out in this document, if a repair within the warranty period is required.

This warranty applies only to the original purchaser of the products supplied by Adam Hall and is not transferable to any person to whom the property is transferred by the original purchaser.

Within the warranty period, the defective parts or the product from Adam Hall will be repaired or replaced. Under the terms of this warranty, all the replaced or removed components become the property of Adam Hall.

In the unlikely event that a product acquired from Adam Hall, repeatedly exhibits a defect, Adam Hall may decide, at its discretion, to replace this product with a comparable product of at least the same performance.

Adam Hall does not guarantee that the operation of this product will be uninterrupted or error-free. Adam Hall accepts no responsibility for any damage due to incorrect compliance with the instructions received in the delivery.

This warranty does not extend to:

• wearing parts (eg battery, tubes).
• devices that have had their serial number removed or damaged, or failed as a result of an accident
• inappropriate or abusive use or other external causes
• devices that were not used in accordance with the operating parameters defined in the user documentation shipped with the product
• devices that have been repaired using parts not made or distributed by Adam Hall
• devices that have been serviced, modified or repaired by someone other than Adam Hall or an authorised service partner. These terms and conditions constitute the complete and exclusive warranty agreement between you and Adam Hall regarding the Adam Hall branded product you have purchased.

This warranty is valid only within Europe. Outside of Europe please contact our official distributors.

MANUFACTURER'S DECLARATIONS:

LIMITATION OF LIABILITY

If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy shall be repair or replacement. Adam Halls' maximum liability under this limited warranty is expressly limited to the lesser of the price you have paid for the product or the cost of repair or replacement of any components that malfunction under conditions of normal use.

Adam Hall is not liable for any damages caused by the product or the failure of the product, including any lost profits or savings or special, incidental, or consequential damages. Adam Hall is not liable for any claim made by a third party or made by you for a third party.

This limitation of liability applies whether damages are sought, or claims are made, under this Limited Warranty or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim, and cannot be rescinded or changed by anyone. This limitation of liability will be effective even if you have advised Adam Hall or an authorized representative of Adam Hall of the possibility of any such damages, but not, however, in the event of claims for damages in connection with personal injuries.

This manufacturer's warranty grants you specific rights; depending on jurisdiction (nation or state), you may be entitled to additional claims. You are advised to consult applicable state or national laws for a full determination of your rights.

REQUESTING WARRANTY SERVICE

To request warranty service for the product, contact Adam Hall or the Adam Hall authorized reseller from which you purchased the product.

EC DECLARATION OF CONFORMITY

The equipment marketed by Adam Hall complies (where applicable) with the essential requirements and other relevant specifications of Directives 1999/5/EC (R&TTE), 2004/108/EC (EMC) und 2006/95/EC (LVD). Additional information can be found at www.adamhall.com.

MANUFACTURER'S DECLARATIONS:

PROPER DISPOSAL OF THIS PRODUCT

(Valid in the European Union and other European countries with waste separation)

This symbol on the product, or the documents accompanying the product, indicates that this appliance may not be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled waste disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable economic activity.

Household users should contact either the retailer where they purchased this product, or their local government office, for details on where and how they can recycle this item in an environmentally friendly manner. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

ENVIRONMENTAL PROTECTION AND ENERGY CONSERVATION

Energy conservation is an active contribution to environmental protection. Please turn off all unneeded electrical devices. To prevent unneeded devices from consuming power in standby mode, disconnect the mains plug.

Adam Hall GmbH, all rights reserved. The technical data and the functional product characteristics can be subject to modifications. The photocopying, the translation, and all other forms of copying of fragments or of the integrity of this user's manual is prohibited.

Two identical black-and-white photo of a beige Sony 8.3 USB drive unit (no visible text or labels on the device body)

Black cable with two connectors and a 3-pin connector, no visible text or symbols

DMX-Adapter 5-Pol XLR male auf 3-Pol XLR female: K3DGF0020

Close-up of two black USB connectors with three pins, shown in a U-shaped bundle (no text or symbols visible)

Steckerbelegung

5 4 3 2 1 DMX + DMX - Shield

Close-up of two black electronic audio/video connectors with metallic leads (no text or symbols visible)

Steckerbelegung

1 3 2 DMX + DMX - Shield 4 5 3 2 1

Two identical black camera module devices labeled 'camoo' with ports and connectors, shown from different angles (no readable text beyond branding)

I'illustration) cameo® colours of light SB 8.3 POWER IN AC 230V 50 -1z Fuse "1A" OUT 8 OUT 1 DMX TIRU DMX IN

1 EMBASE SECTEUR IEC AVEC PORTE-FUSIBLE INTÉGRÉ

Coiled black electrical connector with two connectors and a 3-pin connector (no text or symbols visible)

CONNEXION EN SÉRIE DE PLUSIEURS PROJECTEURS

Close-up of a black USB cable with two metallic connectors (no text or symbols visible)

Assignation des points

5 4 3 2 1 DMX + DMX - Shield

Close-up of two black audio/video connectors with metallic leads and a curved cable (no text or symbols visible)

Assignation des contacts

1 3 2 DMX + DMX - Shield

DÉCLARATION DE CONFORMITÉ CE

MISE AU REBUT DE CE PRODUIT

Two identical black-and-white photo of a camoo-based electronic device labeled SB 8.5 and SB 8.3, each with two ports and indicator lights (no readable text beyond branding)

Coiled black electrical connector with two connectors and a terminal pin (no visible text or symbols)

1 3 2 Connector XLR a

1 2 3 4 5

Close-up of two black plastic audio/video connectors with three leads (no text or symbols visible)

Asignación de pines

5 4 3 2 1 DMX + DMX - Shield 1 3 2

Los pines 4 y 5 no se utilizan.

Adaptador DMX de XLR macho 3 pines a XLR hembra 5 pines: K3DHM0020

Close-up of two black USB connectors with metallic leads, no visible text or symbols

Asignación de pines

1 3 2 DMX + DMX - Shield

Los pines 4 y 5 no se utilizan.

Black cable with two connectors and a connector terminal, no visible text or symbols

POŁĄCZENIE SZEREGOWE KILKU REFLEKTORÓW

Close-up of two black plastic audio/video connectors with three leads (no text or symbols visible)

Close-up of two black audio/video connectors with metallic leads and a curved cable (no text or symbols visible)

PRZYKŁAD OKABLOWANIA:

PRZYKŁAD OKABLOWANIA:

Termistor DMX OUT DMX IN do 32 undazed DMX DMX OUT Termistor DMX OUT DMX OUT do 32 undazed DMX DMX IN do 32 undazed DMX DMX IN do 32 undazed DMX

DANE TECHNICZNE:

GWARANCJA PRODUCENTA

DEKLARACJA ZGODNOŚCI WE

Two identical black-and-white photo of a Cameo USB drive bank (SB8.5 and SB8.3) with two ports and indicator lights, no visible text or symbols on the modules themselves.

MISURE PRECAUZIONALI:

Coiled black electrical connector with two connectors and a terminal pin (no text or symbols visible)

Close-up of a black USB cable with two metallic connectors (no text or symbols visible)

Close-up of a black USB connector with two metallic pins (no text or symbols visible)

Stylized white letter 'J' on black background, enclosed in a rounded square frame (no text or symbols)

WWW.CAMEOLIGHT.COM
