USER MANUAL NZAOR 600 A2 NEVADENT

1 Brush head 2 Indicator bristles 3 Toothbrush head (replaceable) 4 Marking ring 5 Peg of the toothbrush 6 LED: is lit white after switching on is lit red when pressure too high flashes red when the transport lock is switched on flashes 3x red when switching the transport lock on/off 7 On/off switch + transport lock for on and off switch 8 Function displays (illuminated): Clean Sensitive Massage 9 Charging indicator light 10 Toothbrush 11 Peg of the battery charger 12 Battery charger 13 Mains power cable and mains plug 14 Travel case 15 Pressure cap __377265_2110_B6.book Seite 3 Mittwoch, 16. Februar 2022 6:57 064

Thank you for your trust! Congratulations on the purchase of your new electric toothbrush. For safe handling of the device and in order to get to know the entire range of features:

• Thoroughly read these user in- structions prior to initial use.

• Above all, observe the safety in- formation!

• The device should only be used as described in this copy of the user instructions.

• Keep this copy of the user in- structions for reference.

• If you pass the device on to someone else, please include this copy of the user instructions. The user instructions are a part of the product. We hope you enjoy using your new electric toothbrush! All brand and manufacturer names are the property of their respective owners. They are specified solely in order to simplify the ex- planation of the points illustrated.

The electric toothbrush is intended solely for tooth cleaning and oral hygiene in humans. The device is designed for private, domestic use. This device must not be used for com- mercial purposes.

3. Safety information

Warnings If necessary, the following warnings are used in this copy of the user instructions: DANGER! High risk: failure to ob- serve this warning may result in inju- ry to life and limb. WARNING! Moderate risk: failure to ob- serve this warning may result in injury or se- rious material damage. CAUTION: low risk: failure to observe this warning may result in minor injury or mate- rial damage. NOTE: circumstances and specifics that must be observed when handling the de- vice. __377265_2110_B6.book Seite 4 Mittwoch, 16. Februar 2022 6:57 065

Instructions for safe operation

This device can be used by children and people with restricted physical, sensory or intellectual abilities or people without ade- quate experience and/or understanding, if they are supervised or instructed on how to use this device and if they are aware of the re- sulting hazards. Cleaning and user maintenance must not be per- formed by children unless they are supervised.

Children must not play with the device.

The mains power cable of this device cannot be replaced. If the cable should become damaged, the device itself must be disposed of.

The battery must be charged only with the original accessory (bat- tery charger) supplied.

This device contains a battery that cannot be replaced. DANGER for children! ~ Packing materials are not children's toys. Children should not be allowed to play with the plastic bags: there is a risk of suffocation. DANGER to and from pets and livestock! ~ Electrical devices can represent a dan- ger to pets and livestock. In addition, animals can also cause damage to the device. For this reason you should keep animals away from electrical devices at all times. DANGER! Risk of electric shock due to moisture! ~ The toothbrush, the battery charger, the mains power cable and the mains plug must never be immersed in water or any other liquids.

Protect the device from moisture, water drops and water splashes: failure to ob- serve this instruction may result in an electrical shock hazard. ~ Never touch the device with wet hands. ~ Make sure that the surface under the device is dry. ~ If the battery charger has fallen into wa- ter, pull out the mains plug immediately, and only then remove the battery charg- er from the water. If this happens, do not use the battery charger again until it has been checked by a specialist workshop. DANGER! Risk of electric shock! ~ The installation of a residual current de- vice with a nominal trip current not ex- ceeding 30 mA in the building wiring offers additional protection. Contact a skilled electrician in this re- gard. ~ Do not start using the device if the de- vice, the battery charger or the mains power cable shows visible damage, or

The battery charger is connected to the power voltage, and must therefore not be used in the shower, in the bath, or over washbasins filled with water. __377265_2110_B6.book Seite 5 Mittwoch, 16. Februar 2022 6:57 066

if the device has previously been dropped.

Only connect the mains plug into a prop- erly installed and easily accessible wall socket whose voltage corresponds to the specifications on the rating plate. The wall socket must still be easily accessible after the device is plugged in. ~ The hand unit of the toothbrush must only be charged using the battery charger supplied. ~ Ensure that the mains power cable can- not be caught or crushed, and that they cannot be damaged by sharp edges or hot points. ~ To fully disconnect the battery charger from the power, pull out the mains plug. ~ When pulling the mains plug out of the wall socket, always pull by the plug and never by the cable. ~ Disconnect the mains plug from the wall socket … …if there is a fault, …when you are not using the device, …before you clean the device and …during thunderstorms. ~ In order to avoid any hazards, do not make modifications to the device. Re- pairs must be carried out by a specialist workshop or the Service Centre. ~ When using an extension cable, this must correspond to the applicable safe- ty regulations. DANGER from batteries! ~ Protect the battery against mechanical damages. Fire hazard! ~ Do not expose the device to direct sun- shine or heat. The ambient temperature should not be lower than 10 °C or high- er than 40 °C. ~ The battery must be charged only with the original accessory (battery charger) supplied. ~ Should the electrolyte solution leak out of the battery, avoid contact with eyes, mucous membranes and skin. Rinse im- mediately with plenty of clean water and consult a doctor. The electrolyte solution can cause irritation. ~ The device is provided with a lithium-ion battery. - The battery cannot be removed! - This device must not be opened! - The device with the installed battery must be disposed of properly. CAUTION! ~ Users could possibly experience mild bleeding of the gums during the first days of electric toothbrush usage. Should the bleeding continue over sev- eral days, a dentist should be consult- ed. ~ Exert only light pressure when brushing to prevent damage to the gums and to increase the service life of the bristles.

1 toothbrush10 2 toothbrush heads3 1 battery charger12 1travel case14 1 copy of the user instructions

• Remove all packing materials.

• Check that the device is undamaged.

5. Setting up the battery

charger DANGER! Risk of electric shock due to moisture! ~ The battery charger12 is connected to the power voltage, and must therefore not be used in the shower, in the bath, or over washbasins filled with water.

6. Charging the battery

• Fully charge the battery before using it for the first time.

• It takes approx. 16 hours to fully charge the battery.

• Place the toothbrush10 on the peg of the battery charger11 after use. This ensures that the toothbrush10 always works at full power. The battery is not damaged by regular charging.

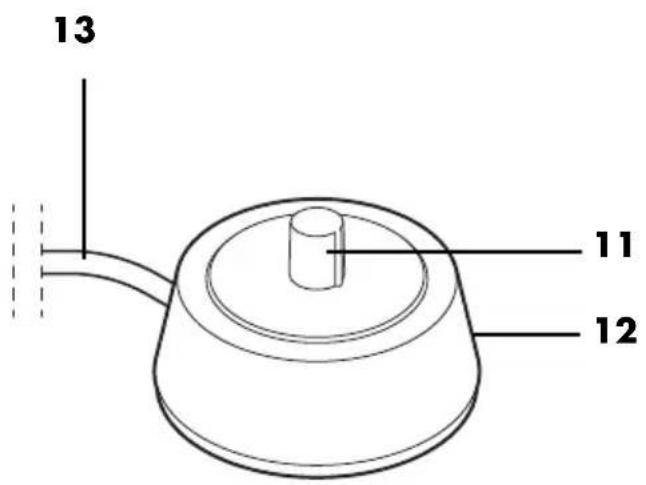

1. Plug the mains plug13 of the battery

charger12 into a suitable wall socket. The wall socket must still be easily ac- cessible after connection.

2. Place the switched-off toothbrush

onto the peg of the battery charger

The charging indicator light9 flashes white throughout the entire charging process. Lit segments of the charging in- dicator light show the progress of the charging process. When the battery is fully charged, first all segments of the charging indicator light9 are lit, and then they go out. Battery signals: charging indica- tor light

Toothbrush10 on the battery charger12: - All segments of the charging indicator light9 are lit white and then go out: the battery is fully charged. - One or two segments of the charging indicator light9 briefly light up white: the battery is being charged. Toothbrush10 switched on: - The charging indicator light9 flashes red: the battery is weak. Charge the battery.

The items supplied include 2 toothbrush heads3. The various marking rings4 allow you to as- sign the toothbrush heads3 to different fam- ily members.

• Take a toothbrush head3 and slide it onto the peg of the toothbrush5.

• In order to remove, carefully pull the toothbrush head3 off upwards.

• The indicator bristles2 on the brush head1 slowly lose their colour during use. The decolouration shows when the toothbrush heads3 should be replaced. NOTE: we recommend that you replace the toothbrush heads3 every 3 months or after infections (see “Ordering toothbrush heads”).

CAUTION: ~ Users could possibly experience mild bleeding of the gums during the first days of electric toothbrush usage. Should the bleeding continue over sev- eral days, a dentist should be consult- ed. ~ If you have had dental surgery in the last two months, consult a dentist before using the toothbrush. ~ Exert only light pressure when brushing to prevent damage to the gums and to increase the service life of the bristles. __377265_2110_B6.book Seite 7 Mittwoch, 16. Februar 2022 6:57 068

The toothbrush10 has 3 different modes. Depending on the desired mode, press the on/off switch 7 repeatedly when switched on, until the corresponding symbol is lit: Clean mode - for cleaning teeth with high pulsation Sensitive mode - gentle brushing for cleaning teeth with sensitive gums NOTE: if you are not used to using an elec- tric toothbrush and you have comparatively sensitive gums, you can use this mode for the first 1 to 2 weeks, and then switch to Clean mode later. Massage mode - pulsating brushing to massage your gums

1. Remove the toothbrush10 from the bat-

2. Switch on the toothbrush using the

on/off switch 7 repeatedly un- til the function display8 for the desired mode is lit. NOTE: switching over to another mode must be done quickly after the last button press of the on/off switch

(within approx. 1second) . Pressing the on/off switch

approx. 2 seconds after the last button press will switch the toothbrush off.

4. Switch off the toothbrush using the

5. Moisten the bristles, apply some tooth-

paste, and only switch on the tooth- brush

again when the brush head

is already in your mouth.

6. Slowly guide the brush head1 from

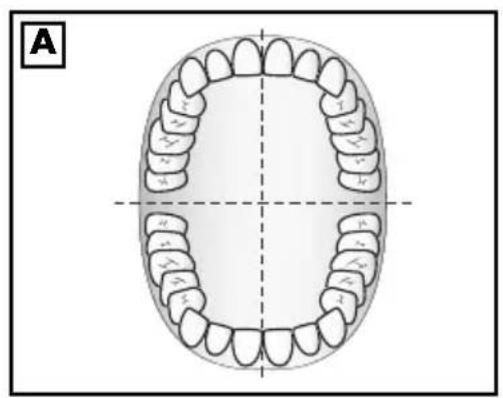

tooth to tooth without exerting too much pressure. Carefully clean all tooth sur- faces, the inner surfaces of the teeth and the tooth edges. Figure A: the recommended brushing time is at least 2 minutes, divided up into 30-second periods for each area of the mouth (bottom right, bottom left, top right, top left). The toothbrush10 indi- cates these intervals by two brief inter- ruptions. NOTE: if the brush head

is pressed against the teeth too hard, the LED

lights up red. You should then reduce the pressure.

7. The toothbrush signals the end of a cy-

cle of 2 minutes with three short inter- ruptions. Switch off the toothbrush using the on/off switch

Remove the brush head1 from the mouth only when the toothbrush10 has been switched off. NOTES:

• We recommend that you replace the toothbrush heads3 every 3 months or after infections (see “Ordering tooth- brush heads”).

• The indicator bristles2 on the brush head1 slowly lose their colour during use. The decolouration shows when the toothbrush heads3 should be re- placed. __377265_2110_B6.book Seite 8 Mittwoch, 16. Februar 2022 6:57 069

To secure the toothbrush10 against acci- dentally being switched on, activate the transport lock.

• Switching on the transport lock: Hold down the on/off switch 7 until the LED

6 flashes red three times.

• If you try to switch on the tooth- brush10 with the transport lock activat- ed, the LED

• Switching off the transport lock: Hold down the on/off switch 7 until the LED

6 flashes red three times.

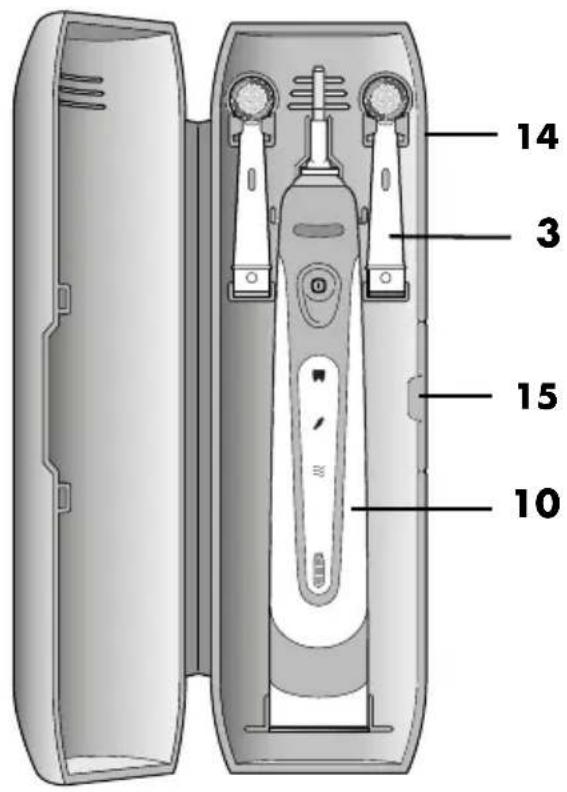

The travel case14 has space for the tooth- brush10 and 2 toothbrush heads3.

• Open the travel case14 by pressing on the pressure cap15.

• Close the travel case14 by carefully pressing the lid down until it audibly clicks into place.

10. Cleaning / Hygiene

requirements DANGER! Risk of electric shock! ~ Before cleaning the battery charg- er12, pull the mains plug13 out from the mains socket. ~ Do not immerse the toothbrush10 and battery charger12 in water! The bat- tery charger12 must be completely dry before you reconnect it to the wall sock- et.

• To ensure the hygienic functionality of the toothbrush heads3 they must be rinsed thoroughly after every use and al- lowed to dry.

• Remove the toothbrush head3 once per week and clean it in hot water.

• Rinse the toothbrush10 as well and wipe it dry.

• Wipe the battery charger12 and the travel case14 with a damp cloth if nec- essary and rub dry.

• Disconnect the device from the mains and store it in a dry location.

This product is subject to the provisions of European Direc- tive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for re- cycling electrical and electronic devices. This recycling symbol marks e.g. an object or parts of the materi- al as valuable for recycling. Re- cycling helps to reduce the consumption of raw materials and protect the environment. The battery integrated into this device must not be treated as household waste. The de- vice with the installed battery must be dis- posed of properly. When disposing of this device, the waste disposal facility responsi- ble must be informed that the device con- tains an integrated battery. __377265_2110_B6.book Seite 9 Mittwoch, 16. Februar 2022 6:57 0610

Packaging When disposing of the packaging, make sure you comply with the environmental reg- ulations applicable in your country.

13. Trouble-shooting

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself. DANGER! Risk of electric shock! ~ Do not attempt to repair the device your- self under any circumstances.

14. Ordering toothbrush

heads You can order additional toothbrush heads3 on the internet: shop.hoyerhandel.com

1. Scan the QR code with your smart-

2. With the QR code you will access a

website where you can submit your re- order. Fault Possible causes / Action The device can- not be switched on.

• Is the battery empty?

• Is the transport lock ac- tivated? Press the on/ off switch 7 repeat- edly until the tooth- brush10 is switched on. Charging indi- cator light9 is not lit.

specifications NOTE: no action by the user is required to switch the product between 50 and 60 Hz. The product adjusts itself for both 50 and 60 Hz. Symbols used Subject to technical modifications. Model: NZAOR 600 A2 Toothbrush Protection class: IPX4 (protected against water splashes) Battery: 1x 3.7 V Li ion 600 mAh 2.22 Wh Charging time: 16 hours Operating time: approx. 90 min Battery charger Mains voltage:

100 - 240 V ~ 50/60 Hz

Power rating: 1.4 W Standby: 0.5 W Protection class: II Protection class: IPX7 (protected against the ef- fects of temporary immer- sion) General Dimensions: approx. 38 x 190 x 29 mm (WxHxD) Weight: approx. 150 g LEDs: RG 0 Ambient condi- tions: 10 °C to 40 °C humidity 40 to 85% rela- tive Double insulation Geprüfte Sicherheit (certified safety): devices must comply with the generally acknowledged rules of technology and the Ger- man Product Safety Act (Produkt- sicherheitsgesetz - ProdSG). (Not for UK) With the CE marking, HOYERHandel GmbH declares the conformity with EU guide- lines. This symbol reminds you to dis- pose of the packaging in an envi- ronmentally friendly manner. Recyclable materials are marked with the recycling symbol (3ar- rows). The material can be speci- fied by the recycling number in the centre (here:21) and/or an abbreviation (here: PAP). Direct current AC voltage With the UKCA marking, HOYERHandel GmbH declares that the product is in conformity with the UKCA requirements. The symbol identifies the product manufacturer. __377265_2110_B6.book Seite 11 Mittwoch, 16. Februar 2022 6:57 0612

HOYER Handel GmbH Dear Customer, your device is provided with a 3 year war- ranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our war- ranty presented in the following. Warranty conditions The warranty period starts with the purchase date. Please keep the original purchase re- ceipt in a safe place. This document is re- quired to verify the purchase. If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or re- placed by us – at our discretion – free of charge to you, or the purchase price will be refunded. This warranty implies that within the period of three years the defective de- vice and the purchase receipt are presented, including a brief written description of the defect and the time it occurred. If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product. Warranty period and statutory claims for defects The warranty period is not extended when the warranty has been claimed. This also ap- plies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immedi- ately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge. Warranty coverage The device was produced carefully according to strict quality guidelines and tested diligent- ly prior to delivery. The warranty applies to material or factory defects. Excluded from the warranty are wear parts subject to normal wear and damages to fragile parts, e.g. switches, lamps or other parts man- ufactured from glass. This warranty expires if the product is dam- aged, not used as intended or not serviced. For the proper operation of the product, all in- structions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided. The product is only intended for private and not for commercial use. In the case of incor- rect and improper treatment, use of force and interventions not performed by our author- ised Service Centre, the warranty shall cease. Handling in case of a warranty claim In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number IAN: 377265_2110 and the purchase receipt as a purchase verification for all in- quiries.

• The article number can be found on the rating plate, an engraving, the title page of your instructions (in the bottom left), or as a label on the rear or under- side of the device.

• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.

• Then, you are able to send a product re- ported as defective free of charge to the service address specified to you, includ- ing the purchase receipt and the infor- mation on the defect and when it occurred. __377265_2110_B6.book Seite 12 Mittwoch, 16. Februar 2022 6:57 0613
