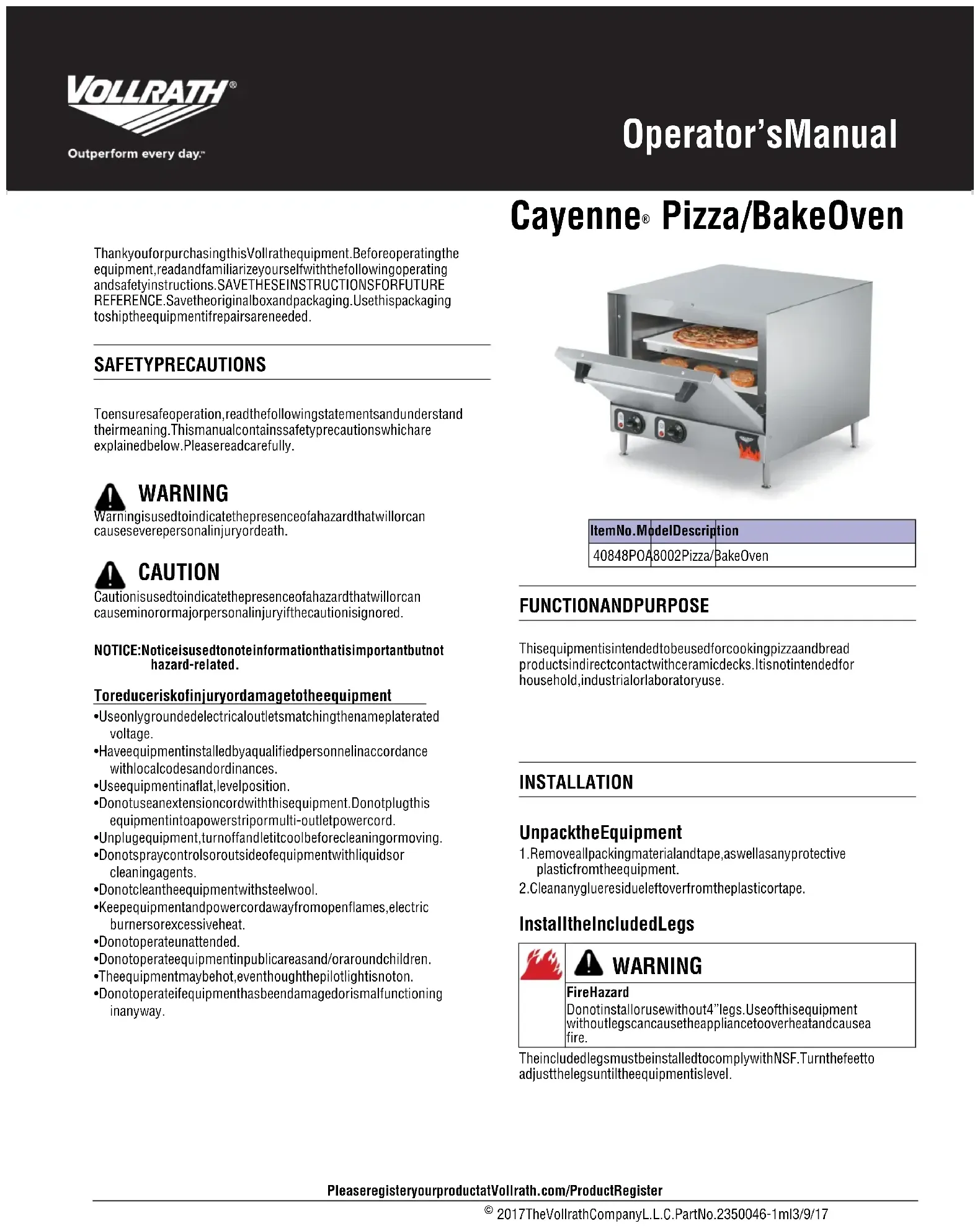

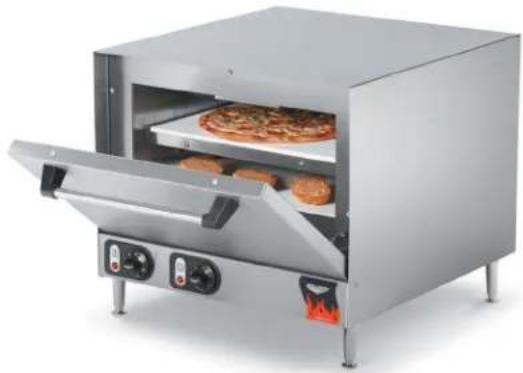

USER MANUAL 40848 Vollrath

2017 The Vollrath Company L.L.C. Part No. 2350046-1 ml 3/9/17 Please register your product at Vollrath.com/ProductRegister Thank you for purchasing this Vollrath equipment. Before operating the equipment, read and familiarize yourself with the following operating and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Save the original box and packaging. Use this packaging to ship the equipment if repairs are needed. SAFETY PRECAUTIONS To ensure safe operation, read the following statements and understand their meaning. This manual contains safety precautions which are explained below. Please read carefully. Warning is used to indicate the presence of a hazard that will or can cause severe personal injury or death. Caution is used to indicate the presence of a hazard that will or can cause minor or major personal injury if the caution is ignored. NOTICE: Notice is used to note information that is important but not hazard-related. To reduce risk of injury or damage to the equipment

• Use only grounded electrical outlets matching the nameplate rated voltage.

• Have equipment installed by a qualified personnel in accordance with local codes and ordinances.

• Use equipment in a flat, level position.

• Do not use an extension cord with this equipment. Do not plug this equipment into a power strip or multi-outlet power cord.

• Unplug equipment, turn off and let it cool before cleaning or moving.

• Do not spray controls or outside of equipment with liquids or cleaning agents.

• Do not clean the equipment with steel wool.

• Keep equipment and power cord away from open flames, electric burners or excessive heat.

• Do not operate unattended.

• Do not operate equipment in public areas and/or around children.

• The equipment may be hot, even though the pilot light is not on.

• Do not operate if equipment has been damaged or is malfunctioning in any way.

FUNCTION AND PURPOSE

This equipment is intended to be used for cooking pizza and bread products in direct contact with ceramic decks. It is not intended for household, industrial or laboratory use. INSTALLATION Unpack the Equipment

1. Remove all packing material and tape, as well as any protective

plastic from the equipment.

2. Clean any glue residue left over from the plastic or tape.

Install the Included Legs The included legs must be installed to comply with NSF. Turn the feet to adjust the legs until the equipment is level. WARNING CAUTION Item No. Model Description 40848 POA8002 Pizza / Bake Oven WARNING Fire Hazard Do not install or use without 4” legs. Use of this equipment without legs can cause the appliance to overheat and cause a fire.2 Cayenne

Pizza/Bake Oven it must be thoroughly cleaned and burned-in. Clean the Equipment

1. See the Cleaning section in this manual.

Burn-in the Equipment

1. Check that the ceramic decks are clean and dry.

2. Plug the equipment into a properly grounded electrical supply

matching the nameplate rating. NOTICE: Damage to the equipment can occur if incorrect power is supplied to equipment.

3. Turn the thermostat control to 400°F (204°C) for 45 minutes to

1 hour with the oven door open. You will notice odor appearing due to the ceramic deck (cooking/baking surface) burning-in. This is normal.

4. Close the door and turn the thermostat control 500°F (260°C). Run

the oven for 2 hours. OPERATION Pizza and Baking Instructions and Tips Follow the cooking/baking instructions provided on pre-made pizza and other food products. The temperature range required for pizza baking is usually higher than for general baking. Ideally pizza should cook at approximately 500°F (260°C) to 575°F (301°C). The pizza should be allowed to bake until the cheese bubbles and the bottom crust is brown.

1. Always ensure that the food products or pizza crust is fully defrosted

2. Rotation of the pizza during the baking cycle is highly

3. Pizza with a heavy topping will require a longer baking time at a

4. Cook food products in desired manner.

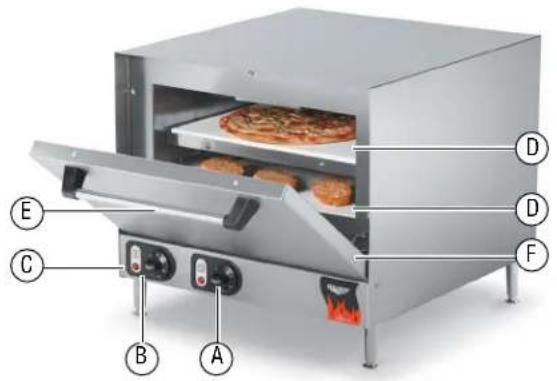

A Timer. Timer can be set for1-15minutes. The timer is not connected to thermostat. B Thermostat Control Dial. Used to set or adjust the temperature of the oven. The numbers on the dial correspond with the oven temperature. The “0” position is off. C Pilot Light. This light indicates that the oven is heating. Once the set temperature has been reached the light will go out. Equipment will continue to maintain heat and temperature with the light cycles on and off. This light is not a power “on” indicator. D Ceramic Cooking Deck. The cooking/baking surface. E Door Handle. Used to open and close the oven. F Door. Oven door.

CAUTION Burn Hazard Do not touch hot food, liquid or heating surfaces while equipment is heating or operating. Hot surfaces, steam and food can burn skin. Allow the hot surfaces to cool before handling. Do not drop or spill water onto the cooking surface as it can spray or splatter.Cayenne

Pizza/Bake Oven Operator’s Manual 3 CLEANING To maintain the appearance and increase the service life, clean this equipment daily. NOTICE: Do not use water to clean the ceramic decks.

1. Unplug the equipment.

2. Allow the equipment to cool completely before cleaning.

NOTICE: Do not immerse the cord, plug or equipment in water or any other liquid.

3. Use a damp cloth, sponge dipped in soapy water to clean the outside

4. Use towels to completely dry the equipment or allow to air dry

completely. The spillage on the ceramic decks should be cleaned periodically. Generally this can be scrapped out but for hard to clean spillage the following is recommended :

1. Turn the unit to the maximum temperature for 30 minutes.

2. Allow the unit to cool down.

3. Brush the residue from the deck.

The oven door may be removed for cleaning To remove and install the oven door:

1. Allow the equipment to cool completely before removing the door.

3. Note the down or back position of hinge locks. Check that both sides

are in this position.

4. Place the hinge lock over the hinge arm as shown. Repeat on both

5. Tilt the oven door up slightly and lift the oven door out.

6. Door may be cleaned.

7. Using a damp cloth, sponge dipped in soapy water to clean the door.

8. Use towels to completely dry the door or allow it to air dry

9. Carefully set the oven door into the oven. Place the arm so that it

sets under pin. 10.Rotate the hinge lock off the hinge arm. Repeat on both sides. 11.Carefully open and close the door to verify that it is operating correctly. If not repeat steps 9 and 10. CAUTION Burn Hazard Do not touch hot food, liquid or heating surfaces while equipment is heating or operating. Hot surfaces, steam and food can burn skin. Allow the hot surfaces to cool before handling. Do not drop or spill water onto the cooking surface as it can spray or splatter. WARNING Electrical Shock Hazard Keep water and other liquids from entering the inside of the equipment. Liquid inside the equipment could cause an electrical shock. Do not spray water or cleaning products. Liquid could contact the electrical components and cause a short circuit or an electrical shock. Do not use equipment if power cord is damaged or has been modified.© 2017 The Vollrath Company L.L.C. Part No. 2350046-1 ml 3/9/17 www.vollrath.com The Vollrath Company, L.L.C. 1236 North 18th Street Sheboygan, WI 53081-3201 U.S.A. Main Tel: [phone] or 920.457.4851 Main Fax: [phone] or 920.459.6573 Customer Service: 800.628.0830 Canada Customer Service: 800.695.8560 Technical Services [e-mail] Induction Products: 800.825.6036 Countertop Warming Products: 800.354.1970 All Other Products: 800.628.0832 TROUBLESHOOTING

Serviceable parts are available on Vollrath.com. To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to The Vollrath Company LLC. Please contact Vollrath Technical Services for instructions. When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchase showing the date the unit was purchased. WARRANTY STATEMENT FOR THE VOLLRATH CO. L.L.C. This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty to purchasers for such uses. The Vollrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user’s original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be covered under warranty. For complete warranty information, product registration and new product announcement, visit www.vollrath.com. Problem Might be Caused By Course of Action Pilot light does not come on when the temperature control is turned up. The equipment is not plugged in Plug in the equipment. Pilot light malfunction Replace the pilot light. Thermostat control malfunction Replace the thermostat control. The light comes on, equipment does not heat. Heating element malfunction Replace the heating element.Manuel d’utilisation Cayenne
