Product Type	Commercial Rotisserie Oven
Model	CGA8016 (15-Bird)
Capacity	15 chickens (2 per basket, approx. 3 lb each), max 45 lb (20.5 kg)
Power	5000 W
Voltage	220-240 V
Amperage	22 A
Plug Type	NEMA 6-30P
Temperature Control	Dial, adjustable
Timer Range	10-120 minutes
Rotisserie Function	Yes, with ON/OFF switch
Convection Fan	Yes, operates with rotisserie
Construction	Stainless steel
Oven Light	Yes, 220-240V, 25W, 570°F rated
Drip Tray	Removable for cleaning
Grease Deflector	Removable, clean every 3 months
Legs Required	4-inch legs for proper clearance
Electrical Requirements	Grounded outlet, no extension cord
Cleaning	Daily with mild soap and water
Warranty	Vollrath standard warranty
Service Parts	Available at Vollrath.com

Frequently Asked Questions - CGA8016 Vollrath

What is the maximum capacity of the Vollrath CGA8016 oven?

The oven can hold up to 15 chickens (2 per basket) of approximately 3 lb each, with a maximum load of 45 lb (20.5 kg).

Do I need to install legs on the oven?

Yes, the 4-inch legs must be installed to meet agency certifications and prevent overheating. Do not use without legs.

How do I set the timer and temperature?

Use the Temperature Control Dial to set desired temperature (recommended 338°F). Set the Timer (10-120 minutes) - the oven will not heat unless the timer is set. The rotisserie switch must be ON to start rotation.

Can I cook frozen chickens in this oven?

No, this unit is intended for fresh foods only. Do not cook frozen chickens or other frozen foods.

How often should I clean the grease deflector?

Clean the grease deflector every three months to prevent grease buildup. Remove the four screws, wash with mild degreasing soap, and dry before reinstalling.

What type of oven light does the CGA8016 use?

The oven light must be rated for high temperature: 220-240V, 25W, 570°F (300°C). Allow the oven to cool before replacing.

Why is the heat indicator light on but the oven not heating?

This may indicate a malfunctioning thermostat control or heating element. Contact Vollrath Technical Services for repair.

Can I use an extension cord with this oven?

No, do not use an extension cord. Always plug directly into a grounded electrical outlet matching the nameplate voltage.

How do I clean the oven daily?

Unplug and let cool completely. Remove baskets, drip tray, and grease deflector. Wash by hand or dishwasher with mild soap water. Wipe the interior with a damp cloth. Ensure all parts are dry before reassembly.

Where can I find replacement parts?

Serviceable parts are available on Vollrath.com. For warranty or repair, contact Vollrath Technical Services with your item number, model, serial number, and proof of purchase.

USER MANUAL CGA8016 Vollrath

ThankyouforpurchasingthisVollrathequipment.Beforeoperatingthe equipment,readandfamiliarizeyourselfwiththefollowingoperating andsafetyinstructions.SAVETHESEINSTRUCTIONSFORFUTURE REFERENCE.

WARNING

Fire, Injury, Death Hazard Correct precautions, procedures and regulations for usage must be followed. Operation and safety training is necessary for all users of this equipment.

SAFETYPRECAUTIONS

Toensuresafeoperation,readthefollowingstatementsandunderstand theirmeaning.Thismanualcontainssafetyprecautionswhichare explainedbelow.Pleasereadcarefully.

WARNING

Warningisusedtoindicatethepresenceofahazardthatwillorcan causeseverepersonalinjuryordeath.

CAUTION

Cautionisusedtoindicatethepresenceofahazardthatwillorcan causeminorormajorpersonalinjuryifthecautionisignored.

NOTICE: Notice is used to note information that is important but not hazard-related.

Toreduceriskofinjuryordamagetotheequipment

•Cleantheequipmentdaily.
- Donotsetanythingonthetopoftheoven.
•Donotoperateunattended.
- Donotoperatetheequipmentinpublicareasand/oraround children.
- Useonlygroundedelectricaloutletsmatchingthenameplaterated voltage.
- Donotuseanextensioncordwiththisequipment.
- Unplugequipment, turnoffandletitcoolbeforecleaningormoving.
- Keepequipmentandpowercordawayfromopenflames,electric burnersorexcessiveheat.
•The equipment may be hot, even though the indicator light is not illuminated.
- Donotoperatetheequipmentifitisdamagedorismalfunctioning.

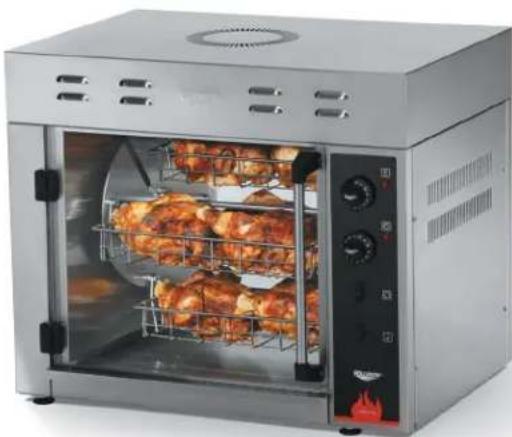

Exterior view of a modern stainless steel rotary oven with multiple panes and grilles (no visible text or symbols)

ItemNo.	Model	Description	WattsVoltage	AmpsPlug
40704CGA	80088bir	drotisserie	2700	22022	12	NEMA6-15P
40841CGA	801615b	birdrotisserie	5000			NEMA6-30P

FUNCTIONANDPURPOSE

Thisunitisintendedtobeusedforcookingfreshfoodsincommercial foodserviceoperationsonly. Thisunitisnotintendedtocookfrozen chickensorotherfrozenfoods.Itisnotintendedforhousehold, industrialorlaboratoryuse.

TableofContents

UnpackingtheEquipment......page2

Installation......page2

FeaturesandControls......page2

Operation......page3

Cleaning......page3

Maintenance......page3

Troubleshooting......page4

UNPACKINGTHEEQUIPMENT

1. Remove all packing material and tape, as well as any protective plastic from the equipment.
2. Whennolongerneeded, disposeofallpackagingandmaterialsinan environmentallyresponsiblemanner.
3. Cleananyglueresidueleftoverfromtheplasticortape.

INSTALLATION

WARNING

Fire, Injury, Death Hazard

This equipment must installed by a qualified installer in accordance with all federal, state and local codes. Failure to install this equipment properly can result in injury or death.

LocationandClearanceRequirements

•Theovenshouldbeinstalledunderahoodinaccordancewiththe latesteditionoftheStandardforVentilationControlandFire ProtectionofCommercialCookingOperations,NFPA96.
- This appliancemustbeinstalledadjacenttonon-combustible surfacesonly.
• Minimum clearance on all sides: of 8 (20.3cm).
• Minimum distance from another appliance: 8 "(20.3cm).
•Theovenmustbeinstalledonaflatlevelsurface.
•Thesuppliedlegsmustbeinstalled.

InstalltheIncludedLegsandFeet

1. Forthe15BirdRotisserieOven, install the included legs and rubber feet. These must be installed to meet agency certifications.

WARNING

FireHazard

Donotinstallorusewithout4"legs.Useofthisequipment withoutlegscancausetheappliancetooverheatandcausea fire.

1. Forthe8BirdRotisserieOven, installtherubberfeet.
2. Makesuretheovenislevel. Operating the oveninanon-level position may damage the equipment.

BeforeFirstUse

1. Cleantheequipment.See "Cleaning" on page 3.
2. Setthetemperatureto450°F(218°C).
3. Allow the eventoheat for 30 minutes. Smokemay appeardueto the heating elements burning-in. This is normal.
4. After the 30-minute burn-in period the equipment is ready for use.

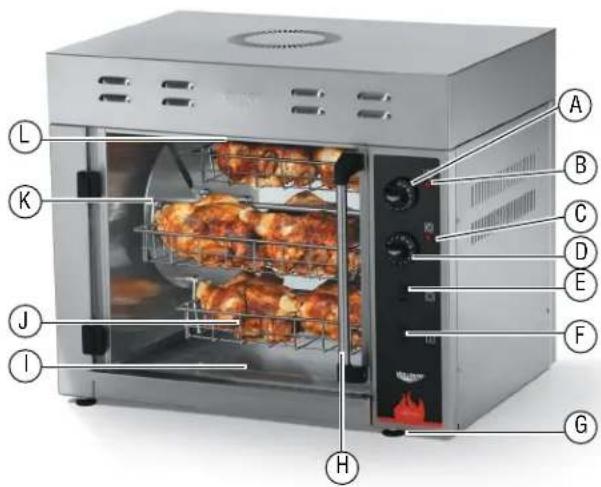

FEATURESANDCONTROLS

ATemperatureControlDial.Usedtosetoradjustthe temperature.

BHeatIndicatorLight. This light indicates that the unit is heating. On the set temperature has been reached the light will go out. This is not a power indicator light. The light will cycle on and off asthe equipment that remains in a temperature.

CTimerIndicatorLight.Illuminateswhenthetimerisactivated.

DTimer. Timercanbesetfor10-120minutes. Thetimeris connectedtothermostat. Ovenwillnotheatunlesssthetimeris set.

ERotisserieSwitch. Startsandstopstherotatingofthebaskets.

FPowerSwitch.SwitchesthepowerON/OFF.Ovenlightturnson andoffwiththepower.

GLegs.Supporttheequipment.

HDoorHandle.Usedtoopenandclosetheoven

IDripTray. A tray that collects grease and oil. This tray can be removed for cleaning.

JBasket.Holdsthefoodproductandrotatesduringtherotisserie cookingprocess.

KPivotPin.Supportsthebasketandallowsthebaskettopivot duringtherotisseriecookingprocess.

LGreaseDeflector. Locatedinside, atthetopoftheoven. (Not visibleinphoto.)

OPERATION

WARNING

ElectricalShockHazard

Keepwaterandotherliquidsfromenteringtheinsideofthe equipment. Liquidcouldcontacttheelectricalcomponentsand causeashortcircuitoranelectricalshock.Donotspraywater orcleaningproducts.Donotuseequipmentifpowercordis damagedorhasbeenmodified.

CAUTION

BurnHazard

Donottouchhotfood, liquidorheatingsurfaceswhile equipmentisheatingoroperating.

Hotsurfaces,steamandfoodcanburnskin.Allowthehotsurfacesto coolbeforehandling.Donotdroporspillwaterontothecooking surfaceasitcansprayorsplatter.

1. LoadchickensintothebasketsThechickensshouldbeaboutthe samesizeandweight.

OvenCapacity
40704	8chickens(2perbasket)ofapproximately3lbs.(1.3kg) each.Maximumloadmustnotexceed24lbs.(10.9kg).
40841	15chickens(2perbasket)ofapproximately3lbs.(1.3kg) each.Maximumloadmustnotexceed45lbs.(20.5kg).


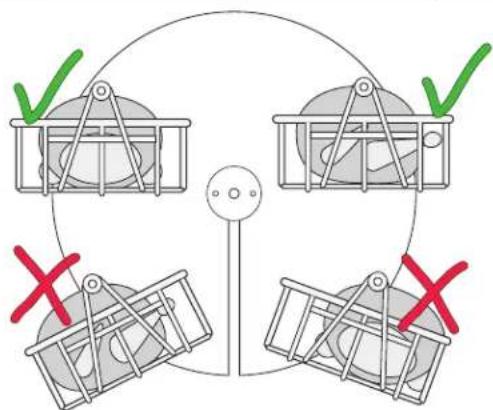

NOTICE: Unevenloading may cause the basketstobumpother baskets or the sides of the oven and caused damage to the equipment.

2.SwitchthepowertotheONposition.Theovenlightilluminates.

1. Set the temperature control to the desired cooking temperature. The recommended cooking temperature is 338^ F ( 170^ C). However, this may need to be adjusted based on the size and number of the chickens, your preferences and other variables.

2. Setthetimertothedesiredcookingtime, typically 1 12 -2hours. Ovenwillnotheatunlessthetimerisset. The actual cooking time may needtobeadjustedtoensurethechickensarefullycookedas verified by a food thermometer.

3. TurntherotisserieswitchtotheONpositionontinitiatetherotatingof thebasketsandtheconvectionfan.

4. Keep the area at the front of the unit clear for unobstructed access during operation.

5. Whenthetimerhasexpired, the heating function will stop, but the baskets will continuetorotate.

6. Switchtherotisseries switch to the OFF position before opening the ovendoor.

7. Verifychickensarefullycooked. Useafoodthermometer to check the internal temperature of each chicken.

CLEANING

Tomaintaintheappearanceandincreasetheservicelife,cleanyour equipmentdaily.

WARNING

FireHazard, PersonalInjury, orPropertyDamage

Overheatedgrease, oil or fat vapors can ignite causing a fire. Unit must be cleaned daily.

WARNING

ElectricalShockHazard

Keepwaterandotherliquidsfromenteringtheinsideofthe equipment.Liquidinsidetheequipmentcouldcausean electricalshock.Donotspraywaterorcleaningproducts. Liquidcouldcontactthelectricalcomponentsandcausea shortcircuitoranelectricalshock.

CAUTION

BurnHazard

Hotsurfacesandfoodcanburnskin.Allowthehotsurface to coolbeforehandling.Donotdroporspillwaterontothe cookingsurfaceasitcansprayorsplatter.

NOTICE: Donotimmersethecord, plugorequipmentinwateror anyotherliquid.

NOTICE: Donotusecausticcleaners which could damage the finish.

1. Unplugtheequipment.
2. Allowittocool completely before cleaning.
3. Removethebaskets, driptray and greasedeflector. Washbyhandor inthedishwasher. Makesurecomponents arethoroughly dry before reinstalling.
4. Cleantheequipmentwithmildsoapandwater.Removeallgrease, oilandfatresidues.
   5.Installthedriptray,greasedeflectorandbaskets.

MAINTENANCE

CleantheGreaseDeflector

Cleanthedeflectoreverythreemonthstoppreventgreasebuild-up.

1. Turnoffandunplugtheoven.

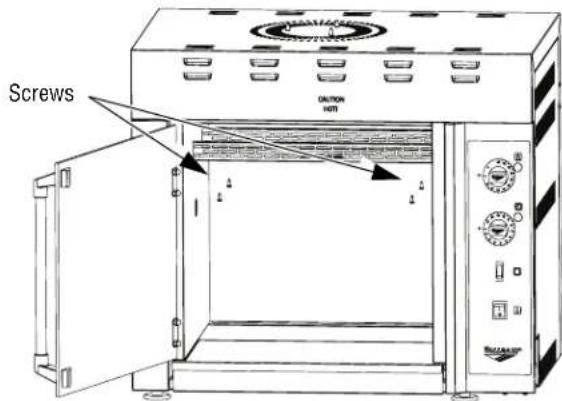

2. Removethefourscrewssecuringthedeflectortothetopofthe oven.

1. Cleanbyhandwithmildde-greasingsoapandwater.
2. Drythedeflectorbeforere-installingintotheoven.

NOTICE: The grease deflectormustbere-installed prioritouse.

ReplacetheOvenLight

NOTICE: Thereplacementovenlightmustberatedforthehigh temperaturewithintheovenandmustmatchthe nameplatevoltage, i.e., 220-240Volt, 25Watt, 570°F (300°C).

1. Allow theoventocool completely beforeservicing.
2. Disconnect the oven from the electrical powersupply.
3. Unscrewtheovenlightglasscoverandthenremovetheovenlight.

TROUBLESHOOTING

ProblemMightbeCausedByCourseofAction
Theindicatorlightdoesnotilluminate whenthetemperaturecontrolis increased.	Thermostatmalfunction.Replaceethermostat.
	Indicatorlightmalfunction.Replaceheindicatorlight.
Theindicatorlightilluminatesbutthe ovendoesnoheat.	Thermostatcontrolmalfunction.Replaceethermostatcontrol.
	Heatingelementmalfunction.Replaceheheatingelement.
Timerindicatorlightisnotilluminated.	Ovenisnotconnectedtopower.Plug-intheoven.
	Timermalfunction.Replaceethetimer.
	Indicatorlightmalfunction.Replaceheindicatorlight.
Heatindicatorlightisnotilluminated.	Thermostatmalfunction.Replaceethermostat.
	Indicatorlightmalfunction.Replaceheindicatorlight.

SERVICEANDREPAIR

ServiceablepartsareavailableonVollrath.com.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to TheVollrathCompanyLLC.PleasecontactVollrathTechnicalServicesforinstructions.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchaseshowingthedatetheunitwaspurchased.

WARRANTYSTATEMENTFORTHEVOLLRATHCO.L.L.C.

This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty top purchasersforsuchuses.

The Vollrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be recovered under warranty.

Forcompletewarrantyinformation,productregistrationandnewproductannouncement,visitwww.vollrath.com.
