USER MANUAL RO4-208240-8 Vollrath

Thank you for purchasing this Vollrath® product! Save this manual for reference and the packaging in case shipping is necessary.

SAFETY PRECAUTIONS

To help ensure safe use, please read and fully understand this manual and all safety messages before operation!

WARNING

Warning indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Caution indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE: addresses practices not related to physical injury.

To reduce risk of injury or damage to the unit

• Only plug this unit directly into a grounded electrical outlet that matches the nameplate-rated voltage. Do not use extension cords or power strips of any kind.
• Use in a flat, level position.
• Turn off, unplug, and let the unit cool before cleaning or moving and when not in use.
• Outside of unit should not be sprayed with liquid or foam.
• Clean unit with something other than steel wool.
• Keep unit and power cord away from open flames, electric burners, and excessive heat.
• Operate in non-public areas, away from children—and attend the unit during use.
• Only operate a unit that is functioning properly and is not damaged.
  Clean the unit daily.
• Do not set anything on the top of the unit.
  The unit may be hot, even though the indicator light is not illuminated.

ROV-08

Item Model

Description

RO4-208240-8 R

OV-08 Rotis

serie-8-bird, 208-240V

FUNCTION AND PURPOSE

This unit is intended to cook fresh foods in commercial foodservice operations. It is not intended to cook frozen foodsnor is it intended for household, industrial, or laboratory use.

UNPACKING THE UNIT

1. Remove all packing material and tape, as well as any protective plastic.
2. Clean any glue residue left over from the plastic or tape.
3. Place the unit in desired location.
4. Plug unit into a properly-grounded electrical supply matching the nameplate rating.

NOTICE: If incorrect power is supplied, damage can occur.

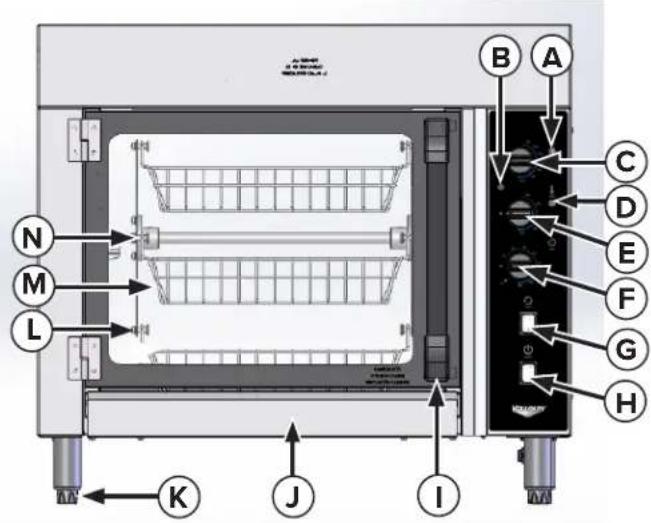

FEATURES & CONTROLS

A. Cook Indicator Light-indicates when unit is in Cook mode.
B. Heat Indicator Light—cycles on and off while unit is heating; (not a power-indicator). Once set temperature is reached, the light will go out.
C. Cook Temperature Dial—sets cooking temperature from 150^ - 450^ (65.6 °C–232.2 °C)
D. Hold-Indicator Light-indicates when unit is in Hold mode.
E. Hold-Temperature Control Dial-sets temperature from 100^ - 300^ (37.8^ - 148.9^) for holding pre-cooked chickens.
F. Timer-heats in Cook mode when set to 15-120 minutes or On. Unit heats in Hold mode when timer is off.
G. Rotate Switch—starts and stops basket rotation.
H. Power Switch—turns the oven and oven light on and off.

I. Door Handle—opens and closes the oven.

J. Drip Tray—collects grease/oil and is removable for cleaning.
K. Legs—support the unit and provide needed clearance.
L. Pivot Pin—holds and allows baskets to rotate during cooking.
M. Basket—holds food and rotates during rotisserie cooking.
N. Carousel Assembly (removable)—holds and rotates baskets.
O. Fan Cover—is located at the inside top of oven (not shown).

INSTALLATION

WARNING Fire Hazard, Injury, or Property Damage. Unit must be installed by qualified personnel in accordance with all federal, state, and local codes. Improper installation can result in injury or death.

Location and Clearance Requirements

• This unit should be installed adjacent to non-combustible surfaces in a flat location.
• The supplied legs must be installed.
• Ambient temperatures must be at or below 104^ (40^) .

Ventless Operation

Based on independent UL testing, this product complies with NFPA96 for ventless operation using the EPA202 test method. Ventless allowance is dependent upon AHJ approval.

Testing was conducted using 2-1/2 to 3-1/2 pound whole chickens, skin-on and bone-in.

Assembling and Installing Carousel Assembly

1. Remove carousel end plates and shaft from the packaging.
2. Install end plates to carousel shaft with the provided screws.

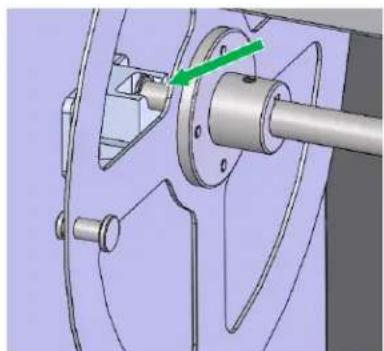

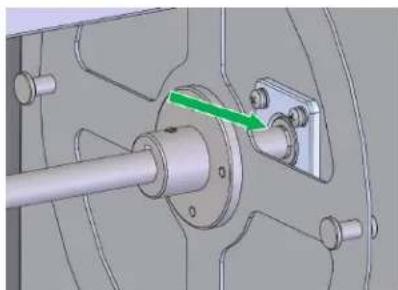

1. Install the carousel assembly into the rotisserie. Slide the hexagonal end of the carousel shaft into the motor coupling on the right side of the oven.

1. Position the free end of the carousel shaft above the carousel holder on the left side of the unit. Allow the carousel shaft to rest in the slot of the carousel holder.

1. Power the unit on and turn the rotate switch to ON. Check to ensure the carousel is rotating smoothly.

Install the Included Legs

1. Install the included legs to meet agency certifications.

1. Ensure the unit is level to avoid damage during operation.

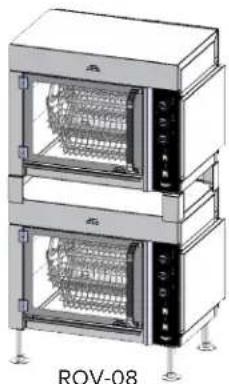

Installation Instructions for Stacked Units

1. The appropriate stacking kit must be purchased and assembled as shown below when placing a unit on top of another; item number is 60089 for RO4-208240-8.

1. Stacked units must be bolted to a level floor using the legs provided in the stacking kit. Remove the four standard 4" legs from bottom unit and replace with four 6" legs from kit.

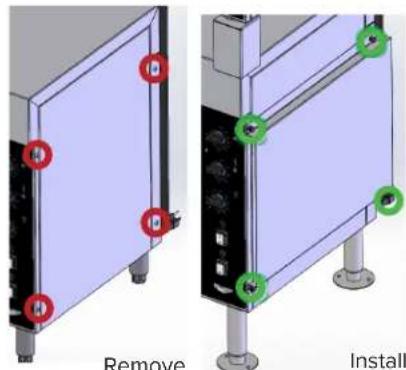

1. Side vents included in the stacking kit must be attached to both units. To do this, remove the four screws from the right side of the unit, and use the screw holes to attach the side vents (already fixed with knurled screws).

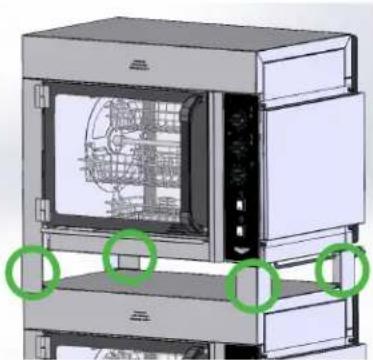

1. Remove the four standard 4" legs from the top unit, and replace with the four stacking corners.

1. Ensure units are correctly assembled and bolted to a level floor. Only properly-installed legs and vents included in the Vollrath® stacking kit will meet agency requirements.

Before First Use

1. Clean the unit per the Cleaning and Maintenance section.
2. Set the temperature to 450^ (218^) in cook mode.
3. Allow the oven to heat for 30 minutes. Smoke may appear due to the heating elements burning in; this is normal.
4. After the 30-minute burn-in period, the unit is ready for use.

OPERATION

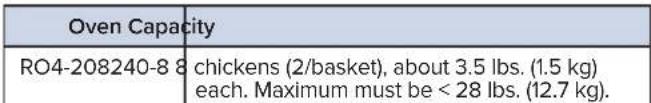

1. Load chickens into baskets. To ensure optimal cooking, chickens should be about the same size and weight.

NOTICE: Uneven loading could cause baskets to bump each other or sides of the oven and cause damage to the unit.

1. Switch power to ON; the oven and Hold lights will illuminate.

2. Turn the Timer ON; the Cook Light will illuminate.

3. Set COOK thermostat to desired setting; Heating Indicator Light will illuminate. Recommended cooking temperature is 350^ (177 °C); this might need adjusting based on size and number of chickens, preferences, and other variables.

4. Turn Timer to ON or to 90-120 (minutes) to cook.
5. Turn Rotate Switch to ON.
6. When the timer expires, unit will switch to HOLD and the HOLD light illuminates; baskets will continue to rotate.
7. Turn Rotate Switch OFF. When carousel stops, carefully open the door.
8. Use a food thermometer to verify each chicken is fully cooked and adjust cooking time as necessary.
9. To maintain pre-cooked chickens, turn HOLD Dial to the chosen temperature; Heating-Indicator light will illuminate.
10. Unit will stay in HOLD mode until timer is reset or turned on.

NOTICE: When in COOK or HOLD mode, you might hear clunking when the elements are first turned on or after heating for a while, with the Heat Indicator Light cycling on and off for several minutes at a time. This is normal, and confirms the unit is cycling around a set temperature.

NOTICE: United States Public Health Service recommends hot food be held at a minimum of 140^ (60^) to help prevent bacteria growth. Monitor temperatures closely for food safety.

CLEANING AND MAINTENANCE

To prevent fires, maintain appearance, and increase service life, clean your unit daily.

WARNING Fire Hazard, Injury, or Property Damage. Overheated grease, oil, or fat vapors can cause a fire. Unit must be cleaned daily.

WARNING

Electrical Shock Hazard. Keep water and other liquids from entering the unit. Liquid inside the unit could cause an electrical shock or short circuit. Do not immerse cord, plug, or unit in liquids-or operate if unit or cord are damaged or altered.

WARNING Burn Hazard. To avoid burns and splattering, do not touch cookware, heating surfaces, or food—or drop water onto cooking surfaces while operating.

NOTICE: Do not use caustic cleaning chemicals, steel wool or commercial lime remover to clean the unit.

1. Turn off and unplug the unit.
2. Protect your hands and remove hot food.
3. Allow the unit to cool completely.
4. Remove baskets, drip tray, carousel assembly, and fan cover. Wash, rinse, and thoroughly dry components before reinstalling.
5. Clean unit with mild soap and water to remove all grease, oil, and fat.
6. Dry unit before installing the drip tray, carousel assembly, fan cover, and baskets.

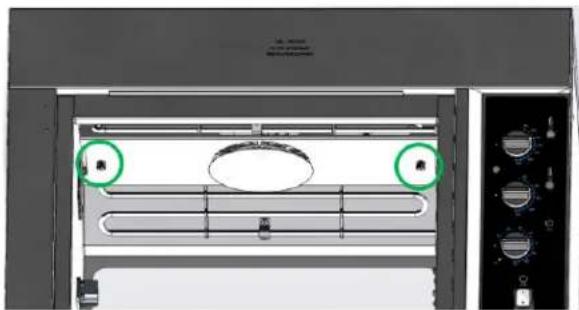

Remove the Fan Cover

1. Turn off and unplug unit and allow it to cool completely.
2. Loosen the two thumb screws securing the cover to the top of the oven.

NOTICE: Fan Cover must be re-installed prior to use.

Removing the Carousel Assembly

1. Turn Off and unplug unit and allow it to cool completely.
2. Lift up on the left end of the carousel and pull horizontally to the left to remove from the motor coupling.

Replace the Oven Light

NOTICE: The replacement oven light must be rated for high temperatures within the oven and must match the nameplate voltage, i.e., 220-240V, 30W maximum, 570^ (300^) . Individual light bulbs can be purchased as a service part (Vollrath #353866-1).

1. Turn off and unplug unit and allow it to cool completely.
2. Remove oven light glass cover, then the oven light bulb and replace with new bulb.

TROUBLESHOOTING

Problem Potential Cause	Course of Action
Unit does not have power.	Unit is not plugged in. Plug in the unit
	There is a problem with the outlet. Contact an authorized service agent.
	Circuit breaker tripped. Reset the breaker.
Unit is not heating. High-limit	reset tripped. Reset the high limit switch at the bottom of the unit. If issue persists, contact Vollrath Technical Services.
	There is an issue with the heating element(s). Contact Vollrath Technical Services.
	There is an issue with the heating control(s). Contact Vollrath Technical Services.
Oven light does not work. Bulb is burned out. Replace the oven light per the preceding instructions.
Pilot light does not work.	There is a problem with the pilot light(s).	Contact Vollrath Technical Services.
Carousel does not rotate.	There is a problem with the motor.	Contact Vollrath Technical Services.
	There is a problem with the power supply.	Contact Vollrath Technical Services.

SERVICE AND REPAIR

Serviceable parts are available on vollrathfoodservice.com.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to The Vollrath Company LLC. Please contact Vollrath Technical Services for instructions.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchase showing the date the unit was purchased.

WARRANTY STATEMENT FOR THE VOLLRATH CO. L.L.C.

This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty to purchasers for such uses.

The Vollrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification, or damage resulting from improper packaging during return shipment for warranty repair will not be covered under warranty.

For complete warranty information, product registration, and new product announcements, visit vollrathfoodservice.com.
