USER MANUAL IAN 374012 CRIVIT

Slider for sun shield with safety latch

Chin straps with snap fastener Scope of Delivery The scope of delivery for your helmet consists of the following:

• Additional pair of cheek pads for individu- al size adjustment

• Instructions for use Important Information Our helmets are manufactured in accordance with the latest technology and are specifically designed for motorcycling. Whether the owner deems them to be suitable for any other use, is up to him. Wearing a helmet does not exclude the possibility of injury should an accident occur. To guarantee adequate protection this helmet must be well fitting and securely fastened. Every helmet that is exposed to a hard blow must be replaced. We guarantee that this item is free of produc- tion and material defects. The guarantee does not apply to normal wear and tear and in case of improper use. Instructions for Use Safety Advice

• Warning! When riding, the helmet may only be used if the chin piece and visor are closed.

• The helmet is equipped with a hinged sun shield, which may only be used in conjunction with a closed visor.

• To open the chin piece, press the release (11) and lift the chin piece up (Fig. B).

• To close the chin part, pull the chin section down until it audibly locks into place.

• The helmet must fit tightly and the chin strap be closed.

• Always ensure that there is no airflow restric- tion inside the helmet.

• Ensure that your visor is clean and scratch- free at all times. Exchange damaged visors for a genuine replacement immediately. Never use smoked visors at night or when visibility is poor. You are able to obtain replacement visors from the stipulated service address for a period of 5 years from the purchase date. Visor type: DS-VISOR400.

• Never modify the helmet, its structure or the individual components.

• The helmet may not be painted or have stick- ers or labels. GB/IE18

• The helmet is designed to absorb the energy of a blow or a collision by destroying some of its components. In case of a further blow it wouldn’t protect you any longer. After an accident, the helmet must be replaced even though it doesn’t show external damages.

• Refrain from transporting your helmet by hanging it onto any part of your motorcycle. Keep it away from exhaust pipes and other sources of heat.

• Never clean the helmet with solvents contain- ing petroleum or scouring agents, neither the outside nor the inside. Always use pH-neutral detergent dissolved in clean water. Careful rub with a soft cloth. Then wipe dry with a lint-free cloth. The pad may be cleaned with a little soap using a soft brush.

• Only use genuine spare parts for your helmet.

• Only use the sun shield in daylight! Never use at twilight or at night. Product Characteristics ECE-R 22.05 Homologa- tion This helmet is in compliance with ECE-R 22.05 standards and is homologised accordingly. The ECE-R 22.05 standard consists of uniform conditions for the approval of protective hel- mets and its visors for drivers and passengers of motorcycles and mopeds. The basic principles for these tests are the so called ECE-Regulations of the Economic Commission for Europe. Significant Tests of the ECE-Regulation 22.05

• Dynamic test of wear features

• Field of vision test

• Sustainability test (Strip-off test)

• Chin straps and lock test

• Shear test for outside edges

• Friction performance test of the outer shell

• Visor test (mechanical and visual characteristics)

• Chin bar, chin part damping test Voluntary product testing Emission certificate The TÜV Rheinland emission certificate indi- cates products tested for contaminants and according to current knowledge pose no risks to the health. Inside Padding with Coolmax

by INVISTA is a high-performance fabric fibre that supports its wearers during sport activities. Based on the patented DuPont-fibre technology, Coolmax

transports moisture from the body to the fabric surface where it dries quicker than with any other fabric. The specially developed fibres of INVISTA that are used for Coolmax

-fabrics transport the moisture away from the body to the surface of the fabric where it has the opportunity to evap- orate quickly. At the same time, the uniquely formed fibres offer maximum breathing activity, even in wet conditions. In addition, the breath- ing activity improves the heat regulating effect. Cheeks, forehead and neck pads of this article are equipped with Coolmax

Textile freshness Experience the feeling of lasting freshness through the power of silver, keeping you odour-free all day long. The helmet liner contains a biocide agent (HeiQ

Fresh Tech) for an anti-bacterial, odour-inhibiting lining treatment. Active ingredi- ent: silver adsorbed to silicon dioxide (nano). Breath deflector and visor ventila- tion The breath deflector (7) de creases fogging of the visor due to exhaled air. Addition- ally, the air circulation in the visor area is improved. GB/IE19GB/IE Pinlock

The plastic lens in the Pinlock

visor absorbs moisture. The air pocket between the lens and visor reduce the difference between the temperature inside the helmet and the outdoor temperature. Integrated sun shield High-strength HCM outer shell High Density Copolymer Ma- trix: High quality ABS plastic is formed under extreme heat and pressure to make a robust and impact-resistant outer shell. Anti-scratch coated visor Separate winter com- fort collar Removable, washa- ble liner Toolless visor changes With an additional set of cheek pads for a cus- tom fit Suitable for eye- glass wearers Safety lock closure Date of manufacture (month/year): 10/2021 Use and Installation Instructions Sun Shield (Fig. C) The integrated sun shield (10) will enable you to quickly and easily react to changed light con- ditions with the aid of the patent mechanism. To pull out and retract the sun shield, press the safety latch to operate the slider (5). Note:

• Please take care that the edge of the sun shield does not block your field of vision.

• The sun shield may only be used when the visor is closed and may only be used during the day. Inner Lining (Fig. D) The inner lining (15) can be completely removed and cleaned separately (see care instructions). To remove the inner lining, firstly remove the helmet collar and the cheek pads. Then undo the back press-studs of the inner lining and pull the clips of the inner lining from the front side of the helmet. Snap-Fastener System (Fig. E) The snap-fastener enables an individual and quick vernier adjustment of the chin strap. Press the snap-fastener together until the helmet is sitting comfortably but firm. The movable buckle may be used to fasten or secure excess chin strap. Chin-Wind Deflector (Fig. F) The chin-wind deflector (12) can be removed or fixed as needed. To fix, slide the chin-wind deflector into the chin bar. Cheek Pads (Fig. G) You will receive two different pairs of cheek pads (14) for individual size adjustment. The thinner cheek-pads are already pre-mount- ed as standard. The thicker cheek pad is enclosed with the helmet separately. If the helmet is too loose and therefore is not sitting firmly on your head, you can replace the thin cheek pad with the thicker ones.20 The cheek pads are affixed via three press- studs respectively in the helmet. You can easily remove the pads. The thicker cheek pads can now also be affixed in the helmet with three press-studs. You need to be able to hear that each press-stud locks-in. Acoustic Damping (Fig. H) The acoustic damping (13) is for noise reduc- tion, in particular when driving at high speeds. Press the acoustic damping into the cavity of the cheek pads. The acoustic side pad equipped with Velcro faces towards the helmet shell. Front Vent (Fig. I) The front ventilation (6) can be opened and closed using a slide switch. Top Vent (Fig. J) The top ventilation (1) can be opened and closed using a slider. Winter Collar To reduce the wind inlet at the bottom of the hel- met during periods with very cold temperatures, the pre-installed standard collar (16) can be replaced with the supplied winter collar (17). Removing the standard collar (Fig. K) Pull the one-piece standard collar towards the inside of the helmet at the middle of one side. Inserting the Winter Collar (Fig. L) Insert the rod of the winter neck roll into the opening on one side of the helmet. Fix the neck roll almost completely. Insert the second rod into the opening in the helmet and push in the remainder of the neck roll. Visor Replacement A damaged or severely scratched visor (8) can be replaced with a replacement visor. Removal of the Visor

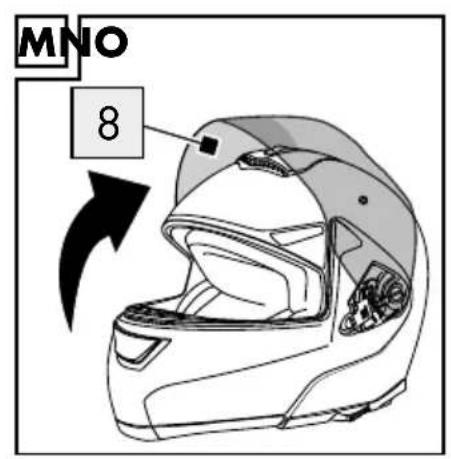

• Slide the visor into the highest position (fully opened) (Fig. M).

• Pull the visor-locking lever and remove the visor (Fig. N). Inserting the Visor

• Place the replacement visor on the hold-down device and observe the correct positioning in the process (fully opened) (Fig. M).

• Pull the visor-locking lever and place the visor appropriately (Fig. O).

• Allow the replacement visor to snap in and close the visor. Installing the Pinlock

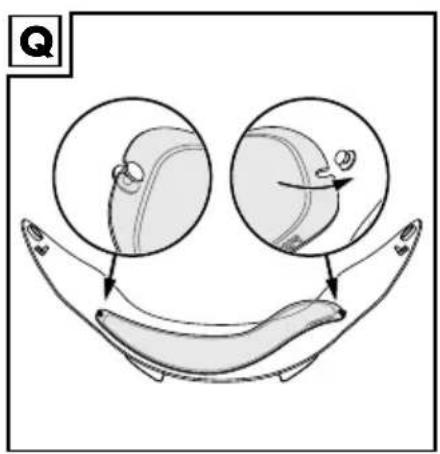

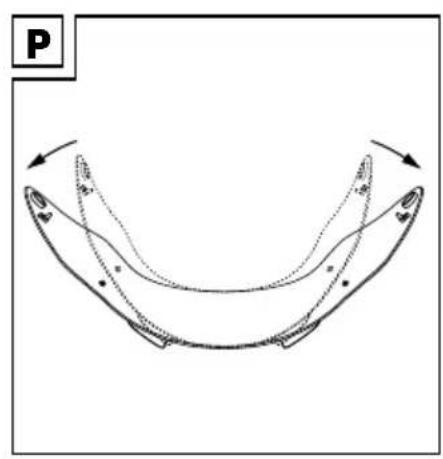

lens Remove the helmet visor. Bend the visor and place the Pinlock

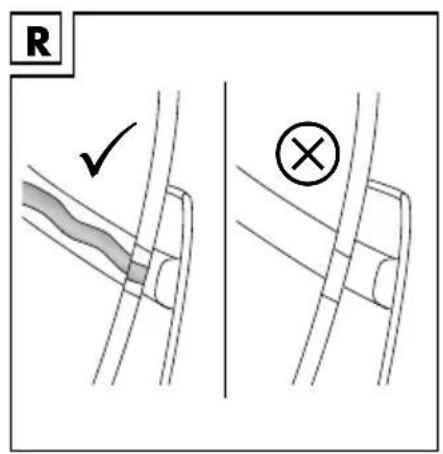

lens between the two pins on the helmet visor (Fig. P-Q). Allow the helmet visor to return to its original shape. The silicone seal on the Pinlock

lens must make full contact with the helmet visor to prevent condensation (Fig. R). Remove the protective film from the Pinlock

lens. Reattach the helmet visor to the helmet. Adjusting the Pinlock

lens tension Remove the Pinlock

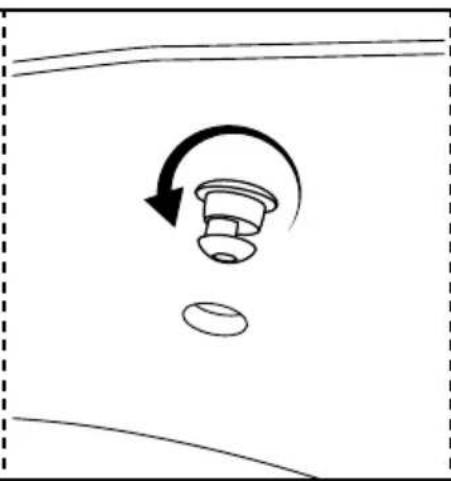

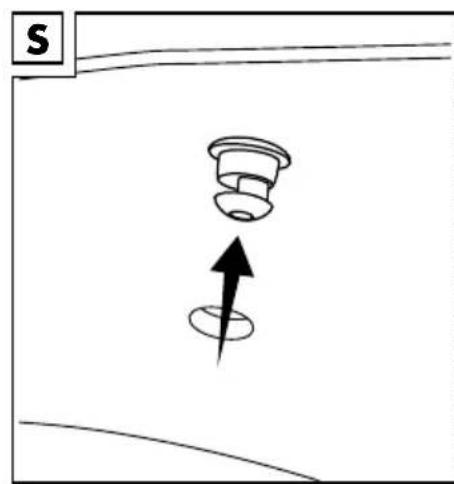

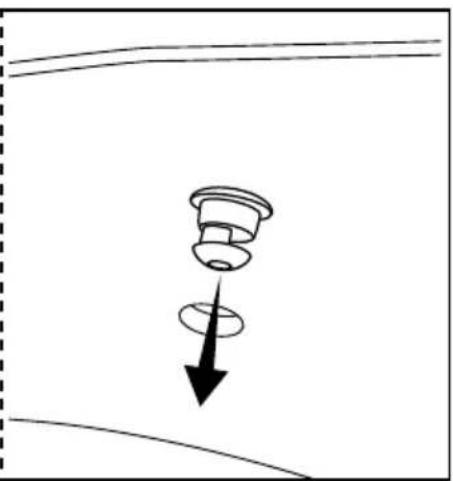

lens. To adjust the pins, push the pins outward, turn with your fingers and push back in (Fig. S). Selecting the Correct Helmet Size

• Measure the circumference of your head and select the helmet size based on this measure- ment. Try out several helmets before deciding. Ideally, the skin on your temples will move along when wearing the helmet.

• Ensure that even without the chin strap secured, the helmet does not move much on your head.

• The chin strap must be closed firmly for a secure fit. It is fitted correctly if it is difficult to slide your fingers under the chin strap. How- ever, you must still be able to comfortably breathe, swallow and turn your head.

• Verify the helmet was tested according to the latest ECE standard. GB/IE21GB/IE Size table Size Head circumference M 57 – 58 cm L 59 – 60cm XL 61cm Maintenance and Care Regular maintenance and care contributes to safety and maintaining the helmet. Cleaning of the Helmet

• Never use solvents, petrol or other detergents when cleaning the shell and interior of your helmet.

• Always use pH-neutral detergent dissolved in clean water. Careful rub with a soft cloth. Then wipe dry with a lint-free cloth. Visor care and cleaning

• After using the helmet, lightly wipe off any grime (e.g. dead insects, dirt, sand, dust etc.) from the visor with a soft cloth and then fully wipe it clean using a dry soft cloth.

• When the visor gets wet (e.g. rainwater) it should always be wiped with a soft cloth.

• When cleaning the visor, never use any petro- leum-based solvents or detergents containing abrasives.

lens and clean with a soft, damp cloth and mild detergent. Let the Pinlock

lens air dry. Do not use harsh detergents or fluids containing ammonia or alcohol. Cleaning of the Cheek Pads, Acous- tic Pads and Inside Pads

• Hand wash below 30 °C.

• Allow to dry at room temperature.

• Avoid sources of heat.

• When not in use, store in a dry, well ventilat- ed place. Storage When not in use, store the helmet in a dry and well ventilated place at room temperature. Avoid sources of heat. Do not needlessly expose the item to heat, e.g. in the car in hot outside temperatures. Disposal Dispose of the article and the packaging materi- als in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the pack- aging materials out of the reach of children. Dispose of the products and the packag- ing in an environmentally friendly manner. The recycling code is used to identify various materials for recycling. The code consists of the recycling symbol – which is meant to reflect the recycling cycle – and a number which identifies the material. Notes on the guarantee and service handling The product was produced with great care and under continuous quality control. DELTA-SPORT HANDELSKONTOR GmbH gives private end customers a three-year guarantee on this product from the date of purchase (guarantee period) in accordance with the following provisions. The guarantee is only valid for material and manufacturing defects. The guarantee does not cover parts subject to normal wear and tear that are thus considered wear parts (e.g. batteries) or fragile parts such as switches, rechargeable batteries, or parts made of glass.22 GB/IE Claims under this guarantee are excluded if the product has been used incorrectly, improperly, or contrary to the intended purpose, or if the provisions in the instructions for use were not observed, unless the end customer proves that a material or manufacturing defect exists that was not caused by one of the aforementioned circumstances. Claims under the guarantee can only be made within the guarantee period by presenting the original sales receipt. Please therefore keep the original sales receipt. The guarantee period is not extended by any repairs carried out under the guarantee, under statutory guarantees, or as a gesture of goodwill. This also applies to replaced and repaired parts. If you wish to make a claim please first contact the service hotline mentioned below or contact us by e-mail. If there is a guarantee case, then the product will be repaired or replaced free of charge to you or the purchase price will be refunded, depending on our choice. Your legal rights, in particular guarantee claims against the respective seller, are not limited by this guarantee. 1 Year Warranty on Pinlock

visor lens The Pinlock

visor lens is covered by a one year manufacturer durability warranty subject to the following terms: LIMITED LIABILITY Pinlock

guarantees the original owner the visor insert to be free from defects in material and manufacture for a period of one (1) year from the date originally purchased. Pinlock

will at its discretion repair, replace or refund the purchase price of a defective visor insert. The Pinlock

warranty does not apply to damages due to misuse, negligences, modifications, normal wear, incorrect installation or cleaning, or accidents (also including races, stunts or similar activities). The Pinlock

warranty does not apply to the Pinlock

ready helmet visor or the location of the holes in the helmet made for the Pinlock

helmet visor. This warranty and legal means are exclusive and replace all other warranties and legal means, verbal or written, express or implied. Pinlock

resellers, retailers, agents or employ- ees are not authorised to modify or extend this warranty or legal means. To exercise a warranty claim, the original owner must present the visor insert and purchase invoice or dated receipt to an authorised Pinlock

excludes any implied warranty, which also includes the guarantee of marketability and suitability for a specific purpose. In the event Pinlock

is unable to legitimately exclude implied warranty under applicable law, these shall be excluded as permitted by law. All claims for implied warranty are void upon expi- ration of the above warranty period. Pinlock
