USER MANUAL City Mini GT2 Double BABY JOGGER

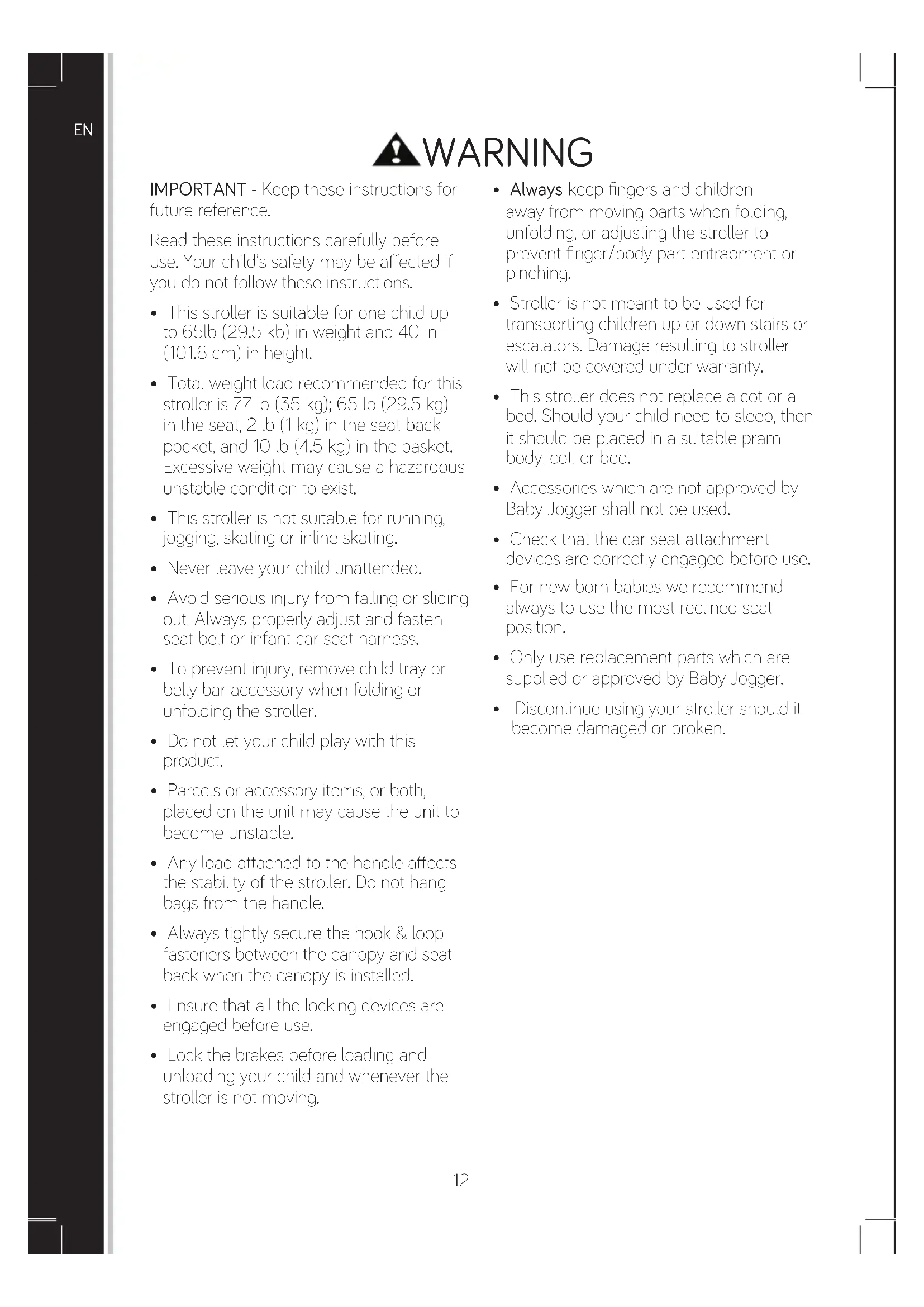

WARNING IMPORTANT - Keep these instructions for future reference. Read these instructions carefully before use. Your child’s safety may be aected if you do not follow these instructions.

• This stroller is suitable for one child up to 65lb (29.5 kb) in weight and 40 in (101.6 cm) in height.

• Total weight load recommended for this stroller is 77 lb (35 kg); 65 lb (29.5 kg) in the seat, 2 lb (1 kg) in the seat back pocket, and 10 lb (4.5 kg) in the basket. Excessive weight may cause a hazardous unstable condition to exist.

• This stroller is not suitable for running, jogging, skating or inline skating.

• Never leave your child unattended.

• Avoid serious injury from falling or sliding out. Always properly adjust and fasten seat belt or infant car seat harness.

• To prevent injury, remove child tray or belly bar accessory when folding or unfolding the stroller.

• Do not let your child play with this product.

• Parcels or accessory items, or both, placed on the unit may cause the unit to become unstable.

• Any load attached to the handle aects the stability of the stroller. Do not hang bags from the handle.

• Always tightly secure the hook & loop fasteners between the canopy and seat back when the canopy is installed.

• Ensure that all the locking devices are engaged before use.

• Lock the brakes before loading and unloading your child and whenever the stroller is not moving.

• Always keep fingers and children away from moving parts when folding, unfolding, or adjusting the stroller to prevent finger/body part entrapment or pinching.

• Stroller is not meant to be used for transporting children up or down stairs or escalators. Damage resulting to stroller will not be covered under warranty.

• This stroller does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot, or bed.

• Accessories which are not approved by Baby Jogger shall not be used.

• Check that the car seat attachment devices are correctly engaged before use.

• For new born babies we recommend always to use the most reclined seat position.

• Only use replacement parts which are supplied or approved by Baby Jogger.

• Discontinue using your stroller should it become damaged or broken. EN13 FRAME 1 Unpack the stroller frame from the box and set the wheels aside. Unlock the stroller by pulling the storage lock lever. 2 Unfold the stroller by pulling the handlebar away from the frame. The stroller will lock into place and you will hear a click. 3 Place the stroller in the upright position.

WARNING: Ensure that all the locking

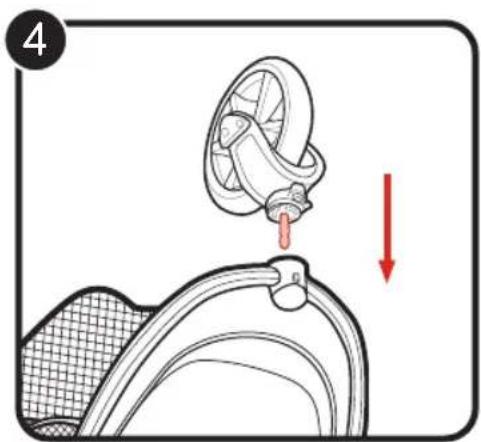

devices are engaged before use. FRONT WHEELS 4 Installation

• Lay stroller on its back so the handlebar is resting on the floor.

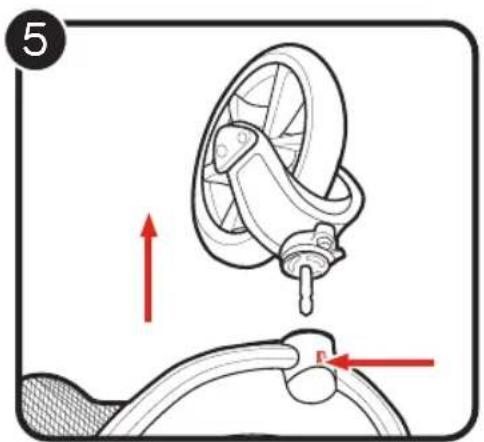

• Attach the front wheel by sliding it into the front wheel mount until it clicks. Gently pull on the front wheel to make sure it is properly attached. 5 Removal

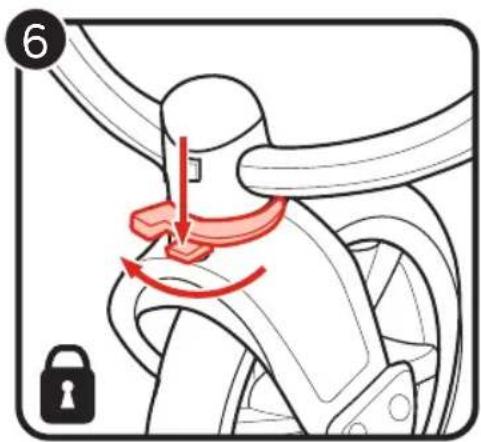

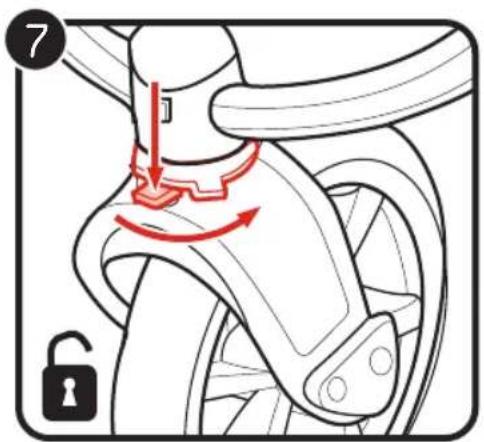

• While pressing the front wheel release button, gently slide the front wheel out of the front wheel mount. SWIVEL FEATURE 6 Push the swivel button down and rotate to the left to lock the front wheel assembly in a fixed position for long distance strolling. 7 Push the swivel button down and rotate to the right to allow the front wheel assembly to swivel.

WARNING: When loading and

unloading child, lock the front wheel in a fixed position. Although the front wheel of your stroller locks, it is not intended for jogging or exercise purposes. REAR WHEELS 8 Installation

• Align the rear wheel axle with the wheel mount on the stroller frame and insert it into the wheel mount until it locks into place. You will hear a click.

• Gently pull on the rear wheel to make sure it is properly attached. 9 Removal

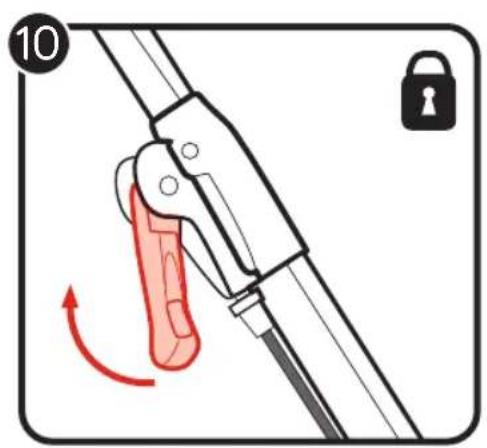

• While pressing down on the wheel release button, gently slide the rear wheel out of the wheel mount. BRAKE 10 To lock the brakes: gently pull the brake lever into upright position until it clicks into place. 11 To Release the brakes: Pinch the gray tabs and pull the lever towards you. Push the brake lever down until it is parallel with the frame.

WARNING: Lock the brakes before

loading and unloading your child and whenever the stroller is not moving. CANOPY 12 Attach the canopy to the frame by sliding the canopy onto the mounting bracket. To remove, slide canopy o of mounts. NOTE: When using a Baby Jogger, Graco or Britax car seat, the canopy can be attached. For all other car seats, canopy must be removed. 13 Snap the two snaps to the stroller frame. 14 Zip the back of the seat to the canopy top. Attach the 2 fastening strips on the side of the canopy. 15 Pull forward to open canopy and push backwards to close canopy. 16 To use the canopy window, roll the shade up towards the top and secure with the elastic and button. HANDLE 17 To change the handle to one of 6 use positions, press the handle release buttons on both sides and rotate up or down to the new position.

ADJUSTING SAFETY HARNESS

18 From the back of the seat, unfasten and open the pocket to locate the plastic square stopper. Turn stopper and pass through the openings in the PE board and seat fabric. EN14 19 Reinsert stopper at seat opening closest to child’s shoulders. Pass back through seat fabric and PE board. Tug on strap to ensure stopper is locked. Repeat on both sides.

WARNING: Avoid serious injury from

falling or sliding out. Always properly adjust and fasten safety harness.

WARNING: Always use the crotch

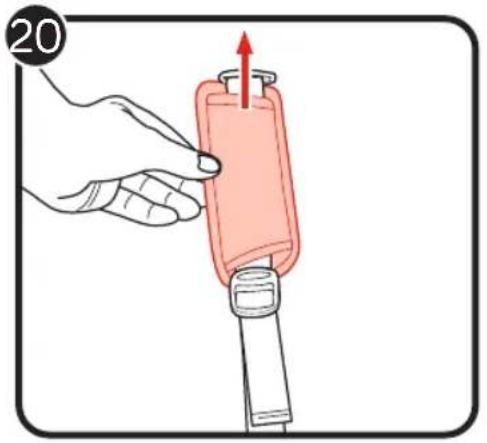

strap in combination with the shoulder straps and waist belt. 20 Slide the harness pads up to access plastic guide on strap. 21 Hold the plastic guide and pull strap to tighten or loosen.

USING SAFETY HARNESS

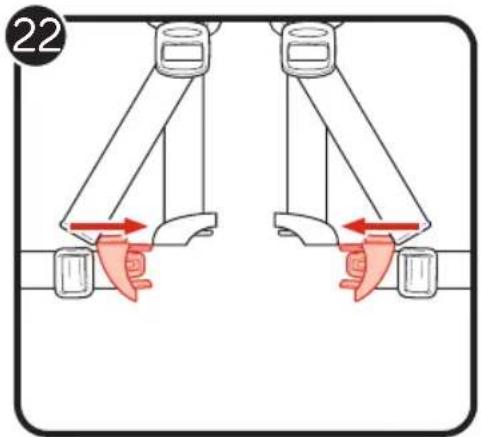

22 Insert side strap buckle into harness buckle on both sides. 23 Insert connected harness and side strap buckles into the sides of the crotch buckle. 24 Press button on crotch buckle to release.

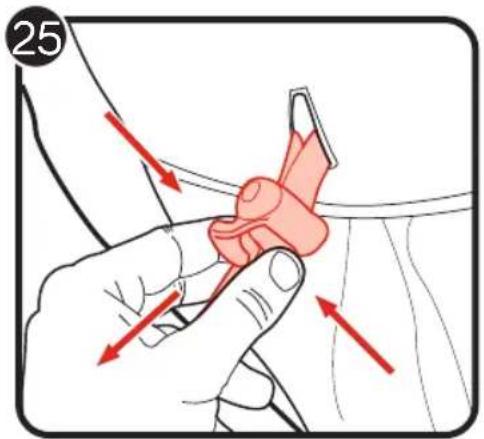

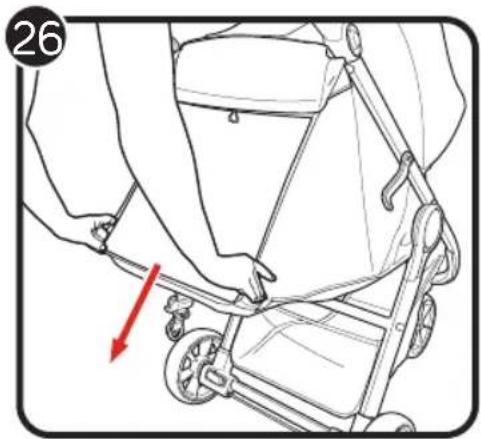

25 Pinch the clamp behind the seat, and slide it down to desired recline. 26 Pull seat down on both sides to match the clamp position. Reverse steps to return to the upright position.

WARNING: When making adjustments

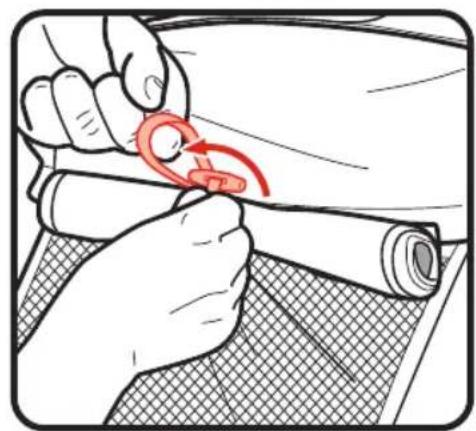

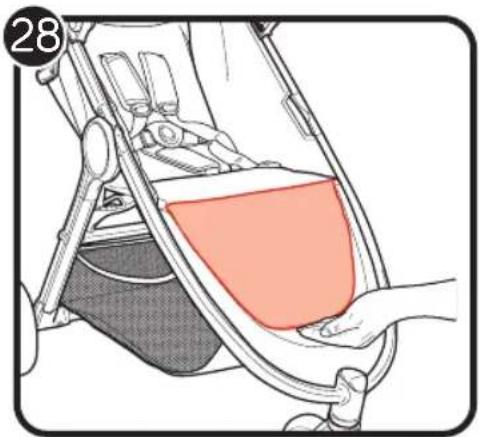

to the stoller seat, make sure child’s head, arms, and legs are clear of moving seat parts and stroller frame. 27 For extra ventilation, roll up the seat back flap and secure with elastic and button. LEG SUPPORT 28 To use the leg support, lift the front of the seat pad. 29 Rotate the support arm out and lower the seat pad. Lock the support arm. 30 To lower leg support, reverse the steps. FOLDING

• Remove your child from the seat.

• Disengage front wheel swivel locks.

• Remove all attachments and all items from basket.

WARNING: To prevent injury, remove

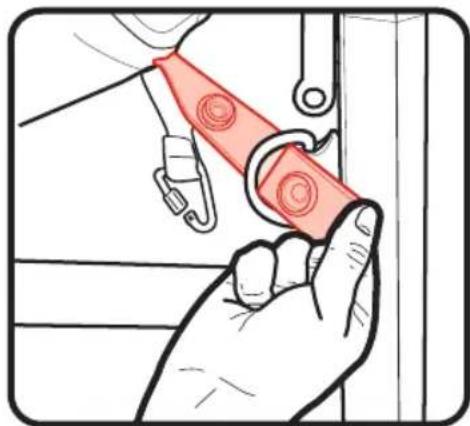

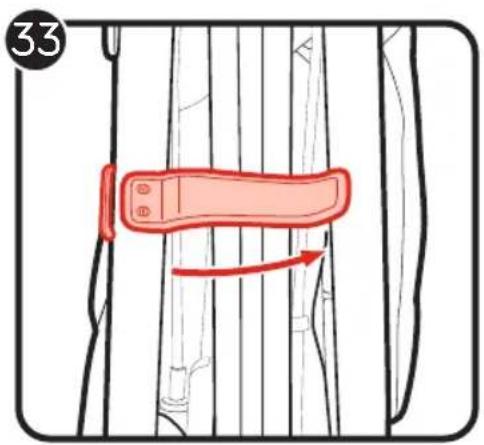

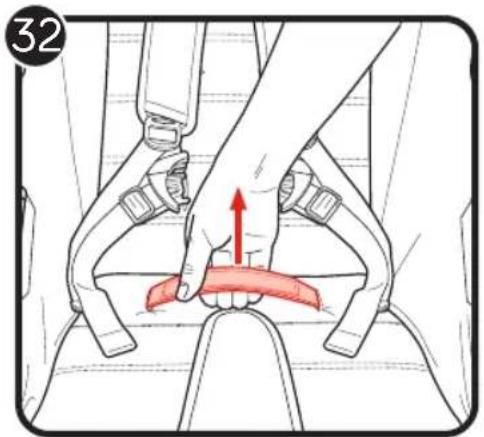

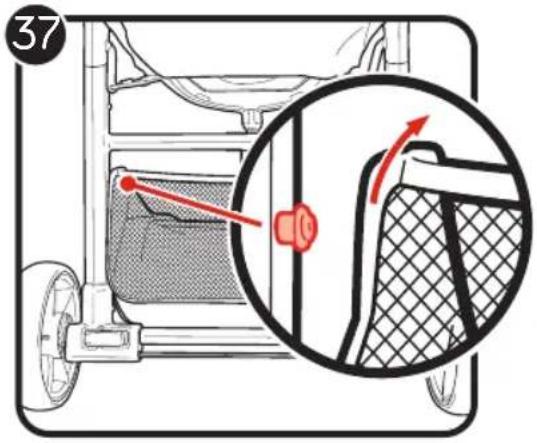

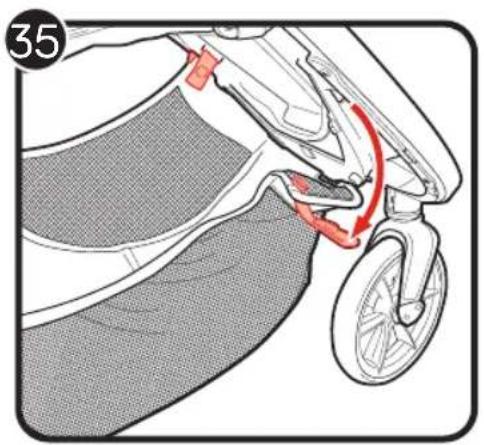

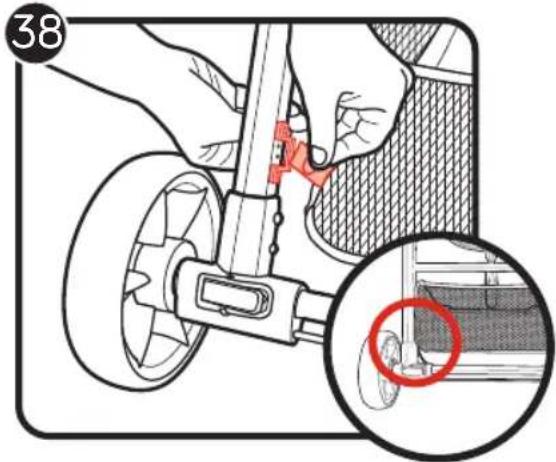

child tray or belly bar accessory when folding or unfolding the stroller. 31 Press buttons on both sides of frame. Rotate handle up. 32 Pull up on the “Pull to Fold” folding handle and let the frame colapse. 33 Make sure the auto-lock lever clicks into place. 34 Place stroller upright in standing position. BASKET REMOVAL 35 From the front of the stroller, unsnap the 2 snaps and pull the straps out of the foot well. 36 Lift basket o the hook. 37 From the back, lift the top of the basket o the tab on both sides of the frame. 38 Unsnap the strap from the D ring on both sides of the frame.

REMOVING THE SEAT FABRIC

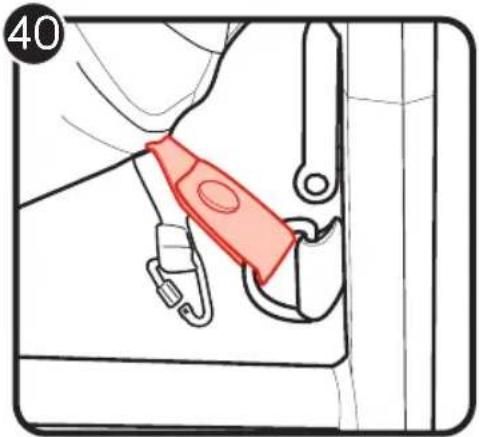

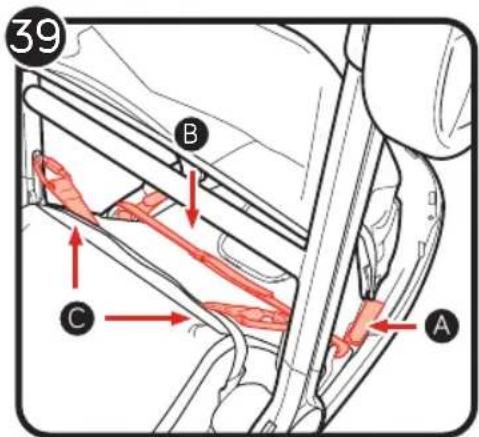

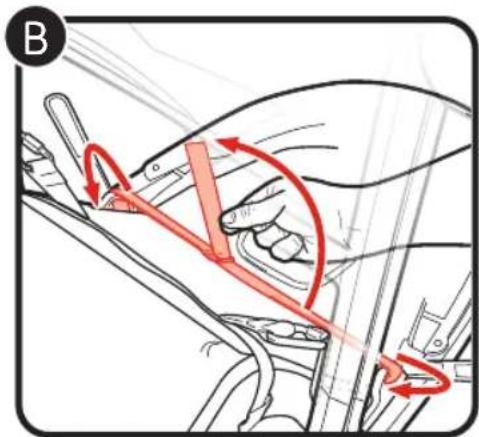

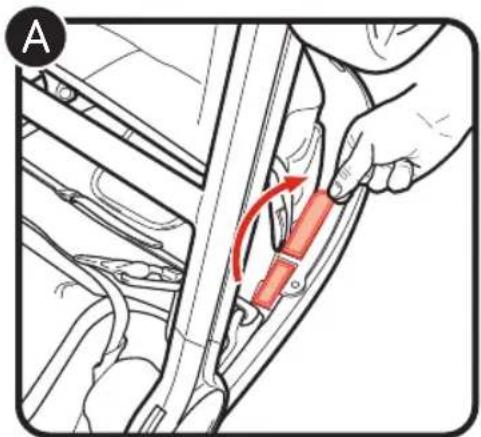

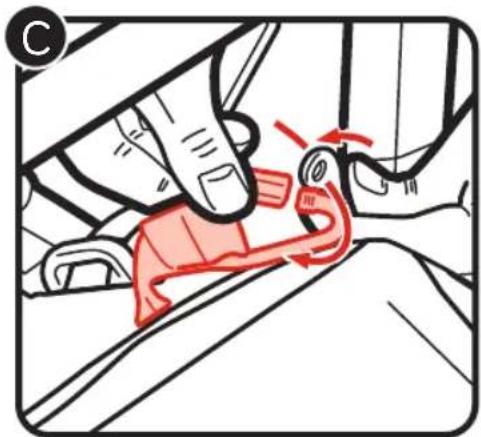

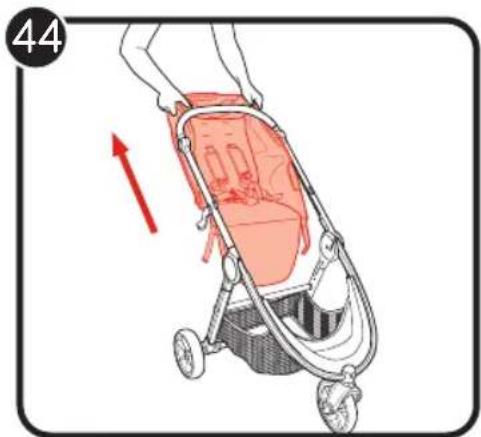

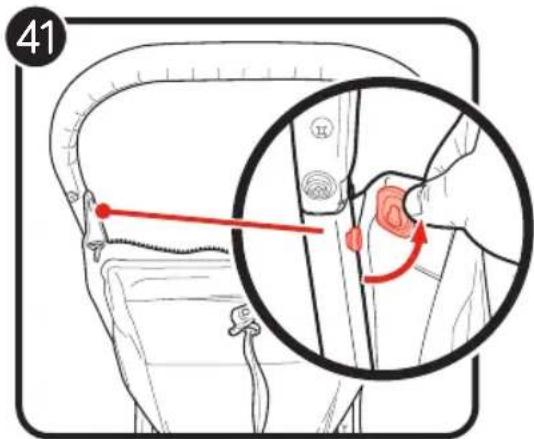

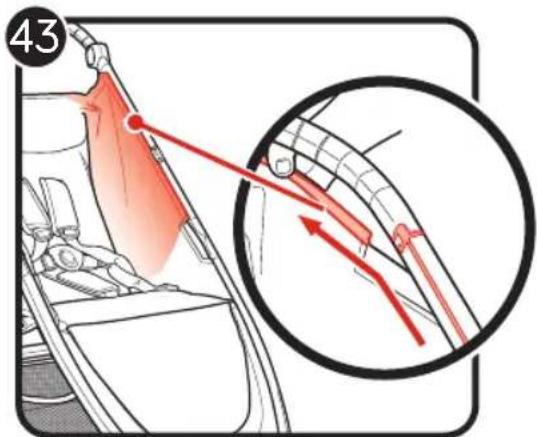

39 Flip the stroller over to expose the seat bottom. A Unfasten the 2 fastening strips and pull them out of the stroller frame. B Unfasten the fastening strip and pull them out of the sides of the stroller frame. C Unscrew both carabiner hooks and remove them from the stroller frame. 40 From beneath the stroller, unsnap tether strap on the side. 41 Flip the seat back over on its wheels. Unsnap both upper snaps from the stroller frame. 42 Starting from the bottom, slide the seat pad out from the stroller frame on both sides. 43 From the top, slide the seat pad out of the frame on both sides. 44 Remove seat fabric. Reverse the steps to reattach the seat pad to the frame. EN15

To preserve the longevity of your stroller, it is important to perform simple, regular maintenance. From time to time, make sure that the joints and folding areas are still in good condition. If you hear any squeaking or feel tension, you can take your stroller to an authorized dealer for added lubrication. All repairs should only be carried out by an authorized dealer. DO NOT use alcohol based disinfectants to clean this product. CLEANING Fabric

• Refer to your care tag on the seat pad for washing instructions

• Wipe clean using a damp cloth.

• Hand wash in cold water with mild soap.

• Machine wash separate in cold water, delicate cycle.

• Fabric should be attached to frame to dry.

• Be sure to remove the metal frame and PE boads from the seat before washing.

• DO NOT use solvents, caustic or abrasive cleaning materials. Plastic/Metal Parts

• Wipe clean using a mild soap and warm water.

• The wheels will need to be dried completely with a soft towel or cloth.

• DO NOT remove, dismantle or alter any part of the seat folding mechanism or brakes. Leatherette Care

• Wipe clean using a mild soap and warm water. STORING

• Sunshine can fade seat fabric and dry out tires, so storing your stroller indoors will prolong its good looks.

• DO NOT store outside.

• Ensure that the stroller is dry before storing for prolonged periods.

• Always store the stroller in a dry environment.

• Store the stroller in a safe place when not in use (i.e. where children cannot play with it).

• DO NOT place heavy objects on top of the stroller.

• DO NOT store the stroller near a direct heat source such as a radiator or fire.

CARE AND MAINTENANCE16

Baby Jogger warrants that the frame is free of manufacturer defects for the lifetime of the product. Manufacturer’s defects include but are not limited to the breaking of welds and frame tube damage. Textile or soft side materials and all other components shall be warranted for one year from the date of purchase (except for tubes and tires). Proof of purchase is required to make a warranty claim and the warranty is only extended to the original purchaser. THIS WARRANTY DOES NOT COVER:

• Normal wear and tear

• Incorrect assembly, or the installation of third party parts or accessories not compatible with the original design

• Accidental or intentional damage, abuse or neglect, or use on stairs or escalators.

• Improper storage/care of the unit This warranty specifically excludes claims for indirect, incidental, or consequential damages. The implied warranties of merchantibility and fitness for a particular purpose is according to the specific warranty period for this model unit at time of purchase. Some states do not allow the exclusion or limitation of incidental or consquential damages, so the above limitations or exclustions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are in your state, consult your local or state consumer aairs oce or your State’s Attorney General. If your stroller was purchased outside of the United States, please contact the distributor in the country nearest you. Their contact information can be found on our website at http://www.babyjogger.com. Claims for warranty outside of the country in which the product was purchased may incure shipping charges. NOTE: When contacting Baby Jogger distributor regarding your stroller, please have your stroller’s serial number ready. It can be found on the crossbar above the basket. Baby Jogger’s Limited Lifetime Warranty:
