| Product Type | Receiver |
| Brand | Esoteric |
| Model | Grandioso M1 |
| Dimensions (W × H × D) | 491 × 221.5 × 535 mm |
| Weight | 62 kg |
| Rated power (8 Ω) | 300 W |
| Rated power (4 Ω) | 600 W |
| Continuous average power (2 Ω) | 1200 W |
| Frequency response | 5 Hz - 100 kHz (+0 dB, -3 dB, 6 Ω) |
| Signal-to-noise ratio | 122 dB (IHF-A) |
| Total harmonic distortion | 0.006% (1 kHz, 8 Ω, 300 W) |
| Damping factor | 1000 |
| Gain | 28 dB |
| Input impedance (RCA) | 1 MΩ |
| Input impedance (XLR) | 1 MΩ |
| Input connectors | RCA ×1 pair, XLR ×1 pair |
| Power supply | AC 230 V (Europe), 120 V (USA/Canada), 220 V (Korea) |
| Power consumption | 530 W (Europe), 520 W (USA) |
| Operating temperature | +10°C to +35°C |
| Minimum speaker impedance | 4 Ω |
| Number of channels | 2 |
| Included accessories | Power cord, felt pads, support plate, screws, manual, warranty card |
| Protection functions | Short circuit, overheating, DC current |
| Cleaning and maintenance | Dry, soft cloth; avoid chemical products |
Frequently Asked Questions - Grandioso M1 Esoteric
User questions about Grandioso M1 Esoteric
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Receiver in PDF format for free! Find your manual Grandioso M1 - Esoteric and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Grandioso M1 by Esoteric.
USER MANUAL Grandioso M1 Esoteric
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION
●DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE INSIDE.
- IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT THE STORE WHERE YOU PURCHASED THE UNIT FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.
- USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
IN USA/CANADA, USE ONLY ON 120 V SUPPLY.
Model for USA
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the equipment and/or the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION
Changes or modifications to this equipment not expressly approved by TEAC CORPORATION for compliance will void the user's warranty.
Model for Canada
Industry Canada's Compliance Statement:
This Class B digital apparatus complies with Canadian ICES-003.
- The information in the following table is only applicable to products for sale in the People's Republic of China.
● The products sold in the European area are manufactured in accordance with the European RoHS Directive.
产品有毒有害物质或元素的名称及含量
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
●The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position.
- The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
- Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.
CAUTION
- Do not expose this apparatus to drips or splashes.
- Do not place any objects filled with liquids, such as vases, on the apparatus.
- Do not install this apparatus in a confined space such as a book case or similar unit.
●The apparatus should be located close enough to the AC outlet so that you can easily reach the power cord plug at any time. - If the product uses batteries (including a battery pack or installed batteries), they should not be exposed to sunshine, fire or excessive heat.
- CAUTION for products that use replaceable lithium batteries: there is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equivalent type.
WARNING
Products with Class J construction are equipped with a power supply cord that has a grounding plug. The cord of such a product must be plugged into an AC outlet that has a protective grounding connection.
ESOTERIC is a trademark of TEAC CORPORATION, registered in the U.S. and other countries.
MEXCEL is a registered trademark of Mitsubishi Cable Industries, Ltd. in Japan and other countries.
Other company names, product names and logos in this document are the trademarks or registered trademarks of their respective owners.
For European Customers
Disposal of electrical and electronic equipment
(a) All electrical and electronic equipment should be disposed of separately from the municipal waste stream via collection facilities designated by the government or local authorities.
(b) By disposing of electrical and electronic equipment correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment.
(c) Improper disposal of waste electrical and electronic equipment can have serious effects on the environment and human health because of the presence of hazardous substances in the equipment.
(d) The Waste Electrical and Electronic Equipment (WEEE) symbol, which shows a wheeled bin that has been crossed out, indicates that electrical and electronic equipment must be collected and disposed of separately from household waste.
(e) Return and collection systems are available to end users. For more detailed information about the disposal of old electrical and electronic equipment, please contact your city office, waste disposal service or the shop where you purchased the equipment.
Disposal of batteries and/or accumulators
(a) Waste batteries and/or accumulators should be disposed of separately from the municipal waste stream via collection facilities designated by the government or local authorities.
(b) By disposing of waste batteries and/or accumulators correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment.
(c) Improper disposal of waste batteries and/or accumulators can have serious effects on the environment and human health because of the presence of hazardous substances in them.
(d) The WEEE symbol, which shows a wheeled bin that has been crossed out, indicates that batteries and/or accumulators must be collected and disposed of separately from household waste.
If a battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) as defined in the Battery Directive (2006/66/EC), then the chemical symbols for those elements will be indicated beneath the WEEE symbol.
(e) Return and collection systems are available to end users. For more detailed information about the disposal of waste batteries and/or accumulators, please contact your city office, waste disposal service or the shop where you purchased them.
DECLARATION OF CONFORMITY
We, TEAC AUDIO EUROPE, Liegnitzer Straße 6, 82194 Gröbenzell, Germany declare in own responsibility, the TEAC product described in this manual is in compliance with the corresponding technical standards.
Contents
Thank you for purchasing this Esoteric product.
Read this manual carefully to get the best performance from this unit.
IMPORTANT SAFETY INSTRUCTIONS ....3
Before use....6
What's in the box....6
Precautions for use....7
About the power cord support bracket....7
Note about pinpoint feet....7
Connecting speakers ....8
Connections....9
Names and functions of parts.... 10
Basic operation....12
Notes about the protection circuits....13
Maintenance....13
Troubleshooting....14
Specifications....15

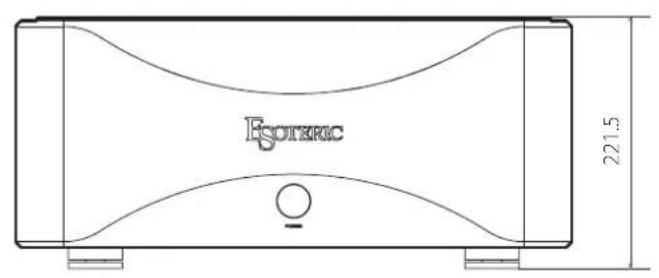

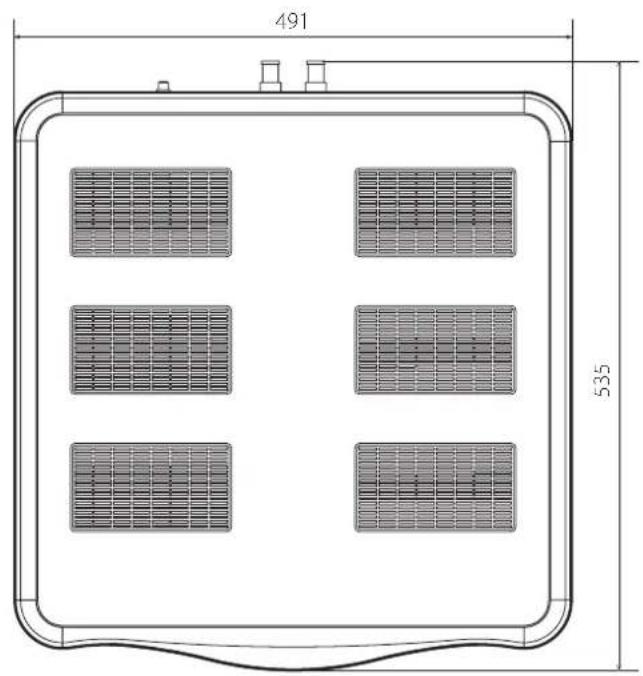

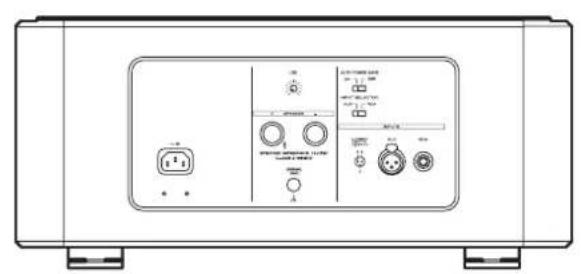

Dimensional drawings....16
Before use
What's in the box
Check to be sure the box includes all the supplied accessories shown below. Please contact the store where you purchased this unit if any of the accessories are missing or have been damaged.
Power cord × 1 Felt pads × 4
Power cord support bracket × 1
Screws for power cord support bracket × 2
Owner's manual (this document) × 1
Warranty card × 1
●After reading this manual, keep it in a safe place with the warranty card for future reference.
Precautions for use
● This unit is very heavy, so take care to avoid injury during installation.
- Do not install this unit in a location that could become hot. This includes places that are exposed to direct sunlight or near a radiator, heater, stove or other heating equipment. Moreover, do not place it on top of another amplifier or equipment that generates heat.
- Avoid locations that are subject to vibrations or exposed to excessive dust, cold or moisture.
- This unit generates more heat than ordinary power amplifiers. When installing it, install it by itself at least 20 cm (8") from walls and other equipment.
If you put it in a rack, take precautions to prevent overheating by using a rack with ventilation openings, for example, and leaving at least 20 cm (8") open above the top of the unit and at least 10 cm (4") open behind the unit.
- Do not install it face up or on its side.
- Place the unit in a stable location near the audio system that you will use with it.
- DO NOT place anything, not even CDs, CD-Rs, LP records or cassette tapes, on top of the unit. Doing so could cause damage.
- Do not put cloth on top of the unit or place the unit on top of bedding or thick carpet. Doing so could cause the unit to overheat or damage it.
- Supply voltage to the unit that matches the voltage indicated on the rear panel. If you are in any doubt regarding this matter, consult an electrician.
- Do not move the unit during use.
- Do not open the body of the unit as doing so might result in damage to the circuitry or cause electric shock. If a foreign object should get into the unit, contact your dealer.
- When removing the power plug from an outlet, always pull directly on the plug. Never pull on the cord itself.
- If a TV is turned on while the unit is on, static might appear on the TV screen depending on the characteristics of the TV broadcast signal. This is not a malfunction of the unit nor of the TV. If this occurs, turn the unit off.
About the power cord support bracket
This unit includes a bracket to support heavy power cords, such as the ESOTERIC 7N-PC9500 MEXCEL and 7N-PC7500 and 7N-PC5500 power cords.
Align it with the power cord being used and attach it, tightening the screws securely.


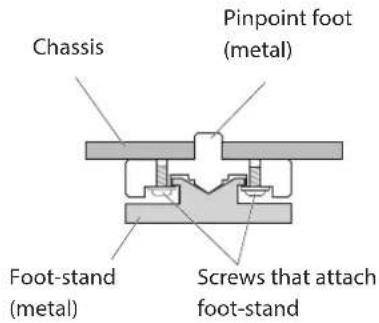

Power inlet Power cord Screw BracketNote about pinpoint feet
High-precision metal pinpoint feet are attached firmly to the bottom plate of this unit.
The stands for these feet are loose, but when the unit is placed in position, it is supported by these pinpoint feet, which will effectively disperse vibrations.
Notes about speaker cables
- Use commercially-available speaker cables to connect the speakers.
- Use the shortest speaker cables possible. The longer the cable, the greater the resistance value and the more that damping performance is reduced. Moreover, length also increases impedance and capacitance, degrading the sound quality of high frequencies.
●Use left and right speaker cables that have the same length.
How to connect speaker cables
Use commercially-available speaker cables to connect the + terminal of the unit to the + terminal of the speaker and the - terminal of the unit to the - terminal of the speaker.
●Use speakers with at least 4 Ω impedance.
- If the exposed tip of the core wire of a speaker cable contacts another cord or terminal, a short could occur.
Never allow a speaker cable to short.
- Do not connect more than one amplifier to a speaker.
- Do not bundle connecting cables with power cords. Doing so could cause noise.
The power plug should always be disconnected when connecting speaker cables.
When using banana plugs
Insert the plug into the opening on the front of the terminal.
- Keep the cap tightened when in use.
- Carefully read the instructions for the banana plugs that you are using.
Notice about the European model
In accordance with European safety regulations, connecting banana plugs to speaker terminals is not allowed on European models. The holes into which banana plugs could be inserted have been covered with black caps. Connect speakers using bare wires or spade lugs. If a black cap should become separated from its terminal, return it to its original position.

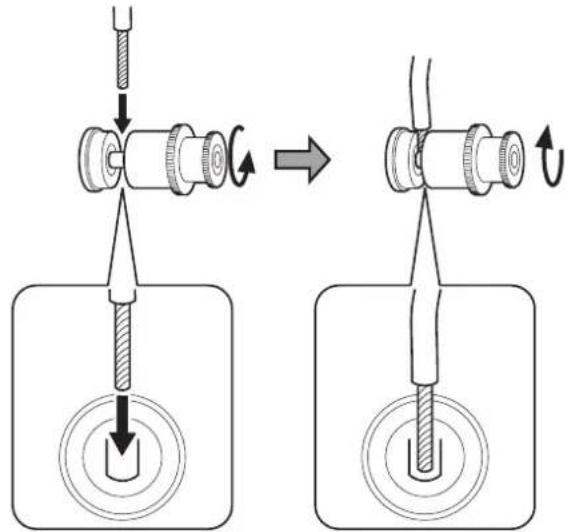

When using bare wires
Loosen the cap, insert the core wire from above and tighten the cap.
●The insertion hole faces up.
- The maximum wire diameter that can be inserted is 4 mm (1/8").
When using spade lugs
Loosen the cap, place the lug around the terminal from above or below and tighten the cap.
Complete all other connections before connecting power plugs to power outlets.
Always turn the power off before disconnecting anything.
Read the owner's manuals of all devices that will be connected, and follow their instructions.

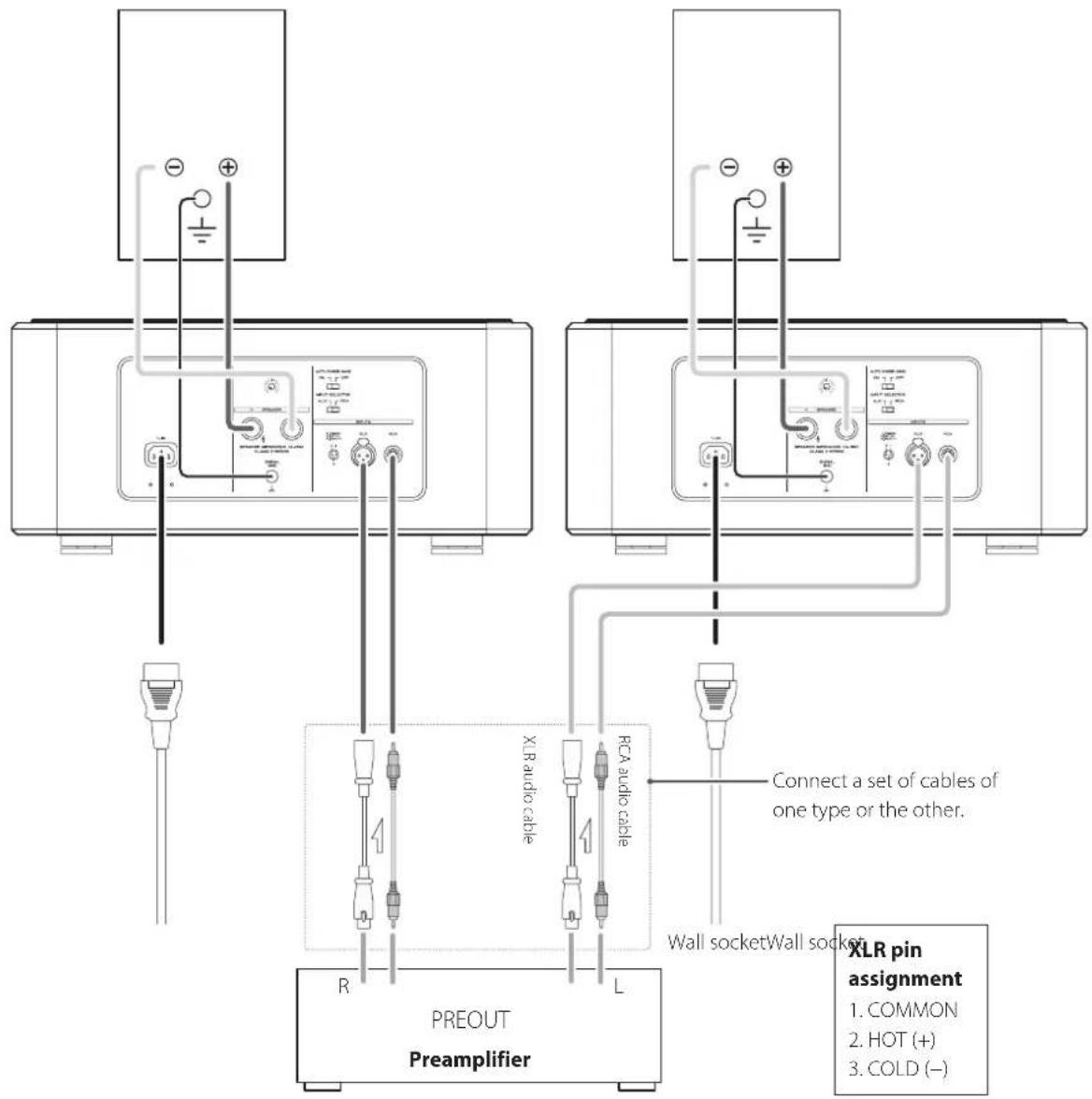

Precautions when connecting speaker cables
Connect the cables securely so that they do not become loose and the core wires or terminals at their ends do not become exposed and contact other metal parts or the unit.
Speaker (right) Speaker (left)


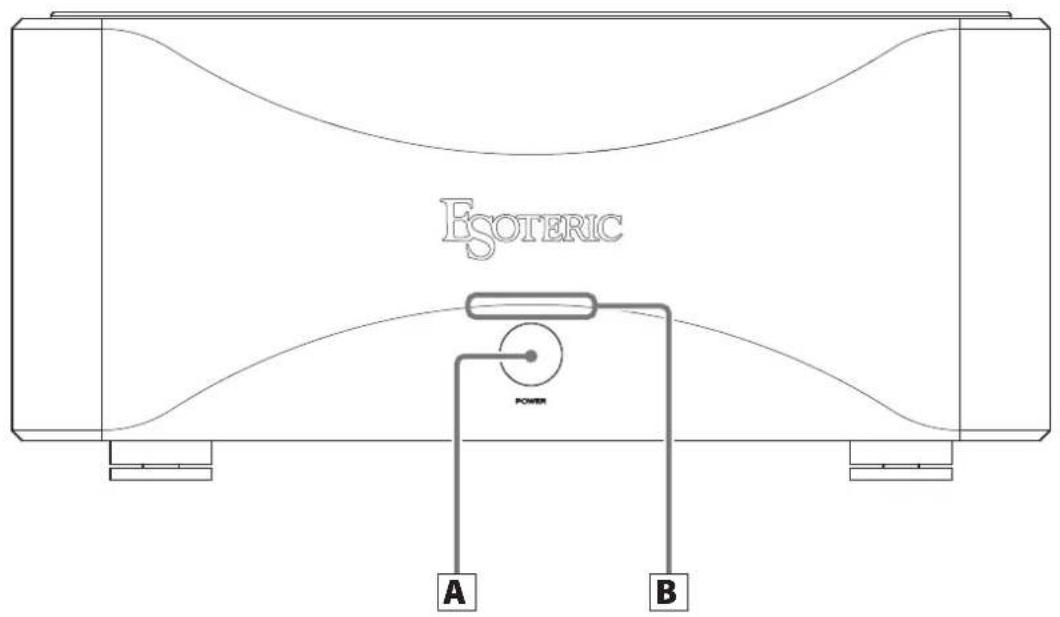

Press to turn the unit on or off.
After turning the unit on, the power indicator will blink blue and no sound will be output for a few seconds. Wait until the indicator stops blinking and stays lit.
- When the protection circuit is active, the power indicator blinks blue or alternately blue and purple and no sound is output (page 13).
- Since this unit has a large power transformer condenser, the power transformer might make noise for a short time after the unit is turned on. This is normal behavior, not a malfunction.
- After turning the unit off, wait at least two seconds before turning it on again.
B Power indicator
This lights blue when the unit is on.
A LED brightness adjustment knob
Turn to adjust the brightness of the power indicator.
B AUTO POWER SAVE switch
Use to turn the automatic power saving function on and off. When set to ON, the unit will automatically turn off if no sound is input for 30 minutes or longer.
C INPUT SELECTOR switch
Use to switch between RCA and XLR inputs.
Do not change this when the unit is on.
Doing so could cause a loud noise that might harm your hearing or damage the unit or the connected speaker.
D Power inlet [\~ IN]
Connect the included power cord to this socket. After completing all other connections, plug the power plug into a power outlet.
Use only a genuine Esoteric power cord. Use of other power cords could result in fire or electric shock.
E Holes for power cord support bracket screws
Use to attach the power cord support bracket (page 7).
F Grounding connector [SIGNAL GND]
Using commercially-available sheathed wire (for example, PVC-insulated) to create grounded connections with the speakers, the preamplifier or other equipment might improve the sound quality.
●This is NOT an electrical safety ground.
G XLR input jack
Use a balanced XLR cable to connect the output jack of the pre-amplifier to this jack.
To use this input, set the INPUT SELECTOR switch on the rear of the unit to XLR.
- Insert the balanced XLR plug until the lever locks. Press this lever when disconnecting.
●The XLR input jack is 2 "HOT". Use a compatible cable. - Insert the plug completely. Do not bundle power cords and speaker cables together. Doing, so could degrade the sound quality or cause noise.
H RCA input jack
Use an RCA cable to connect the output jack of the preamplifier to this jack.
To use this input, set the INPUT SELECTOR switch on the rear of the unit to RCA.
- Insert the plug completely.
- Do not bundle these cables together with power cords or speaker cables. Doing, so could degrade the sound quality or cause noise.
At Esoteric, we use Esoteric MEXCEL stressfree cables for reference.
For detailed information, access the following website.
http://www.esoteric.jp/products/esoteric/accessory/indexe.html
In order to protect the speakers, follow the steps below in order when turning on and off the system to which this unit is connected.
Turning the power on
1 Minimize the preamplifier volume.
2 Turn the audio source device on.
3 Turn the preamplifier on.
4 Turn this unit on.
Turning the power off
1 If an audio source device is playing back, stop playback.
2 Minimize the preamplifier volume.
3 Turn this unit off.
5 Turn the audio source device off.
- To assure safety, always disconnect the power plug from the outlet when cleaning the unit and when traveling or otherwise not using the unit for a long time.
Notes about the protection circuits
This unit has an output short circuit protection circuit, an overheating protection circuit and a direct current protection circuit built-in.
A protection circuit is active when the power indicator blinks blue or alternately blue and purple.
- If the power indicator blinks blue, a short might have occurred with the +/- speaker cables. In this case, turn the power off and check the speaker cable connections.
- If the power indicator blinks alternately blue and purple, the internal temperature is high. Turn the unit off and wait a while for the temperature to decrease. You can also change the installation conditions to improve ventilation.
- If the power indicator blinks alternately blue and purple for 30 seconds, the unit will automatically turn itself off. After this, the POWER button will be disabled for as long as the internal temperature remains high.
If the indicator continues to blink even after likely causes have been eliminated, contact the store where you purchased the unit.
Maintenance
Use a soft dry cloth to wipe the surface of the unit clean. For stubborn smudges, use a damp cloth that has been thoroughly wrung out to remove excess moisture.
For safety, disconnect the power plug from the outlet before wiping the unit.
●Never spray liquid directly on this unit.
- Do not use chemically-treated wipes, thinner or similar substances because they could damage the surface of the unit.
- Avoid allowing rubber or plastic materials to touch the unit for long periods of time, because they could damage the cabinet.
If you experience a problem with this unit, please take a moment to review the following information before requesting service. If this unit still does not operate correctly, contact the retailer where you purchased the unit.
The unit does not turn on.
→Check that the power cord is plugged into a working power outlet.
→Check that the power cord is properly connected to this unit.
→ Check if the power source is a switched outlet. If it is, make sure it is turned on. Confirm that the outlet is providing power by plugging in another item such as a lamp or a fan.
No sound is output.
→Turn the main unit on.
→ Confirm that the preamplifier is on. Before turning the preamplifier on, turn this unit off.
→Confirm that a signal is being output from the preamplifier.
→Check the connections between this unit, the preamplifier and the speaker, as well as between the audio source device and the preamplifier.
→Confirm that the correct input is selected on the preamplifier.
→Confirm that the correct input is selected on this unit.
→ Raise the preamplifier volume.
The power indicator blinks blue or alternately blue and purple.
→ A protection circuit is active. Turn the unit off and eliminate the cause (page 13).
→A short might have occurred with the +/- speaker cables. Check the speaker cable connections.
The stereo sound position is irregular.
→Check that neither of the speakers has a connection cable with +/- reversed.
Audio performance
Rated output .... 300 W (8 Ω) 600 W (4 Ω)
Continuous average output power ....1200 W (2 Ω) 2400 W (1 Ω) (1 Ω is limited to audio signals)
Frequency response....5 Hz - 100 kHz (+0 dB, -3 dB, 6 Ω)
S/N ratio....122 dB (IHF-A)
Total harmonic distortion....0.006% (1 kHz, 8 Ω, 300 W)
Minimum compatible impedance 4Ω
Gain....28 dB
Damping factor....1000
Input jacks.... RCA × 1 pair XLR × 1 pair
Input impedance
RCA....1 MΩ
XLR....1 MO
General
Power supply
Model for Europe/Hong Kong .... AC 230 V, 50 Hz
Model for USA/Canada ....AC 120 V, 60 Hz
Model for Korea .... AC 220 V, 60 Hz
Power consumption
Model for Europe/Hong Kong, Model for Korea ....530 W (44 W when no signal)
Model for USA/Canada ....520 W (58 W when no signal)
External dimensions (W × H × D) (including protrusions) 491 × 221.5 × 535 (mm) (19 3/8" × 8 3/4" × 21 1/8")
Weight 62 kg (136 3/4 lb)
Operating temperature....+10°C to +35°C
Operating humidity ....5% to 85% (no condensation)
Storage temperature -20°C to +55°C
Included accessories
Power cord × 1
Felt pads × 4
Power cord support bracket × 1
Screws for power cord support bracket × 2
Owner's manual (this document) × 1
Warranty card × 1
- Specifications and appearance are subject to change without notice.
●Weight and dimensions are approximate.
- Illustrations in this Owner's Manual might differ slightly from production models.
Technical diagram of a device front panel with labeled buttons and portstext_image
Diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motionSección transversal
POKESC POWERThis appliance has a serial number located on the rear panel. Please record the serial number and retain it for your records.
Model name: Grandioso M1 Serial number
