Product Type	Recirculation Kit for Downdraft Hood
Brand	Thermador
Model	UCVRECIRC
Compatibility	Hood models UCVM30RS, UCVM36RS, UCVP36RS
Cabinet Dimensions (W x D x H)	406 x 406 x 445 mm
Cabinet Cutout	368 x 381 mm
Discharge Opening	88 x 362 mm
Weight (approx.)	5 kg
Power Supply	Not required (passive kit)
Primary Function	Recirculation of extracted air back into kitchen
Filter	Removable recirculation filter (part UVCFILTER)
Filter Replacement Frequency	Every 6 months (adjust based on usage)
Decorative Grille	Included (or customizable, minimum area 18 sq. in.)
Installation	Requires a separate blower (model VTD600P recommended)
Ductwork Required	Round duct 203 mm (8 in.) and/or rectangular 83 x 356 mm (3½ x 14 in.)
Material	Stainless Steel
Fire Safety	Do not use with gas cooktops; clean grease filter every 2 months
Maintenance	Clean stainless surfaces with the grain; no steam cleaners
Replacement Parts	Replacement filter UVCFILTER; custom decorative grille possible
Warranty	Limited warranty (see manual)
Package Contents	Cabinet, filter, decorative grille, mounting screws

Frequently Asked Questions - UCVRECIRC THERMADOR

Can this kit be used with a gas cooktop?

No, this recirculation kit must not be used with gas cooktops. It is designed only for electric or induction cooktops. Consult the safety instructions in the manual.

How do I install the recirculation cabinet in the cabinet?

Cut a 368 x 381 mm opening in the cabinet base. Place the cabinet into the opening, align the discharge with the intended opening, then secure it with the 6 provided #10 x 0.625 in. screws. Ensure the duct is properly connected and all joints are sealed with aluminum tape.

What type of blower is required?

This kit requires a separate blower, preferably the VTD600P (600 CFM). It can be attached to the hood or installed inline. See installation manual for mounting details.

How often should I replace the recirculation filter?

It is recommended to replace the recirculation filter every 6 months. Frequency may vary based on cooking volume and type. Use replacement filter model UVCFILTER.

Can I make my own decorative grille?

Yes, you can create a custom grille. Use the provided template for dimensions and mounting holes. The total slot area must be at least 18 sq. in. (116 cm²) for adequate airflow.

How do I clean the stainless steel surfaces?

Clean stainless steel surfaces with the grain using a soft cloth and non-abrasive cleaner. Never use steam cleaners or abrasive products on the control panel. Avoid excessive moisture.

What to do in case of a grease fire on the cooktop?

Smother flames with a lid or metal sheet, then turn off the burner. Never pour water on a grease fire. If fire does not go out immediately, leave the area and call the fire department. Keep a Class ABC fire extinguisher nearby.

How do I know if the grease filter needs cleaning?

The grease filter should be cleaned at least every 2 months, or more often if you cook frequently. A clogged filter can create a fire risk. Never operate the hood without the grease filter.

What are the exact dimensions of the discharge opening?

The discharge opening in the cabinet must measure 88 mm x 362 mm (3½ in. x 14¼ in.). It will be covered by the decorative grille. For front (toe kick), rear, or side discharge, adjust location accordingly.

Where to find the model and serial number of the appliance?

The rating label is located on the lower left front side of the hood cabinet. Note the model and serial numbers before contacting customer service. Keep your receipt for warranty.

USER MANUAL UCVRECIRC THERMADOR

FOR USE WITH THESE DOWNDRAFT MODELS

Models UCVM30RS, UCVM36RS, UCVP36RS

ABOUT THIS MANUAL

Signal Words for Safety and Best Use

WARNING

This indicates that death or serious injuries may occur as a result of non-observance of this warning.

CAUTION

This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.

NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

Pay special attention to the important safety instructions in the "Safety" section.

▲ IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

General notes

WARNING

- Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.

WARNING

- Do not use this recirculation kit with Gas Cooktops.

WARNING

• When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
  • Ducted fans must always be vented to the outdoors.

INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE APPLICANCE AFTER INSTALLATION IS COMPLETE.

When properly cared for, your new appliance has been designed to be safe and reliable. Read all instructions carefully before use. These precautions will reduce the risk of bums, electric shock, fire, and injury to persons. When using kitchen appliances, basic safety precautions must be followed, including those in the following pages.

Proper Installation and Maintenance

WARNING

Remove all tape and packaging before using the appliance. Destroy the packaging after unpacking the appliance. Never allow children to play with packaging material.

This appliance is intended for normal family household use only. It is not approved for outdoor use. See the Warranty in the Use and Care Guide. If you have any questions, contact the manufacturer.

Do not store or use corrosive chemicals, vapors, flammables or nonfood products in or near this appliance. It is specifically designed for use when heating or cooking food. The use of corrosive chemicals in heating or cleaning will damage the appliance and could result in injury.

Do not operate this appliance if it is not working properly, or if it has been damaged. Contact an authorized servicer.

Do not repair or replace any part of the appliance unless specifically recommended in this manual. Refer all servicing to a factory authorized service center.

CAUTION

Grease left on filters can melt and move into the vent.

WARNING

Hidden surfaces may have sharp edges. Use caution when reaching behind or under appliance.

▲ IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

Fire Safety

WARNING

Use this appliance only for its intended use as described in this manual.

Always have a working smoke detector near the kitchen. In the event that personal clothing or hair catches fire, drop and roll immediately to extinguish flames.

Have an appropriate fire extinguisher available, nearby, highly visible and easily accessible near the appliance.

Smother flames from food fires other than grease fires with baking soda. Never use water on cooking fires.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING: ^a

a. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
b. NEVER PICK UP A FLAMING PAN – You may be burned.
c. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.
d. Use an extinguisher ONLY if:

- You know you have a Class ABC extinguisher, and you already know how to operate it.

- The fire is small and contained in the area where it started.

- The fire department is being called.

- You can fight the fire with your back to an exit.

^a Based on “Kitchen Fire Safety Tips” published by NFPPA.

Whenever possible, do not operate the ventilation system during a cooktop fire. However, do not reach through fire to turn it off.

WARNING

RISK OF FIRE

Hot oil and fat catch fire fast. Never leave hot oil and fat unsupervised. Never extinguish a fire with water. Switch off the cooking position. Suffocate flames carefully with a lid, a fire blanket or similar.

WARNING

RISK OF FIRE

Grease deposits in the grease filter can ignite.

Clean the grease filter at least every two months or as frequently as necessary.

Never operate the appliance without the grease filter.

WARNING

RISK OF FIRE

Grease deposits in the grease filter can catch fire. Never work with a naked flame near the appliance (e.g. flambéing). Install the unit near a heat-producing appliance for solid fuels (e.g. wood or coal) only if there is a closed, non-detachable cover. There must be no flying sparks.

WARNING

RISK OF FIRE

Use only metal ductwork.

WARNING

RISK OF BURNS

The accessible parts get hot during operation. Never touch hot parts. Keep children away.

CAUTION

It is recommended to wear gloves and long sleeves to protect hands and forearms from abrasion and potential scratches during the installation process.

▲ IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

Child Safety

When children become old enough to use the appliance, it is the responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualified persons.

Do not allow anyone to climb, stand, lean, sit, or hang on any part of an appliance. This can damage the appliance or cause injury.

WARNING

Be sure the entire appliance (including the grease filters and light bulbs, if applicable) has cooled and grease has solidified before attempting to clean any part of the appliance.

Do not use steam cleaners to clean the appliance.

State of California Proposition 65 Warnings

WARNING

This product can expose you to chemicals including vinyl chloride, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Protecting The Environment

Unpack the appliance and dispose of the packaging in line with environmental requirements.

NOTICE

Risk of damage due to corrosion. Always turn appliance on when cooking to avoid condensation buildup. Condensation can lead to corrosion damage.

Risk of damage due to moisture entering into the electronic circuitry. Never clean operator controls with a wet cloth.

Surface damage due to incorrect cleaning. Clean stainless steel surfaces in the grind direction only. Do not use any stainless steel cleaners for operator controls. Never use strong or abrasive cleaning agents, since they can cause surface damage.

Risk of damage from condensation back flow. Install exhaust vent at a slight downward slope away from the appliance (1° slope).

PARTS SUPPLIED

1 - Recirculation Box
1 - Recirculation Filter
1 - Decorative Grille
1 - Parts Bag (containing):

6 - #10 x .625" screws
4 - #8 x .375" screws
2 - #8 x 1" screws

PLAN THE INSTALLATION

IMPORTANT - Installation Requirements

The VTD600P 600 CFM flexible blower can be installed in either of two ways:

(1) As an integral blower attached directly to the downdraft and stabilized with mounting legs.
(2) As an inline blower, not attached directly to the downdraft, using mounting brackets and wood framing.

Please see installation manual for more details.

Purchase blower separately. (Includes mounting legs and mounting brackets.)

A minimum 24-inch wide cabinet is recommended. For left / right exhaust through cabinet toe kick, a 30" deep cabinet is recommended to align properly with flex blower.

The 8-inch round blower outlet and 8-inch round recirculation box inlet must align vertically. (See page 5.)

1. Determine where recirculation box will exhaust through cabinet.

2. Front (toe space), Back, Side (Left or Right).

3. 14 1/2" (368) x 15" (380) opening in cabinet base is required for recirculation box.

4. 3 1/2" (89) x 14 1/4" (362) opening is required for exhaust.

5. Determine location of recirculation box.

- Plan to align blower outlet with recirculation box inlet.

1. Determine what lengths of duct are required. (Purchase duct separately.)

2. A length of 8" (203) round duct is required to connect blower exhaust to recirculation box inlet.

3. A length of 3 1/4" (83) X 14" (356) duct may be required to connect to exhaust of recirculation box and extend to decorative grille location.

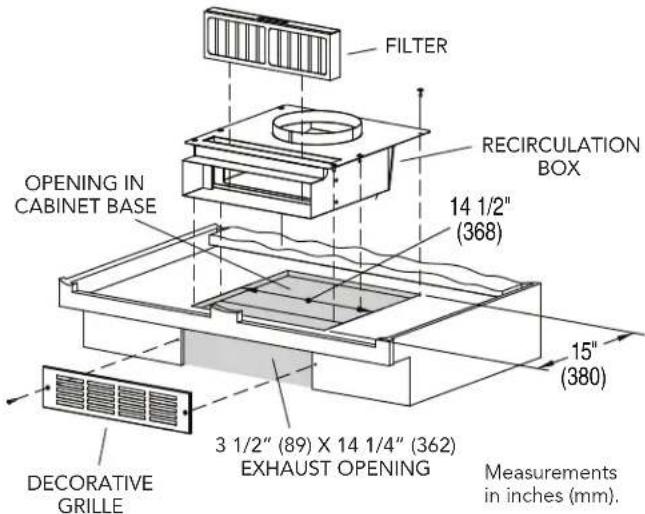

FILTER RECIRCULATION BOX OPENING IN CABINET BASE 14 1/2" (368) 15" (380) 3 1/2" (89) X 14 1/4" (362) EXHAUST OPENING DECORATIVE GRILLE Measurements in inches (mm).

EXHAUST THROUGH CABINET FRONT (TOE KICK)

INSTALL THE RECIRCULATION BOX

1. Cut opening in cabinet base.

• Size: 14 1/2" (368) × 15" (380)
- Orientation depends upon direction of exhaust.
- Double-check that blower outlet and recirculation box inlet will align.

2. Temporarily place recirculation box into opening in cabinet base.

• Rotate back of box up slightly and insert exhaust end down into opening.
• Mark location of exhaust opening in toe space, rear, or side of cabinet.

3. Remove recirculation box from opening.

4. Cut exhaust opening.

• Size: 3 1/2" (89) × 14 1/4" (362)
- This opening will be covered with decorative grille.

5. Replace recirculation box into opening in cabinet base.

• If necessary, attach a length 3 1/4" (83) x 14" (356) duct extension (not included) to extend from recirculation box outlet to decorative grille location.
• Seal the duct connection(s) with aluminum tape to make them secure and air tight. Do not use duct tape.
• Use 6 - #10 x .625" screws to secure recirculation box to cabinet base.

6. Install blower.

• See blower instructions.
- Use 8" (203) round duct to connect blower exhaust to recirculation box inlet
- Seal the duct connections with aluminum tape to make them secure and air tight. Do not use duct tape.
- Drill 1/8" (3) pilot holes through top of recirculation box and attach legs to recirculation box with 4 - #8 x .375" screws.

7. Install decorative grille.

- Use screws provided.

8. Remove polyfilm from filter.

• Lift filter from slot.
• Remove polyfilm.
• Replace filter into slot.

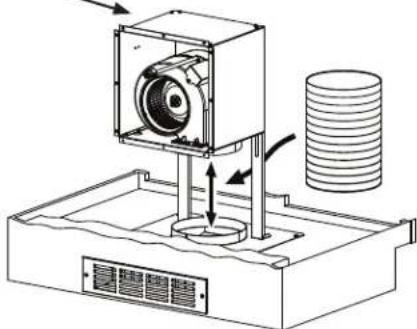

Blower mounted to downdraft using mounting legs.

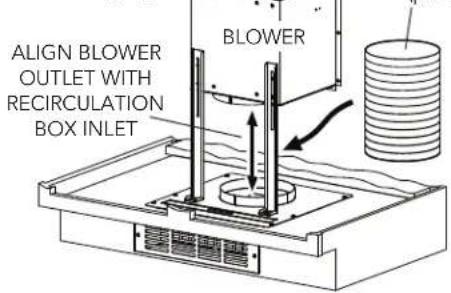

ALIGN BLOWER OUTLET WITH RECIRCULATION BOX INLET BLOWER

EXHAUST THROUGH CABINET FRONT (TOE KICK)
OPTIONAL REMOTE BLOWER MOUNT
Blower mounted to framing in remote location - using mounting brackets.
Blower outlet and recirculation box inlet must align. (See below.)

METAL 8" ROUND DUCT (per local codes)

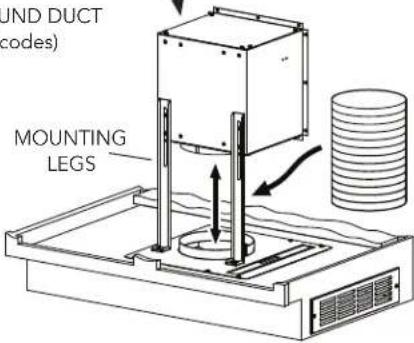

UND DUCT codes) MOUNTING LEGS

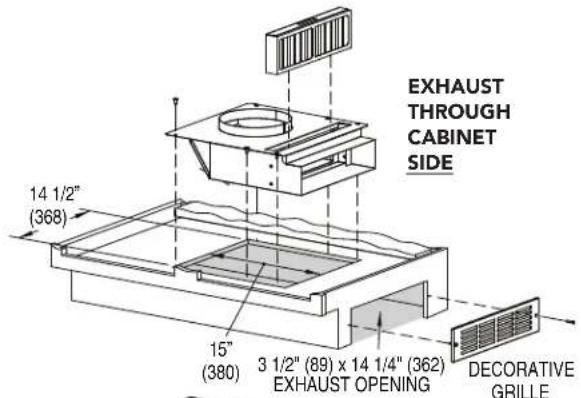

EXHAUST THROUGH CABINET SIDE

EXHAUST THROUGH CABINET SIDE 14 1/2" (368) 15" (380) 3 1/2" (89) x 14 1/4" (362) EXHAUST OPENING DECORATIVE GRILLE

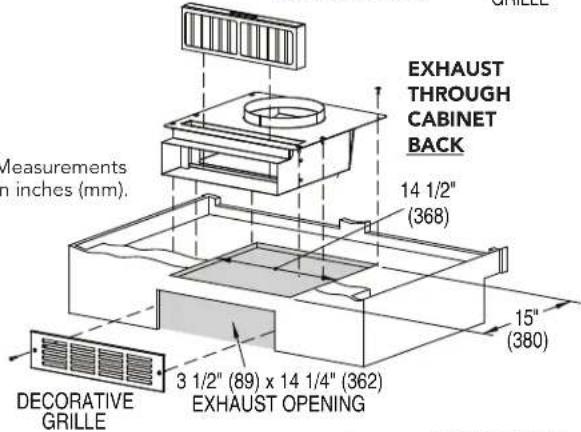

EXHAUST THROUGH CABINET BACK 14 1/2" (368) 15" (380) Measurements in inches (mm). 3 1/2" (89) x 14 1/4" (362) EXHAUST OPENING DECORATIVE GRILLE

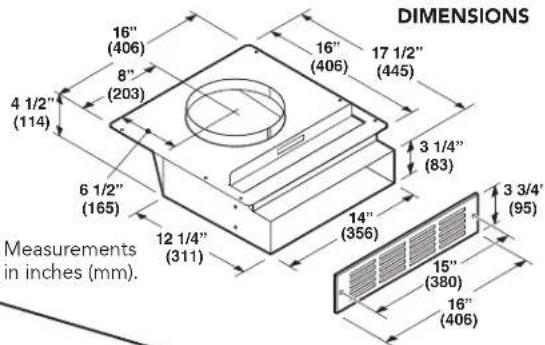

DIMENSIONS 16" (406) 8" (203) 4 1/2" (114) 6 1/2" (165) 12 1/4" (311) 14" (356) 17 1/2" (445) 3 1/4" (83) 3 3/4" (95) 15" (380) 16" (406) Measurements in inches (mm).

Technical line drawing of a mechanical device with rotating components and a cylindrical component (no text or symbols)

EXHAUST THROUGH CABINET BACK

FILTER REPLACEMENT

It is recommended that you replace the recirculation filter every 6 months. However, this may vary, depending upon the type and amount of cooking you do. Call customer service or your local distributor to order filter replacement Model UCVFILTER.

CUSTOM-MADE DECORATIVE GRILLE

You can make your own decorative grille. Use the decorative grille in this kit as a template for the overall size and mounting hole locations. The grille opening pattern is up to you.

Equivalent area of grille slots for proper air flow = 18 in. ^2 min.

THERMADOR® SUPPORT

Before Calling Service

See the Use and Care Manual for troubleshooting information. Refer to the "Statement of Limited Product Warranty".

To reach a service representative, see the contact information at the front of the manual. Please be prepared with the information printed on your product data label when calling.

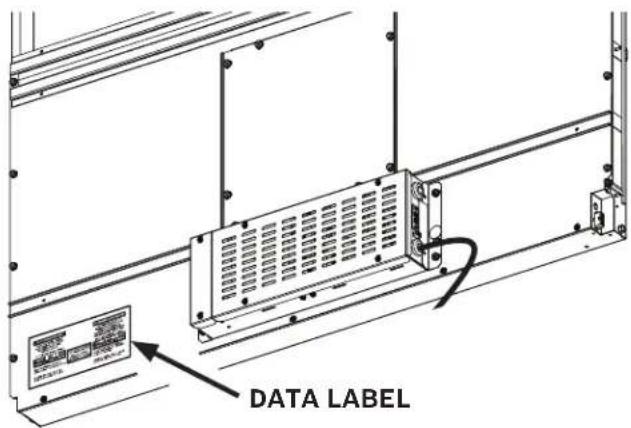

Data Label

The data label shows the model and serial number. Refer to the data plate on the appliance when requesting service.

The data label ca be found on the front / lower / left of the downdraft housing.

To avoid having to search for each piece of information when calling, you can enter the four items needed in the spaces below.

Model No.
Serial No.
Date of Purchase
Customer Service No.

Keep your invoice or escrow papers for warranty validation if service is needed.

DATA LABEL

Service

We realize that you have made a considerable investment in your kitchen. We are dedicated to supporting you and your appliance so that you have many years of creative cooking.

Please don't hesitate to contact our STAR® Customer Support Department if you have any questions or in the unlikely event that your THERMADOR® appliance needs service. Our service team is ready to assist you.

USA

800-735-4328

www.thermador.com/support

Canada

800-735-4328

www.thermador.ca

Parts and Accessories

Parts, filters, descalers, stainless steel cleaners and more can be purchased in the THERMADOR® eShop or by phone.

USA

http://store.thermador.com/us

Canada

• If you live in any of the Atlantic provinces, Ontario or Québec, contact:
Marcone 1.800.287.1627
• If you live in any of the Territories, Manitoba, Saskatchewan, Alberta, or British Columbia, contact:
Reliable Parts 1.800.663.6060

MANUEL

d'installation

REPLACEMENT DU FILTRE

Technical diagram of a mechanical device with rotating components and a cylindrical load, no text or symbols present

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

REJILLA DECORATIVA HECHA A LA MEDIDA

© 2018 BSH HOME APPLIANCES CORPORATION

9001379918 99045547C 2/12/18
