USER MANUAL HPCB48NS THERMADOR

REAL INNOVATIONS FOR REAL COOKS

Models/

Modèles/

Modelos:

HPCN36NS

HPCB36NS

HPCN48NS

HPCB48NS

Congratulations on your recent THERMADOR® purchase! Whether you are a dedicated chef or simply a connoisseur of the art of cooking, owning a THERMADOR kitchen is the ultimate expression of personal style, good taste and an appreciation for the complete culinary experience. Our award-winning products have been empowering culinary enthusiasts for more than eleven decades.

Before you begin using your new THERMADOR product, please take a moment to review the Use and Care Guide. You will find the answers to all of your questions as well as some very important safety information. Pay special attention to the Important Safety Instructions located at the beginning of the manual. Your THERMADOR product is ready and waiting to be used for your next gourmet creation!

Our products are handcrafted with the highest quality authentic materials to ensure years of reliable service. In the unlikely event that you have a service question, please have your model and serial numbers of your product available. You can find this information located on the side panels of the hood after removing the filters.

We realize that you have made a considerable investment in your kitchen. Please feel free to share your THERMADOR kitchen photos and remodeling stories with us. Follow us on Twitter or post your kitchen photos on Facebook. We would love to hear from you!

THERMADOR wishes you many years of creative cooking.

Important Safety Instructions. 1

Introduction 3

General Information. 3

Optional Accessories. 3

Operation 4

Hood Control Panel 4

Operating the Hood 5

Care and Cleaning 6

Hood Surface Cleaning 6

Filters and Grease Tray Cleaning 6

Service and Maintenance 7

Before Calling Customer Service 7

Troubleshooting. 7

How to Obtain Service or Parts 8

How to Find the Model Number. 8

Light Replacement. 8

Statement Of Limited Product Warranty 9

Customer Support, Accessories & Parts. . back page

This THERMADOR® appliance is made

by BSH Home Appliances Corporation

1901 Main Street, Suite 600

Irvine, CA 92614

Questions?

1-800-735-4328

www.thermador.com

We look forward to hearing from you!

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

INSTALLER: Please leave this guide with this unit for the owner.

OWNER: Please retain this guide for future reference.

WARNING!

For general ventilating use only. To avoid a fire or explosion hazard, do not use to exhaust hazardous or explosive materials or vapor.

WARNING!

To reduce the risk of fire, electric shock, or injury to persons, observe the following:

a) Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer (800-735-4328).
b) Before servicing or cleaning the unit, switch power off at service panel and lock service panel. This will prevent power from being switched on accidentally. When the service panel cannot be locked, securely fasten a prominent warning device, such as a tag to the service panel.

WARNING!

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when flambéing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe).
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element or gas burner.

WARNING!

TO REDUCE THE RISK OF INJURY TO PERSONS, IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:

SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
- NEVER PICK UP A FLAMING PAN - You may be burned.
DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
- Use an extinguisher ONLY if:

a) You know you have a Class ABC extinguisher and you already know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department is being called.
d) You can fight the fire with your back to an exit.

WARNING!

State of California Proposition 65Warnings:

This product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

Always have a working smoke detector near the kitchen.

Have an appropriate fire extinguisher available, nearby, highly visible and easily accessible near the cooking appliance.

Smother flames from food fires, other than grease fires, with baking soda. Never use water on cooking fires.

Whenever possible, do not operate the ventilation system during a cooktop fire. However, do not reach through fire to turn it off.

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS

When children become old enough to use the appliance, it is the responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualified persons.

DO NOT allow anyone to climb, stand, lean, sit, or hang on any part of an appliance, especially a door, warming drawer, or storage drawer. This can damage the appliance and the unit may tip over, potentially causing severe injury.

DO NOT allow children to use this appliance unless closely supervised by an adult. Children and pets should not be left alone or unattended in the area where the appliance is in use. They should never be allowed to play in its vicinity, whether or not the appliance is in use.

CAUTION!

Items of interest to children should not be stored in an appliance, in cabinets above an appliance, or on the Keep Hot Shelf. Children climbing on an appliance to reach items could be seriously injured.

Have the installer show you the location of the circuit breaker. Mark it for easy reference.

This appliance must be properly installed and grounded by a qualified technician. Connect only to properly grounded supply. Refer to installation instructions for details.

When servicing or replacement of a component in an appliance requires the removal or disconnection of a safety device, the instructions shall include a statement to the effect that the safety device is to be reinstalled or remounted as previously installed.

This appliance is intended for normal family household use only. It is not approved for outdoor use. Use of this product in a commercial setting or if installed outdoors will void the warranty. If you have any questions, contact the manufacturer.

DO NOT store or use corrosive chemicals, vapors, flammables, or nonfood products in or near this appliance. It is specifically designed for use when heating or cooking food. The use of corrosive chemicals in heating or cleaning will damage the appliance and could result in injury.

DO NOT operate this appliance if it is not working properly or if it has been damaged. Contact an authorized servicer.

DO NOT repair or replace any part of the appliance unless specifically recommended in this manual. Refer all servicing to a factory authorized service center.

WARNING!

Halogen lights are hot when in operation. Disconnect from power and allow to cool before servicing.

CAUTION!

Grease left on filters can re-melt and move into the vent. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan, filters or exhaust ducts.

Introduction

General Information

Before using your appliance, be sure to read this manual. Pay special attention to the Important Safety Instructions located at the beginning of the manual.

This manual provides the proper care and use instructions for THERMADOR PROFESSIONAL® chimney series hoods:

• HPCN — 24" (610 mm) in depth and with widths of 36" (838 mm) or 48" (1,218 mm). This model series features brushed stainless-steel filters and halogen lights.
• HPCB — 24" (610 mm) in depth and with widths of 36" (838 mm) or 48" (1,218 mm). This model series features brushed stainless-steel filters, halogen lights, and an integral blower.

All HPCN hoods require the choice of a remote, inline, or integral blower. Use only THERMADOR® blowers with THERMADOR ventilation hoods. All blower models are sold separately. See Table 1 Blower & Circuit Breaker Ratings for recommended blowers. Contact Customer Service for additional options.

All Hood models are rated for 120 VAC, using a 15 amp circuit breaker; see the Installation Manual for more details.

When connected to a GFCI-protected supply, the pro hoods are suitable for use in damp locations that are protected from outside weather conditions and not subject to saturation with water and other liquids, but can be subject to moderate degrees of moisture. Refer to local codes, NEC/CEC, and or the Authority Having Jurisdiction (AHJ) for additional information.

Blower SKU		Voltage (AC)	Blower Current (AMPS)	**Circuit Breaker (AMPS)
Remote VTR630* 120		4.2 15
Remote VTR1030* 120		5.7 15
Remote VTR1330* 120		8.5 15
Inline VTI610* 120 4.2		15
Inline VTI1010* 120 5.7		15
Integral VTN1080* 120		5.4 15

• Indicates a letter designating the release year.
  ** With blower installed.

Table 1: Blower & Circuit Breaker Ratings

CAUTION!

TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK

Install this range hood only with the blower models indicated in Table 1.

Optional Accessories

Optional accessories are available for separate purchase. For available options and dealer information, visit our website at www.thermador.com.

6" and 12" Chimney Extensions

Telescoping Chimney Extension

Keep Hot Shelf

Backsplash

Operation

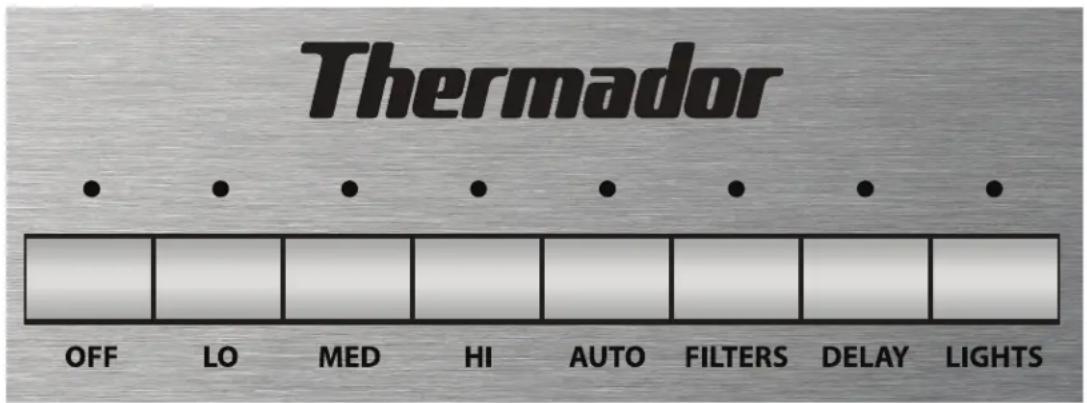

Hood Control Panel

Figure 1: Control Panel

OFF

Pressing the button once turns ventilator off and resets the control.

LO | MED | HI (Fan Speed)

Pressing the button once, from an "off" state, turns the ventilator on. The LEDs above the buttons indicate the current fan speed. When the fan is on, the corresponding LED is illuminated.

LO—Low

MED - Medium

HI-High

AUTO (Heat Sensing Feature)

When in AUTO mode, the hood automatically turns the blower on, depending on the amount of heat the control senses. It automatically adjusts every 5 minutes. If the control does not sense a high level of heat, it will turn the blower off.

FILTERS (Clean Filter Reminder)

After 40 hours of operation, the LED above the FILTERS button will illuminate indicating that the filters need to be cleaned. When this indicator illuminates, clean the filters as instructed on page 6. After cleaning, press and hold the FILTERS button for 3 seconds to reset the 40-hour period and to turn the LED off.

DELAY (Shut off)

If the blower is off when the Delay button is pressed, the blower will turn on to the HIGH speed setting for 10 minutes. At the end of the cycle the blower will turn off.

If the blower is on when the Delay button is pressed, the blower runs for 10 minutes at the current speed then turns off.

During the 10 minute timed period, the LED above the Delay button is illuminated.

To interrupt a timed period, press one of the Fan Speed buttons or OFF button.

LIGHTS (Halogen Light Control)

This button controls the halogen lighting. The first press turns the lights on. A second press dims the lights. A third press turns the lights off.

Heat Sensor Protection

Over Temperature Condition

The high temperature sensor protects the hood from high temperatures which may damage components. The control is set to activate at 161^ (72^) and reset at 140^ (60^) . When activated, the blower will turn on low and the corresponding LED will blink, indicating an over-temperature condition.

While the high temperature sensor is activated, the blower speed can be manually changed or turned off. If the blower is turned off, the corresponding LED will blink. Light controls will remain operational. When the control sensor reaches 140^ (60^) , a reset will occur. During reset, the control will revert back to the operational state prior to the high temperature condition.

High Temperature Fault Condition

If in the uncommon occurrence the Heat Sensor Protection becomes damaged, the three fan speed indicator LEDs will start blinking. All of the controls will continue to be operational except for the indicator LEDs. To reach a service representative, see the contact information at the back page of the manual.

Operating the Hood

For Better Results

• The blower should be turned on for about 5 minutes before cooking in order to establish air currents upward through the hood. Thus when heat, smoke, moisture, grease and cooking odors are produced, they will be carried outside instead of drifting into other rooms.
• Use the low speeds for normal use and the higher speeds for strong odors or fumes.
• Drafts across the range or cooktop will reduce the effectiveness of the hood. Such drafts should be prevented when possible.
• The best job of ventilation in the kitchen is done where the only air currents are those created by the blower itself.
• Continuous use of the fan system while cooking helps keep the kitchen comfortable and less humid.
• Use a rear burner when browning or pan frying meat.

Care and Cleaning

Cleaning

Hood Surface Cleaning

WARNING!

Be sure the entire appliance (including the filters and light bulbs) has cooled and grease has solidified before attempting to clean any part of the appliance.

• For general care, wipe the outside of the stainless steel with mild, lukewarm, soapy water. Always wipe and dry in the direction of the stainless steel grain.
• Wipe and dry stainless steel in the same direction as the grain. Avoid using too much pressure, which may mar the surface.
• DO NOT use abrasive products such as steel wool.
• DO NOT use cellulose sponges. Some sponges are processed with salt and can cause corrosion by leaving salt deposits on the metal.
• DO NOT allow any cleaning compounds to remain in contact with stainless steel for extended periods.

DO NOT USE CHLORINE-BASED CLEANERS.

To remove fingerprints and produce added shine, use a stainless steel cleaner or conditioner. The THERMADOR Stainless Steel Conditioner can be purchased online (US only) at: www.thermador-eshop.com (order part number 00576697).

Filters and Grease Tray Cleaning

Your hood has removable stainless steel filters and stainless steel grease trays. They must be cleaned when the filter light illuminates on the control panel or whenever they collect grease. When used over a grill, wok or other high grease applications, more frequent cleaning may be required.

The filters and grease trays can be washed by hand or in the dishwasher. Soak the ventilation filters in hot water using a mild detergent. Rinse well and shake to dry.

Slight discoloration can occur when cleaning the filters in a dishwasher. This has no influence on the function of the grease filters.

IMPORTANT:

Do not use cooktop, rangetop, or range while hood is disassembled.

To Install Filters and Grease Trays:

1. Turn the fan and lights off.
2. Install in the following order:

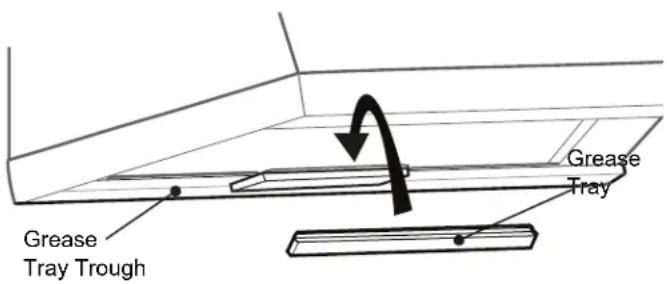

1) Grease Tray - push in and down inside the grease tray trough.

Figure 2: Grease tray install

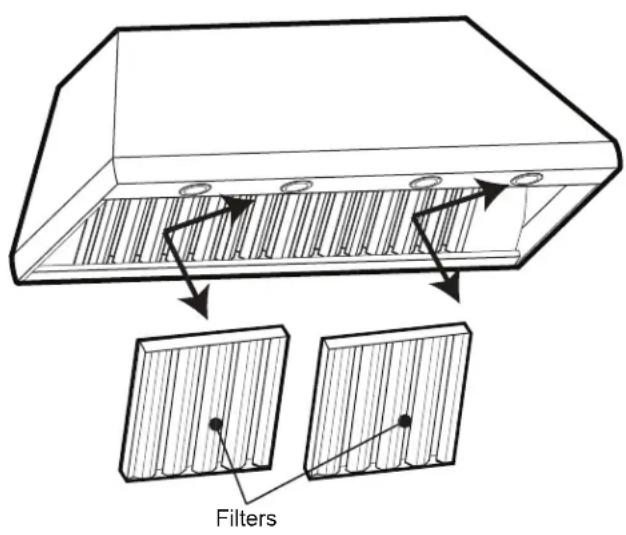

2) Filters — Depending upon the size and model of hood, there will be 2 or 3 filters per hood. Start with an outside filter. Slide the filter up, toward the front of the hood, then push down on top of the grease tray.

Figure 3: Filter Install

1. Reverse the above directions to remove the filters and grease trays. Ensure filters are cool and grease has congealed before removal.

Service and Maintenance

Before Calling Customer Service

Troubleshooting

Use the suggestions in the table below before calling for service to avoid service charges.

Table 2: Troubleshooting

PROBLEM SUGGESTED SOLUTION
Noise during operation Some noise is normal due to vibration and air movement. Excessive noise could indicate one of the following: a) ductwork is too small / undersized b) ductwork is too large / oversized c) ductwork is loose d) transition is too small or is loose e) wood screws are not fully tightened f) loose screws in trim parts, etc. Check Installation Manual to verify that ductwork is the proper size. Tighten screws.
Noise when unit is off a) Backflow flap on outside of duct wall cap moves with the wind. This is normal.
Lights and fan blower do not work	a) Hood circuit breaker may be tripped. Reset breaker.
Fan blower does not work a) Power supply is insufficient. b) Electrical wiring is incorrectly connected. See the Installation Manual for more information.
Lights hum a) A slight hum is normal.
Lights do not work but the motor is working	a) Halogen lights are blown. See “Halogen Light Replacement” on page 8. b) The halogen lights are loose. Tighten the halogen lights.
Motor does not work but the lights are working	a) The thermally protected system detects if the motor is too hot to operate and shuts the motor down. The motor will function properly after the thermally protected system cools down. See “Heat Sensor Protection” on page 5.
Hood trips breaker a) Electrical wiring is incorrectly connected. b) Circuit is not sufficient. See the Installation Manual for more information.
The hood is not venting properly.	a) The hood may be too high from the cook top. b) The hood may not be centered above the cook top. c) Make up air not sufficient. d) The wind from opened windows or opened doors in the surrounding area is affecting the ventilation of the hood. Close all the windows and doors to eliminate the outside air flow. e) Blockage in the duct opening or ductwork. Remove all blockage from the duct-work or duct opening. f) Duct length too long, too many elbows, “back to back” elbows, or too small roof or wall cap, will all cause issues with air draw. See the Installation Manual for more information.

How to Obtain Service or Parts

We want you to remain a satisfied customer. If a problem comes up that cannot be resolved to your satisfaction please let us know.

To reach a service representative, see the contact information at the back page of the manual. Whether you write or call, please provide us with the Model Number, Serial Number and Date of Original Purchase or Installation.

How to Find the Model Number

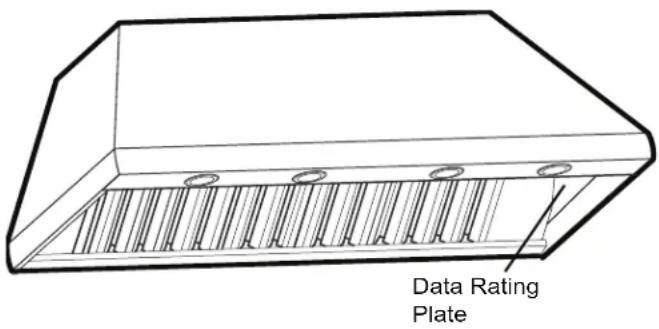

The Data Rating Plate shows the Model and Serial Numbers. Please provide this information when requesting service. The Data Rating Plate is located on the frame behind the filters. Remove the filters to view it (see page 6).

Figure 4: Data Rating Plate Location

Service Information

For handy reference, copy the information below from the data rating plate located on the frame (see Figure 4). Keep your invoice for Warranty validation.

Model Number

Serial Number

Date of Purchase

Also enter this information on the Product Registration Form included with this product.

Register your BSH product to ensure timely service and access to your product related information. You may register your product through one of the following ways:

1. Mail in the completed THERMADOR Product Registration card.
2. Register your product online at www.thermador.com.
3. Call us at THERMADOR customer service at 1-800-735-4328.

Maintenance

WARNING!

• Ensure the appliance and the lights are cool and power to the appliance is off before replacing the light bulb(s). Failure to do so could result in electrical shock or burns.
• The lenses must be in place when using the appliance. The lenses serve to protect the light bulb from breaking.
• The lenses are made of glass. Handle carefully to avoid breaking. Broken glass can cause an injury.

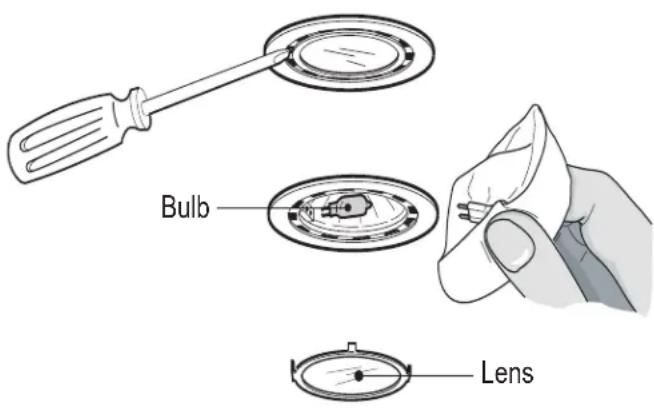

Halogen Light Replacement

IMPORTANT NOTE:

Use a paper towel when handling the replacement halogen bulb to keep oil on fingers from touching the bulb. Failure to do this may shorten the life of the bulb.

1. Using a flat edge from a screwdriver or equivalent tool, pry loose the lens cover, as shown in Figure 5.
2. Pull damaged bulb straight out from the socket to remove.
3. Replace with a new G9 HALOGEN LAMP LIGHT BULB 120V 40W. Press pins in bulb base straight into socket until fully seated. Follow package directions and do not touch new light with bare hands, the oils from your skin can reduce the longevity of the bulb.
4. Reinstall the lens cover.

Figure 5: Halogen Light Replacement

Statement of Limited Product Warranty

What this Warranty Covers & Who it Applies to

The limited warranty provided by BSH Home Appliances (BSH) in this Statement of Limited Product Warranty applies only to the BSH appliance sold to you, the first using purchaser, provided that the Product was purchased:

• For your normal, household (non-commercial) use, and has in fact at all times only been used for normal household purposes.
• New at retail (not a display, "as is", or previously returned model), and not for resale, or commercial use.
• Within the United States or Canada, and has at all times remained within the country of original purchase.

The warranties stated herein apply only to the first purchaser of the Product and are not transferable.

Please make sure to return your registration card; while not necessary to effectuate warranty coverage, it is the best way for BSH to notify you in the unlikely event of a safety notice or product recall.

How to Obtain Service

For authorized service or parts information, call the number or write to the address listed inside the back cover.

How Long the Warranty Lasts

Product built preceding January 1, 2012 with a number of FD911299999 or lower: BSH warrants that the Product is free from defects in materials and workmanship for a period of three hundred and sixty-five (365) days from the date of purchase. The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever.

Product built subsequent to January 1, 2012 with a number of FD920100000 or higher: BSH warrants that the Product is free from defects in materials and workmanship for a period of seven hundred and thirty (730) days from the date of purchase. The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever.

This Product is also warranted to be free from cosmetic defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the finish of the Product, for a period of sixty (60) days from the date of purchase or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and

porcelain parts, as well as differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, "As Is", or "B" stock appliances.

Repair/Replace as Your Exclusive Remedy

During this warranty period, BSH or one of its authorized service providers will repair your Product without charge to you (subject to certain limitations stated herein) if your Product proves to have been manufactured with a defect in materials or workmanship. If reasonable attempts to repair the Product have been made without success, then BSH will replace your Product (upgraded models may be available to you, in the sole discretion of BSH, for an additional charge). All removed parts and components shall become the property of BSH at its sole option. All replaced and/or repaired parts shall assume the identity of the original part for purposes of this warranty and this warranty shall not be extended with respect to such parts. The sole liability and responsibility hereunder is to repair manufacturer-defective Product only, using a authorized service provider of BSH during normal business hours. For safety and property damage concerns, BSH highly recommends that you do not attempt to repair the Product yourself, or use an un-authorized servicer; BSH will have no responsibility or liability for repairs or work performed by a non-authorized servicer. If you choose to have someone other than an authorized service provider work on your Product, THIS WARRANTY WILL AUTOMATICALLY BECOME NULL AND Void. Authorized service providers are those persons or companies that have been specially trained on BSH products, and who possess, in BSH's opinion, a superior reputation for customer service and technical ability (note that they are independent entities and are not agents, partners, affiliates or representatives of BSH). Notwithstanding the foregoing, BSH will not incur any liability, or have responsibility, for the Product if it is located in a remote area (more than 100 miles from an authorized service provider) or is reasonably inaccessible, hazardous, threatening, or treacherous locale, surroundings, or environment; in any such event, if you request, BSH would still pay for labor and parts and ship the parts to the nearest authorized service provider, but you would still be fully liable and responsible for any travel time or other special charges by the service company, assuming they agree to make the service call.

Out of Warranty Product

BSH is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, pro-rates, or Product replacement, once this warranty has expired.

Warranty Exclusions

The warranty coverage described herein excludes all defects or damage that are not the direct fault of BSH, including without limitation, one or more of the following:

• Use of the Product in anything other than its normal, customary and intended manner (including without limitation, any form of commercial use, use or storage of an indoor product outdoors, use of the Product in conjunction with air or water-going vessels).
• Any party's willful misconduct, negligence, misuse, abuse, accidents, neglect, improper operation, failure to maintain, improper or negligent installation, tampering, failure to follow operating instructions, mishandling, unauthorized service (including self-performed "fixing" or exploration of the appliance's internal workings).
• Adjustment, alteration or modification of any kind.
• A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations.
• Ordinary wear and tear, spills of food, liquid, grease accumulations, or other substances that accumulate on, in, or around the Product.
• Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God.

In no event shall BSH have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures or objects around the Product. Also excluded from this warranty are scratches, nicks, minor dents, and cosmetic damages on external surfaces and exposed parts; Products on which the serial numbers have been altered, defaced, or removed; service visits to teach you how to use the Product, or visits where there is nothing wrong with the Product; correction of installation problems (you are solely responsible for any structure and setting for the Product, including all electrical, plumbing or other connecting facilities, for proper foundation/flooding, and for any alterations including without limitation cabinetry, walls, floors, shelving, etc.); and resetting of breakers or fuses.

TO THE EXTENT ALLOWED BY LAW, THIS WARRANTY SETS OUT YOUR EXCLUSIVE REMEDIES WITH RESPECT TO PRODUCT, WHETHER THE CLAIM ARISES IN CONTRACT OR TORT (INCLUDING STRICT LIABILITY, OR NEGLIGENCE) OR OTHERWISE. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTYES, WHETHER EXPRESS OR IMPLIED. ANY WARRANTY IMPLIED BY LAW, WHETHER FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR OTHERWISE, SHALL BE EFFECTIVE ONLY FOR THE PERIOD THAT THIS EXPRESS LIMITED WARRANTY IS EFFECTIVE.

IN NO EVENT WILL THE MANUFACTURER BE LIABLE FOR CONSEQUENTIAL, SPECIAL, INCIDENTAL, INDIRECT, "BUSINESS LOSS", AND/OR PUNITIVE DAMAGES, LOSSES, OR EXPENSES, INCLUDING WITHOUT LIMITATION TIME AWAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELLING EXPENSES IN EXCESS OF DIRECT DAMAGES WHICH ARE DEFINITIVELY CAUSED EXCLUSIVELY BY BSH, OR OTHERWISE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, AND SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

No attempt to alter, modify or amend this warranty shall be effective unless authorized in writing by an officer of BSH.

Table des Matieres

Sécurité 1

1901 Main Street, Suite 600

Irvine, CA 92614

Des questions?

1-800-735-4328

www.thermador.ca

1901 Main Street, Suite 600

Irvine, CA 92614

Preguntas?

1-800-735-4328

www.thermador.com

Esperamos saber deasted!

We realize that you have made a considerable investment in your kitchen. We are dedicated to supporting you and your appliance so that you have many years of creative cooking.

Please don't hesitate to contact our excellent STAR Customer Support Department if you have any questions or in the unlikely event that your THERMADOR appliance needs service. Our service team is ready to assist you.

USA:

800-735-4328

www.thermador.com/support

Canada:

800-735-4328

www.thermador.ca

Parts & Accessories

Parts, filters, descalers, stainless steel cleaners and more can be purchased in the THERMADOR eShop or by phone.

USA:

www.thermador-eshop.com

Canada:

Marcone 800-287-1627

or

Reliable Parts 800-663-6060

Entretien

www.thermador-eshop.com

Canada:

Marcone 800-287-1627

or

Reliable Parts 800-663-6060

Mantenimiento

www.thermador-eshop.com

Marcone 800-287-1627

or

Reliable Parts 800-663-6060

1901 Main Street, Suite 600, Irvine, CA 92614 · 800-735-4328 · www.thermador.com

9000873501 · Rev. A · 5U04PN · BSH Home Appliances Corporation, 06/14
