USER MANUAL RECHDDB THERMADOR

FOR USE WITH THESE HOOD MODELS

Models HDDB30WS & HDDB36WS

ABOUT THIS MANUAL

Signal Words for Safety and Best Use

WARNING

This indicates that death or serious injuries may occur as a result of non-observance of this warning.

CAUTION

This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.

NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

Pay special attention to the important safety instructions in the "Safety" section.

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS

General Notes

WARNING

Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.

WARNING

Do not use this recirculation kit with Gas Cooktops.

WARNING

• When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
• Ducted fans must always be vented to the outdoors.

INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE APPLICANCE AFTER INSTALLATION IS COMPLETE. IMPORTANT: SAVE FOR THE LOCAL INSPECTOR'S USE.

WARNING

When properly cared for, your new appliance has been designed to be safe and reliable. Read all instructions carefully before use. These precautions will reduce the risk of burns, electric shock, fire, and injury to persons. When using kitchen appliances, basic safety precautions must be followed, including those in the following pages.

Proper Installation and Maintenance

WARNING

Remove all tape and packaging before using the appliance. Destroy the packaging after unpacking the appliance. Never allow children to play with packaging material.

This appliance is intended for normal family household use only. It is not approved for outdoor use. Refer to the Statement of Limited Warranty in the Use and Care Manual. If you have any questions, contact the manufacturer. Do not store or use corrosive chemicals, vapors, flammables or nonfood products in or near this appliance. It is specifically designed for use when heating or cooking food. The use of corrosive chemicals in heating or cleaning will damage the appliance and could result in injury. Do not operate this appliance if it is not working properly, or if it has been damaged. Contact an authorized servicer. Do not repair or replace any part of the appliance unless specifically recommended in this manual. Refer all servicing to a factory authorized service center.

CAUTION

Grease left on filters can melt and move into the vent.

WARNING

Hidden surfaces may have sharp edges. Use caution when reaching behind or under appliance.

Fire Safety

WARNING

Use this appliance only for its intended use as described in this manual.

Always have a working smoke detector near the kitchen. In the event that personal clothing or hair catches fire, drop and roll immediately to extinguish flames. Have an appropriate fire extinguisher available, nearby, highly visible and easily accessible near the appliance. Smother flames from food fires other than grease fires with baking soda. Never use water on cooking fires.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING: ^a

- SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.

• NEVER PICK UP A FLAMING PAN - you may get burned.
• DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
• Use an extinguisher ONLY if:

a) You know you have a class ABC extinguisher, and you already know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department is being called.
d) You can fight the fire with your back to an exit.

^a Based on "Kitchen Fire Safety Tips" published by NFPA.

Whenever possible, do not operate the ventilation system during a cooktop fire. However, do not reach through fire to turn it off.

WARNING

RISK OF FIRE

Hot oil and fat catch fire fast. Never leave hot oil and fat unsupervised.

Never extinguish a fire with water. Switch off the cooking position.

Suffocate flames carefully with a lid, a fire blanket or similar.

WARNING

RISK OF FIRE

Grease deposits in the grease filter can ignite.

Clean the grease filter at least every two months or as frequently as necessary.

Never operate the appliance without the grease filter.

WARNING

RISK OF FIRE

Grease deposits in the grease filter can catch fire. Never work with a naked flame near the appliance (e.g. flam-béing). Install the unit near a heat-producing appliance for solid fuels (e.g. wood or coal) only if there is a closed, non-detachable cover. There must be no flying sparks.

WARNING

RISK OF FIRE

Use only metal ductwork.

WARNING

RISK OF BURNS

The accessible parts get hot during operation.

Never touch hot parts.

Keep children away.

CAUTION

It is recommended to wear gloves and long sleeves to protect hands and forearms from abrasion and potential scratches during the installation process.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

Child Safety

When children become old enough to use the appliance, it is the responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualified persons.

Do not allow anyone to climb, stand, lean, sit, or hang on any part of an appliance. This can damage the appliance or cause injury.

WARNING

Be sure the entire appliance (including the grease filters and light bulbs, if applicable) has cooled and grease has solidified before attempting to clean any part of the appliance.

Do not use steam cleaners to clean the appliance.

State of California Proposition 65 Warnings

WARNING

This product can expose you to chemicals including vinyl chloride, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Protecting The Environment

Unpack the appliance and dispose of the packaging in line with environmental requirements.

NOTICE

Risk of damage due to corrosion. Always turn appliance on when cooking to avoid condensation buildup. Condensation can lead to corrosion damage.

Risk of damage due to moisture entering into the electronic circuitry.

Never clean operator controls with a wet cloth.

Surface damage due to incorrect cleaning. Clean stainless steel surfaces in the grind direction only. Do not use any stainless steel cleaners for operator controls. Never use strong or abrasive cleaning agents, since they can cause surface damage.

Risk of damage from condensation back flow. Install exhaust vent at a slight downward slope away from the appliance (1° slope).

Parts Supplied

1 - Hardware bag

- 6 - 3.5x9.5 mm installation screws

1 - Charcoal Filter

1 - Air deflector

Installation Instructions

If it is not possible to vent cooking fumes and vapors to the outside, the hood can be used in the non-vented (recirculating) version, using the recirculating kit. Fumes and vapors are recycled through grid.

1. Assemble the 3 parts of the deflector with 2 - 3.5 x 9.5 screws provided.

2. The assembled deflector should be sized to fit the width of the vent cover bracket installed earlier.

C A B

A. Vent cover bracket width
B. Deflector
C. 3.5 x 9.5 mm screws

1. Connect the deflector to the vent cover bracket using 4-3.5 x 9.5 screws provided.

A. Vent cover bracket
B. 3.5 x 9.5 mm screws

1. Measure from the bottom of the air deflector to the bottom of the hood outlet.

B A D X — C E

A. Air deflector
B. Vent clamp
C. X = length to cut vent duct
D. Vent duct
E. Exhaust outlet

1. Cut the duct to the measured size "X."

2. Remove the air deflector.

3. Slide the duct onto the bottom of the air deflector.

4. Place the assembled air deflector and duct over the exhaust outlet from the hood.

5. Reassemble the air deflector to the duct cover bracket with the four assembly screws.

6. Use duct tape or vent clamps to seal the deflector and the exhaust outlet from the hood.

Charcoal Filter Replacement

In the reciruclating mode, the air will be recirculated through disposable charcoal filters that help remove smoke and odors.

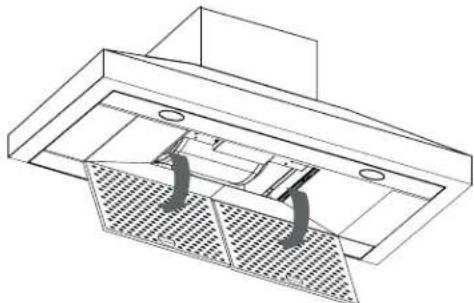

- Remove the grease filter of the hood.

Technical line drawing of a ceiling structure with gridded base and two vertical supports (no text or symbols)

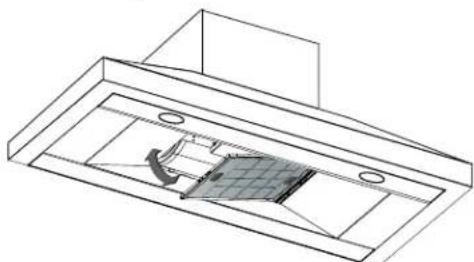

- Position the charcoal filter inside the structure of the motor as shown in picture.

Isometric technical drawing of a mechanical component with no visible text or symbols

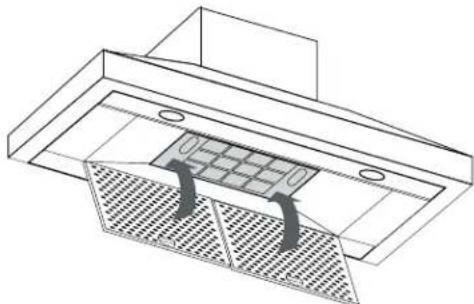

• Reinstall the grease filter onto the bottom of the hood.

Technical line drawing of a ceiling structure with grating and ventilation grilles (no text or symbols)

NOTE: The charcoal filter cannot be cleaned. Filters should be replaced every 4-6 months (depending on hood usage).

Manuel

d'Installation

Ensemble de recirculation

Modèle RECHDDB

POUR UTILISATION AVEC CES MODÈLES DE HOTTE

A. Vent cover bracket width

B. Deflector

C. 3.5 x 9.5 mm screws

B A D X — C E

A. Déflecteur d'air

Technical line drawing of a ceiling structure with gridded base and two vertical supports (no text or symbols)

Isometric line drawing of a ceiling structure with a central component and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with internal grid structure and mounting holes (no text or symbols)

B A D X — C E

A. Deflector de aire

B. Abrazaderas

Technical line drawing of a ceiling structure with grating and two vertical supports (no text or symbols)

Isometric line drawing of a ceiling structure with a central component and two mounting holes (no text or symbols)

Technical line drawing of a ceiling structure with grating and ventilation grilles (no text or symbols)
