USER MANUAL PA36WLBG THERMADOR

Professional Series Pro Grand® Range Low Backguard and Toe Kick Accessory

Installation

INSTRUCTIONS

Professional Series Pro Grand® Range Low Backguard and Toe Kick Accessory

English. 2

Francais 5

Espanol. 8

Models

Modèles

Modelos:

PA36JLBG

PA48JLBG

PA48JLBSG

PA60RLBG

PA36JTKG

PA48JTKG

PA60RTKG

WARNING

This indicates that death or serious injuries may occur as a result of non-observation of this warning.

CAUTION

This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.

NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

Rear clearance

REQUIREMENTS

• To avoid staining on the back wall, high temperature, non-porous construction materials suitable for use in a cooking environment are recommended.

• Models PRD606xx are suitable for 0^ rear clearance to combustible surfaces.
  All other models:

• When using the included island trim a minimum 6^ (152 mm) rear clearance is required to a combustible surface.

• When installing against a combustible surface, a Thermador low backguard is required for a 0^ rear clearance to the combustible surface. A Thermador low backguard must be purchased separately.
• A rear clearance to a surface covered in a noncombustible material (metal, ceramic tile, brick, marble, or stone)* is 0'' when using the included Island Trim.

*Clearances of less than 6^ ( 152 mm) should be approved by the local codes and/or by the local authority having jurisdiction.

Clearances from non-combustible materials are not part of the ANSI Z21.1 scope and are not certified by CSA.

Installation

INSTRUCTIONS

For use with the following models:

PRD364WDGx PRD48WCSGx PRG364WDG

PRD364WIGx PRD48WDSGx PRG364WLG

PRD364WLGx PRD48WISGx PRG366WG

PRD366WGx PRD48WLSGx PRG486WDG

PRD484WCGx PRD606WCG PRG486WLG

PRD486WDGx PRD606WCSG

PRD486WIGx PRD606WEG

PRD486WLGU PRD606WESG

State of California Proposition 65 Warning:

WARNING

This product can expose you to chemicals including vinyl chloride, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

WARNING

Fingers or hands could get pinched when installing the backguard. Severe injury could result. Use extreme caution and wear thick protective gloves to avoid potential laceration to finger or hand while sliding the backguard down onto the range.

WARNING

To avoid possible burn or fire hazard, a backguard designed specifically for this appliance must be installed whenever the appliance is used.

Low backguard installation

Tools needed

T-20 torx head screwdriver or drill
- Protective work gloves

Attach the backguard before sliding the appliance into the final installed position.

To remove the island trim

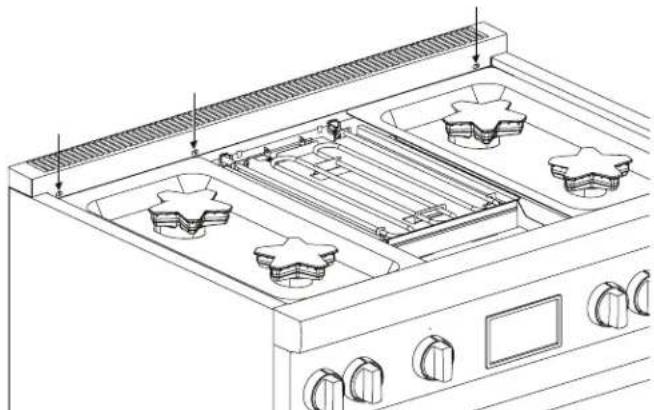

1. With a T-20 torx head screwdriver, remove the screws in the front face of the island trim.

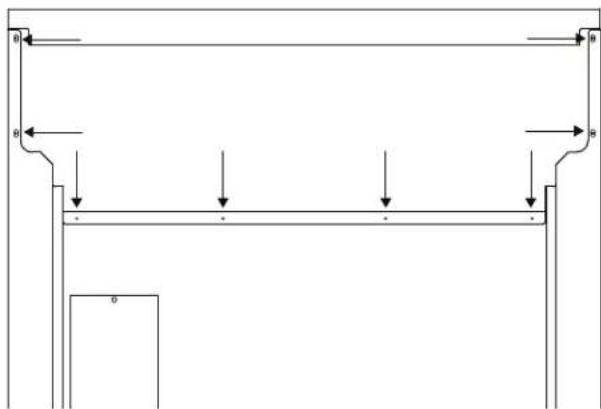

1. Remove the T-20 torx screws securing the trim to the side panels and the back panel. Lift up to fully remove.

To install the low backguard

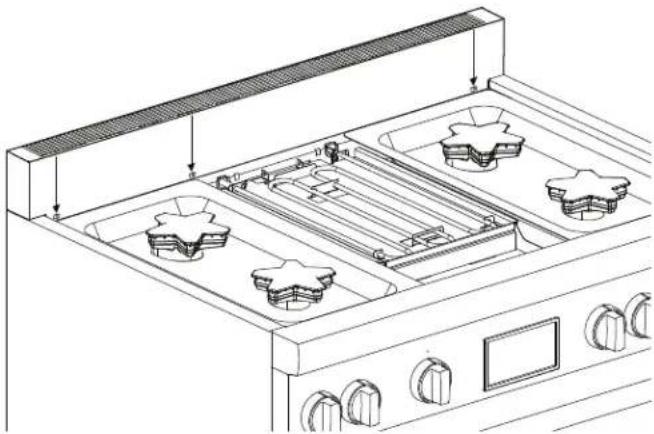

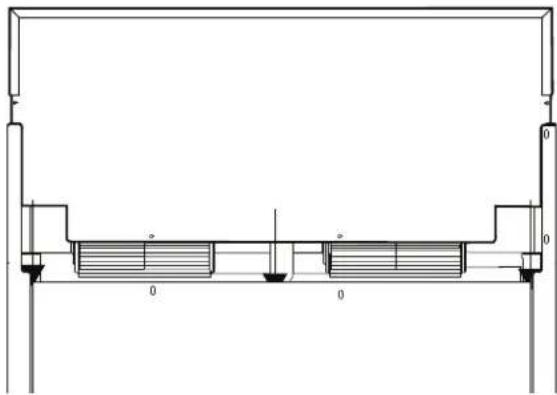

1. Align the low backguard with the range side panel's right and left rear corners. The backguard is inserted inside the guide channels on the back of the range.

1. The guard's front face is outside the flange on the front side of the range.

1. Re-install screws.

Toe kick panel installation

Tools needed

• Protective work gloves

To remove the front foot cover assemblies

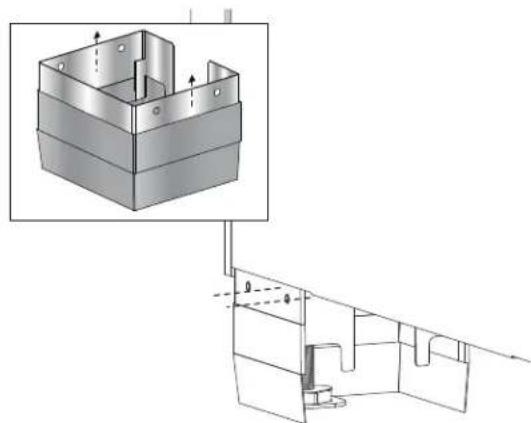

1. The mating part has dimples that seize the top piece of the foot cover. Spread the top cover out and slide it down to clear these dimples. Repeat for the other front foot cover assembly.

1. Remove the leg covers by sliding the top, outer sleeve of the leg covers off the extruded dimples of the base.

To install the toe kick panel

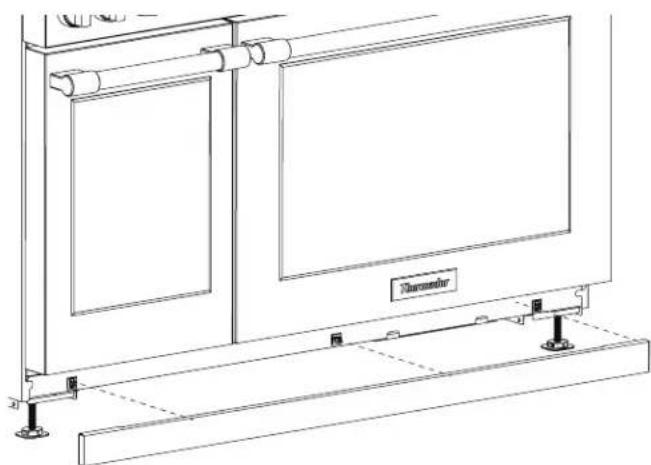

1. Remove protective plastic covering from the toe kick panel.
2. Remove the door trim from its mounting clips. (No tools required.)

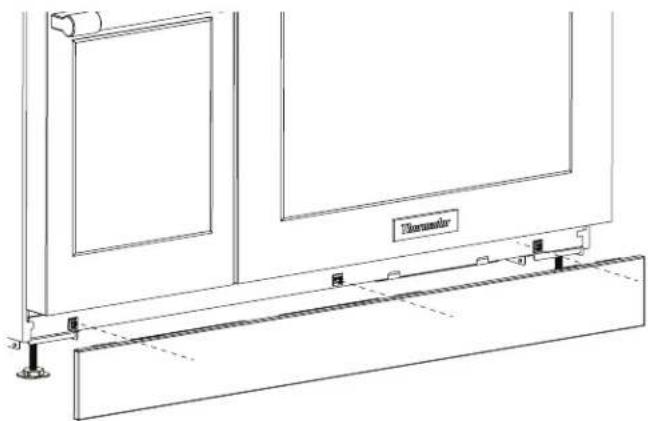

1. Press the toe kick panel into the mounting clips.

NOTE: The mating part has extruded dimples on both sides for which the holes of the toe kick panel should seize. You should feel a definitive snap, letting you know that the part has been installed.

Thank you for being a Thermador customer!

Thermador is dedicated to supporting you and your appliance so you have many years of creative cooking. Please don't hesitate to contact us if you have any questions. We're happy to help you with cleaning and care instructions, cooking tips, accessories, troubleshooting, and more.

USA:

1-800-735-4328

thermador.com/customer-care

Canada:

1-800-735-4328

thermador.ca/support

Accessories and parts

Filters, Thermador cleaners, teppanyaki pans, griddles, replacement parts, and more can be purchased in our online accessories store.

USA:

store.thermador.com/us

Canada:

Filters, parts and accessories can be purchased through our distributors.

Marcone: 1-800-287-1627

Reliable Parts: 1-800-663-6060
