USER MANUAL PA48WTKG THERMADOR

Professional Series Pro Grand® Range Low Backguard and Toe Kick Accessory

Black-and-white photo of a plated seafood dish featuring whole fish, lemon slices, and garnishes (no text or symbols visible)

Installation

INSTRUCTIONS

Professional Series Pro Grand ^® Range Low Backguard and Toe Kick Accessory

English....2
Français ....5
Español....8
Models |
Modèles |
Modelos:
PA36JLBG
PA48JLBG
PA48JLBSG
PA60RLBG
PA36JTKG
PA48JTKG
PA60RTKG

Safety

DEFINITIONS

WARNING

This indicates that death or serious injuries may occur as a result of non-observance of this warning.

CAUTION

This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.

NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

Rear clearance

REQUIREMENTS

• To avoid staining on the back wall, high temperature, non-porous construction materials suitable for use in a cooking environment are recommended.
• Models PRD606xx are suitable for 0" rear clearance to combustible surfaces.

• All other models:

• When using the included island trim a minimum 6" (152 mm)* rear clearance is required to a combustible surface*.

• When installing against a combustible surface, a Thermador low backguard is required for a 0" rear clearance to the combustible surface. A Thermador low backguard must be purchased separately.
• A rear clearance to a surface covered in a non-combustible material (metal, ceramic tile, brick, marble, or stone) ^* is 0'' when using the included Island Trim.

*Clearances of less than 6" (152 mm) should be approved by the local codes and/or by the local authority having jurisdiction.

Δ Clearances from non-combustible materials are not part of the ANSI Z21.1 scope and are not certified by CSA.

Installation

INSTRUCTIONS

For use with the following models:

PRD364WDGx PRD48WCSGx PRG364WDG

PRD364WIGx PRD48WDSGx PRG364WLG

PRD364WLGx PRD48WISGx PRG366WG

PRD366WGx PRD48WLSGx PRG486WDG

PRD484WCGx PRD606WCG PRG486WLG

PRD486WDGx PRD606WCSG

PRD486WIGx PRD606WEG

PRD486WLGU PRD606WESG

State of California Proposition 65 Warning:

⚠ WARNING

This product can expose you to chemicals including vinyl chloride, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

WARNING

Fingers or hands could get pinched when installing the backguard. Severe injury could result. Use extreme caution and wear thick protective gloves to avoid potential laceration to finger or hand while sliding the backguard down onto the range.

WARNING

To avoid possible burn or fire hazard, a backguard designed specifically for this appliance must be installed whenever the appliance is used.

Low backguard installation

Tools needed

• T-20 torx head screwdriver or drill
• Protective work gloves

Attach the backguard before sliding the appliance into the final installed position.

To remove the island trim

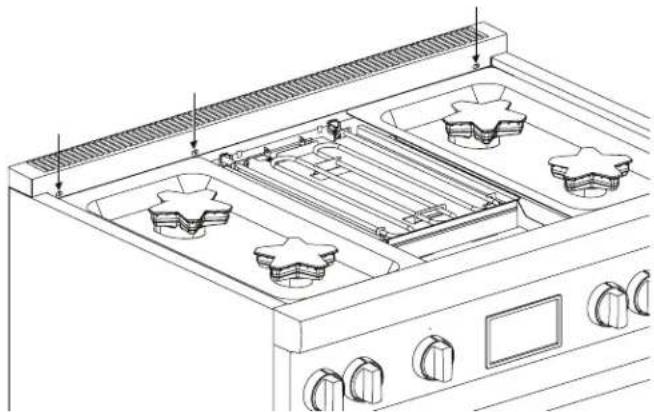

1. With a T-20 torx head screwdriver, remove the screws in the front face of the island trim.

Line drawing of a kitchen stove interior with three star-shaped grilles and control knobs (no text or labels)

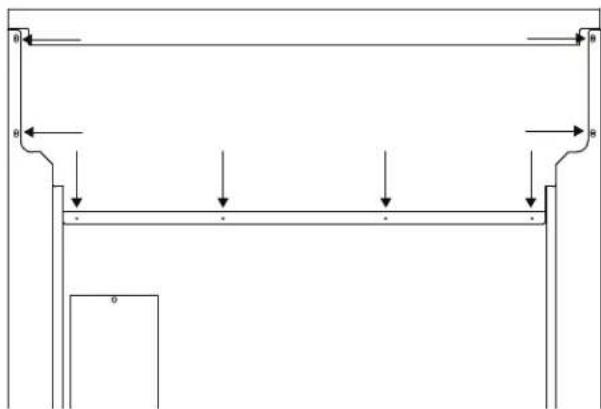

1. Remove the T-20 torx screws securing the trim to the side panels and the back panel. Lift up to fully remove.

Pure structural diagram of a beam supported by vertical supports, showing load directions (no text or symbols)

To install the low backguard

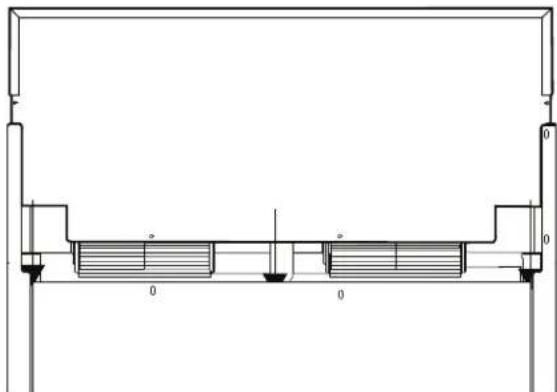

1. Align the low backguard with the range side panel's right and left rear corners. The backguard is inserted inside the guide channels on the back of the range.

Technical line drawing of a mechanical assembly with no visible text or symbols

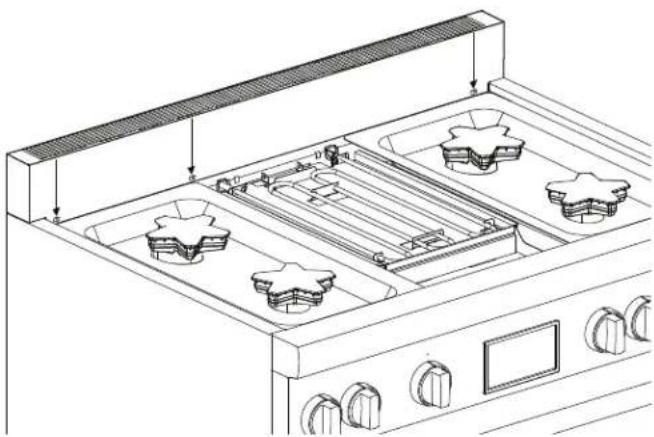

1. The backguard's front face is outside the flange on the front side of the range.

Line drawing of a kitchen stove interior with four star-shaped appliances and control knobs (no text or labels)

1. Re-install screws.

Toe kick panel installation

Tools needed

- Protective work gloves

To remove the front foot cover assemblies

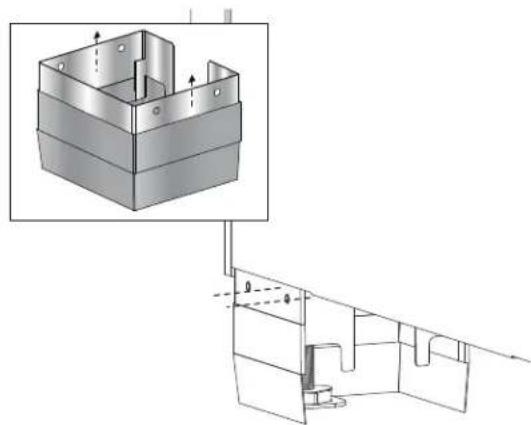

1. The mating part has dimples that seize the top piece of the foot cover. Spread the top cover out and slide it down to clear these dimples. Repeat for the other front foot cover assembly.

Technical diagram showing a 3D mechanical assembly with an inset close-up of a component (no text or symbols present)

1. Remove the leg covers by sliding the top, outer sleeve of the leg covers off the extruded dimples of the base.

To install the toe kick panel

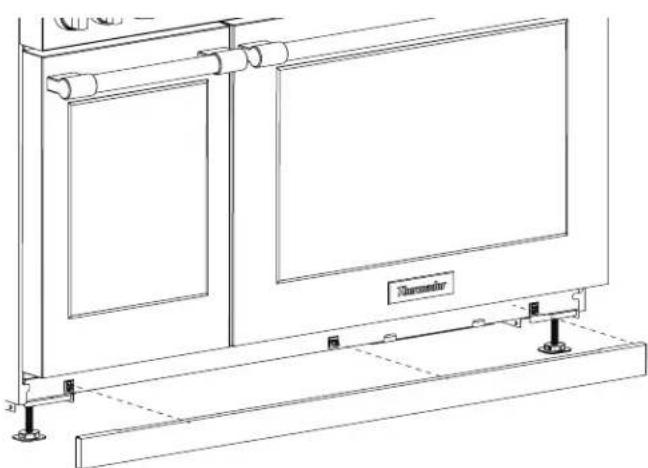

1. Remove protective plastic covering from the toe kick panel.
2. Remove the door trim from its mounting clips. (No tools required.)

Technical line drawing of a mechanical or electrical enclosure with mounting base and control panel (no text or symbols)

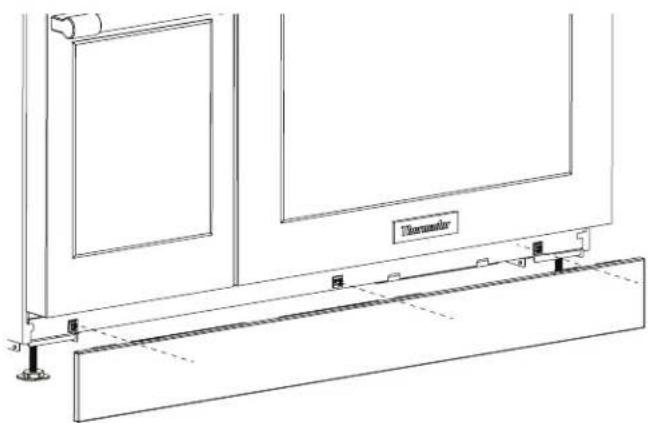

1. Press the toe kick panel into the mounting clips.

Technical line drawing of a door frame assembly with mounting base and railings (no text or symbols)

NOTE: The mating part has extruded dimples on both sides for which the holes of the toe kick panel should seize. You should feel a definitive snap, letting you know that the part has been installed.

Line drawing of a kitchen stove interior with four panes and heat sinks (no text or symbols)

Pure mechanical assembly diagram showing a frame structure with arrows indicating force or movement (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a kitchen stove interior with four star-shaped appliances and control knobs (no text or labels)

Technical diagram of a mechanical housing assembly with internal components and mounting features (no text or labels)

Technical line drawing of a heating element cabinet with cooling fins and mounting base (no text or symbols)

Technical line drawing of a door frame assembly with mounting base and railings (no text or symbols)

Line drawing of a kitchen stove interior with four panes and a grater (no text or symbols)

Pure structural diagram of a frame with supports and arrows, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a kitchen oven with three star-shaped appliances and control knobs (no text or symbols)

Technical diagram showing a 3D mechanical assembly with an inset close-up of a layered component (no text or symbols present)

Technical line drawing of a heating element with cooling fins and mounting base (no text or symbols)

Technical line drawing of a door frame assembly with mounting base and railings (no text or symbols)
