USER MANUAL Engage X BUSHNELL

Black binoculars with red lens, labeled 'ENGAGE' and 'BUSHILL' (no additional text or symbols visible)

ENGAGE ^TM X ENGAGE ^TM DX ENGAGE ^TM EDX

BINOCULAR OWNER'S GUIDE

ENGLISH A F B C ENGLISH E D E

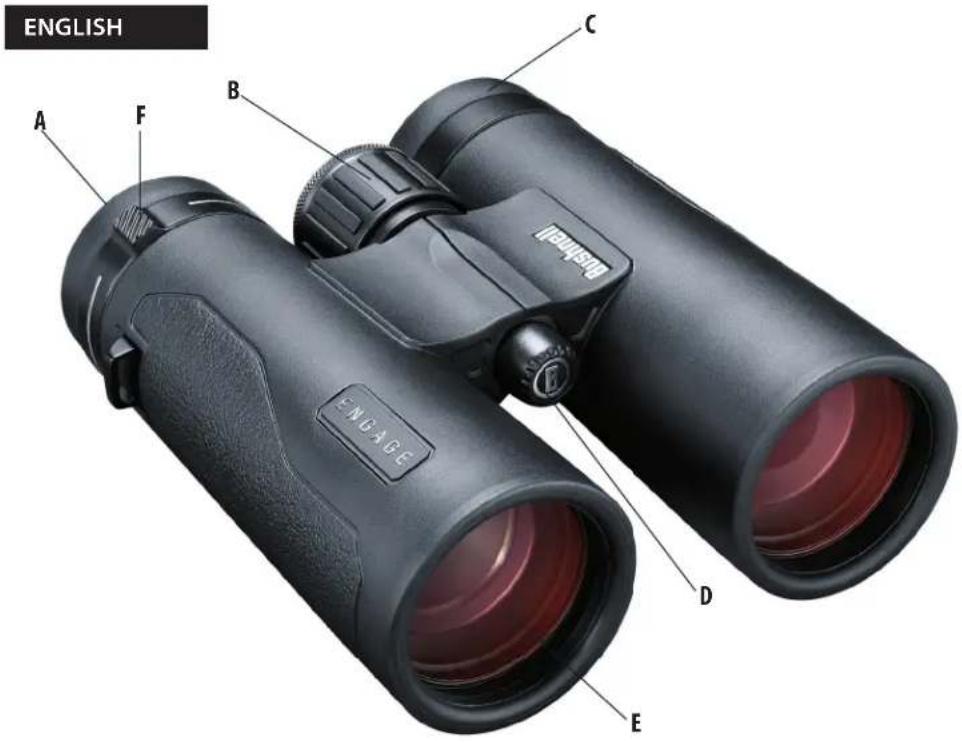

PARTS GUIDE

Ocular Lens A

Center Focus Knob B

Twist-Up Eyecups C

Tripod Adapter Socket D

Objective Lens E

Diopter Adjustment F

Ring

Thank you for purchasing your new Bushnell® Engage™ binoculars.

This manual will help you optimize your viewing experience by explaining how you can adjust the binocular to your eyes, and how to care for this instrument. Read the instructions carefully before using your binocular.

DANGER

NEVER LOOK DIRECTLY AT THE SUN WITH YOUR BINOCULAR, AS IT MAY CAUSE SERIOUS DAMAGE TO YOUR EYES

EYECUP ADJUSTMENT

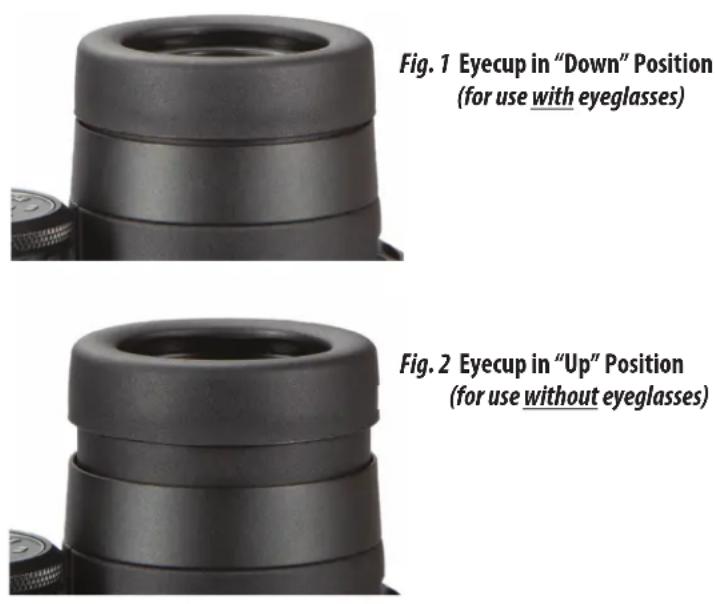

Your Bushnell Engage binocular is fitted with eyecups (Fig. 1, next page) that provide a comfortable view of the full image and help to exclude extraneous light. For use without eyeglasses or sunglasses, twist up the eyecups (Fig. 2, next page). This will place your eyes farther from the binocular's ocular lenses, at the correct eye relief distance, allowing you to see the full field of view.

IPD (INTERPUPILLARY DISTANCE) ADJUSTMENT

The spacing between the pupils of your eyes, called "interpupillary distance," varies from person to person. To match your binoculars to your IPD or "eye to eye" width:

1. Point them at a white wall or blank area of the sky. Hold the binoculars and view through them as you normally would. Don't worry about focus yet.

2. Grasp each side of the binocular firmly. Move the left and right sides closer together or farther apart (Fig. 3, next page) until you see a single image with no shaded areas.

FOCUS AND DIOPTER ADJUSTMENT

1. First, adjust the eyecups and IPD as described in the previous sections.
2. Using the attached lens cap or your hand, cover the objective lens on the right side of the binocular.
3. Using the center focus knob, focus on a distant object with fine detail (e.g., brick wall, tree branches, etc) until it appears as sharp as possible when viewed through the left side of the binocular.
4. Uncover the objective lens on the right side, and cover the left objective lens while continuing to view the same object.
5. Rotate the diopter adjustment ring located directly below the right eyecup (Fig. 4), NOT the center focus knob to bring the object into focus in the right side of the binocular. On the "BEN" prefix models (not BENX or BENDX), be sure to unlock the diopter ring first by pulling it up (see Fig. 4). Avoid over-turning or forcing the diopter mechanism. If you are unable to bring the object into focus for your right eye by adjusting the diopter ring, make sure the left side is still in focus (repeat steps #2-4 if necessary). The diopter adjustment essentially provides "fine focus" on one side of the binocular (right only) to allow for slight differences in the vision of your left and right eyes.

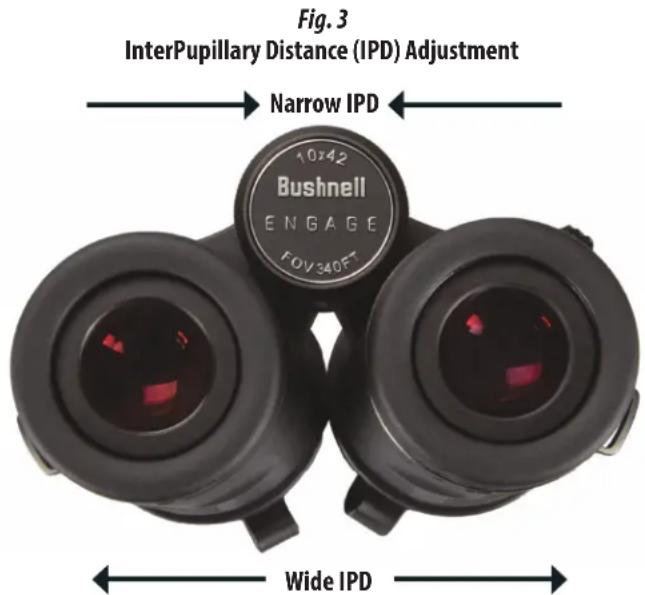

Fig. 3 InterPupillary Distance (IPD) Adjustment Narrow IPD Bushnell ENGAGE FOV340F Wide IPD

1. Your binocular should now be adjusted for your eyes. Focusing for any distance can now be done simply by turning the center focus knob. Make a note of your diopter setting (position of plus and minus marks on diopter ring relative to index mark on binocular below the ring) for future reference in case the ring is moved accidentally or by another person using your binocular. The diopter ring can be pushed down to lock it in place on the "BEN" prefix models (not BENX or BENDX) to reduce the chance of accidentally moving the ring once it has been set for your vision.

Close-up of a black cylindrical device with a circular top and side connectors (no visible text or symbols)

Fig. 4 Diopter Adjustment Ring (Unlocked-model BEN1042)

NECKSTRAP ATTACHMENT

To attach the neckstrap, thread the ends of the neckstrap through the strap lug (Fig. 5) on each side of the binocular, then back through the plastic buckle on the strap (Fig. 6). Adjust the position of the binoculars on your chest as they hang around your neck to your preference, by changing the length of the strap section which passes through the strap channel and buckle by an equal amount on each side. If you prefer to use an aftermarket strap that has metal O-rings, attach them to a plastic zip tie placed on the strap lugs rather than installing them directly on the lug, to avoid damaging the finish on the binocular via contact with the rings.

Close-up of a black mechanical component with a handle and textured surface (no visible text or symbols)

Fig. 5 Strap Lug

Fig. 6 Strap/Buckle

TRIPOD MOUNTING

To attach the binocular to a tripod or monopod, unscrew the cap which covers the threaded socket at the far end of the center hinge (Fig. 7), and set it aside in a safe place. Use a compatible binocular tripod adapter accessory (90° angle bracket), such as the Bushnell #161002CM, to attach your Engage binocular to any standard tripod in a horizontal position to provide a stable image during prolonged viewing.

Close-up of a black mechanical knob with a circular dial labeled 'B' (no text or symbols beyond the label)

Fig. 7 Tripod Socket Cap

WATERPROOF / FOGPROOF

Getting caught in a heavy downpour of rain, or accidentally splashing your Engage binocular during a boating excursion won't be a problem. The binocular is manufactured and tested to withstand water exposure up to IPX7 standards. Fogproof protection is achieved from dry Engagegen purging that removes all internal air, which can retain moisture.

All exterior lens surfaces have our new EXO Barrier™ coating (in addition to full multi-coating). EXO Barrier, quite simply, is the best protective lens coating technology Bushnell has ever developed. Added at the end of the coating process, EXO Barrier molecularly bonds to the lens and fills the microscopic pores in the glass. The result is an ultra-slick coating that repels water, oil, fog, dust and debris - rain, snow, fingerprints and dirt will not stick. EXO Barrier is built to last: the bonded coating will not fade with the passage of time or normal wear and tear.

CARE OF THE OPTICS

1. Your Bushnell Engage binocular will provide years of trouble-free service if it receives the normal care you would give any fine optical instrument.
2. Avoid sharp impacts. Set the binocular down gently on hard surfaces.
3. Tug on the strap after attaching, making sure it is securely fastened to the binocular before placing it around your neck.
4. Store your binocular in a cool, dry place whenever possible.

CLEANING

1. First, blow or brush away any dust or debris on the lens (using "canned air" or a soft lens brush).
2. To remove dirt or finger prints, clean with the supplied soft storage bag (made of washable micro-fiber cloth), rubbing in a circular motion. Use of a coarse cloth (including paper towels) or unnecessary rubbing may scratch the lens surface and eventually cause permanent damage. The included storage bag/micro-fiber cloth is ideal for the routine cleaning of your optics. Simply breathe lightly on the lens to provide a slight amount of moisture, then gently rub the lens with the micro-fiber cloth.
3. For a more thorough cleaning, photographic lens tissue and photographic lens cleaning fluid or isopropyl alcohol may be used. Always apply the fluid to the cleaning cloth - never directly on the lens.
4. To prevent potential damage to the optical coatings on the binocular's lens surfaces, never use household window cleaning liquids. Avoid using facial tissue or clothing that may have fibers which can be abrasive and hold oils or dirt.

Technical Specifications

SKU	Magnification	Objective Diameter	Lens/Prism Coatings	Field of view ft@1000yds/m@1000m	Exit Pupil (mm)	Eye Relief (mm)	Close Focus (ft/m)	Length (in/mm)	Weight (oz/g)
BENX-1042/1042RB	10x 42	MM FMC, EXO	305 / 102 4.1 18 15 / 4.5 5.9/150 21.9 / 620
BENDX1042 10x	42 MM	FMC, EXO, Dielectric	340 / 113 4.2 19 12 / 4.5 5.8/147 23.5 / 666
BENDX1250 12x	50 MM	FMC, EXO, Dielectric	275 / 92 4.2 18 10 / 4.5 6.7/170 30.2 / 856
BEN842* 8x 42	MM FMC, EXO, Dielectric, PC3,UltraWide Band			426 / 142 5.3 17	6 / 2 5.5/140 23.5 / 666
BEN1042*	10x 42	MM FMC, EXO, Dielectric, PC3,UltraWide Band		340 / 113 4.2 15	8 / 2 5.5/140 23.5 / 666
BEN1050*	10x 50	MM FMC, EXO, Dielectric, PC3,UltraWide Band		340 / 113 5.0 15 10 / 3	6.5/165	29.2 /828
BEN1250*	12x 50	MM FMC, EXO, Dielectric, PC3,UltraWide Band		280 / 93 4.1 15 10 / 3	6.5/165	29.2 /828

* models with ED Prime glass and locking diopter ring

Coating Technology Guide

• FMC : Fully Multi Coated. All air-to-glass lens surfaces (interior and exterior) have multiple anti-reflective coatings.
  • EXO Barrier: Patented Bushnell exclusive hydrophobic/oleophobic external lens coating
  • Dielectric: Applied to the prisms, it ensures vivid color reproduction and allows 92% light transmission
  • PC3: Prism Phase Coating. Applied to the prisms, it enhances resolution and contrast.
• UltraWide Band: An anti-reflection coating process that is customized for every lens element in the optical path, delivering optimum brightness and true color across the visible light spectrum.

Bushnell® LIFETIME IRONCLAD WARRANTY

Products manufactured on or after April 2017 are covered by the Bushnell Lifetime Ironclad Warranty. The Ironclad Warranty is a full lifetime warranty that covers the lifetime of this Product. Each Product has a defined lifetime; lifetimes can range from 1 to 30 years. This Product's lifetime can be found at the website listed below and/or on the Bushnell webpage specific to this Product.

We warrant that this Product is free from defects in materials and workmanship and will meet all represented performance standards for the lifetime of this Product. If this Product isn't working properly due to a covered defect, we will, at our option, either repair or replace it and ship it back to you at no charge. This warranty is fully transferable and does not require a receipt, warranty card, or product registration. This warranty does not cover the following: electronic components; batteries; cosmetic damage; damage caused by failing to properly maintain the product; loss; theft; damage as a result of unauthorized repair, modification, or disassembly; intentional damage, misuse, or abuse; and ordinary wear and tear. This Warranty will be void if the date stamp or other serialization codes have been removed from the Product.

To view the full warranty and find details on how to request service under the warranty, go to our website at www.bushnell.com/warranty. Alternatively, you can request a copy of the warranty by calling us at 1-800-423-3537 or writing to us at one of the following addresses:

IN U.S.A. Send To: IN CANADA Send To:

Bushnell Holdings, Inc. Bushnell Holdings, Inc.

Attn.: Repairs

Attn.: Repairs

9200 Cody 140 Great Gulf Drive, Unit B

Overland Park, Kansas 66214 Vaughan, Ontario L4K 5W1

For products purchased outside the United States or Canada please contact your local dealer for applicable warranty information.

This warranty gives you specific legal rights.

You may have other rights which vary from country to country.

©2020 Bushnell Outdoor Products

FRANÇAIS

RANÇAIS A F B C EN GAGE D E

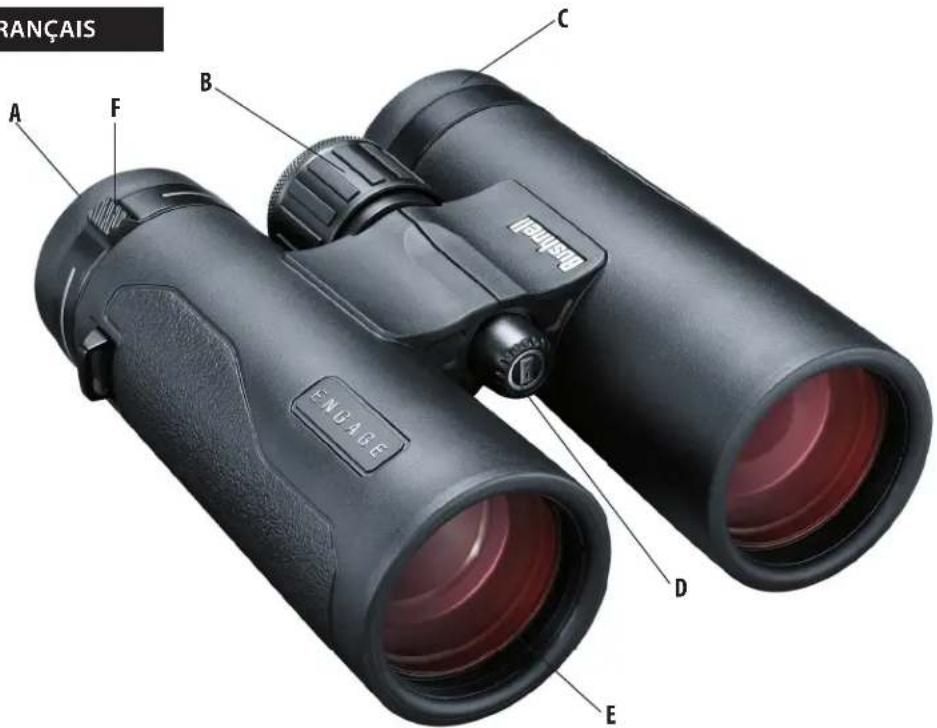

GUIDE DES PIÈCES

Lentille oculaire A

Close-up of a black cylindrical object with a circular top and side connectors (no visible text or symbols)

Close-up of a black cylindrical object with layered structure (no visible text or symbols)

Close-up of a black cylindrical object with layered top and bottom (no visible text or symbols)

Close-up of a black mechanical component with a handle and textured surface (no visible text or symbols)

Close-up of a car wheel knob with a circular dial indicator (no text or symbols visible)

Bushnell Holdings, Inc.

Bushnell Holdings, Inc.

Attn.: Repairs

Attn.:

Repairs

9200 Cody

140 Great Gulf Drive, Unit B

Overland Park, Kansas 66214

Vaughan, Ontario L4K 5W1

©2020 Bushnell Outdoor Products

ESPAÑOL A F B C ENGAGE D E

GUÍA DE REPUESTOS

Lentes oculares A

Close-up of a black cylindrical object with a circular top and side connectors (no visible text or symbols)

Close-up of a black cylindrical object with layered top and side, no visible text or symbols

Close-up of a black plastic mechanical component with layered ridges (no text or symbols visible)

Close-up of a black cylindrical object with textured surface and handle (no visible text or symbols)

Fig. 5 Lengüeta de correa
Fig. 6 Correa y hebilla

MONTAJE DEL TRÍPODE

Close-up of a black mechanical component with a circular knob and a letter 'B' on its side (no text or symbols visible)

Bushnell Holdings, Inc. Bushnell Holdings, Inc.

Attn.: Repairs

Attn.: Repairs

9200 Cody 140 Great Gulf Drive, Unit B

Overland Park, Kansas 66214 Vaughan, Ontario L4K 5W1

© 2020 Bushnell Outdoor Products

DEUTSCH A F B C ENGAGE D E

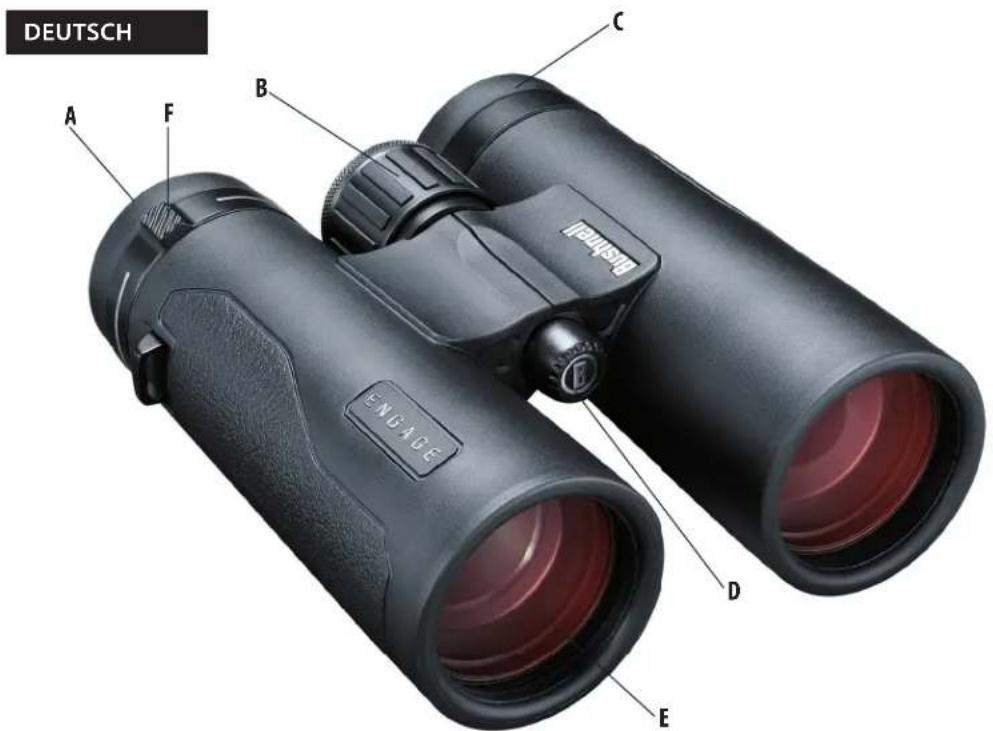

BAUTEILE

Okularlinse A

Close-up of a black cylindrical mechanical component with no visible text or symbols

Close-up of a black cylindrical object with layered top and bottom (no visible text or symbols)

Close-up of a black cylindrical mechanical component with layered ridges (no text or symbols visible)

Close-up of a black mechanical component with a handle and textured surface (no visible text or symbols)

Abb. 5 Riemenöse

Close-up of a mechanical knob or dial with a circular head and letter 'B' on the knob (no text or symbols beyond the label)

Bushnell Holdings, Inc. Bushnell Holdings, Inc.

Attn.: Repairs

Attn.: Repairs

9200 Cody 140 Great Gulf Drive, Unit B

Overland Park, Kansas 66214 Vaughan, Ontario L4K 5W1

© 2020 Bushnell Outdoor Products

ITALIANO A F B C ENGAGE D E

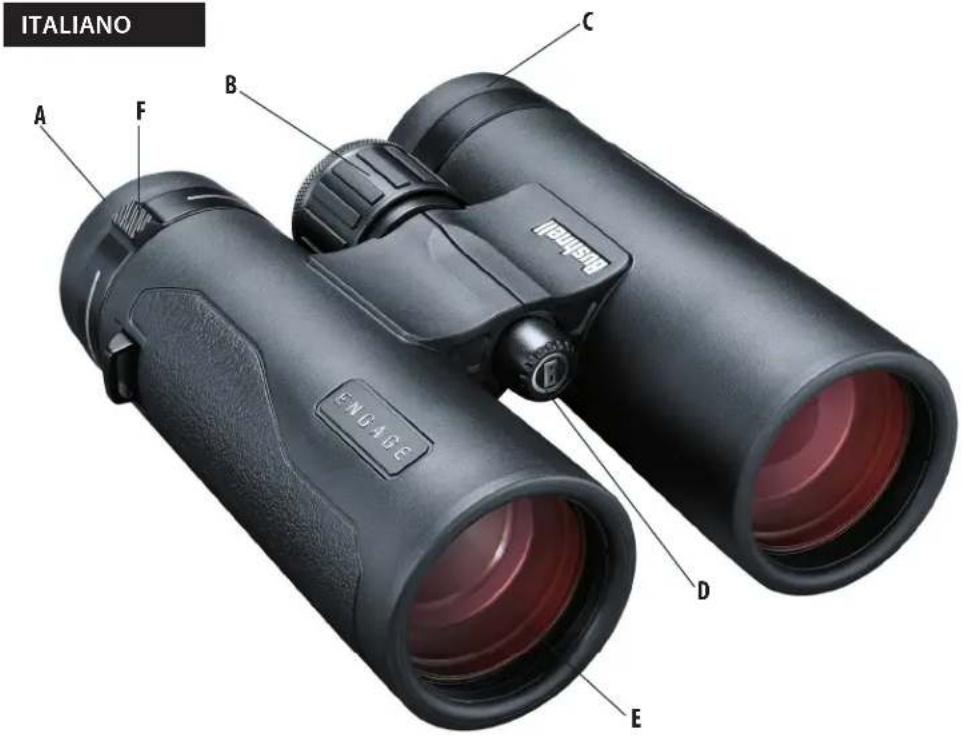

GUIDA ALLE PARTI

Lente oculare A

Close-up of a black cylindrical object with a circular opening, possibly a lens or cap (no visible text or symbols)

Close-up of a black cylindrical object with layered top and side (no visible text or symbols)

Close-up of a black cylindrical mechanical component with layered ridges (no text or symbols visible)

Close-up of a black mechanical component with a handle and textured surface (no visible text or symbols)

Close-up of a black mechanical knob with a circular button labeled 'B' (no additional text or symbols visible)

Fig. 7 Tappo presa per treppiede

MODELLI IMPERMEABILI/ANTI-APPANNAMENTO

Bushnell Holdings, Inc. Bushnell Holdings, Inc.

Attn.: Repairs

Attn.: Repairs

9200 Cody 140 Great Gulf Drive, Unit B

Overland Park, Kansas 66214 Vaughan, Ontario L4K 5W1

©2020 Bushnell Outdoor Products
