USER MANUAL PCWKS 1228 G PROFICOOK

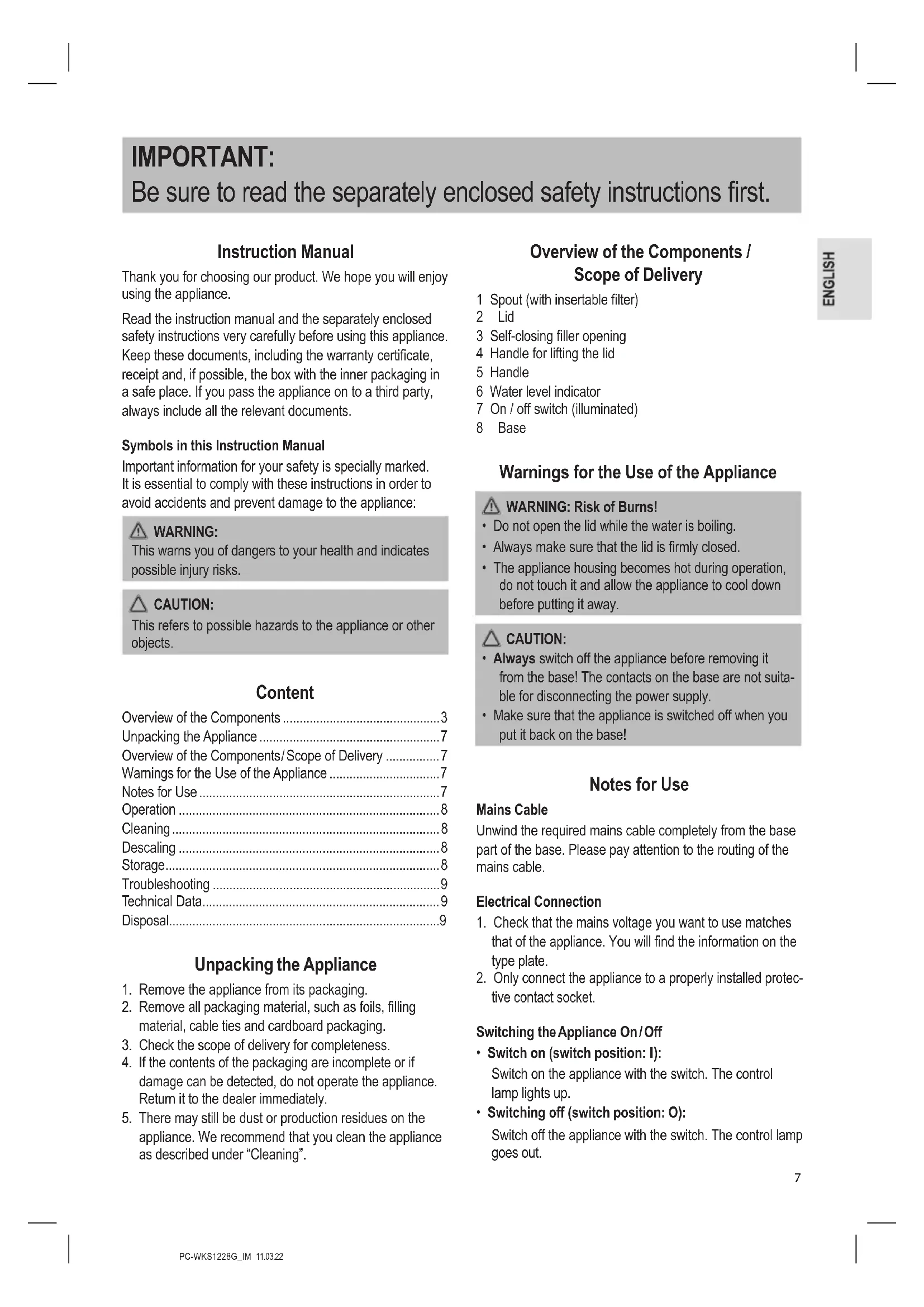

IMPORTANT: Be sure to read the separately enclosed safety instructions rst. Instruction Manual Thank you for choosing our product. We hope you will enjoy using the appliance. Read the instruction manual and the separately enclosed safety instructions very carefully before using this appliance. Keep these documents, including the warranty certicate, receipt and, if possible, the box with the inner packaging in a safe place. If you pass the appliance on to a third party, always include all the relevant documents. Symbols in this Instruction Manual Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

1. Remove the appliance from its packaging.

2. Remove all packaging material, such as foils, lling

material, cable ties and cardboard packaging.

3. Check the scope of delivery for completeness.

4. If the contents of the packaging are incomplete or if

damage can be detected, do not operate the appliance. Return it to the dealer immediately.

5. There may still be dust or production residues on the

appliance. We recommend that you clean the appliance as described under “Cleaning”. Overview of the Components / Scope of Delivery 1 Spout (with insertable lter) 2 Lid 3 Self-closing ller opening 4 Handle for lifting the lid 5 Handle 6 Water level indicator 7 On / off switch (illuminated) 8 Base Warnings for the Use of the Appliance

WARNING: Risk of Burns!

• Do not open the lid while the water is boiling.

• Always make sure that the lid is rmly closed.

• The appliance housing becomes hot during operation, do not touch it and allow the appliance to cool down before putting it away. CAUTION:

• Always switch off the appliance before removing it from the base! The contacts on the base are not suita- ble for disconnecting the power supply.

• Make sure that the appliance is switched off when you put it back on the base! Notes for Use Mains Cable Unwind the required mains cable completely from the base part of the base. Please pay attention to the routing of the mains cable. Electrical Connection

1. Check that the mains voltage you want to use matches

that of the appliance. You will nd the information on the type plate.

2. Only connect the appliance to a properly installed protec-

tive contact socket. Switching the Appliance On / Off

• Switch on (switch position: I): Switch on the appliance with the switch. The control lamp lights up.

• Switching off (switch position: O): Switch off the appliance with the switch. The control lamp goes out.PC-WKS1228G_IM 11.03.22

Preparation Before using the appliance for the rst time, boil it 3 times with fresh water. Use only clear water without additives. Operation

1. Place the appliance on a at surface.

2. Close the appliance with the lid. It must audibly click into

place. Always make sure that the lid is rmly closed.

3. Fill in clear water through the ller opening (maximum

0.5 litres). You can read the ll level on the appliance’s

water level indicator. - Always use fresh, cold water. - The water level must be between the MIN and MAX marks. - You do not need to remove the lid to ll in water. There is a self-closing ller opening in the lid. The ap opens automatically when water pressure is applied.

4. Place the kettle ush on the base.

5. Switch on the appliance with the switch. The control

lamp lights up. Interrupting / Ending Operation There are two ways to interrupt or end the cooking process:

1. The appliance switches off automatically after the cook-

ing process. The control lamp goes out.

2. To end or interrupt the cooking cycle prematurely, set the

switch to the O position. - Always switch off the appliance before removing it from the base! The contacts on the base are not suitable for disconnecting the power supply. - Make sure that the appliance is switched off when you put it back on the base!

• Unplug the mains plug from the socket.

• Empty the water container. - Only hold the appliance by the handle. - Keep the lid closed when pouring out. - Open and close the lid only with the handle on the lid.

• The appliance becomes hot during operation, do not touch it and allow the appliance to cool down before putting it away. Cleaning

• Always switch off the appliance and disconnect the mains plug from the socket before cleaning. Wait until the appliance has cooled down.

• Do not immerse the appliance or the base in water or other liq- uids. It could cause an electric shock or re. CAUTION:

• Do not use a wire brush or other abrasive objects.

• Do not use sharp or abrasive cleaning agents.

• Clean the insert lter at the spout with a nylon brush.

• Rinse the water reservoir with clean water. Dry it with a cloth.

• Clean the lid and the housing after use with a slightly damp cloth. Descaling

• The intervals for descaling depend on the hardness of the water and the frequency of use.

• If the appliance switches off before the water boils, descaling is necessary.

• Do not use vinegar, but a commercially available des- caling agent based on citric acid. Dose according to the instructions.

• After descaling, boil fresh water several times (approx. 3 to 4 times) to remove residues. Do not use this water for consumption. Storage

• Clean the appliance as described and allow it to dry completely.

• We recommend storing the appliance in its original packaging if you do not intend to use it for a long period of time.

• Always store the appliance out of the reach of children in a well-ventilated and dry place. Winding Device for Mains Cable You can wind up the mains cable at the bottom part.PC-WKS1228G_IM 11.03.22

Troubleshooting Problem Possible Cause Remedy The appliance does not switch on. The appliance has no power supply. Check the power socket with another appliance. Insert the mains plug correctly. Check the house fuse. The appliance is defective. Contact our service department or a specialist. After operating without water or with too little water, the appliance has not yet cooled down sufciently. Let the appliance cool down for 15 minutes. The appliance switches off before cooking. The inside of the kettle is heavily calcied or the power socket circuit is overloaded. Descale according to instructions. Check the mains connection. The appliance does not switch off. The lid is not closed. Close the lid until it clicks into place. Technical Data Model:..........................................................PC-WKS 1228 G Power supply:.....................................220 – 240 V~, 50 – 60 Hz Power consumption: .......................................... 900 – 1100 W Protection class: ..................................................................... Filling capacity: ................................................. max. 0.5 litres Net weight: ..................................................... approx. 0.74 kg The right to make technical and design modications in the course of continuous product development remains reserved. This appliance has been tested according to all applicable, current CE directives and built according to the latest safety regulations. Disposal Meaning of the “Dustbin” Symbol Protect our environment: do not dispose of elec- trical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment. Information concerning where the equipment can be disposed of can be obtained from your local authority. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.PC-WKS1228G_IM 11.03.22
