| Product type | Water detector |
| Brand | Schabus |
| Model | SHT 240 |
| Article number | 300240 |
| Power supply | 230 V AC (+/-10%) / 50-60 Hz |
| Power consumption | Approximately 3 W |
| Operating range | -15°C to +40°C |
| Protection type | IP 20 |
| Sound pressure (buzzer) | 90 dB at 10 cm |
| Cable length | 2.8 m |
| External dimensions (H x W x D) | 118 x 60 x 44 mm |
| Main functions | Water detection, audible and visual alarm (red LED), operation indicator (green LED) |
| Installation | Indoor only; sensor to be fixed near the floor; plug into 230 V socket |
| Maintenance and cleaning | Clean with a dry lint-free cloth, slightly dampened if necessary; avoid solvents |
| Safety | Do not open the device; installation by a qualified technician; keep out of reach of children |
| Warranty | Statutory warranty against material defects and quality defects |
| Delivery contents | Water detector SHT 240 with sensor, user manual, installation materials (screws, wall plugs) |
| Country of origin | Germany (Elektrotechnik Schabus GmbH & Co. KG) |
| Environmental information | Recycling via recovery systems (WEEE No. 91394868) |
Frequently Asked Questions - SHT 240 Schabus
User questions about SHT 240 Schabus
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Alarm system in PDF format for free! Find your manual SHT 240 - Schabus and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SHT 240 by Schabus.
USER MANUAL SHT 240 Schabus

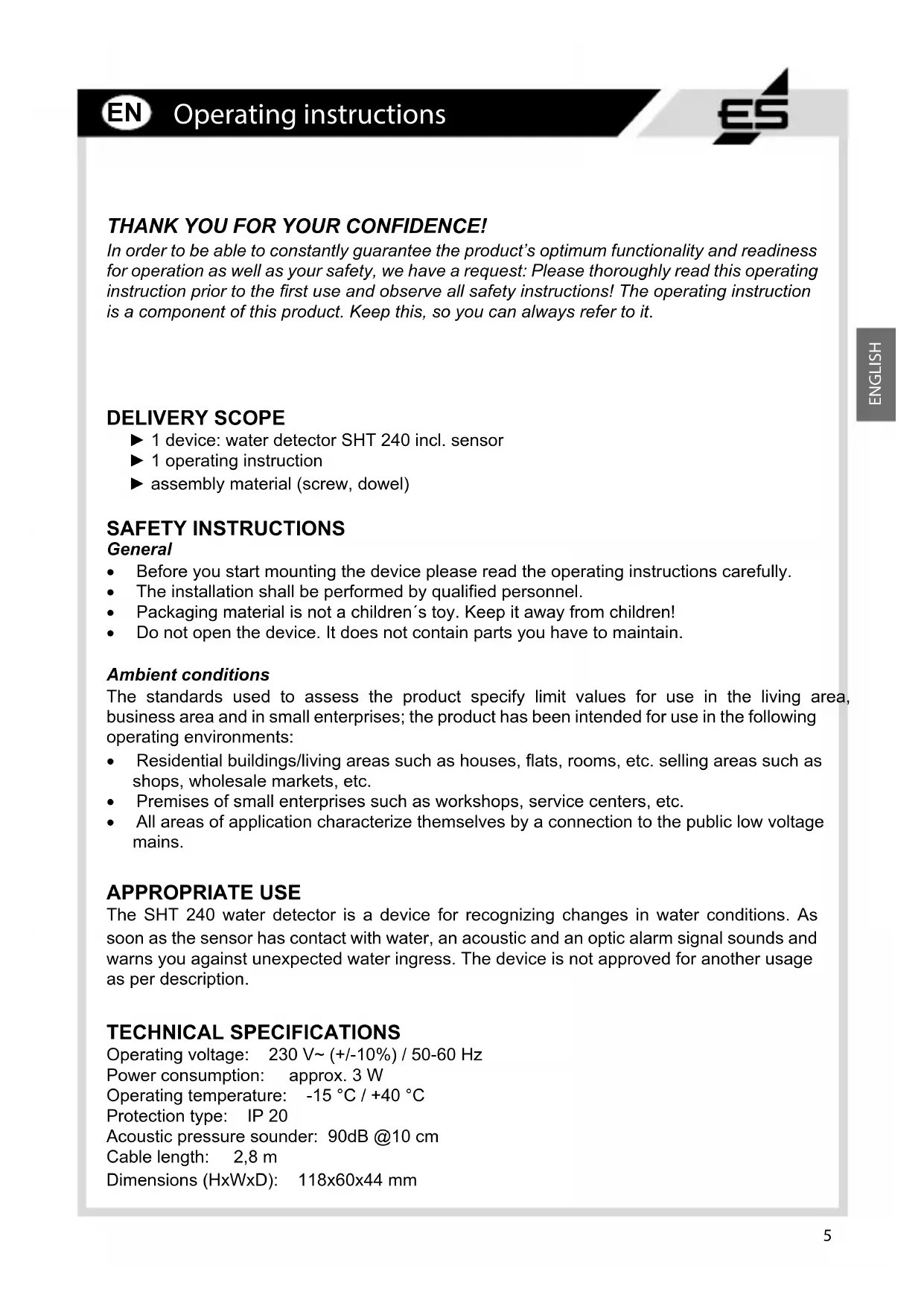

Operating instructions
Water detector SHT 240 - Item no.: 300240
In order to be able to constantly guarantee the product's optimum functionality and readiness for operation as well as your safety, we have a request: Please thoroughly read this operating instruction prior to the first use and observe all safety instructions! The operating instruction is a component of this product. Keep this, so you can always refer to it.
DELIVERY SCOPE
▶ 1 device: water detector SHT 240 incl. sensor
▶ 1 operating instruction
▶ assembly material (screw, dowel)
SAFETY INSTRUCTIONS
General
• Before you start mounting the device please read the operating instructions carefully.
• The installation shall be performed by qualified personnel.
- Packaging material is not a children's toy. Keep it away from children!
- Do not open the device. It does not contain parts you have to maintain.
Ambient conditions
The standards used to assess the product specify limit values for use in the living area, business area and in small enterprises; the product has been intended for use in the following operating environments:
- Residential buildings/living areas such as houses, flats, rooms, etc. selling areas such as shops, wholesale markets, etc.
- Premises of small enterprises such as workshops, service centers, etc.
- All areas of application characterize themselves by a connection to the public low voltage mains.
APPROPRIATE USE
The SHT 240 water detector is a device for recognizing changes in water conditions. As soon as the sensor has contact with water, an acoustic and an optic alarm signal sounds and warns you against unexpected water ingress. The device is not approved for another usage as per description.
TECHNICAL SPECIFICATIONS
Operating voltage: 230 V\~ (+/-10%) / 50-60 Hz
Power consumption: approx. 3 W
Operating temperature: -15 °C / +40 °C
Protection type: IP 20
Acoustic pressure sounder: 90dB @10 cm
Cable length: 2,8 m
Dimensions (HxWxD): 118x60x44 mm
INSTALLATION INSTRUCTION
Warning: Do not use the device outside!

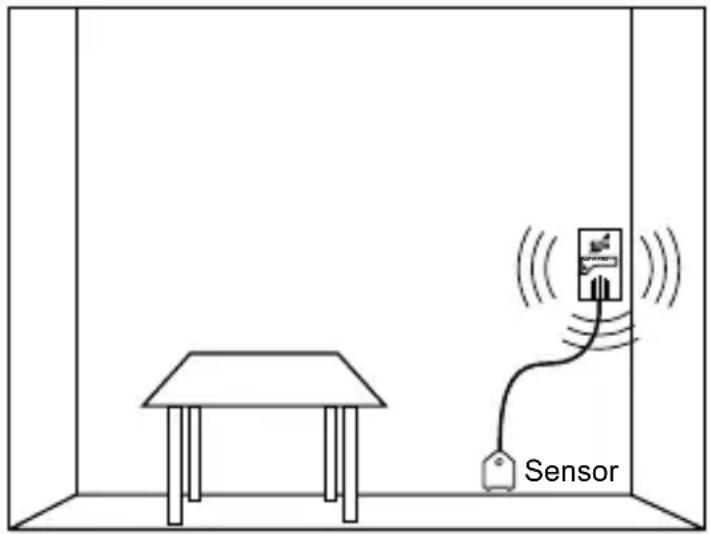

Sensor installation
The sensor reacts to water contact at the two metal contacts.
The assembly height of the sensor defines, at what level the water detector will sound an alarm.
For quick warning in case of water ingress, you mount the sensor close to the floor, so both sensor contacts touch the ground.
For installing the sensor use the provided assembly material.
The SHT 240 water detector just has to be plugged into the socket (230 V AC / 50-60 Hz). The LED (Function) lights up green and signals that the device is ready for use.
ALARM
As soon as the sensor has contact with water, an acoustic and an optic alarm signal sounds. The LED lights up red. When the water level sinks, the alarm is switched off.
FUNCTION TEST
Function test of the device: touch both sensor contacts with a waterlogged cloth or an electric conductive metal and the alarm is set off immediately. When you remove the cloth or the metal, the alarm is switched off.
For your safety, we recommend that you carry out this test constantly!
GENERAL
Elektrotechnik Schabus GmbH & Co. KG is not liable for damages and/or losses of any kind such as individual damages or consequential damages brought about by the water detector not issuing an alarm despite any changes in water conditions.
CLEANING AND CARE
Avoid the effects of moisture (spray or rain water), dust as well as direct insolation on the device. Clean the device exclusively with a dry linen cloth; in case of heavy dirt accumulation, it may be slightly moistened. Do not use any detergents containing solvents.
DECLARATION OF CONFORMITY
The declaration of conformity can be obtained from our website: www.shop.elektrotechnik-schabus.de
WARRANTY
We grant an implied warranty on material and quality defects of your electronic product by Elektrotechnik Schabus from the date of purchase. Elektrotechnik Schabus will repair or replace your device free of charge on the following conditions:
- In case of implied warranty, the device has to be returned with the following documents: error description, proof of purchase as well as your address and delivery address (name, phone number, street, house number, postcode, city, country).
- Devices returned to Elektrotechnik Schabus shall be sufficiently packaged. Elektrotechnik Schabus will not take liability for any damage or loss during shipment.
- The device has to have been used in accordance with the operating instructions. Elektrotechnik Schabus will not take liability for any damage resulting from accident, abuse, modifications or carelessness.
- Elektrotechnik Schabus will not take liability for any loss, damage or costs resulting from the use of the devices or the accessory equipment.
- The warranty does not affect your statutory rights as consumer.
RETURN SHIPMENT
Should your device be defective, we offer you the following option:
Contact Elektrotechnik Schabus by
Phone +49 (0) 80 36 / 67 49 79 - 0
Fax +49 (0) 80 36 / 67 49 79 - 79
Email info@elektrotechnik-schabus.de
ENVIRONMENTAL INFORMATION
For the production of the purchased product, natural raw materials had to be obtained and used. It may contain substances hazardous to health and the environment.
In order to avoid the distribution of these substances in your environment and save natural resources, we ask you to use the appropriate take-back systems. Thanks to these systems, the materials of your product can be recycled in an environmentally friendly way, after its service life has expired. (WEEE-NO: 91394868)
The strike-through wastepaper basket symbol reminds you of the use of these systems.
Should you wish to obtain more information on collection, reuse and recycling systems, please refer to the waste advisory service in your city. You may also refer to us to obtain more information on the environmental compatibility of our products.
