Chimenea eléctrica

TORONTO P

Many thanks for choosing to purchase a TAURUS ALPATEC brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SAFETY ADVICE AND WARN- INGS

- CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- The appliance must not be placed below a power socket.

- Children of less than 3 years should be kept away unless continuously supervised.

- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Cleaning and user maintenance shall not be made by children unless they are supervised.

- Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- Do not use the appliance near bathtubs, showers or swimming pools.

- WARNING: This appliance is not equipped with a device to control the room temperature. Do not use this appliance in small rooms when they are occupied by persons not capable or leaving the room on their own, unless constant supervision is provided.

- CAUTION: In order to avoid a hazard due to inadvertent

resetting of the thermal protector, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

- If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

- This appliance is for household use only, not professional, industrial use.

is symbol means that product can't be covered.

- CAUTION: In order to prevent overheating do not cover the appliance.

• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
• Connect the appliance to a socket that can supply a minimum of 10 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• If other gas or fuel appliances can be used at the same time in the room where the appliance is to be used, that room must be well ventilated.
• The appliance must be used and placed on a flat, stable surface.
• Keep the appliance away from flammable material such as textiles, cardboard or paper, etc.
• Do not place inflammable material near the appliance.
• Do not use the appliance in association with a

programmer, timer or other device that automatically switches it on.

• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• CAUTION: Maintain the appliance dry.
• CAUTION: Do not use the appliance near water.
• Do not use the appliance with damp hands or feet, or when barefooted.
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
• Do not clip or crease the power cord.
• Do not allow the power cord to come into contact with the appliance's hot surfaces.
• Keep the appliance well away from heat sources, oil, sharp edges or moving parts.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• The appliance is not suitable for outdoor use.
• Supply cord should be regularly examined for signs of damage, and if the cord is damaged, the appliance must not be used.
• Do not use or store the appliance outdoors.
• Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
• Do not touch the plug with wet hands.
• This appliance cannot be built-in the wall.
• Do not use any other decorative element that is not supplied with the appliance.

USE AND CARE:

• Do not use the appliance if the on/off switch does not work.
• Do not use the appliance if it is tipped up and do not turn it over.
• Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
• Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.

• Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.

• Do not use the appliance to dry textiles of any kind.

• CAUTION: User can't sleep when appliance is under use; there is a risk of injuries.

SERVICE:

• Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.
• CAUTION: There is a risk of fire if the appliance's cleaning is not done according to these instructions.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

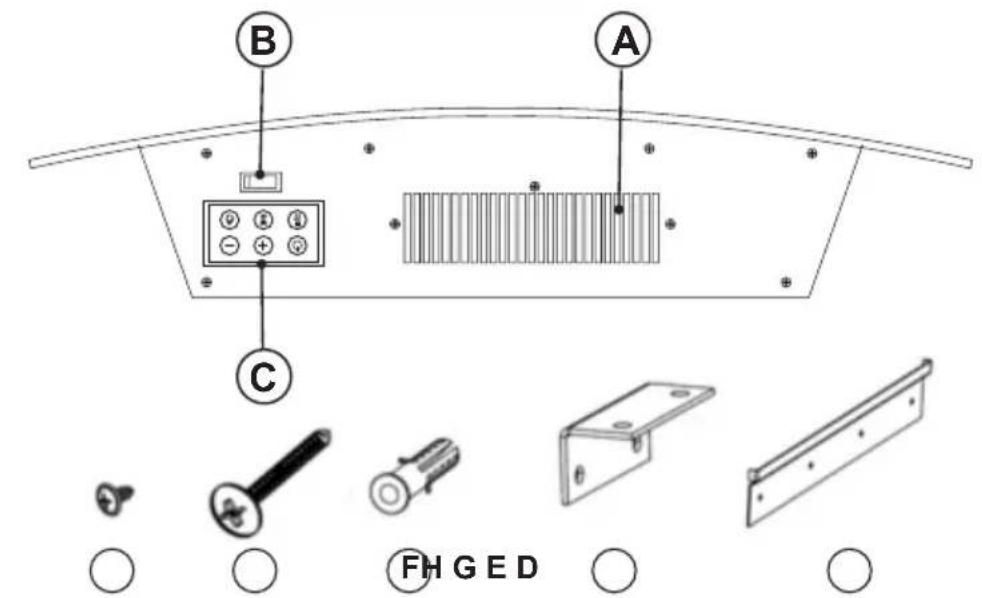

DESCRIPTION

A Air outlet
B On/Of switch
C Control panel
D Top wall bracket
E L-shape
F Plastic expansion screw
G Wall screws
H L-shape fixing screws

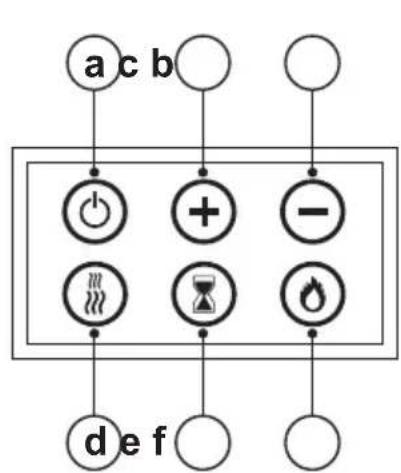

CONTROL PANEL

a On/off button
b - button
c + button
d Low/high heating power button
e Clock button
f Intensity of flame button

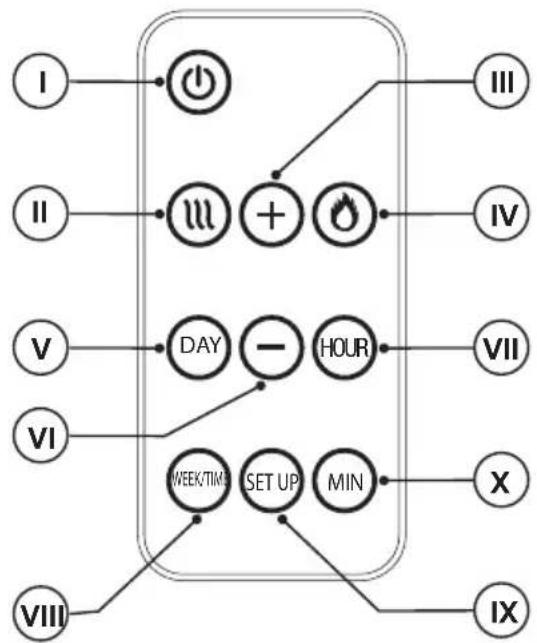

REMOTE CONTROL

I On/off button
II Low/high heating power button
III + button
IV Intensity of flame button
V Days button
VI - button
VII Hours button
VIII Weekly program button
IX Set up button
X Minutes button

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

INSTALLATION:

- Install the appliance away from flammable material such as textiles, cardboard or paper, etc.

• Install the appliance a minimum distance of 50cm away from combustible materials, such as curtains, furniture ...
• Ensure that neither the air access nor exit become either totally or partially covered by drapery, clothing, etc., as this increases the risk of fire.
• The appliance requires suitable ventilation in order to work properly. Leave a space of 30 cm between walls or other obstacles and 60 cm from the floor.
• Do not cover or obstruct any of the openings of the appliance.
• The plug must be easily accessible so it can be disconnected in an emergency.
• To achieve the highest efficiency from the appliance it should be situated in a place where the atmospheric temperature is between 12 and 32°C.
• To achieve the highest efficiency from the appliance and so as to be able to install the appliance on a cold wall (an exterior wall) and below a window. But never obstructing or covering a ventilation area.
• The appliance should work well with its wall support attached or with its base/feet attached.
• The appliance has a wall bracket (D) which must be fixed to the wall.
• Ensure that the appliance is properly and safely fixed in his working position with screws. To avoid damaging the appliance, on recommend to use only the holes specifically made by the manufacturer.

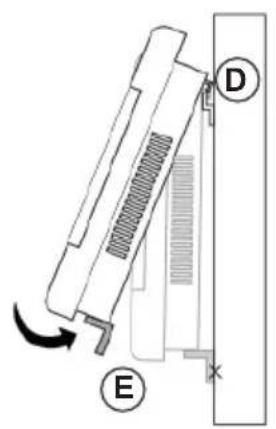

ASSEMBLING THE WALL BRACKET:

• The appliance has a wall bracket (D) on which it can be supported.
• Taking into account the separation distances mentioned above, place the wall support in the required position and mark the drilling points on the wall. (Fig.1).
• Drill into the wall where marked and insert the rawlplugs. (Fig.1).
• Place the wall support (D) by matching the holes with the rawlplugs and screw in firmly. (Fig.1).
• Make sure that the bracket is firmly fixed; it should be able to support twice the weight of the appliance.
• Screw the L-shape (E) onto the appliance using the screws (H).
• Fit the appliance into the wall bracket (D) and screw L-shape to the wall.

ASSEMBLING THE STONES:

- The appliance has two finishes, charcoal or stone.

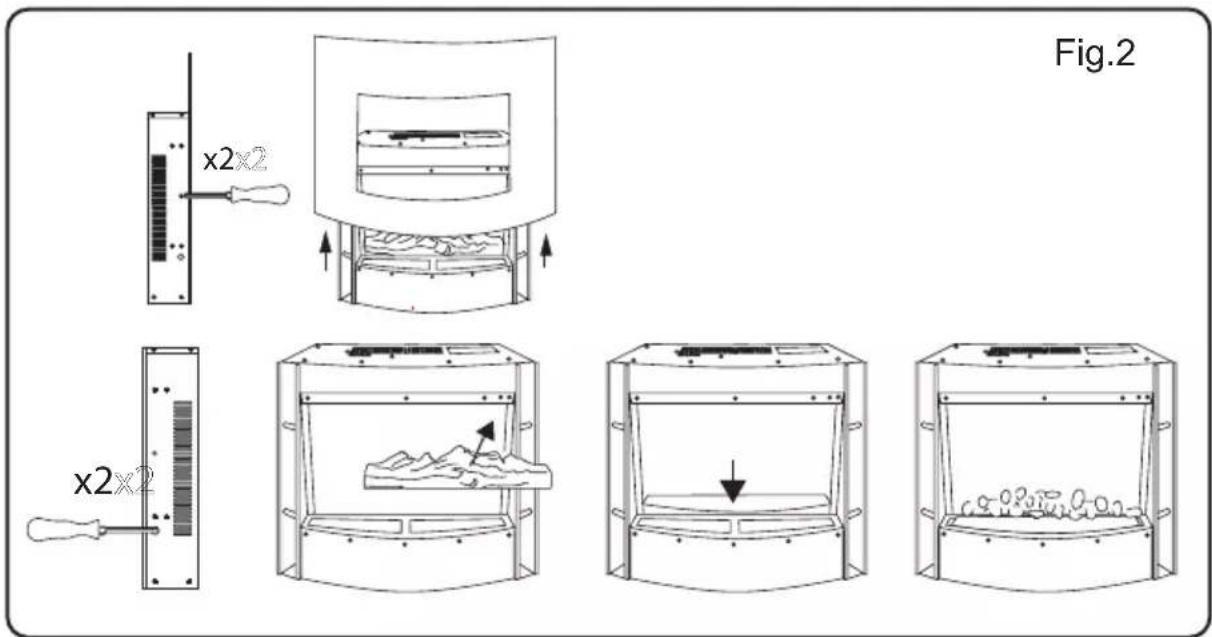

- If you want to finish the stone, see the instructions (Fig.2).

INSTRUCTIONS FOR USE

BEFORE USE:

- Make sure that all products' packaging has been removed.

- To eliminate the smell given off by the appliance when used for the first time, it is recommended to have it on at full power for 2 hours in a well-ventilated room.

USE:

- Unroll the cable completely before plugging it in.

- Connect the appliance to the mains.

- Turn the appliance on, by using the on/off switch (B).

- Turn the appliance on, by using the on/off button (a) or (I). This button activates / deactivates all functions of the control panel, the remote control and the effect of the flame.

- The screen goes off after 30 seconds without pressing any button. To turn on the screen press the on/off button again.

HEAT INTENSITY

- Press the (d) or (II) button to select the heating power.

- Press +/- to select the temperature desired for each power (from 15 to 30°C).

- There are 3 positions: low power, high power and off.

FLAME INTENSITY

- Press the (f) or (IV) button to select the flame intensity.

- Every time the button pressed, the flame intensity change. There are 5 levels to choose.

TIME SET UP THROUGH THE CONTROL PANEL

- Press (e) button to adjust the days.

- Press +/- to set up the days.

- Press (e) button to adjust the hour.

- Press +/- to set up the hour.

- Press (e) button again to adjust the minutes.

- Press +/- to set up the minutes.

TIME SET UP THROUGH THE REMOTE CONTROL

- Press (VII) button to adjust the hour.

- Press +/- to set up the hour.

- Press (X) button to adjust the minutes.

- Press +/- to set up the minutes.

- Press (V) button to adjust the days.

- Press +/- to set up the days.

WEEKLY PROGRAM SET UP

- Press (VIII) button to start with the weekly program set up.

- Press (IX) button to select ON mode (to set up when the appliance will turn on).

- Press +/- to set up the day of the week.

- Press the (VII) button and then press +/- to adjust the hour.

- Press the (X) button and then press +/- to adjust the minutes.

- Press the (IX) to select OFF mode (to set up when the appliance will turn off).

- Repeat the same actions for all days of the week.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Turn the appliance off, using the on/off button.
• Turn the appliance off using the on/off switch.
• Unplug the appliance from the mains.
• Clean the appliance.

SAFETY THERMAL PROTECTOR:

• The appliance has a safety device, which protects the appliance from overheating.
• When the appliance switches itself on and off repeatedly, for reasons other than the thermostat control, check to ensure that there are no obstacles that impede correct air entry or expulsion.
• If the appliance turns itself off and does not switch itself on again, disconnect it from the mains supply, and wait for approximately 15 minutes before reconnecting. If the machine does not start again seek authorised technical assistance.

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.

• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.

• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

• Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.

ANOMALIES AND REPAIR

- Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

WARRANTYANDTECHNICALASSISTANCE

- This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

• You can find the closest one by accessing the following web link: www.taurus-home.com.
• You can also request related information, by contacting us (see the last page of the manual).
• You can download this instruction manual and its updates at www.taurus-home.com.

FOR EU PRODUCT VERSIONS AND/OR IN CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system.

Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment

(WEEE).

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements for energy-related products.

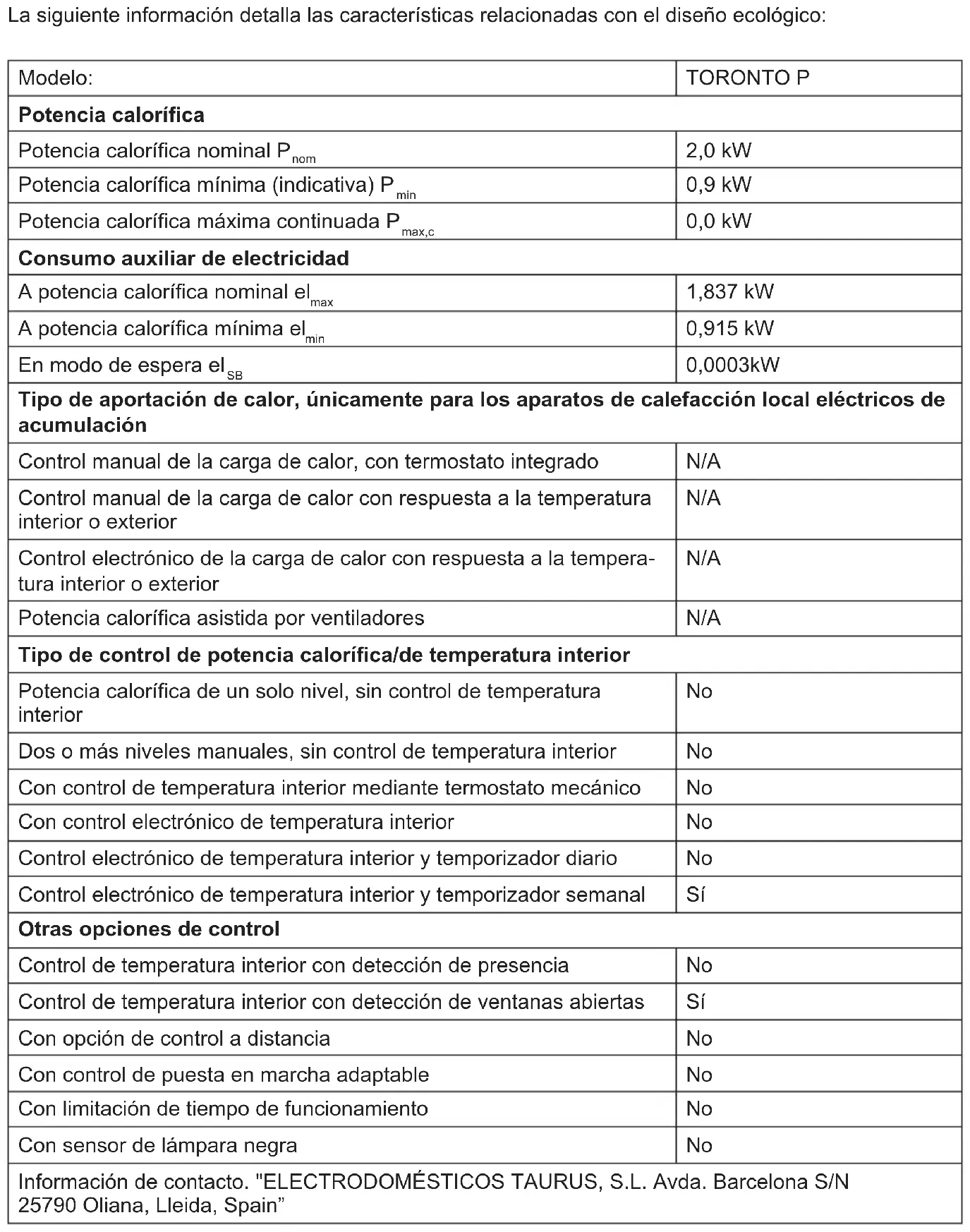

The following information details the features related to ecodesign.

Model:	TORONTO P
Heat output
Nominal heat output P_nom	2,0 kW
Minimum heat output (indicative) P_min	0,9 kW
Maximum continuous heat output P_max,c	0,0 kW
Auxiliary electricity consumption
At nominal heat output el_max	1,837 kW
At minimum heat output el_min	0,915 kW
In standby mode el_SB	0,0003kW
Type of heat input, for electric storage local space heaters only
Manual heat charge control, with integrated thermostat	N/A
Manual heat charge control with room and/or outdoor temperature feedback	N/A
Electronic heat charge control with room and/or outdoor temperature feedback	N/A
Fan assisted heat output	N/A
Type of heat output/room temperature control
Single stage heat output and no room temperature control	No
Two or more manual stages, no room temperature control	No
With mechanic thermostat room temperature control	No
With electronic room temperature control	No
Electronic room temperature control plus day timer	No
Electronic room temperature control plus week timer	Yes
Other control options
Room temperature control, with presence detection	No
Room temperature control, with open window detection	Yes
With distance control option	No
With adaptive start control	No
With working time limitation	No
With black bulb sensor	No
Contact details "ELECTRODOMÉSTICOS	TAURUS, S.L.Avda. Barcelona S/N25790 Oliana, Lleida, Spain"

Français

Cheminée électrique

TORONTO P

Cher Client,

ECOLOGIA E RECICLAGEM E DO PRODU- TO

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/

Français

GARANTIE ET ASSISTANCE TECHNIQUE

COUNTRY ADDRESS PHONE

Algeria Zone d'Activite, N° 62, Constantine 213770777756
Argentina Av. del Libertador 1298,(B1638BEY), Vicente López (Pcia. Buenos Aires)		541153685223
Belgium Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Benin 359 Av. Steinmetz, 1930, Cotonou 0299-21313798
Bulgaria 265,Okolovrasten Pat, Mladost 4, 1766, Sofia 35929211120 / 35929211193
Burkina Faso Avenue Bassawarga, 01 BP915, Ouagadougou 226 25301038
Congo (Republic of) 98 Blvd General Charles de Gaulle, Pointe Noire		242066776656
Cyprus	20, Bethlehem Str. / P.O.Box 20430, 2033, Strovolos	35722711300
Czech Republic	Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Democratic Republic of the Congo	AV. Pont Canale N° 3440, Kinshasa	00243-991223232
Equatorial Guinea	SN Av Patricio Lumumba y C/ Jesus B, Bata	00240 333 082958 / 00240 333 082453
Equatorial Guinea	Calle de las Naciones Unidas, PO box 762, Malabo	240333082958 / 240333082453
España	Avda Barcelona, S/N, 25790 Oliana (Lleida) [e-mail]	902 118 050
Ethiopia Lideta Sub City Kebele 10 H.NO 124, Addis Ababa		[phone]
France Za les bas musats 18, 89100, Malay-le-Grand	03 86 83 90 90
Gabon	BP 574, Port-Gentil Centre-ville	24101552689 / 24101560698
Ghana	Ederick Place, Accra-Ghana	302682448 / 302682404
Gibraltar 11 Horse Barrack Lane, 54000, Gibraltar 00350 200 75397 / 00350 200
		41023
Greece Sapfous 7-9, 10553, Athens [phone]
Guinea BP 206, GN, Conakry (224) 622204545
Hong Kong Unit H,13/F., World Tech Centre, Hong kong (852) 2448 0116 / 9197 3519
Hungary Késmárk utca 11-13, 1158, Budapest [phone]
India C-175, Sector-63, Noida, Gautam Budh Nagar - 201301, Delhi		([phone]
Ivory Coast 01 Rue Des Carrossiers-Zone 3, B.P 3747, Abidjan 01 (RCI)		22521251820 / 225 21 353494
Jordan 28 Basman St Down town, Amman	[phone]
Kuwait	P.O. BOX 3379 hawally, 32034, Hawally	[phone]
Lebanon	Damascus Highway; Sciale Building, Jamhour	9615922963
Luxembourg	Mariëndonkstraat 5, 5154 EG, Elshout	31620401500
Mali	BP E2900, Dravela Bolibana	223227216 / 223227259
Marruecos	Big distribution society 4 Rue 13 Lot. Smara Oulfa, Casablanca	([phone]
Mauritania	134 Avenue Gamal Abdener Ilot D, Nouakchott	2225254469 / 2225251258
Mexico	Rosas Moreno N° 4-203 Colonia de San Rafael C.P. 06470 – Delegación Cuauhtémoc, Ciudad de México	([phone]
Montenegro	Rastovac bb, 81400, Niksic	[phone]
Netherlands	Mariëndonkstraat 5, 5154 EG, Elshout	31620401500
Nigeria	8, Isaac; John Str,G.R.A Ikeja Lagos	23408023360099
Paraguay	Denis Roa 155 c/ Guido Spano, Asunción	21665100
Peru	Calle los Negocios 428, Surquillo, Lima	[phone]
Portugal	Avenida Rainha D. Amélia, n°12-B, 1600-677, Lisboa	[phone]
Romania	Dudesti Pantelimon 23, 410554, Bucharest	031.805.49.58
Serbia	Rastovac bb, 81400, Niksic	[phone]
Slovakia Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Southafrica Unit 25 & 26, San Croy Office Park, Die Agora Road, Croydon, Kempton Park, 1619, Johannesburg		([phone]
Tunisia	2, Rue de Turquie, Tunis	21671333066
Ukraine	Block 6, Ap Housing Estate Topol-2, B, 49000, Dnepropetrovsk	380563704161 / 380563704161
United Arab Emirates	P.O.BOX 8543, Dubai	14506246200
Uruguay	Luis Alberto de Herrera 3468, 11600, Montevideo	598 2209 28 00
Vietnam	Lot 7 Ind. Zone for, Ha Noi	84437658111 / 84437658110
