PDR036 - Radio LENCO - Free user manual and instructions

Product type	DAB+/FM radio with Bluetooth and rechargeable battery
Brand	Lenco
Model	PDR036
Dimensions (W x D x H)	153 x 45 x 93 mm
Weight	350 g
Power supply	USB input 5 V DC 1 A; built-in battery 2000 mAh
DAB+ frequency range	174.928 - 239.2 MHz
FM frequency range	87.5 - 108 MHz
Bluetooth version	5.0
Speaker output power	1 x 2 W RMS
Auxiliary input	3.5 mm stereo jack
Headphone output	3.5 mm stereo jack
Main functions	DAB+, FM, Bluetooth, AUX, information display, alarm, sleep, equalizer, automatic and manual search, presets (20 stations)
Station memory	Up to 20 DAB+ presets and 20 FM presets
Display	Screen with adjustable backlight, night mode
Available languages	Multilingual (options in menu)
Alarm	2 independent alarms (buzzer, DAB+ or FM), snooze
Sleep timer	15, 30, 45, 60 or 90 minutes
Equalizer	Presets: Classic, Jazz, Pop, Rock, Speech, My EQ (manual adjustment)
Care and cleaning	Soft dry cloth; do not use solvents
Safety	Do not expose to moisture; do not open the device; do not use in case of condensation; operating temperature 0-35°C
Included accessories	USB charging cable, user manual
Warranty	In accordance with European legislation; contact the dealer
Repairability	Do not open; entrust repairs to qualified personnel
Standby consumption	Automatic shutdown in Bluetooth mode after 20 minutes without music; in AUX mode after 4 hours

Frequently Asked Questions - PDR036 LENCO

How to turn the device on and off?

Press and hold the STANDBY button to turn the device on or off.

How to switch to DAB+ mode?

Press the SOURCE button to switch between DAB+, FM, Bluetooth and AUX modes.

How to perform an automatic DAB+ station search?

The first time, the search starts automatically. Otherwise, press and hold INFO/MENU, select Full Scan, then press ENTER.

How to store a DAB+ station as a preset?

Tune to the station. For presets 1-3, press and hold the number key. For 4-20, press and hold 4+ then select the channel with the wheel.

How to pair a Bluetooth device?

Put the device in Bluetooth mode (press SOURCE). Activate Bluetooth on your device, search for Lenco PDR-036 and select it. If prompted, enter the code 0000.

What to do if the DAB+ or FM reception is poor?

Fully extend the rear telescopic antenna and orient it to improve reception. Avoid electrical interference.

How to set the alarm?

Ensure the device is charging via adapter. Press and hold INFO/MENU, go to SYSTEM then Alarm. Set the time, source, frequency and volume.

How to use the sleep function?

Press and hold INFO/MENU, go to SYSTEM then Sleep. Choose a duration from 15 to 90 minutes or off.

How to switch from stereo to mono in FM?

In FM mode, press the ENTER button (wheel) to toggle between Stereo and Mono forced.

How to reset the device to factory settings?

Press and hold INFO/MENU, go to SYSTEM then Factory reset. Confirm with ENTER.

USER MANUAL PDR036 LENCO

User Manual - DAB +, FM radio with rechargeable battery and bluetooth

Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

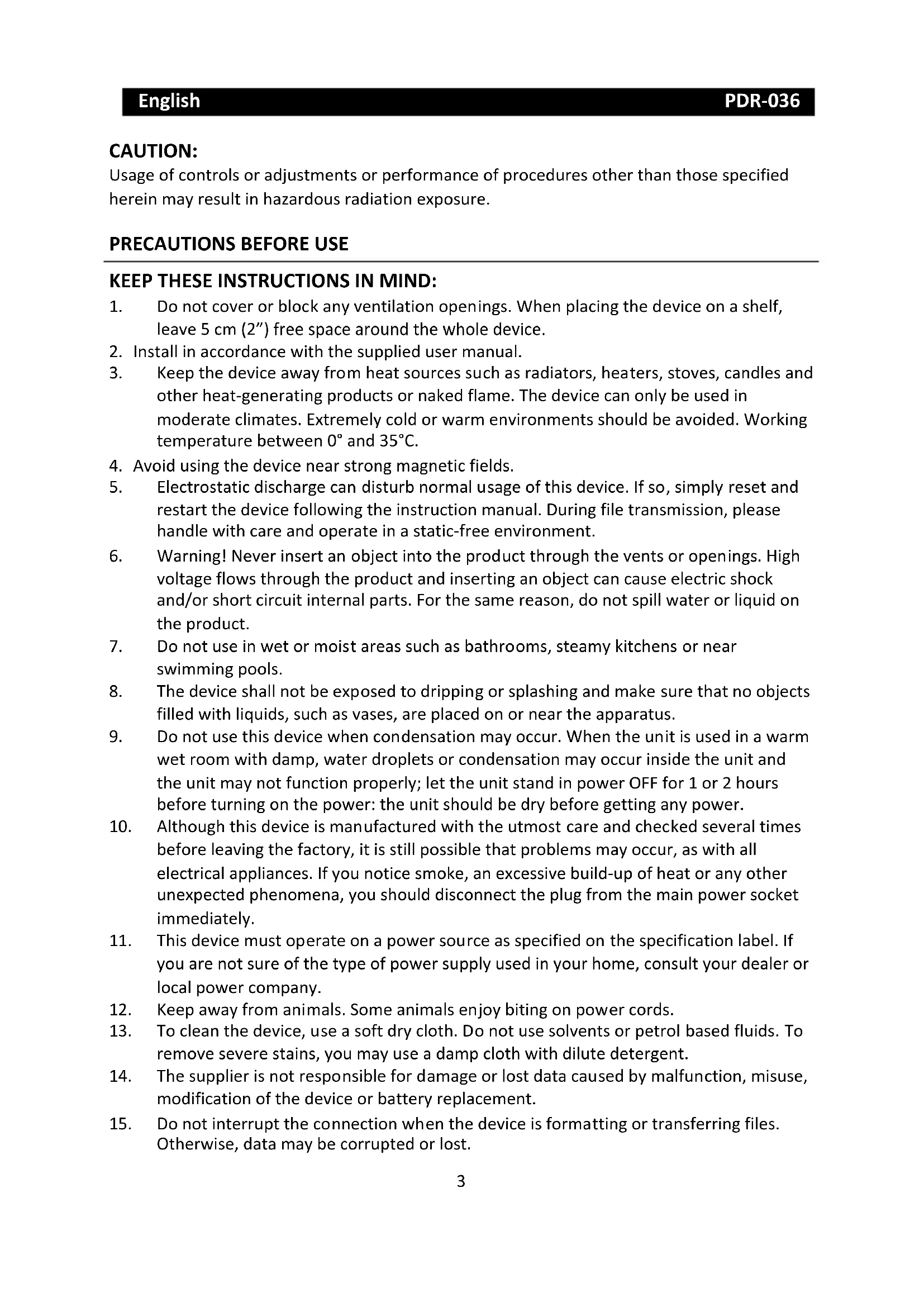

KEEP THESE INSTRUCTIONS IN MIND:

1. Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5cm (2^ ) free space around the whole device.
2. Install in accordance with the supplied user manual.
3. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-generating products or naked flame. The device can only be used in moderate climates. Extremely cold or warm environments should be avoided. Working temperature between 0^ and 35^ .
4. Avoid using the device near strong magnetic fields.
5. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart the device following the instruction manual. During file transmission, please handle with care and operate in a static-free environment.
6. Warning! Never insert an object into the product through the vents or openings. High voltage flows through the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.
7. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.
8. The device shall not be exposed to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on or near the apparatus.
9. Do not use this device when condensation may occur. When the unit is used in a warm wet room with damp, water droplets or condensation may occur inside the unit and the unit may not function properly; let the unit stand in power OFF for 1 or 2 hours before turning on the power: the unit should be dry before getting any power.
10. Although this device is manufactured with the utmost care and checked several times before leaving the factory, it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.
11. This device must operate on a power source as specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.
12. Keep away from animals. Some animals enjoy biting on power cords.
13. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove severe stains, you may use a damp cloth with dilute detergent.
14. The supplier is not responsible for damage or lost data caused by malfunction, misuse, modification of the device or battery replacement.

15. Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data may be corrupted or lost.

16. If the unit has USB playback function, the USB memory stick should be plugged into the unit directly. Don't use an USB extension cable because it can cause interference resulting in failing of data.

17. The rating label has been marked on the bottom or back panel of the device.
18. This device is not intended for use by people (including children) with physical, sensory or mental disabilities, or a lack of experience and knowledge, unless they're under supervision or have received instructions about the correct use of the device by the person who is responsible for their safety.
19. This product is intended for non professional use only and not for commercial or industrial use.
20. Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position vibrations or shocks or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.
21. Never remove the casing of this device.
22. Never place this device on other electrical equipment.
23. Do not allow children access to plastic bags.
24. Only use attachments/accessories specified by the manufacturer.
25. Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the device, when the device has been exposed to rain or moisture, does not operate normally, or has been dropped.
26. Long exposure to loud sounds from personal music players may lead to temporary or permanent hearing loss.
27. If the product is delivered with power cable or AC power adaptor:

If any trouble occur, disconnect the AC power cord and refer servicing to qualified personnel.
- Don't step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable's exit point. Do not place heavy items on the power adaptor, which may damage it. Keep the entire device out of children's reach! When playing with the power cable, they can seriously injure themselves.
Unplug this device during lightning storms or when unused for a long period.
The socket outlet must be installed near the equipment and must be easily accessible.
- Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.
- Devices with class 1 construction should be connected to a main socket outlet with a protective earthed connection.
Devices with class 2 construction do not require a earthed connection.
Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit.
- Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or electric shock.

1. If the product contains or is delivered with a remote control containing coin/cell batteries:

Warning:

• "Do not ingest battery, Chemical Burn Hazard" or equivalent working.

• [The remote control supplied with] This product contains a coin/button cell battery. If the battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

• Keep new and used batteries away from children.

If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

1. Caution about the use of Batteries:

2. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

3. Battery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude during use, storage or transportation.

4. Replacement of a battery with an incorrect type that can result in an explosion or the leakage of flammable liquid or gas.

5. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.

6. Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or that leakage of flammable liquid or gas.

7. A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.

8. Attention should be drawn to the environmental aspects of battery disposal.

INSTALLATION

• Unpack all parts and remove protective material.

• Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.

WARNING

WARNING: When participating in the traffic listening to a personal music player can make the listener less aware of potential dangers such as approaching cars.

WARNING: To prevent possible hearing damage, do not listen at high volume levels for long periods.

ACCESSIONS

• Instruction manual USB charging cable

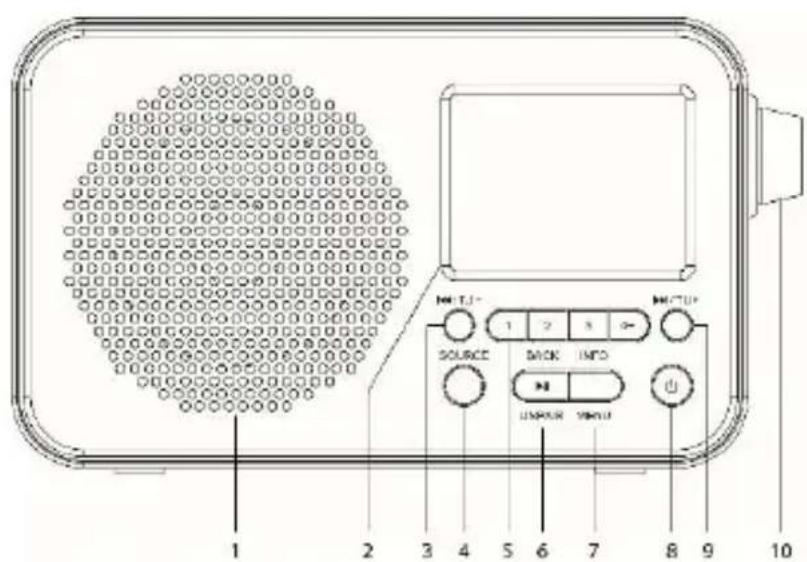

FRONT & SIDE PANEL

1. SPEAKER
2. DISPLAY

Display the operation status and information.

1. /TU

DAB +: After scanning all the available DAB stations, press to display and navigate the station list.

FM: Press to fine tune to the lower frequency. Press and hold to search the next lower frequency station.

Bluetooth: Press to skip to the previous track.

4. SOURCE

Press this button to choose different modes of operation DAB+/FM/Bluetooth/AUX.

5. RADIO STATION NUMBERIC BUTTONS

Press these buttons will recall the stored radio station directly. Press and hold to save the radio station.

6. BACK/PLAY - PAUSE/UNPAIR

DAB+/FM:

When it is in the menu operation, press this button to exit the current menu page back to the previous menu page.

FM: Press and hold to start auto-scanning all the available FM stations.

Bluetooth:

Press to pause the playback. Press again to resume the playback.

Press and hold to unpair the current bluetooth connection and start to search another new Bluetooth device.

7. INFO/MENU

DAB +/FM: Press repeatedly to display different radio station information. Press and hold to enter the settings menu.

8. STANDBY

Press and hold to turn on the unit. Press and hold again to turn off and go to Standby mode.

9. /TU

DAB +: After scanning all the available DAB stations, press to display and navigate the station list.

FM: Press to fine tune to the higher frequency. Press and hold to search the next higher frequency station.

Bluetooth: Press to skip to the next track.

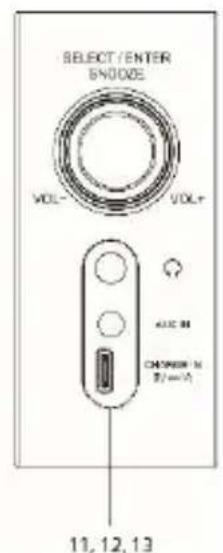

10. SELECT/ENTER/SNOOZE/VOLUME CONTROL KNOB

When it is not in the menu operation, rotating this knob will change the volume.

When it is in the menu operation, rotating this knob to select different options to set and press to confirm.

FM: When it is not in the menu operation, press to toggle between stereo and force mono when FM station is received.

When the alarm is activated, press this knob repeatedly to enable snooze for 5, 10, 15 or 30min .

11. HEADPHONE

Connect to an external headphone. Headphone connection (3.5mm).

12. AUXIN

Connect to an external audio player.

13. CHARGE IN

Connect your USB power adapter (not included) to charge the unit's battery or keep it connected to use it on mains power.

BASIC OPERATION

Press and hold the STANDBY button to turn on the unit. To turn off, press and hold the STANDBY button again.

DAB+/FM/Bluetooth/AUX

When the unit is turned on, press the SOURCE button to toggle between DAB +, FM, Bluetooth and AUX mode.

Volume Control

Tune the rotary knob to change the volume.

Adjusting the Antenna

The telescopic antenna at the rear panel of the unit should be fully extended to ensure a good DAB +/FM reception. Alter the antenna position for the best reception.

DAB+ OPERATION

The first time the DAB + mode is selected, it will automatically scan for available DAB + stations. Wait until the scanning has finished. The display will show the scanning progress.

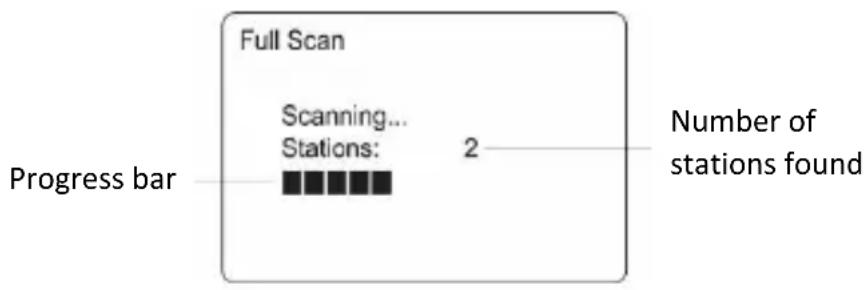

Full Scan

1. Press and hold the INFO/MENU button to access the menu control.
2. Rotate the ENTER knob (or press the or button) until the "Full Scan" is selected.
3. Then press the ENTER knob to start auto-scanning the available stations.

Manual Scan

1. Press and hold the INFO/MENU button to access the menu control.
2. Rotate the ENTER knob (or press the or button) until the "Manual Tune" is selected and then press the ENTER knob.
3. Rotate the ENTER knob (or press the or button) to select the desired channel (5A - 13F).
4. Press the ENTER knob to confirm.
5. To select another channel (example 5A - 13F), press the or button and then press the ENTER knob to confirm.
6. To quit the menu control, press the BACK button repeatedly.

Tuning

After scanning all the available DAB stations, press the button to display and navigate the station list. Then press the ENTER knob to tune to the station within a few seconds.

Storing DAB + Presets

You can save up to 20 DAB + stations.

1. Tune to the station you wish to store.

2. To save it to the preset channel 1 or 2 or 3, press and hold the numeric button respectively. Then it will save to that preset channel.

3. To save it to other preset channel from 4 to 20, press and hold the numeric button "4+". Preset channel list will be displayed.
4. Rotate the ENTER knob (or press the or button) to select the desired preset channel to save.
5. Press the ENTER knob to save.

Recall Stored DAB + Presets

1. To recall the preset channel 1 or 2 or 3, press the numeric button respectively. Then it will tune to that preset channel.
2. To recall other preset channel from 4 to 20, press the numeric button "4+". Preset channel list will be displayed.
3. Rotate the ENTER knob (or press the or button) to select the desired preset channel to recall.
4. Press the ENTER knob to recall.

Note:

• The telescopic antenna at the rear panel of the unit should be fully extended to ensure a good reception. Alter the antenna position for the best reception.

Displaying DAB + Station Information

There are several types of information as listed below. To change the display information, press the INFO/MENU repeatedly.

1. Radio Text scrolling

Shows music titles or program details provided by the selected radio station.

1. Signal Bar

Transmission signal level. The more the rectangles are filled, the stronger the signal is received. The unfilled rectangle is the threshold level where the signal strength received should exceed this threshold. To improve the reception, adjust the antenna position.

1. Program Type (PTY)

Type of program provided by the radio station

1. Multiplex Name

Displays name of multiplex to which the current station belongs

1. Frequency

Current channel number and frequency

1. Signal Error Rate

Shows the error rate. The larger this value, the more errors it receives. To improve the reception, adjust the antenna position.

1. Audio Bit Rate

This is the current channel audio Bitrate

1. Time

Displays the current time provided by the radio station

1. Date

Displays the current date provided by the radio station

OTHER DAB + MENU OPERATIONS

Press and hold the INFO/MENU button to access the menu control. Then rotate the ENTER knob (or press the button) for different options as described below.

Prune Invalid

This function removes inactive stations.

1. Press and hold the INFO/MENU button to access the menu control.
2. Rotate the ENTER knob (or press the or button) until the "Prune Invalid" is selected and then press the ENTER knob.
3. Rotate the ENTER knob (or press the or button) to select "Yes".
4. Press the ENTER knob to confirm.
5. To quit the menu control, press the BACK button repeatedly.

Dynamic Range Control (DRC)

DRC can make quieter sounds easier to hear when the unit is used in a noisy environment. The DRC level of a broadcast is set by the selected radio channel and transmitted with the service. Changing the DRC value on your unit enables you to apply a scaling factor to this level.

There are three levels of compression:

DRC high :

Maximum compression as sent with the transmitted service

DRC low :

Set to 1/2 that of the sent transmitted service

DRC off :

No compression

1. Press and hold the INFO/MENU button to access the menu control.
2. Rotate the ENTER knob (or press the or button) until the "DRC" is selected and then press the ENTER knob.
3. Rotate the ENTER knob (or press the or button) to select "High", "Low" or "Off".
4. Press the ENTER knob to confirm.
5. To quit the menu control, press the BACK button repeatedly.

Note:

• Not all DAB + radio stations are able to use DRC function. If the station does not support DRC then the DRC setting will have no effect.
• After you have adjusted the DRC level the sound may be louder.

FM RADIO OPERATION

Auto Scan

1. Turn on the unit in FM mode.
2. Press and hold the button to start auto-scanning and saving the available stations (max. 20 storage).

Manual Scan

1. Turn on the unit in FM mode.
2. Press the or button repeatedly to manually tune to a different frequency.
3. Or press and hold the or button to automatically search to the next available channel.

Storing FM Presets

You can save up to 20 FM presets.

1. Tune to the station you wish to store.
2. To save it to the preset channel 1 or 2 or 3, press and hold the preferred preset number. Then it will save to that preset channel.
3. To save it to other preset channel from 4 to 20, press and hold the numeric button "4+". A preset channel list will be displayed.
4. Rotate the ENTER knob (or press the or button) to select the desired preset channel to save.
5. Press the ENTER knob to save.

Recall Stored FM Presets

1. To recall the preset channel 1 or 2 or 3, press the numeric button respectively. Then it will tune to that preset channel.
2. To recall other preset channel from 4 to 20, press the numeric button "4+". The preset channel list will be displayed.
3. Rotate the ENTER knob (or press the or button) to select the desired preset channel to recall.
4. Press the ENTER knob to recall.

Stereo/Force Mono Selection

When receiving a Stereo FM radio channel, pressing the ENTER knob will switch between stereo audio and force mono audio.

Note:

• The telescopic antenna at the rear panel of the unit should be fully extended to ensure a good reception. Alter the antenna position for the best reception.

Displaying FM Station Information

There are several types of information as listed below. To change the display information, press the INFO/MENU repeatedly.

1. Radio Text Scrolling text which shows information on music titles or program details provided by the radio station
2. Program Type (PTY)

Type of program provided by the broadcaster

1. Frequency

Current channel frequency

1. Audio Type

Stereo or Mono

1. Date

Displays the current date provided by the radio station

OTHER FM MENU OPERATIONS

Press and hold the INFO/MENU button to access the menu control. Then rotate the ENTER knob (or press the 14 button) for different options as described below.

Scan Setting

1. Press and hold the INFO/MENU button to access the menu control.
2. Rotate the ENTER knob (or press the or button) until the "Scan Setting" is selected and then press the ENTER knob.
3. Rotate the ENTER knob (or press the or button) to select "Strong Stations Only" or "All Stations" and then press the ENTER knob confirm. When the "Strong Stations Only" is selected, only the strong stations are detected. Scanning will ignore the noisy stations. When "All Stations" is selected, all stations will be detected during FM scanning even if the radio station is noisy.
4. The next time doing the FM scan the unit will search for the stations based on this confirmed setting.
5. To quit the menu control, press the BACK button repeatedly.

Audio Setting

1. Press and hold the INFO/MENU button to access the menu control.
2. Rotate the ENTER knob (or press the or button) until the "Audio Setting" is selected and then press the ENTER knob.
3. Rotate the ENTER knob (or press the or button) until to select "Stereo Allowed" or "Forced Mono" and then press the ENTER knob to confirm.
4. To quit the menu control, press the BACK button repeatedly.

BLUETOOTH AUDIO

Please follow the pairing instructions below to link the unit to your Bluetooth device.

1. Press the SOURCE button to enter the Bluetooth mode. The display will show "Disconnected". It will start searching.
2. Turn on the Bluetooth function of your device and enable the search until "Lenco PDR-036" is found. Select "Lenco PDR-036" on the Bluetooth device to make connection. Enter the pass code "0000" if required.
3. After successfully paired the display will show "Bluetooth Connected".
4. You can now start playing music from your smartphone wirelessly to the speaker.
5. You can press the button to pause or resume the playback.
6. You can press the or button to skip to the previous or next song.

Note:

• Press and hold the UNPAIR button will disconnect the connection and start to search another new Bluetooth device.
• Due to ErP stage 2 requirement and protect the environment, the unit will turn off in standby mode automatically once no music has been playing for around 20 minutes in Bluetooth mode. When the unit is power off due to ErP, press and hold the STANDBY button to turn on the unit again.

"This product has a bluetooth reception function, you can not transmit any bluetooth sound with it: this means that you can receive wirelessly a bluetooth sound signal from an external source like a smartphone."

AUX IN

This allows you to connect an external player's sound through your unit.

1. You need to plug in a 3.5mm audio cable (not included) first into the unit's AUX IN terminal.

2. Press the SOURCE button to enter the AUX IN mode.

3. Start your external player to play music.
4. The unit will output the sound.

Note:

• Due to ErP stage 2 requirement and protect the environment, the unit will turn off in standby mode automatically when it is in AUX mode for more than 4 hours. 10 minutes before entering the standby mode you will be notified with "AUTO POWER OFF" on the display. To extend the AUX mode you can press the button. When the unit is power off due to ErP, press and hold the STANDBY button to turn on the unit again.

SYSTEM SETTINGS

There are several system settings available for user to select their preference. Press and hold the INFO/MENU button to access the menu control. Rotate the ENTER knob (or press the or button) until "SYSTEM" is selected and then press the ENTER knob. Then rotate the ENTER knob (or press the button) for different selections as shown below. Then press the ENTER knob to setup. To quit the menu control, press the MENU button repeatedly.

• Theme
  Night Mode
• Sleep
  Alarm
  Equaliser
  Time/Date
• Backlight
  Language
  Factory Reset
• Software Version

Theme

This is to change different display background colours.

Night Mode

It is to set the night mode duration. When the night mode is activated, the display will be dimmed.

Sleep Function

You can set the sleep timer function among off, 15, 30, 45, 60 and 90 minutes.

1. During the sleep timer count down, there is a moon icon shown on the display bottom area.
2. When the sleep timer is zero, the unit will be turned off automatically.
3. To cancel the sleep function, press and hold the STANDBY button.

Alarm Setup (Only in Adaptor Charging Mode. Adaptor Not Included.)

There are 2 alarms that can be set independently. Each alarm can be set as Daily, Once, Weekends and Weekdays. Alarm source can be Buzzer, DAB + or FM. Finally alarm duration and alarm volume can be set.

To enable the alarm, set the alarm to be "On". To disable the alarm, set it to "Off".

When the alarm starts, press and hold the STANDBY button to stop the alarm.

Note:

The alarm function is available only when the unit is in Adaptor charging mode.
- When the unit is operated using built-in battery, the alarm setup cannot be done, because the time will not be memorized in battery standby mode.

Snoopze Function (Only in Adaptor Charging Mode. Adaptor Not Included.)

Snoopze function can be operated normally only when it is in adaptor charging mode.

You can activate the "Snoopze" function by pressing the ENTER knob when the alarm starts.

The alarm sound will be muted and you can sleep for another short period of time according to the snooze time set. Press the ENTER knob repeatedly to set the snooze time of 5, 10, 15 or 30 minutes. After the snooze time, the alarm will sound again. To stop the snooze function, press and hold the STANDBY button.

Equaliser Operation

You can also enjoy different EQ sound presets. These EQ presets are Classic, Jazz, Pop, Rock, Speech and My EQ.

At My EQ Setup, Treble/Bass can be configured manually.

Time/Date

Under the Time/Date selection, there are several setups as described below.

Set Time/Date

You can manually set the time and the date under this menu.

Auto Update

You can set the Time/Date update condition as listed below.

"from Any":

Time/Date will be updated by either DAB or FM broadcast

"from Digital Radio":

Time/Date will be updated by DAB broadcast only

"from FM":

Time/Date will be updated by FM broadcast only

"No Update":

Time/Date will never be updated

Set 12/24 Hour

You can set the time display format as 12 or 24 Hour display.

Set Date Format

You can set the date display format as DD-MM-YYYY or MM-DD-YYYY.

Clock Style

You can set the clock style display in Standby mode. They are Normal Digital, Big Digital,

Classic Analog and Modern Analog.

Note:

• Clock display in Standby mode is only available when it is in adaptor charging mode. Adaptor not included.

Note:

• The clock function is operated only when the unit is in adaptor charging mode. Adaptor not included. When it is operated using the built-in battery, the clock time will not be memorized in standby mode.

Backlight

If there is no user operation on the unit for a period of time (timeout), the unit's display backlight level could automatically be lowered to save power. The timeout can be set to 10sec, 20sec, ..., upto 180sec. If the timeout is set to "On", it means the display is always on without any auto-dim function. In addition, you can set the display backlight level and dim level respectively.

Language

You can set the unit in different operation languages.

Factory Reset

This function resets the unit to the original factory settings.

Software Version

It will show the unit software version.

Trouble Shooting

No power

• Ensure that the unit is switched on and the battery is fully charged.

No sound output

• Make sure that the unit is not muted.

I can't find the Bluetooth name of this unit on my Bluetooth device for Bluetooth pairing

• Ensure that the unit is switched on.

• Ensure that the Bluetooth function is activated on your Bluetooth device.
  The unit has a Bluetooth function that can receive a signal within 10 meters.

DAB+/FM reception

• Ensure the telescopic antenna at the rear panel should be extended fully to improve the DAB +/FM reception.
• Electrical interference in your home can cause poor reception. Move the unit to another location and check the reception again.

Interferences in Speakers

• Check that you have not left a mobile phone near the unit.

TECHNICAL SPECIFICATIONS

DAB + radio frequency range	174.928 - 239.2 MHz
FM radio frequency range	87.5 - 108 MHz
Bluetooth frequency range	2.402 - 2.480 GHz
Transmitter output power	Less than 10 mW
Charge in	DC 5 V 1 A
Built-in battery	2000 mAh
Speaker output power	1 x 2 W RMS
Bluetooth version	V5.0
Aux in	3.5 mm stereo jack
Headphone out	3.5 mm stereo jack
Dimension	153 (L) x 45 (D) x 93 (H) mm
Weight	350 g

The specification presents only as a reference. The value of weight and size are approximation.
Our product is improved ceaselessly and the specification and function may be changed without prior notice.

GUARANTEE

Lenco offers service and warranty in accordance to European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer.

Important note: It is not possible to send products that need repairs to Lenco directly.

Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires.

This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer will be voided.

DISCLAIMER

Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply to particular situation. No legal right or entitlements may be obtained from the description made in this manual.

DISPOSAL OF THE OLD DEVICE

This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive).

CE MARKING

Hereby, Commaxx B.V. Wiebachstraat 37, 6466 NG Kerkrade, The Netherlands, declares that this product is in compliance with the essential EU directive requirements.

The declaration of conformity may be consulted via [e-mail]

SERVICE

For more information and helpdesk support, please visit www.lenco.com

Commaxx B.V. Wiebachstraat 37, 6466 NG Kerkrade, The Netherlands

LET OP:

Wanner "Strong Stations Only"

AFVOER VAN HET OUDE APPARAAT

[e-mail]

SERVICE

EN	FR
Full Scan	Full Scan (Balayage complet)
Scanning...	Scanning (Recherc)...
Stations:	Stations :

Full Scan (Balayage complet)

EN	ES
Full Scan	Full Scan (Escaneo Completo)
Scanning...	Scanning (Busc)...
Stations:	Stations (Emisoras):

Full Scan (Escaneo Completo)
