DIS127 - Jumper cables ULTIMATE SPEED - Free user manual and instructions

Product type	Aluminum jumper cables
Model	DIS127
Brand	Ultimate Speed
Intended use	Gasoline engines up to 5500 cm³, diesel engines up to 3000 cm³, 12 V or 24 V batteries
Cable length	2 × 3.5 m
Cable cross-section	DIN 72553-25
Material	Aluminum
Cable color	One red (+) cable and one black (-) cable
Clamps	Insulated clamps, one red (+) and one black (-)
Protection	Overvoltage protection with red LED indicator
Package contents	1 aluminum jumper cable black/red, 1 storage bag, 1 instruction manual
Compatible battery voltage	12 V or 24 V (both batteries must have the same voltage)
Safety precautions	Do not use in explosive atmosphere, avoid sparks, do not connect the negative terminal of the discharged battery
Maintenance	Clean with a dry lint-free cloth, do not immerse in water
Storage	Store in the provided storage bag, protect from moisture
Warranty	3 years
Disposal	Recyclable, do not dispose with household waste
After-sales service	Contact customer service, keep the receipt and the reference number (IAN)

Frequently Asked Questions - DIS127 ULTIMATE SPEED

How to connect the jumper cables?

First connect the red clamp (+) to the positive terminal of the discharged battery (A), then the other red clamp to the positive terminal of the donor battery (B). Next, connect the black clamp (-) to the negative terminal of the donor battery (B), and finally the last black clamp to a metal ground on the discharged vehicle (A), away from the battery.

In what order should the cables be disconnected after starting?

Disconnect in reverse order of connection: first the black clamp from the ground of the discharged vehicle (A), then the black clamp from the negative terminal of the donor battery (B), then both red clamps (order is not important).

What to do if the red LED lights up?

The red LED indicates that the overvoltage protection is activated and working. This means it absorbs voltage spikes. No further action is required, but check that the connections are correct.

Which batteries can be used with this cable?

This cable is compatible with 12 V or 24 V batteries. Both batteries (donor and discharged) must have the same nominal voltage and similar capacity. The donor battery must not be significantly less powerful than the discharged battery.

Which engines can be started with this cable?

It is approved for gasoline engines up to 5500 cm³ and diesel engines up to 3000 cm³.

Can this cable be used in an explosive atmosphere?

No, it is forbidden to use the cable in an explosive environment containing flammable vapors, gases, or dust, due to the risk of explosion.

How to maintain the jumper cables?

Clean them only with a dry lint-free cloth. Never immerse them in water or other liquids. After use, store them in the storage bag to protect from moisture.

What to do if a starting attempt fails?

Do not exceed 15 seconds per attempt and wait at least one minute between each try. If after several attempts the vehicle does not start, consult a mechanic.

How long is the warranty valid?

This product comes with a 3-year warranty from the date of purchase against material and manufacturing defects. Keep the receipt as proof.

What is the total length of the cables?

The cables measure 2 × 3.5 meters each, for a total length of 7 meters.

USER MANUAL DIS127 ULTIMATE SPEED

Operation and Safety Notes

IAN 274776

CH

GB Operation and Safety Notes Page 17

A
B

EXPLOSIONSGEFAHRI SchlieBen

E-mail: [e-mail]

Tegro AG, Ringstrasse 3

CH-8603 Schwerzenbach

Courrier electronique:[e-mail]

IAN 274776

E-mail: [e-mail]

Tegro AG, Ringstrasse 3

CH-8603 Schwerzenbach

Courrier electronique: [e-mail]

IAN 274776

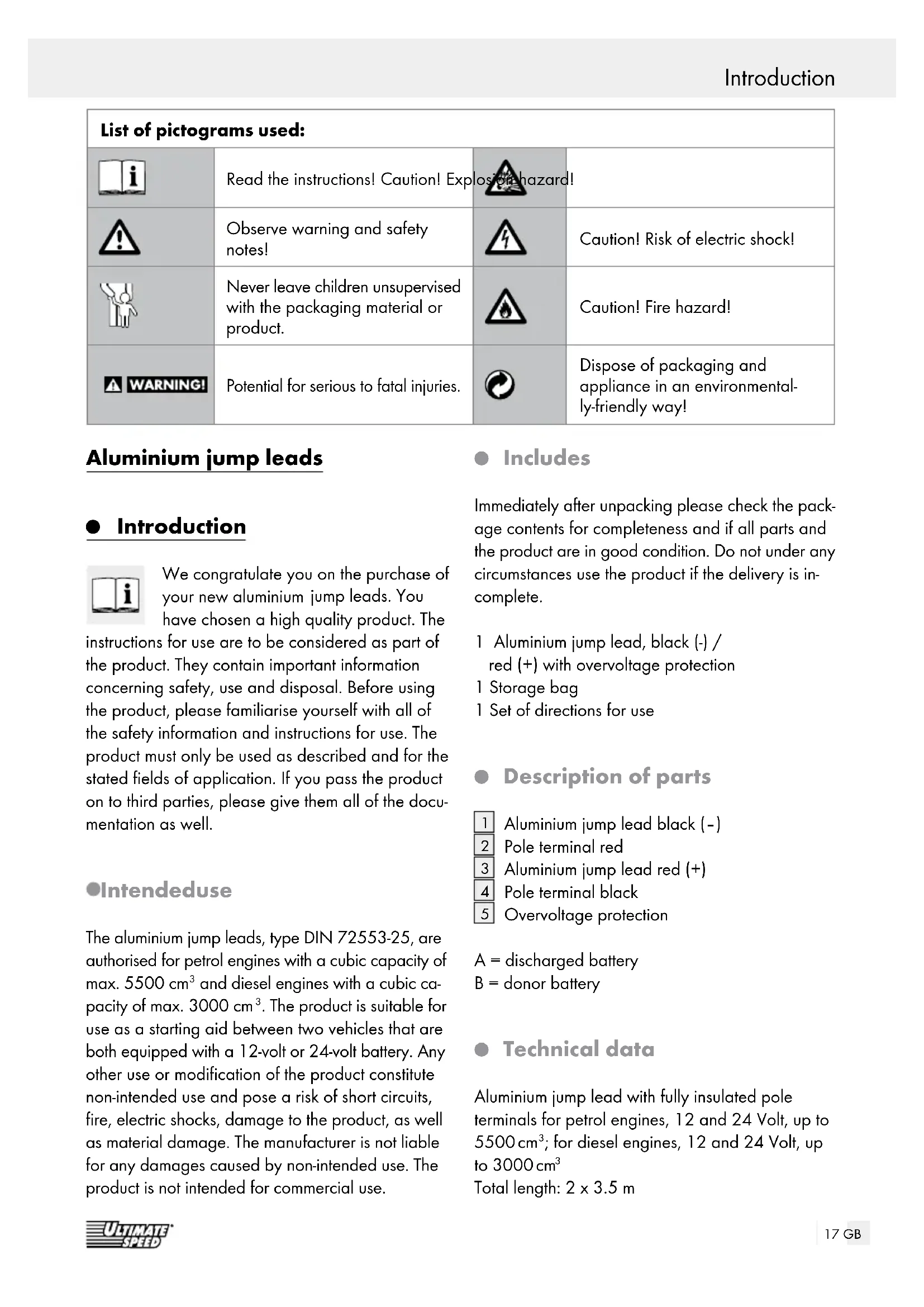

List of pictograms used:
i	Read the instructions! Caution! Explosion hazard!
!	Observe warning and safety notes!	4	Caution! Risk of electric shock!
	Never leave children unsupervised with the packaging material or product.	6	Caution! Fire hazard!
WARNING!	Potential for serious to fatal injuries.		Dispose of packaging and appliance in an environmentally-friendly way!

Aluminium jump leads

Introduction

We congratulate you on the purchase of your new aluminium jump leads. You have chosen a high quality product. The

instructions for use are to be considered as part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. The product must only be used as described and for the stated fields of application. If you pass the product on to third parties, please give them all of the documentation as well.

Intendeduse

The aluminium jump leads, type DIN 72553-25, are authorised for petrol engines with a cubic capacity of max. 5500~cm^3 and diesel engines with a cubic capacity of max. 3000~cm^3 . The product is suitable for use as a starting aid between two vehicles that are both equipped with a 12-volt or 24-volt battery. Any other use or modification of the product constitute non-intended use and pose a risk of short circuits, fire, electric shocks, damage to the product, as well as material damage. The manufacturer is not liable for any damages caused by non-intended use. The product is not intended for commercial use.

- Includes

Immediately after unpacking please check the package contents for completeness and if all parts and the product are in good condition. Do not under any circumstances use the product if the delivery is incomplete.

1 Aluminium jump lead, black (-) / red (+) with overvoltage protection
1 Storage bag
1 Set of directions for use

Description of parts

1 Aluminium jump lead black (-)
2 Pole terminal red
3 Aluminium jump lead red (+)
4 Pole terminal black
5 Overvoltage protection

A = discharged battery

B = donor battery

Technical data

Aluminium jump lead with fully insulated pole terminals for petrol engines, 12 and 24 Volt, up to 5500cm^3 for diesel engines, 12 and 24 Volt, up to 3000cm^3

Total length: 2 × 3.5 ~m

Safety Information

In the case of damage resulting from non-compliance with these operating instructions the guarantee claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

- General Safety Information

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

DAK170fNING!

LOSS OF LIFE AND ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging materials. Danger of suffocation. Keep out of the reach of children.

CAUTION! RISK OF EXPLO

The product is not a toy and should be kept out of the reach of children. Children cannot recognise the risks that arise through use of the product.
WARNING! DANGER TO LIFE! Keep children away from the work area when the products is being used.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

SION! Do not use the aluminium jump lead in an environment in

which explosions may occur or where there are combustible vapours, gases or dusts.
Please retain the operating instructions for further use. If this product is passed on to third parties, these operating instructions must be provided with it.

Danger to life from electric shock

- Safety instructions for the aluminium jump leads

Before using the aluminium jump lead, always check it for any possible damage. Do not use the Aluminium jump lead if you see it is damaged in any way.
CAUTION! Damaged cables represent a risk to life from electric shock. Contact your service centre or an electrician if the product is damaged, needs being repaired or has some other problem with it.
- Never open one of the electrical equipment (cables) or place any objects into them. Such procedures could put your life at risk from electric shock.
The capacity of the starter battery that is providing the power, e.g. 45A / h (car B) must not be significantly lower than the flat starter battery (car A), if this is not the case it will not be possible to start the vehicle. There is danger of overheating.
Only connect batteries of the same nominal voltage (12 or 24 volt) with the aluminium jump leads. Otherwise there is danger of short circuit, as well as danger of damaging the on-board electronics and electrical components.
The bodies of the vehicles (cars A and B) must not touch. Otherwise there is danger of short circuit.

FIRE HAZARD! Keep ignition sources (e.g. open flame, burning cigars, cigarettes or electric sparks)

away from the starter batteries.

CAUTION! DANGER OF INJURY! DANGER OF EYE INJURIES! Do not bend over the starter batteries. The electrolyte is also in a liquid state at low temperatures and regardless of the charge status.

The flat starter battery (car A) must not be separated from its corresponding power supply network during the starting aid process.
The ignitions of the vehicles must be switched off before the aluminium jump leads cable are

connected, and the parking brake must be engaged. With manual gearboxes, put the gear lever into the neutral position, with automatic gearboxes put the gear selector into "P".
Position the aluminium jump leads in such a manner that they cannot be caught up in the moving parts of the engine.

Using the aluminium jump leads

Connecting

Note: First check whether the two batteries, donor battery (car B) and flat battery (car A) have the same voltage (12 or 24 volt) and approximately the same capacity. Compare the label information on the batteries!

RISK OF EXPLOSION! On no

account should you connect the negative pole to the flat battery as

there is a risk that sparks may fly and ignite explosive gases.

1. Connect the red aluminium jump lead 3 with the red pole terminal (+)2 to the positive pole on battery (A).
2. Connect the other pole terminal 2 of the aluminium jump lead 3 to the positive pole of the donor battery (B).
3. Connect the black aluminium jump lead 1 with the black pole terminal (-) 4 to the negative pole of the donor battery (B).
4. Then connect the other pole terminal 4 of the black aluminium jump lead 1 to the vehicle chassis, e.g. on the earthing strap or another unpainted part on the engine block of the broken-down vehicle (A).

Note: The parts should be as far away as possible form the starter battery in order to prevent any explosive gas that may develop from being ignited.

Note: If the red LED illuminates, it means that the overvoltage protection is active and works. This absorbs any potential voltage peaks.

Start

After connecting the aluminium jump lead, start the engine of the vehicle with the donor battery and allow it to run normally (car B). Then, start the vehicle with the dead battery (A).

Note: After every attempt to start the car - which should not be longer than 15 seconds - wait for at least 1 minute. If you cannot start the car after several attempts, contact a garage.

After successfully starting the broken-down vehicle (car A) wait for 2 to 3 minutes until the engine is running smoothly.

- Disconnecting

Note: Disconnect the aluminium jump leads in the reverse order to the way they were connected.

1. Remove the pole terminal 4 of the black aluminium jump lead 1 from the vehicle chassis of the broken-down car (A).
2. Then disconnect the other pole terminal 4 of the black aluminium jump lead 1 from the negative pole of the donor battery (B).
3. Remove the two pole terminals 2 of the red aluminium jump lead 3 in any order you wish (A, B).

When removing the aluminium jump leads, make sure that they do not come into contact with the moving parts of the engine.

Note: Do not switch the vehicle that has been aluminium jump started off immediately. Drive the vehicle around for a while so that the battery is recharged by the alternator.

Care and maintenance

WARNING! DANGER TO LIFE FROM

ELECTRIC SHOCK! For reasons of electrical safety, the aluminium jump lead may never be cleaned with water or other fluids and never be immersed into water.

After using the aluminium jump lead, always store it in the storage bag it came in to protect the product from damp and dirt.

Note: The aluminium jump lead should always be carried safely in the vehicle.

Do not use any solvents, petrol etc. Otherwise there is danger of material damage.
Use a dry lint-free cloth for cleaning.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

- Guarantee and service

- Guarantee declaration

This product comes with a three-year guarantee. Please keep your receipt as proof of purchase. The product has been produced to the highest standards and thoroughly checked before dispatch. The guarantee only applies to faults in material or manufacture when used properly. The guarantee lapses in cases of unauthorized tampering. This guarantee does not restrict your legal rights. In the case of a warranty claim, please get in contact with the service centre.

Service Address

Email: [e-mail]

IAN 274776

When inquiring about your product, have your receipt and product number (e.g. IAN 12345) ready as your proof of purchase.

IU Item No.: 97639-1

Model No.: DIS-127

Manufacturer
