IAN 91449 - Jumper cables ULTIMATE SPEED - Free user manual and instructions

Product type	Aluminium jump leads
Brand	Ultimate Speed
Model	IAN 91449
Nominal voltage	12 V / 24 V
Cable cross-section	25 mm²
Total length	2 x 3.5 m
Material	Aluminium
Max petrol engine capacity	5,500 cm³
Max diesel engine capacity	3,000 cm³
Approval	DIN 72553-25
Delivery contents	1 red cable (+), 1 black cable (-), 1 storage bag, 1 instruction manual
Clamp type	Insulated clamps
Storage	In the included storage bag, protected from moisture
Warranty	3 years
Cleaning	With a dry, lint-free cloth; do not use water or solvents
Intended use	Jump-start assistance between two vehicles with 12 V or 24 V battery
Safety	Do not use in explosive atmospheres; check the condition of the cables before each use; respect the connection order
Maintenance	No special maintenance; store after each use

Frequently Asked Questions - IAN 91449 ULTIMATE SPEED

What type of battery can I use with these jump leads?

These cables are designed for 12 V or 24 V batteries only. Ensure that the voltage of the donor battery and the discharged battery are the same.

What is the maximum supported engine capacity?

They are suitable for petrol engines up to 5,500 cm³ and diesel engines up to 3,000 cm³.

How to correctly connect the jump leads?

1. Connect the red clamp (+) to the positive terminal of the discharged battery.
2. Connect the other red clamp (+) to the positive terminal of the donor battery.
3. Connect the black clamp (-) to the negative terminal of the donor battery.
4. Connect the other black clamp (-) to a metal ground on the discharged vehicle, away from the battery.

What is the length of the cables?

Each cable is 3.5 metres long, for a total length of 7 metres.

Can I use these cables in the rain?

No, it is not recommended to use the cables in rain or humid environments due to the risk of electric shock. Use them only in dry weather.

What to do if the engine does not start after several attempts?

Each attempt should not exceed 15 seconds with a pause of at least one minute. If the engine does not start after several attempts, consult a mechanic.

How to maintain the jump leads?

Clean them with a dry, lint-free cloth. Never immerse them in water and do not use solvents. Store them in the storage bag after use.

What is the warranty on this product?

The warranty is 3 years. Keep the receipt as proof of purchase. The warranty covers material and manufacturing defects.

Are the cables suitable for diesel vehicles?

Yes, they are suitable for diesel engines up to 3,000 cm³, whether in 12 V or 24 V.

Can I connect the cables if the bodies of the two vehicles are touching?

No, the bodies must not be in contact, as this could cause a short circuit. Ensure they are separated.

USER MANUAL IAN 91449 ULTIMATE SPEED

Coiled black cable with clamps, no visible text or symbols on the main subject

ALU-STARTHILFEKABEL

DE AT CH

ALU-STARTHILFEKABEL

Operation and Safety Notes

FR CH

CABLE DE DEMARRAGE ALU

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

GB Operation and Safety Notes Page 21

A
B

Color palette bar with grayscale shades and a central crosshair (no text or symbols)

WAARSCHUWING! LEVENSGEVAAR!

WAARSCHUWING! LEVENSGEVAAR

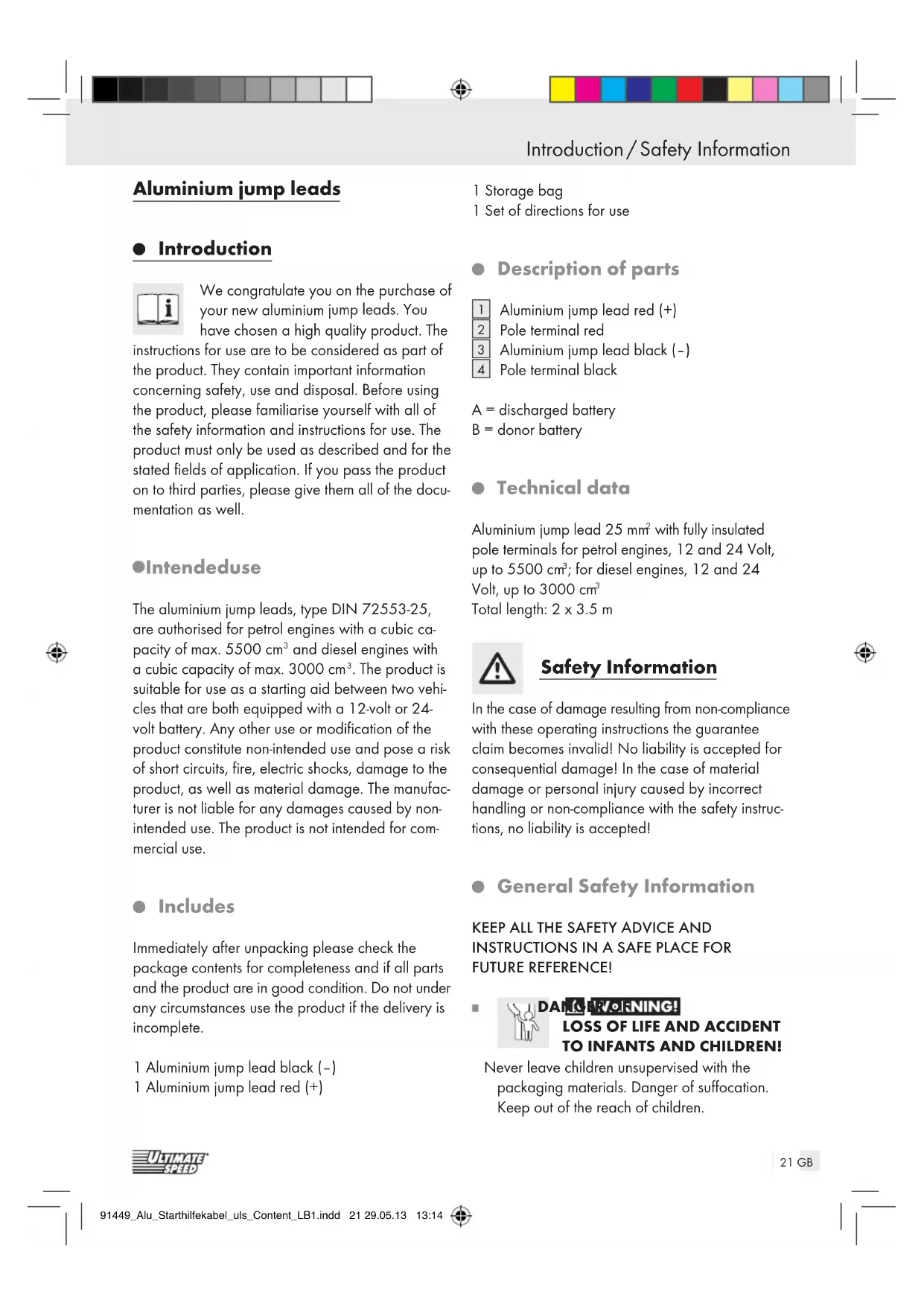

Aluminium jump leads

- Introduction

We congratulate you on the purchase of your new aluminium jump leads. You have chosen a high quality product. The instructions for use are to be considered as part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. The product must only be used as described and for the stated fields of application. If you pass the product on to third parties, please give them all of the documentation as well.

Intendeduse

The aluminium jump leads, type DIN 72553-25, are authorised for petrol engines with a cubic capacity of max. 5500 cm ³ and diesel engines with a cubic capacity of max. 3000 cm ³ . The product is suitable for use as a starting aid between two vehicles that are both equipped with a 12-volt or 24-volt battery. Any other use or modification of the product constitute non-intended use and pose a risk of short circuits, fire, electric shocks, damage to the product, as well as material damage. The manufacturer is not liable for any damages caused by non-intended use. The product is not intended for commercial use.

- Includes

Immediately after unpacking please check the package contents for completeness and if all parts and the product are in good condition. Do not under any circumstances use the product if the delivery is incomplete.

1 Aluminium jump lead black (-)
1 Aluminium jump lead red (+)

1 Storage bag
1 Set of directions for use

● Description of parts

1 Aluminium jump lead red (+)
2 Pole terminal red
3 Aluminium jump lead black (-)
4 Pole terminal black

A = discharged battery

B = donor battery

- Technical data

Aluminium jump lead 25 mm ² with fully insulated pole terminals for petrol engines, 12 and 24 Volt, up to 5500 cm ³ ; for diesel engines, 12 and 24 Volt, up to 3000 cm ³

Total length: 2 x 3.5 m

Safety Information

In the case of damage resulting from non-compliance with these operating instructions the guarantee claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

● General Safety Information

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

DANGERVORNING!

LOSS OF LIFE AND ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging materials. Danger of suffocation. Keep out of the reach of children.

Safety Information / Using the aluminium jump leads

The product is not a toy and should be kept out of the reach of children. Children cannot recognise the risks that arise through use of the product.
WARNING! DANGER TO LIFE! Keep children away from the work area when the products is being used.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

CAUTION! RISK OF EXPLO-

SION! Do not use the aluminium jump lead in an environment in

which explosions may occur or where there are combustible vapours, gases or dusts.

Danger to life from electric shock

Before using the aluminium jump lead, always check it for any possible damage. Do not use the Aluminium jump lead if you see it is damaged in any way.
⚠️CAUTION! Damaged cables represent a risk to life from electric shock. Contact your service centre or an electrician if the product is damaged, needs being repaired or has some other problem with it.
■ Never open one of the electrical equipment (cables) or place any objects into them. Such procedures could put your life at risk from electric shock.
● Safety instructions for the aluminium jump leads
The capacity of the starter battery that is providing the power, e.g. 45 A / h, (car B) must not be significantly lower than the flat starter

battery (car A), if this is not the case it will not be possible to start the vehicle. There is danger of overheating.

■ Only connect batteries of the same nominal voltage (12 or 24 volt) with the aluminium jump leads. Otherwise there is danger of short circuit, as well as danger of damaging the onboard electronics and electrical components.
The bodies of the vehicles (cars A and B) must not touch. Otherwise there is danger of short circuit.
FIRE HAZARD! Keep ignition sources (e.g. open flame, burning cigars, cigarettes or electric sparks) away from the starter batteries.

CAUTION! DANGER OF INJURY! DANGER OF EYE INJURIES! Do not bend over the starter batteries. The electrolyte is also in a liquid state at low temperatures and regardless of the charge status.

The flat starter battery (car A) must not be separated from its corresponding power supply network during the starting aid process.
The ignitions of the vehicles must be switched off before the aluminium jump leads cable are connected, and the parking brake must be engaged. With manual gearboxes, put the gear lever into the neutral position, with automatic gearboxes put the gear selector into "P".
■ Position the aluminium jump leads in such a manner that they cannot be caught up in the moving parts of the engine.

● Using the aluminium jump leads

Connecting

Note: First check whether the two batteries, donor battery (car B) and flat battery (car A) have the same voltage (12 or 24 volt) and approximately the same capacity. Compare the label information on the batteries!

Using the aluminium jump leads / Care and maintenance / Disposal

1. Connect the red aluminium jump lead 1 with the red pole terminal (+) 2 to the positive pole on battery (A).
2. Connect the other pole terminal 2 of the aluminium jump lead 1 to the positive pole of the donor battery (B).
3. Connect the black aluminium jump lead 3 with the black pole terminal (-) 4 to the negative pole of the donor battery (B).
4. Then connect the other pole terminal 4 of the black aluminium jump lead 3 to the vehicle chassis, e.g. on the earthing strap or another unpainted part on the engine block of the broken-down vehicle (A).

Note: The parts should be as far away as possible form the starter battery in order to prevent any explosive gas that may develop from being ignited.

RISK OF EXPLOSION! On no

account should you connect the negative pole to the flat battery as

there is a risk that sparks may fly and ignite explosive gases.

- Starting

☐ After you have connected the aluminium jump leads, first switch on the engine of the vehicle with the donor battery (car B). Then start the motor of the broken-down vehicle (car A).

Note: After every attempt to start the car - which should not be longer than 15 seconds - wait for at least 1 minute. If you cannot start the car after several attempts, contact a garage.

☐ After successfully starting the broken-down vehicle (car A) wait for 2 to 3 minutes until the engine is running smoothly.

- Disconnecting

Note: When the motor has started, switch on the electric consumers, e.g. car lights or rear window heating, in order to prevent voltage peaks.

Note: Disconnect the aluminium jump leads in the reverse order to the way they were connected.

1. Remove the pole terminal 4 of the black aluminium jump lead 3 from the vehicle chassis of the broken-down car (A).
2. Then disconnect the other pole terminal 4 of the black aluminium jump lead 3 from the negative pole of the donor battery (B).
3. and 4. Remove the two pole terminals 2 of the red aluminium jump lead 1 in any order you wish (A, B).

- When removing the aluminium jump leads, make sure that they do not come into contact with the moving parts of the engine.

Note: Do not switch the vehicle that has been aluminium jump started off immediately. Drive the vehicle around for a while so that the battery is recharged by the alternator.

● Care and maintenance

WARNING! DANGER TO LIFE FROM

ELECTRICSHOCK! For reasons of electrical safety, the aluminium jump lead may never be cleaned with water or other fluids and never be immersed into water.

☐ After using the aluminium jump lead, always store it in the storage bag it came in to protect the product from damp and dirt.

Note: The aluminium jump lead should always be carried safely in the vehicle.

- Do not use any solvents, petrol etc. Otherwise there is danger of material damage.

☐ Use a dry lint-free cloth for cleaning.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Disposal/Guarantee and service

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Manufacturer

● Guarantee and service

● Guarantee declaration

This product comes with a three-year guarantee. Please keep your receipt as proof of purchase. The product has been produced to the highest standards and thoroughly checked before dispatch. The guarantee only applies to faults in material or manufacture when used properly. The guarantee lapses in cases of unauthorized tampering. This guarantee does not restrict your legal rights. In case of a warranty claim, please contact the service centre by phone.

Serviceaddress

When inquiring about your product, have your receipt and product number (e.g. IAN 12345) ready as your proof of purchase.
