53353 - Rocking chair BESTWAY - Free user manual and instructions

Product Type	Inflatable rocking chair for children
Brand	Bestway
Model	53353
Power Source	Built-in electric blower
Supply Voltage	220-240 V
Main Material	PVC vinyl
Usage	Outdoor only
Recommended Surface	Flat lawn, at least 3 m from any obstacle
Anchoring	Stakes included, mandatory
Maximum Wind Speed	32 km/h (20 mi/h)
Maintenance	Clean with a dry cloth or non-toxic solution
Repair	Patches included, application by an adult
Storage	Deflate, fold, and store in a dry place
Safety	Adult assembly, continuous supervision during use
Included Accessories	Blower, patches, anchor stakes, storage bag
Number of Users	1 child (estimated)
Recommended Age	From 3 years (estimated)

Frequently Asked Questions - 53353 BESTWAY

How to inflate the rocking chair?

Plug the blower into an electrical outlet, place the inflation opening onto the blower nozzle, then turn the switch to position I. Inflation takes a few minutes. Keep the blower running continuously during use.

Does the blower need to stay on continuously?

Yes, the blower must operate continuously while children play to maintain air pressure and prevent the structure from deflating.

How to repair a tear or hole?

Deflate the item, clean the area and let dry. Cut a patch to the required size, rounding the corners. Remove the adhesive backing (or use glue for fabric patches), apply firmly and smooth out to remove air bubbles. Let rest for 30 minutes before re-inflating.

Can I use the rocking chair on concrete?

No, it must be set up on a flat, grassy surface to absorb shocks and allow anchoring of stakes. Concrete or asphalt are not suitable.

From what age can this product be used?

The instructions do not specify a minimum age, but it is stated that assembly must be done by an adult and children must be supervised. It is reasonable to recommend from 3 years old.

What to do in case of strong wind?

Do not use the product if wind speed exceeds 32 km/h (20 mi/h). The anchoring system must always be used to prevent the structure from being lifted.

How to clean the rocking chair?

Wipe the product with a dry cloth or a cloth moistened with a neutral, non-flammable, and non-toxic cleaning and disinfecting solution, or with water. Do not clean the blower with water.

How to store the rocking chair after use?

Turn off and unplug the blower. Remove the stakes. Fold the product towards the center, roll it tightly to remove air, then slide it into the carrying bag. Store the whole set in a cool, dry place.

Can I use an extension cord with the blower?

No, the instructions advise against using an extension cord. Plug the blower directly into an electrical outlet.

What to do if the blower motor does not start?

Check that the switch is in position I, that the outlet is powered, and that the circuit is not damaged. If the problem persists, consult a qualified professional.

USER MANUAL 53353 BESTWAY

bestwaycorp.com/support

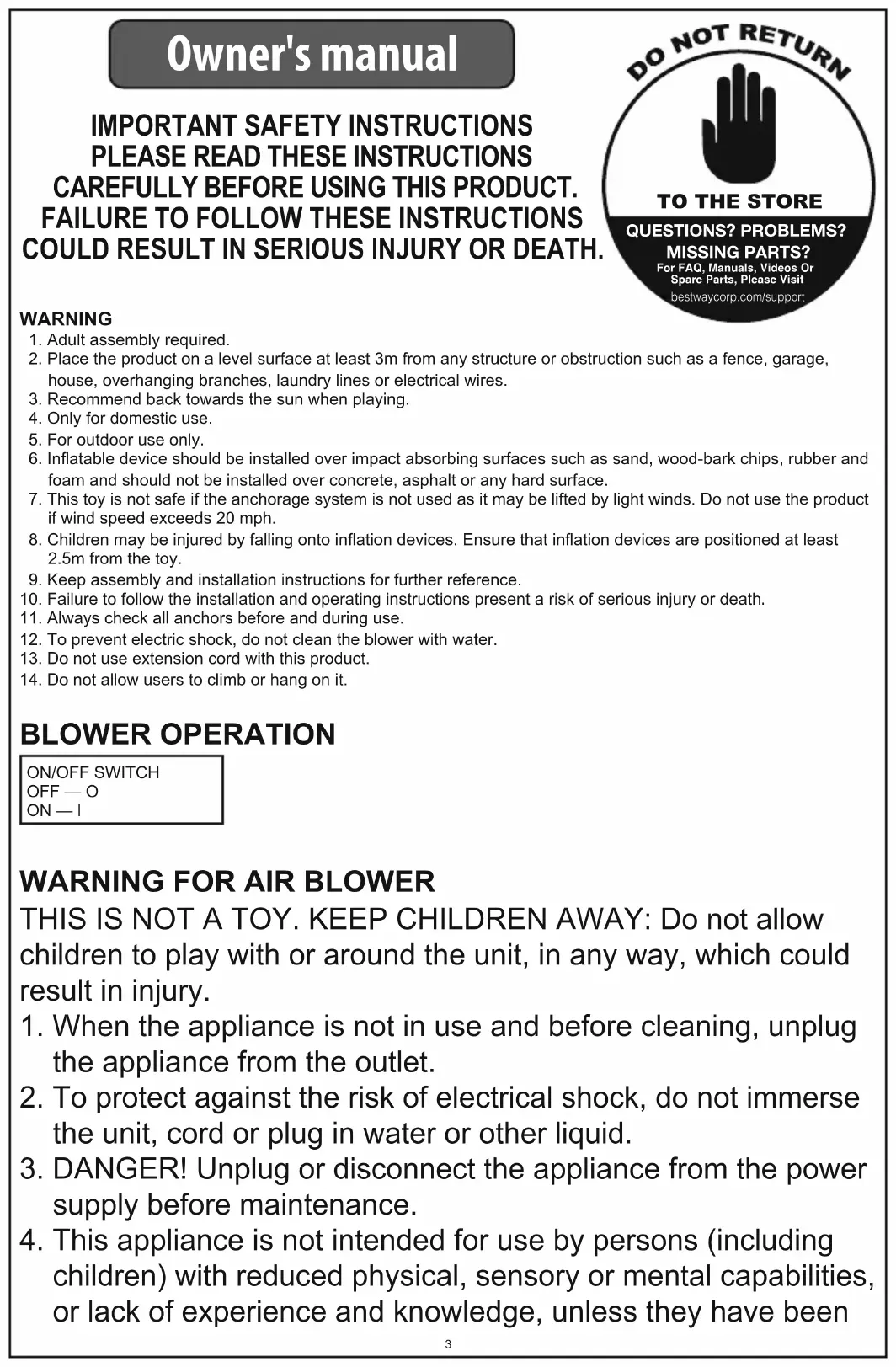

Owner's manual

IMPORTANT SAFETY INSTRUCTIONS PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

DO NOT RETURN TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals, Videos Or Spare Parts, Please Visit bestwaycorp.com/support

WARNING

1. Adult assembly required.
2. Place the product on a level surface at least 3m from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines or electrical wires.
3. Recommend back towards the sun when playing.
4. Only for domestic use.
5. For outdoor use only.
6. Inflatable device should be installed over impact absorbing surfaces such as sand, wood-bark chips, rubber and foam and should not be installed over concrete, asphalt or any hard surface.
7. This toy is not safe if the anchorage system is not used as it may be lifted by light winds. Do not use the product if wind speed exceeds 20 mph.
8. Children may be injured by falling onto inflation devices. Ensure that inflation devices are positioned at least 2.5m from the toy.
9. Keep assembly and installation instructions for further reference.
10. Failure to follow the installation and operating instructions present a risk of serious injury or death.
11. Always check all anchors before and during use.
12. To prevent electric shock, do not clean the blower with water.
13. Do not use extension cord with this product.
14. Do not allow users to climb or hang on it.

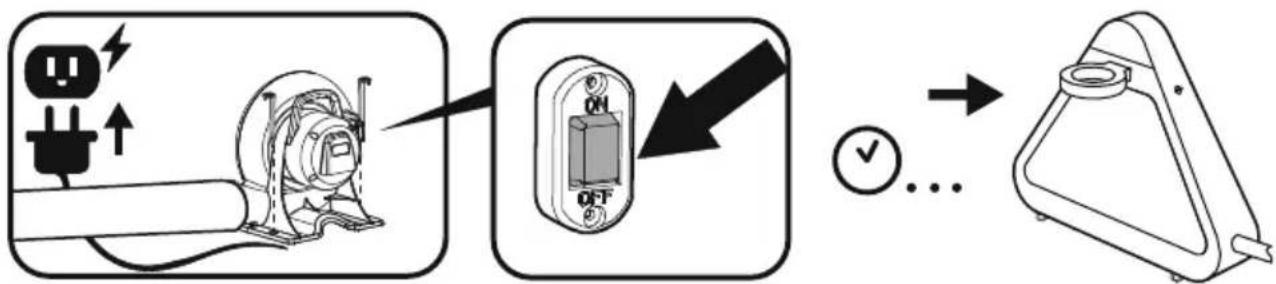

BLOWER OPERATION

ON/OFF SWITCH

OFF — O

ON-I

WARNING FOR AIR BLOWER

THIS IS NOT A TOY. KEEP CHILDREN AWAY: Do not allow children to play with or around the unit, in any way, which could result in injury.

1. When the appliance is not in use and before cleaning, unplug the appliance from the outlet.
2. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
3. DANGER! Unplug or disconnect the appliance from the power supply before maintenance.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. (For market other than EU).

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. (For EU market).

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

DISPOSAL

Meaning of crossed -out wheeled dustbin:

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

Contact your local government for information regarding the collection systems available. If electrical

appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge.

Setup Instruction

Placement:

Use on a flat, grassy area only. Do not use on pavement or hard surfaces. Usage area should be free of rocks, bumps, holes, sticks, etc.

Assembly

Note: 1. Place on level ground and firm grass or soil to allow proper use of stakes.

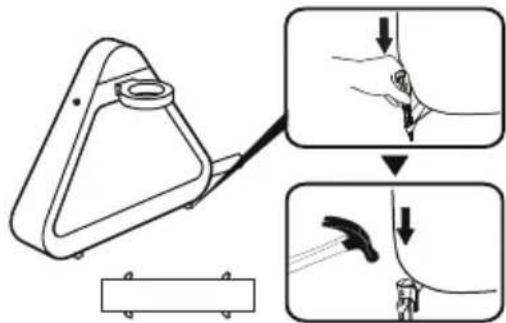

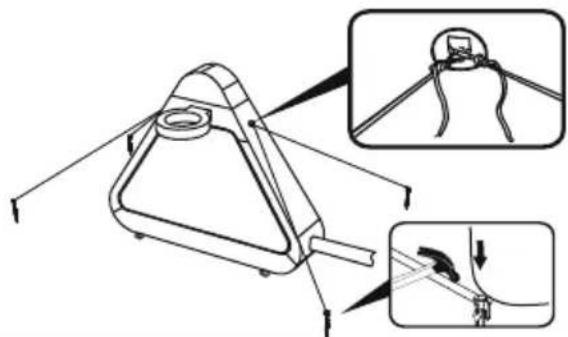

1. Stakes should be placed at an angle for better anchorage, should be driven under the ground to reduce tripping and tipping hazards.

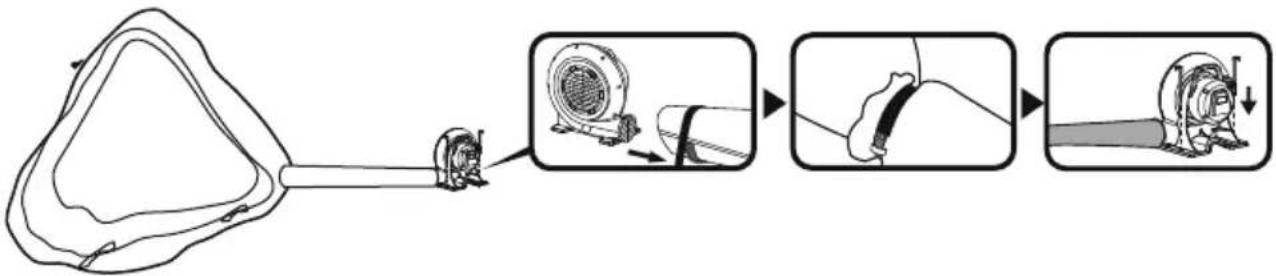

Attention: After inflation, the blower should run continuously while children are playing.

MAINTENANCE OF INFLATABLE PRODUCT

1. Check the product for damage at the beginning of each season and at regular intervals when in use. If these checks are not carried out, the activity toy could overturn or otherwise become a hazard.
2. Clean the product and remove any accumulated debris before each use. Wipe the product using a dry cloth or a cloth dampened with a neutral, non-flammable, non-toxic cleaning and sanitizing solution or pure water.

MAINTENANCE OF AIR BLOWER

THE SOURCE OF ELECTRICAL SUPPLY MUST BE DISCONNECTED PRIOR TO ANY SERVICING OR CLEANING.

1. USE A DRY CLOTH TO GENTLY CLEAN ALL SURFACES.
2. STORE IN A COOL, DRY PLACE AND OUT OF CHILDREN'S REACH.

Deflation & Storage

1. Turn off the blower motor and unplug it from the outlet.
2. Remove stakes from the product and the blower.
3. Fold the product toward the center.
4. Roll up the product tightly and compress the fabric to expel all of the remaining air.
5. Slip the carrying bag over the rolled-up product. Flip the bag and the product over, close the bag, and store the product and the blower in a dry place.

Repair Patch Instructions

Replace defective parts in accordance with the instructions. Please keep for future reference.

1 3

2 correct or incorrect

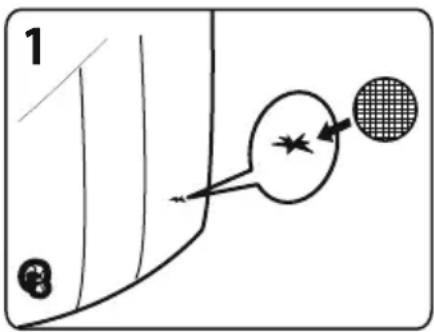

1. Defalte the item, clean the area and allow to dry thoroughly.

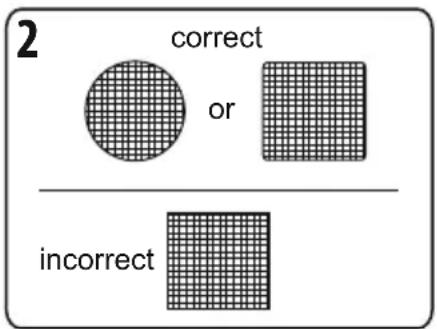

2. Cut a portion of the patch to the size needed and round the corners.(See Fig.1&2).
3. Apply the repair patch:

Option #1: Using the vinyl patch.

Remove the adhesive backing from the patch material, position the patch over the damaged area and smooth out any bubbles.

Option #2: Using the fabric patch and the glue (not included).

Apply only the amount of glue(not included) needed to cover the repair site and press patch firmly over the puncture.

1. Allow to sit for 30 minutes before re-inflating.

Warning: Repair patched must be applied by an adult only. Keep out of children.

Troubleshooting

PROBLEM CAUSE
Motor won’t run	1. Switch not turned on.2. The circuit is opened or it is poor contact.3. Electric capacity is damaged.4. Choked up by hard objects.
Motor runs but wheel makes a scraping noise	1. Screws on the vaned wheel are loose.2. Foreign objects in air-blower.
Motor is unable to run normally	1. The voltage is unstable.2. Motor is affected with damp.3. Electric capacity is failure.4. The impeller is loose.

UNDERHÅLL AV UPPBLÅSBAR PRODUKT

Illustration of a rolled-up document with an arrow indicating rotation (no text or symbols)

Simple line drawing of a triangular shape with internal contours and two small protrusions (no text or symbols)

4

5

6

Diagram illustrating a medical procedure for using a triangular device to adjust the grip, with steps shown in Chinese.

7

Technical line drawing of a mechanical component with two views showing assembly details (no text or symbols)

8

Technical line drawing of a mechanical component with triangular blades and a central cylindrical feature (no text or symbols)

Bestway®

For support please visit us at:

bestwaycorp.com/support

©2019 Bestway Inflatables & Material Corp.

All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle Rechte vorbehalten/Tutti i diritti riservati

®TM Trademarks used in some countries under license to/

Bestway Inflatables & Material Corp., No.3065 Cao An Road, Shanghai, 201812, China.

Manufactured,distributed and represented in the European Union by/

Bestway (USA) Inc., 3411 E. Harbour Drive, Phoenix, Arizona 85034, United States of America

Tel: [phone] (For U.S. and Canada)

Distributed in Australia & New Zealand by Bestway Australia Pty Ltd, 98-104 Carnarvon Street, Silverwater, NSW 2128, Australia

Tel: Australia: ([phone]; New Zealand: 0800 142 101

Exported by/Exporté par/Exportado por/Exportiert von/Esportato da

Bestway (Hong Kong) International Ltd./Bestway Enterprise Company Limited

Suite 713, 7/Floor, East Wing, Tsim Sha Tsui Centre, 66 Mody Road, Kowloon, Hong Kong

www.bestwaycorp.com

Made in China/Fabriqué en Chine/Fabricado en China/Hergestellt in China/Prodotto in Cina
