Product type	Inflatable rocking chair
Brand	Bestway
Model	H2OGO! 53394
Recommended age	3 years and up
Maximum number of users	3
Maximum weight capacity	113 kg (250 lbs)
Individual weight capacity	37.7 kg (83 lbs)
Critical fall height	1.57 m (62 in)
Maximum fall height	39 cm (15 in)
Blower power source	Electric, requires wall outlet
Usage	Outdoor or indoor
Recommended surface	Grass or impact-absorbing surface (sand, wood chips, rubber, foam)
Minimum safety distance	3 m (10 ft) from obstacles outdoors; 1.8 m (5.9 ft) indoors
Requires anchoring	Yes, stakes included for outdoor use
Maximum wind speed	32 km/h (20 mph)
Cleaning	Dry cloth or non-flammable neutral cleaning solution
Storage	Store in a dry, cool place out of reach of children

Frequently Asked Questions - H2OGO! 53394 BESTWAY

What is the minimum age to use this product?

The product is recommended for children aged 3 years and up.

How many children can use the chair at the same time?

Up to 3 users maximum, with a total weight capacity of 113 kg.

Should the blower be left on continuously?

Yes, the blower must run continuously while children are playing to keep the structure inflated.

Can I use this product on concrete or asphalt?

No, the product must be installed on an impact-absorbing surface such as grass, sand, or wood chips. Never use on concrete or asphalt.

How do I clean the inflatable chair?

Use a dry cloth or one moistened with a neutral, non-flammable, and non-toxic cleaning solution. Unplug the blower before cleaning.

Can I use an extension cord?

No, the use of an extension cord is prohibited to avoid risk of electrocution.

How do I repair a tear or hole?

Use the included patch: deflate the item, clean the area, apply the vinyl patch (remove adhesive backing) or use the fabric patch with glue (not included). Let dry for 30 minutes before re-inflating.

What to do if the blower does not work?

Check that the switch is set to On, that the plug is connected, and that no hard object is blocking the blower. If the problem persists, contact technical support.

How to store the product after use?

Unplug the blower, remove the stakes, fold the structure towards the center and roll it up, compressing the fabric to release air. Store in a dry, cool place, out of reach of children.

Can I use this product in strong wind?

No, do not use the product if wind speed exceeds 20 mph (32 km/h). The product must be anchored with the included stakes.

USER MANUAL H2OGO! 53394 BESTWAY

Visit w. www.bestwaycorp.com/support for help WE SUGGEST NOT TO RETURN THE PRODUCT TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals, Videos Or Spare Parts, Please Visit bestwaycorp.com/support

OWNER'S MANUAL

bestwaycorp.com/support

Visit Bestway YouTube channel YouTube

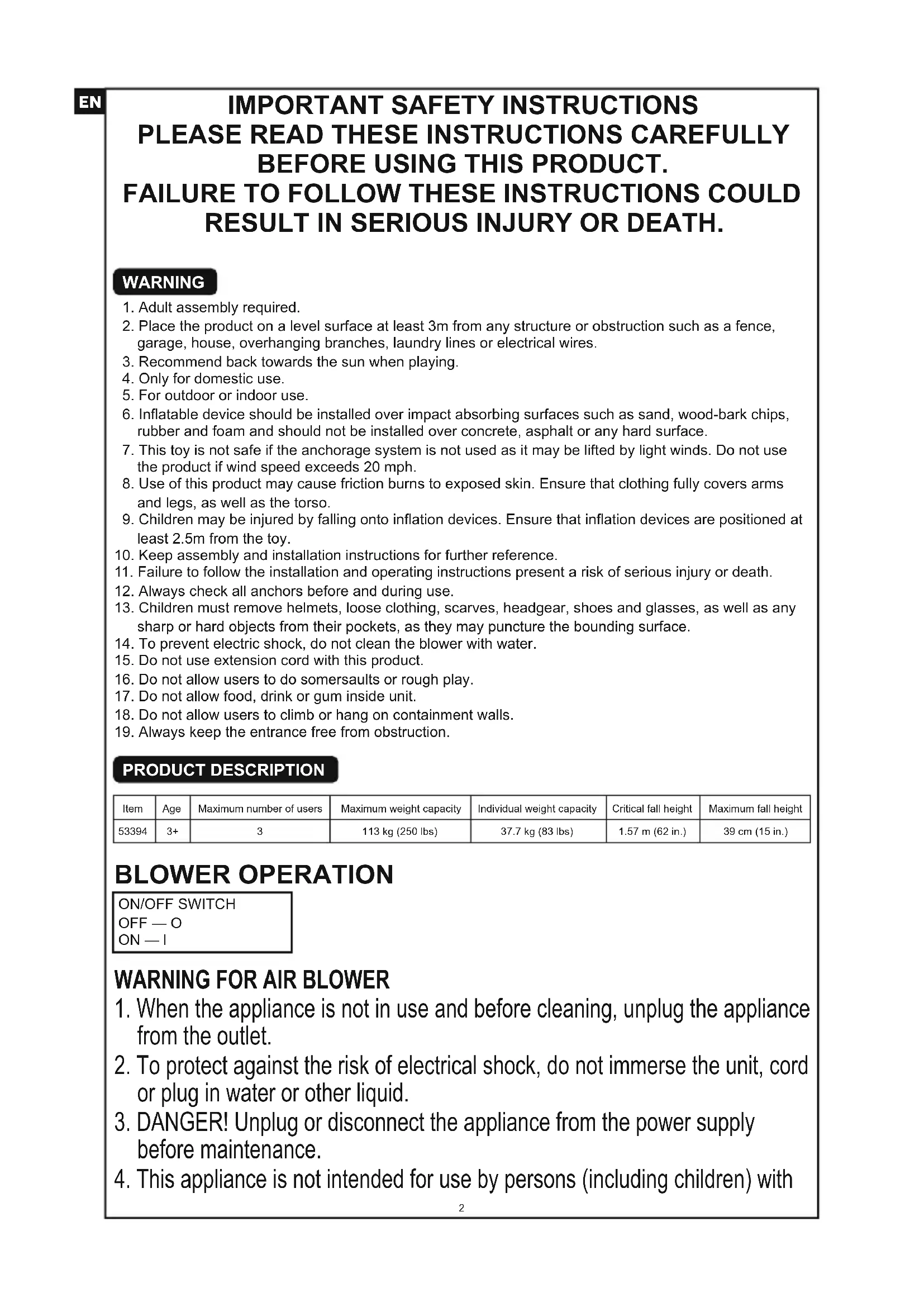

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT.

FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

WARNING

1. Adult assembly required.
2. Place the product on a level surface at least 3m from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines or electrical wires.
3. Recommend back towards the sun when playing.
4. Only for domestic use.
5. For outdoor or indoor use.
6. Inflatable device should be installed over impact absorbing surfaces such as sand, wood-bark chips, rubber and foam and should not be installed over concrete, asphalt or any hard surface.
7. This toy is not safe if the anchorage system is not used as it may be lifted by light winds. Do not use the product if wind speed exceeds 20 mph.
8. Use of this product may cause friction burns to exposed skin. Ensure that clothing fully covers arms and legs, as well as the torso.
9. Children may be injured by falling onto inflation devices. Ensure that inflation devices are positioned at least 2.5m from the toy.
10. Keep assembly and installation instructions for further reference.
11. Failure to follow the installation and operating instructions present a risk of serious injury or death.
12. Always check all anchors before and during use.
13. Children must remove helmets, loose clothing, scarves, headgear, shoes and glasses, as well as any sharp or hard objects from their pockets, as they may puncture the bounding surface.
14. To prevent electric shock, do not clean the blower with water.
15. Do not use extension cord with this product.
16. Do not allow users to do somersaults or rough play.
17. Do not allow food, drink or gum inside unit.
18. Do not allow users to climb or hang on containment walls.
19. Always keep the entrance free from obstruction.

PRODUCT DESCRIPTION

Item	Age	Maximum number of users	Maximum weight capacity	Individual weight capacity	Critical fall height	Maximum fall height
53394	3+	3	113 kg (250 lbs)	37.7 kg (83 lbs)	1.57 m (62 in.)	39 cm (15 in.)

BLOWER OPERATION

ON/OFF SWITCH

OFF — O

ON — I

WARNING FOR AIR BLOWER

1. When the appliance is not in use and before cleaning, unplug the appliance from the outlet.
2. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
3. DANGER! Unplug or disconnect the appliance from the power supply before maintenance.
4. This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. (For market other than EU).

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. (For EU market).

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Consumer information sheet for playground surfacing materials

The US Consumer Product Safety Commission (CPSC) estimates that about 100 000 playground equipment-related injuries resulting from falls to the ground surface are treated annually in US hospital emergency rooms. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries, and have the potential to be fatal, particularly when the injury is to the head. The surface under and around playground equipment can be a major factor in determining the injury-causing potential of a fall. It is self-evident that a fall on to a shock-absorbing surface is less likely to cause a serious injury than a fall onto a hard surface. Playground equipment should never be placed on hard surfaces, such as concrete or asphalt, and while grass may appear to be acceptable, it may quickly turn to hard-packed earth in areas of high traffic. Shredded bark mulch, wood chips, fine sand or fine gravel are considered to be acceptable shock absorbing surfaces when installed and maintained at a sufficient depth under and around playground equipment. Below lists the maximum height from which a child would not be expected to sustain a life-threatening head injury in a fall on to four different loose-fill surfacing materials if they are installed and maintained at depths of 150mm, 225mm and 300mm.

Fall height in millimeters from which a life-threatening head injury would not be expected

Type of material	Depth of surfacing material
	150 mm	225 mm	300 mm
Double shredded bark mulch	1800	3000	3300
Wood chips	1800	2100	3600
Fine sand	1500	1500	2700
Fine gravel	1800	2100	3000

However, it should be recognized that all injuries due to falls cannot be prevented, no matter what surfacing material is used.

It is recommended that a shock absorbing material extend a minimum of 1800mm in all directions from the perimeter of stationary equipment such as climbing frames and slides. However, because children may deliberately jump from a moving swing, the shock absorbing material should extend in the front and rear of a swing a minimum distance of twice the height of the pivot point measured from a point directly beneath the pivot on the supporting structure.

This information is intended to assist in comparing the relative shock-absorbing properties of various materials. No particular material is recommended over another. However, each material is only effective when properly maintained. Materials should be checked periodically and replenished to maintain correct depth as determined necessary for the equipment in question. The choice of a material depends on the type and height of the playground equipment, the availability of the material in a particular area, and its cost. This information has been extracted from the CPSC publications “Playground Surfacing — Technical Information Guide” and “Handbook for Public Playground Safety”.

DISPOSAL

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

SETUP INSTRUCTIONS

Placement:

Use on a flat, grassy area only. Do not use on pavement or hard surfaces. Usage area should be free of rocks, bumps, holes, sticks, etc. The slide park setup location should have a minimum distance of 10ft (305cm) from any free-standing structures or obstructions. This include: houses, garages, fences, trees, playground equipment, large rocks, etc.

10ft. (305 cm) 10 ft. (305 cm) safety area

ASSEMBLY

Note: 1. Place on level ground and firm grass or soil to allow proper use of stakes.

1. Stakes should be placed at an angle for better anchorage, should be driven under the ground to reduce tripping and tipping hazards.

Attention: After inflation, the blower should run continuously while children are playing.

MAINTENANCE OF SLIDE PARK

1. Check the product for damage at the beginning of each season and at regular intervals when in use. If these checks are not carried out, the activity toy could overturn or otherwise become a hazard.

2. Clean the product and remove any accumulated debris before each use. Wipe the product using a dry cloth or a cloth dampened with a neutral, non-flammable, non-toxic cleaning and sanitizing solution or pure water.

INDOOR USE INSTRUCTION

IMPORTANT

1. The product setup location should have a minimum distance of 5.9ft. (180cm) from any freestanding structures or obstructions.
2. We recommend adding soft cushions such as rubber, foam and carpet under the product.
3. It is not necessary to use stakes indoors. The product is stable during the usage, and there is no risk of being lifted by light winds.

5.9 ft. (180 cm) 5.9 ft. (180 cm) safety area

MAINTENANCE OF AIR BLOWER

THE SOURCE OF ELECTRICAL SUPPLY MUST BE DISCONNECTED PRIOR TO ANY SERVICING OR CLEANING.

1. USE A DRY CLOTH TO GENTLY CLEAN ALL SURFACES.
2. STORE IN A COOL, DRY PLACE AND OUT OF CHILDREN'S REACH.

DEFLATION & STORAGE

IMPORTANT: All children must exit the slide park before deflation.

IMPORTANT: Store park in a secure place, away from children, to prevent suffocation. Never leave either the park or the blower outside when not in use.

1. Turn off the blower motor and unplug it from the outlet.
2. Remove stakes from the park and the blower.

3. Fold the slide park toward the center.

4. Roll up the slide park tightly and compress the fabric to expel all of the remaining air.

5. Slip the carrying bag over the rolled-up inflatable park. Flip the bag and the park over, close the bag, and store the park and the blower in a dry place.

REPAIR PATCH INSTRUCTIONS

Replace defective parts in accordance with the instructions.

Please keep for future reference.

1 3

2 correct or incorrect

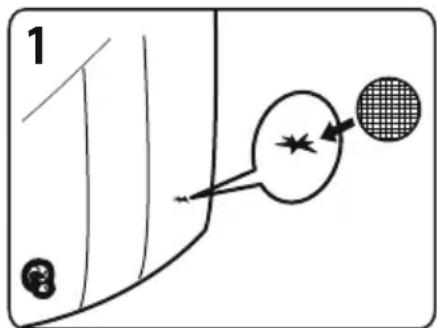

1. Deflate the item, clean the area and allow to dry thoroughly.
2. Cut a portion of the patch to the size needed and round the corners.(See Fig.1&2).
3. Apply the repair patch:
   Option #1: Using the vinyl patch.
   Remove the adhesive backing from the patch material, position the patch over the damaged area and smooth out any bubbles.
   Option #2: Using the fabric patch and the glue (not included).
   Apply only the amount of glue(not included) needed to cover the repair site and press patch firmly over the puncture.
4. Allow to sit for 30 minutes before re-inflating.

Warning: Repair patched must be applied by an adult only. Keep out of children.

TROUBLESHOOTING

PROBLEM CAUSE
Motor won't run	1. Switch not turned on.2. The circuit is opened or it is poor contact.3. Electric capacity is damaged.4. Choked up by hard objects.
Motor runs but wheel makes a scraping noise	1. Screws on the vaned wheel are loose.2. Foreign objects in air-blower.
Motor is unable to run normally	1. The voltage is unstable.2. Motor is affected with damp.3. Electric capacity is failure.4. The impeller is loose.

MANUAL DO PROPRIETÁRIO

Visite o canal da Bestway no YouTube YouTube

10 pés (305 cm) 10 pés (305 cm)

área de segurança

MONTAGEM

INSTRUÇÕES PARA USO INTERNO

IMPORTANTE

5.9 ft. (180 cm) 5.9 ft. (180 cm)

Zona di sicurezza

TÖMNING OCH FÖRVARING

Technical diagram illustrating a wire meshing device with two steps: adding a cable to a wire and then adjusting the cable.
