H2OGO! 53395 - Rocking chair BESTWAY - Free user manual and instructions

Product type	Inflatable water park with slide
Brand	Bestway
Model	H2OGO! 53395
Recommended age	3 years and up
Maximum number of users	3
Maximum load capacity	113 kg (250 lbs)
Individual load capacity	37.7 kg (83 lbs)
Critical fall height	1.57 m (62")
Maximum fall height	39 cm (15")
Blower power supply	AC 110-120 V, 60 Hz, 2.8 A
Minimum safety distance	3 m (10 ft) from any structure or obstacle
Recommended installation surface	Flat grass, free of stones and debris
Electrical protection	GFCI protected outlet
Use in wind	Do not use if wind > 32 km/h (20 mph)
Cleaning	Dry cloth or non-toxic, non-flammable solution
Blower maintenance	Unplug before cleaning, wipe with dry cloth
Storage	Dry and cool place, out of reach of children
Spare parts and support	Visit bestwaycorp.com/support
Warranty	Refer to the manual for details
Extension cord	Do not use an extension cord

Frequently Asked Questions - H2OGO! 53395 BESTWAY

What type of ground is recommended for installing this product?

The product must be installed on a flat, grassy surface at least 3 m (10 ft) from any structure, obstacle, or power line. Avoid concrete, asphalt, or hard surfaces.

Can I use an extension cord?

No, use of an extension cord is prohibited. Plug the blower directly into a GFCI outlet.

How to test the GFCI before use?

Press the 'Test' and 'Reset' buttons on the GFCI outlet. If the blower does not stop or restart, do not use the product and consult an electrician.

What is the maximum number of children who can use the product at the same time?

The maximum number of users is 3, with individual weight not exceeding 37.7 kg (83 lbs) and total weight not exceeding 113 kg (250 lbs).

How to clean the inflatable park?

Use a dry cloth or one soaked in a non-toxic, non-flammable, neutral solution, or plain water. Gently wipe all surfaces.

What to do if the blower motor does not work?

Check that the switch is ON, that the circuit is not open, and that the unit is not obstructed. If the problem persists, contact support.

Can I use the product indoors?

Yes, provided a minimum distance of 1.8 m (5.9 ft) from any structure is maintained, and soft cushions are added under the product. Stakes are not necessary indoors.

How to store the product after use?

Unplug the blower, remove the stakes, empty the water, fold the park towards the center, roll it up compressing the air, place it in the carry bag, and store it dry.

What clothing should children wear?

Children should wear clothing covering arms, legs, and torso to prevent friction burns. Avoid loose clothing, scarves, hoods, or drawstrings.

Where to find spare parts or help?

Visit bestwaycorp.com/support for FAQs, manuals, videos, and spare parts.

USER MANUAL H2OGO! 53395 BESTWAY

Visit www.bestwaycorp.com/support for help WE SUGGEST NOT TO RETURN THE PRODUCT TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals, Videos Or Spare Parts, Please Visit bestwaycorp.com/support

OWNER'S MANUAL

bestwaycorp.com/support

Visit Bestway YouTube channel YouTube

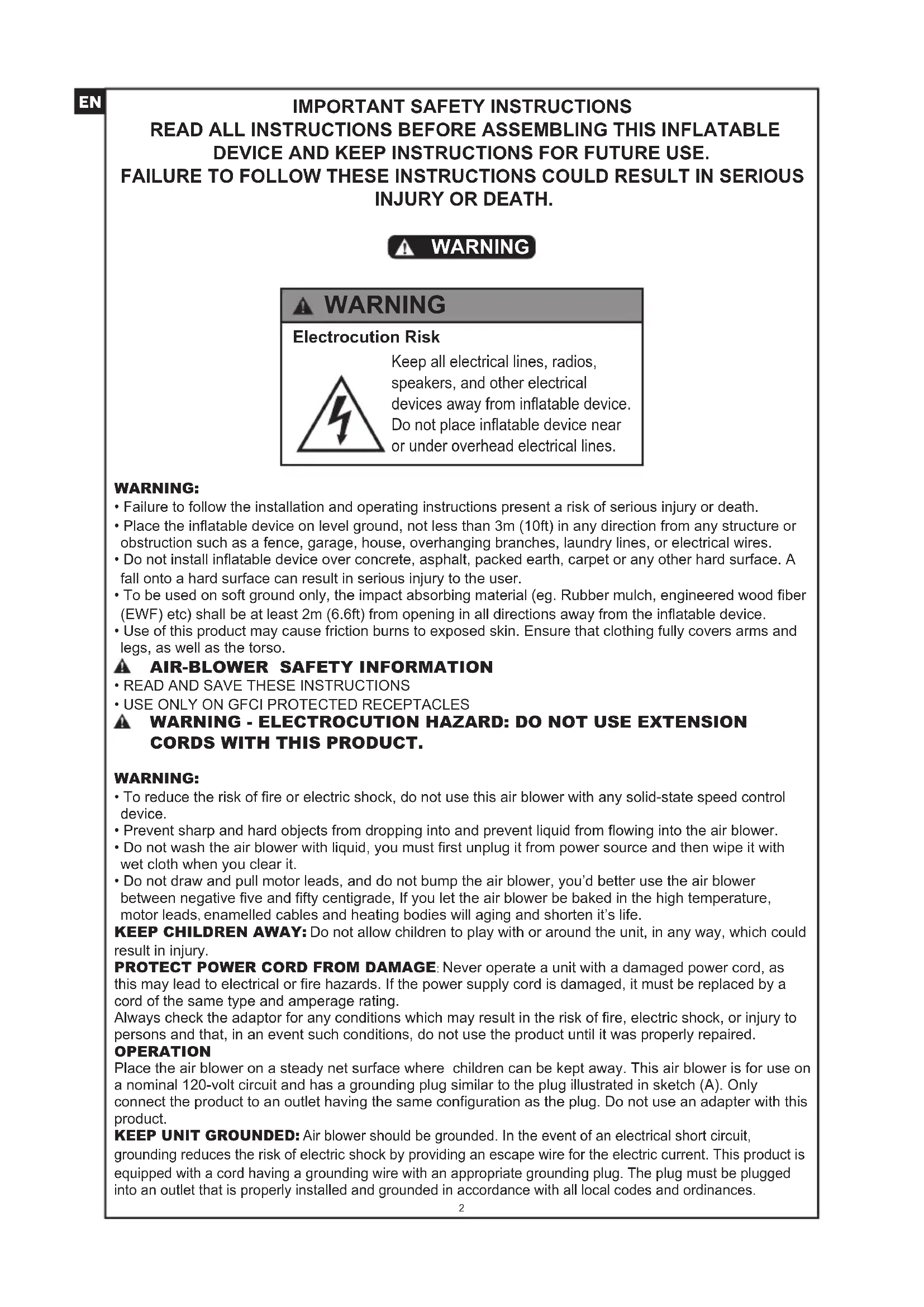

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE ASSEMBLING THIS INFLATABLE DEVICE AND KEEP INSTRUCTIONS FOR FUTURE USE.

FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

WARNING

WARNING

Electrocution Risk

Keep all electrical lines, radios, speakers, and other electrical devices away from inflatable device. Do not place inflatable device near or under overhead electrical lines.

WARNING:

• Failure to follow the installation and operating instructions present a risk of serious injury or death.
• Place the inflatable device on level ground, not less than 3m (10ft) in any direction from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines, or electrical wires.
• Do not install inflatable device over concrete, asphalt, packed earth, carpet or any other hard surface. A fall onto a hard surface can result in serious injury to the user.
• To be used on soft ground only, the impact absorbing material (eg. Rubber mulch, engineered wood fiber (EWF) etc) shall be at least 2m (6.6ft) from opening in all directions away from the inflatable device.
• Use of this product may cause friction burns to exposed skin. Ensure that clothing fully covers arms and legs, as well as the torso.

AIR-BLOWER SAFETY INFORMATION

• READ AND SAVE THESE INSTRUCTIONS
  • USE ONLY ON GFCI PROTECTED RECEPTACLES

WARNING - ELECTROCUTION HAZARD: DO NOT USE EXTENSION CORDS WITH THIS PRODUCT.

WARNING:

• To reduce the risk of fire or electric shock, do not use this air blower with any solid-state speed control device.
• Prevent sharp and hard objects from dropping into and prevent liquid from flowing into the air blower.
• Do not wash the air blower with liquid, you must first unplug it from power source and then wipe it with wet cloth when you clear it.
• Do not draw and pull motor leads, and do not bump the air blower, you'd better use the air blower between negative five and fifty centigrade, If you let the air blower be baked in the high temperature, motor leads, enamelled cables and heating bodies will aging and shorten it's life.

KEEP CHILDREN AWAY: Do not allow children to play with or around the unit, in any way, which could result in injury.

PROTECT POWER CORD FROM DAMAGE: Never operate a unit with a damaged power cord, as this may lead to electrical or fire hazards. If the power supply cord is damaged, it must be replaced by a cord of the same type and amperage rating.

Always check the adaptor for any conditions which may result in the risk of fire, electric shock, or injury to persons and that, in an event such conditions, do not use the product until it was properly repaired.

OPERATION

Place the air blower on a steady net surface where children can be kept away. This air blower is for use on a nominal 120-volt circuit and has a grounding plug similar to the plug illustrated in sketch (A). Only connect the product to an outlet having the same configuration as the plug. Do not use an adapter with this product.

KEEP UNIT GROUNDED: Air blower should be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This product is equipped with a cord having a grounding wire with an appropriate grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper installation of the grounding plug is able to result in a risk of electric shock. When repair or replacement of the cord or plug is required, do not connect the grounding wire to either flat blade terminal. The wire with insulation having an outer surface that is green with or without yellow stripes is the grounding wire.

CAUTION: Check with a qualified electrician or serviceman when the grounding instructions are not completely understood, or when in doubt as to whether the air blower is properly grounded. Do not modify the plug provided. If it will not fit the outlet, have the proper outlet installed by a qualified electrician. The appliance must be positioned so that the plug is accessible. If the supply cord is damaged, it must be replaced by the manufacture or its service agent or a similarly qualified person in order to avoid a hazard.

GROUNDING METHODS Sketch A Grounded Outlet Grounding Pin

ON/OFF SWITCH OFF — O ON — I

GFCI WARNING

WARNING: Risk of electric shock. The GFCI must be tested before each use.

WARNING: Do not use the blower if the GFCI test fails.

PRODUCT DESCRIPTION

Item	Age	Maximum number of users	Maximum weight capacity	Individual weight capacity	Critical fall height	Maximum fall height
53395	3+	3	113 kg (250 lbs)	37.7 kg (83 lbs)	1.57 m (62")	39 cm (15")

Blower Rating: AC110-120V, 60Hz, 2.8A

GFCI TEST

Line drawing of a mechanical component with a coiled cable (no text or symbols)

RESET TEST 2

3 RESET Test

4 RESET TEST

SETUP INSTRUCTIONS

Placement:

Use on a flat, grassy area only. Do not use on pavement or hard surfaces. Usage area should be free of rocks, bumps, holes, sticks, etc. The slide park setup location should have a minimum distance of 10ft (305cm) from any free-standing structures or obstructions. This include: houses, garages, fences, trees, playground equipment, large rocks, etc.

10 ft. (305 cm) 10 ft. (305 cm) safety area

ASSEMBLY

Place on level ground and firm grass or soil to allow proper use of stakes.

Do not set up the inflatable device on a slope or incline.

Stakes should be placed at an angle for better anchorage, should be driven under the ground to prevent tripping.

Do not use the product if wind speed exceeds 20 mph.

Do not set up in windy or rainy conditions: sudden gust of wind may lift the product off the ground.

Only the blower provided or other manufacturer specified replacement blower should be used for inflation.

Use only with Ground Fault Circuit Interrupter (GFCI) receptacle.

Do not use extension cords with this product and keep the blower and power cord away from water.

Product shall be fully inflated and anchored before use.

Attention: After inflation, the blower should run continuously while children are playing.

INDOOR USE INSTRUCTION

IMPORTANT

1. The product setup location should have a minimum distance of 5.9 ft. (180 cm) from any freestanding structures or obstructions.

2. We recommend adding soft cushions such as rubber, foam and carpet under the product.

3. It is not necessary to use stakes indoors. The product is stable during the usage, and there is no risk of being lifted by light winds.

5.9 ft. (180 cm) 5.9 ft. (180 cm) safety area

WARNING

• To prevent electric shock, do not clean the blower with water.
- Children should not wear loose or baggy clothing, scarves, hoods or clothing with drawstrings or long cords while playing in this product.
- Children must remove helmets, loose clothing, scarves, headgear, shoes and glasses, as well as any sharp or hard objects from their pockets, as they may puncture the bounding surface.
- Separation of larger children from smaller children. Do not allow children to play together who are unevenly matched in weight and height.

- Do not allow users to climb or hang on containment walls.

- Do not allow users to do somersaults or rough play.

- Do not allow food, drink or gum inside unit.

- Children must not slide down head first on their stomach.

- Keep pets away from product.

- Do not attach items to the inflatable device that are not specifically designed for use with the inflatable device, such as, but not limited to, jump ropes, clothesline, pet leashes, cables and chain as they have the potential to cause a strangulation hazard.

MAINTENANCE OF SLIDE PARK

1. To keep the product clean: wipe the inflatable device using a dry cloth or a cloth dampened with a neutral, non-flammable, non-toxic cleaning and sanitizing solution or pure water.
2. The inflatable device is subject to wear and deterioration. Inspect for signs of fabric failure; weak or torn surface must be repaired promptly.

MAINTENANCE OF AIR BLOWER

The source of electrical supply must be disconnected prior to any servicing or cleaning.

1. Use a dry cloth to gently clean all surfaces.
2. Store in a cool, dry place and out of children's reach.

DEFLATION & STORAGE

IMPORTANT: All children must exit the slide park before deflation.

WARNING:

1. Store park in a secure place, away from children, to prevent suffocation. Never leave either the park or the blower outside when not in use.

2. Please place it the dry and ventilated position where is not sour, not alkali and not corrosive gases. After having used it in outdoors, you should place it in a dry and ventilated room in time. Do not let water into the air-blower.

3. Turn off the blower motor and unplug it from the outlet.

4. Remove stakes from the park and the blower.
5. Fold the slide park toward the center.
6. Roll up the slide park tightly and compress the fabric to expel all of the remaining air.
7. Slip the carrying bag over the rolled-up inflatable park. Flip the bag and the park over, close the bag, and store the park and the blower in a dry place.

TROUBLESHOOTING

PROBLEM CAUSE
Motor won't run	1. Switch not turned on.2. The circuit is opened or it is poor contact.3. Electric capacity is damaged.4. Choked up by hard objects.
Motor runs but wheel makes a scraping noise	1. Screws on the vaned wheel are loose.2. Foreign objects in air-blower.
Motor is unable to run normally	1. The voltage is unstable.2. Motor is affected with damp.3. Electric capacity is failure.4. The impeller is loose.

NOTICE D'UTILISATION

Line drawing of a cable connector with terminal ports (no text or symbols)

RESET TEST 2

3 RESET TEST

RESET TEST 4

INSTRUCTIONS D'INSTALLATION

Positionnement:

Line drawing of a mechanical component with a coiled cable (no text or symbols)

RESET ESI 2

3 RESET EMF

RESET EST 4

INSTRUCCIONES DE MONTAJE

Ubicación:

Line drawing of a mechanical electrical plug with a cable (no text or symbols)

RESET TEST 2

3 RESET EST

4 Close Close

INSTRUÇÕES DE MONTAGEM

Localização:

INSTRUÇÕES PARA USO INTERNO

IMPORTANTE

Technical diagram illustrating a wire meshing device with two steps: adding a cable to a wire and then adjusting the cable.

1 ⊕

2 ×

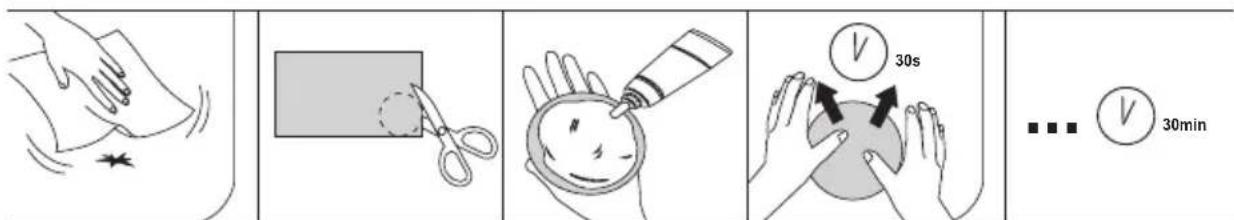

Diagram illustrating a hand-drawn process with motion arrows, a magnified view, and a timer reading '30s' and '30min'.

Diagram illustrating a hand-dyeing process with labeled steps and time indicators
