USER MANUAL S02 Esoteric

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE INSIDE.
IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT THE STORE WHERE YOU PURCHASED THE UNIT FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

IN USA/CANADA, USE ONLY ON 120 V SUPPLY.

Model for USA

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the equipment and/or the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Model for Canada

Industry Canada's Compliance Statement:

This Class B digital apparatus complies with Canadian ICES-003.

Model for Europe

DECLARATION OF CONFORMITY

We, TEAC AUDIO EUROPE, Liegnitzer Straße 6, 82194 Grobenzell, Germany declare in own responsibility, the TEAC product described in this manual is in compliance with the corresponding technical standards.

CAUTION

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

The information in the following table is only applicable to products for sale in the People's Republic of China.
The products sold in the European area are manufactured in accordance with the European RoHS Directive.

产品有毒有害物质或元素的名称及含量

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position.
- The main plug is used as the disconnect device; the disconnect device shall remain readily operable.
- Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.

CAUTION

• Do not expose this apparatus to drips or splashes.
• Do not place any objects filled with liquids, such as vases, on the apparatus.
• Do not install this apparatus in a confined space such as a book case or similar unit.

The apparatus should be located close enough to the AC outlet so that you can easily reach the power cord plug at any time.

• If the product uses batteries (including a battery pack or installed batteries), they should not be exposed to sunshine, fire or excessive heat.
• CAUTION for products that use replaceable lithium batteries: there is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equivalent type.

WARNING

Products with Class I construction are equipped with a power supply cord that has a grounding plug. The cord of such a product must be plugged into an AC outlet that has a protective grounding connection.

For European Customers

Disposal of electrical and electronic equipment and batteries and/or accumulators

a) All electrical/electronic equipment and waste batteries/accumulators should be disposed of separately from the municipal waste stream via collection facilities designated by the government or local authorities.
b) By disposing of electrical/electronic equipment and waste batteries/accumulators correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment.
c) Improper disposal of waste electrical/electronic equipment and batteries/accumulators can have serious effects on the environment and human health because of the presence of hazardous substances in the equipment.
d) The Waste Electrical and Electronic Equipment (WEEE) symbols, which show wheeled bins that have been crossed out, indicate that electrical/electronic equipment and batteries/accumulators must be collected and disposed of separately from household waste.

If a battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) as defined in the Battery Directive (2006/66/EC), then the chemical symbols for those elements will be indicated beneath the WEEE symbol.

e) Return and collection systems are available to end users. For more detailed information about the disposal of old electrical/electronic equipment and waste batteries/accumulators, please contact your city office, waste disposal service or the shop where you purchased the equipment.

Contents

Thank you for purchasing this Esoteric product.
Read this manual carefully to get the best performance from this product.
IMPORTANT SAFETY INSTRUCTIONS 3
Before use. 6
Maintenance. 7
Connecting speakers 8
Connections 9
Names and functions of parts. 10
Basic operation 12
Notes about the protection circuits 13
Troubleshooting. 13

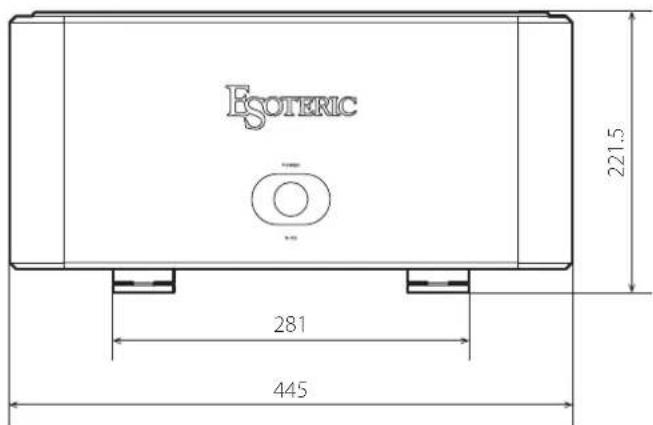

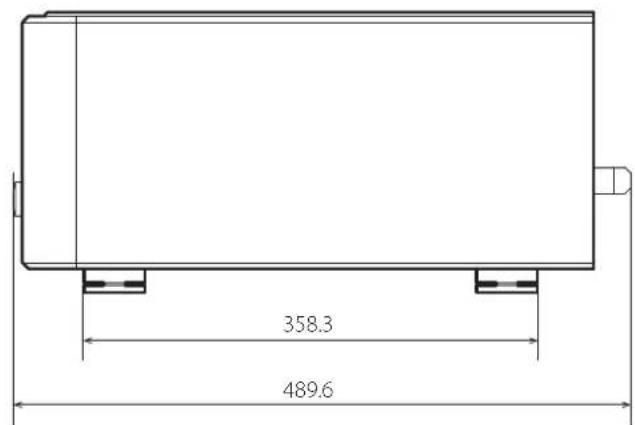

Specifications and dimensional drawings 14

Before use

What's in the box

Check to be sure the box includes all the supplied accessories shown below. Please contact the store where you purchased this product if any of these accessories are missing or have been damaged during transportation.

Power cord × 1 Felt pads × 4

Power cord support bracket × 1

Screws for power cord support bracket × 2

Owner's manual (this document) × 1

Warranty card × 1

After reading it, keep it in a safe place with the warranty card for future reference.

Precautions for use

This unit is very heavy, so take care to avoid injury during installation.
- Do not install this unit in a location that could become hot. This includes places that are exposed to direct sunlight or near a radiator, heater, stove or other heating equipment. Moreover, do not place it on top of another amplifier or equipment that generates heat.
- Avoid locations that are subject to vibrations or exposed to excessive dust, cold or moisture.
- This unit generates more heat than ordinary power amplifiers. When installing it, install it independently at least 20cm ( 8^ ) from surrounding walls and other barriers.

If you put it in a rack, take precautions to prevent overheating by using a rack with ventilation openings, for example, and leaving at least 20~cm (8") open above the top of the unit and at least 10 cm (4^ ) open behind the unit.

Do not install it face up or on its side.

• Place the unit in a stable location near the audio system that you will use with it.
  DO NOT place anything, not even CDs, CD-Rs, LP records or cassette tapes, on top of the unit.
• Do not put cloth on top of the unit or place the unit on top of bedding or thick carpet. Doing so could cause the unit to overheat or damage it.
  Supply voltage to the unit that matches the voltage indicated on the rear panel. If you are in any doubt regarding this matter, consult an electrician.

Maintenance

Do not move the unit during use.
- Do not open the body of the unit as doing so might result in damage to the circuitry or cause electric shock. If a foreign object should get into the unit, contact your dealer.
- When removing the power plug from an outlet, always pull directly on the plug. Never pull on the cord itself.

Note about pinpoint feet

High-precision metal pinpoint feet are attached firmly to the bottom plate of this unit.

The stands for these feet are loose, but when the unit is placed in position, it is supported by these pinpoint feet, which will effectively disperse vibrations.

Foot-stand (metal) Screws that attach foot-stand

• Apply the included felt to the bottom of the foot-stands to avoid scratching the surface where the unit is placed.

About the power cord support bracket

This unit includes a bracket to support heavy power cords, such as the ESOTERIC 7N-PC9500 MEXCEL and 7N-PC7500 and 7N-PC5500 power cords.

Align it with the power cord being used and attach it, tightening the screws securely.

Use a soft dry cloth to wipe the surface of the unit clean.

For stubborn smudges, use a damp cloth that has been thoroughly wrung out to remove excess moisture.

Fx safety, disconnect the power plug from the outlet before wiping the unit.

• Never spray liquid directly on these units.
• Do not use chemically-treated wipes, thinner or similar substances because they could damage the surface of the unit.
• Avoid allowing rubber or plastic materials to touch the unit for long periods of time, because they could damage the cabinet.

Notes about speaker cables

• Use commercially-available speaker cables to connect the speakers.
• Use the shortest speaker cables possible. The longer the cable, the greater the resistance value and the more that damping performance is reduced. Moreover, length also increases impedance and capacitance, degrading the sound quality of high frequencies.
• Use left and right speaker cables that have the same length.

How to connect speaker cables

Use commercially-available speaker cables to connect the + terminal of the unit to the + terminal of the speaker and the - terminal of the unit to the - terminal of the speaker.

Use speakers with at least 4 impedance.
- If the exposed tip of the core wire of a speaker cable contacts another cord or terminal, a short could occur.

Never allow a speaker cable to short.

Do not connect more than one amplifier to a speaker.
- Do not bundle connecting cables with power cords. Doing so could cause noise.

The power plug should always be disconnected when connecting speaker cables.

When using banana plugs

Insert the plug into the opening in the end of the terminal.

• Keep the cap tightened when using.
• Carefully read the instructions for the banana plugs that you are using.

Notice about the European model

In accordance with European safety regulations, connecting banana plugs to speaker terminals is not allowed on European models.

The holes into which banana plugs could be inserted have been covered with black caps. Connect speakers using bare wires or spade lugs.

If a black cap should become separated from its terminal, return it to its original position.

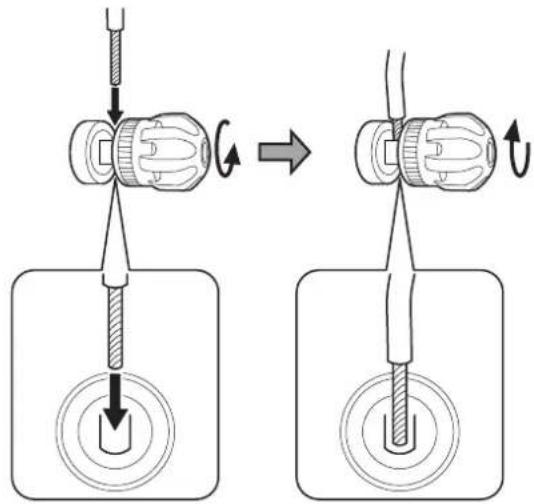

When using bare wires

Loosen the cap, insert the core wire from above and tighten the cap.

The insertion hole faces up.

Cross-section

The maximum wire diameter that can be inserted is 4mm(1 / 8^*)

When using spade lugs

Loosen the cap, place the lug around the terminal from above or below and tighten the cap.

• When using a spade lug to connect, use one with an inside diameter of at least 6mm (1/4^ )

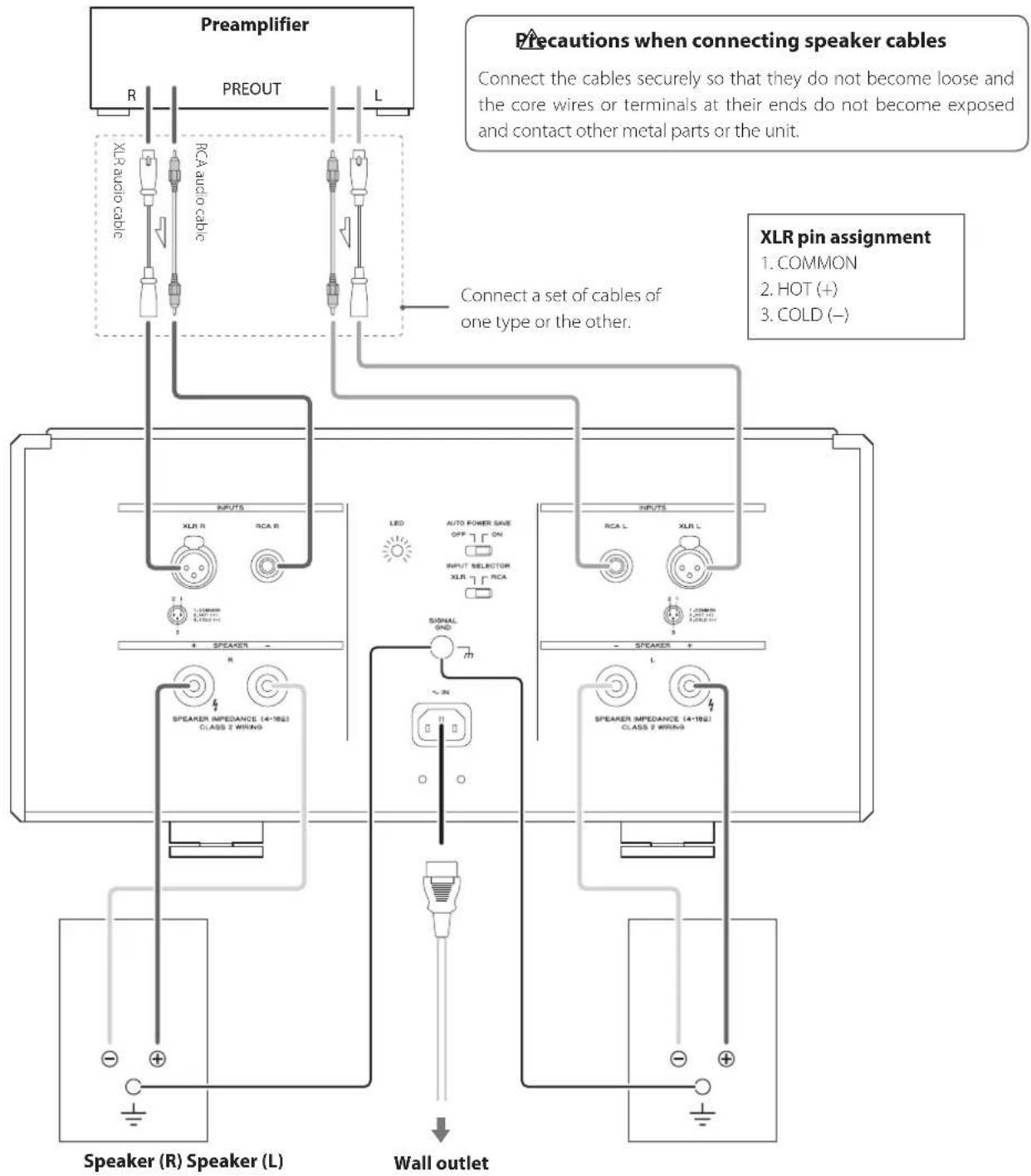

Precautions when making connections

After completing all other connections, plug the power plug into a power outlet.

Always turn the power off before disconnecting anything.

Read the owner's manuals of all devices that will be connected, and follow their instructions.

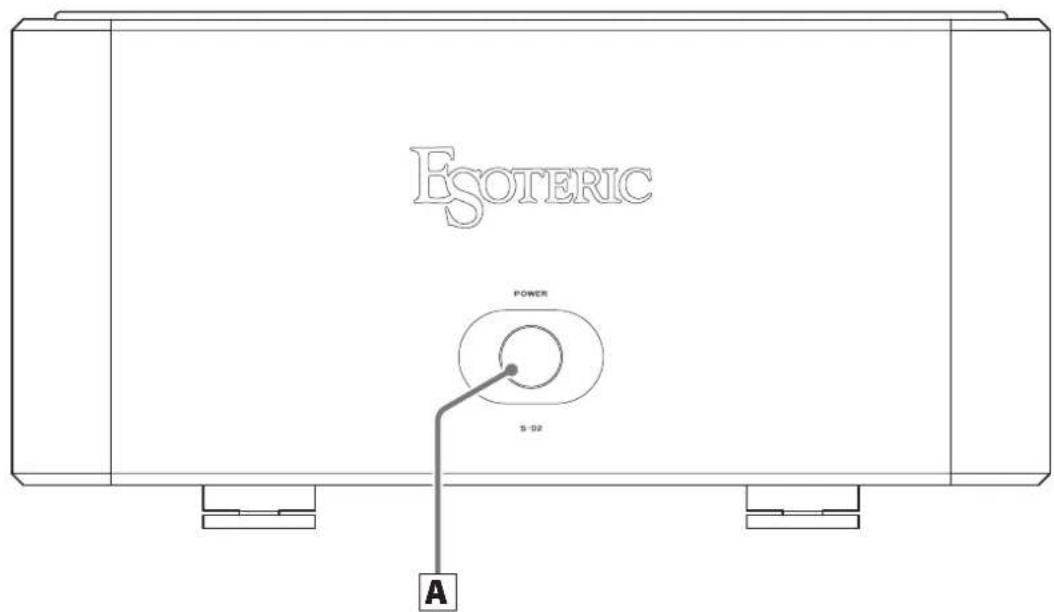

Front panel

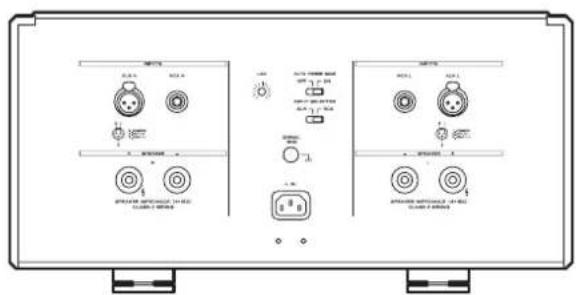

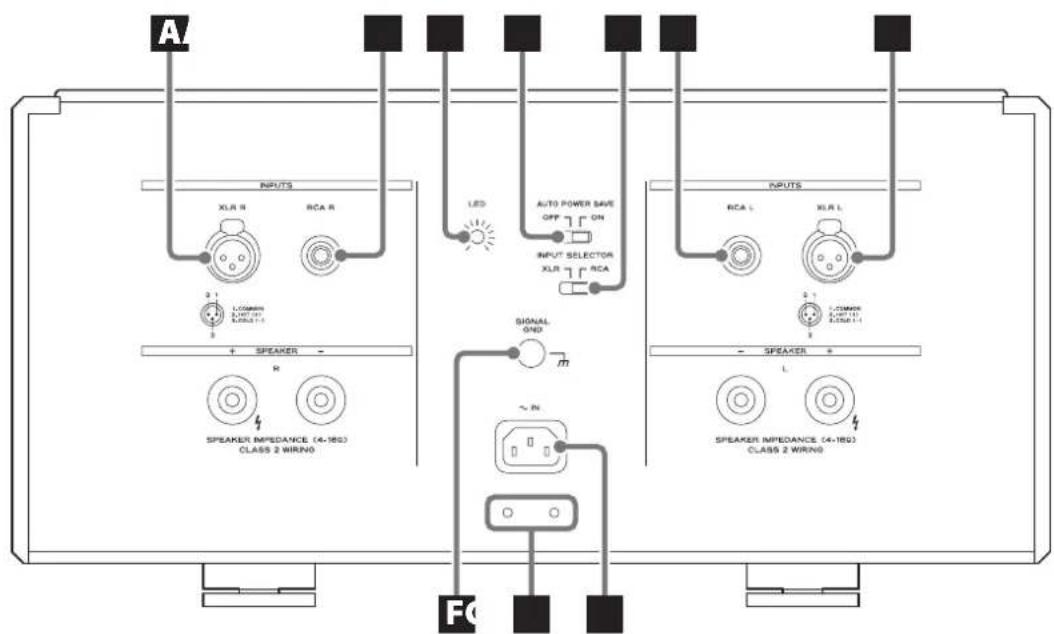

Rear panel

POWER button

Press to turn the unit on or off.

The power indicator is around the button. The indicator lights blue when the unit is on. After turning the unit on, the indicator will blink blue and no sound will be output for a few seconds. Wait until the indicator stops blinking and stays lit.

• When the protection circuit is active, the power indicator blinks blue or alternately blue and red and no sound is output (page 13).
  Since this unit has a high-capacity power transformer and capacitor, the power transformer might make noise for a short time after the unit is turned on. This is not a malfunction.
  After turning the unit off, wait at least two seconds before turning it on again.

A XLR input connectors

Use balanced XLR cables to connect the output connectors of the preamplifier to these connectors.

To use these inputs, set the INPUT SELECTOR switch on the rear of the unit to XLR.

• Insert the balanced XLR plugs until the levers lock. Press the levers when disconnecting.
  The XLR input connectors are 2 "HOT". Use compatible cables.
• Insert the plugs completely. Do not bundle these cables together with power cords or speaker cables.

Doing so could degrade the sound quality or cause noise.

B RCA input connectors

Use RCA cables to connect the output connectors of the preamplifier to these connectors.

To use these inputs, set the INPUT SELECTOR switch on the rear of the unit to RCA.

• Insert the plugs completely. Do not bundle these cables together with power cords or speaker cables.

Doing so could degrade the sound quality or cause noise.

LED brightness adjustment knob

Turn to adjust the brightness of the power indicator.

AUTO POWER SAVE switch

Use to turn the automatic power saving function on and off. When the automatic power saving function is on, if there is no audio input (continuous silence) from the selected input source for about 30 minutes, the unit will turn off automatically.

The statuses of unselected inputs have no effect on the operation of the automatic power saving function.

E INPUT SELECTOR switch

Use to switch between RCA and XLR inputs.

not change this when the unit is on. Doing so could cause a loud noise that might harm your hearing or damage the unit or the connected speakers.

F Grounding connector [SIGNAL GND]

Using commercially-available sheathed wire (for example, PVC-insulated) to create grounded connections with the speakers, the preamplifier or other equipment might improve the sound quality.

This is NOT an electrical safety ground.

G Holes for power cord support bracket screws

Use to attach the power cord support bracket (page 7).

H Power inlet [~IN]

Connect the included power cord to this inlet. After completing all other connections, plug the power plug into a power outlet.

• Disconnect the power plug from the outlet if you will not use the unit for a long time.

Use only a genuine Esoteric power cord. Use of other power cords could result in fire or electric shock.

At Esoteric, we use Esoteric MEXCEL stressfree cables for reference.

For detailed information, access the following website.

http://www.esoteric.jp/products/esoteric/accessory/indexe.html

In order to protect the speakers, follow the steps below when turning on and off the system to which this unit is connected.

Turning the power on

1 Minimize the preamplifier volume.
2 Turn the audio source device on.
3 Turn the preamplifier on.
4 Turn this unit on.

After turning the unit on, the power indicator will blink blue and no sound will be output for a few seconds. Wait until the power indicator stops blinking and stays lit before adjusting the volume and conducting other operations.

Turning the power off

If an audio source device is playing back, stop playback.
2 Minimize the preamplifier volume.
3 Turn this unit off.

4 Turn the preamplifier off.
5 Turn the audio source device off.

To assure safety, always disconnect the power plug from the outlet when cleaning the unit and when traveling or otherwise not using the unit for a long time.

Notes about the protection circuits

This unit has an output short circuit protection circuit, an overheating protection circuit and a direct current protection circuit built-in.

A protection circuit is active when the power indicator blinks blue or alternately blue and red.

• If the power indicator blinks blue, a short might have occurred in the + / - speaker cables. In this case, turn the unit off and check the speaker cable connections.
• If the power indicator blinks alternately blue and red, the internal temperature is high. Turn the unit off and wait a while for the temperature to decrease. You can also change the installation conditions to improve ventilation.
• If the power indicator blinks alternately blue and red for 30 seconds, the unit will automatically turn itself off. After this, the POWER button will be disabled for as long as the internal temperature remains high.

If the indicator continues to blink even after likely causes have been eliminated, contact the store where you purchased the unit.

Troubleshooting

If you experience a problem with this unit, please take a moment to review the following information before requesting service. If this unit still does not operate correctly, contact the retailer where you purchased the unit.

The unit does not turn on.

Insert the power plug into a power outlet.

The unit automatically turns off.

This is because the automatic power saving function turned it off. Press the POWER button on the main unit to turn it on. Change the automatic power saving setting if necessary (page 11).

No sound is output.

Turn the main unit on.
Confirm that the preamplifier is on. Before turning the preamplifier on, turn this unit off.
Confirm that a signal is being output from the preamplifier.
Check the connections between this unit, the preamplifier and the speakers, as well as between the audio source device and the preamplifier.
Confirm that the correct input is selected on the preamplifier.
Confirm that the correct input is selected on this unit.
Raise the preamplifier volume.

The power indicator blinks blue or alternately blue and red.

A protection circuit is active. Turn the unit off and eliminate the cause (page 13).
A short might have occurred with the + / - speaker cables. Check the speaker cable connections.

The stereo sound position is irregular.

Check that neither of the speakers has a connection cable with + / - reversed.

Audio performance

Rated output. 145 W + 145 W (8 Ω)
290W+290W(4Ω)
Maximum useful output. .580W+580 W (2Ω)
Frequency response. 5 Hz - 100 kHz (+0 dB, -3 dB, 8 Ω)
S/N ratio. 115 dB (HF-A)
Total harmonic distortion.0.003% (1 kHz, 8Ω, 150 W)
Gain 29 dB
Damping factor. 1000
Input connectors. RCA × 1 pair
XLR×1pair
Input impedance
RCA 22 kO
XLR 44 kΩ

General

Power supply
Model for Europe/Hong Kong AC 230V,50 Hz
Model for USA/Canada AC 120V,60 Hz
Model for Korea .AC 220V,60 Hz
Power consumption 440 W (160 W when no signal)
External dimensions (W× H× D) (including protrusions)
445× 221.5× 489.6mm (175 / 8^ × 83 / 4^ × 193 / 8^ )
Weight. 48 kg (105 7/8 lb)
Operating temperature. +10^ to +35^
Operating humidity .5% to 85% (no condensation)
Storage temperature -20°C to +55°C

Included accessories

Power cord × 1

Felt pads × 4

Power cord support bracket × 1

Screws for power cord support bracket × 2

Owner's manual (this document) × 1

Warranty card × 1

• Specifications and appearance are subject to change without notice.
  Weight and dimensions are approximate.
• Illustrations in this manual might differ slightly from production models.

Dimensions in millimeters (mm)

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

ATTENTION : POUR RÉDUIRE LE RISQUE D'ÉLECTROCUTION, NE RETIREZ PAS LE CAPOT (OU L'ARRÊRE). AUCUNE PIECE INTERNE N'EST REPARABLE PAR L'UTILISATEUR. CONFIEZ TOUTE RÉPARATION À UN SERVICE APRES-VENTE QUALIFIÉ.

This appliance has a serial number located on the rear panel. Please record the serial number and retain it for your records.
