USER MANUAL Tree DEVIALET
Tree was invented by Devialet, Ingénierie Acoustique de France, the world's most awarded start-up for the excellency of its innovations in sound technologies
Made in France
1

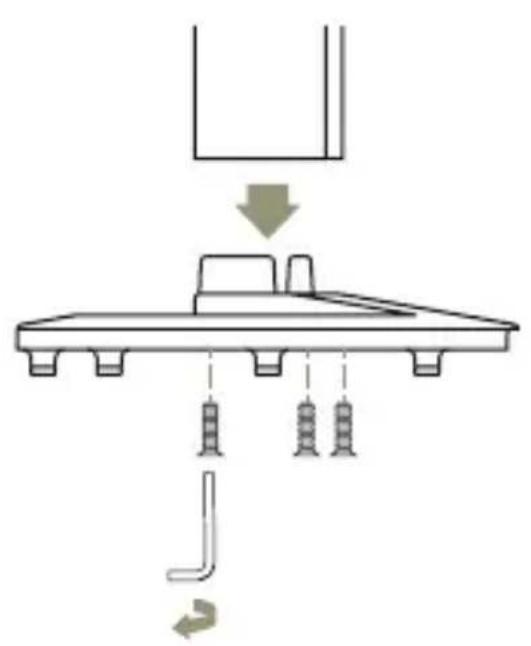

Attach the column to its base and secure it with the provided screws.
2

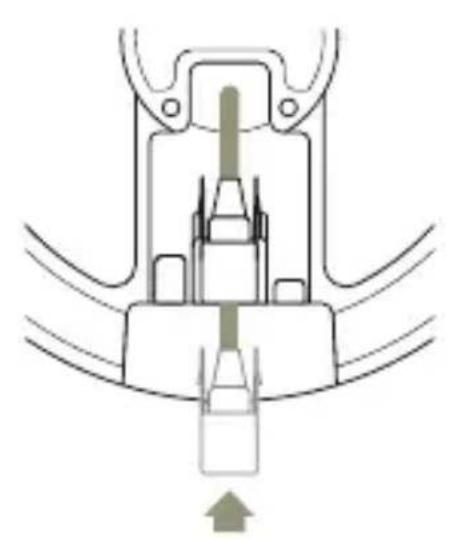

On the bottom of the base, push and connect the power cable in its emplacement.
3
If you want to connect PHANTOM with an ethernet and/or Toslink optical cable, put your cables * through the column while ensuring you have an additional 66 cm. If not, go directly to step 6
- Ethernet/optical cables are not included
4

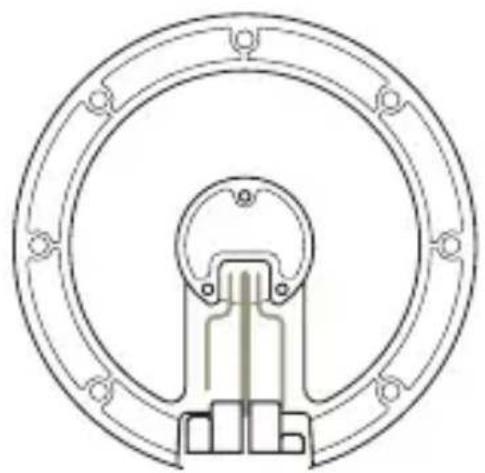

Pass the cables under the base plate through the entries provided for this purpose.
seh! 92 / w0 99
5

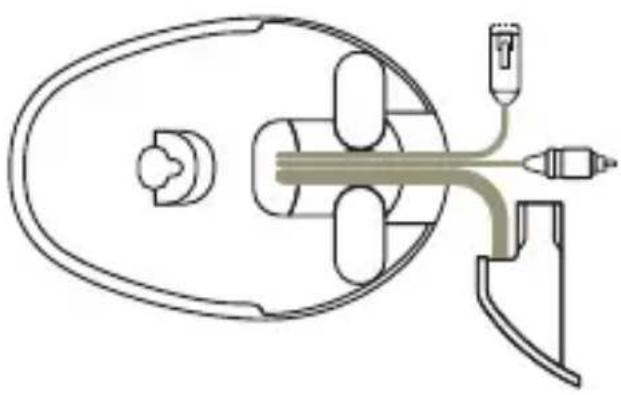

Gather the various cables at the head of the base.
6

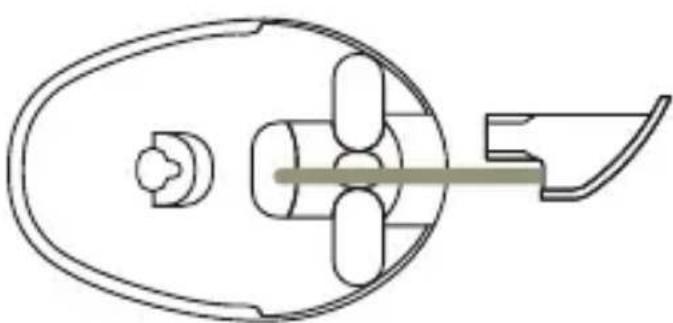

At the head of the base, center the power cord.
7

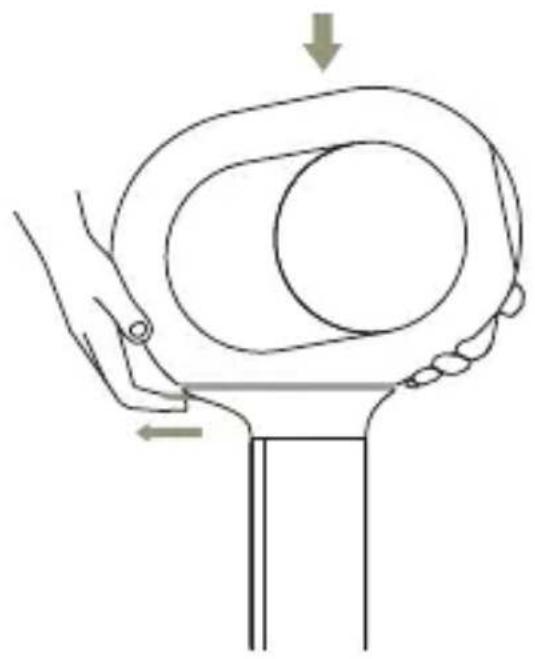

Connect PHANTOM to the head of the base, making sure it is secured by pulling the latch.
8

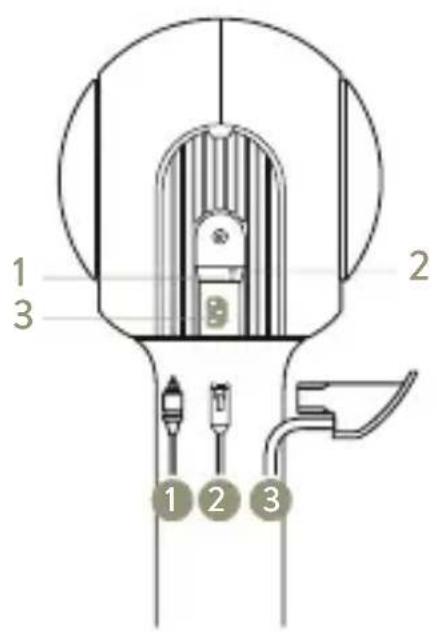

Connect the cables in the order shown on the drawing.

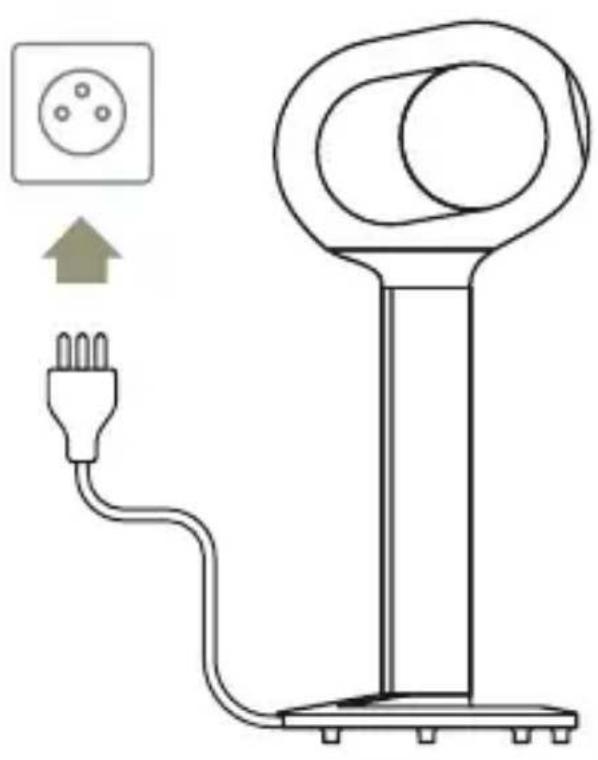

Plug in Tree.
To disassemble, respect the following steps:
Pull the locking mechanism to open the cable access.
Disconnect the cables.
Free Phantom by pulling the locking mechanism.
2
years warranty
Ooops! Need help?
Visit:
help.devialet.com
Please read these instructions
Respect meticulously all the instructions while setting up Phantom on Branch.
Do not replace cables inside Branch.
Do not try to take off pieces already settled.
Keep appliance away from any sort of liquid and major heat source both when in use and not in use in case of fire or electric shock. The appliance may also become damaged.
Only clean appliance with a dry cloth after unplugging it.
Unplug appliance in the event of storms or if not in use for a long period of time.
More on www.devialet.com
Electrocution risk
To reduce risk of electrical shock, this unit must be connected to a grounded socket, using a power cord including an earth conductor.
Use appliance in a dry place away from any source of humidity to avoid electrocution.
Avoid trauma
Make sure the ground is flat and stable.
Do not leave appliance within reach of children or pets.
Any impact could destabilize or bring down the stand.
Move with caution
Lift both Phantom and Tree at the same time to avoid breaking the locking mechanism.
TREE
Kurzanleitung
DEVIALET
INGENIERIE ACOUSTIQUE DE FRANCE
