CFM4350B - Coffee machine BEKO - Free user manual and instructions

USER MANUAL CFM4350B BEKO

CFM4350B Coffee Maker User Manual EN DE FR TR ES PL RO IT 01M-8836593200-3217-01Please read this user manual first! Dear Customers, Thank you for selectng an Beko product. We hope that you get the best results from your product whch has been manufactured wth hgh qualty and state-of-the-art technology. Therefore, please read ths entre user manual and all other accompanyng documents carefully before usng the product and keep t as a reference for future use. If you handover the product to someone else, gve the user manual as well. Follow all warnngs and nformaton n the user manual. Meanings of the symbols Followng symbols are used n the varous secton of ths manual:

Important information and useful hints about usage.

WARNING: Warnings for dangerous

situations concerning the safety of life and property. Materials are intended to be in contact with food. Ths product has been produced n envronmentally-frendly, state-of-the-art facltes. Comples wth the WEEE Drectve. It does not contan PCB. Made n P.R.C.3 / EN Coffee Maker / User Manual CONTENTS ENGLISH 4-12 DEUTSCH 13-23

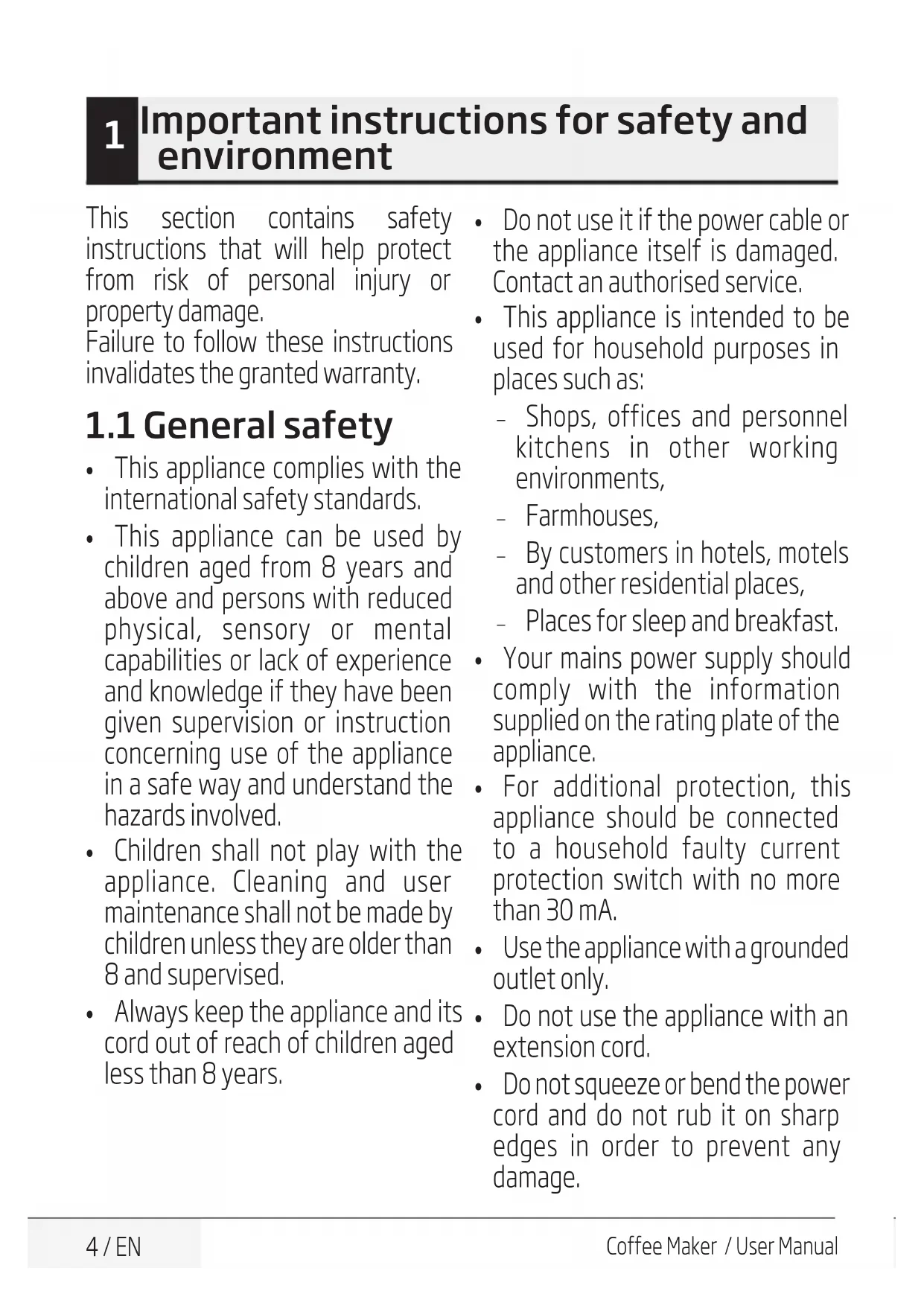

Coffee Maker / User Manual This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions invalidates the granted warranty.

• This appliance complies with the international safety standards.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Always keep the appliance and its cord out of reach of children aged less than 8 years.
• Do not use it if the power cable or the appliance itself is damaged. Contact an authorised service.
• This appliance is intended to be used for household purposes in places such as: – Shops, offices and personnel kitchens in other working environments, – Farmhouses,– By customers in hotels, motels and other residential places, – Places for sleep and breakfast.• Your mains power supply should comply with the information supplied on the rating plate of the appliance.
• For additional protection, this appliance should be connected to a household faulty current protection switch with no more than 30 mA.
• Use the appliance with a grounded outlet only.
• Do not use the appliance with an extension cord.
• Do not squeeze or bend the power cord and do not rub it on sharp edges in order to prevent any damage.

Important instructions for safety and environment5 / EN Coffee Maker / User Manual

• Do not touch the appliance or its plug with wet or damp hands when the appliance is plugged in.

• Do not pull the power cable when unplugging the appliance.

• This appliance is intended for private domestic use only and is not suitable for professional- catering purposes.

• Never fill the appliance above the maximum level indicator, boiling water may splash out.

• Do not fill the kettle below the minimum level indicator.

• Do not open the lid while the water is boiling.

• Position the lid of the appliance in a way that the hot steam is not directed to you.

• Hold the appliance by the handle only.

• If water does not drip from the filter basket during operation, unplug the appliance and leave it to cool for 10 minutes, then open the filter cover and check it.

• Never operate the appliance without any water inside it.

• Always use the appliance on a stable and flat surface.

• Do not attempt to dismantle the appliance.

• Only use the original parts or parts recommended by the manufacturer.

• Unplug the appliance before cleaning. After cleaning, dry the appliance and all parts before connecting it to mains supply.

• Do not immerse the appliance, or power plug in water or any other liquids.

• Never use the appliance in or near to combustible or inflammable places and materials.

• If you keep the packaging materials, store them out of the reach of children.

Important instructions for safety and environment6 / EN Coffee Maker / User Manual

1.2 Compliance with the WEEE

Directive and Disposing of the Waste Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.3 Compliance with RoHS

Directive The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Important nstructons for safety and envronment7 / EN Coffee Maker / User Manual 2 Coffee Maker

The values which are declared in the markings aixed on your appliance or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

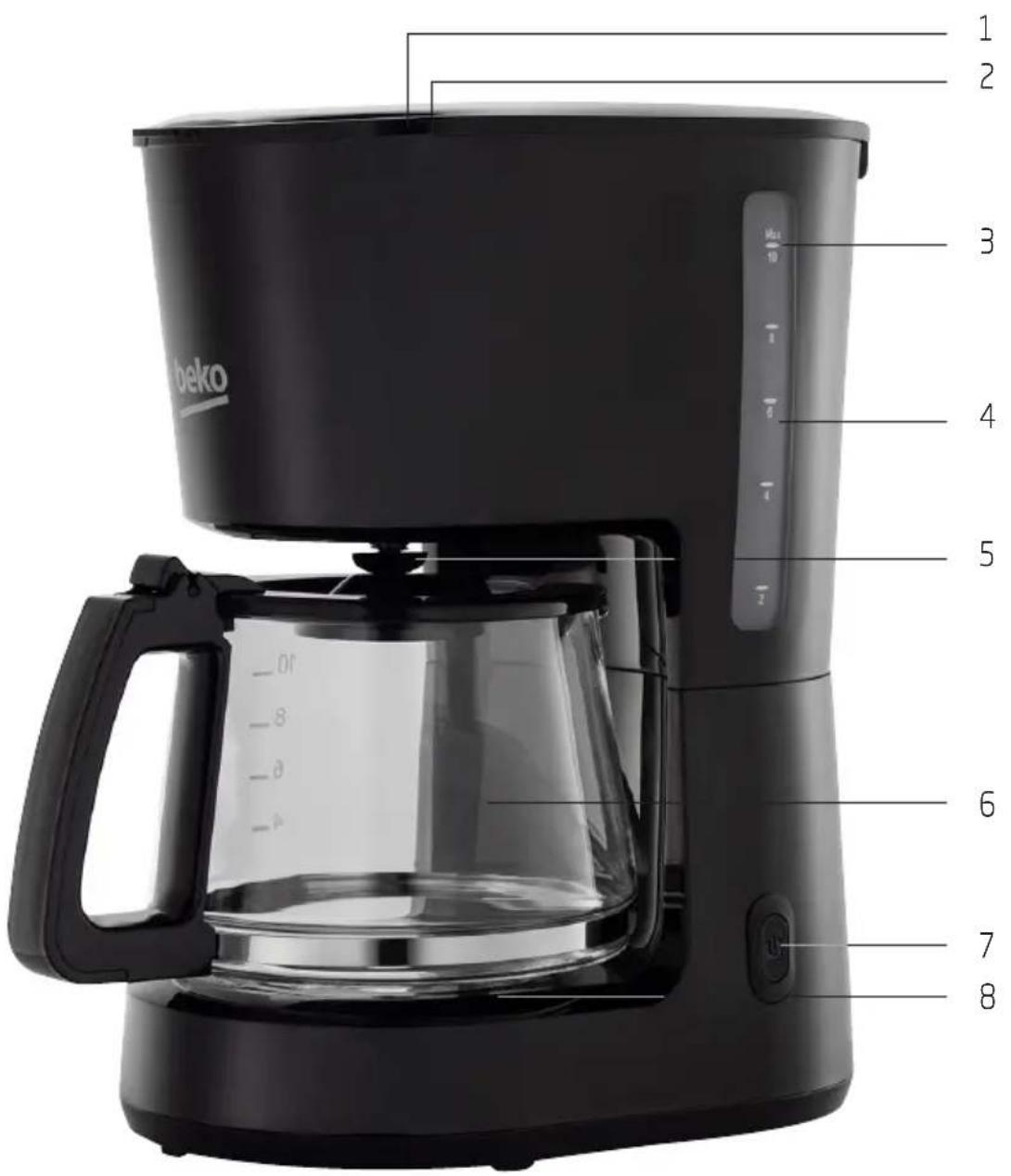

1. Filter basket cover

Accessories Coffee measuring spoon

Power supply: 220-240 V~, 50-60Hz Power: 900 W Auto shut off: 30 min Technical and design modifications reserved.9 / EN Coffee Maker / User Manual 3 Operation

WARNING: First time use: Run the appliance at least 4 times without adding coffee.

WARNING: Please follow the steps 1 - 2 and 7 - 12 in the “Brewing Coffee” section.1. Remove all packaging and stickers and dispose of them according to applicable legal regulations.2. Before using the appliance for the first time, clean all parts which come into contact with water carefully. Please see full details in the “Cleaning and Care” section.3. Make sure that the appliance is placed in an upright position and on a stable, flat, clean, dry, and non-slip surface.

1. Pull off and fill the glass jug (6) with the required amount of water, but do not fill past the “10” mark. The brewed amount of coffee will be 10% less than the filled water, because it is absorbed by the coffee grounds and the filter. For the good coffee taste it is suggested to operate the appliance with at least 4 cups coffee serving. For improved heat retention we recommend that you rinse the pot with hot water before starting the brewing process. Use only clean, cold, and fresh drinking water. There is a drip hole on the back of the water reservoir to prevent exceeding the capacity of the coffee maker. If you add too much water, it will drip out from the back of the appliance.2. Open the filter basket cover (1).3. Pull out the filter basket (2).4. Pour the water in the glass jug into the water reservoir.5. Fill the filter basket (2) with the desired amount of ground coffee. To do this, you may use the supplied measuring spoon.6. Insert the filter basket (2) back into the housing and close the filter basket cover (1).7. Place the glass jug (6) on the warming plate (8). WARNING: If the glass jug (6) is not placed accurately, the drip-stop (5) function will not function properly. It could cause hot water or hot coffee to overflow.8. Connect the plug to the wall socket.9. Turn the appliance on by pushing the On/Off button (7).– The On/Off button (7) illuminates and the brewing process begins. The brewing process can be stopped at any time by pushing the On/Off button (7) again. The appliance is equipped with a drip-stop (5) located underneath the filter basket (2) and enables you to briefly remove the glass jug (6) to pour coffee before the water has fi-nished running through the machine.10 / EN Coffee Maker / User Manual 3 Operaton

WARNING: Make sure to place the glass jug (6) on the warming plate (8) quickly (max. 30 seconds). Otherwise the brewed coffee from the filter could overflow. If you want to use the glass jug for more than 30 seconds switch off the appliance. WARNING: Never pull out the filter basket (2) during the brewing process even if no water is draining. Extremely hot water or coffee can spill out from the filter basket and cause injury. WARNING: If water/coffee is not draining from the filter basket (2)after several seconds with the glass jug (6) properly in place (8)immediately unplug the appliance and wait 10 minutes before opening and checking the filter basket (2). WARNING: When the brewing process ends and the water level indicator (3) with “10” marking is empty, there will still be hot liquid in the filter basket (2). Wait a few minutes for the rest of the liquid to drip into the glass jug (6).10. Remove the glass jug (6) from the warmng plate (8) as soon as the brewng process has fnshed and the glass jug (6) s flled. The coffee s ready.11. To turn the applance off, push the On/Off button (7).12. Dsconnect the applance from the wall socket. If you want to continue the brewing process, repeat the procedure from 1 to 12. Let the appliance cool down at least 15 minutes between each brewing process.Hints and Tips • Use softened or filtered water to prevent lime build-up. • Store unused coffee in a cool, dry place. After opening a package of coffee reseal it tightly to maintain its freshness. • Do not reuse the coffee sediment in the filter since this will reduce the flavour. • Reheating coffee is not recommended as coffee is at its peak flavour immediately after brewing.11 / EN Coffee Maker / User Manual 4 Informaton

4.1 Cleaning and care

WARNING: Never use petrol solvents, abrasive cleaners, metal objects or hard brushes to clean the appliance.

WARNING: Never put the appliance or power cord in water or any other liquid.1. Turn the appliance off and disconnect it from the wall socket.2. Allow the appliance to cool down.3. Remove the glass jug (6).4. Open the filter basket cover (1).5. Pull out the filter basket (3) and dispose the coffee sediment. 6. Clean the filter basket (3) by placing under running water and using a small amount of mild cleanser. The filter basket (3) can be cleaned in the upper shelf of the dishwasher or under running water.7. Use a damp soft cloth and some mild cleanser to clean the exterior of the appliance.8. Insert the filter basket (3) back into the housing and close the filter basket cover (1).9. Place the glass jug (6) onto warming plate (8). Before using the appliance after cleaning, dry all parts carefully with a soft cloth or paper towel.

4.2 Descaling the appliance

Descaling extends the life of your appliance. Descale your coffee maker at least 4 times per year. The period depends on the water hardness in your area. The harder the water is, the more often the appliance has to be descaled. 1. Purchase a suitable descaler from a speciality store. Please ask naming the device. 2. Prior to commencing the descaling process thoroughly read the manufacturer›s package insert of the descaler. Should the manufacturer›s instructions differ from the ones listed below, then follow the manufacturer›s instructions. You can also use white vinegar and lemon acid instead of a commercially available descaler.3. Fill the water tank to the «12» mark and add descaler. Mixing ratio: 4 parts water to 1 part descaler. 4. Turn the appliance on and allow approximately one large coffee cup to run through the appliance. 5. Turn the appliance off. 6. Let the mixture soak for about 15 minutes. 7. Repeat steps 4 - 6. 8. Now turn the appliance on and let the entire mixture run through. 9. Fill the water tank with cold, fresh drinking water and run all the water through. 10. Repeat step 9 four tmes. 11. Now you may brew coffee agan.12 / EN Coffee Maker / User Manual 4 Informaton

• If you do not plan to use the appliance for a long period of time, please store it carefully. Make sure the appliance is unplugged and completely dry.

• Store the appliance in a cool, dry place. Make sure the appliance is kept out of the reach of children.

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.

• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
