XS3 - DJ Equipment TASCAM - Free user manual and instructions

Product type	2-channel DJ console
Brand	Tascam
Model	XS3
Dimensions (W x H x D)	228 x 106 x 267 mm
Weight (console)	2.6 kg
Weight (power adapter)	0.6 kg
Power supply	100-240 V, 50/60 Hz, 13 W (PS-P3X adapter supplied)
Number of channels	2 (PGM 1 and PGM 2)
EQ per channel	3-band (High, Mid, Low) with adjustable cutoff
Mic EQ	2-band (High, Low)
Crossfader	Removable, replaceable, adjustable curve, reverse function
Fader Start	Yes (per-channel on/off)
Line inputs	2 x unbalanced RCA, -10 dBV, 10 kΩ
Phono inputs	2 x unbalanced RCA, -54 dBV, 47 kΩ (for MM cartridges)
Mic input	1 x balanced TRS jack, -50 dBV, 2.8 kΩ
Master outputs	Balanced TRS jack (+4 dBu) and unbalanced RCA (0 dBV)
Headphone output	6.35 mm jack, 100 mW + 100 mW (into 33 Ω)
Record output (REC)	Unbalanced RCA, -10 dBV (pre-master signal)
Effect loop (EFFECT)	Unbalanced TRS jack (Send/Return)
Operating temperature	5°C to 35°C
Operating humidity	30% to 90% (non-condensing)
Maintenance and cleaning	Avoid shocks, strong magnetic fields, excessive heat; ensure adequate ventilation
Safety	Read manual before use; cut power before modifications; wait 3 seconds before restarting; use only the supplied adapter
Spare parts and repairability	Replaceable crossfader; maintenance by Tascam authorized technician

Frequently Asked Questions - XS3 TASCAM

How to connect the Tascam XS3 for the first time?

Ensure all devices are powered off. Connect sources (turntables, players) to PHONO or LINE inputs. Connect the MASTER output to the amplifier. Plug in the supplied PS-P3X power adapter. Power on starting with sources, then the mixer, then the amplifier. To power off, reverse the order.

What type of vinyl cartridge can be connected to the PHONO inputs?

The PHONO inputs are designed for moving magnet (MM) cartridges. Do not connect other line sources; use the LINE inputs for that.

How to adjust the crossfader for a more reactive or smoother mix?

Use the C. F CURVE rotary selector on the top panel. Turn it counterclockwise for a smooth curve (gradual transition) or clockwise for a reactive curve (abrupt switch).

How to reverse the crossfader direction?

Set the C. F REVERSE switch to ON. Thus, moving the crossfader towards A will increase the volume of source B, and vice versa.

Can I record my mix without affecting the master volume?

Yes, use the REC OUTPUT (RCA) jacks. They deliver a pre-master signal, independent of the MASTER LEVEL setting. Connect a recorder to these outputs to capture your performance.

How to use the Fader Start function?

Activate the C. F START A and/or C. F START B switches on the rear panel. Connect compatible devices (e.g., CD players) to the C. F START connector. When you move the crossfader, the opposite source automatically starts or stops. Note: if REVERSE is enabled, the action is reversed.

How to connect a microphone to the XS3?

Connect your microphone (balanced or unbalanced) to the MIC INPUT (TRS jack). Use the MIC LEVEL knob to adjust the volume and the MIC EQ (2-band) to adjust treble and bass.

How to use an external effects loop?

Connect an effects processor to the EFFECT connector (TRS jack). The send (SEND) is on the tip, the return (RETURN) on the ring, and ground on the sleeve. Use the EFFECT selector on each channel to activate the effect on the desired channel.

What to do if the crossfader becomes noisy or less precise?

The crossfader is replaceable. To change it, remove the two fixing screws, disconnect the ribbon, then install a new fader following the reverse steps. If the problem persists, contact a Tascam authorized technician.

How to clean and maintain my XS3 mixer?

Avoid exposure to dust, humidity, and strong magnetic fields. Maintain a temperature between 5°C and 35°C with humidity from 30% to 90% non-condensing. Leave ventilation space around the unit. Do not use abrasive products; a soft dry cloth is sufficient. For internal cleaning, leave it to a professional.

USER MANUAL XS3 TASCAM

TEAC Professional Division

XS-3

Professional DJ Mixer

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert

the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the pres

ence of important operating and maintenance (servicing) instructions in the literature

accompanying the appliance.

This appliance has a serial number located on the bottom. Please record the model number and serial number and retain them for your records.

Model number

Serial number

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

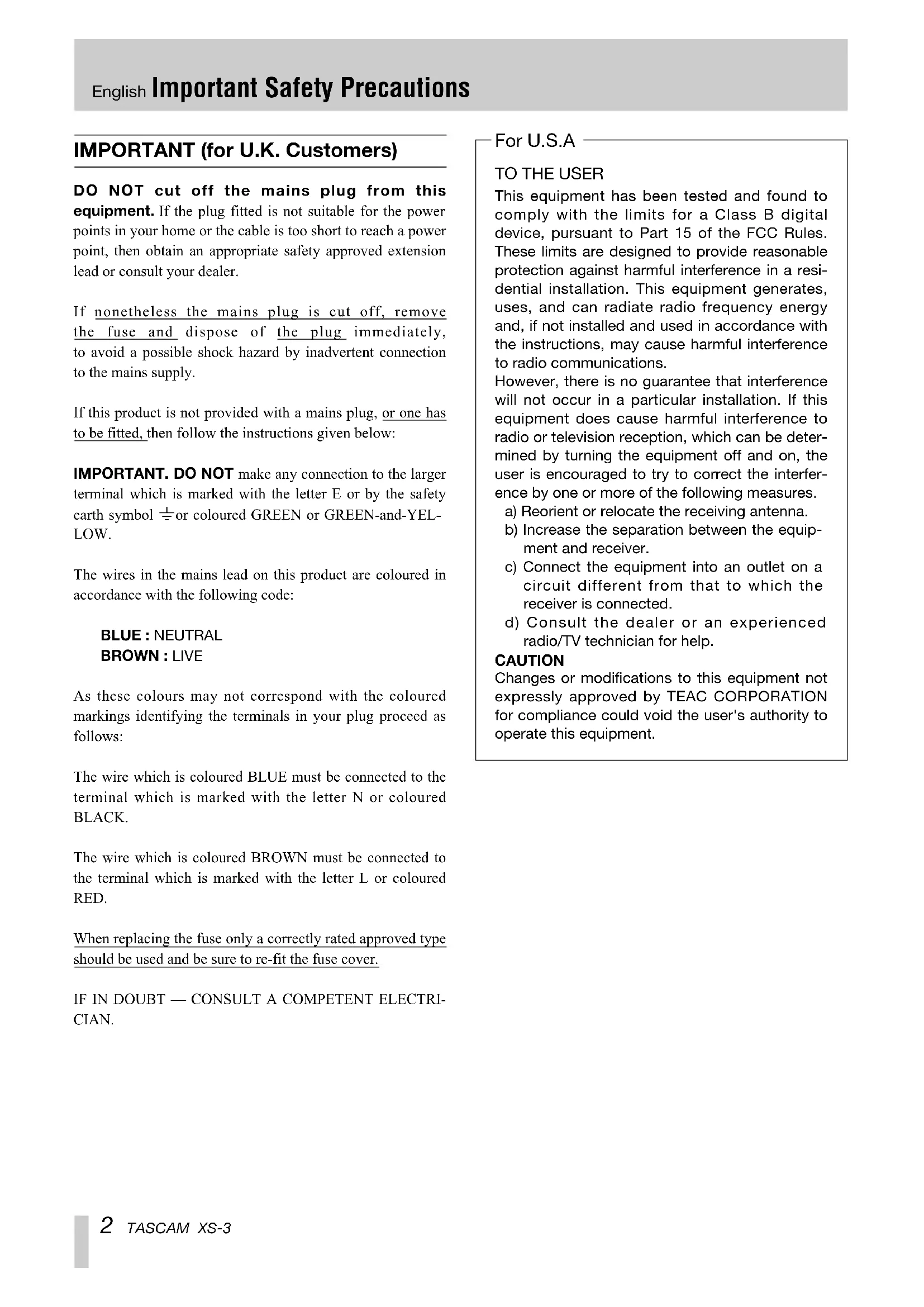

IMPORTANT (for U.K. Customers)

DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.

If nonetheless the mains plug is cut off, remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply.

If this product is not provided with a mains plug, or one has to be fitted, then follow the instructions given below:

IMPORTANT. DO NOT make any connection to the larger terminal which is marked with the letter E or by the safety earth symbol 12 or coloured GREEN or GREEN-and-YELLOW.

The wires in the mains lead on this product are coloured in accordance with the following code:

BLUE:NEUTRAL

BROWN:LIVE

As these colours may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

When replacing the fuse only a correctly rated approved type should be used and be sure to re-fit the fuse cover.

IF IN DOUBT — CONSULT A COMPETENT ELECTRICIAN.

For U.S.A

TO THE USER

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

a) Reorient or relocate the receiving antenna.
b) Increase the separation between the equipment and receiver.
c) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
d) Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Changes or modifications to this equipment not expressly approved by TEAC CORPORATION for compliance could void the user's authority to operate this equipment.

CAUTION:

• Read all of these Instructions.
• Save these Instructions for later use.
• Follow allWarnings and Instructions marked on the audio equipment.

1) Read instructions — All the safety and operating instructions should be read before the product is operated.
2) Retain instructions - The safety and operating instructions should be retained for future reference.
3) HeedWarnings All warnings on the product and in the operating instructions should be adhered to.
4) Follow instructions - All operating and use instructions should be followed.
5) Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
6) Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards.
7) Water and Moisture - Do not use this product near water for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.
8) Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.
9) A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10) Ventilation — Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
11) Power Sources — This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
12) Grounding or Polarization - This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
13) Power-Cord Protection — Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
14) Outdoor Antenna Grounding - If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Example of Antenna Grounding as per National Electrical Code, ANSI/NFPA 70

15) Lightning — For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
16) Power Lines — An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17) Overloading — Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in risk of fire or electric shock.
18) Object and Liquid Entry — Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
19) Servicing — Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
20) Damage Requiring Service — Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:
a) when the power-supply cord or plug is damaged.
b) if liquid has been spilled, or objects have fallen into the product.
c) if the product has been exposed to rain or water.
d) if the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
e) if the product has been dropped or damaged in any way.
f) when the product exhibits a distinct change in performance - this indicates a need for service.
21) Replacement Parts When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
22) Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
23) Wall or Ceiling Mounting The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
24) Heat The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Table of contents

1. Introduction 4

1.1. Some notes and precautions 4
1.2. Serial number, etc. 4

1. Features and controls 5

2.1.Top panel.. 6
2.2.How to replace the fader 6
2.3.Rear panel 6
2.4. Front panel 7

1. Specifications 8
2. Block diagram 31

1. Introduction

The XS-3 is a sophisticated 2 channel DJ mixer which allows the connection of many devices, and allows you to mix in a creative way.

Following the sophisticated layout design, the XS-3 combines easy operation with a wide range of functions.

It is VERY IMPORTANT that you read this manual before connecting the mixer in order to obtain its maximum performance.

We recommend our authorised Technical Services whenever any maintenance task should be needed so that optimum operation shall be achieved.

1.1. Some notes and precautions

Treat the XS-3 as you would any other piece of precision equipment.

Avoid exposing it to extremes of temperature and humidity and avoid mechanical shocks and vibration.

Keep the unit away from strong magnetic fields (TV sets, computer monitors, large electric motors, etc.).

Environmental considerations

The XS-3 may be used in most areas, but to maintain top performance, and prolong operating life, observe the following environmental conditions:

The nominal temperature should be between 5^ and 35^ (41^ and 95^)

Relative humidity should be 30 to 90 degrees non-condensing.

As the unit may become hot during operation, always leave sufficient space above and around the unit for ventilation.

Do not install this equipment in a confined space such as a bookcase or similar unit.

You should not place the unit on a piece of equipment generating heat, e.g. an amplifier, to avoid possible problems with overheating.

XS-3 operates under 120,50Hz . Make sure that the power cable is far away from the signal cables in order to avoid any possible audio hum.

NOTE

When transporting the unit, always use the original packing materials or a properly-designed equipment case. For this reason, we strongly recommend that you save all the packing materials that came with the XS-3, in case you need to transport it in the future.

Connections to other equipment

It is extremely important that the power is turned off on all units when making or breaking connections to or from the XS-3.

When turning power on, it is usually a good idea to start with the source (turntables, CD players, etc.), then the XS-3 and finish with the amplifier system.

Turning power off should be done in the other direction (amplifiers first, then other equipment).

When turning the unit on again, wait for three seconds or more after turning it off.

1.2. Serial number, etc.

The serial number of the XS-3 is located on a sticker at the front of the unit on the bottom panel. Make a note of this for future reference (warranty, etc.).

2. Features and controls

2.1. Top Panel

① MICLEVEL
Adjusts the MIC input signal level.
② MIC EQ
2-band EQ for microphone input signal.
③ TRIM

Adjusts the input signal level of each PGM.

NOTE

All input sensitivity adjustment must be done by very carefully using level meter and/or headphones as a reference and avoiding that all the red LEDs of the level meter light up, otherwise input could be clipped (overload).

④ PGM EQ

3-band EQ for each PGM signal.

When all EQ are set to -26 dB, the sound will be cut fully.

C.F REVERSE

Sets the direction of CROSS FADER operation.

OFF: Moving the CROSS FADER toward A makes A signal louder and moving the CROSS FADER toward B makes B signal louder.

REVERSE: Moving the CROSS FADER toward A makes B signal louder and moving the CROSS FADER toward B makes A signal louder.

C.F CURVE

Allows you to adjust the PGM 2 FADER response curve from soft (counter-clockwise) to hard (clockwise).

⑦ PHONO/LINE

Selects the input signal (PHONO or LINE) of each PGM.

⑧ PGM FADER

Adjusts the PGM level.

⑨ MASTER LEVEL

Adjusts MASTER OUT 1 (balanced TRS and unbalanced RCA connectors) output level.

⑩ EFFECT switch and LED

Activates the external effect path of MASTER when EFFECT switch is turned on. When effect path is activated, LED will light up.

⑪ MONITOR MASTER/CUE

Selects the way of monitoring in the headphones.

CUE: This way allows you to monitor the PGM signals adjusted by cue balance fader.

MASTER: This way allows you to monitor the pre MASTER volume signal.

⑫ LEVEL

Adjusts the headphone output level.

③ CUEBALANCE

Adjusts the balance between PGM 1 and PGM 2 signal in the headphones.

CROSS FADER

Mixes the PGM 1 and PGM 2 signals.

CROSS FADER is user replaceable. It is possible to set the CROSS FADER curve and reversal.

⑤ INPUT LEVEL METER

Indicates the signal level of each PGM.

NOTE

LEVEL METER indicates the post PGM FADER signals.

2.2. How to replace the fader

1. Remove the two screws from the fader panel surface.
2. Remove the fader.
3. Unplug the multi-cable connector that connected to the fader.
4. Plug in the multi-cable connector to a new fader.
5. Replace the fader with the screws.

2.3. Rear Panel

⑥ EFFECT (unbalanced TRS jack)

Inserts the external effect in STEREO OUTPUT signal path. Connect the external effector to this jack.

Connections are follows:

SEND: Tip

RETURN: Ring

GND: Sleeve

2. Features and controls English

MIC INPUT (balanced TRS connector)

Connect the microphone to this connector.

Connections are as follows:

HOT: Tip

COLD: Ring

GND: Sleeve

NOTE

If you connect the unbalanced microphone to this connector, we recommend that cold (Ring) short-circuited to GND (Sleeve).

18 PHONO INPUTS (unbalanced RCA,jacks)

Connect the turntables equipped with the MM cartridge.

WARNING

Never connect any other type of equipment to the PHONO connectors.

LINE INPUTS (unbalanced RCA jacks)

Connect the line level equipment, such as CD players, cassette decks, DAT, MD, etc.

20 GND terminal

If the turntables are fitted with grounding wires, connect these to this GND terminal to reduce noise and hum.

② REC OUTPUT (unbalanced RCA jacks)

Outputs the pre MASTER 1/2 signal.

For example, to connect the recorder to these jacks, you can record your live performance without MASTER LEVEL control.

22 MASTER OUTPUT (unbalanced RCA jacks)

Outputs the master output signal adjusted by MAS-TER control.

23 MASTER OUTPUT (balanced TRS connector)

Outputs the master output signal adjusted by MAS-TER control.

Connections are as follows:

HOT: Tip

COLD: Ring

GND: Sleeve

24 C.F START

Connect a device which supports fader start operation.

Crossfader start function can be set to enable or disable on either side independently.

Moving the cross-fader to start and/or stop (back cue) the PGM A or B source automatically.

NOTE

When you use this function, make sure to connect audio signal and fader start signal to the same XS-3.

Fader start signal is output from Tip terminal.

Fader stop (back cue) signal is output from sleeve terminal.

25 POWER switch

26 AC Adaptor in

Use this jack to connect the PS-P3X AC adaptor which comes with your XS-3.

When inserting the AC adaptor into the unit, please make sure to align the arrow mark of the AC adaptor plug to the white dot mark on the rear panel.

WARNING

DO NOT use any adaptors with the XS-3 except the PS-P3X adaptor which comes with the XS-3.

2.4. Front Panel

② PHONES

Connect your headphone to this jack.

C.F START B

Sets the crossfader start B on/off.

C.F START A

Sets the crossfader start A on/off.

[NOTE]

If C.F REVERSE switch is set to ON, crossfader start operation is set to reversal.

3. Specifications

LINE INPUT (PGM1-2): RCA, unbalanced

Input Level: -10 dBV

Input impedance: 10k ohm

PHONO INPUT (PGM1-2) RCA, unbalanced

Input Level: -54 dBV

Input impedance: 47k ohm

MIC INPUT: TRS, balanced

Input Level: -50 dBV

Input impedance: 2.8k ohm

MASTER OUTPUTS (balanced):

TRS, balanced

Nominal Output Level: +4 dBu

Output impedance: 75 ohm

MASTER OUTPUTS (unbalanced):

RCA, unbalanced

Nominal Output Level: 0 dBV

Output Impedance: 100 ohm

REC OUTPUT: RCA, unbalanced

Nominal Output Level: -10 dBV

Output Impedance: 1k ohm

EFFECT (send): TRS, unbalanced

Nominal Output Level: -4 dBV

Output Impedance: 100 ohm

EFFECT (return): TRS, unbalanced

Input Level: -4 dBV

Input Impedance: 10k ohm

PHONES:

100mW + 100mW (at 33ohm )

Frequency Response:

LINE IN: 20Hz to 20kHz, + / - 1.0 dB

PHONO IN: 30Hz to 15kHz, + / - 2.0 dB

(RIAA)

MIC IN: 30Hz to 18kHz, + / - 3.0 dB

Signal to Ratio:

LINE IN: 78 dB (IHFA WTD)

PHONO IN: 70 dB (IHFA WTD)

MIC IN: 60 dB (IHFA WTD)

Total Harmonic Distortion:

LINE IN: < 0.1%

PHONO IN: < 0.2%

MIC IN: <0.2%

Crosstalk: >60 dB (@1KHz)

PGMEQ

HIGH: +12dB -26dB

MID: +12dB -26dB

LOW: +12dB -26dB

Filter

(Cut Frequency at -6dB, slope 12dB/0ct in all the cases)

HIGH: 6 kHz

MID: 6kHz\& 200Hz

LOW: 200 Hz

MIC EQ

HIGH: 5.5kHz, + 12dB -12dB

LOW: 125Hz, + 12dB -12dB

Power Requirement: 120V (60Hz)

230 V( 50Hz)

Power Consumption: 13 W

Dimension (mm): 228(W)x106(H)x267(D)

Weight: 2.6kg (main unit)

0.6kg (AC Adaptor)

Applicable electromagnetic environment:

E4

Peak inrush current: 5 A

All specifications subject to change without notice.

1. Introduction François

Sommaire

1. Introduction 9

PHONO INPUT (PGM1-2)

RCA, sbilanciati

LINE IN 78 dB (IHFA WTD)

PHONO IN 70 dB (IHFA WTD)

MIC IN 60 dB (IHFA WTD)

25 Interruptor POWER.

26 Entrada de adaptor AC

HIGH (agudos): 6 kHz

MID (medios): 6kHz y 200Hz

LOW (graves): 200Hz

MIC EQ

HIGH (agudos): 5.5kHz, + 12dB -12dB

LOW (graves): 125Hz, + 12dB -12dB

TEAC Professional Division

XS-3

TEAC CORPORATION

Phone: [phone], Nakacho, Musashino-shi, Tokyo 180-8550, Japan

TEAC AMERICA, INC.

Phone: [phone] Telegraph Road, Montebello, California 90640

TEAC CANADA LTD.

Phone: [phone] Facsimile: 905-890-9888 5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada

TEAC MEXICO, S.A. de C.V.

Phone: [phone] Facsimile: [phone] Campesinos 184. Col. Granjas Esmeralda. 09810.Mexico D.F.

TEAC UK LIMITED

Phone: [phone] Marlin House, Croxley Business Park, Watford, Hertfordshire, WD18 8TE U.K.

TEAC AUSTRALIA PTY.,LTD.A.C.N.005408462

Phone: [phone] Bay Street, Port Melbourne, Victoria 3207, Australia
