JARO 5003 CM - Lamp BRENNENSTUHL - Free user manual and instructions

Product type	Mobile LED floodlight on telescopic stand
Brand	Brennenstuhl
Model	JARO 5003 CM
Rated voltage	220-240 V~ 50/60 Hz
Protection class	I
Protection rating	IP65
Power	50 W
Adjustable height (stand)	From 86 to 152 cm
Light source	Non-replaceable LED
Usage	Indoor and outdoor
Material	Aluminum, plastic
Color	Black
Weight	Approx. 3.5 kg
Dimensions (floodlight only)	Approx. 20 x 15 x 10 cm
Beam angle	120°
Color temperature	Cool white (approx. 6500 K)
Luminous flux	Approx. 4000 lm
Color rendering index (CRI)	>80
LED lifespan	Up to 30,000 hours
Maintenance	Clean with a dry or slightly damp cloth; do not use solvents
Safety	Do not look directly into the beam; check cable condition; mandatory grounding
Disposal	Do not dispose with household waste; recycling according to WEEE directive

Frequently Asked Questions - JARO 5003 CM BRENNENSTUHL

Can I use the JARO 5003 CM floodlight outdoors?

Yes, thanks to its IP65 protection rating, it is resistant to water jets and dust, making it suitable for outdoor use.

How to adjust the height of the telescopic stand?

Loosen the clamping rings (B), adjust the stand to the desired height (between 86 and 152 cm), then tighten the rings. Ensure that the stand fixation is in the area marked by the two arrows on the tube.

Can I replace the LED bulb?

No, the light source is not replaceable. If the LED reaches end of life, the entire floodlight must be replaced.

What to do if the power cord is damaged?

The external flexible cable cannot be replaced. If the cable is damaged, the lamp must be disposed of. Never use a floodlight with a damaged cable.

How to clean the floodlight?

Use a dry or slightly damp cloth. Never use solvents, abrasive products, or other similar substances that could damage the housing or the lens.

Does the floodlight get very hot?

LED floodlights heat up less than halogen floodlights, but they still get warm. Ensure the floodlight is placed on a stable surface and do not cover the device during operation.

How to dispose of the floodlight?

In accordance with the European directive 2012/19/EU (WEEE), do not dispose of the device in household waste. Take it to a collection point for recycling of electrical waste.

What is the minimum and maximum height of the telescopic stand?

For the JARO 5003 CM model, the telescopic stand extends from 86 cm to 152 cm. Ensure the stand fixation is correctly positioned between the arrows.

Can I tilt the floodlight?

Yes, the floodlight is adjustable with locking. Loosen the quick lock, tilt the floodlight to the desired position, then tighten the lock.

What to do if the safety glass is damaged?

Replace the glass with a genuine Brennenstuhl spare part before using the floodlight. Never use the device with a cracked or broken glass.

USER MANUAL JARO 5003 CM BRENNENSTUHL

GB Operating instructions.... 7

Diagram showing a cross-shaped object transforming into a rectangle with diagonal lines (no text or symbols)

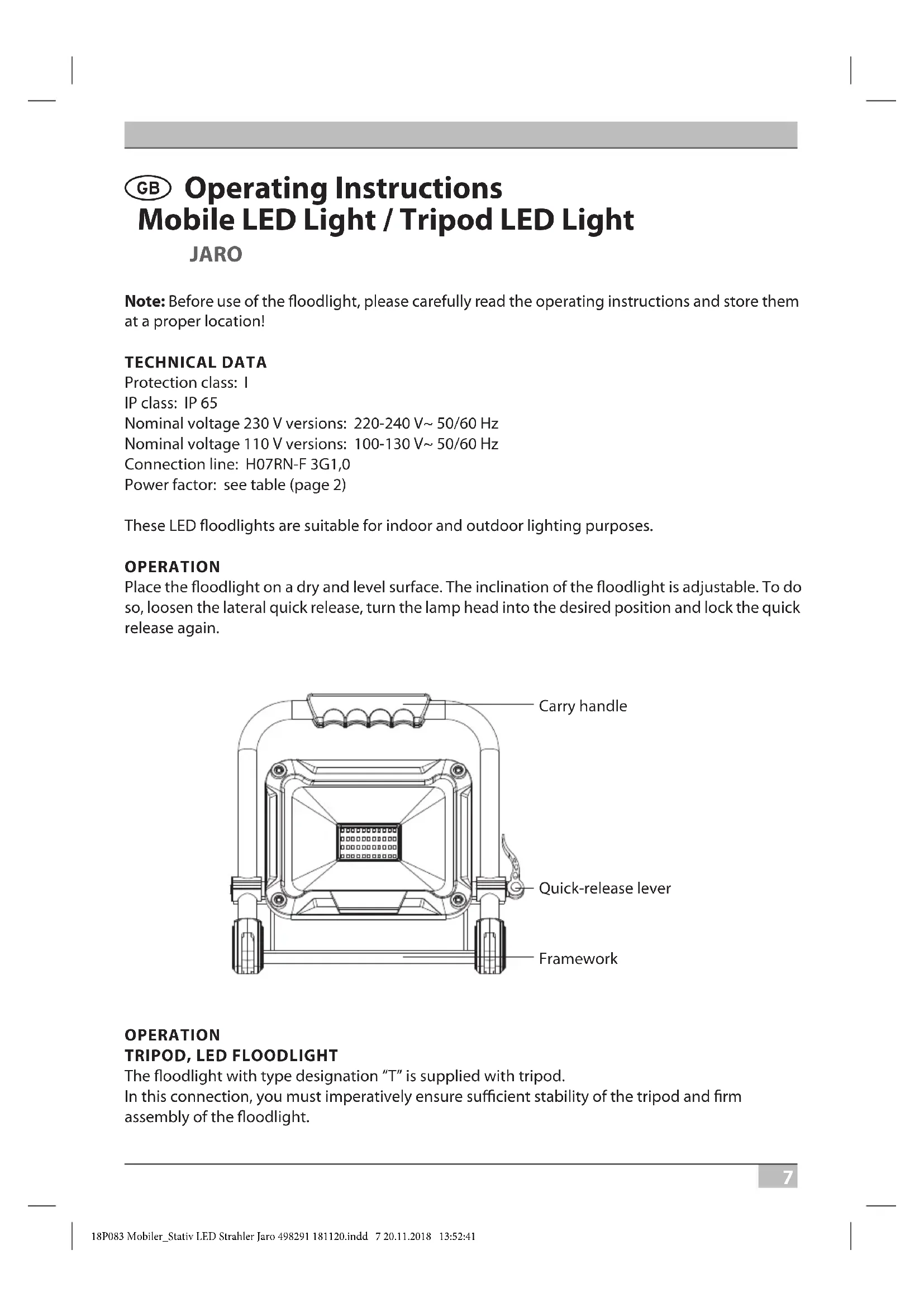

GB Operating Instructions Mobile LED Light / Tripod LED Light

JARO

Note: Before use of the floodlight, please carefully read the operating instructions and store them at a proper location!

TECHNICAL DATA

Protection class: I

IP class: IP 65

Nominal voltage 230 V versions: 220-240 V\~50/60 Hz

Nominal voltage 110 V versions: 100-130 V\~50/60 Hz

Connection line: H07RN-F 3G1,0

Power factor: see table (page 2)

These LED floodlights are suitable for indoor and outdoor lighting purposes.

OPERATION

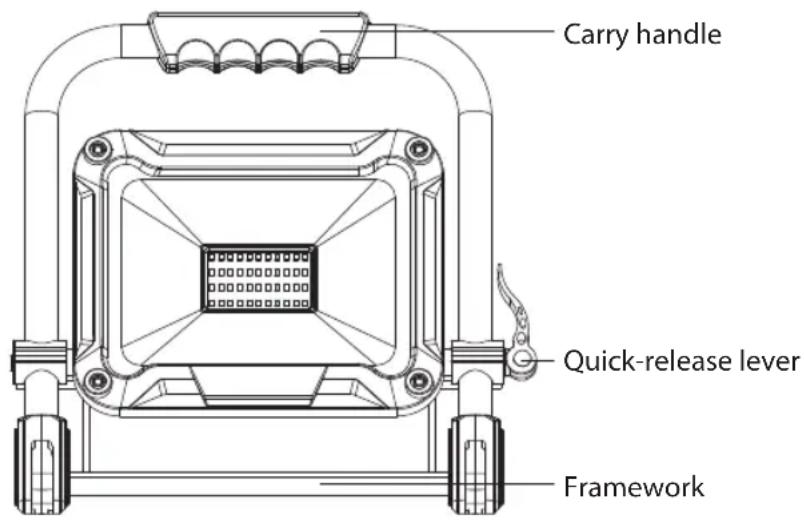

Place the floodlight on a dry and level surface. The inclination of the floodlight is adjustable. To do so, loosen the lateral quick release, turn the lamp head into the desired position and lock the quick release again.

OPERATION

TRIPOD, LED FLOODLIGHT

The floodlight with type designation "T" is supplied with tripod.

In this connection, you must imperatively ensure sufficient stability of the tripod and firm assembly of the floodlight.

Tripod for individual floodlight 20 W: extendible from 75 cm to 160 cm Tripod for individual floodlight 30/50 W: extendible from 86 cm to 152 cm Tripod for double floodlight 2 x 20 W: extendible from 82 cm to 142 cm

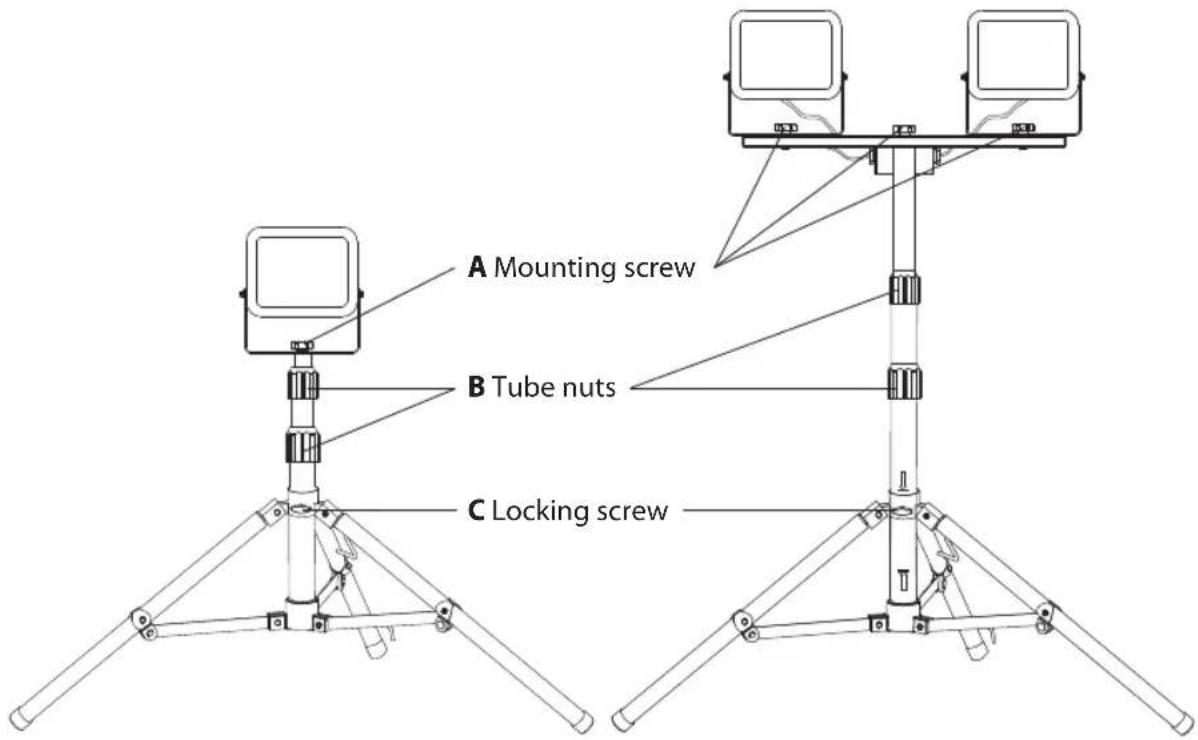

ASSEMBLY OF THE LED FLOODLIGHT ON THE TRIPOD

Loosen the locking screw (C). Fold out the feet completely. Afterwards, re-tighten the locking screw (C).

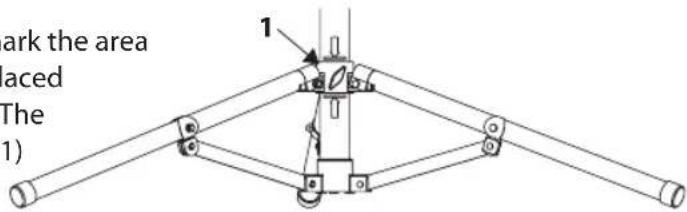

There are two arrows at the tube. These mark the area where the ring of the feet (1) have to be placed to ensure sufficient stability of the tripod. The refore make sure that the ring of the feet (1) matches insides the arrows area.

Fasten the LED floodlight by means of the locking screw (A) at the central hole of the fastening bracket on the tripod.

To change the tripod height, loosen the tube nuts (B). Extend the tripod up to the desired height and re-tighten the tube nuts (B).

SAFETY INFORMATION

1. Before use, always check the floodlight and the power supply line for any possible damage. Never use the floodlight in case of any damage. Caution! In case of a damaged floodlight or a damaged power supply line there will be a risk of fatal injury from electrical current!

2. The external flexible cable or cord of this luminaire cannot be replaced. If the cord is damaged, the luminaire should be destroyed.
   2.1. Valid for articles JARO 7000 M / JARO 7003 M / JARO 7003 CM / JARO 7002 M / JARO 7012 M.

If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.

1. The floodlight must be grounded properly.
2. The floodlight must not be used without properly attached sealing rings!
3. LED floodlights are extremely bright. Please never look directly into the light.
4. If the protective cover is broken, it should be replaced by an original Brennenstuhl protective cover before further use of the floodlight.

Diagram showing a cross-shaped structure transforming into a rectangular block with diagonal lines (no text or symbols)

1. Make sure that the floodlight has a safe and stable position.

Make sure that the cables are not crushed or damaged otherwise.

1. Keep the floodlight away from children. Children are not aware of the risks imposed by electric current.

MAINTENANCE

The light source of this lamp cannot be replaced; if the light source has reached the end of its service life, the entire lamp has to be replaced.

CLEANING

Do not use solvents, caustic cleaning agents or similar products. Only use a dry or slightly moistened cloth for cleaning.

DISPOSAL

Dispose of electric appliances in an environmentally friendly manner! Electric appliances must not be disposed of in household waste!

The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment rules that used electric appliances should be collected separately and recycled in an environmentally friendly manner.

For possibilities of disposal of the used appliance, please contact your local or municipal administration.

DECLARATION OF CONFORMITY

The declaration of conformity is stored at the manufacturer's.

Addresses

Câble de raccordement : H07RN-F 3G1,0

Diagram showing a cross-shaped object transforming into a rectangle with diagonal lines (no text or symbols)

DÉCLARATION DE CONFORMITÉ

Diagram showing a cross-shaped object transforming into a rectangle with diagonal lines (no text or symbols)

Diagram showing a cross-shaped object transforming into a rectangle with diagonal lines (no text or symbols)

Diagram showing a cross-shaped object transforming into a rectangle with diagonal lines (no text or symbols)

Diagram showing a cross-shaped structure transforming into a rectangle with diagonal lines (no text or symbols)

Mechanical linkage diagram with labeled component (no text or symbols)

Diagram showing a cross-shaped object transforming into a rectangle with diagonal lines (no text or symbols)

Diagram showing a cross-shaped object transforming into a rectangular block with diagonal lines (no text or symbols)

Diagram showing a cross-shaped object transforming into a rectangle with diagonal lines (no text or symbols)

Diagram showing a cross-shaped object transforming into a rectangle with diagonal lines (no text or symbols)

Mechanical linkage diagram with labeled component 1 (no text or symbols beyond label)

Diagram showing a cross-shaped structure transforming into a rectangular block with diagonal lines (no text or symbols)

Diagram showing a cross-shaped object transforming into a rectangle with diagonal lines (no text or symbols)

Technical line drawing of a mechanical device with mounting brackets and central chip (no text or symbols)

Diagram showing a cross-shaped object transforming into a rectangle with diagonal lines (no text or symbols)

Diagram showing a cross-shaped object transforming into a rectangle with diagonal lines (no text or symbols)

Diagram showing a cross-shaped object transforming into a rectangle with diagonal lines (no text or symbols)

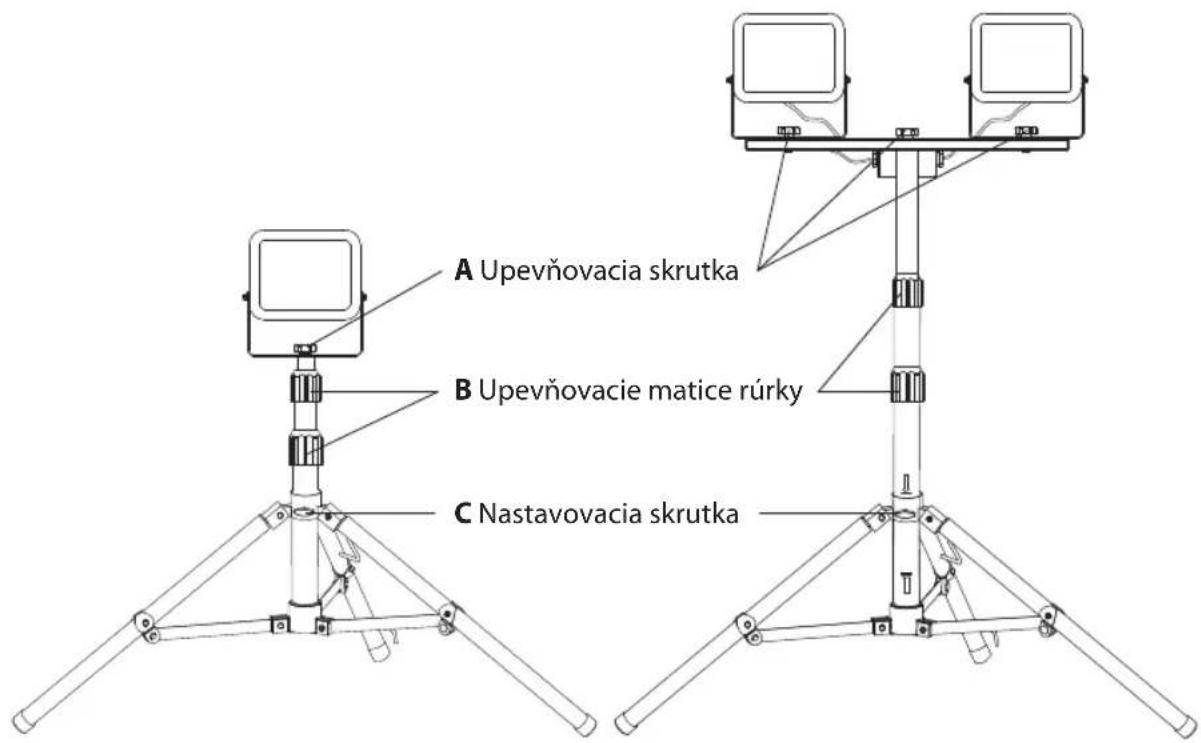

MONTÁŽ LED LAMPY NA STOJAN
