Product type	Portable LED spotlight with telescopic stand
Brand	Brennenstuhl
Model	JARO 3003 CT
Power plug	CEE (industrial plug)
Rated voltage	110-130 V~ 50/60 Hz
Rated power	30 W
Protection rating	IP65
Dimensions (L x W x H)	244.5 x 138.5 x 237 mm
Weight	1.33 kg
Dimensions of protective cover	153.6 x 121.6 x 4 mm
Maximum projection area	579.47 cm²
Height of telescopic stand	86 to 152 cm
Light source type	LED (non-replaceable)
Usage	Indoor and outdoor
Adjustment	Adjustable orientation with quick lock
Color temperature	3000 K (warm white)
Electrical protection class	Class I (mandatory grounding)
Maintenance	Clean with a dry or slightly damp cloth; do not use solvents
Safety	Do not look directly into the beam; check the cable before each use; safety glass must be replaced with an original part
Repairability	Non-replaceable light source; non-replaceable cable (except by manufacturer); at end of life, replace the entire unit
Compliance	European Directive 2012/19/EU (WEEE)
Manufacturer	H. Brennenstuhl S.A.S., 4 rue de Bruxelles, F-67170 Bernolsheim
Included accessories	Telescopic stand, protective cover

Frequently Asked Questions - JARO 3003 CT BRENNENSTUHL

How to mount the spotlight on the telescopic stand?

Loosen the fixing screw (C), fully unfold the legs, then retighten screw (C). Ensure that the stand fixing is between the two arrows on the tube. Fix the spotlight using screw (A) onto the thread at the top of the tube.

How to adjust the height of the stand?

Loosen the clamping rings (B), adjust the desired height, then retighten the rings (B). The stand locks automatically.

Can I use the spotlight outdoors in the rain?

Yes, the spotlight has a protection rating of IP65, making it water-resistant against water jets and suitable for outdoor use. However, ensure that the cable and connections are in good condition.

What to do if the power cable is damaged?

The external flexible cable cannot be replaced. If the cable is damaged, the lamp must be disposed of. For models JARO 7002M/JARO 7012M, the cable can be replaced exclusively by the manufacturer or a qualified person.

How to clean the spotlight?

Use a dry or slightly damp cloth. Do not use any solvents or abrasive cleaning products to avoid damaging the surface.

Can the light source be replaced?

No, the LED light source is not replaceable. When it reaches the end of its life, replace the entire lamp.

What is the supply voltage?

For the JARO 3003 CT model, the rated voltage is 110-130 V~ 50/60 Hz (110 V model with CEE plug).

Is the spotlight dimmable?

No, the spotlight is not dimmable. It operates at full power when switched on.

How to dispose of the device at the end of its life?

Do not dispose of the device with household waste. In accordance with European Directive 2012/19/EU, take it to a collection point for electrical and electronic equipment.

Does the spotlight have a ground connection?

Yes, the spotlight must be connected to earth as per regulations. The CEE plug ensures this connection. Do not use without grounding.

USER MANUAL JARO 3003 CT BRENNENSTUHL

Note: Before use of the floodlight, please carefully read the operating instructions and store them at a proper location!

TECHNICAL DATA

Protection class: I

IP class: IP 65

Nominal voltage 230 V versions: 220-240 V~50/60 Hz

Nominal voltage 110 V versions: 100 - 130V 50 / 60Hz

Connection line: H07RN-F 3G1,0

Power factor: see table (page 2)

These LED floodlights are suitable for indoor and outdoor lighting purposes.

OPERATION

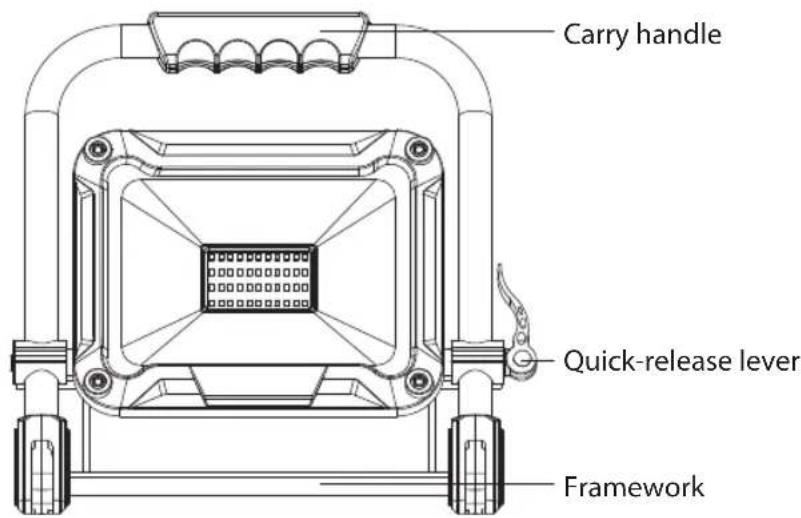

Place the floodlight on a dry and level surface. The inclination of the floodlight is adjustable. To do so, loosen the lateral quick release, turn the lamp head into the desired position and lock the quick release again.

OPERATION

TRIPOD,LED FLOODLIGHT

The floodlight with type designation "T" is supplied with tripod.

In this connection, you must imperatively ensure sufficient stability of the tripod and firm assembly of the floodlight.

Tripod for individual floodlight 20 W: extendible from 75 cm to 160 cm Tripod for individual floodlight 30/50 W: extendible from 86 cm to 152 cm Tripod for double floodlight 2× 20W : extendible from 82 cm to 142 cm

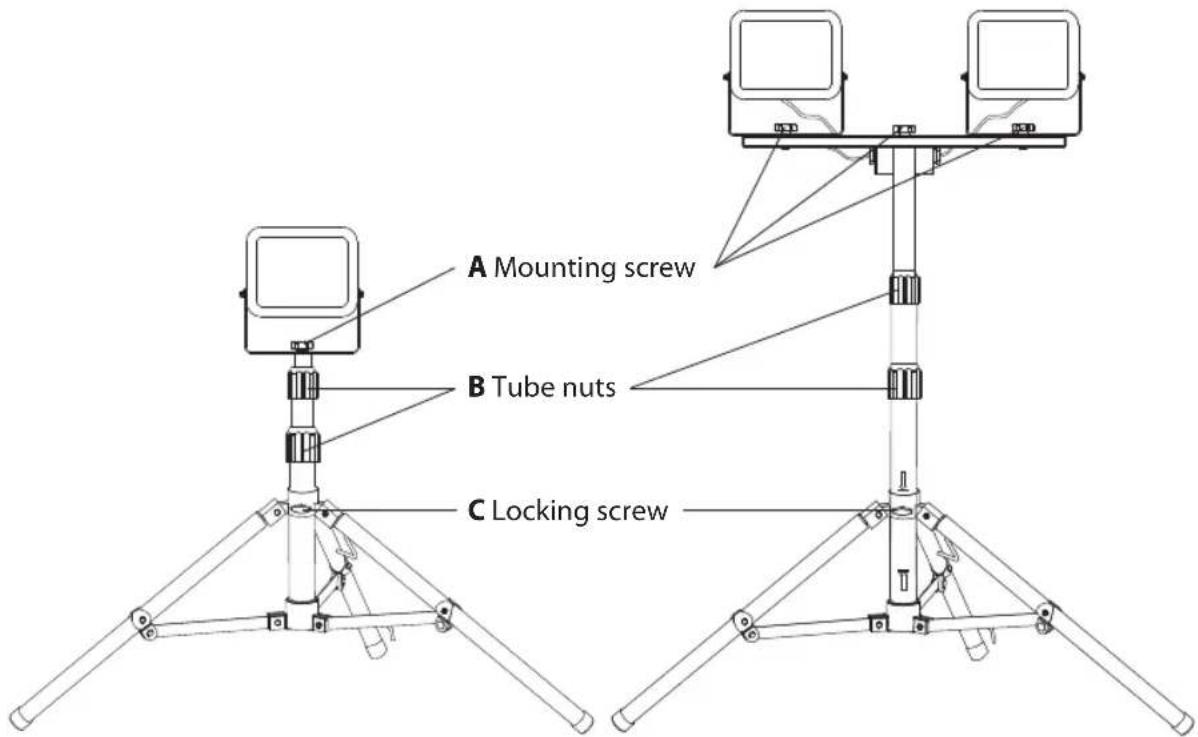

ASSEMBLY OF THE LED FLOODLIGHT ON THE TRIPOD

Loosen the locking screw (C). Fold out the feet completely. Afterwards, re-tighten the locking screw (C).

There are two arrows at the tube. These mark the area where the ring of the feet (1) have to be placed to ensure sufficient stability of the tripod. The afore make sure that the ring of the feet (1) matches insides the arrows area.

Fasten the LED floodlight by means of the locking screw (A) at the central hole of the fastening bracket on the tripod.

To change the tripod height, loosen the tube nuts (B). Extend the tripod up to the desired height and re-tighten the tube nuts (B).

SAFETY INFORMATION

1. Before use, always check the floodlight and the power supply line for any possible damage. Never use the floodlight in case of any damage. Caution! In case of a damaged floodlight or a damaged power supply line there will be a risk of fatal injury from electrical current!

2. The external flexible cable or cord of this luminaire cannot be replaced. If the cord is damaged, the luminaire should be destroyed.
   2.1. Valid for articles JARO 7000 M / JARO 7003 M / JARO 7003 CM / JARO 7002 M / JARO 7012 M. If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.

3. The floodlight must be grounded properly.
4. The floodlight must not be used without properly attached sealing rings!
5. LED floodlights are extremely bright. Please never look directly into the light.
6. If the protective cover is broken, it should be replaced by an original Brennenstuhl protective cover before further use of the floodlight.

1. Make sure that the floodlight has a safe and stable position.
   Make sure that the cables are not crushed or damaged otherwise.
2. Keep the floodlight away from children. Children are not aware of the risks imposed by electric current.

MAINTENANCE

The light source of this lamp cannot be replaced; if the light source has reached the end of its service life, the entire lamp has to be replaced.

CLEANING

Do not use solvents, caustic cleaning agents or similar products. Only use a dry or slightly moistened cloth for cleaning.

DISPOSAL

Dispose of electric appliances in an environmentally friendly manner! Electric appliances must not be disposed of in household waste!

The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment rules that used electric appliances should be collected separately and recycled in an environmentally friendly manner.

For possibilities of disposal of the used appliance, please contact your local or municipal administration.

DECLARATION OF CONFORMITY

The declaration of conformity is stored at the manufacturer's.

Addresses

Cable de raccordement: H07RN-F 3G1,0

TEXHUNYECKNEXAPAKTEPNUKNI

Klacc 3aunTbI: I

CTeneHb 3aunTbI: IP 65

HOMnHaJIbHOe HapraKeHne - 230 B, BepcH: 220-240 B nep. ToKa, 50/60 T

HomHaIbHoe HapJxKeHne - 110 B, BepcN: 100-130 B nep. ToKa, 50/60 T

CoeHnHTeBHyk6enb: H07RN-F 3G1,0

Ko3ΦΦnCHeHT MoUHocTn: Cm. Ta6nCy (cTp. 2)

3TN n3nyaTeHn Ha CBeToNDoJax npedHa3NaYeHbI dJa ZeJeN ocBeSeHnB O BVHTpeHHnx NOMeueHnX n Ha npinleraIoUeN TeppuTOpHn.

NOPRAOK3KCNLYATAUIN

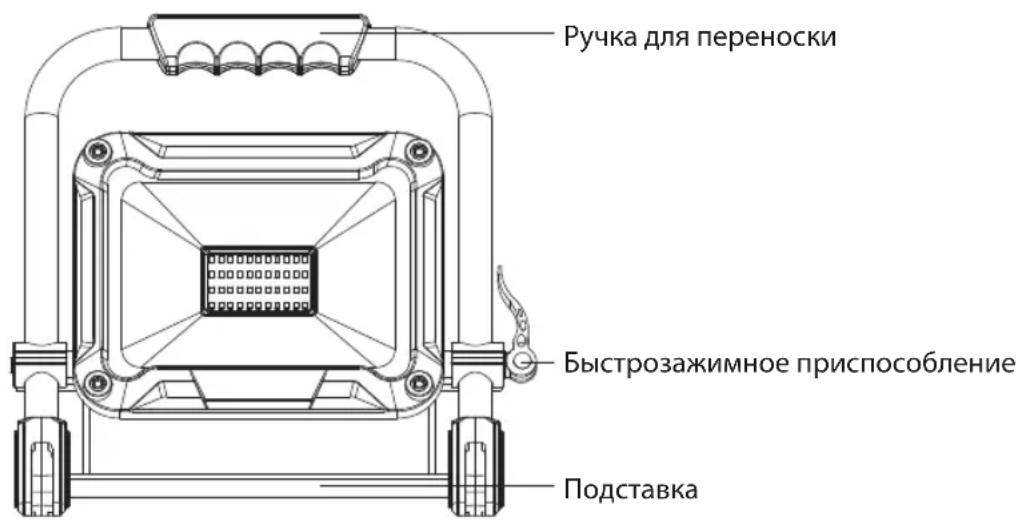

I3nyaTeJIb cIeJyET yCTaHaBnIBaTb Ha cyXoH, POBHO NOBepxHOCTu. YrOJI HAKIOHa CBETINbHnKa MOxHO peryInpOBaTb.ДЯ 3TOrO HxKHO Ocna6HTb 6bICTPO3aXMHoe npCnOCo6JeHne C6OKy, IOBepHyTb rOLOBky CBETINbHnKa B HxKHO NOJOxHeHne, a 3aTEM CHOBa 3aTAYt b 6bICTPO3aXMHoe pncnocO6JeHne Do OTka3a.

NOPRAOK3KCNJYATAUIN

CBETOIOHbI N3JIyATEJIb HA WITATNB

CBeTINbHnKc TnOOBbIM O6O3HaueHHeM, ^ NOCTaBIAOTcB KOMPJIeKTe CO tATNBOM.

Pn 3OM HxKHO 68a3ateJbHO npocneHtB, YTO6bl WTAINB 6bl IOCTaTOH OYCTOHNBBIM, nOBecneHTb npouHbIM MOHTaX CBETNJbHnka.

IITATINB nIOTdEINbHoro n3nyatena Ha 20 BT: BbIDBnraEmbI NO BbICote OT 75 cm Do 160 cm IITATINB nIOTdEINbHoro n3nyatena Ha 30/50 BT: BbIDBnraEmbI NO BbICote OT 86 cm Do 152 cm IITATINB nIcnapEHoro n3nyatena, 2 x 20 BT: BbIDBnraEmbI NO BbICote OT 82 cm Do 142 cm

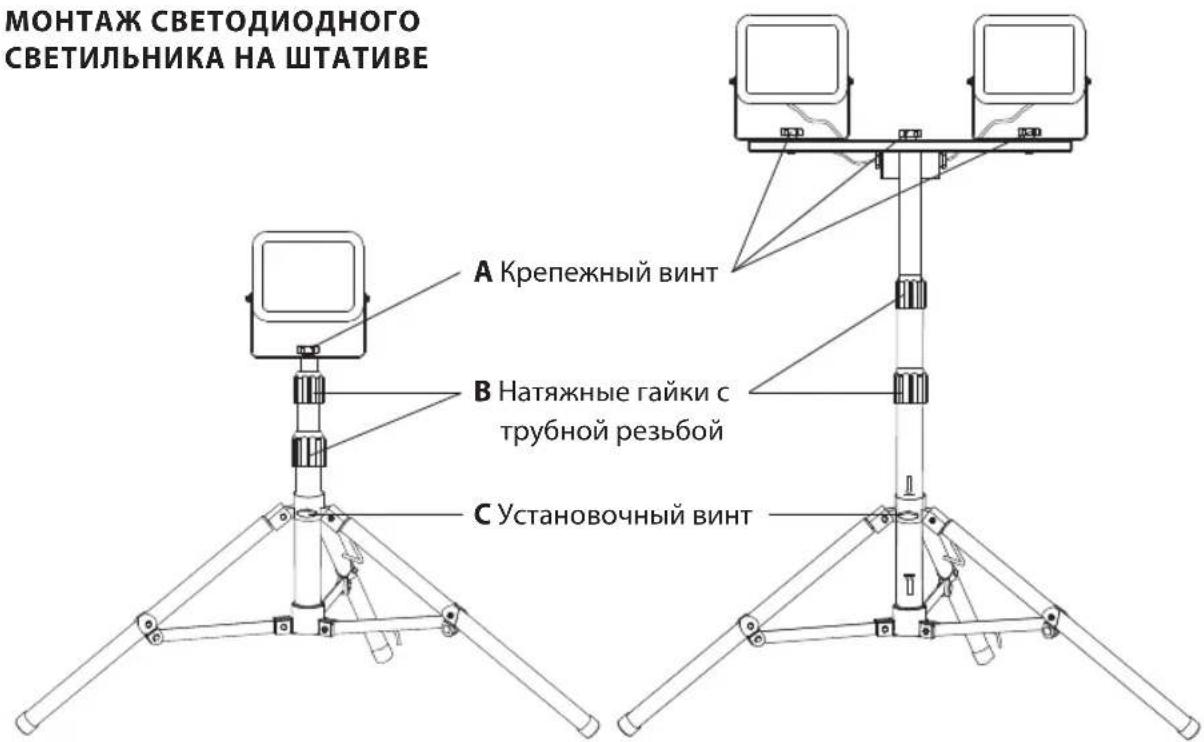

MOHTAX CBETOДNOДHOROCBETUNbHnKA HA WtATNB

Ocna6ntb yctaHOBOUHbI BnHT (C).PONHOCTbIO OTKINHyTb ONOPHbIE CTOIKN. Iocne 3tOro CHOba 3aTARHyTb yCTaHOBOUHbI BnHT (C).

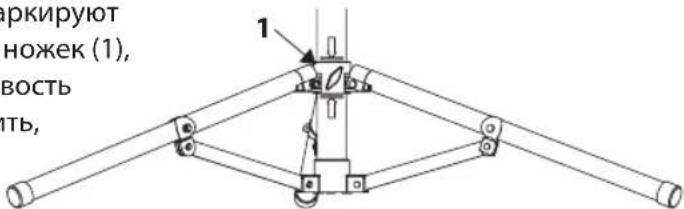

Ha Tpy6ky HaHeceHbI DBe CTpeKn. OHN MapKnpyIOT yuaCTOK, Ie DoJIKeH HaxOuNTbcra KpeNex HOxek (1), UTO6bl ObecneuTb DOCTaTOUHyU yCToHNUBOcTB uTaTnBa. NOrTomy Heo6xoJIMo ObecneuTb, UTO6bl KpeNex HOxek (1) npNXoDIncra Ha yuaCTOK MeJdy CTpeKamn.
