Characteristics & functions Video entryphone

• 7" capacitive touch screen monitor.
  • IEEE 802.11 b/g/n 2.4GHz Wi-Fi connectivity
• Possibility of receiving firmware upgrades via OTA (Over The Air)
• Remote operation of calls via one or more smartphones
• Actuator enabling7disabling (lock and gate)
• Internal flash memory and micro SD card support.
  • Automatic and manual video/image recording
  • Intercom function between indoor units (of the same family).
• Adjustable brightness, colour and contrast
• Adjustable ringtone volume and conversation volume
• 6 selectable ringtones
• "Do not disturb" function
• Multiple languages (Italian, English, French, German, Spanish, Portuguese, Greek, Dutch)

Technical data:

• DC input: 24V (via power supply unit, supplied)
• 7" LCD TFT screen
• LCD resolution 1024 x 600 (RGB)
• Micro SD card slot: SDHC format, - Memory size 8 - 128 GB, Speed class: Class4 - Class10
• Memory capacity: 100 images, 10 videos (video entryphone internal memory). With micro SD card: 1000 images, 1000 videos.
• Dimensions (mm) 188.8 (L) x 113.6 (H) x 14.9 (D) (without wall support) 188.8 (L) x 113.6 (H) x 18.4 (D) (with wall support)
• Wi-Fi IEEE 802.11 b/g/n 2.4GHz - recommended distance from router or Wi-Fi network extender: less than 20 m
• Frequency range: 2412-2472 MHz
• RF transmission power: < 100 mW (20 dBm)

App

• Available for both Android (Android 5.0 and later) and iOS (iOS 9.0 and later) systems
• Receiving calls outdoor station
• List of calls received function
- Image and/or video saving function from calls or consultation.
• Multi-device management function
- Lock or relay remote activation
- Setting communication time from 60s to 420s.
• Auto-rotate image function.
- Possibility of setting the frame rate (high quality: 20f/s; medium quality: 10f/s; low quality: 0.5f/s).

1 Monitor
2 Indicator LED:

• white light = "Do not disturb" function enabled
• flashing white light = New videos/photos in the memory
• Red light = Power ON
• flashing Red light = Wi-Fi connection unavailable or connection to cloud unavailable (this signalling has priority over all others).

3 Micro SD card slot

4 Microphone
5 Speaker
6 Connections:

• for power supply
• for bus (entrance panel/additional video entryphones)

1 Moniteur

Technical line drawing of a wall-mounted device with attached components, no text or symbols present

Note:

We recommend you install the video entryphone near the router in order to have a strong enough Wi-Fi signal. The received Wi-Fi signal strength is

shown on the Wi-Fi icon
- We advise against installing the monitor near large metallic objects or near devices which could generate electromagnetic fields.
- We recommend you perform an initial device configuration before connecting to the system bus (remember that monitor 40945.M must be configured as the master).
- The first time the video entryphone is turned on, the device will show the device's display language selection screen.
- For the system to function correctly, each device must have its own unique address (ID).

In the case of speech units, configuring the ID is done by configuring jumper 10.
In the case of video entryphones, configuring the ID is done by:

- indicating the main video entryphone as the Master;

• indicating additional video entryphones as Extension 1/Extension 2.

Please also note that the video entryphones included in the one-family and two-family kits are preconfigured as Master units, whereas the optional video entryphones are preconfigured as Extension 1.

• Once you have completed the previous steps, you can install and connect the devices to the family bus.
• Once the video entryphone is installed, use the

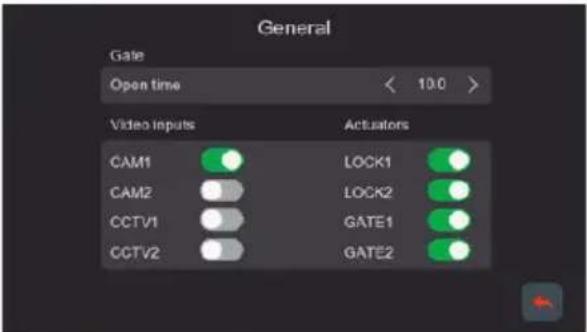

[GENERAL] icon to configure the CAM1, CAM2, CCTV1 and CCTV2 devices, which can be viewed by means of the [SWITCH] icon

and configure the actuators you wish to use (LOCK1, LOCK2, GATE1 and GATE2).

Remarques :

Multi-plug power supply (for applicable versions)

AC supply voltage: 100 V - 240 V, 0.6 A, 50 Hz / 60 Hz DC output: 24V, 1A Dimensions (mm): 43.5 (W) x 80.4(H) x 38.5 (D) AU / EU / UK / US plug adapters

Black Red AU plug EU plug US plug UK plug

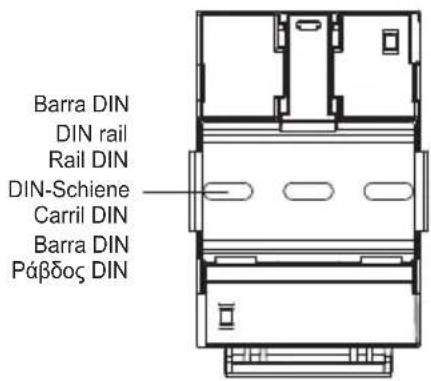

Power supply for DIN rail

Technical characteristics

• Power supply: 100 - 240 Vac 50/60Hz
• Maximum power consumption 0.8 A
• Power dissipation 3.5 W
• Output voltage (+/-) 24 Vdc nominal (SELV - EN60950-1).
• Max. current output: 1 A
• Operating temperature -5 °C +35 °C (indoor)
• 3 x 17.5 mm modules, dimensions: 55x91x54 mm
• □ Symbol for CLASS II

Technical line drawing of a server rack unit with indicator lights and a display panel (no text or symbols)

Ingresso • Input • Entrée • Eingang • Entrada • Entrada • Eísoódoç

Technical line drawing of an electronic device showing internal components and housing (no text or symbols)

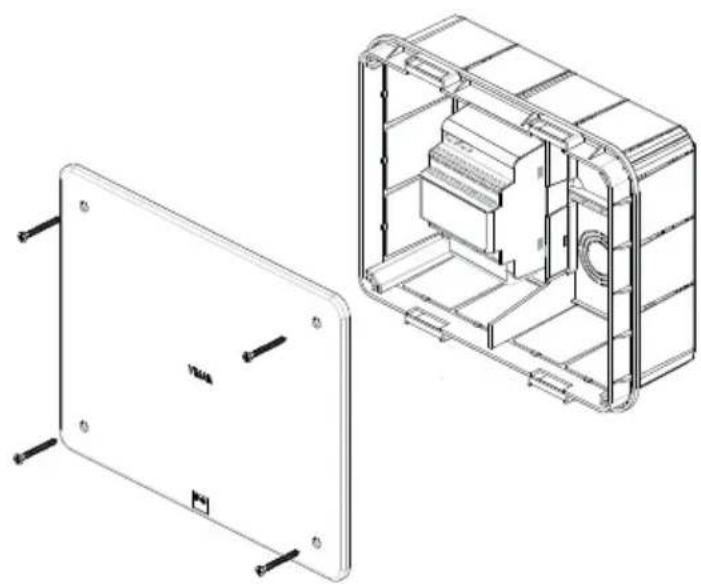

Installazione su scatola di derivazione Installation on junction box Installation sur boîte de dérivation Installation in Abzweigdose Montaje en caja de derivación Instalação na caixa de derivação Εγκατάσταση σε κουτί διακλάδωσης

Technical line drawing of a mechanical housing assembly with two views: front view and side view (no text or symbols)

Installation of a CCTV camera (optional)

The Vimar 46CAM.136B.8 camera can be connected to the CCTV and GND terminals of the speech unit. Maximum length: 100 m with SYV75-3 / RG59 cable

Single-family system connection diagram

1. The minimum cable length between two video entryphones is 5 m.
2. Multi-plug power supply: there are two forks, the red one must be connected to the 24V terminal and the black one to the GND terminal of the video entryphone.
3. In systems consisting of two speech units, if a call is made from a speech unit while communication is already in progress between the other speech unit and the video entryphone, a busy signal (sequence of beeps) will indicate that the caller needs to wait for the line to be come available.

Notas:

Two-family system connection diagram with two panels and up to three monitors per user

Default Password:xxxxxxxx AP name: IDS9457WXXXX UID:XXXXXXXX MAC:XXXXXXXXXXXX

MAC: MAC address Wi-Fi

Wi-Fi Wi-Fi Call forwarding delay OFF 0 5 10 15 20 25 (a) SSID c (q) UID e TTksf5xq8xj Remove Connected Aops > f WIFI factory setting > g

Devices Add Device

Add Device New Device Device connected to network

WIFI Setup Note: If your device's WIFI is already configured before, please reset WIFI. First, you can operate it on your WIFI monitor by referring to your device's manual. Next

PH-FI Setup Which Wi-Fi network should your device connect to? If you have read these user, asked the network chosen for where you will be installing your server.

Hi-Fi Setup Which Wi-Fi network should your device connect to? If you have more than one, select the network chosen in where you will be connecting your stories. NOTIFIED NOTIFIED WHARGUEST NOTIFIED WHARGQUEST NOTIFIED PASS PASS

WiFi Setup WiFi Name hortset Password masked** Last password To first file with signal to expiration Next

Wi-Fi Setup connect devices... void help... w/oing device soles... 144

Modify device password Name: ****** Password: ****

Devices + Home (1) Dennis Actions Album Settings

Device OK Cancel

Settings Name Modify drive password Preview Mode drain/Video W: 0.0000 Neg Assets Hardware version Synthesize Time Delete

Service Please change the default password Get safe passwording Lockers

Devices + Home Diverse Analyze Albem Settings

App permissions VIEW Door Camera Location Monaphone Storage Telephone

Settings VIEW Door Store information App store badges Categories: This app doesn't want you any notifications.

Settings VTRW Door VIRIWA COMB EXERCISES 2017/09/09 Morphisms Camers Ski & Search 36.6 & Appointments Not Locations Revers, Scenarios, Approges Background App Refresh Wireless Data McAlics Calendar

02:30 15:15 SEA Case Notifications Allow Notifications Airline Lock Screen NetPhyson Filter Balance Receive Style Temporary > Biosks Ridges Options Show Previous After Calendar (Default) > Notification Drawing Automatic >

Devices Add Device

connected to network Online Devices Scan OR-Code Manual Adding

Diagram showing a smartphone connected to a device via wireless signal waves (no text or symbols)

Mobile app interface screenshot showing a blue human silhouette with a lock icon and two audio icons below

Initial monitor-smartphone configuration

Installation notes:

• We recommend you install the monitor near the router in order to have a strong enough Wi-Fi signal
• We advise against installing the monitor near large metallic objects or near devices which could generate electromagnetic fields

Once the system has been connected, the devices can be enabled.

Switching on the EVO Wi-Fi monitor may take approximately 40s.

The monitor has a label at the back featuring the following data:

Default Password:XXXXXXXX AP name: IDS9457WXXXX UID:XXXXXXXX MAC:XXXXXXXXXX

Device QR code

Default Password: initial password (password to be kept private and confidential)

AP name: device name in AP mode

UID: Unique monitor ID

MAC: MAC Wi-Fi address

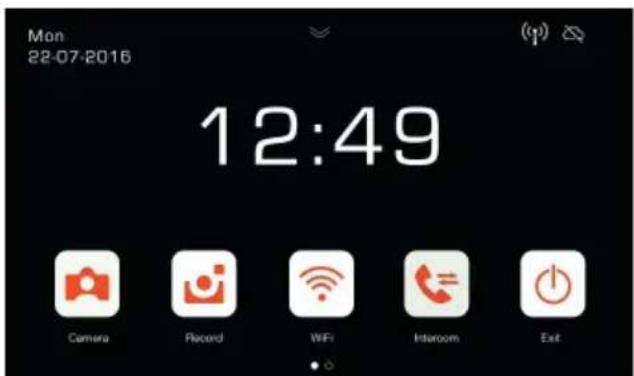

Once you have selected your chosen language, the monitor shows the following screen:

Mon 22-07-2016 12:49 Camera Record WiFi Intercom Exit

Note that the icons relating to the Wi-Fi signal and to the connection to the cloud indicate there is no communication.

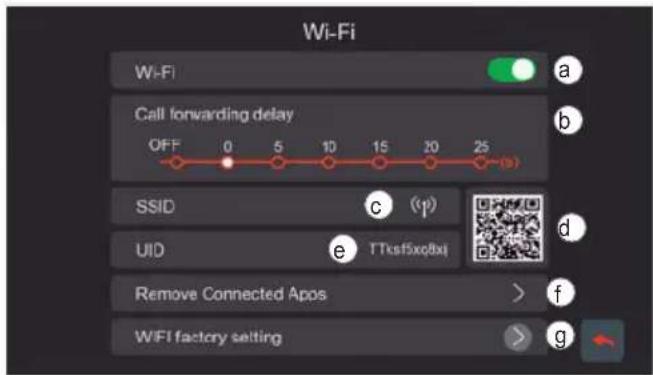

Select the Wi-Fi icon to enter the Wi-Fi and remote operation functions configuration page.

Wi-Fi Wi-Fi Call forwarding delay OFF 0 5 10 15 20 25 SSID c (↑) UID e TTksf5xo8xj Remove Connected Apos > f WIFI factory setting > g

a - Enabling/disabling the Wi-Fi module
b - Forward call setting from outdoor station to App:

- OFF: forwarding disabled

0s - 25s: time you wish to pass between the call from the outdoor station and the call forwarding to your smartphone.

• 0s: the call is forwarded immediately
• 5s, 10s,.. the call from the outdoor station is forwarded to the App after 5s, 10s, ... respectively.

c - Area with an indication of the name of the Wi-Fi network (SSID) and an indication of the Wi-Fi signal strength
d - QR code which unequivocally identifies the Wi-Fi monitor
e - alphanumerical UID which unequivocally identifies the Wi-Fi monitor
f- Function to remove every app-video entryphone connection.

After using this function, reconfigure the app-video entryphone connection, removing the device previously connected from the VIEW Door app and reconnecting it immediately thereafter using the "Device connected to Network" option, proceeding solely with the initial configuration using the QR code.

g - Function to reset the Wi-Fi configuration.

With this function, the router-video entryphone connection and all app-video entryphone connections will be reset. Following the Wi-Fi reset, the video entryphone will go back to the initial configuration status, in other words it will go into Access Point mode.

Remote operation functions configuration:

The connection of the monitor to the Wi-Fi network can only be configured using the "VIEW Door" App available in the store.

Follow the steps set out below:

1) Make sure the Wi-Fi module (a) is enabled
2) During initial configuration, make sure the video entryphone is in AP mode, in other words the icon AP appears in (c). If the monitor is not in AP mode, reset the configuration of the Wi-Fi module (g).
3) Enable the App, which displays the monitor-app configuration screen:

Devices Add Device

Tap once on "+" to connect the monitor to the App.

4) Select "New Device" if the monitor has not yet been connected to a Wi-Fi network.
If the monitor has already been connected to a Wi-Fi network, then select "Device connected to network" (Device connected to the network)

Add Device New Device Device connected to network

5) Once you have selected "New Device", the App will prompt you to scan the QR code (d) of the monitor you wish to configure. Once the QR code has been scanned, the App will remind you that the monitor needs to be in AP mode, as shown in the figure below:

Hi-Fi Setup Now: If your devices Wi-Fi is already configured before, please reset Wi-Fi first, you can operate if on your Wi-Fi monitor by referring to your device's manual. Next

6) At this stage, the App will start the search for all available Wi-Fi networks.
7) Should the app fail to detect Wi-Fi networks immediately, the following screen will appear:

Wi-Fi Setup Which Wi-Fi network should your device connect to? If you have more than one, select the network closest to where you will be combining your network.

If this is the case, update the scree by swiping down on the smartphone screen.

Continue to update the screen (with a swipe) until the list of available Wi-Fi networks appears, as shown below:

All-Fi Setup Which Wi-Fi network should your device connect to? If you have more than one, select the network closer to where you will be connecting your device. NOMINE! GHOST/Windows VANONEST NORMEN! VANONEST NORMON! WOM! WINION!

8) The App prompts you to select which network you wish to use.

We recommend you link up to the Wi-Fi network with the strongest signal.

Once you have selected the network, the App will prompt you to enter the password for the chosen Wi-Fi network.

WiFi Setup WiFi Name Password Password ... Last password ✓ Yes if next @ again not elsewhere Next

Note that only Wi-Fi networks with a frequency of 2.4GHz should be considered.

Enter the access credentials for the Wi-Fi network and proceed by tapping once on next

9) The App will proceed and connect the smartphone to the monitor, via the cloud

API-FI Setup connect force... void help... waiting device online... 164

10) Once the connection is complete, the monitor home page will show the following as enabled:

• The Wi-Fi connection (and related signal strength)
• The connection to the Cloud

11) The page relating to the Wi-Fi settings, showing in c) the name of the Wi-Fi network (SSID) and the Wi-Fi signal strength
12) the App will prompt the following screen: you will be able to name the connection you have just configured.

Once you have chosen the name, proceed by tapping once on "Save".

Add Device Device Name Name URL T123456888 Save

13) After saving, the device shows an initial image

Modify device password ID Name Connection

16) Once you have saved the new password, the connection between the App and the monitor proves enabled.

Settings Sound Vibration Auto rotate Video channel select Automatic Preview time 425s About Exit

Sound: ringtone enabling
Vibration: vibration enabling
Auto-rotate: image auto-rotate enabling
Video channel select: automatic or manual selection
Preview time: maximum communication duration setting (from 60s to 420s).
Information: information on the App

Devices + Home - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

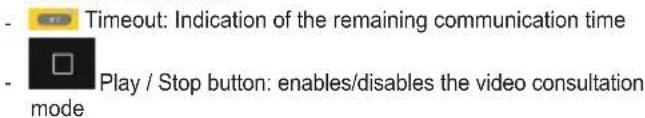

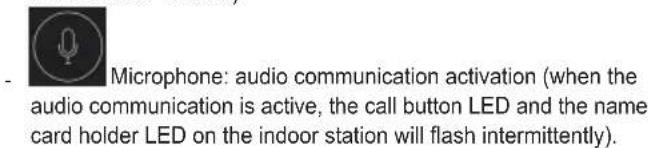

14) Tap once on the image to enable the connection and enter "preview" mode. As soon as the connection has been established, the App prompts you to change the password, switching from the default password to the password customised by the user. For security reasons, the password must comprise a series of numbers of between 4 and 16 digits. Tap once on "Confirm" to proceed

Device OK Cancel

17) In the "Devices" section, you will therefore see the connection to the device referred to as "home" as enabled, as shown below:

19) In the "Settings" section relating to the connected monitor, the following functions are available relating to the individual device connected:

Settings Home Modify driver password Preview Mode View Settings Reg. Index Hardware version Synchronization Time Delete

Service Please change the default password On file (nonserver) Confirm

15) Proceed by entering a new password and confirming it. Keep a note of the password you have just set. Should you wish to connect the monitor to another smartphone, you will have to use the same password.

Devices + Home Status Actions Album Settings

18) Note that when you enter the "Settings" section of the App you can define the following functions for all connected devices

device: name of the device

Modify device password: menu to change the password

Preview Mode: video mode selection (high quality mode: 20 f/s;

medium quality mode: 10f/2;

low quality mode: 0.5f/s)

Ring Alerts: call notifications from outdoor station enabling

Firmware version: check firmware installed on the monitor and availability of possible upgrades

Synchronize time zone: function for synchronizing the time zone on which the video entryphone clock is based.

The function informs the video entryphone to use the same time zone used by the smartphone.

Once the time zone has been configured, the date and time of the video entryphone will be updated at:

- each video entryphone re-starting

- each update from the cloud (with a weekly frequency).

Delete: delete configured device from the App

Permissions enabled:

To run the app correctly make sure the required permissions are enabled.

For the Android system permission must be given for:

• Camera
• Location
• Storage
• Microphone
• Phone

App permissions VIEW Door Camera Location Telephone Storage Telephone

and notifications must be enabled:

Settings VIEW Door Show store/blogs App store badges Examples: This app has? sent you only notifications.

For the iOS system permission must be given for:

Settings VISW Door ALLOWING YOUR ORDER TO ACCESS Mortgage Camera Sh & Search Get & Suggestions Notifications Search, Audio, Messages Background App Refrict Wireless Data Web & Calendar

And notifications must be enabled:

43:30 AVK User Notifications Allow notifications AVERAGE Join Server Notification Center Windows Server Style Temporary > Sounds Bedges Show Password None Untold (Default) > Notification Grouping Automobile >

Video entryphone-smartphone connection for a video entryphone already connected to the Wi-Fi network

If the monitor proves to have already been connected to a smartphone and you wish to connect it to another smartphone, proceed as follows:

1) Tap once on the "+" sign of the App:

Devices Add Device

2) Select "Device connected to network". The following screen appears:

connected to network Online Devices Scan OR Code Manual Adding

3) If the monitor has already been connected, specify which monitor should be connected to the smartphone.

The monitor can be identified using the three options shown in the image above:

• Online device: the monitor is already connected to the Wi-Fi network. If you connect the smartphone to the same Wi-Fi network, the monitor to be connected should prove available for selection from a list of devices.
• Scan the QR code: to identify unequivocally the monitor to connect to, simply scan the QR code of the monitor
• Manual configuration: manual entry of the monitor UID.

In any case, the connection will only be confirmed once you have entered the password already defined during the initial video entryphone-app configuration, as specified in the previous paragraph entitled "Initial video entryphone-smart-phone configuration"

"VIEW Door" app

The app basically consists of four sections:

Devices: lists the devices connected to the app

Activity: lists the notifications received

Album: shows the videos and photos related to the communications.

Settings: configuration of the main app functions.

In detail:

Devices

Each device connected to the app is marked by a name and an image relating to the last communication.

Note that the Outdoor station - App communication can be inter-rupted on the monitor display.

Activate the monitor display (if in stand-by) and swipe from left to right on the screen shown below to interrupt the communication immediately:

Diagram showing a smartphone and a device with wireless signal icons (no text or symbols)

Tap on the image to activate the video consultation mode; the images relating to the activated device appear on the app.

Generally, in preview mode the app will appear as shown in the following image:

Device OK Cancel

this icon to access the configuration of the spe-

cific device connected.

A red dot indicates that a more recent version of the monitor firmware is available.

- Timeout: Indication of the remaining communication time - Play / Stop button: enables/disables the video consultation mode

Video device selection (the device must be activated in the "General" section)

: high quality (20fps); : medium quality (10fps); : low quality (0.5fps).

The possibility to reduce the image quality may be useful if there is limited data communication bandwidth availability.

- Lock: lock activation (the actuator must be activated in the "General" section)

Microphone: audio communication activation (when the audio communication is active, the call button LED and the name card holder LED on the indoor station will flash intermittently).

Activity

A time list is given indicating all the call notifications

Album

Contains the videos and photos recorded during communications

Settings

Used to configure some features of the connected device.

Default Password:XXXXXXXX AP name: IDS9457WXXXX UID:XXXXXXXX MAC:XXXXXXXXXX

Wi-Fi Wi-Fi Call forwarding delay OFF 0 5 10 15 20 25 (s) SSID c (p) UID e TTksf5x08xj Remove Connected Apos > f WIFI factory setting > g

20:41 Devices + Add Device Devices Actions Allogm Settings

Add Device New Device Device connected to network

MIFI Setup Note: If your device's Wi-Fi is already configured before, please reset Wi-Fi first, you can execute. It on your Wi-Fi monitor by referring to your device's manual. Next

MIFI Setup Which Wi-Fi network should your device connect to? If you have more than one, order the networks should be where you will be connecting your devices.

MiFi Setup Which Wi-Fi network should your device connect to? If you have read these user, selected the network chosen to where you will be connecting your server.

WiFi Setup WiFi name: https://8.10.1234567 Password: ********-1234567 I have password Post 15 with signal detection

AI-FI Setup connect devices... valid video... wating devices online... 144

Modify device password Name Password

Settings Sound Vibration Auto rotate Video channel select Automatic Preview time 420s About Exit

Devices + Home Sensors Activity Album Settings

Device OK

Settings Home Modify drive password Phrase block wild password... Wi-Fi Style Big Alert Hardware version Synthesizer Tree Options

Device Please change the default password Before passwording Cancel

Devices + Home Windows Actions Album Settings

Diagram showing a smartphone connected to a device via wireless signal waves (no text or symbols)

Default Password:XXXXXXXX AP name: IDS9457WXXXX UID:XXXXXXXX MAC:XXXXXXXXXXXX

QR Code des Geräts

Wi-Fi Wi-Fi Call forwarding delay OFF 0 5 10 15 20 25 SSID c (f) UID e TTksf5xq8xj Remove Connected Apos > f WIFI factory setting > g

Please change the default password to be answered. Cancel

Modify device password Init New Send

Mobile app interface showing a person silhouette with a lock icon and two key icons, likely for audio or voice recording.

Devices + home Access Array Alarm Settings

Settings Sound Vibration Auto rotate Video channel select Automatic Preview time 420s About Exit

Settings Name Modify drive password Pramom block dualVesemery Web Group Big stores Hardware version Synthesis Time Creates

App permissions VIEW Door Camera Location Morphine Storage Telephone

Settings VIEW Door New Information App store badges Categories This app has? sent you only notifications.

VSW Door VLOOKUP WITH VIEW TO ACCESS Microphone Camera Sh & Search Get & Support Not Settings Business Services: August Background App Refresh Wireless Data Make Calendar

43:20:17 NEW Date Notifications Allow notifications NOTES: Lock System Notification Center Windows Server Style Temporary > Sound Budges Shore Password After Untitled (Default) > Notification Grouping Automatic >

Devices Add Device

connected to network Online Devices Scan OR-Code Manual Adding

Diagram showing a smartphone and a device with wireless signal icons, no text or symbols present

Device OK Cancel

Default Password:XXXXXXXX AP name: IDS9457WXXXX UID:XXXXXXXX MAC:XXXXXXXXXX

Wi-Fi Wi-Fi Call forwarding delay OFF 0 5 10 15 20 25 SSID c (f) UID e TTksf5xq8xj Remove Connected ApoS > f WIFI factory setting > g

Devices Add Device

Add Device New Device Device connected to network

Mi-Fi Setup Note: If your device's Mi-Fi is already configured before, please read Wi-Fi first, you can accurate it on your Mi-Fi monitor by referring to your device's manual. Next

WiFi Setup Which Wi-Fi network should your device connect to? If you have been then used, selected the network should be where you will be installing your server.

Mi-Fi Setup Which Mi-Fi network should your device connect to? If you have been able to use, select the network closest to where you will be connecting your devices. Windows + iOS/H57/Android + VMARQUEST + Windows + VMARQUEST + Windows + MOS + Microsoft + Hi +

WiFi Setup WiFi name Password Password None password Help this WiFi signal the password to Next

RF-FI Setup connected device... void help... waking device online... 144

Modify device password ID Name Connection

Settings Sound Vibration Auto rotate Video channel select Autograps Preview time 425s About Exit

Devices + Home Sensors Activity Album Settings

Device OK Cancel

Settings Home Modify drive password Preferences block dual/Assess... Wi-Fi Delay Big Alerts Hardware version Synthesizer Time Options

Service Please change the default password Cell date passwording Confirm

App permissions VIEW Door Camera Location Morsephone Storage Telephone

Settings VIEW Door Show instructions App ice badges Categories: This app is not yet seen you only instructions.

GEMS VITW Door ALLUM YOUR ACCESS FOR ACCESS Microphone Camera Sri & Search Wi-Fi Suppliers Nordiskions Sensors, Sensors, Ridges Background App Ref tech Wireless Data Wi-Fi/Other

62.04 15:11 WLAN Date Notifications Allow Notifications AIDS Lock System Notification Center Daimers Server Style Temporary > Scanets Budgets Show Preview Show Untitled (Details) Notification Grouping Automatic

Devices Add Service

connected to network Online Devices Scan OR-Code Manual Adding

Diagram showing a smartphone connected to a device via wireless signal waves (no text or symbols)

Mobile app interface screenshot showing a user profile with a blue human silhouette and two icons labeled 'Key' and 'Micro'.

Default Password:XXXXXXXX AP name: IDS9457WXXXX UID:XXXXXXXX MAC:XXXXXXXXXX

QR Code do dispositivo Default Password: password inicial (password a manter reservada) AP name: nome do dispositivo no AP mode UID: Identificativo unívoco do monitor MAC: MAC address Wi-Fi

Wi-Fi Wi-Fi Call forwarding delay OFF 0 5 10 15 20 25 SSID c (↑) UID e TTksf5xo8xj Remove Connected Apos > f WIFI factory setting > g

Add Device New Device Device connected to network

M1-FI Setup Note: If your device's Wi-Fi is already configured before, please reset Wi-Fi first, you can navigate. It on your Wi-Fi monitor by referring to your device's manual. Next

MI-FI Setup Which Wi-Fi network should your device connect to? If you have more than one, select the network about in where you will be installing your device.

WIFI Setup Which Wi-Fi network should your device connect to? If you have more than one, select the network chosen in where you will be installing your server.

8) A app pede a que rede se pretende ligar.

ANHFI Setup Will Name: Password: Save password Help to get your new password. Next

Modify device password ID Name Connection

Settings Sound Vibration Auto rotate Video channel select Automatic Preview time 425s About Exit

Settings Name Modify device password Prison block Auto/Reserve Web Group Big stores Hardware version Syniverse Time Delete

Please change the default password set up password. Confirm

Devices + Home Domain Activity Album Settings

App permissions VIEW Door Camera Location Monaphone Storage Telephone

Settings VIEW Door New Information App store badges Categories This app has? sent you only notifications.

02:30 WTR Class Notifications Allow Notifications Welcome Lock Screen Notification Center Browse Save Style Temporary Biosks Bodges OK/OKS Show Requests After ( launched ( Default ) > Notification Grouping Automatic >

Devices Add Device

connected to network Online Devices Scan OR-Code Manual Adding

Diagram showing a smartphone and a device with wireless signal icons, no text or symbols present

Device OK Cancel

Default Password:xxxxxxxxx AP name: IDS9457WXXXXX UID:XXXXXXXXX MAC:XXXXXXXXXX

Wi-Fi Wi-Fi Call forwarding delay OFF 0 5 10 15 20 25 (9) SSID c (↑) UID e TTksf5x08xj Remove Connected ApoS > f WiFi factory setting > g

Devices Add Device

Add Device New Device Device connected to network

Mi-Fi Setup Note: If your device's Mi-Fi is already connected before, please reset Mi-Fi. First, you can operate if on your Mi-Fi monitor by referring to your device's manual. Next

WiFi Setup Which Wi-Fi network should your device connect to? If you have more than one, select the network closest to where you will be connecting your stories.

Wi-Fi Setup Which Wi-Fi network should your device connect to? If you have more than one, select the network closer to where you will be connecting your devices. Network GHOST/Windef WINQUEST Network WINQUEST Network ROM System

NEW-FI Setup www.fmi has email Password save password This is now found that was used to Next

MIFI Setup correct Device... void free... waiting device online... 144

Add Device Delete Name: Raine (1) T:\Users\Add Save

Please change the default password but is progressing Cancel

Modify device password Name Password

Device 40

Devices + Home Dinuts Analty Allam Settings

Settings Sound Vibration Auto rotate Video channel select Automatic Preview time 420s About Exit

Settings Home Modify device password Presen Mode Add/Remove View Mode Key Assets Campaign version Synchrover Time Options

App permissions VIEW Door Camera Location Monophone Storage Telephone

Settings VIEW Door Show Information App store badges Examples This app hasn't sent you any notifications.

02:32 Y S Settings VBITM Door VOLUME 100% (2):201999 Microphone Camera Sat & Search Sat & Settings Not Settings News, News, Polls Background App Refresh Wireless Data McAlic Calendar

OK OK Notifications Allow Notifications Locks Lock Screen Notification Center Review Save Style Temporary Issues Bodges Options Show Updates Always Unlocked (Default) > Notification Grouping Automatic >

Devices Add Device

connected to network Online Device Scan OR Code Manual Adding

Diagram showing a smartphone connected to a device via wireless signal waves (no text or symbols)

In standby mode, touching any part of the display will bring up the screen showing the device's main functions.

Scrolling down on the arrow shown on the main screen accesses the mute and auto record settings.

Scrolling horizontally access the device settings.

Page d'accueil

Notes regarding mute and auto record settings:

Scrolling down on the arrow shown on the main screen accesses the following settings:

• For enabling/disabling "Mute" function
icon).
- For enabling/disabling auto record on panel call and selecting the mode (

Mute Record Camera Photo WiFi Intercom Exit

	• Cattura imagine automaticamente • Automatic image capture• Capture automatique d'images • Automatisches Standbild• Captación automática de imágenes • Captura de imagem automaticamente• Autóματη λήψη εικόνας
	• Registra video automaticamente • Automatic video recording• Enregistrement vidéo automatique • Automatische Videoaufnahme• Grabación automática de vídeo • Grava vídeos automaticamente• Autóματη εγγραφή βίντεο
	• Funzione di registrazione disattivata (Icona di colore Grigio)• Record function deactivated (grey icon)• Fonction d'enregistrement désactivée (icône grise)• Aufnahmefunktion deaktiviert (Symbol in grauer Farbe)• Función de grabación desactivada (icono de color Gris)• Função de gravação desativada (Ícone de cor Cinza)• Απενεργοποιημένη λειτουργία εγγραφής (εικονίδιο γκρι χρώματος)

By pressing the [Camera] icon, icon on the main screen, the camera will activate and the video entryphone will display the image from the speech unit.

Fonction auto-allumage

Operation: Entrance panel call

When a visitor presses the call button on the entrance panel, an image of the visitor is displayed on the video entry-phone screen and communication with the speech unit can be activated/deactivated by pressing the [Communication]

Press the [Intercom] icon on the main screen, select the indoor unit you want to call, then press the [Communi-

cation] icon to start the call.

The intercom function is used only to communicate between devices in the same family.

Fonction appel intercom- municant

Multimedia - Archiving images and videos

Without an SD card the video entryphone can record up to 100 images and 10 videos in the internal memory.

Inserting a Micro SD card, the video entryphone can record up to 1000 images and 1000 videos.

When the memory is full, the oldest pictures or videos will be overwritten.

Viewing images and videos

Press the [Photo] icon or [Video]

iconL on the main screen to review stored images and videos. In the photo and video list, a red dot indicates that images/videos have not yet been displayed.

Notes:

• The micro SD card must be formatted from the video entryphone before use (
• The kit does not include a micro SD card

Melody Muta Address General Language Date Memory Reset

	[Melodia] Permette di impostare la suoneria per le chiamate da posti esterni e intercomunicanti.[Melody] For setting the ringtone for speech unit calls and intercom calls.[Mélodie] Permet de choisir la sonnerie pour les appels provenant de postes extérieurs et les appels intercommunicants.[Melodie] Hiermit kann der Rufton für Außenstellen- und Internrufe eingestellt werden.[Tono] Permite configurar el timbre para las llamadas desde aparatos externos e intercomunicantes.[Melodia] Permite definir o toque para as chamadas a partir de postos externos e intercomunicantes.[Μελωδία] Παρέχει τη δυνατότητα ρύθμισης του κουδουνιού για τις κλήσεις από εξωτερικούς σταθμούς και τις κλήσεις ενδοετικοινωνίας.
	[Silenzioso] Permette di abilitare/disabilitare la funzione di "Mute" e impostare l'intervallo di tempo della modalità "Non disturbare".[Mute] For enabling/disable the mute function and setting the time interval for "Do not disturb" mode.[Silencieux] Permet d'activer/de désactiver la fonction « Silence » et de définir l'intervalle de temps de la fonction « Ne pas déranger ».[Lautlos] Hiermit kann die Funktion "Lautlos" aktiviert/deaktiviert und das Zeitintervall des Modus "Nicht stören" eingestellt werden.[Silencio] Permite activar/desactivar la función de "Mute" y configurar el tiempo del modo "No molesten".[Silencioso] Permite habilitar/desabilitar a função de "Mute" e definir o intervalo de tempo do modo "Não incomodar".[Σίγαση] Παρέχει τη δυνατότητα ενεργοποίησης/απενεργοποίησης της λειτουργίας «σίγασης» και ρύθμισης του χρονικού διαστήματος του τρόπου λειτουργίας «Μην ενοχλείτε».
	[Indirizzo] Permette di attivare/disattivare la ricezione di chiamate intercomunicanti e impostare l'ID videocitofoni (master, secondario 1 e secondario 2).[Address] For activating/deactivating receipt of intercom calls and setting the ID of video entryphones (master, slave 1 and slave 2).[Adresse] Permet d'activer/de désactiver la réception d'appels intercommunicants et de définir l'ID des portiers-vidéo (maître, secondaire 1 et secondaire 2).[Adresse] Hiermit kann der Empfang von Internrufen aktiviert/deaktiviert sowie die ID der Videohaustelefone (Master, Nebengerät 1 und Nebengerät 2) eingestellt werden.[Dirección] Permite activar/desactivar la recepción de llamadas intercomunicantes y configurar el ID de los videoporteros (master, secundario 1 y secundario 2).[Endereço] Permite ativar/desativar a receção de chamadas intercomunicantes e definir o ID dos videoporteiros (master, secundário 1 e secundário 2).[Διεύθυνση] Παρέχει τη δυνατότητα ενεργοποίησης/απενεργοποίησης της λήψης κλήσεων ενδοετικοινωνίας και ρύθμισης του ID των θυροτηλεοράσεων (master, δευτερεύουσα 1 και
	[Generale] Permette di impostare il tempo di attivazione del relè tra minimo 0,5 s e massimo 10 s. Nella stessa pagina è anche possibile attivare la consultazione dei segnali video CAM1, CCTV1, CAM2, CCTV2 ed abilitare l'utilizzo delle serrature autoalimentate LOCK1, LOCK2 e dei relè GATE1, GATE2.[General] Designed to set the relay activation time between a minimum of 0.5 s and a maximum of 10 s. On the same page, you can also activate consulting of the video signals CAM1, CCTV1, CAM2, CCTV2 and enable the use of the self-powered locks LOCK1, LOCK2 and relays GATE1, GATE2.[Général] Permet de définir le temps d'activation du relais entre 0,5 s (minimum) et 10 s (maximum). La même page permet également de valider la consultation des signaux vidéo CAM1, CCTV1, CAM2, CCTV2 et l'utilisation des gâches auto-alimentées LOCK1, LOCK2 et des relais GATE1, GATE2.[Allgemein] Hiermit kann die Aktivierungszeit des Relais von mindestens 0,5 s bis maximal 10 s eingestellt werden. Auf der gleichen Seite kann darüber hinaus die Abfrage der Videosignale CAM1, CCTV1, CAM2, CCTV2 und die Verwendung der eigenversorgten Türöffner LOCK1, LOCK2 sowie der Relais GATE1, GATE2 aktiviert werden.[General] Permite configurar el tiempo de activación del relé entre ralentí 0,5 s y máximo 10 s. En la misma página también es posible activar la consulta de las señales de vídeo CAM1, CCTV1, CAM2, CCTV2 y habilitar la utilización de las cerraduras alimentadas automáticamente LOCK1, LOCK2 y los relés GATE1, GATE2.[Geral] Permite definir o tempo de ativação do relé entre 0,5 s no mínimo e 10 s no máximo. Na mesma página é também possível ativar a consulta dos sinais de vídeo CAM1, CCTV1, CAM2, CCTV2 e habilitar a utilização dos trincos autoalimentados LOCK1, LOCK2 e dos relés GATE1, GATE2.[Γενικά] Παρέχει τη δυνατότητα ρύθμισης του χρόνου ενεργοποίησης του ρελέ μεταξύ 0,5 δευτ. το ελάχιστο και 10 δευτ. το μέγιστο. Από την ίδια σελίδα είναι ετίσης δυνατή η ενεργοποίηση του ελέγχου των σημάτων εικόνας CAM1, CCTV1, CAM2, CCTV2 και ενεργοποίησης της χρήσης των αυτοροφοδοτούμενων κλειδαριών LOCK1, LOCK2 και των ρελέ GATE1, GATE2.
	[Lingua] Permette di impostare la lingua del monitor.[Language] For setting the monitor display language.[Langue] Permet de définir la langue du moniteur.[Sprache] Hiermit kann die Monitorsprache eingestellt werden.[Idioma] Permite configurar el idioma del monitor.[Idioma] Permite definir o idioma do monitor.[Γλώσσα] Παρέχει τη δυνατότητα ρύθμισης της γλώσσας της οθόνης.
	[Data] Permette di impostare la data, l'ora del monitor e selezionare il formato della data.[Date] For setting the monitor display date and time and selecting the date format.[Date] Permet de régler la date, l'heure du moniteur et de sélectionner le format de la date.[Datum] Hiermit können Datum und Uhrzeit des Monitors eingestellt sowie das Datumsformat gewählt werden.[Fecha] Permite configurar la fecha y la hora del monitor y seleccionar el formato de la fecha.[Data] Permite definir a data, a hora do monitor e seleccionar o formato da data.[Ημερομηνία] Παρέχει τη δυνατότητα ρύθμισης της ημερομηνίας και της ώρας της οθόνης, καθώς και επιλογής της μορφής ημερομηνίας.
[DSGG]	[Memoria] Permette di eliminare tutte le immagini o i video nella scheda Micro SD o FLASH, copiare tutte le immagini dalla memoria Flash interna alla scheda micro SD e formattare la scheda Micro SD.[Memory] For deleting all images or videos in the micro SD or flash card, copying all images from the internal flash memory to the micro SD card and formatting the Micro SD card.[Mémoire] Permet d'éliminer toutes les images ou les vidéos de la carte Micro SD ou FLASH, de copier toutes les images de la mémoire Flash interne à la carte micro SD et de formater la carte Micro SD.[Speicher] Hiermit können alle Bilder oder Videos in der microSD-Karte oder im FLASH-Speicher entfernt, alle Bilder vom internen FLASH-Speicher in die microSD-Karte kopiert und die microSD-Karte formatiert werden.[Memoria] Permite eliminar todas las imágenes o los vídeo en la microtarjeta SD o flash, copiar todas las imágenes de la memoria Flash interna a la microtarjeta SD y formatear la misma.[Memória] Permite eliminar todas as imagens ou vídeos do cartão Micro SD ou FLASH, copiar todas as imagens da memória Flash interna para o cartão micro SD e formatar o cartão Micro SD.[Μνήμη] Παρέχει τη δυνατότητα διαγραφής όλων των εικόνων ή των βίντεο που υπάρχουν στην κάρτα Micro SD ή FLASH, αντιγραφής όλων των εικόνων από την εσωτερική μνήμη Flash στην κάρτα micro SD και διαμόρφωσης της κάρτας Micro SD.
	[Ripristina] Permette di ripristinare le impostazioni iniziali del sistema (ad eccezione di data, ora, indirizzo ID ed impostazioni Wi-Fi).[Restore] For restoring the initial system settings (except for the date, time, ID address and Wi-Fi settings.[Réinitialiser] Permet de réinitialiser les paramètres d'origine du système (sauf la date, l'heure, l'adresse ID et les réglages Wi-Fi).[Wiederherstellen] Hiermit können die Anfangseinstellungen des Systems (mit Ausnahme von Datum, Uhrzeit, ID-Adresse und WLAN-Einstellungen) wiederhergestellt werden.[Restaurar] Permite restablecer los ajustes iniciales del sistema (excepto fecha, hora, dirección ID y ajustes Wi-Fi).[Repor] Permite repor as definições iniciais do sistema (à exceção da data, hora, endereço ID e definições Wi-Fi.[Επαναφορά] Παρέχει τη δυνατότητα επαναφοράς των αρχικών ρυθμίσεων του συστήματος (με εξαίρεση την ημερομηνία, την ώρα, τη διεύθυνση ID και τις ρυθμίσεις Wi-Fi).

The instruction manual is down- loadable from the site faidate. vimar.com

In compliance with the provisions of EU Regulation 2016/679 on the subject of personal data protection, Vimar S.p.A. guarantees that the processing using electronic means is carried out while reducing as much as possible the use of personal data and identification data, limiting their use to those cases in which they are strictly necessary to achieve the purposes for which they were collected. Vimar S.p.A. guarantees the implementation and observance of specific safety measures to prevent the loss of data, possible illicit or incorrect uses of the same and unauthorised accesses. The data subject's data will be processed in accordance with the provisions of the product privacy policy which can be consulted from our website www.vimar.com.

It is the responsibility of each data subject to guarantee and verify the ownership and safekeeping of their password and access codes to the web resources. Upon requesting support from the Vimar Service Centre, in order to enable the support activity, each data subject will need to provide the system access password. The provision of the same is considered as consent to the processing. Every

Data subject will be responsible and will have to modify the access password to the system following each intervention provided by the Service Centre

If the products film public venues and not just private property, the 'area under video surveillance' sign envisaged by the privacy regulations and specified on the Italian Data Protection Author - ity website must be displayed visibly.

Confidentialité

Installation should be carried out by qualified personnel in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed.

Ensure clearance around the appliance so there is sufficient ventilation.

There must be no dripping or splashes of water on the appliance.

WARNING: To prevent injury, the appliance must be secured to the wall as described in the installation instructions.

Above the power supply there must be a bipolar circuit breaker that is easily accessible with a contact gap of at least 3 mm.

Conformity

RED directive

Standards EN 301 489-17, EN 300 328, EN 62311, EN 60065, EN 62368-1, EN 60950-1, EN 61000-6-1, EN 61000-6-3.

REACH (EU) Regulation no. 1907/2006 – Art.33. The product may contain traces of lead.

Vimar SpA declares that the radio equipment complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is on the product sheet available at the following Internet address: faidate.vimar.com.

WEEE - Information for users

If the crossed-out bin symbol appears on the equipment or packaging, this means the product must not be included with other general waste at the end of its working life. The user must take the worn product to a sorted waste center, or return to the retailer when purchasing a new one. Products for disposal can be consigned free of charge (without any new purchase obligation) to retailers with a sales area of at least 400m if they measure less than 25cm. An efficient sorted waste collection for the environmentally friendly disposal of the used device, or its subsequent recycling, helps avoid the potential negative effects on the environment and people's health, and encourages the re-use and/or recycling of the construction materials.
