AF-4 / AF-4R Special Effects Fan User Manual

ANTARIFEN AF-4

User Manual

Safety Information

Please read the following safety information carefully before operating the machine. This information includes important safeguards about installation, usage, and maintenance. Pay attention to all warning labels and instructions in this manual and printed on the machine.

If you have questions about how to operate the machine safely, please contact your local Antari dealer for help.

• Keep this device dry.
  Always connect to a grounded circuit to avoid risk of electrocution.
• Before connecting machine to power, always check voltage indicate on machine match to your local AC voltage. Do not use the machine if AC power voltage does not match.
• Disconnect the machine from AC power before servicing and when not in use.
• This product is for indoor use only! Do not expose to rain or moisture. If fluid is spilled onto electronic parts, immediately unplug the machine and contact your local Antari dealer for advice.
• No user serviceable and modifiable parts inside. Never try to repair this product, an unauthorized technician may cause damage or malfunction to the machine.
• For adult use only. Never leave the machine running unattended.
• Installed the machine in a well-ventilated area. Provide at least 50 cm space around the machine.
• Make sure there are no flammable materials close to the machine while operating.
• If the machine fails to work, unplug the machine and stop operation immediately. Contact your local Antari dealer for advise.

Unpacking and Inspection

Immediately upon receiving the machine, carefully unpack the carton, check the content to ensure that all parts are present and have been received in good condition. If any parts appear damaged or mishandled from shipping, notify the shipper immediately and retain the packing material for inspection.

What is included: 1 x AF-4 / AF-4R Special Effect Fan

1 x User Manual

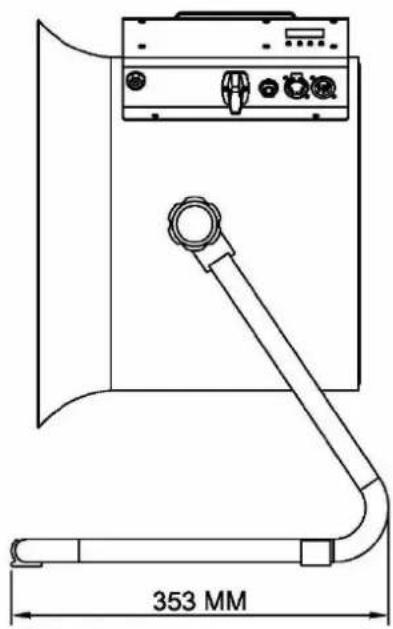

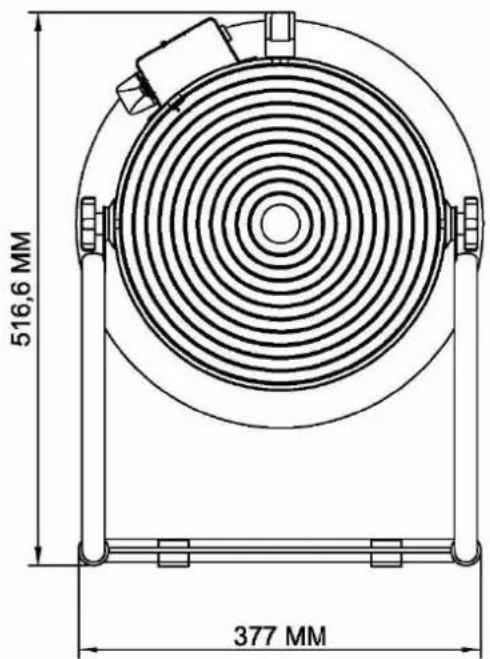

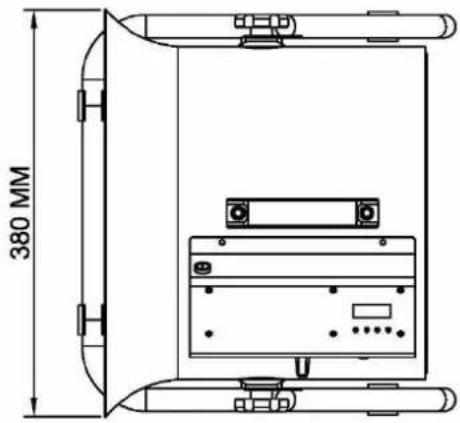

Product Dimensions

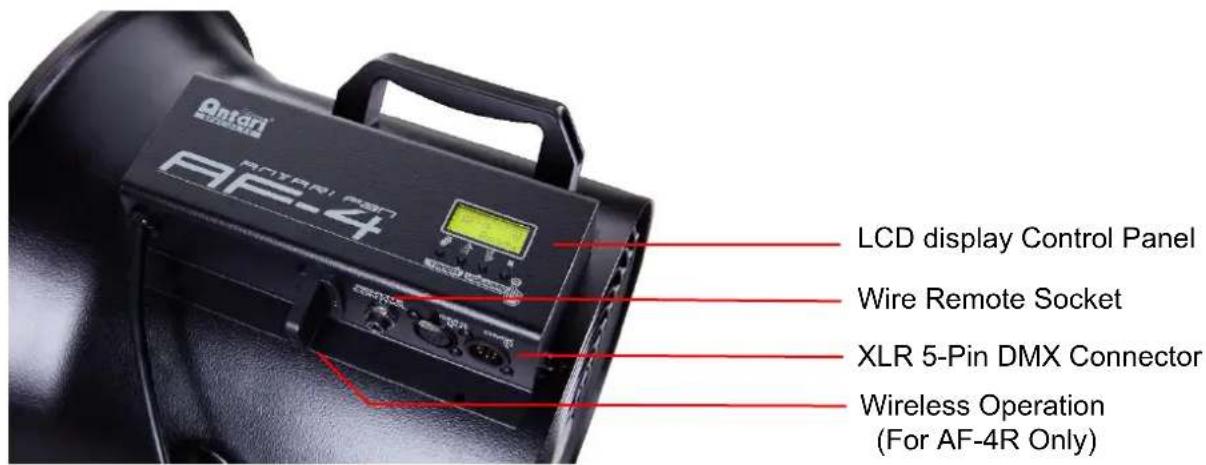

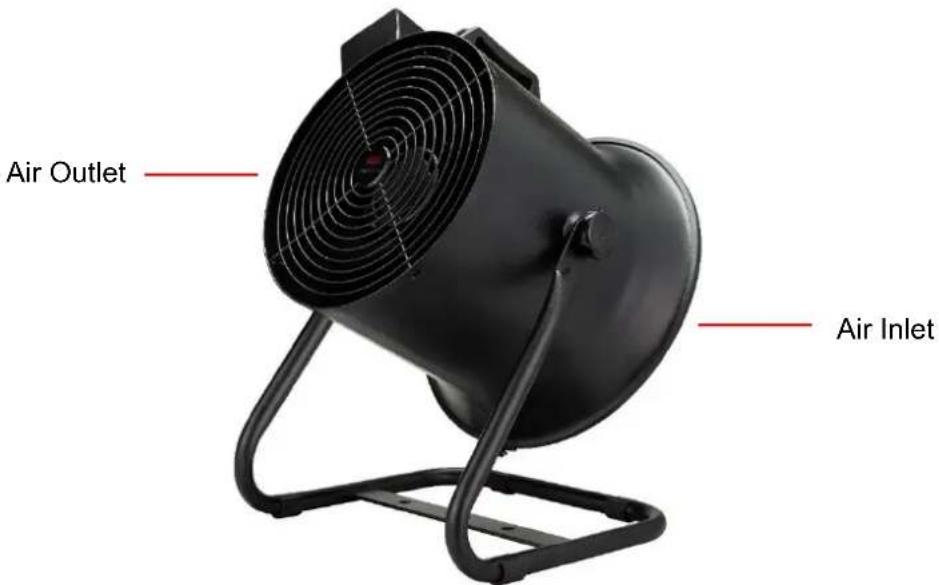

Product Overview

Setting Up

Step 1: Place the machine on a flat surface and in a suitable large area with at least 50~cm open space around the machine.

Step 2: Connect the machine to suitable rated power supply. To determine the power requirement for the machine refer to the label on the machine.

Always connect the machine to a protected circuit and ensure it is properly grounded to avoid risk of electrocution.

Step 3: Turn on the machine and LCD display will show "Ready". Now the machine is ready for operation.

Step 4: To start making wind, locate the Volume button on the control panel, and press the button to start making wind.

Step 5: To turn off the machine, press the Stop button and unplug the power cord.

Operation

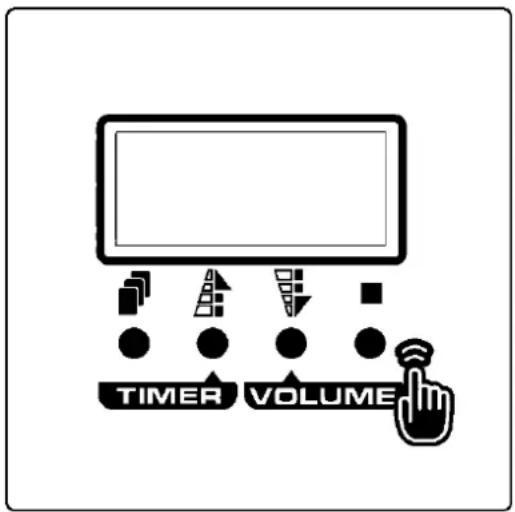

Control Panel Operation

The machine can be operated with the onboard digital control interface.

Button	Function
[MENU]	Scroll through setting menu
▲ [UP]/[TIMER]	Up/Activate Timer function
▼ [DOWN]/[VOLUME]	Down/Activate Volume function
[STOP]	Deactivate Timer/Volume function

Control Menu

Interval Set 180s

Set interval from 1 to 180 seconds

Duration Set 120s

Set duration from 1 to 120 seconds

Timer Out 100%

Set timer output from 20 to 100%

Volume Out 100%

Set output volume from 20 to 100%

DMX512 Add. 512

Set DMX address from 1 to 512

Wireless OFF

Turn On or Off wireless control

Quick Start OFF

Turn On/Off run last setting function

W-2 Wireless Operation (For AF-4R Only)

The wireless remote control system W-2 consists of a transmitter equipped with four buttons to turn wind output on or off, and adjust the output volume; with an onboard receiver attached to the rear panel of the AF-4R.

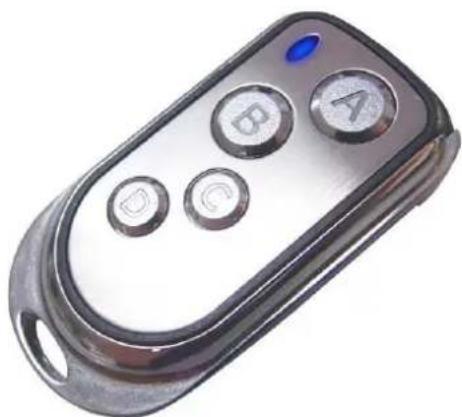

W-2 Wireless Transmitter

Wireless Receiver

Wireless remote control function:

[A] button - Turn on wind output
[B] button - Turn off wind output
[C] button - Increase output volume
[D] button - decrease output volume

In a free open space the effective distance is 50 meters, actual usage depends on obstacle level; the effective distance is 10-25 meters.

Registering a transmitter

Transmitters can be paired or deleted from the receiver. Each receiver can pair up to 10 transmitters. Follow below steps to pair or delete a transmitter from a receiver.

Step 1: Power off the AF-4R
Step 2: Press and hold [DOWN] button
Step 3: Turn power on and hold [DOWN] button until below menu shows on display

UP:Pair

DOWN:Del

Step 4A: Press [UP] to pair a new transmitter; press any button on the W-2 remote to finish pairing.

Step 4B: Press [DOWN] button to delete existing transmitter.

Transmitter battery replacement

If the effective distance seems to decrease, it is possible the battery level is low and requires replacement. In order to replace the battery, undo the three screws on the back of transmitter to release the cover. Replace with same type and specification of battery which is 27A 12V

Z-3 Remote Control Operation (Optional)

To operate the machine by remote control, connect the remote to the microphone jack located on the rear of machine. Use the switch to turn wind on/off, and use the rotary knob to adjust the output volume from 0 100% .

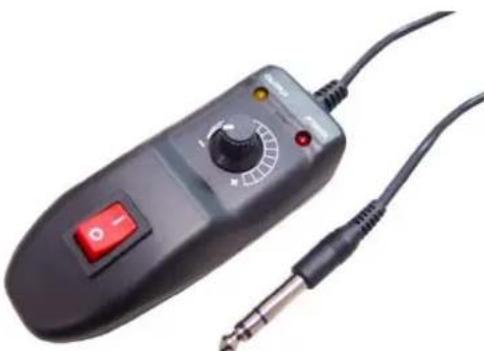

Z-3 Remote (Optional)

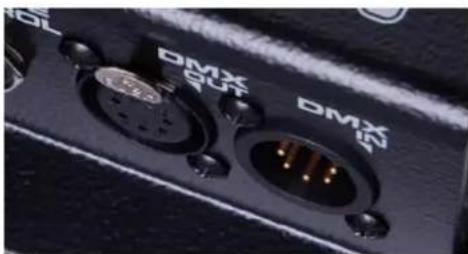

DMX Connector Pin Assignment

The machine provides 5-pin XLR connector for DMX connection. The diagram below indicates pin assignment information.

5 Pin XLR

Pin	Function
1	Ground
2	Data-
3	Data+

DMX Operation

Making the DMX Connection - Connect the machine to a DMX controller or to one of the machines in the DMX chain. The machine uses 5-pin XLR connector for DMX connection.

DMX Channel Function

Channel Mode	Channel	Value	Function
1	1	0-5	Off
		6-255	Fan 20-100%

Service and Maintenance

• Do not allow the machine to become contaminated.
• Remove dust from air vents with air compressor, vacuum or a soft brush.
• Excessive dust, liquid and dirt built up will degrade performance and cause overheating.

Fuse Replacement

Disconnect AC power before replacing fuse. Only replace fuse with same type and rating.

Step 1: Disconnect power cord from supply.

Step 2: Use a flat-head screwdriver to release fuse holder.

Step 3: Replace fuse with exact same type and rating as indicated below.

Step 4: Reinsert fuse holder.

Fuse

$$ 1 2 0 V = T 1. 6 A 2 5 0 V $$

$$ 2 4 0 V = T 0. 8 A 2 5 0 V $$

Technical Specifications

Input voltage AC120V, 50/60Hz

AC240V, 50/60Hz

Fuse 120V = T1.6A250V

240V = T0.8A250V

Power consumption 90W

Air flow AC110V/60HZ：1187 CFM

AC 220V/60HZ : 1035 CFM

Fan speed AC110V/60HZ：1242~1480 rpm

AC 220V/60HZ：1175~1289 rpm

Control option DMX 512, Cable remote, Manual, Wireless remote

DMX channels 1 channel

DMX data connection 5-pin XLR

Remote control connection 1/4 (quarter) inch headphone jack

Dimension L 353 x W 377 x H 516.6 mm

Dry weight 9.0 kg

Accessories W-2 wireless remote (For AF-4R Only)

Z-3 remote control (Optional)
