Product Type	Special Effects Fan
Brand	Antari
Model	AF-3R
Dimensions (L x H)	332.9 x 370 mm
Weight	6.3 kg
Power Supply	AC 100-240V, 50/60 Hz
Power Consumption	100 W
Maximum Airflow	900 m³/h (50 Hz) / 1020 m³/h (60 Hz)
Speed Range	750 - 2550 rpm (50 Hz) / 750 - 2800 rpm (60 Hz)
Control Modes	Manual (rotary switch), wireless (W-1 remote), DMX
DMX Connectors	XLR 3 and 5 pole
Wireless Remote Included	Yes (AF-3R model)
Power Output	Powercon (except AF-3X)
Intended Use	Indoor only
Safety	Do not insert objects, avoid water splashes
LED Indicator	Green (standby), Orange (operating)
Remote Registration	Via DIP switch 10
DMX Addressing	DIP switches 1-9
Optional Accessories	Z-3 Remote
Specific Use	Device designed for women (according to manual)

Frequently Asked Questions - AF3R Antari

How to adjust the fan speed?

Use the rotary switch to adjust the speed between minimum (-) and maximum (+). In standby mode, the LED is green; while operating, it turns orange.

How to use the wireless remote?

On the AF-3R model, set DIP switch 10 to ON. Press button A to start, B to stop. Speed is adjusted with the rotary switch.

How to register a new remote?

Turn on the device, toggle DIP 10 OFF then ON. The LED flashes for 10 seconds: during this time, press A or B on the remote to register. The green LED flashes to confirm.

How to configure DMX control?

Set the DMX address via DIP switches 1-9 (address = sum of corresponding values). The device operates in 1-channel mode (0-5 stop, 6-255 speed) or 2-channel mode (DIP 11 ON). Connect a DMX controller to the XLR 3 or 5-pin connectors.

What is the power consumption?

The device consumes 100 W at 120V or 230V AC.

Can I use the fan outdoors?

No, the device is designed for indoor use only. Avoid water splashes.

What to do if the LED does not light up?

Check if the device is properly plugged in and the main switch is in the on position. If the LED remains off, consult a qualified technician.

Can I connect multiple fans?

Yes, you can use the Powercon output to power a second device (except AF-3X model). The total power must not exceed circuit limits.

How to clean the device?

Unplug the device. Use a dry cloth to clean the exterior. Do not use liquid or abrasive products. Do not disassemble the device.

What accessories are available?

Besides the included W-1 wireless remote, you can use the wired Z-3 remote (jack plug) as an optional accessory.

USER MANUAL AF3R Antari

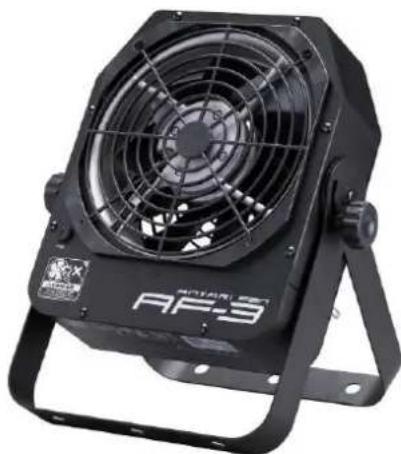

Compact Special Effects Fan User Manual

EnglishFrancaisDeutsch 中文

AF-3

Antari AF-3 Compact Special Effects Fan User Manual

Congratulations on the purchase of your new Antari AF-3 Compact Special Effects Fan. Prior to use, we suggest that you carefully read all of the instructions. By following the suggestions found in this user manual, you can look forward to the reliable and satisfactory performance of your Antari AF-3 Compact Special Effects Fan for years to come.

Caution

1. Operate only with adult supervision.
2. Keep hands off and do not insert any objects into the fan.
3. This fan is not water-resistant. Avoid splash water.
4. Unplug the machine when it is not in use or unattended.
5. Prevent the vents from being blocked by anything.

Wind Speed Control

The wind speed of the fan can be adjusted linearly using the rotary switch, the wireless remote control, or a DMX controller.

1. Manual Control

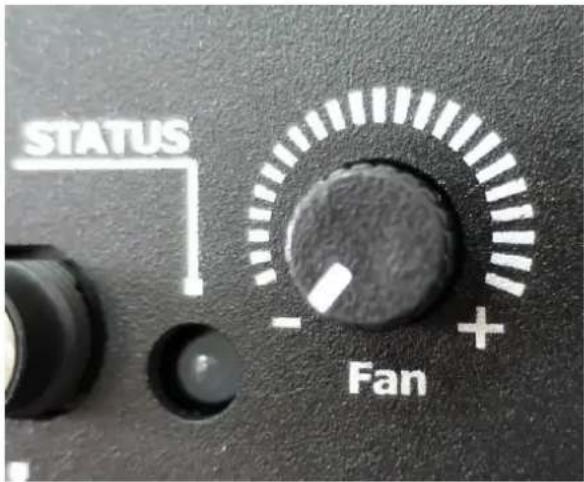

Manual Control Knob

For manual control, turn the rotary knob to linearly adjust the wind output from minimum (-) to maximum (+).

The flashing green light indicates the fan is in stand-by state. When the orange light is on, the fan is running.

2. Wireless Control (For AF-3R and AF-3XR versions only)

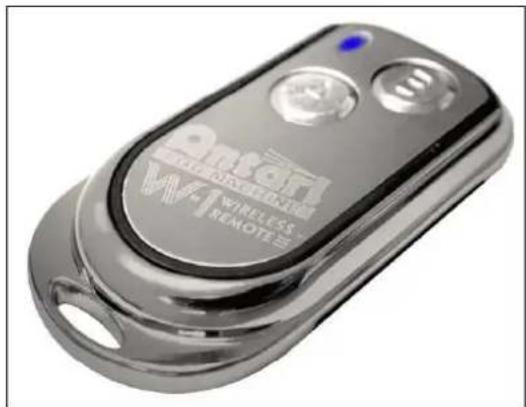

W-1 Wireless Remote Control

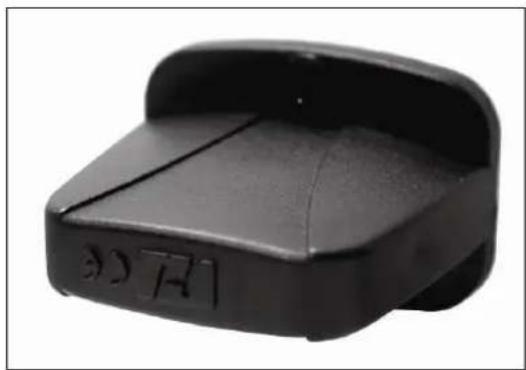

Receiver

For wireless remote control, set DIP switch no. 10 to position ON.

All wireless transmitters included in the boxes, have been paired with the wireless receiver during production at the factory. Users can press button A on the transmitter to run the fan. Pressing button B stops the fan. Please note, under wireless remote control mode, the wind output is still controlled by the rotary knob.

If you wish to pair additional wireless transmitters on the same fan, please follow the instructions below:

1. Plug in the fan.
2. Set DIP switch no. 10 to position OFF.
3. And then set DIP switch no. 10 to position ON. At this moment, the red light is on for about 10 seconds. During the 10 seconds, you can press any button (A or B) on the transmitter to pair it. When the wireless receiver has the signal, the green light will flash to confirm the registration.
4. When the light starts flashing green, the wireless transmitters are good to go.

Please note that wireless remote function is optional, and it is only applicable to AF-3R or AF-3XR versions.

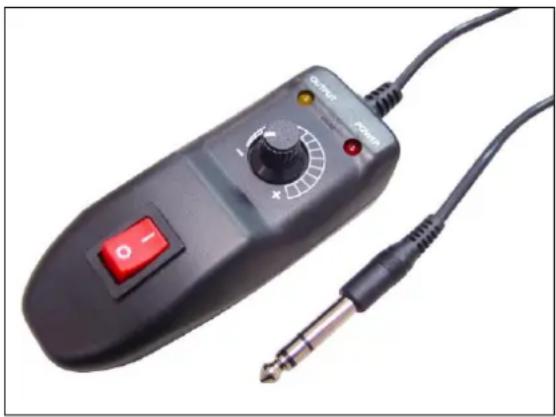

Z-3 Remote Control Operation (Optional)

To operate the machine by remote control, connect the remote to the microphone jack located on the rear of machine. Use the switch to turn wind on/off, and use the rotary knob to adjust the output volume from 0 100% .

3. DMX Control

DMX Connector Pin Assignment

The machine provides 3-pin or 5-pin XLR connectors for DMX connection. Please advise the DMX specifications requested while ordering. The diagram below indicates pin assignment information.

3 Pin XLR

5 Pin XLR

Pin	Function
1	Ground
2	Data-
3	Data+

The machine uses one DMX channel for adjusting the fan speed.

DMX setting:

DMX value	Function
0~5	Fan off
6~254	Speed up linearly
255	Maximum speed

DMX control will override both manual and wireless control functions.

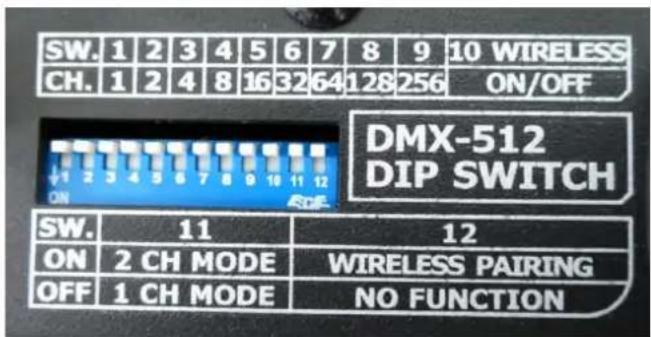

DMX addressing by DIP switches:

DIP	1	2	3	4	5	6	7	8	9	10
Ch.	1	2	4	8	16	32	64	128	256	Wireless pairing, control on/off

SW.	11	12
ON	2 CH Mode	Wireless Pairing
OFF	1 CH Mode	No Function

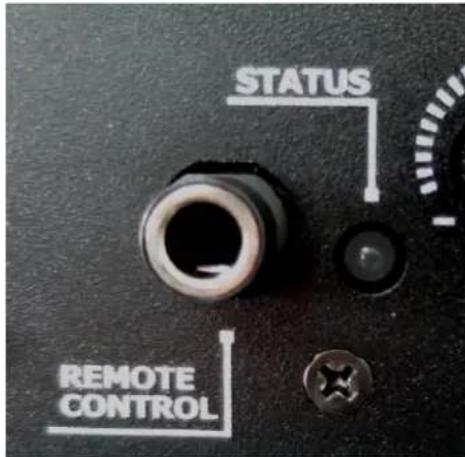

4. Optional Remote Control

There is a 1/4 inch jack socket available on each AF-3 fan. This allows users to choose optional Z-3 remote to control the wind output.

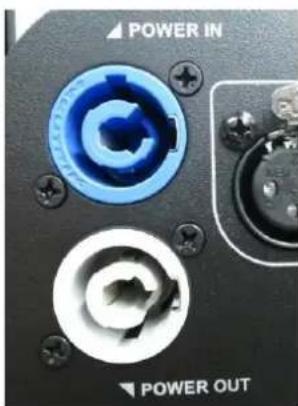

Power Output Connector

The AF-3 features a Powercon output connector (not available for model AF-3X) for the joint application with another effect machine without occupying an extra electric socket.

Technical Specifications

Model	AF-3 / AF-3R
Voltage	AC-100V/120V/220V/230V/240V, 50Hz-60Hz
Power Consumption	AC-120V/230V, 100W
Maximum Airflow	900m3/hr, 530CFM (50Hz) 1020m3/hr, 600CFM (60Hz)
Fan Speed	750~2550 rpm (50Hz) 750~2800 rpm (60Hz)
DMX Mode	1 Channel (0-5 Off, 6-255 speed up linearly) 2 Channel (0-127 Off, 128-255 On)
Dimensions (mm)	332.9 (W) x 370 (H)
Weight	6.3 kg

Please read and save these instructions
