POD™ TECHNOLOGY CORDLESS VACUUMS | USER GUIDE

ORECKPOD

TECHNOLOGY

IMPORTANT: READ CAREFULLY BEFORE ASSEMBLY AND USE.

THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY.

IF USED COMMERCIAALLY, THE WARRANTY IS VOID.

©2018 Techtronic Floor Care Technology Limited. All Rights Reserved.

Cordless Captura™ Vacuums

BK51700 Series. BK11700 Series

REGISTER

Thank you for purchasing an Oreck® product.

Please register your product to initiate warranty, and access expert cleaning advice.

Register your vacuum:

Visit Oreck.com

Call 877-533-2019

TABLE OF CONTENTS

Important Safety Instructions 3

Vacuum Introduction. 5

Assembly 9

Operation 12

Maintenance. 13

Certified Parts. 14

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, DAMAGE, OR INJURY:

• Fully assemble before operating.
• Do not use appliance on wet surfaces or outdoors. Do not expose appliance to rain. Store appliances indoors.
• The charger is for indoor use only. Be sure to always keep the battery and charger indoors in a dry place.
• Do not allow to be used as a toy. Not intended for use by children age 12 and under. Close supervision is necessary when used near children. To avoid injury or damage, keep children away from product and do not allow children to place fingers or other objects into any openings.

• Use only as described in this manual. Use only Oreck certified refills, parts, tools, attachments and products.

• Do not use charger with damaged cord or plug. If appliance or charger is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use.

• Do not pull or carry charger by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not place product on cord. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug charger by pulling on cord. To unplug charger, grasp the plug, not the cord.
• Do not handle charger including charger plug and charger terminals, or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the cleaner from falling, always place cleaner at bottom of stairs on floor. Do not place cleaner on stairs or furniture, as it may result in injury or damage.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or fine wood shavings, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

IMPORTANT SAFETY INSTRUCTIONS

• Do not use without Oreck refill filters in place.
• Always turn off this appliance before connecting or disconnecting AirPower™ motorized tools and/or any other tool.
• Do not incinerate the charger, battery, or appliance even if it is severely damaged. The batteries can explode in a fire.
• This product includes rechargeable lithium-ion batteries. Do not expose batteries to high temperatures, as they may catch fire and/or explode.
• Do not expose battery to crushing, incineration, or similar actions.
• Do not dispose of battery in a fire or trash compactor. See battery disposal section for directions.
• Do not attempt to disassemble battery.
• Unplug the charger from the outlet before any routine cleaning or maintenance.
• Leaks from battery cells can occur under extreme conditions. If any liquid gets on the skin, wash quickly with soap and water. If any liquid gets into the eyes, do not rub eyes, immediately flush them with clean water continuously for a minimum of 15 minutes. Seek medical attention immediately.
• Use only the certified Oreck charger supplied to recharge. Use of non-certified parts may void warranty.
• Do not touch or insert objects into battery or its assembly.

• Do not attempt to short circuit the battery or charger terminals.

• To avoid injury, particularly to face and head, keep hair, loose clothing, fingers, and all parts of the body away from revolving brush.

WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects or reproductive harm. WASH HANDS AFTER HANDLING.

VACUUM INTRODUCTION

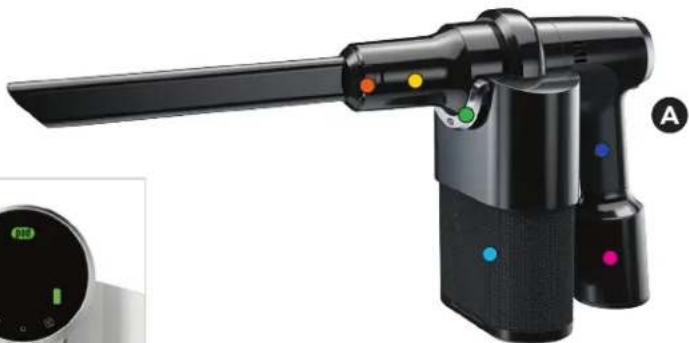

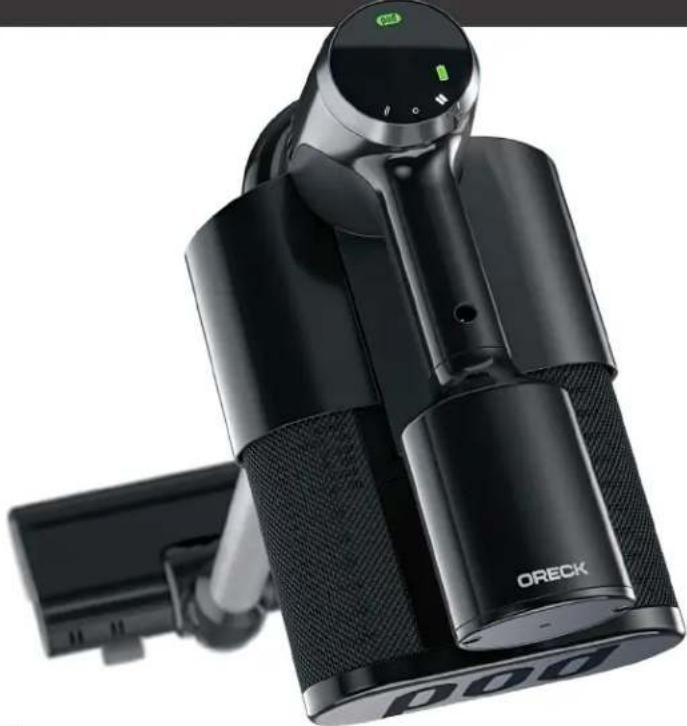

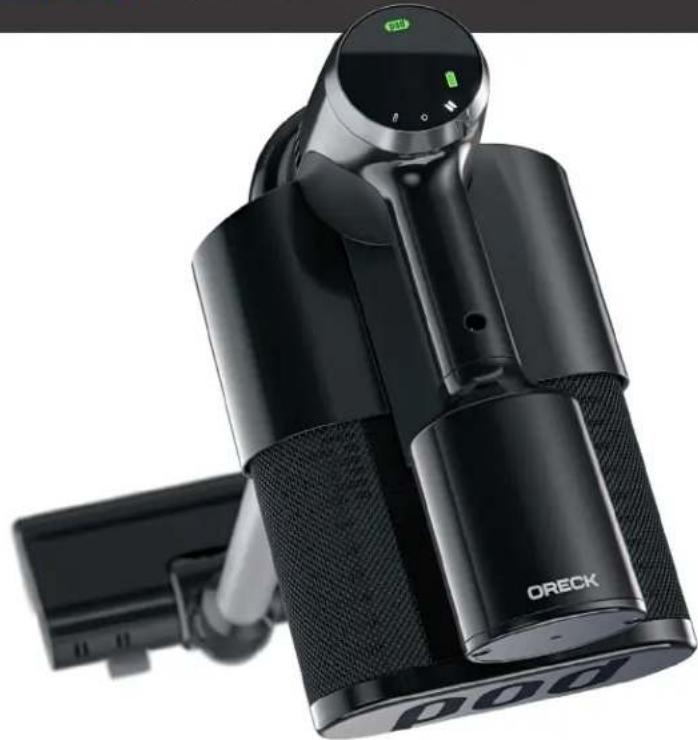

A Cordless Captura™ Vacuum
PODIM Case
Bottery Assembly
Nozzle Opening
Case Release Bar
Snap-Fit Tool Buttons
Charging Port
B POD™ Tech Power Dial
C Oreck Refill:Type P1

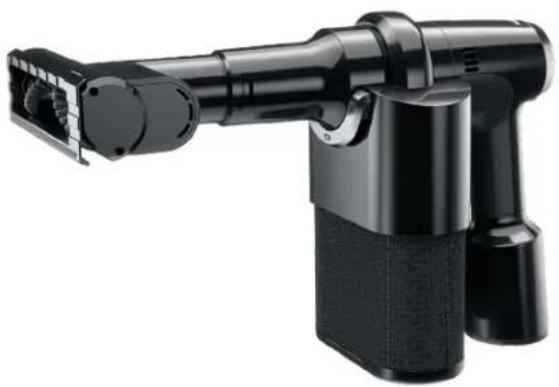

AirPower™ Pivoting Brushroll Tool
E Soft-Bristle Dust Brush Tool
F Wide Path Crevice Tool
G Long-reach Wand
H AirPowerTM Floor Nozzle
Wall Mount Charger
Tool Rack

NOT SHOWN

RapidCharger

2.5-hour charge (Included with B×51700 Series;

StandardCharger:

5-hour charge (Included with BK11700 Series)

Included with B/51 700 Series and also sold separately.
"Included with some BK51700 Series and also sold separately.

VACUUM INTRODUCTION

H

The specialized brushroll has alternating hard & soft bristles, with hard bristles activating on carpet and soft bristles engaging on hard floors, simultaneously protecting your surfaces while delivering precision performance.

VACUUM INTRODUCTION: POWER DIAL

2-SPEED CLEANING

Turn dial clockwise for standard cleaning speed.

Turn dial counterclockwise for turbo cleaning speed.

Turn dial to center

WARNING! This vacuum cleaner has a constantly rotating brush roll. Never leave the vacuum cleaner in one spot for an extended period of time as this may damage the floor surface.

WARNING! Risk of personal injury - the brushroll may suddenly restart. Turn unit OFF, unplug from charging source, and remove tool before cleaning or servicing the brushroll.

VACUUM INTRODUCTION: POWER DIAL

BATTERY CHARGE

When plugged in, all lights on unit will pulse once. Battery indicator will pulse during charge period. When full charge is reached, battery indicator will read continuous green.

CAPACITY FILL

POD™ Technology is measuring vacuum cleaning performance and capacity fill as you clean. POD indicator flashes red when it's time to replace.

NOTE: DO NOT OVERFILL. Refill should be replaced when indicator flashes red otherwise unit may become damaged. If overfilled, POD indicator will flash orange and unit will shut down.

ASSEMBLY: INSTALL ORECK REFILL

Press bar to release case. Insert refill. Reinsert case until you hear a click. 3

Pull down on case to ensure it is fully engaged before vacuuming.

NOTE: Ensure that a tool is installed prior to operating vacuum.

ASSEMBLY:REMOVEORECKREFILL

Press bar to release case.

Tip over trash, and gently shake for refill to fall into the bin.

Insert a fresh refill. Reinsert case until you hear a click/ Pull down on case to ensure it is fully engaged before vacuuming.

ASSEMBLY: ATTACH TOOLS

ASSEMBLY: ATTACH WAND & FLOOR NOZZLE

Tools will "snap" into place when properly installed.

Ensure that a tool is installed prior to operating vacuum.

Press snap-fit tool buttons.

Slide tool into nozzle opening with snap-fit tool buttons still pressed.

Both buttons should click into place before use.

To remove, press snap-fit tool buttons and pull tool out of nozzle opening.

Snap-fit tool buttons

Press snap-fit tool buttons on wand and insert into Handheld unit.

Line up the wand with the AirPowerTV floor nozzle. Slide wand into nozzle opening with snap-fit tool buttons pressed to attach. Ensure that wand end with large cap joins with floor nozzle.

To remove, press snap-fit tool buttons and pull tool out.

IMPORTANT! Not to be used for grooming a pet.

IMPORTANT! This vacuum cleaner is not free standing. In between uses or when carrying out any maintenance, always lay flat on the floor in a suitable location so it does not become a trip hazard or can be stepped on.

OPERATION: CHARGING

Insert the charging cord into the charging port located on the back of the handle.

Plug the charger plug into the outlet.

Once fully charged, battery indicator will read continuous green.

NOTE: Due to federal regulations, the battery does not come fully charged.

If charging for the first time, the initial charge time may require the full charge time indicated by unit.

Charge time: 2.5 hours (Rapid Charger included with BK51700 Series)

Charge time: 5 hours (Standard Charger included with BK1700 Series)

MAINTENANCE

For maintenance, service or warranty questions, please contact an Oreck Customer Care Specialist at 877-533-2019, visit Oreck.com or your local Oreck Dealer.

PROBLEM		POSSIBLE CAUSE	SOLUTION
pod	POD indicator flashes red.	Capacity is full.	Turn power dial to OFF position, Insert a fresh refill into case and restart unit. NOTE: DO NOT OVERFILL. Refill should be replaced when indicator flashes red otherwise unit may become damaged. If overfilled, POD indicator will flash orange and unit will shut down.
	Speed indicators are both flashing.	Brushroll has a stall.	Turn dial to OFF position. Remove obstruction from brushroll, if any. Wait 15 seconds and restart unit. Visit Oreckcom for detailed instructions.
pod	POD Indicator Flashs orange and motor stops.	Unit has a clog	Turn Dial to OFF position. 1. Remove tool & check for clog in nozzle. Clear clog, replace tool, and restart unit. 2. Check POD Refill. Replace if full. 3. Visit Oreckcom for detailed instructions.
	Battery indicator flashes red. Motor does not start when turned to an ON position.	Battery has run out of charge.	Turn dial to OFF position. Plug unit in to charge. Time to full charge is >2.5 hours for rapid charger and ≈5 hours for standard charger.
	Battery indicator flashes red & green	Battery temperature is abnormal.	Ensure unit is in the OFF position and unplug unit from the charger. Wait 50 minutes and then plug unit back into charger.

CERTIFIED PARTS

NOTE: If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use.

NOTE: The motor and brushroll are equipped with bearings which contain sufficient lubrication for their lifetime. The addition of lubricant could cause damage. Do not add lubricant to motor or brushroll.

NOTE: Any other servicing should be done by an authorized service representative.

Dusting Brush Part# White:AK8BTO Black:AK8BTO

Crevice Tool
Part+
White, AK8CT03
Black, AK8CT02

Part # Black, AK8WTO2 White,AK8WTO3

Reffill Type P1 Item# AK6B15A Pack of 5 Refills

Wall Mount Charger

Part# White:521A00144 521A00156 Black:521A00123

521A00151 Included with some models:

AirPower™ Pivoting Brushroll Tool Part # White, AK8MT03 Black, AK8MT02

AirPowerTM Floor Nozzle Part 4 White AK8FN03 Black AK8FN02

NOT SHOWN

NOT SHOWN

Rapid Power Charge Cord Part #

White, BKORCO3 Black, BKORCO2 Included with BK51700 Series

Standard Power Charge Cord Part #

White: BKOSCO3 Black: BKOSCO2

Tool Rack

Part # White, 521A00145 Black, 521A00124 Included with some models

Contact an Oreck Customer Care Specialist at 877 533 2019 for replacement details or visit Oreckcom or your local Oreck Dealer.

REGISTER YOUR VACUUM

Visit Oreck.com

Call 877-533-2019

ORECKOO

TECHNOLOGY

Techtronic Floor Care Technology Limited

Distributed by Royal Appliance Mfg. Co. Glenwillow, OH 44139

884A00190

©2018 Schtronic Floor Care Technology Limited
