Product Type	Outdoor LED TV
Brand	Furrion
Model	FDUP43CBR
Screen Size	43 inches
Screen Resolution	Full HD (1920 x 1080 pixels)
Dimensions (W x H x D)	437 x 400 x 153 mm
Weight	Approximately 12 kg
Power Supply	100-240 V AC, 50/60 Hz
Power Consumption	Not specified
Video Inputs	HDMI (x3 with ARC/CEC/MHL), VGA, Component, Composite
Audio Inputs	PC Audio In, Audio In L/R
Audio Outputs	Coaxial, Audio L/R
Other Connectors	USB 2.0 (500 mA), IR Extender, RF IN
Outdoor Use	Yes, designed for partial sun exposure

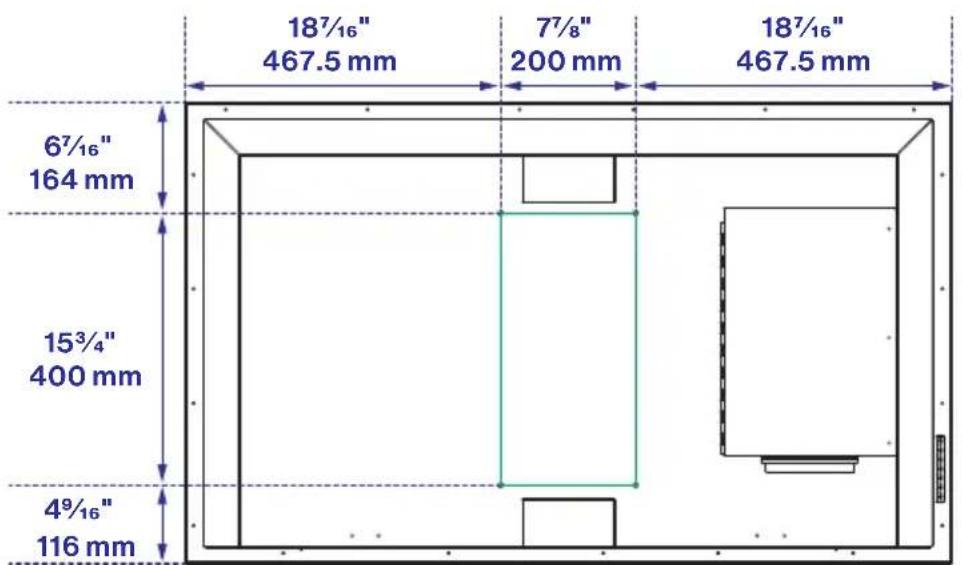

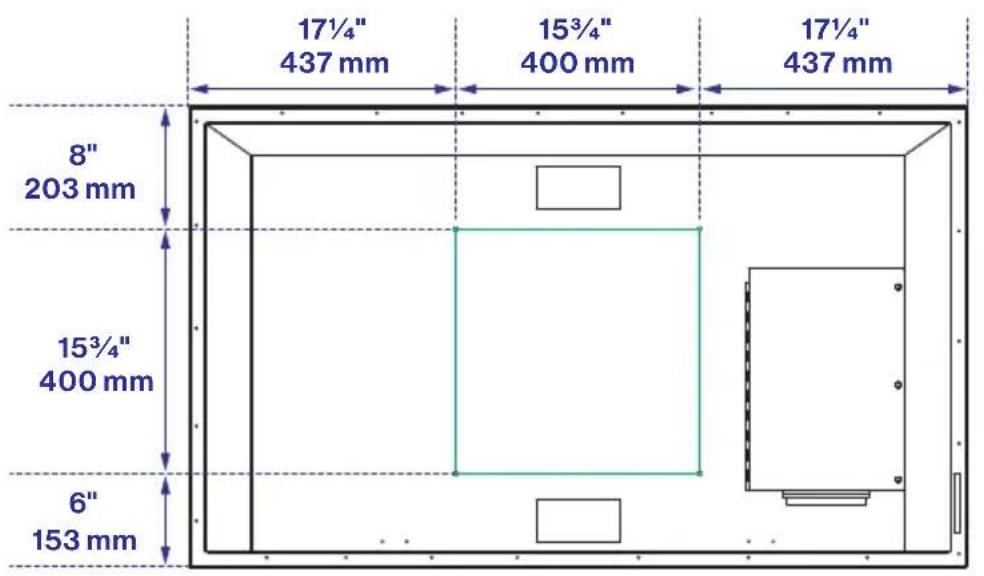

Wall Mount	VESA 200 x 200 mm compatible, M6 screws (15 mm length)
Remote Control	Weather-resistant, CR2025 button cell included
Screen Cleaning	Soft microfiber cloth slightly damp or diluted isopropyl alcohol
Safety	GFCI outlet required, do not expose to water, do not open the housing
Spare Parts	No user-serviceable parts
Operating Temperature	-20 °C to +43 °C
Storage Temperature	-33 °C to +58 °C
Package Contents	TV, remote control, CR2025 battery, opening tool, wall screws, adapters, RCA cable, documentation

Frequently Asked Questions - FDUP43CBR Furrion

How to install the remote control?

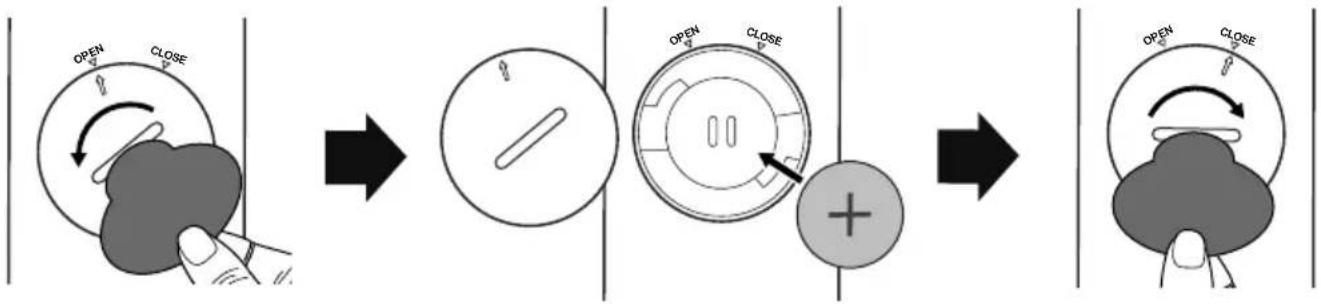

Open the battery compartment with the provided tool, insert a CR2025 button cell respecting polarity, then close the cover.

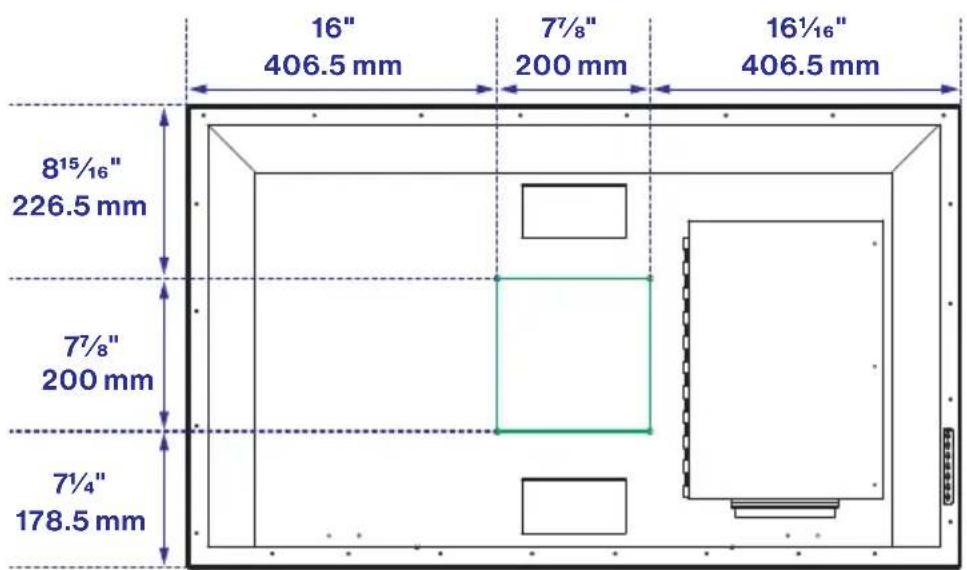

What is the VESA mount size for this TV?

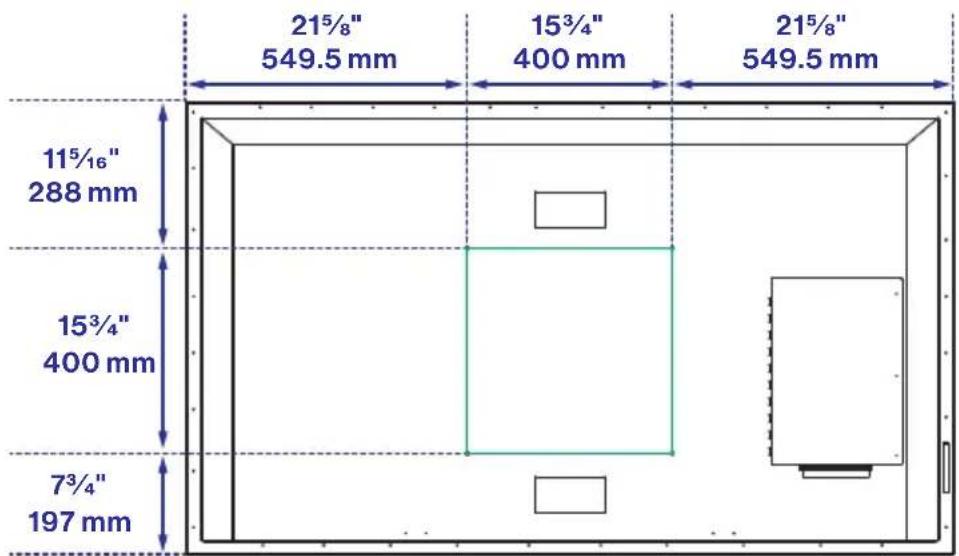

The TV uses a VESA 200 x 200 mm mount. The necessary screws are M6 with 15 mm length, provided with the device.

Can I use this TV outdoors?

Yes, the FDUP43CBR model is designed for partial sun exposure. It must be installed away from any water source and plugged into a protected GFCI outlet.

How to clean the TV screen?

Unplug the TV, then use a soft microfiber cloth slightly dampened with pure water. For stubborn dirt, a 50/50 mix of isopropyl alcohol and distilled water can be applied to the cloth (do not spray directly on the screen).

What to do if the remote control doesn't work?

Check that the remote is in range (no obstacles), that batteries are correctly installed and not depleted, and that the TV is powered on.

How to connect an HDMI device?

Connect the HDMI cable from the device to one of the three HDMI inputs on the back of the TV. Use the SOURCE button on the remote to select the corresponding input. HDMI ports 1 and 2 support CEC, and HDMI 3 supports MHL.

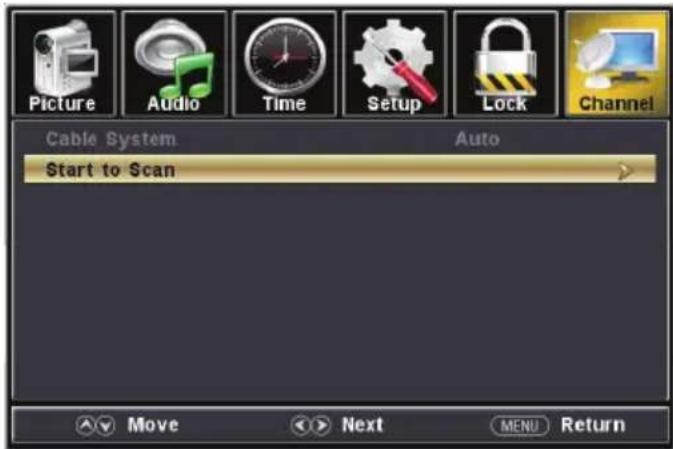

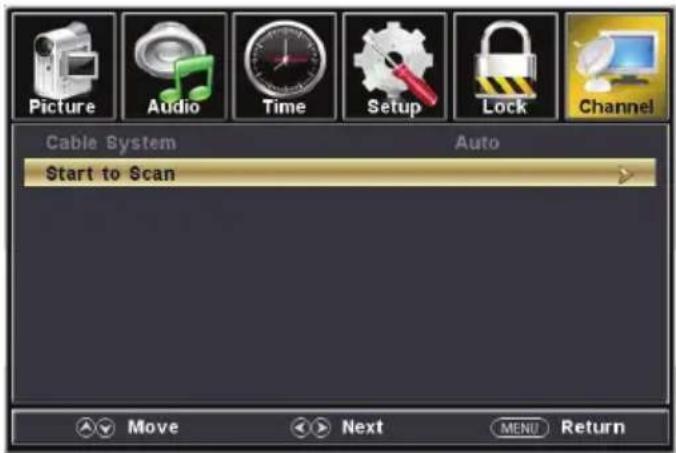

How to perform a channel scan?

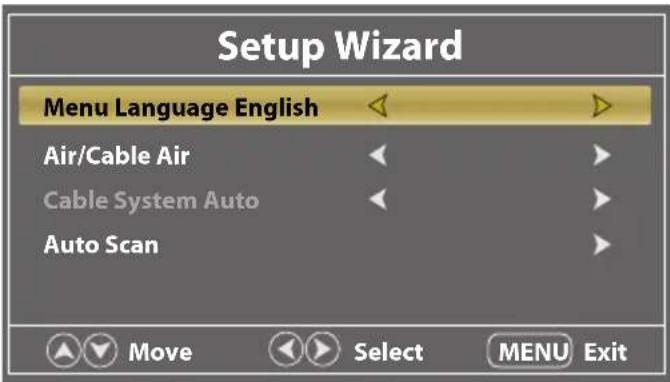

Turn on the TV and the setup wizard will appear. You can also access the Channel menu via the MENU button. Select Air or Cable, then start Auto Scan to memorize all available channels.

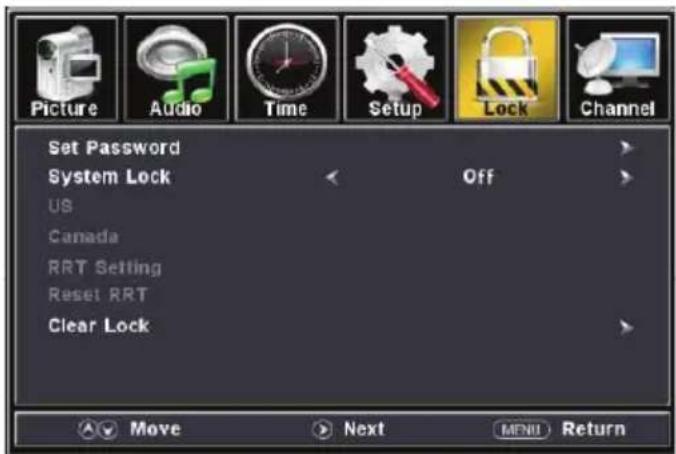

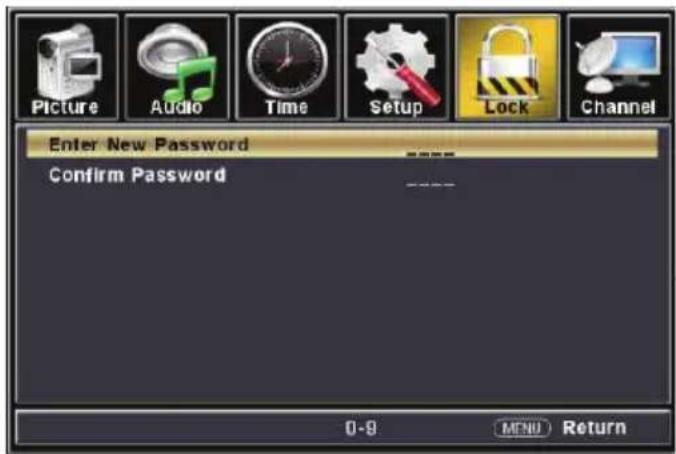

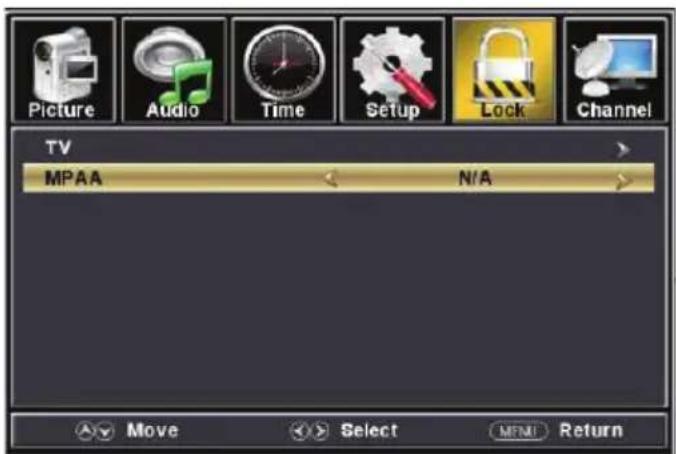

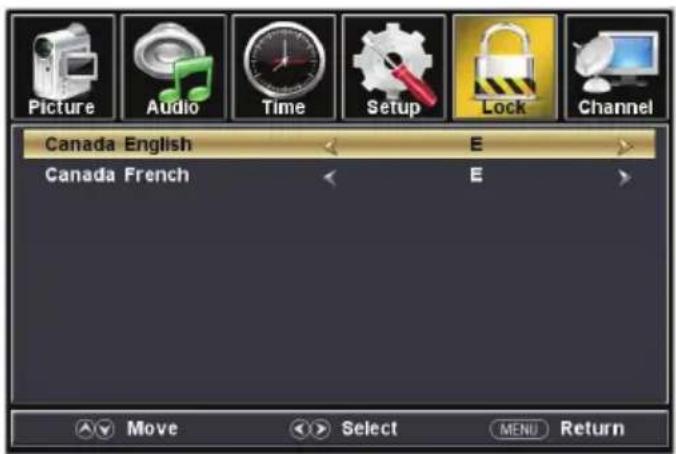

How to set parental controls?

Press MENU, select Lock, enter the default password 0000 (or 8888 if forgotten). Enable system lock and choose age and genre ratings according to US or Canadian standards.

What to do if the image is distorted or black and white?

Check the video connections: for component connection, ensure the colors match (green for Y, blue for Pb, red for Pr). For composite connection, use the yellow jack. Ensure cables are firmly inserted.

How to update the TV software?

This TV does not have user software updates. Factory settings are optimized for operation. In case of issues, contact Furrion support at [e-mail].

USER MANUAL FDUP43CBR Furrion

Mountain landscape at sunrise with mist-covered peaks and forested slopes (no text or symbols)

Thank you and congratulations for purchasing this Furrion Aurora™ TV. Before placing your new appliance into operation, please read these operating instructions carefully. This instruction manual contains important information for safe use, installation and maintenance of the appliance.

The manufacturer does not accept responsibility for any damages that may arise due to non-observation of these instructions.

If you have any further questions regarding our products, please contact us at [e-mail]

Supplier's Declaration of Conformity

47 CFR § 2.1077 Compliance Information

Unique Identifier

Trade Name: Furrion

Model No.: FDUP43CBR, FDUP49CBR, FDUF55CBR, FDUP65CBR, FDUF43CBR, FDUF49CBR, FDUP55CBR, FDUF65CBR

Responsible Party – U.S. Contact Information

Furrion Innovation Center & Institute of Technology

52567 Independence Ct., Elkhart, IN 46514, USA

Toll free:1-888-354-5792; Email: [e-mail]

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Contents

Welcome....2

Contents....3

Safety Warnings....4

Important Safety Instructions....4

Control Panel 8

Function Overview....8

Rear Panel....9

Connection....10

Remote Control....12

Before Operation....14

What's in the Box....14

Prepare your Remote Control 14

Choose a Proper Location for your TV 15

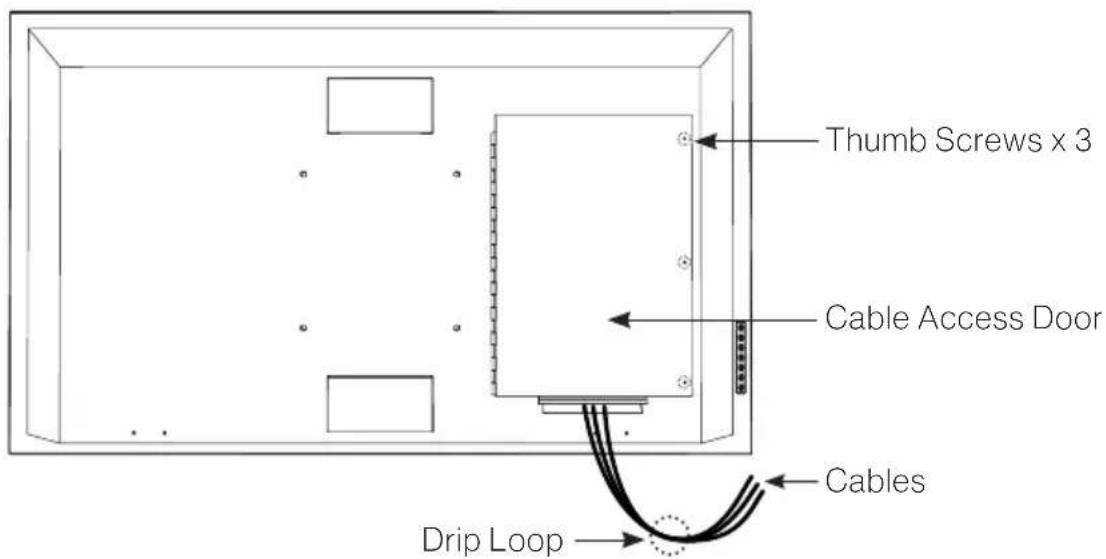

Cable Management ....15

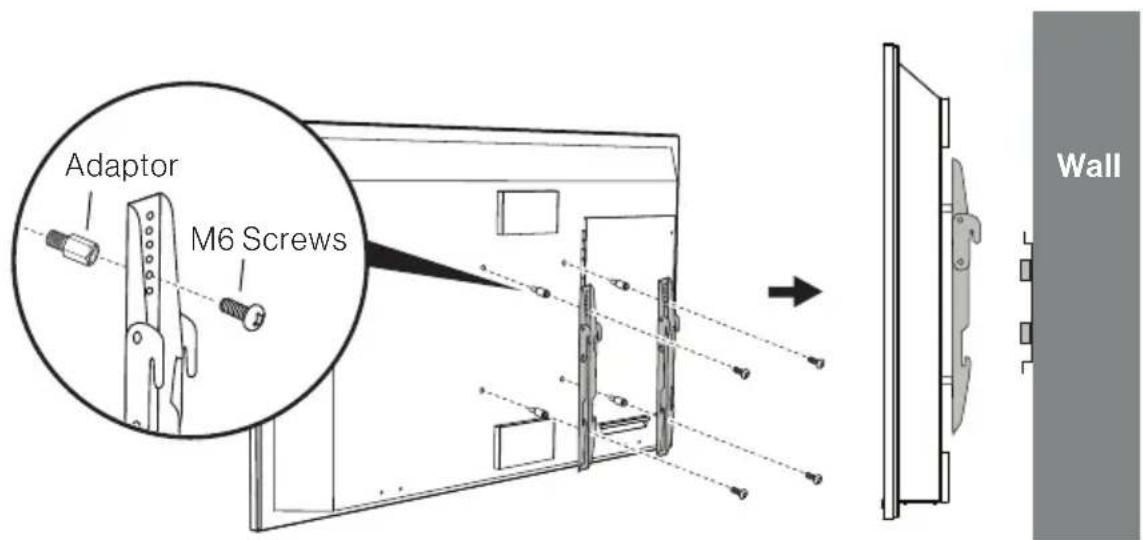

Mount on Wall 17

Getting Started....19

TV Settings.... 20

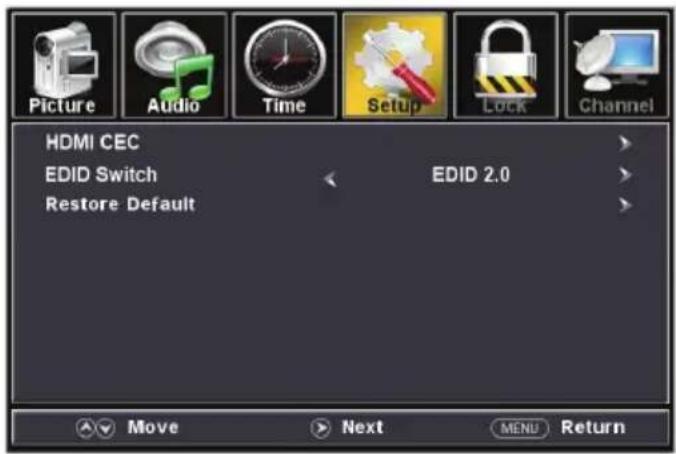

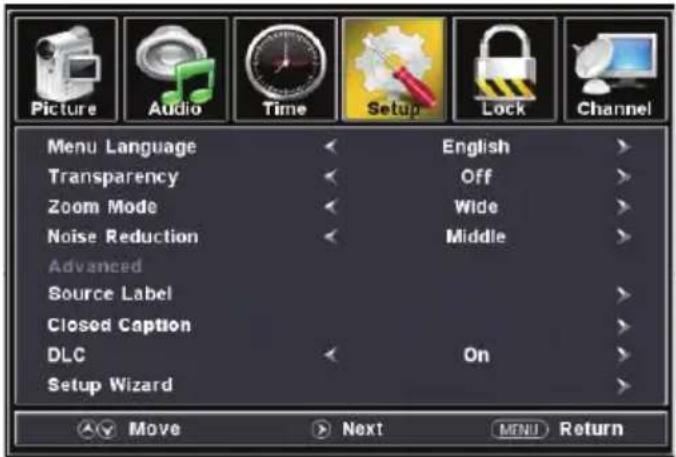

Setup Settings....20

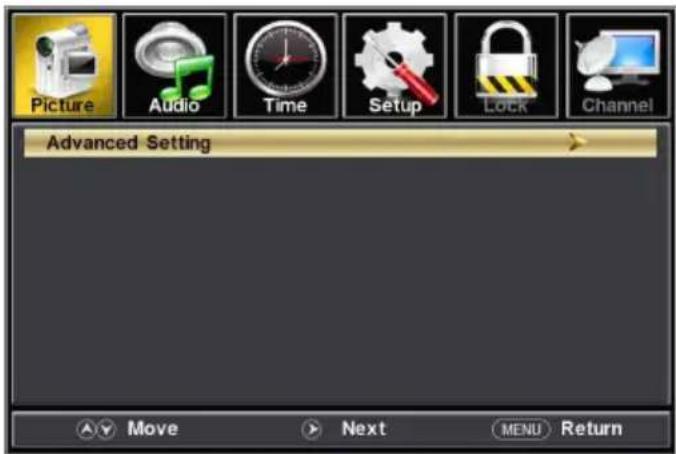

Picture Settings 23

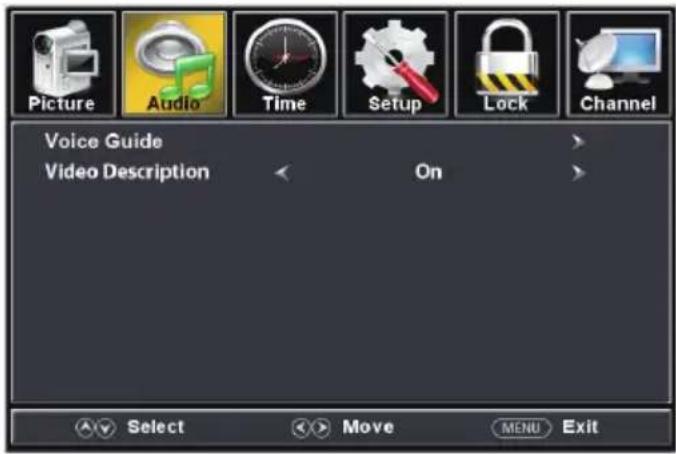

Audio Settings 24

Time Settings....26

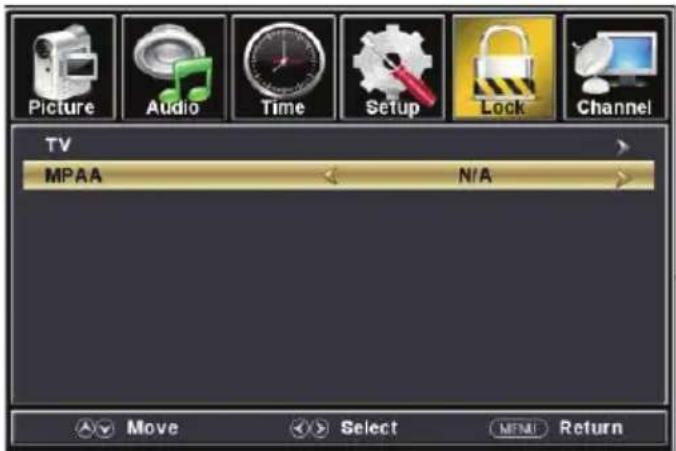

Lock Settings....27

Channel Settings....30

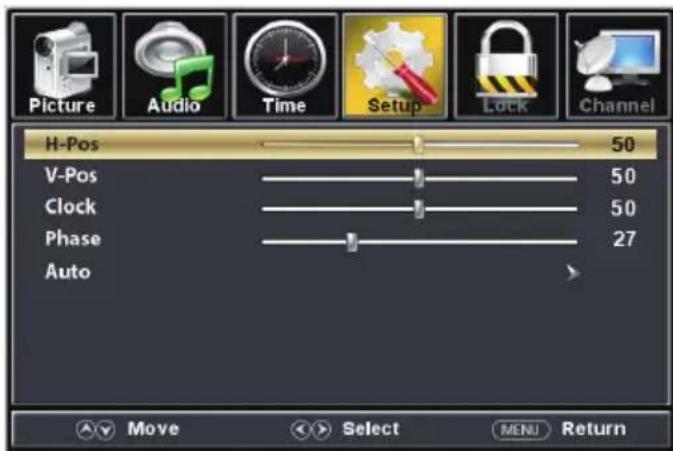

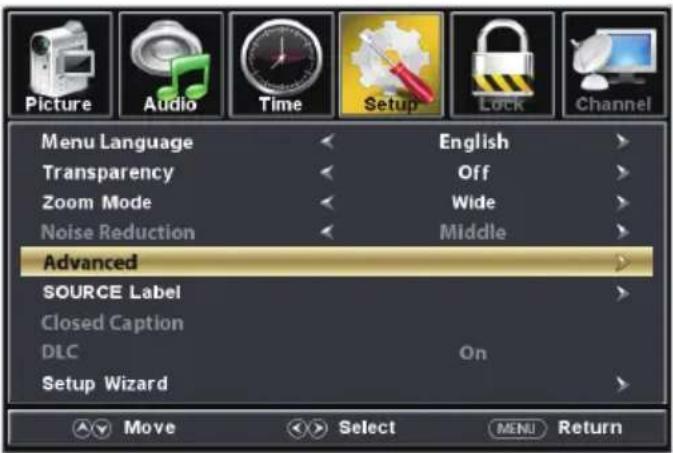

PC Settings....31

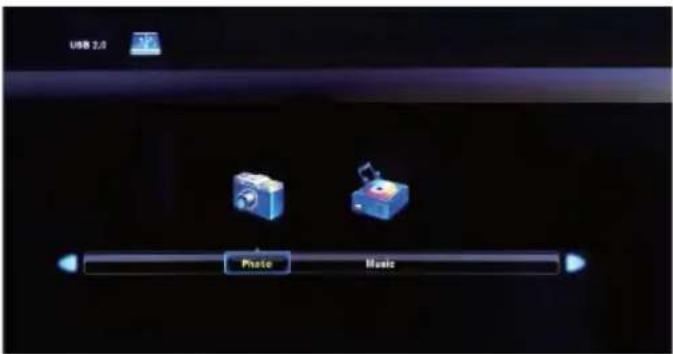

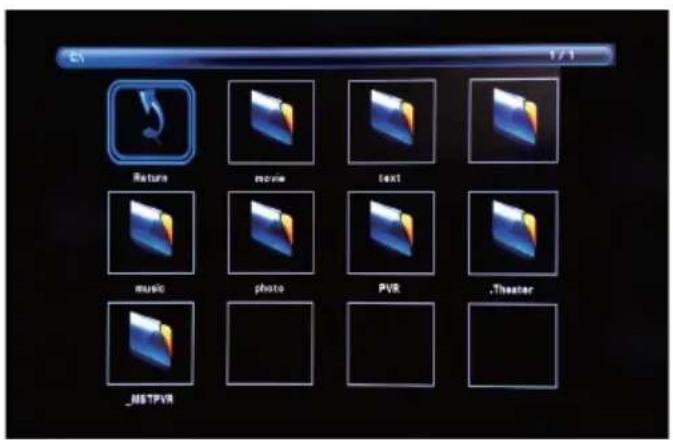

USB Operation....32

Troubleshooting 33

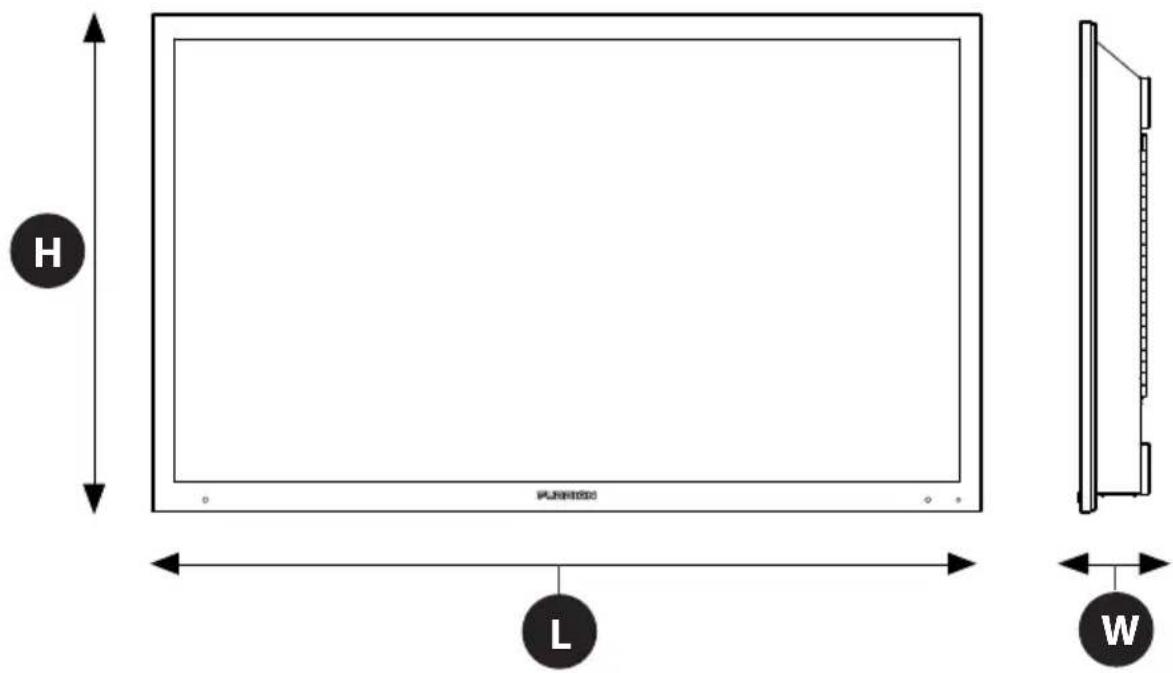

Specifications 34

Care and Clean 37

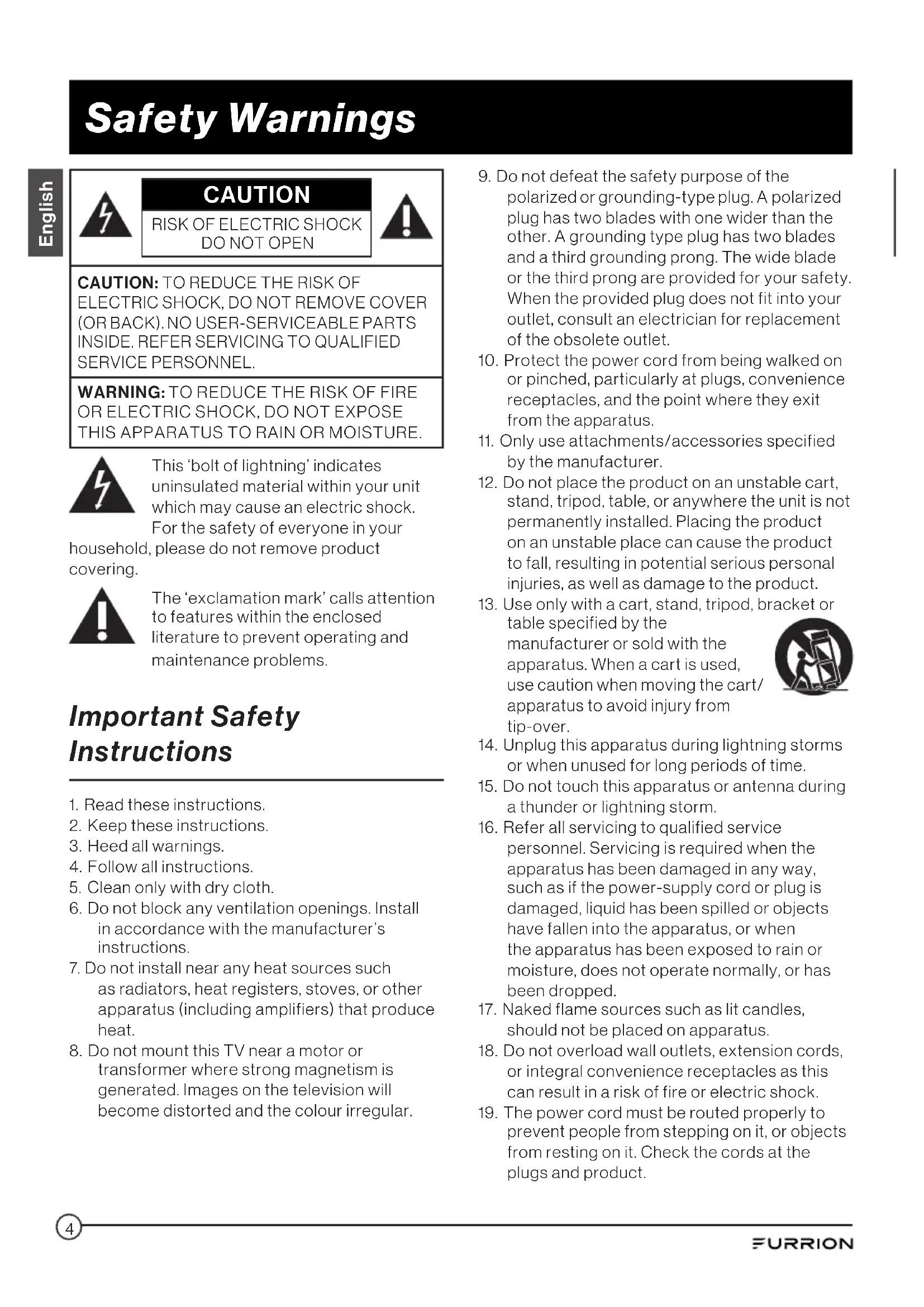

Safety Warnings

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

This 'bolt of lightning' indicates uninsulated material within your unit which may cause an electric shock. For the safety of everyone in your

household, please do not remove product covering.

The ‘exclamation mark’ calls attention to features within the enclosed literature to prevent operating and maintenance problems.

Important Safety Instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with dry cloth.
6. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

8. Do not mount this TV near a motor or transformer where strong magnetism is generated. Images on the television will become distorted and the colour irregular.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Do not place the product on an unstable cart, stand, tripod, table, or anywhere the unit is not permanently installed. Placing the product on an unstable place can cause the product to fall, resulting in potential serious personal injuries, as well as damage to the product.
13. Use only with a cart, stand, tripod, bracket or
    table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus to avoid injury from tip-over.
14. Unplug this apparatus during lightning storms or when unused for long periods of time.
15. Do not touch this apparatus or antenna during a thunder or lightning storm.
16. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as if the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, or when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
17. Naked flame sources such as lit candles, should not be placed on apparatus.
18. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
19. The power cord must be routed properly to prevent people from stepping on it, or objects from resting on it. Check the cords at the plugs and product.

Safety Warnings

1. Never push objects of any kind into this product through openings as they may touch short-out parts or dangerous voltage points that could result in a fire or electric shock.
2. If an outside antenna is connected to the television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrodes.
3. An outside antenna system should not be located in the vicinity of overhead power lines or other electrical light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

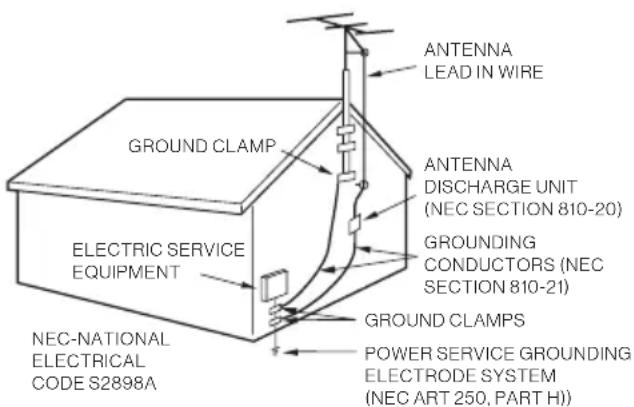

EXAMPLE OF ANTENNA GROUNDING AS PER THE NATIONAL ELECTRICAL CODE

ANTENNA LEAD IN WIRE GROUND CLAMP ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDED CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) ELECTRIC SERVICE EQUIPMENT NEC-NATIONAL ELECTRICAL CODE S2898A

1. NOTE TO CABLE/TV INSTALLER: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

2. When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

3. Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition.
4. When you connect the product to other equipment, turn off the power and unplug from the wall outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner's manual of the other equipment carefully and follow the instructions when making any connections.
5. The socket-outlet must be installed near the unit and easily accessible.
6. Where the mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
7. Never remove the back cover of the TV as this can expose you to very high voltages and other hazards. If the TV does not operate properly, unplug the TV and call your authorized dealer or service center. Adjust only those controls that are covered in the instructions, as improper changes or modifications not expressly approved by Furrion could void the user's warranty.
8. Do not submerge this TV in water or pressure wash it. It is not designed to be submerged in water, withstand pressure washers, high-pressure water jets, or hurricane-type weather.
9. Cleaning: With your TV turned off, gently wipe the surface of the display panel with a damp (with water) microfiber, cotton or flannel cloth. (Do not use tissues, rags, sponges or paper towels because they may damage the screen and leave lint pieces behind). Remove any dirt and salt deposits from the unit, being careful to rinse the cloth frequently to avoid scratching the TV or screen surface. Avoid using harsh chemicals, abrasives, or solvents when cleaning any surface on the unit.

Safety Warnings

1. The operation temperature for the unit is -20^ ( -4^ ) to +43^ ( +109.4^ ). The storage temperature is -33^ ( -27.4^ ) to +58^ ( +136.4^ ). Protect the TV from damage by the extreme temperature. This is not a commercial TV.
2. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
3. The apparatus should be connected to a mains socket outlet with a protective earthing connection.
4. To prevent injury, this apparatus must be securely attached to the wall in accordance with the installation instructions.

HOW TO HANDLE THE LED PANEL

• Do not press hard or jolt the LED panel. It may cause the LED panel glass to break and injury may occur.
• If the LED panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause skin inflammation.
• If the liquid gets in your mouth, immediately rinse and consult with your doctor. Also, if the liquid gets in your eyes or touches your skin, consult your doctor after rinsing for at least 15 minutes in clean water.

Possible Adverse Effects on LED Panel: If

a fixed image displays on the TV screen for a long period of time, it may cause a permanent disfigurement on the screen with image burn-in or ghosting. This type of damage is NOT COVERED BY THE WARRANTY.

• Avoid displaying a static picture or a picture with static elements (black bars, black borders, logos, etc.) on the TV screen for more than two hours at a time. Make sure you change the image on your screen periodically.
• If the aspect ratio of the TV is set to 4:3 for a long period of time, image burn may occur on the letterboxed area of the screen. Make sure you change the size of the picture occasionally.

The following symptoms are not signs of malfunction but technical limitation.

Therefore we disclaim any responsibility for these symptoms.

• LED panels are manufactured using an extremely high level of precision technology, however sometimes parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction.
• Do not install the LED panel near electronic equipment that produces electromagnetic waves. Some equipment placed too close to LED may cause interference.
• Effect on infrared devices – There may be interference while using infrared devices such as infrared cordless headphones.

COMPLIANCE

FCC Statement

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment under FCC Rules.

Safety Warnings

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

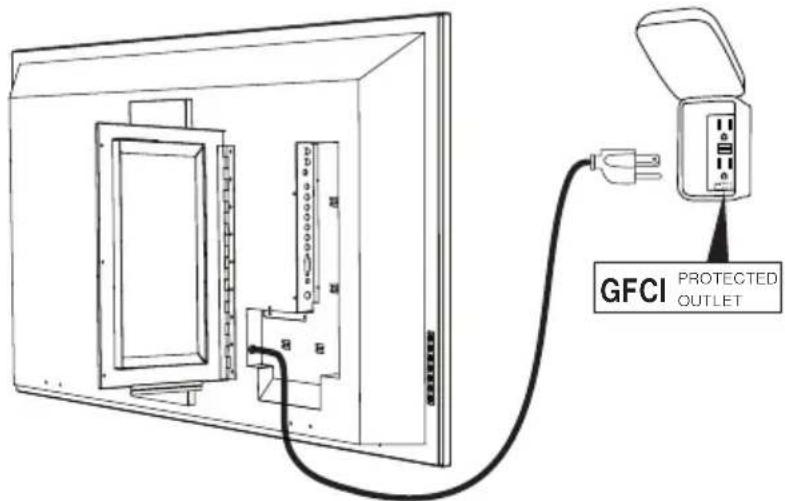

POWER SOURCE

This TV is designed to operate on 100\~240 volt 50/60 Hz, AC current. Connect the power cord to a GFCI protected AC outlet with an "in-use" waterproof cover.

Warning: TV and GFCI receptacle must be installed away from any water source in a safety distance. Be sure to check local electrical codes and comply with their local standards.

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

CARE OF THE ENVIRONMENT

Disposal of your old product and battery

Your product is designed and manufactured with high quality materials and components, which can be recycled used.

• Never dispose of your product with other household waste. Please familiarize yourself with the local rules on the separate collection of electrical and electronic products and batteries.
• The correct disposal of these products helps prevent potentially negative consequences on the environment and human health.
• Your product contains batteries which cannot be disposed of with normal household waste. The battery must be recycled or disposed of properly. Contact your local waste management office for information on battery recycling or disposal.

All registered and unregistered trademarks are property of their respective owners.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

SAFETY PRECAUTIONS

WARNING: Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television set.
• Only using furniture that can safely support the television set.
• Ensuring the television set is not overhanging the edge of the supporting furniture.
• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

NOTES WHEN MOUNTING THE TV ON THE WALL

IMPORTANT: The TV must be installed away from any water source in a safe distance.

If the unit is to be mounted on the wall, contact the retailer where you purchased the TV for advice, and have the equipment professionally installed. Incomplete or improper installation may cause injury to you, and/or damage to the TV. Please refer to the VESA mounting pattern to ensure the correct VESA mounting is used for the TV.

CAUTION: To prevent personal injury and/or damage to the TV or personal property, use at least two people to install or move the TV.

Function Overview

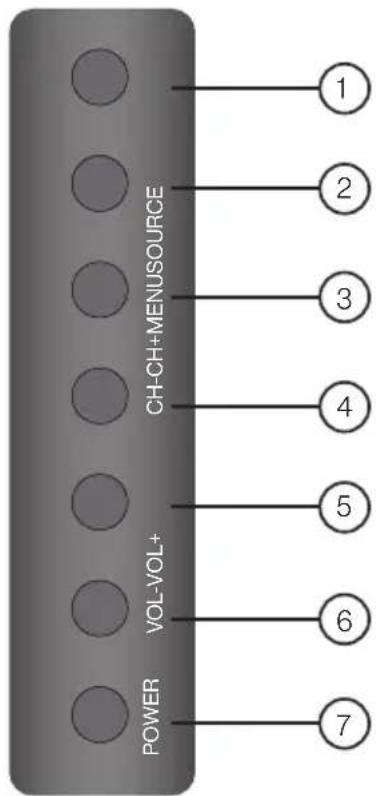

Control Panel

* Please note that the button layout of the controls may vary from model to model.

Item Button Function
1	SOURCE	Select the input source
2	MENU	Enter the main menu
3	CH+	Skip to the next channel
4	CH-	Skip to the previous channel
5	VOL+	Increase volume
6	VOL-	Decrease volume
7	POWER	Switch the TV on/off

Function Overview

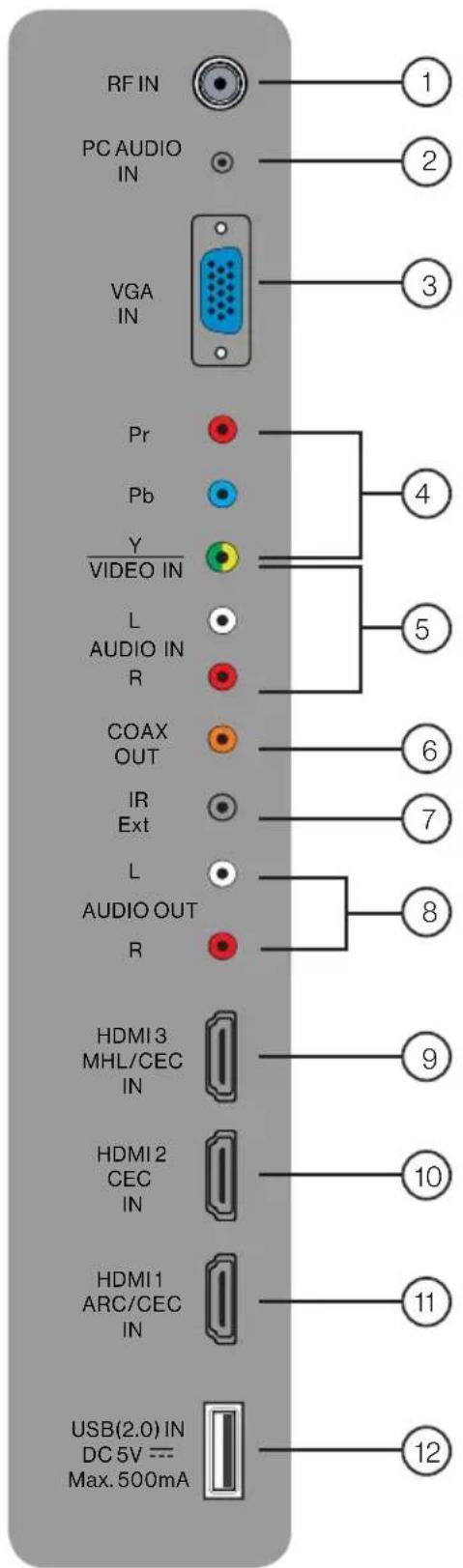

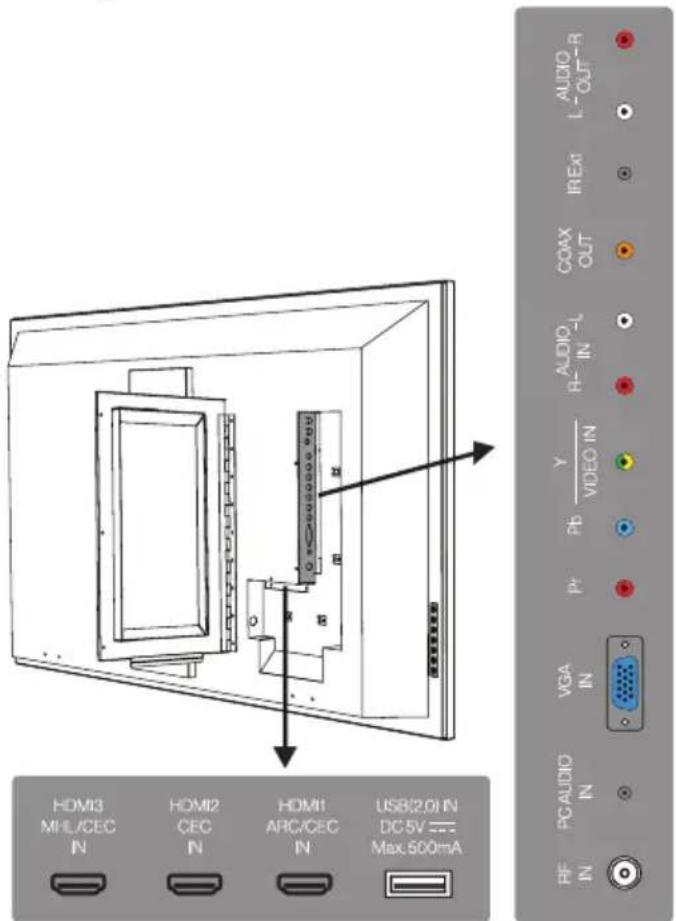

Rear Panel

RF IN PC AUDIO IN VGA IN Pr Pb Y VIDEO IN L AUDIO IN R COAX OUT IR Ext L AUDIO OUT R HDMI 3 MHL/CEC IN HDMI 2 CEC IN HDMI 1 ARC/CEC IN USB(2.0) IN DC 5V --- Max. 500mA

* The configuration of the connection ports may vary from model to model.

No. I/O port Description
1	RF IN	Connect to the ANTENNA, CABLE or CABLE BOX.

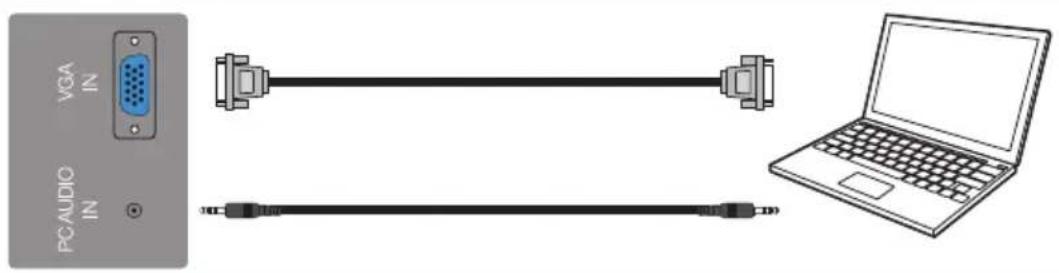

2	PC AUDIO IN	Connect to the AUDIO OUT port of a PC.
3	VGA IN	Connect to the VGA OUT port of a PC to use the TV as a monitor.

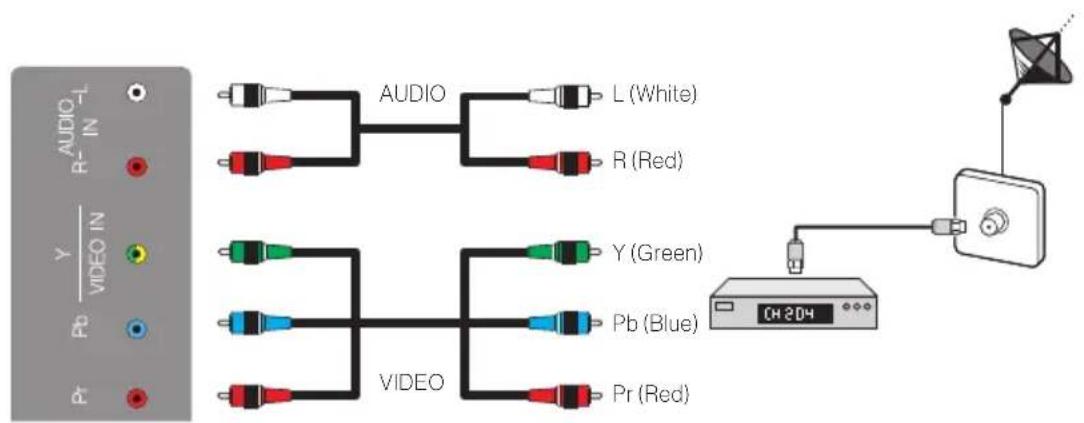

4	Y/Pb/Pr	Connect to the COMPONENT VIDEO OUT ports of a DVD Player, Cable Box or other compatible devices.
5	VIDEO IN	Connect to the COMPOSITE VIDEO/AUDIO OUT ports of a DVD Player, Cable Box or other compatible devices.
	AUDIO IN (L-R)

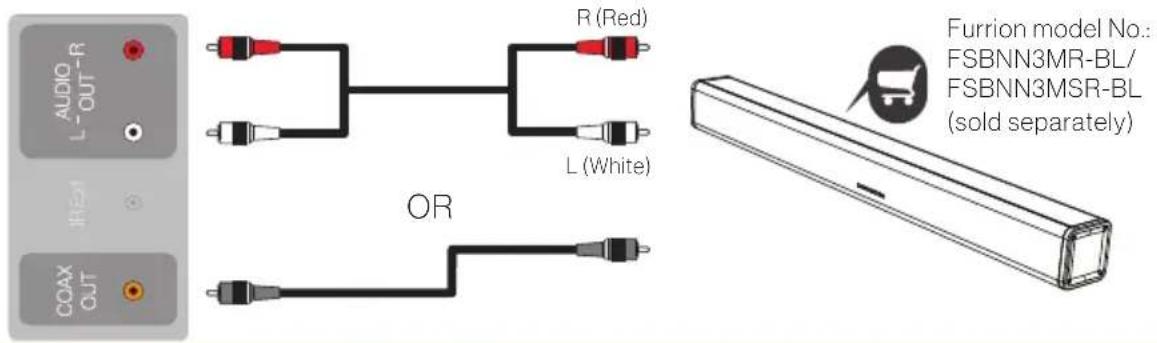

6	COAX OUT	Connect to the COAXIAL AUDIO IN port of an audio device.
7	IR Ext	Connect with an IR extender.Note: Please purchase an IR extender with the spec as below:3.5 mini plug/Tip-VCC 5V/Center-Data/Lower-Ground; With 30ft range from remote control to IR receiver; Operating voltage 3.3~5v and supported by 38Khz bandwidth.
8	AUDIO OUT (L-R)	Connect to the AUDIO IN ports of an audio device.
9	HDMI 3 IN (MHL/CEC)	Connect to the HDMI OUT port of a DVD Player, Games Console, Cable Box or other HDMI device.MHL (Mobile High-Definition Link)You can connect an MHL-enabled device, such as certain models of smart phones & tablets, and view the device's screen on the TV. Connecting an MHL-enabled device to the HDMI3 input requires a special MHL cable (not included).CEC (Consumer Electronics Control)When connected to the CEC compatible Furrion Entertainment Systems or other CEC Compatible devices, the TV links with the system to give extra functionality.ARC (Audio Return Channel)When connected with a HDMI 1.4 cable to an ARC compatible audio system, the TV links with the device to give extra audio functionality.
10	HDMI 2 IN (CEC)
11	HDMI 1 IN (ARC/CEC)

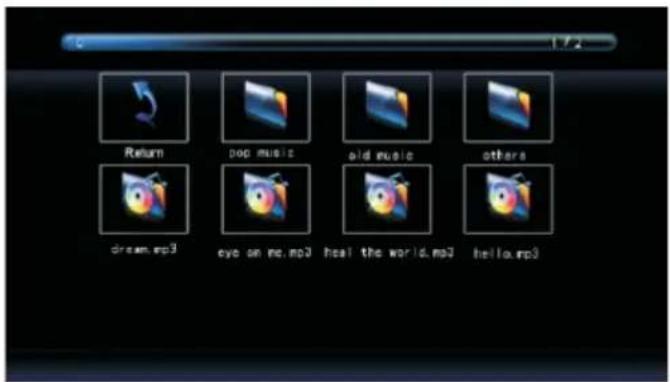

12	USB IN	USB Port: view pictures/movies/text and listen to MP3s via a compatible USB stick.

Function Overview

Connection

Your Furrion Aurora™ TV offers multiple connection options. Please consult the manual of DVD player, Games Console or other devices to ensure proper connection and use.

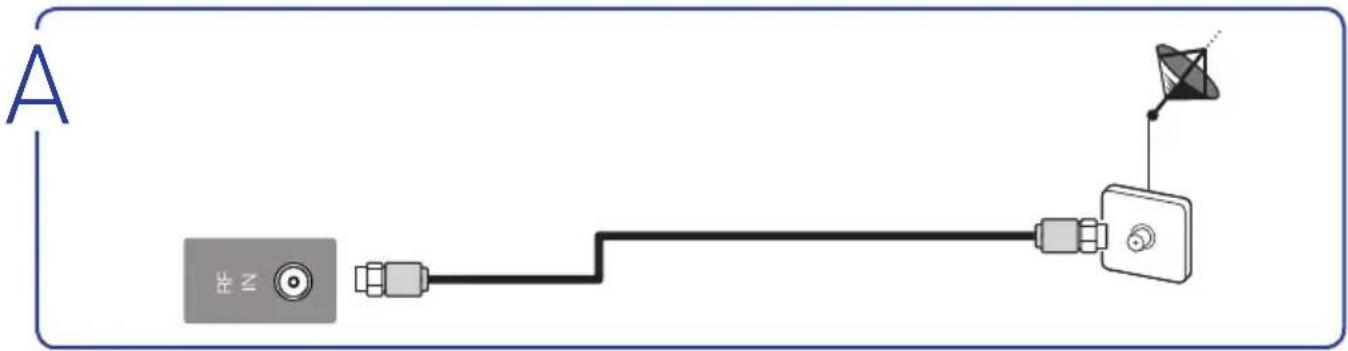

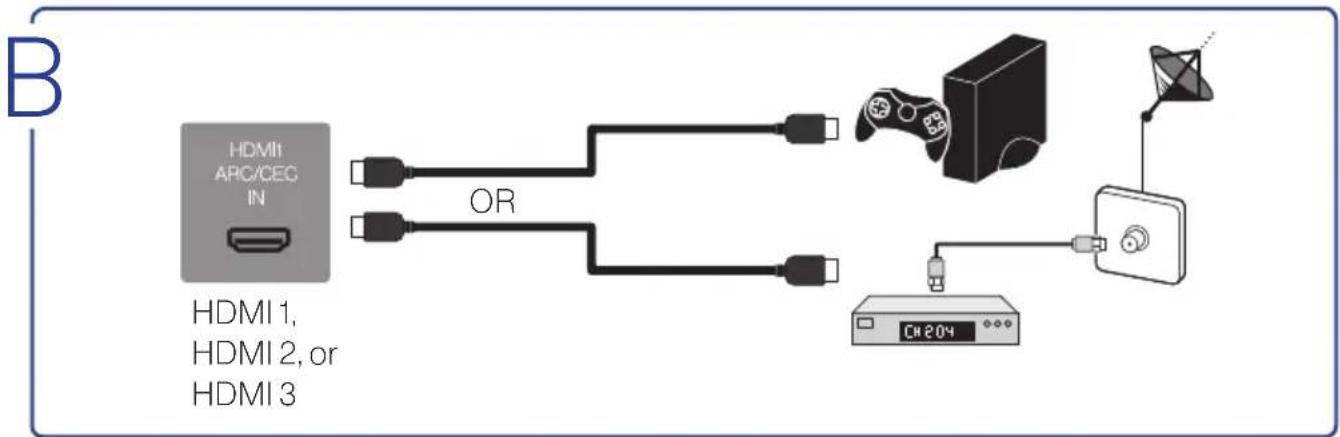

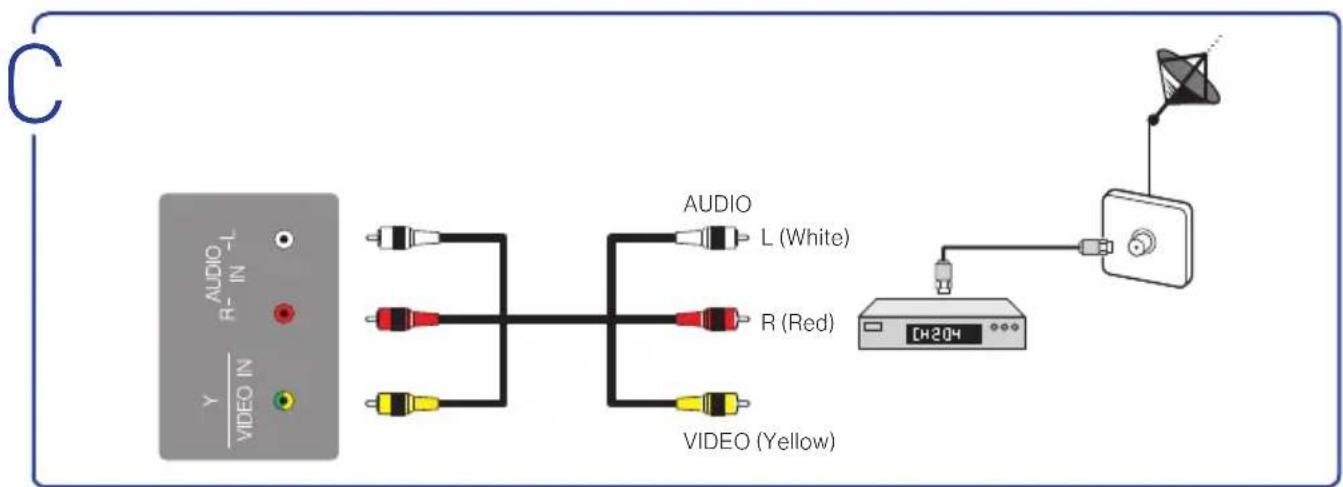

You can choose one or more of the connections below to operate.

Note: All external devices and cables shown in the diagram are for reference only and not included in the package.

Function Overview

Connection

D

E

VGA IN PC AUDIO IN

F

AUDIO L-OUT-R R (Red) L (White) OR COAX CUT Furrion model No.: FSBNN3MR-BL/ FSBNN3MSR-BL (sold separately)

G

USB(2.0) IN DC 5V --- Max.500mA

H

IRExt IR extender

Function Overview

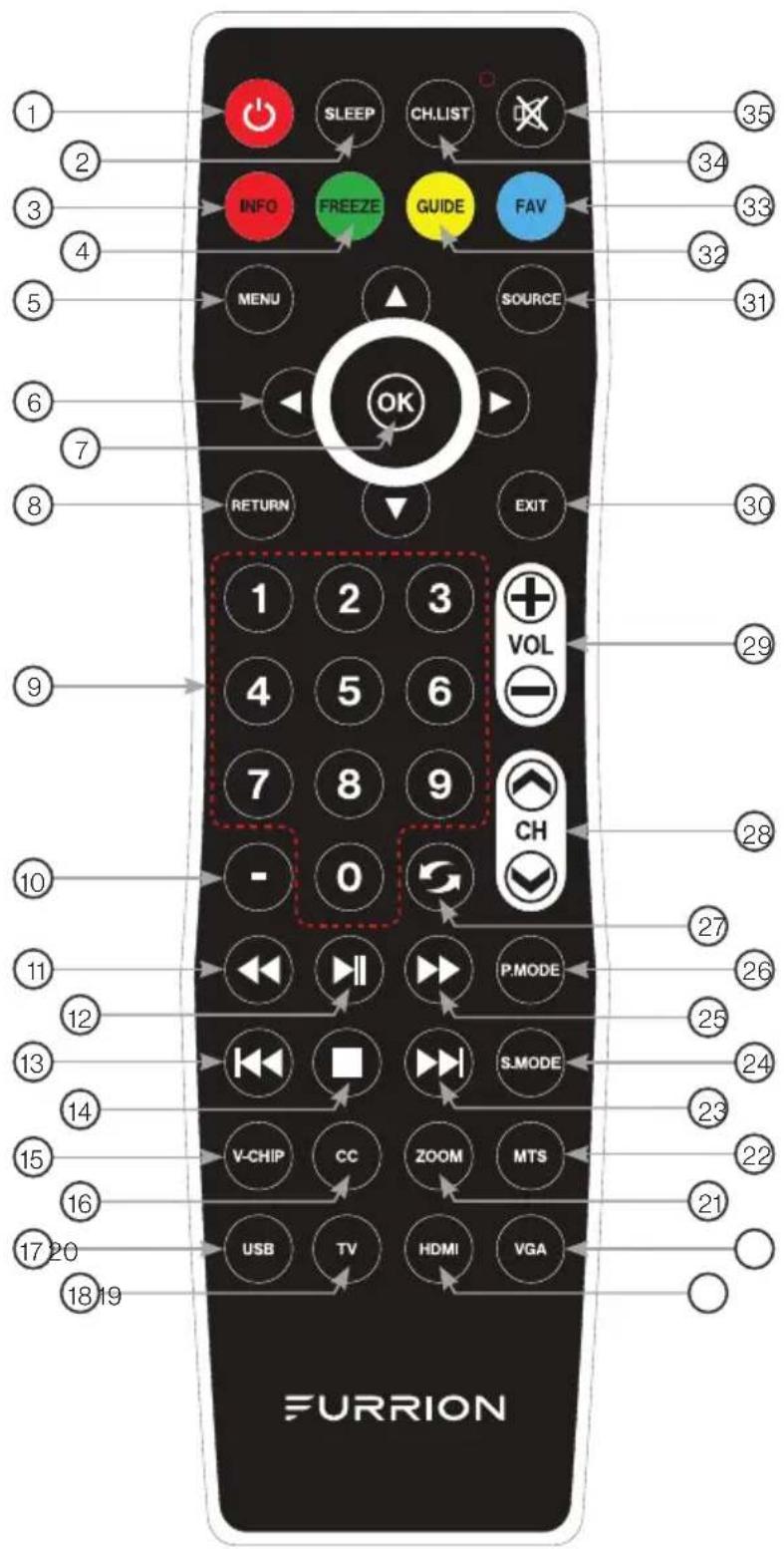

Remote Control

1 2 3 4 5 6 7 8 RETURN EXIT 9 10 11 12 13 14 15 16 17 20 18 19 SLEEP CH.LIST INFO FREEZE GUIDE FAV MENU SOURCE OK 1 2 3 VOL 4 5 6 - 7 8 9 CH - 0 P.MODE V-CHIP CC ZOOM MTS USB TV HDMI VGA FURRION 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 ○

Function Overview

Remote Control

No. Button Function
[4HBW]		Turn the TV on/off
	[T350]	Set time for the TV to turn off
[X4CA]		Display information about the current input source
[KTAG]	[Y2B0]	Freeze current picture
		Enter the main menu
		ate in a menu
		Confirm the selection
		Return to the previous menu
		Enter numbers or select channels
[ADK3]	[17:0]	Insert the dash for selecting digital channels directly (For example, channel 28-2 would be selected by the button sequence 2 8 - 2.)
[ADK0]	[17:0]
		Fast backward
		Start or pause the playback
		Skip to the beginning of the previous chapter/track/photo.
		Stop playback
[6XT2]	[ABX6]	Set up parental control
		Select Closed Caption: ON/OFF/CC On Mute
		Switch the source to USB
		Switch the source to TV

No.	Button Function
19	HDMI	Switch the source to HDMI
20	VGA	Switch the source to VGA
21	ZOOM	Enlarge screen images
22	MTS	Select Stereo, Mono, or Second Audio Programming
23	▶▶	Skip to the beginning of the next chapter/track/photo.
24	S.MODE	Select sound mode
25	▶▶	Fast forward
26	P.MODE	Select picture mode
27	◀	Toggle between the current and previous channels
28	CH ✗ √	Channel Up/Down
29	VOL +/-	Increase/Decrease the volume
30	EXIT	Exit the current menu
31	SOURCE	Select the input source
32	GUIDE	Open the current digital channel information guide (antenna only).
33	FAV	Add the channel to favorite list
34	CH.LIST	Display the channel list
35	✕	Mute or unmute the audio

Before Operation

What's in the Box

Thanks for purchasing this Furrion Aurora™ TV. This manual will help you set up and begin using your TV. First, check the contents of your box with the parts checklist below:

• TV
- Weather proof remote with button battery (x1) and tool to open battery cover (x1)
• Wall mount screws (x4)
- Screw adaptors (x4)
- RCA cable
- Printing materials

Now you can get started!

Prepare your Remote Control

BATTERY INSTALLATION

1. Open the battery cover with the tool supplied with the remote control.
2. Install the supplied button battery CR2025.
3. Close the battery cover.

BATTERY PRECAUTIONS

These precautions should be followed when using battery in this device:

• Use only the size and type of battery specified.
• Danger of explosion if batteries are incorrectly replaced.
• If the device is not to be used for a long period of time, remove the battery to prevent damage or injury from possible battery leakage.
• The batteries should not be exposed to excessive heat due to sunlight, fire or other heat sources.

WARNING: This product contains a button battery on the remote control.

Before Operation

- Do not ingest the battery contained within the remote control supplied with the unit as this battery represents a chemical burn hazard.

- If the button battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

- Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children.

Choose a Proper Location for your TV

Important: The TV must be installed away from any water source in a safety distance.

For best viewing we recommend you install it in a shaded environment.

- Avoid to install the TV where the screen is facing direct sunlight. The ideal location is in one place where the TV is shaded by structures, or under a patio cover or gazebo.

- If the sun shines directly on the screen for long periods of time, dark areas may appear on the screen. This is a normal reaction for the LED panel, and will not cause damage to the screen. Either turn the screen away from the sun, or shade the TV, and the dark areas will soon disappear.

Note: DO NOT use the TV if ambient air temperature exceeds the operating temperature limits.

Cable Management

WARNING: Do not connect the power source before making connections.

1. Open the cable access door in the rear panel by loosing the thumb screws. (Figure 1)
2. Connect the cables and lead all connecting cables downwards through the duct at the bottom of the cable access door.
3. Leave a drip loop when cables enter the compartment. This will prevent water from dripping down the cord and possibly entering the door area.
4. Close the door and tighten the thumb screws for the best waterproof effect. (Figure 2)

HDMI3 MHL/CEC N HDMI2 CEC N HDMI1 ARC/CEC N USB(2.0) IN DC 5V —— Max 500mA AUDIO L OUT-R IRExt COAX OUT AUDIO L IN Y VIDEO IN Pb Pr VGA IN PG AUDIO IN PF IN

Figure 1

Before Operation

Thumb Screws x 3 Cable Access Door Drip Loop Cables

Figure 2

Tip: If a TV streaming stick is connected and stays inside the rear cable compartment, the RF/Wifi signal will be reduced when passing through the closed cable door.

Connect the Power Cord

Connect the power cord to a GFCI protected AC outlet with an "in-use" waterproof cover.

Caution:

- Do not connect power cord during cable connecting and TV installation.

GFCI PROTECTED OUTLET

WARNING: TV and GFCI receptacle must be installed away from any water source in a safety distance. Be sure to check local electrical codes and comply with their local standards.

Before Operation

POWER SOURCE

NOTE: Please make sure to insert the cord securely at both the TV and the wall outlet.

WARNING:

• DO NOT USE WITH A VOLTAGE OTHER THAN THE POWER VOLTAGE SPECIFIED. DOING SO MAY CAUSE FIRE, ELECTRIC SHOCK, OR DAMAGE.
• DO NOT PLUG/UNPLUG THE POWER ADAPTER WHEN YOUR HANDS ARE WET. DOING SO MAY CAUSE ELECTRIC SHOCK.

CAUTION:

- WHEN THIS UNIT IS NOT BEING USED FOR EXTENDED PERIODS OF TIME(E.G., AWAY ON A TRIP), BE SURE TO UNPLUG IT FROM THE OUTLET.

Mount on Wall

You are recommended to install the TV in an area shaded by trees, landscape and/or structures, or under a patio cover or gazebo.

Simple line drawing of a classical building with columns and pediment, enclosed in a circle (no text or symbols)

FULL SHADE (Covered gazebos, patios, porches)

TV designed for fully shade outdoor spaces.

(Model: FDUF43CBR / FDUF49CBR / FDUF55CBR / FDUF65CBR)

Simple line drawing of a wooden table with a curved top and four legs, enclosed in a circle (no text or symbols)

PARTIAL SUN (Pergolas, partially covered decks)

TV designed for partial sun exposure and brighter outdoor spaces.

(Model: FDUP43CBR / FDUP49CBR / FDUP55CBR / FDUP65CBR)

Before Operation

IMPORTANT: Connect all cables to the rear panel prior to mounting TV on wall. The cable access door in rear panel will be obstructed once the TV is mounted.

• Follow the installation guide supplied with the Wall-Mount Bracket (purchased separately) when installing the TV.

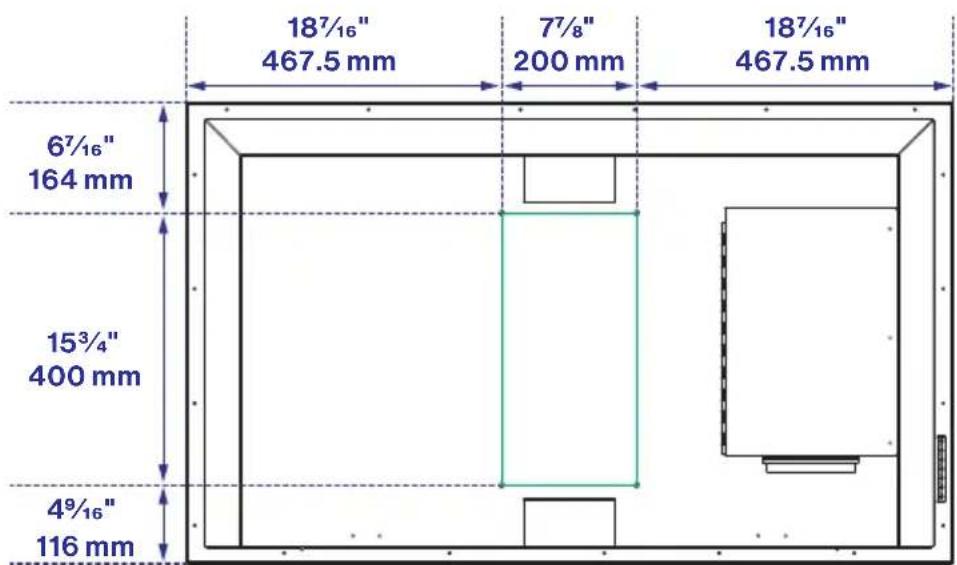

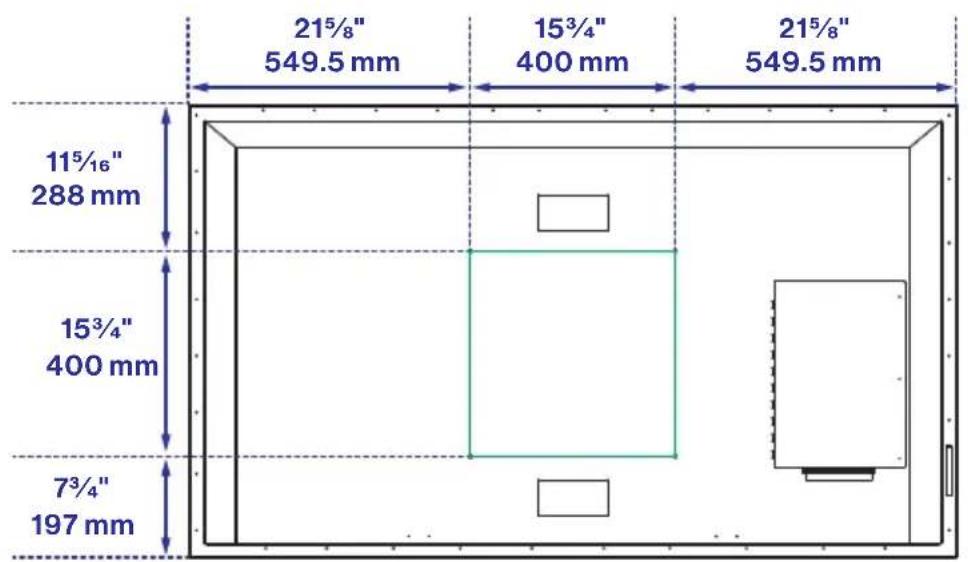

• Choose an appropriate location and refer to VESA pattern for mounting.
• Recommend you to contact a professional for installation and use at least two people to move or install the TV.

Adaptor M6 Screws Wall

Getting Started

The Setup Wizard window appears only the first time you turn on the TV. It will assist you to configure the TV and scan for available channels.

IMPORTANT: Make sure the antenna or cable connection is made.

1. Press POWER button on the TV control panel or button on the remote control to switch on the TV. The Setup Wizard window appears on the screen.
   NOTE: It may take a few seconds before the Setup Wizard window appears on the screen.
2. Use ▲ / ▼ / ◀/ ▶ to navigate and select your desired settings.

Setup Wizard Menu Language English Air/Cable Air Cable System Auto Auto Scan Move Select MENU Exit

Setup Wizard
Menu Language	Use ▲r to▼ highlight Menu Language, then press ◀r to select English, French or Spanish.
Air/Cable	Use ▲ Or ▼ to highlight Air/Cable, then press ◀r to select Air or Cable.
Cable System	Use ▲r to▼ highlight Cable System, then press ◀r to select Auto, STD, IRC or HRC.NOTE: Only adjustable when “Air/ Cable” is set as “Cable” mode.
Auto Scan	Use ▲ Or ▼ to highlight Auto Scan, then press OK or to start scanning all the channels available in your area.

NOTE: You may press MENU at any time to exit the menu.

TV Settings

Setup Settings

1. Press MENU button, the setup window will appear on the screen.
2. Use ◀ or ▶ to highlight Setup mode.
3. Use ▲ or ▼ to highlight the item you would like to reset, then press ◀ or ▶ to select the settings.
4. Press MENU to return to the previous menu or press EXIT at any time to exit the setting.

Picture Audio Time Setup Lock Channel Menu Language English Transparency Off Zoom Mode Wide Noise Reduction Middle Advanced Source Label Closed Caption DLC On Setup Wizard Move Next MENU Return

Picture Audio Time Setup Lock Channel HDMI CEC EDID Switch EDID 2.0 Restore Default Move Next MENU Return

Setup Menu

Menu Language	Select the menu language	Pressorto select English, Français, Español or Deutsch.
Transparency	Control the menu transparency	Pressto select Off /On.
Zoom Mode	Set the picture proportion	Pressorto select Zoom, Normal, Cinema or Wide.* The selection for Zoom Mode may vary from model to model.
Noise Reduction	Reduce the roughness of the picture	Pressorto select Off, Weak, Middle or Strong.

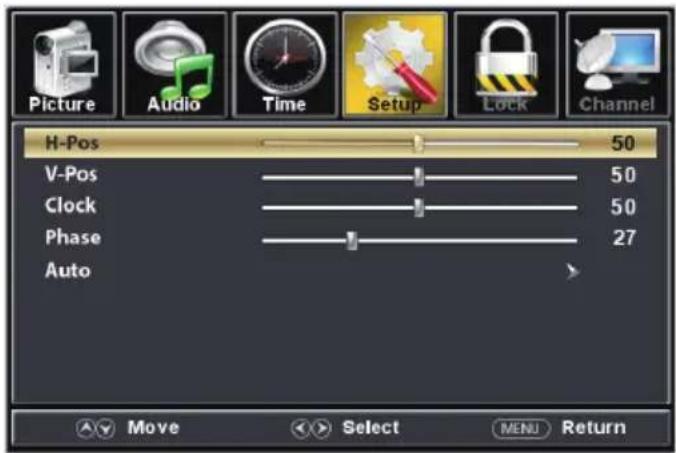

Advanced	Control the PC settings.	*Only available after a PC connected.
Source Label	Allow labeling the input source	TV	Pressorto select Custom, Default, Antenna, Cable, Satellite, DTV, DVD, Blu-ray, HD-DVD, XBOX, Wii, PS3, Game, Computer, VCR or DV.* The selection for Source Label may vary from model to model.
		AV
		YPBPR
		HDMI1
		HDMI2
		HDMI3
		PC
		USB

TV Settings

Setup Menu

Closed Caption	Set the Closed Caption features.	CC Mode	Pressorto select Off, On or CC On Mute.
		Basic Selection	Pressrto select CC1, CC2, CC3, CC4, Text 1, Text 2, Text 3 or Text 4.
		Advanced	Pressrto select Service1, Service 2, Service 3, Service 4, Service 5 or Service 6.
		OptionPressrto enter the sub menu to customize text fonts, colors, opacity.	Mode	Pressrto select Default or Custom.
			Font Style	Pressrto select Default, Font 0, Font 1, Font 2, Font 3, Font 4, Font 5, Font 6 or Font 7.
			Font Size	Pressrto select Default, Normal, Large or Small.
			Font Edge Style	Pressrto select Default, None, Raised, Depressed, Uniform, Left Shadow or Right Shadow.
			Font Edge Color	Pressrto select Default, Black, Red, Green, Blue, Yellow, Magenta or Cyan.
			FG Color	Pressrto select Default, White, Red, Green, Blue, Yellow, Magenta or Cyan.
			BG Color	Pressrto select Default, Cyan, Magenta, Yellow, Blue, Green, Red or Black.
			FG Opacity	Pressrto select Default, Solid, Flashing, Translucent or Transparency.
			BG Opacity	Pressrto select Default, Solid, Flashing, Translucent or Transparency.
DLC	Adjust the picture contrast.	Pressorto select Off or On.
Setup Wizard	Start the Setup Wizard.	Pressrto enter setup wizard menu.

TV Settings

Setup Menu
HDMI CEC	Press ▶ to enter sub-menu, then press ▶ to select Off /On for HDMI CEC. When selecting On, the sub-menu in the right column will be available to set up.	Auto Standby	Press ▶ to select Off /On.In On mode, TV will shut down when there is no signal for several minutes.
		Auto TV on	Press ▶ to select Off /On.In On mode, TV will automatically turn on when the connected CEC device is turned on.
		HDMI ARC	Press ▶ to select Off /On.Set the HDMI ARC On if you want to enable the ARC function with a connected 5.1/7.1 Home Theater System.
		Device control	Press ▶ to select Off /On.In On mode, it allows a connected CEC device to be controlled by TV remote control.
		Device list	Press ▶ to display a list of HDMI CEC devices currently connected to the TV.
EDID Switch	Select the EDID version.	Press ▶ or ▶ to select Auto, EDID 1.4 or EDID 2.0.
Restore Default	Reset to factory default settings.	Press ▶ or ▶ to select Yes or No.
NOTE: HDMI CEC function is only available when connecting with a CEC device.

TV Settings

Picture Settings

1. Press MENU button, the setup window will appear on the screen.
2. Use ◀ or ▶ to highlight Picture mode.
3. Use ▲ or ▼ to highlight the item you would like to reset, then press ◀ or ▶ to select the settings.
4. Press MENU to return to the previous menu or press EXIT at any time to exit the setting.

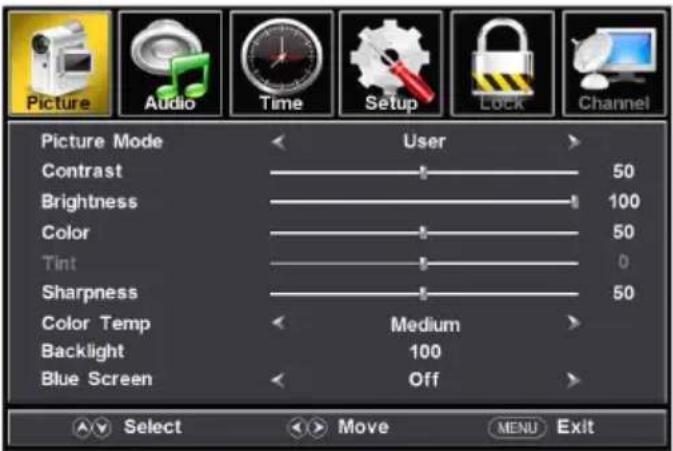

Picture Audio Time Setup Lock Channel Picture Mode User Contrast 50 Brightness 100 Color 50 Tint 0 Sharpness 50 Color Temp Medium Backlight 100 Blue Screen Off Select Move MENU Exit

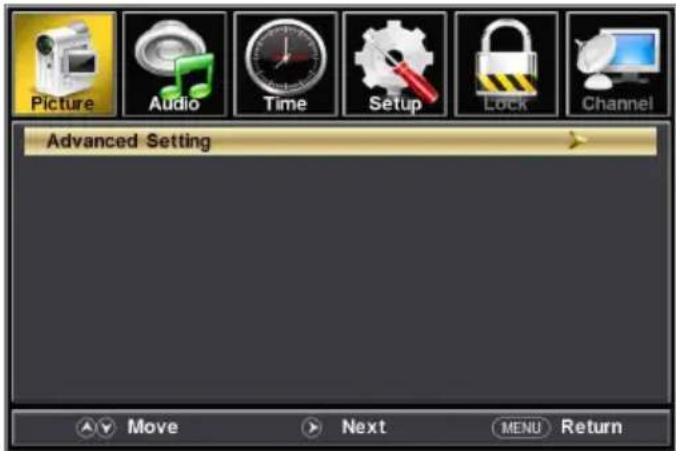

Picture Audio Time Setup Lock Channel Advanced Setting Move Next MENU Return

Picture Menu

Picture Mode	Select the display mode	Pressorto selectUser / Standard / Dynamic / Mild.
Contrast	Control the contrast level of the picture	Presstcrease or decrease contrast intensity.* Only adjustable after set "Picture Mode" as "User" mode
Brightness	Control the brightness level of the picture	Presstcrease or decrease the overall brightness.* Only adjustable after set "Picture Mode" as "User" mode
Color	Control the color level of the picture	Presstcrease or decrease the color intensity.* Only adjustable after set "Picture Mode" as "User" mode
Tint	Control picture tint	Presstadjust colors toward green or reddish tint.* Only adjustable under NTSC signal
Sharpness	Control the sharpness of the picture	Presstsoften or enhance edges in the picture.* Only adjustable after set "Picture Mode" as "User" mode
Color Temp	Select the color mode	Pressorto selectMedium / Warm / Cool.
Blue Screen	If this is set asOn, the screen changes to blue when no signal input.	Pressorto set asOn or Off.
Advanced Setting	Pressto enter sub-menu to set the features in right column.	Aspect Ratio	Pressorto selectWide / Normal/Cinema/ Zoom.
		Noise Reduction	Pressorto selectOff / Weak / Middle / Strong.
		Dynamic Contrast	Pressorto set asOn or Off.
		HDMI mode	Presstorset as Video.
		Auto Brightness	Pressorto set asOn or Off.

TV Settings

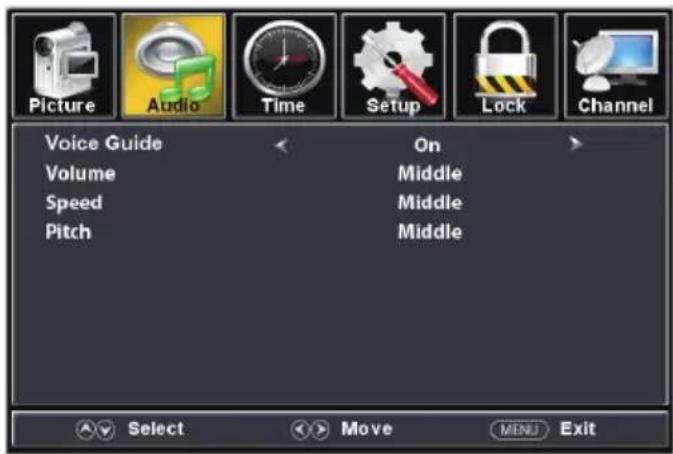

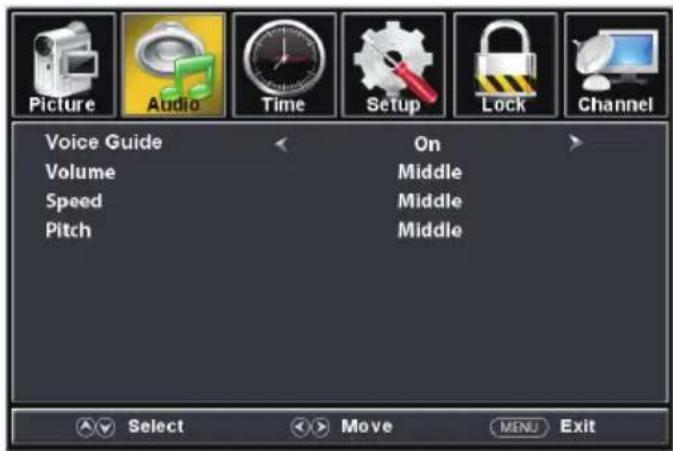

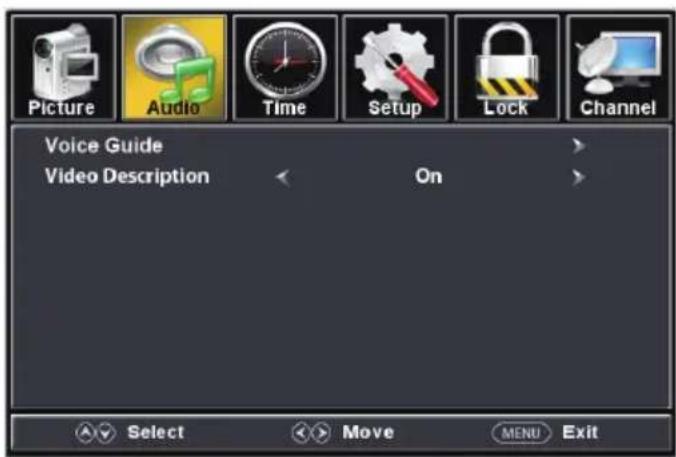

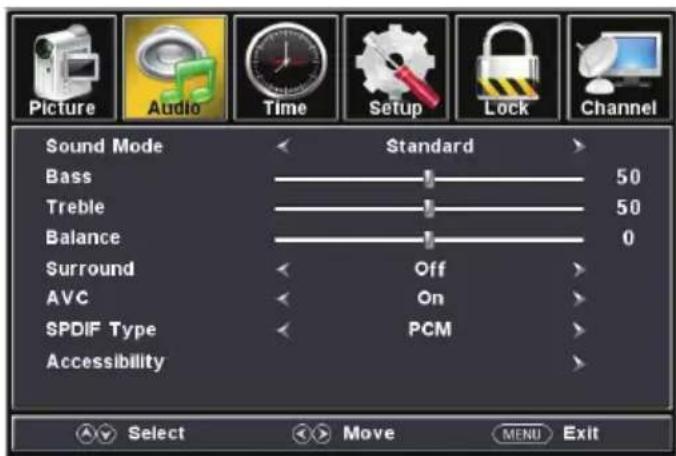

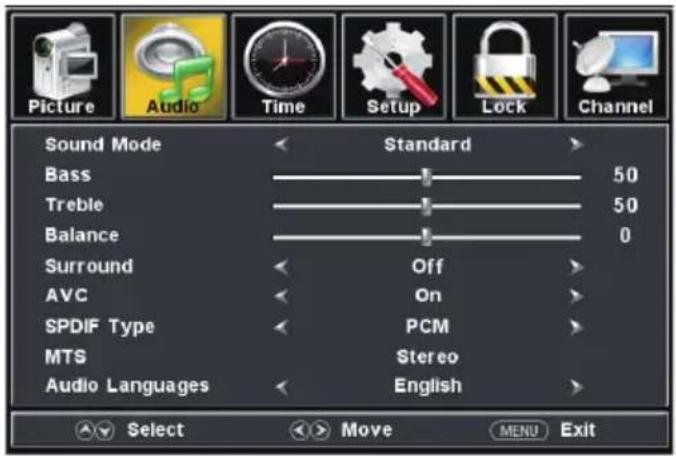

Audio Settings

1. Press MENU button, the setup window will appear on the screen.
2. Use ◀ or ▶ to highlight Audio mode.
3. Use ▲ or ▼ to highlight the item you would like to reset, then press ◀ or ▶ to select the settings.
4. Press MENU to return to the previous menu or press EXIT at any time to exit the settings.

For DTV mode For ATV mode

Picture Audio Time Setup Lock Channel Sound Mode Standard Bass 50 Treble 50 Balance 0 Surround Off AVC On SPDIF Type PCM MTS Stereo Audio Languages English Select Move MENU Exit

Picture Audio Time Setup Lock Channel Sound Mode Standard Bass 50 Treble 50 Balance 0 Surround Off AVC On SPDIF Type PCM Accessibility Select Move MENU Exit

Picture Audio Time Setup Lock Channel Voice Guide Video Description On Select Move MENU Exit

Picture Audio Time Setup Lock Channel Voice Guide Volume Speed Pitch On Middle Middle Middle Select Move MENU Exit

TV Settings

Audio Menu
Sound Mode	Select the sound mode		Press ▶ to select Standard / Music / Movie / Sport / User mode.Standard: Optimizes a balanced sound in all environments.Music: Preserves the original sound clear and dynamic like that on a concert.Movie: Enhances treble and bass for a rich surround sound experience.Sport: Reproduces a realistic sound like that in a stadium.User: Customizes audio setting.
Bass	Control the bass level		Press ▶ to increase or decrease low frequency intensity.
Treble	Control the treble level		Press ▶ to increase or decrease high frequency intensity.
Balance	Control the balance level		Press ▶ to adjust the desired level between 0~100.
Surround	Control the surround effect		Press ▶ or ▶ to set as On or Off.
AVC	(Auto Volume Control)Control the maximum power output		Press ▶ or ▶ to set as On or Off.
SPDIF Type	Select the SPDIF sound mode		Press ▶ or ▶ to select Off / RAW / PCM.
Audio Languages	Select the menu language		Press ▶ or ▶ to select English / French / Spanish.* Only available on DTV channel
MTS	Select the sound mode		Press ▶ or ▶ to select Stereo / SAP / Mono.* Only available on ATV channel.
Accessibility	Control the Voice Guide functions	Voice Guide	Voice Guide	Press ▶ or Enter to enter sub menu settings.Then press ▶ to set as On or Off. When the Voice Guide is On, the OSD will read out via voice once you operate the TV.
			Volume	Press ▶ or ▶ to select Weak / Middle / Strong to change the volume.* Only available after Voice Guide is set as On mode
			Speed	Press ▶ or ▶ to select Weak / Middle / Strong to change the voice speed.* Only available after Voice Guide is set as On mode
			Pitch	Press ▶ or ▶ to select Weak / Middle / Strong to change the voice pitch.* Only available after Voice Guide is set as On mode.
		Video Description	Press ▶ or ▶ to set as On or Off. When setting as On, the video description function is enabled and the video commentary text will appear.

TV Settings

Time Settings

1. Press MENU button, the setup window will appear on the screen.
2. Use to highlight Time mode.
3. Use ▲ to highlight the item you would like to reset, then press ◀ or ▶ to select the settings.
4. Press MENU to return to the previous menu or press EXIT at any time to exit the setting.

Picture Audio Time Setup Lock Channel Sleep Timer Off Time Zone Pacific Daylight Saving Time Off Time Format 12-hour Auto Clock On Clock 2005/12/17 12:34 AM Select Move MENU Exit

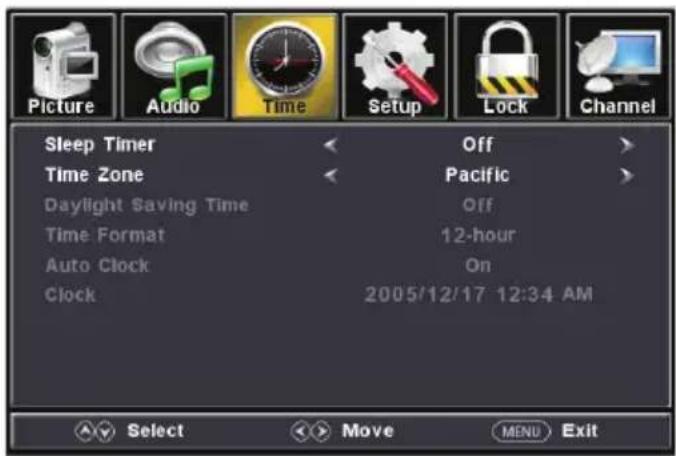

Time Menu
Sleep Timer	Set the countdown time before TV automatically shutdown	Press◀ to select Off, 5Min, 10Min, 15Min, 30Min, 45Min, 60Min, 90Min, 120Min, 180Min or 240Min.
Time Zone	Set the time zone	Press◀ to select Pacific, Alaska, Hawaii, Atlantic, Eastern, Central or Mountain
Daylight Saving Time	Turn on/off daylight saving time	Press◀ or ▶ to set as On or Off.* Only adjustable on DTV channel
Time Format	Select the time display format	Press◀ or ▶ to set as 12-hour or 24-hour.* Only adjustable on DTV channel
Auto Clock	Set automatic time	Press◀ or ▶ to set as On or Off.* Only adjustable on DTV channel
Clock	When Auto Clock is set as Off, you can set the time manually. Clock and Date are automatically set on the first time when the tuner receives a broadcast channel.* Only adjustable on DTV channel

TV Setting

Lock Settings

1. Press MENU button, the setup window will appear on the screen.
2. Use ◀ or ▶ to highlight Lock mode.
3. Use ▲ or ▼ to highlight "Enter Password" and input "0000" to enter the sub menu.
4. Use ▲ or ▼ to highlight the item you would like to reset, then press ◀ or ▶ to select the settings.
5. Press MENU to return to the previous menu or press EXIT at any time to exit the setting.

Picture Audio Time Setup Lock Channel Set Password System Lock Off US Canada RRT Setting Reset RRT Clear Lock Move Next MENU Return

Picture Audio Time Setup Lock Channel Enter New Password Confirm Password 0-9 MENU Return

Picture Audio Time Setup Lock Channel TV MPAA N/A Move Select MFNL Return

Picture Audio Time Setup Lock Channel TV RATING All FV V S L D TV-Y TV-Y7 TV-G TV-PC TV-14 TV-MA :Lock Press OK to Lock or Unlock Move Select MEM Return

Picture Audio Time Setup Lock Channel Canada English E Canada French E Move Select MENU Return

TV Setting

Lock Menu
Enter Password	Input the password to access the Lock menu.	Use the Number Buttons (0-9) to enter the password, the Lock menu will appear.* Default password is 0000.* If you forgot the password, use 8888 to enter any locked menu.
Set Password	Change the user password.	Set Password	Use Number buttons (0-9) to enter a new password.
		Confirm Password	Repeat the password to confirm.
System Lock	Change the parental controls.	Pressorto set asOn or Off.

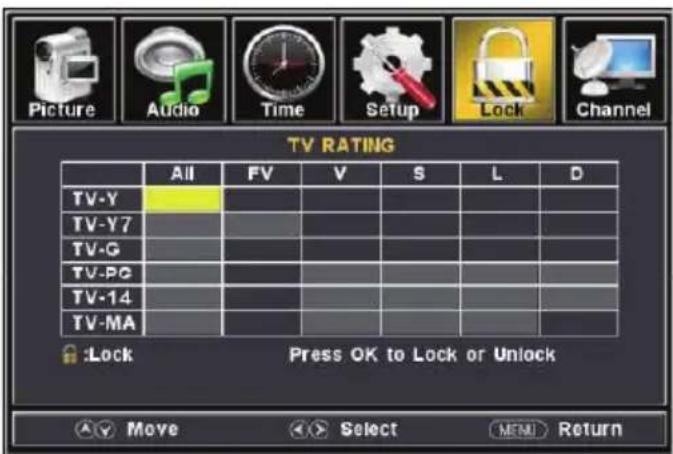

US	Set up parental locks based on US rating system.* Only available when System Lock is set asOn mode.	TV	Pressto enter the TV Ratings menu and use ▲/▼/◄/► to select your TV rating preference.(refer to the following tables of Age and Genre)

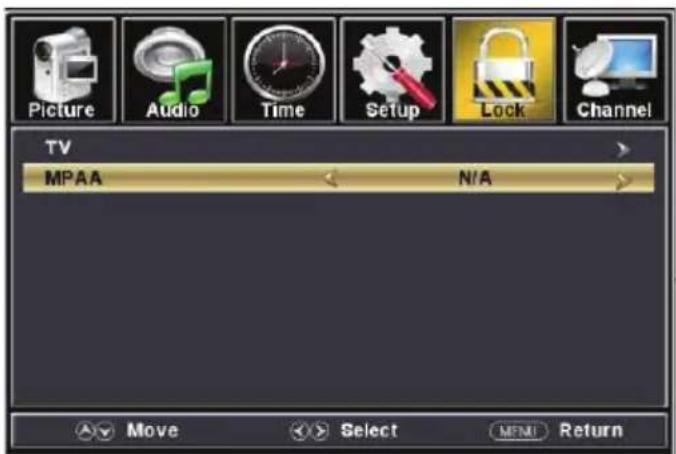

		MPAA	Press4 buttons to select your movie rating preference based on US Rating System.
Canada	Set up parental locks based on Canadian rating system.* Only available when System Lock is set asOn mode	Canada English	Use4 buttons to select your ratings preference based on Canadian Rating System (English).
		Canada French	Use4 buttons to select your ratings preference based on Canadian Rating System(French).
RRT Setting	Not adjustable by user.
Reset RRT	Restore to default RRT settings.	Press OK or ► to enter the sub menu, then press◄ or ► to select Yes or No.
Clear Lock	Restore to default V-chip settings and clear the lock setting.	Press OK or ► to enter the sub menu, then press◄ or ► to select Yes or No.

TV Settings

Age
TV-Y	All Children
TV-Y7	Suitable for 7 years old or above
TV-G	General Audience
TV-PG	Parental Guidance
TV-14	Suitable for 14 years old or above
TV-MA	Suitable for 17 years old or above

Genre
ALL	All
FV	Fantasy Violence
V	Violence
S	Sex
L	Language
D	Dialogue

US Rating System
N/A	All Ages
G	General Audience
PG	Parental Guidance
PG-13	Parental Guidance below 13 years
R	Parental Guidance below 17 years
NC-17	Suitable for 17 years old or above
X	Adults Only

Canadian Rating System (English)
E	Exempt from the ratings (All ages)
C	Suitable for children age of 0–7 years
C8+	Suitable for children age over 8 years
G	General Audience
PG	Parental Guidance
14+	Suitable for viewers age over 14 years
18+	Suitable for adults over 18 years

Canadian Rating System (French)
E	Exempt from the ratings (All ages)
G	General Audience
8 ans+	Suitable for children ages over 8 years
13 ans+	Suitable for children ages over 13 years
16 ans+	Suitable for viewers ages over 16 years
18 ans+	Suitable for adults over 18 years

TV Settings

Channel Settings

1. Press MENU button, the setup window will appear on the screen.
2. Use ▲ to highlight Channel mode.
3. Use ▲ to highlight the item you would like to reset, then press or to select the settings.
4. Press OK to confirm your selections or settings and enter the sub menus.
5. Press MENU to return to the previous menu or press EXIT at any time to exit the setting.

Note: For Cable or Satellite users with a set-top box, there is no need to run channel Auto Scan. Connect your cable or satellite set top box to one of the available inputs on the TV for viewing.

Picture Audio Time Setup Lock Channel Air/Cable Cable Auto Scan Favorite Show/Hide Channel No. 9-1 Channel Label KQED-HD DTV Signal Good Select Move MENU Exit

Picture Audio Time Setup Lock Channel Cable System Auto Start to Scan Move Next MENU Return

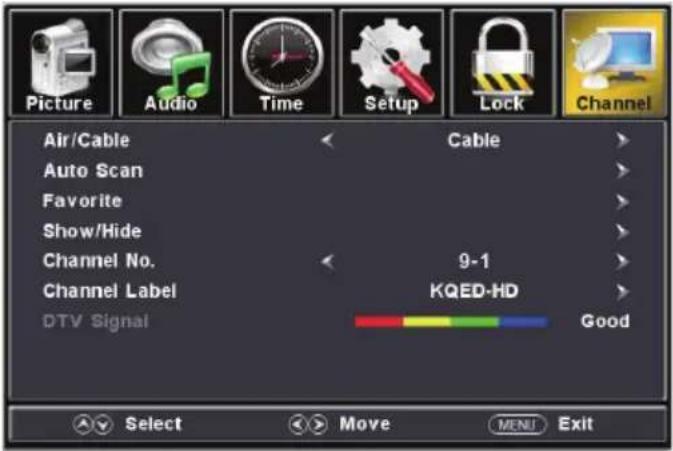

Channel Menu

Air/Cable	Set the reception type.	Press◀ to select Air or Cable.Select Air when TV is connected to an indoor / outdoor antenna.Select Cable if you subscribe to a pay television service WITHOUT a set top box.
Auto Scan	Press ▶ OK to enter sub menu.	Cable System	Press◀ or ▶ to select Auto, STD, IRC or HRC.(Only available when you select Cable as the reception type.)
		Start to Scan	Press▶ or OK to start scanning available channels..
Favorite	Add or delete a channel in the favorite list.	Press▲ or ▼ to select a channel, then press▶ or OK to add or delete the channel in the favorite list.
Show/Hide	Show or hide available channels already in memory.	Press▲ or ▼ to select a channel, then press▶ or OK to show or hide the channel.
Channel No.	Select a channel number to be labeled	Press◀ to select a channel.
Channel Label	Allow custom labeling to name or rename a channel	Press▲ to select each letter, number or character. Press or ▶ to the next space. (Maximum of 7 characters)
DTV Signal	Dynamically display the DTV signal status.

TV Settings

PC Settings

The PC menu is only accessible when a PC is connected to the TV via the VGA connection. Press Source button to select VGA as the input source.

1. Press MENU button, the setup window will appear on the screen.
2. Use ◀ or ▶ to highlight Setup mode.
3. Use ▲ or ▼ to highlight Advanced, then press OK or ▶ to enter the sub menu.
4. Use ▲ or ▼ to highlight the item you would like to reset, then press ◀ or ▶ to select the settings.
5. Press MENU to return to the previous menu or press EXIT at any time to exit the setting.

Picture Audio Time Setup Lock Channel Menu Language English Transparency Off Zoom Mode Wide Noise Reduction Middle Advanced SOURCE Label Closed Caption DLC On Setup Wizard Move Select MENU Return

Picture Audio Time Setup Lock Channel H-Pos 50 V-Pos 50 Clock 50 Phase 27 Auto Move Select MENU Return

Advanced Sub-Menu

H-Pos	Configure the horizontal position of the TV image.	Press ←r to move the screen horizontally.
V-Pos	Configure the vertical position of the TV image.	Press ←r to move the screen vertically.
Clock	Adjust the pixel Clock (vertical) for a clearer image.	Press ←r to adjust the pixel clock vertically.
Phase	Adjust the phase Clock (horizontal) for a clearer image.	Press ←r to adjust the phase clock horizontally.
Auto	Automatically adjust the PC settings.	Press OK or no adjust all PC settings automatically.

PC MONITOR DISPLAY MODES

Mode Resolution Refresh Rate
VGA	640 x 480 60/75 Hz
VGA	720 x 400 70 Hz
VGA	1366 x 768 60Hz
SVGA	800 x 600 60/75 Hz
XGA	1024 x 768	60/70/75 Hz
WXGA	1280 x 720	60 Hz

PC MONITOR DISPLAY MODES

Mode Resolution Refresh Rate
WXGA	1360 x 768	60 Hz
SXGA	1280 x 1024	60 Hz
WXGA+	1440 x 900	60 Hz
WSXGA+	1680 x 1050	60 Hz
FHD	1920 x 1080	60 Hz

USB Operation

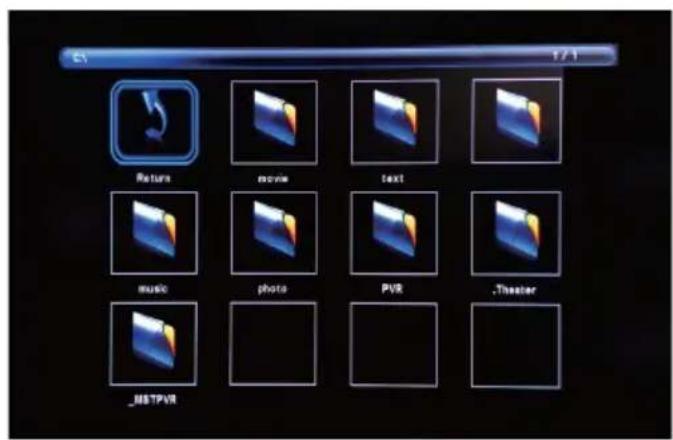

1. After connecting a flash drive, press SOURCE button and select MEDIA. Press OK or ▶ to enter.
2. Use ◀ or ▶ to select Photo or Music. Press OK or ▶ to enter.

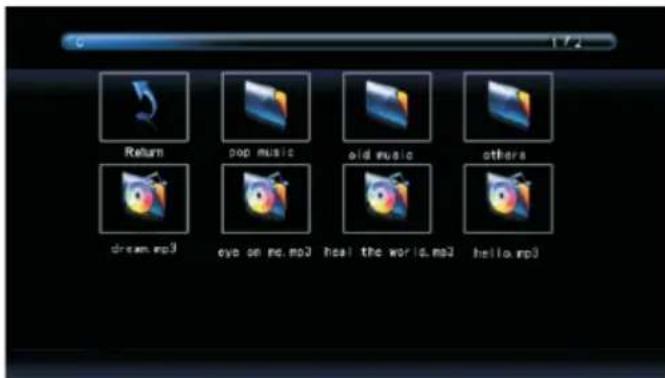

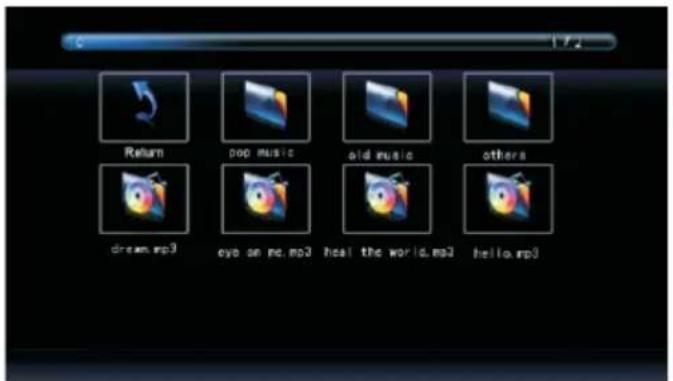

3. Use ▲ to navigate the files or folders on the USB drive.
4. Press MENU to return to the previous menu or press EXIT at any time to exit the setting.

USB 2.0 Photo Music

EX 17.1 Return movie text music photo PVR .Theater _MSTPVR

Return pop music old music others dream.mp3 eye on no.mp3 heal the world.mp3 hello.mp3

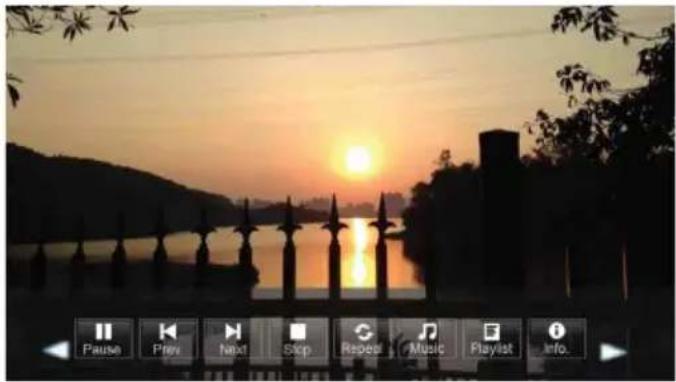

When viewing photos, you can use this photo viewer tool to control slide show, play music and show file information.

The photo viewer displays .jpg photo format files.

Pause Prev Next Stop Repeat Music Playlist Info.

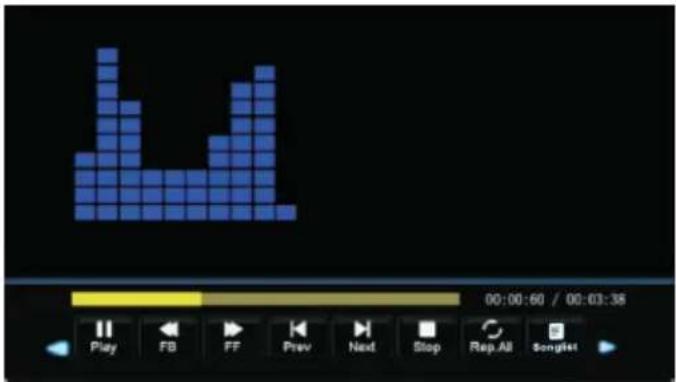

Playback of music is via this music player, which gives playback controls and information on the file.

The music player plays MP3 audio format files.

00:00:50 / 00:03:38 Play FB FF Prev Next Stop Rep All Songlet

Troubleshooting

Problem Solution/Issue
TV does not operate	Make sure the power cord is plugged in.Try another AC outlet.Power is off, check fuse or circuit breaker.Unplug unit for an hour, then plug it back in.
Normal picture, but no sound	Check the volume settings.Sound muted? Press MUTE button.Try another channel.Check audio cable connections.
The remote control does not work	Make sure the remote control is in range with no obstructions.Check the batteries.Correct operating mode set: TV, VCR etc.
Poor sound or no sound	Station or Cable TV experiencing problems, tune to another station.Check sound adjustments (Volume or Mute).Check for sources of possible interference.
Poor picture or no picture	Station or Cable TV experiencing problems, tune to another station.Make sure channels are set into memory.Check antenna or Cable TV connections, adjust antenna.Check for sources of possible interference.Check picture control adjustments.
Poor TV reception	Ensure the antenna amplifier is turned on for Antenna TV.Adjust the antenna position to a stronger signal receiving angle.Check if the Antenna connection is tight to the TV.Check if there is power supplied to the Antenna distribution box.Check if your incoming cable is connected to the correct cable / antenna wall connection inside the RV.Ensure the internal RV coax jump cable is connected to the correct port.
Poor Cable / Satellite TV Reception	Ensure antenna amp is turned off for cable signal.Check if incoming cable is connected correctly to RV.Ensure cable splitter box has power.Check if the incoming cable is connected to the correct cable / Satellite wall connection inside your RV.Ensure the internal RV coax jump cable is connected to the correct port.Ensure Dish has no obstruction.
TV shuts off	Sleep Timer is set.Power interrupted.
Black and white image from the connected AV device	Check video connections on both the TV and connected AV device.Ensure the colors match between the connectors and sockets: green (Y), blue (Pb/Cb) and red (Pr/Cr) for component connection, and yellow (VIDEO) for composite connection.Ensure all video cables are connected firmly.

Specifications

H PLUMBROO L W

MODEL, DIMENSION & RESOLUTION

TV Model	Dimension without Stand (L x H x W)	Max Resolution
FDUP43CBR	39^7/_8" × 23^7/_8" × 3^3/_4" (1013 × 605 × 96 mm)	3840 x 2160@ 60Hz UHD
FDUF43CBR
FDUP49CBR	44^11/_16" × 26^13/_16" × 3^7/_8" (1135 × 680 × 98 mm)
FDUF49CBR
FDUP55CBR	50^3/_16" × 29^3/_4" × 4^3/_16" (1274 × 756 × 105 mm)
FDUF55CBR
FDUP65CBR	59^1/_16" × 34^7/_8" × 3^7/_8" (1499 × 885 × 97 mm)
FDUF65CBR

INPUT & OUTPUT CONNECTIONS

Model	L-AUDIO OUT-R	IR Ext	Coaxial Out	L-AUDIO IN-R	Component Video in	Component YP_bP_r Video in	HDMI in	VGA (PC) in	Audio (PC) in	RF in	USB
FDUP43CBR FDUP49CBR FDUP55CBR FDUP65CBR FDUF43CBR FDUF49CBR FDUF55CBR FDUF65CBR	111			1 x Left (White) 1 x Right (Red)	1 x Yellow/Green*		3111†
						1 x Blue 1 x Red

Specifications

16" 406.5 mm 7½" 200 mm 16½" 406.5 mm 8½/₁₆" 226.5 mm 7½" 200 mm 7½" 178.5 mm

FDUP43CBR, FDUF43CBR

187/16" 467.5 mm 77/8" 200 mm 187/16" 467.5 mm 67/16" 164 mm 153/4" 400 mm 49/16" 116 mm

FDUP49CBR, FDUF49CBR

VESA MOUNTING PATTERN

Model Width mm	Height mm Screw Size	Quantity
FDUP43CBR	200 200		M6 * 15mm 4
FDUF43CBR	200 200
FDUP49CBR	200 400
FDUF49CBR	200 400

Specifications

17½" 437 mm 15¾" 400 mm 17½" 437 mm 8" 203 mm 15¾" 400 mm 6" 153 mm

FDUP55CBR, FDUF55CBR

215/8" 549.5 mm 153/4" 400 mm 215/8" 549.5 mm 115/16" 288 mm 153/4" 400 mm 73/4" 197 mm

FDUP65CBR, FDUF65CBR

VESA MOUNTING PATTERN

Model Width mm Height mm Screw Size Quantity
FDUP55CBR	400 400		M6 * 15mm 4
FDUF55CBR	400 400
FDUP65CBR	400 400
FDUF65CBR	400 400

Care and Clean

TV Cleaning

Remove any dirt and salt deposits from the unit, being careful to rinse the cloth frequently to avoid scratching the TV or screen surface. Avoid using harsh chemicals, abrasives, or solvents when cleaning any surface on the unit.

• If there is snow or ice on the TV surface, use a soft brush and towel to remove snow and ice from the unit.
• Cleaning the LED panel: With your TV turned off, gently wipe the surface of the display panel with a damp (with water) microfiber, cotton or flannel cloth. (Do not use tissues, rags, sponges or paper towels because they may damage the screen and leave lint pieces behind). If the LED panel is very dirty, you can mix equal parts of isopropyl alcohol and distilled water in a clean spray bottle, spray the mixture onto the cloth (do not spray the solution directly on the panel) and gently clean the panel.
• When the TV is not in use, keep it covered with the Furrion Weatherproof TV Cover. The fitted cover is designed to protect the LED panel from the harmful UV rays from direct sunlight, the ingress of water, and keeps wind-blown objects from scratching the surface of the TV. To order a Furrion Weatherproof TV Cover, you can contact the authorized dealer or buy from Furrion website.

Bienvenue

Furrion Innovation Center & Institute of Technology

SOURCE D'ALIMENTATION

PRÉCAUTIONS CONCERNANT LES PILES

SOURCE D'ALIMENTATION

Simple line drawing of a classical building with columns and pediment, enclosed in a circle (no text or symbols)

Simple line drawing of a four-legged table with a curved top and two legs, enclosed in a circle (no text or symbols)

PARTIELLEMENT ENSOLEILLÉ (Pergolas, terrasses partiellement couvertes)

Setup Wizard Menu Language English Air/Cable Air Cable System Auto Auto Scan Move Select MENU Exit

Setup Wizard (Assistant de configuration)

Picture Audio Time Setup Lock Channel Menu Language English Transparency Off Zoom Mode Wide Noise Reduction Middle Advanced Source Label Closed Caption DLC On Setup Wizard Move Next MENU Return

Picture Audio Time Setup Lock Channel HDMI CEC EDID Switch EDID 2.0 Restore Default Move Next MENU Return

Picture Audio Time Setup Lock Channel Picture Mode User Contrast 50 Brightness 100 Color 50 Tint 0 Sharpness 50 Color Temp Medium Backlight 100 Blue Screen Off Select Move MENU Exit

Picture Audio Time Setup Lock Channel Advanced Setting Move Next MENU Return

Menu Image

Picture Audio Time Setup Lock Channel Sound Mode Standard Bass 50 Treble 50 Balance 0 Surround Off AVC On SPDIF Type PCM MTS Stereo Audio Languages English Select Move MENU Exit

Picture Audio Time Setup Lock Channel Sound Mode Standard Bass 50 Treble 50 Balance 0 Surround Off AVC On SPDIF Type PCM Accessibility Select Move MENU Exit

Picture Audio Time Setup Lock Channel Voice Guide Video Description On Select Move MENU Exit

Picture Audio Time Setup Lock Channel Voice Guide Volume Speed Pitch On Middle Middle Middle Select Move MENU Exit

Picture Audio Time Setup Lock Channel Set Password System Lock Off US Canada RRT Setting Reset RRT Clear Lock Move Next MENU Return

Picture Audio Time Setup Lock Channel Enter New Password Confirm Password 0-9 MENU Return

Picture Audio Time Setup Lock Channel TV MPAA N/A Move Select MFMI Return

TV RATING All FV V S L D TV-Y TV-Y7 TV-G TV-PC TV-14 TV-MA Lock Press OK to Lock or Unlock Move Select MEM Return

Picture Audio Time Setup Lock Channel Canada English E Canada French E Move Select MENU Return

Picture Audio Time Setup Lock Channel Air/Cable Cable Auto Scan Favorite Show/Hide Channel No. 9-1 Channel Label KQED-HD DTV Signal Good Select Move MENU Exit

Picture Audio Time Setup Lock Channel Cable System Auto Start to Scan Move Next MENU Return

Picture Audio Time Setup Lock Channel Menu Language English Transparency Off Zoom Mode Wide Noise Reduction Middle Advanced SOURCE Label Closed Caption DLC On Setup Wizard Move Select MENU Return

Picture Audio Time Setup Lock Channel H-Pos 50 V-Pos 50 Clock 50 Phase 27 Auto Move Select MENU Return

Sous-menu avancé

C:\ /1 Return movie text music photo PVR .Theaster _IRETPVR

17.2 Return pop music old music others dream.mp3 eye on mo.mp3 host the world.mp3 hello.mp3

Pause Play Next Stop Repeat Music Playlist Info.

00:00:60 / 00:03:38 Play FB FF Prev Next Stop Rep.All Songlet

Dépannage

H PLUMBRO L W

MODÈLE, DIMENSION ET RÉSOLUTION

Modèle du téléviseur	Dimensions sans le support (L x H x I)	Résolution maximale
FDUP43CBR	39^3/4 po × 23^7/8 po × 3^3/4 po (1010 × 605 × 96 mm)	3840 x 2160@60 Hz UHD
FDUF43CBR
FDUP49CBR	44^11/16 po × 26^13/16 po × 3^7/8 po (1135 × 680 × 98 mm)
FDUF49CBR
FDUP55CBR	50^3/16 po × 29^3/4 po × 4^3/16 po (1274 × 756 × 105 mm)
FDUF55CBR
FDUP65CBR	59^1/16 po × 34^7/8 po × 3^7/8 po (1499 × 885 × 97 mm)
FDUF65CBR

CONNEXIONS D'ENTRÉE ET DE SORTIE

Modèle	L-AUDIO OUT-R	IR Ext	Coaxial Out	L-AUDIO IN-R	Component Video in	Component YP_bP_t Video in	HDMI in	VGA (PC) in	Audio (PC) in	RF in	USB
FDUP43CBR FDUP49CBR FDUP55CBR FDUP65CBR FDUF43CBR FDUF49CBR FDUF55CBR FDUF65CBR	111			1 x Gauche (Blanc) 1 x Droit (Rouge)	1 x Jaune/Vert*		31111
						1 x Bleu 1 x Rouge

Caractéristiques

16" 406.5 mm 7½" 200 mm 16½" 406.5 mm 8½/₁₆" 226.5 mm 7½" 200 mm 7½" 178.5 mm

FDUP43CBR, FDUF43CBR

187/16" 467.5 mm 77/8" 200 mm 187/16" 467.5 mm 67/16" 164 mm 153/4" 400 mm 49/16" 116 mm

FDUP49CBR, FDUF49CBR

MODÈLE DE MONTAGE VESA

FDUP55CBR, FDUF55CBR

215/8" 549.5 mm 153/4" 400 mm 215/8" 549.5 mm 115/16" 288 mm 153/4" 400 mm 73/4" 197 mm

FDUP65CBR, FDUF65CBR

MODÈLE DE MONTAGE VESA

Modelo N.o: FDUP43CBR, FDUP49CBR, FDUF55CBR, FDUP65CBR,

FDUF43CBR, FDUF49CBR, FDUP55CBR, FDUF65CBR

Furrion Innovation Center & Institute of Technology 52567

Independence Ct., Elkhart, IN 46514, USA

PRECAUCIONES CON LAS BATERÍAS

Simple line drawing of a classical building with columns inside a circle (no text or symbols)

PLENA SOMBRA (gazebos cubiertos, patios, porches)

Simple line drawing of a three-legged table with a curved top and four legs, enclosed in a circle (no text or symbols)

SOL PARCIAL (pérgolas, terrazas parcialmente cubiertas)

Setup Wizard Menu Language English Air/Cable Air Cable System Auto Auto Scan Move Select MENU Exit

Picture Audio Time Setup Lock Channel Picture Mode User Contrast 50 Brightness 100 Color 50 Tint 0 Sharpness 50 Color Temp Medium Backlight 100 Blue Screen Off Select Move MENU Exit

Picture Audio Time Setup Lock Channel Advanced Setting Move Next MENU Return

Menú de imagen

Picture Audio Time Setup Lock Channel Sound Mode Standard Bass 50 Treble 50 Balance 0 Surround Off AVC On SPDIF Type PCM MTS Stereo Audio Languages English Select Move MENU Exit

Picture Audio Time Setup Lock Channel Sound Mode Standard Bass 50 Treble 50 Balance 0 Surround Off AVC On SPDIF Type PCM Accessibility Select Move MENU Exit

Picture Audio Time Setup Lock Channel Voice Guide Video Description On Select Move MENU Exit

Picture Audio Time Setup Lock Channel Voice Guide Volume Speed Pitch On Middle Middle Middle Select Move MENU Exit

Menú de audio

Picture Audio Time Setup Lock Channel Set Password System Lock Off US Canada RRT Setting Reset RRT Clear Lock Move Next MENU Return

Picture Audio Time Setup Lock Channel Enter New Password Confirm Password 0-9 MENU Return

Picture Audio Time Setup Lock Channel TV MPAA N/A Move Select MFMI Return

TV RATING All FV V S L D TV-Y TV-Y7 TV-G TV-PC TV-14 TV-MA :Lock Press OK to Lock or Unlock Move Select MEM Return

Picture Audio Time Setup Lock Channel Canada English E Canada French E Move Select MENU Return

Ajuste del televisor

Picture Audio Time Setup Lock Channel Air/Cable Cable Auto Scan Favorite Show/Hide Channel No. 9-1 Channel Label KQED-HD DTV Signal Good Select Move MENU Exit

Picture Audio Time Setup Lock Channel Cable System Auto Start to Scan Move Next MENU Return

Menú de canales

Picture Audio Time Setup Lock Channel Menu Language English Transparency Off Zoom Mode Wide Noise Reduction Middle Advanced SOURCE Label Closed Caption DLC On Setup Wizard Move Select MENU Return

Picture Audio Time Setup Lock Channel H-Pos 50 V-Pos 50 Clock 50 Phase 27 Auto Move Select MENU Return

USB 2.0 Photo Music

C1 17.1 Return movie text music photo PVR .Theater _USTPVR

1/2 Return pop music aid music others dream.mp3 eye on me.mp3 heal the world.mp2 hello.mp3

Pause Play Next Stop Repeat Music Playlist Info.

00:00:50 / 00:03:38 Play FB FF Prev Next Stop Rep All Songlist

H PUNRIS00 L W

FDUP43CBR, FDUF43CBR

187/16" 467.5 mm 77/8" 200 mm 187/16" 467.5 mm 67/16" 164 mm 153/4" 400 mm 49/16" 116 mm

FDUP49CBR, FDUF49CBR

FDUP55CBR, FDUF55CBR

215/8" 549.5 mm 153/4" 400 mm 215/8" 549.5 mm 115/16" 288 mm 153/4" 400 mm 73/4" 197 mm

FDUP65CBR, FDUF65CBR

Furrion Innovation Center & Institute of Technology

• 52567 Independence Ct., Elkhart, IN 46514, USA • Toll free:1-888-354-5792

- Email: [e-mail]

©2007-2019 Furrion Ltd. Furrion® and the Furrion logo are trademarks licensed for use by Furrion Ltd. and registered in the U.S. and other countries.
