USER MANUAL FUDI55SSA Furrion

FULL-SUN PRO SERIES 4K UHD LED OUTDOOR SMART TV FOR COMMERCIAL & RESIDENTIAL SPACES - 55"/65"/75"

TÉLÉVISION INTELLIGENTE D'EXTÉRIEUR LED 4K UHD SÉRIE PRO DE FULL-SUN POUR LES ESPACES COMMERCIAUX ET RÉSIDENTIELS - 55 PO/65 PO/75 PO

MODEL/MODÈLE (LIPPERT PN)

FUDI55SSA (2024003602)

FUDI65SSA (2024003603)

FUDI75SSA (2024003604)

USER MANUAL/MANUEL D'UTILISATION

FURRION Full Sun Outdoor Smart TV 2500 NITS FURRION

Model Lippert No.
FUDI55SSA	2024003602
FUDI65SSA	2024003603
FUDI75SSA	2024003604

Thank you and congratulations for purchasing this Furrion product. Before operating the new product, please read these instructions carefully. This user manual contains information for safe use, installation and maintenance of the product.

Please keep this user manual in a safe place for future reference. Be sure to pass on this manual to new owners of this product.

The manufacturer does not accept responsibility for any damages due to not observing these instructions.

Supplier's Declaration of Conformity

47 CFR § 2.1077 Compliance Information Unique Identifier

Trade Name: Furrion

Model No.: FUDI55SSA; FUDI65SSA; FUDI75SSA

Responsible Party – U.S. Contact Information

Furrion Innovation Center & Institute of Technology 52567 Independence Ct., Elkhart, IN 46514, USA

Toll free:[phone]; Email: [e-mail]

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CONTENTS

CONTENTS....2

IMPORTANT SAFETY INSTRUCTIONS....3

Safety Precautions....10

PRODUCT OVERVIEW 12

WebOS Voice Remote Control....13

WHAT'S IN THE BOX 15

CONNECTIONS 15

INSTALLATION....17

GETTING STARTED WITH WEBOS TV 22

Initial Setup....22

Watching TV Broadcasting....22

Connecting to the Network....23

Using the Home Feature of the WebOS TV 25

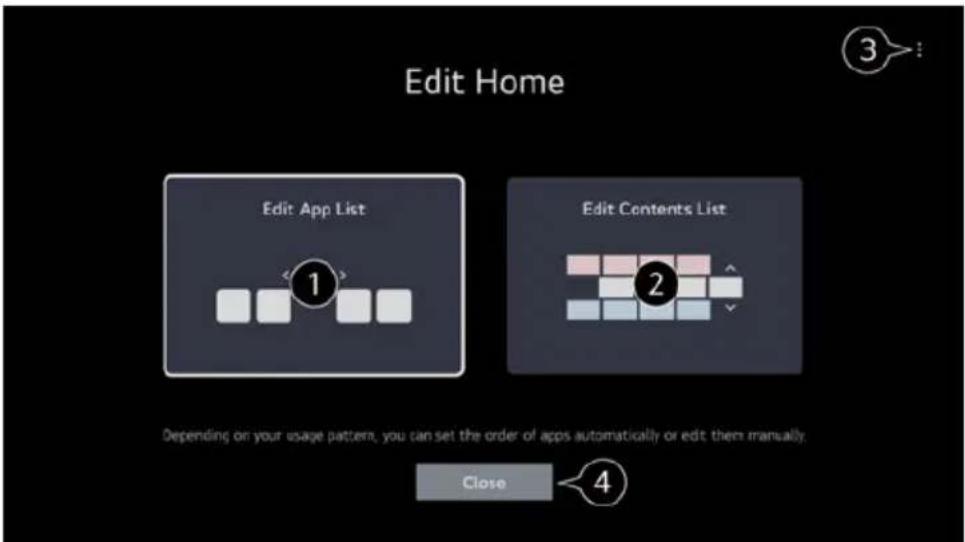

Manage WebOS TV Home....26

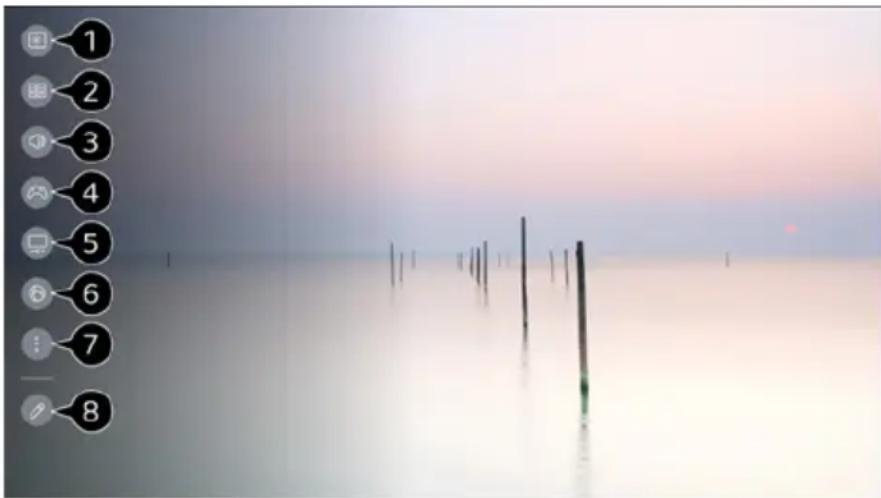

SETTINGS....27

TROUBLESHOOTING 28

SPECIFICATIONS....29

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This ‘bolt of lightning’ indicates uninsulated material within the unit which may cause an electric shock. For the safety of everyone in the household, please do remove product covering.

The ‘exclamation mark’ calls attention to features within the enclosed literature to prevent operating and maintenance problems.

WARNING: To reduce the risk of fire or electric shock, this product should not be submerged in liquid or placed within 6 feet of bodies of water or objects filled with liquids (such as pools, spas, or bath tubs).

CAUTION: To prevent electric shock, fully insert the plug. For regions with polarized plugs: Please match wide blade to wide slot.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with a dry microfiber towel, or clean with a glass cleaning solution by applying to a towel. DO NOT apply cleaning solution directly on the display.
6. If the TV is to be mounted near a fireplace, allow two feet of space or clearance between the TV and fireplace.
7. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for safety. When the provided plug does not fit into the outlet, consult an electrician for replacement of the obsolete outlet. This product must be grounded. Connect only to properly grounded power outlets.
8. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the point where they exit from the product. Make sure that the plug and power cable are not damaged before plugging them in.

1. Only use attachments/accessories specified by the manufacturer.

2. If a surge protector is not in use, unplug this product during a lightning storm or when the product has not been used for long periods of time.

1. Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as if the power-supply cord or plug is damaged, liquid or objects have entered into the product, or when the product does not operate normally, or has been dropped.

2. An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to eliminate touching power lines or circuits as contact might be fatal.

1. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

1. Never push objects of any kind into this product through openings as they may touch short-out parts or dangerous voltage points that could result in a fire or electric shock.

2. If an outside antenna is connected to the television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit,

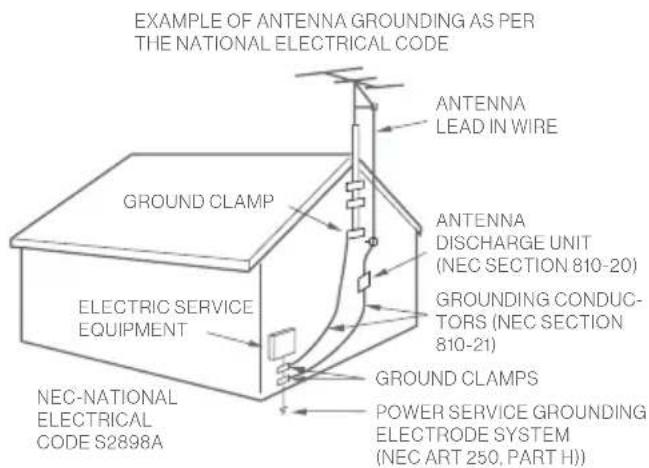

EXAMPLE OF ANTENNA GROUNDING AS PER THE NATIONAL ELECTRICAL CODE GROUND CLAMP ELECTRIC SERVICE EQUIPMENT NEC-NATIONAL ELECTRICAL CODE S2898A ANTENNA LEAD IN WIRE ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDING CONDU- TORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrodes.

1. NOTE TO CABLE/TV INSTALLER: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular,

specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

1. When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

2. Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition.

3. When the product is connected to other equipment, turn off the power and unplug from the wall outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner's manual of the other equipment carefully and follow the instructions when making any connections.

4. Sudden high volume may cause hearing or speaker damage. When headphones are used (if the unit is equipped with a headphone jack), keep the volume at a moderate level. The use of headphones continuously with high volume, may cause hearing damage.

5. Do not allow the product to output distorted sound for extended periods of time. This may cause speaker overheating and fire. If the device is not functioning normally (unusual noises or smells), unplug it immediately and contact customer

service.

1. The socket-outlet must be installed near the unit and easily accessible.

2. The main plug is used as the disconnect and shall remain readily operable.

3. Batteries (battery pack or installed batteries) should not be exposed to excessive heat such as direct sunlight, fire or other heat sources.

4. Class I product: This symbol indicates that it requires a safety connection of protective earthing (ground). A warning that a product with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connection.

5. Do not open the television and do not attempt to make any modifications to the product.

1. Do not cover the front of the television with an additional glass plate. A Furrion Outdoor Television cover is recommended.

WARNING: Never let people (including children) with reduced physical, sensory, or mental capabilities or lack of experience and /or knowledge use electrical devices

unsupervised.

WARNING: Never place a television set in unstable or inclined locations. A television set may fall, causing serious personal injury or death. Many injuries particularly to children can be avoided by taking simple precautions such, educating children about the dangers of climbing on furniture to reach the television.

WARNING: Batteries must not be exposed to excessive heat such as sunshine, fire or the like. DO NOT dispose of the batteries in fire or with hazardous or flammable materials.

WARNING: In any case a battery is swallowed or placed inside any part of the body, seek immediate medical attention.

WARNING: This is not a recessed installable TV, do not insert TV into the wall without proper ventilation.

WARNING: To avoid danger of suffocation, keep plastic bags out of the reach of the babies, children and domestic animals.

How to Handle the LED TV

• Do not press hard or jolt the LED TV. It may cause the LED TV glass to break and injury may occur.
• If the LED TV is broken, make absolutely sure to not touch the liquid in the panel. This may cause skin inflammation.
• If the liquid gets in the mouth, immediately rinse and consult with a doctor. Also, if the liquid gets in eyes or touches skin, consult a doctor after rinsing for at least 15 minutes in clean water.

Possible Adverse Effects on LED TV: If a fixed (non-moving) pattern remains on the LED TV for long periods of time, the image can become permanently engrained and cause subtle but permanent ghost images. This type of damage is NOT COVERED BY THE WARRANTY. Never leave the LED TV on for long periods of time while it is displaying the following formats or images:

• Fixed images, such as stock tickers, video game patterns, TV station logos and websites.
• Special formats that do not use the entire screen. For example, viewing letterbox style (16:9) media on a normal (4:3) display (black bars at top and bottom of screen); or viewing normal style (4:3) media on a wide screen (16:9) display (black bars on left and right sides of screen).

The following symptoms are not signs of malfunction but technical limitation. Therefore we disclaim any responsibility for these symptoms.

• LED TVs are manufactured using an extremely high level of precision technology, however sometimes parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction.
• Do not install the LED panel near electronic equipment that produces electromagnetic waves. Some equipment placed too close to the LED TV may cause interference.

- Effect on infrared devices – there may be interference while using infrared devices such as infrared cordless headphones.

Power source: This LED TV is designed to operate on 110V/60Hz AC power sources. If other power sources are used, consult the dealer first, before connecting it to the power outlet.

To prevent electric shock, do not use the LED TV's (polarized) plug with an extension cord, receptacle, or other outlet unless the blades and ground terminal can be fully inserted to prevent blade exposure.

WARNING: To reduce the risk of fire or electric shock, this product should not be submerged in liquid or placed within 6 feet of bodies of water or objects filled with liquids (such as pools, spas, or bath tubs).

Caution: Never remove the back cover of the LED TV as this can expose very high voltages and other hazards. If the TV does not operate properly, unplug the LED TV and call an authorized dealer or service center.

Adjust only those controls that are covered in the instructions, as improper changes or modifications not expressly approved by Furrion could void the user's warranty.

Internet security caution: It is strongly recommended for security purposes to connect the TV to the Internet via a router/modem that includes router functionality. Direct connection of the TV to the Internet may expose the TV to a security threat such as extraction or tampering of content or personal information.

Wireless Function of the unit (For TV with wireless function only)

• Do not operate this unit near medical equipment (pacemaker, etc.), as this may result in the malfunction of the medical equipment.
• Although this unit transmits/receives scrambled signals, be careful of unauthorized interception. We cannot be responsible for any trouble as a result.

COMPLIANCE

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment under FCC Rules.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

FCC Radio Frequency Interference Requirements (for UNII devices)

High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device. This device cannot be co-located with any other transmitter.

FCC RF Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the radiator and the body. Users must follow the specific operating instructions for satisfying RF exposure compliance.

Industry Canada Statement

This device complies with Industry Canada's applicable license-exempt RSSs. Operation is subject to the following two conditions:

(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

IC Radiation Exposure Statement (for Canada)

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the antenna & the body.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

Usage of 5GHz bands in Canada:

• Operation in the band 5150–5250 MHz is only for indoor use. To reduce the potential for harmful interference to co-channel mobile satellite systems ensure an access point /router has been properly configured.
• For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit;
• For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits specified for point-to-point and non-point-to-point operation as appropriate; and
• The worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation mask requirement set forth in Section 6.2.2(3) shall be clearly indicated. (devices operating in the band 5250-5350 MHz with a maximum e.i.r.p. greater than 200 mW)
• High-power radars are allocated as primary users (i.e. priority users) of the bands 5250–5350 MHz and 5650–5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.

Safety Precautions

A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• ALWAYS use mounting methods recommended by the manufacturer of the television set.
• ALWAYS ensure the television set is not overhanging the edge of the supporting furniture.
• ALWAYS educate children about the dangers of climbing on furniture to reach the television set.
• ALWAYS route cords and cables connected to the television so they cannot be tripped over, pulled or grabbed.
• ALWAYS before cleaning, disconnect the television set. Use only a soft damp cloth or a special cleaning product for flat-screens.
• ALWAYS set the television in a well ventilated area to prevent overheating.
• ALWAYS take care to avoid crushing fingers or other objects when turning the television set in any direction.
• ALWAYS use the television set only with the voltage indicated in the specifications.
• ALWAYS ensure that there is easy access to the plug and that the television set can always be disconnected from the electricity supply.
• ALWAYS hold the television by the casing when moving to another location.
• NEVER place a television set in an unstable location.
• NEVER place the television set on cloth or other materials that may be located between the television set and supporting furniture.
• NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the television or furniture on which the television is placed.
• NEVER allow small objects or liquids to enter the television set. They can cause damage or even fire.
• NEVER place anything holding a liquid or any candles on the television set.
• NEVER put too much pressure on the screen as it can damage the televisionset.
• NEVER expose the television set to high temperatures (radiators, open fire).
• NEVER use the television in areas exceeding 90% humidity.
• NEVER disconnect the television set by pulling the power cable. Always take hold of the plug. The power cable must not be kinked or placed over sharp edges.

NOTE: Repairs and servicing must be undertaken only by authorized and trained personnel.

NOTE: In accordance with the batteries Regulation, batteries are to be disposed of only in containers provided for this purpose.

NOTE: If the existing television set is going to be retained and relocated, the same considerations as above should be applied.

The unit emits heat when in operation. Do not place any covers or blankets on the

unit, this may cause overheating. Do not block ventilation holes, or set up near radiators. When placing on a shelf, leave 4 inches (10 cm) free space around the entire unit.

Pure geometric diagram with intersecting lines and arrows, no text or symbols present

4 inches

Notes when mounting the LED TV on the wall

If the unit is to be mounted on the wall, contact the dealer where the TV was purchased for advice, and have the equipment professionally installed. Incomplete or improper installation may cause injury and/or damage to the LED TV.

WARNING:

• This TV can be mounted on the wall vertically. When mounting vertically, do not use tilting wall mounts.
• When mounting horizontally, a fixed wall mount is recommended.

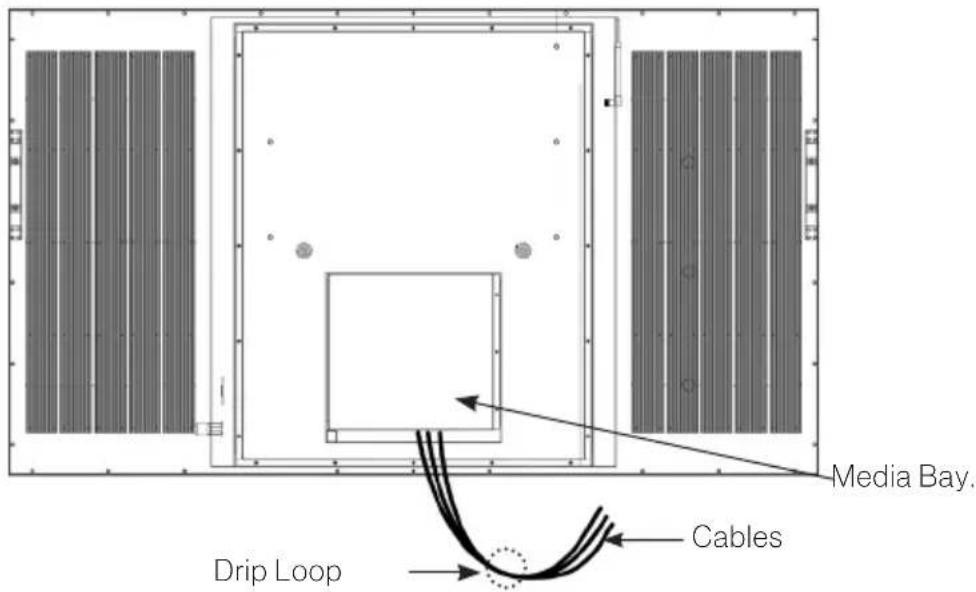

Media Bay

Exterior view of a modern office building (no signage)

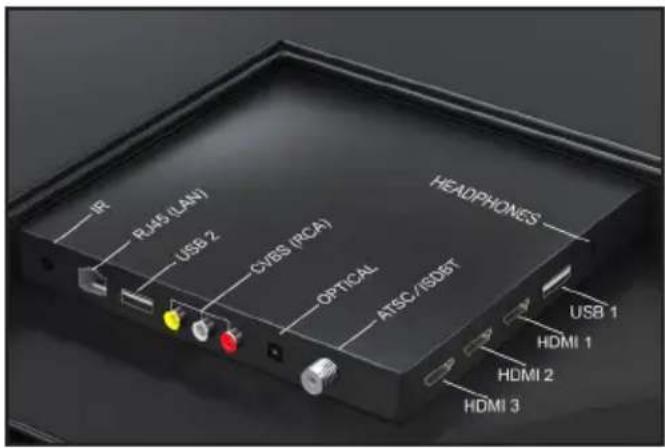

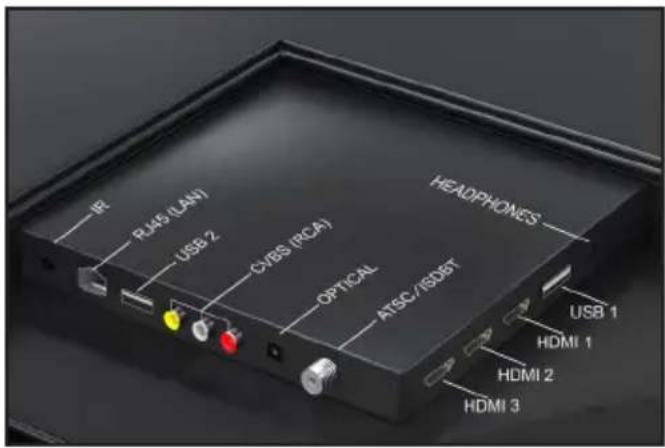

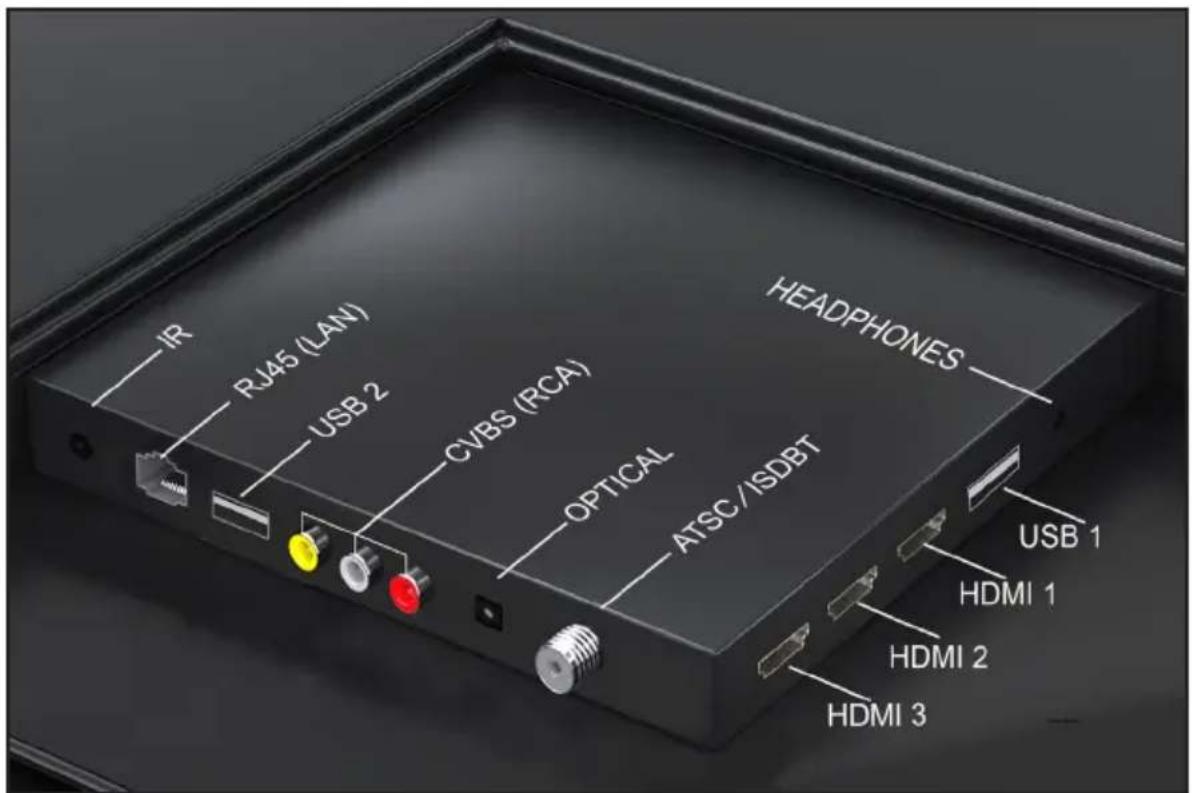

IR PL45 (LAN) USB 2 CYBS (PCA) OPTICAL ATSC/ISDBT HEADPHONES USB 1 HDMI 1 HDMI 2 HDMI 3

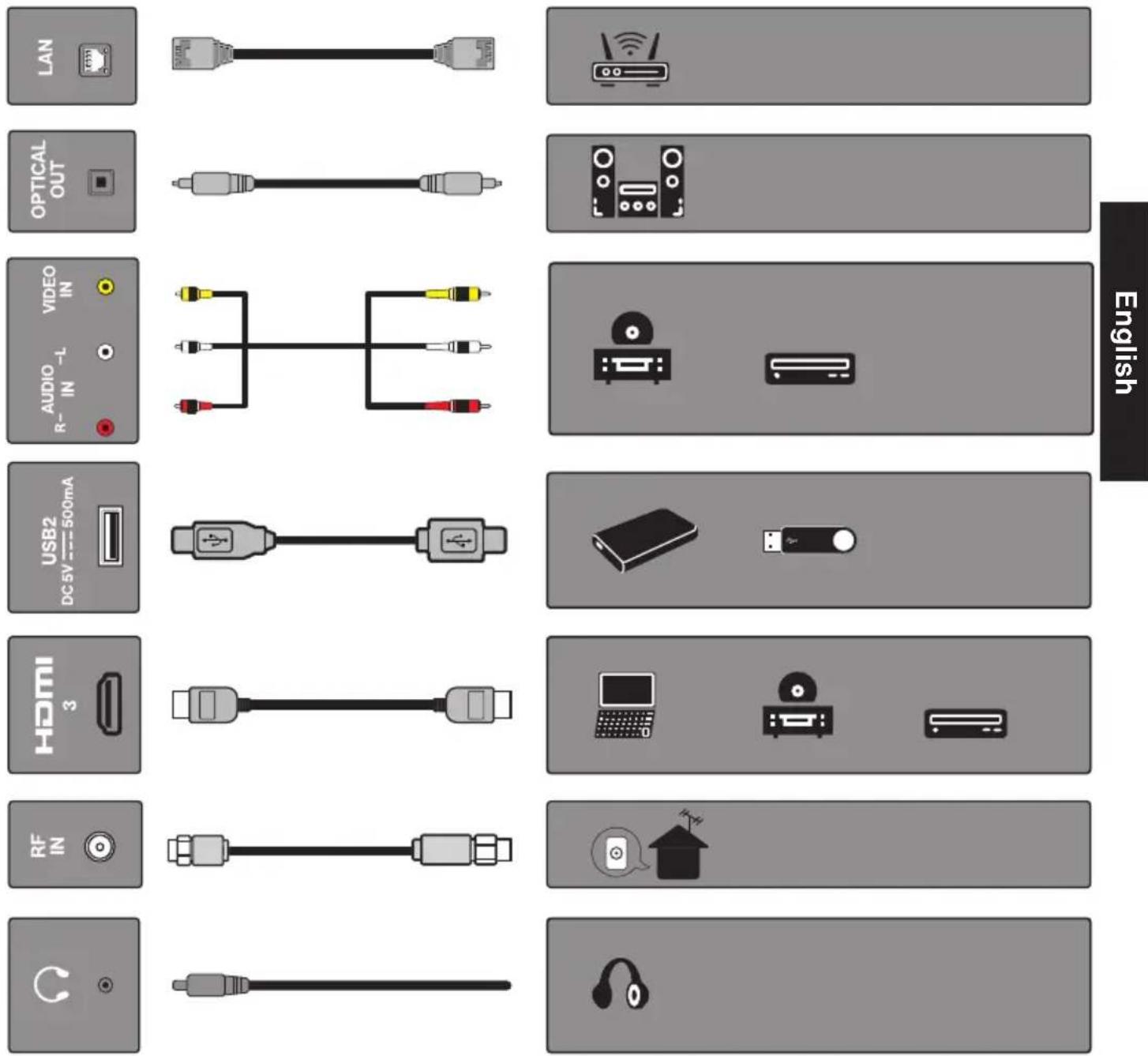

No. I/O port Description
1		Connect a stereo headphone for private listening.
2	HDMI 1	Connect to theHDMI OUTport of a DVD Player, Games Console, Cable Box or other HDMI device.ARC (Audio Return Channel)When connected with a HDMI 1.4 cable to an ARC compatible audio system, the TV links with the device to give extra audio functionality.
3	HDMI 2 ARC
6	HDMI 3
4	USB1	Connect to portable USB device such as USB flash/hard drive.
7	USB 2
5	RF IN	Connect to external modem or network access equipment.
8	AUDIO IN(R-L)	Connect to theCOMPOSITE VIDEO/AUDIO OUTports of a DVD Player, Cable Box or other compatible devices.
9	VIDEO IN
10	OPTICAL OUT	Connect to an AV Receiver for high quality digital audio.
11	LAN	Connect to external modem or network access equipment.

"The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries." OR "The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc."

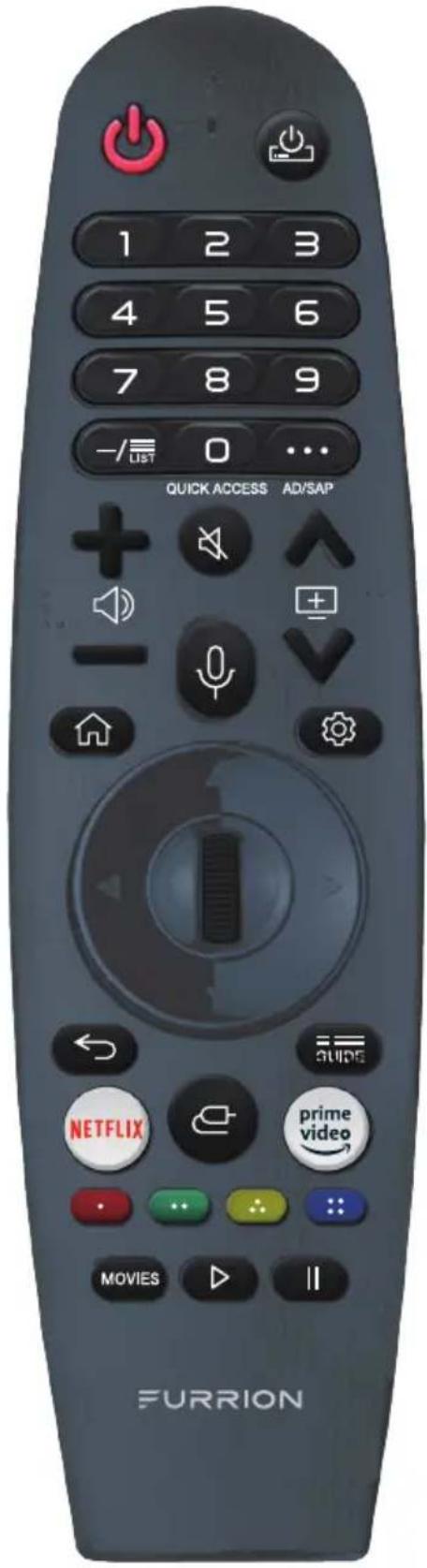

WebOS Voice Remote Control

1 2 3 4 5 6 7 8 9 -/LIST 0 ... QUICK ACCESS AD/SAP NETFLIX prime video MOVIES FURRION

NOTE: Long press means pressing the button for more than one second.

Button Function
	Turn on/off the TV.
	Turn on/off the power of the set-top box.
0-9	Number selection key. Long press 'O' key to display the QUICK ACCESS edit screen.
-/|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
...	Short press to display the additional buttons on the remote control. Long press to configure AD/SAP as shown under the button.
	Adjust the volume level.
	Short press to turn off the TV sound. Long press to enter the Accessibility menu.
	Change the channel.
	Press and hold the button while speaking to use the voice recognition function.
	Short press to display the Home menu. Long press to display the list used previously.
	Short press to enter the Quick Settings menu. Long press to enter the All Settings menu.
	Navigate the on-screen menus.
WHEEL (OK)	Select current option thats highlighted.
	Short press to move to the previous step. Long press and hold to close the menu.
	Check the program guide.
NETFLIX	Go to Netflix.
	Select an input source. Long press to enter into the Home Dashboard.
	Go to prime video.
	Launch Record.
MOVIES	Search movies.
	Start the playback.
	Pause the playback.

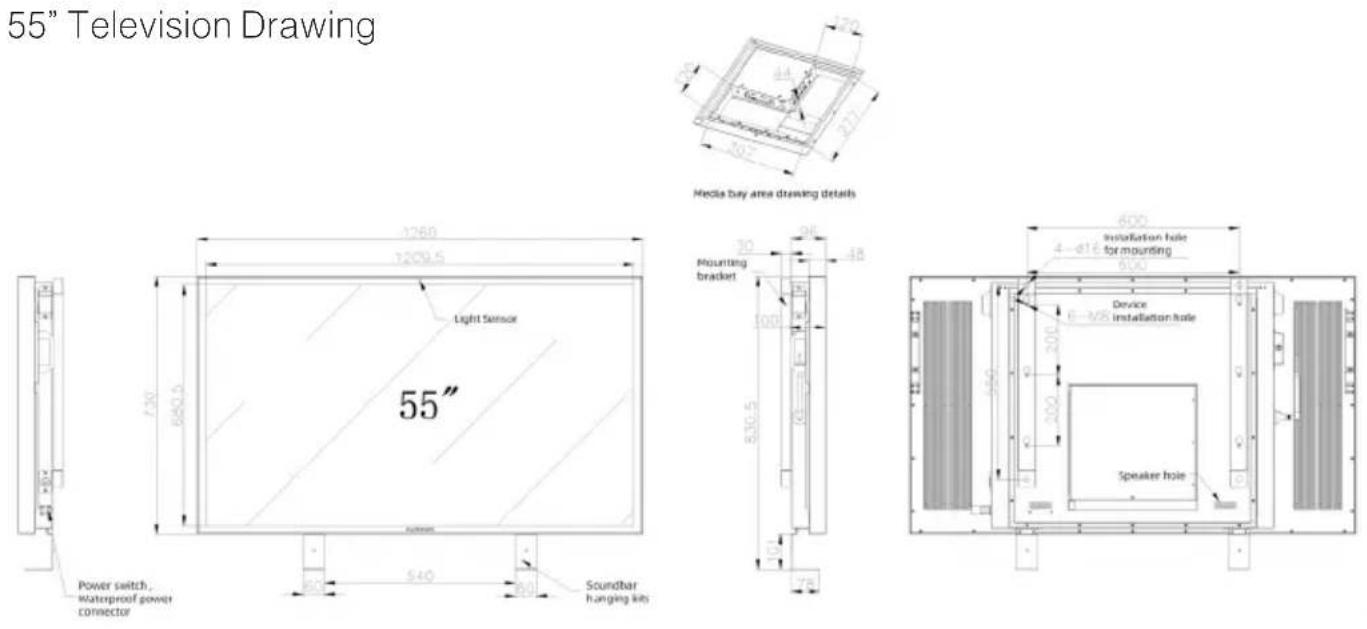

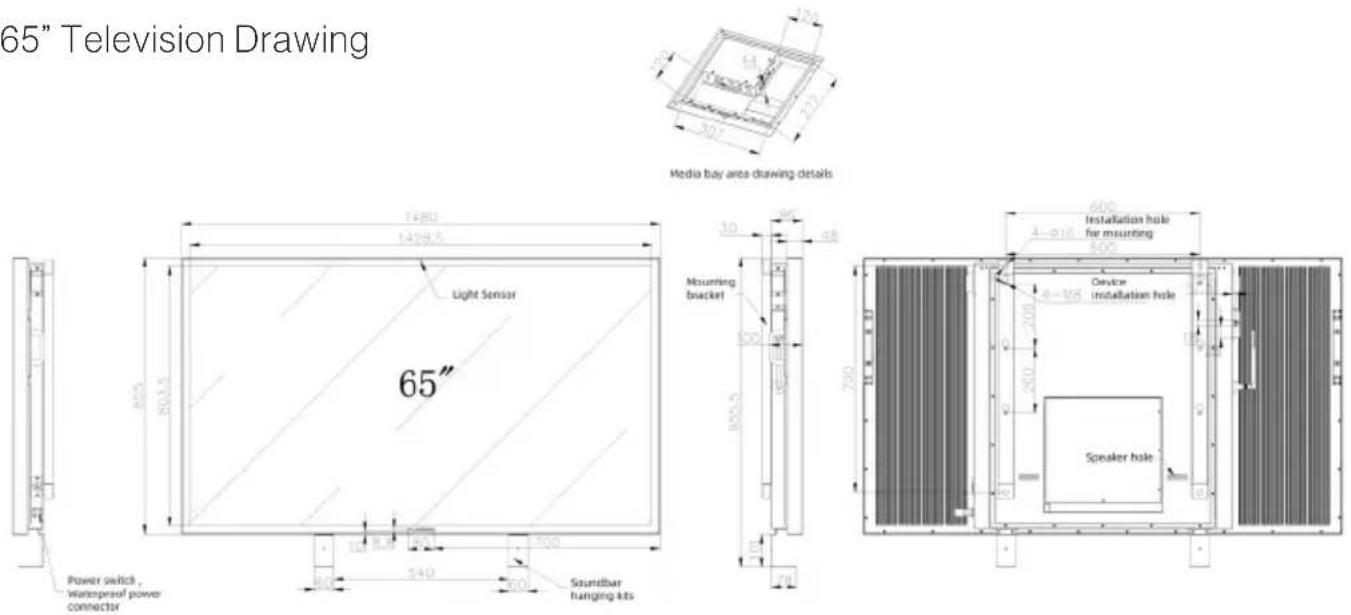

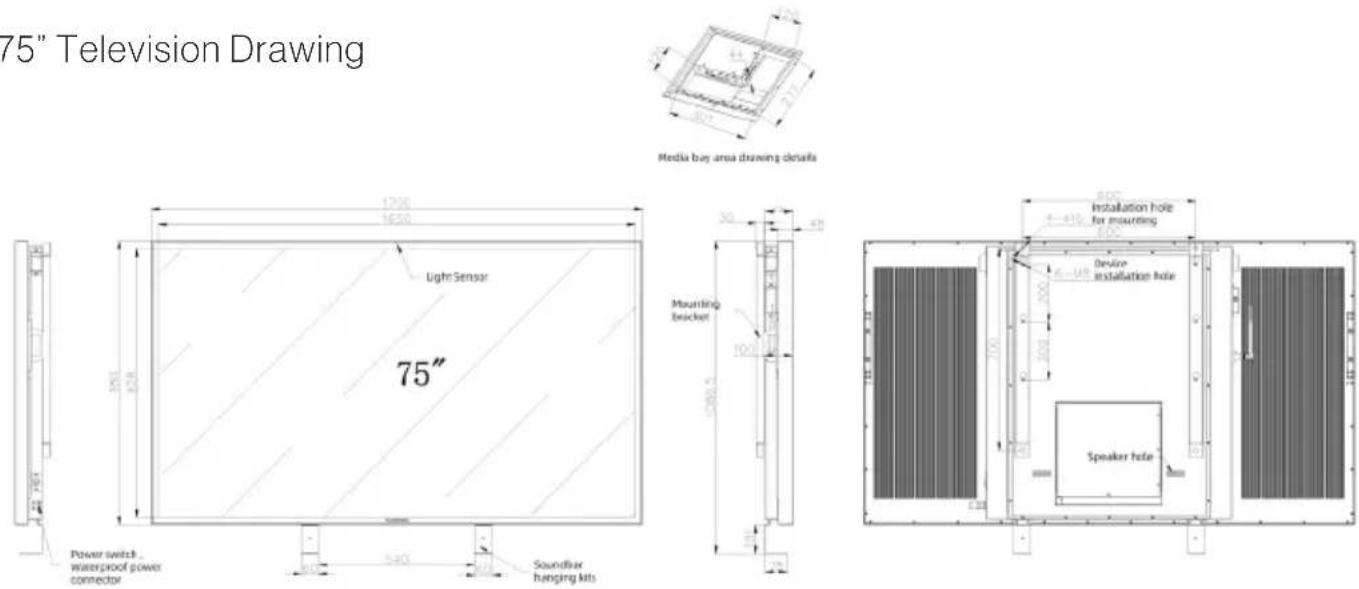

Dimension Drawings

WHAT'S IN THE BOX

Thanks for purchasing this Furrion Aurora® TV. This manual will help to set up and begin using the TV. First, check the contents of the box with the parts checklist below:

• TV (x1)
- WebOS voice Remote Control (x1)
- AA Battery (x2)
- Wall Mount
- Power Cable
• Soundbar Brackets
- Printed Materials
- Replacement Straps for Box

• External Wi-Fi Antenna
- Wall Mount TV Screws (x6): M8*10mm
• Wall Fixing Bolts (x4): M10*70mm
- Soundbar Bracket Screws (x4): M4*10mm
• Media Bay Screws: (x4): M6*20mm
- Silicone Sleeve

Now get started!

CONNECTIONS

The Furrion Aurora® TV offers multiple connection options. Choose one or more of the connections below to operate. Please consult the manual of DVD player, Games Console or other devices to ensure proper connection and use.

WARNING: Do not connect the power source before making connections. Open the media bay to connect the cables.

NOTE: All external devices and cables shown in the diagram are for reference only and not included in the package.

IR RJ45 (LAN) USB 2 CVBS (RCA) OPTICAL ATSC/ISDBT HEADPHONES USB 1 HDMI 1 HDMI 2 HDMI 3

Connect to External Devices

Media Bay. Drip Loop Cables

• After all connections are completed, lead all connecting cables downwards through the duct at the bottom of the media bay.
  Leave a drip loop when cables enter the compartment. This will prevent water from dripping down the cord and possibly entering the media bay area.
• Close the media bay and tighten the hex lock to avoid moisture from entering the media bay and coming into contact with the connection points.

INSTALLATION

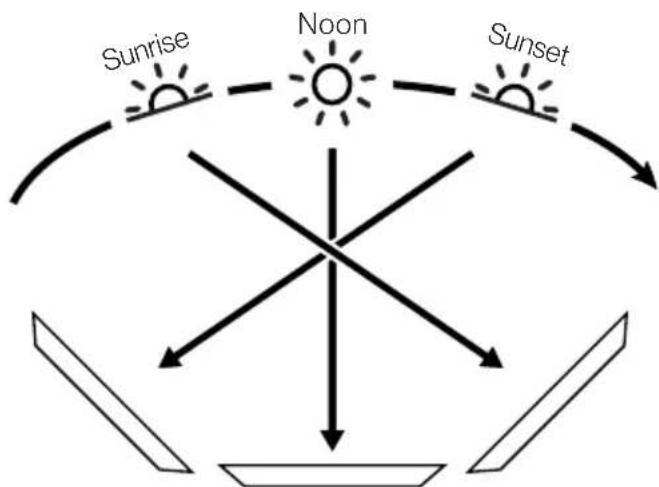

• The LED TV is designed to be installed/mounted in areas with direct sunlight. Before mounting please consider the following:
• Keeping in mind the position of the sun may differ at different times of the year.
  ● The time of day that the TV would be watch most
• Observe the movement of the sun at different times of the day to find an optimal location to mount the LED TV.
• A Furrion Outdoor TV Cover is recommended to prolong the life of the television.

- The TV is designed for residential and commercial use and tested to operate between -24°F to 140°F (-31°C to 60°C) operationtemperature.

NOTE: Connect all cables prior to mounting the TV on the wall or TV mount. The media bay on the rear panel will be obstructed once the TV is mounted.

• Follow the installation guide supplied with the Wall-Mount Bracket when installing the TV.
• Choose an appropriate location and refer to the VESA pattern for mounting.
• It is recommended to contact a professional for installation and use at least two people to move or install the TV.
  • Fix the mounting brackets to the back of the TV.
  • Fix the mounting bracket to the wall.

Installation Guide For Wall and Soundbar Mounting Brackets

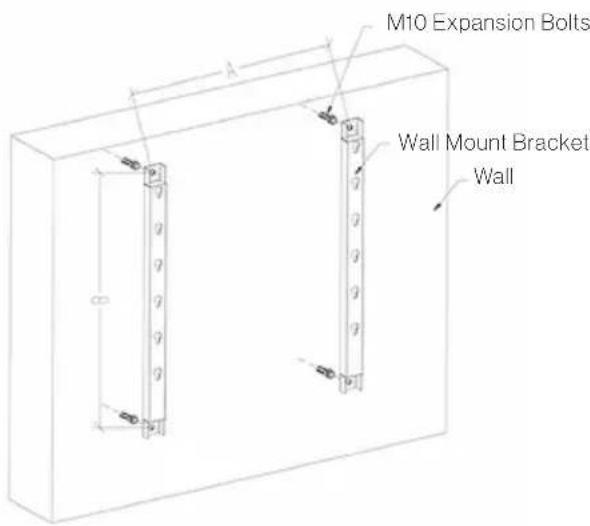

1. Drilling holes in the wall according to the corresponding size, and fix the wall bracket with M10 expansion bolts.

VESA MOUNTING PATTERN
Model Width (mm)	Height (mm) Screw	Size Screw Quantity
55" TV (2500 nits) 4	00 200		M6 * 15 mm 4
65" TV (2500 nits) 6	00 400
75" TV (2500 nits) 6	00 400 M8 * 15mm 4

M10 Expansion Bolts Wall Mount Bracket Wall

Wall Mount Bracket Installation Diagram

1. Install the soundbar brackets (this step can be skipped if there is no soundbar).

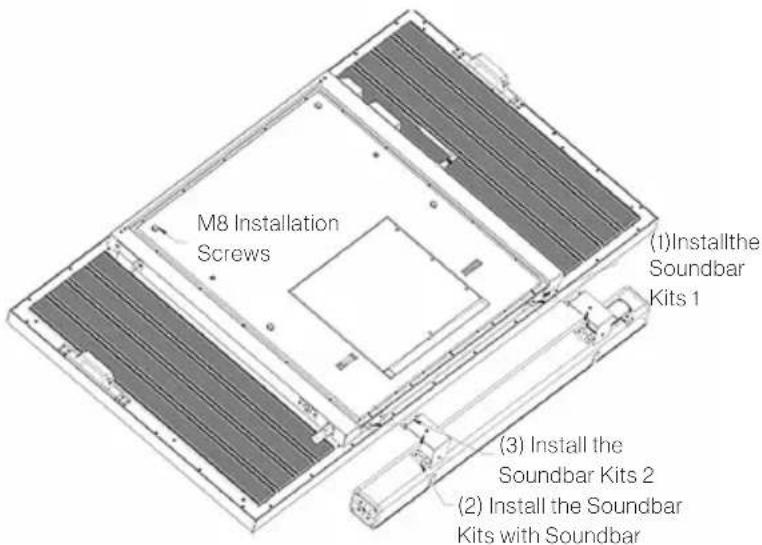

M8 Installation Screws (1) Install the Soundbar Kits 1 (3) Install the Soundbar Kits 2 (2) Install the Soundbar Kits with Soundbar

Soundbar Brackets Installation Diagram

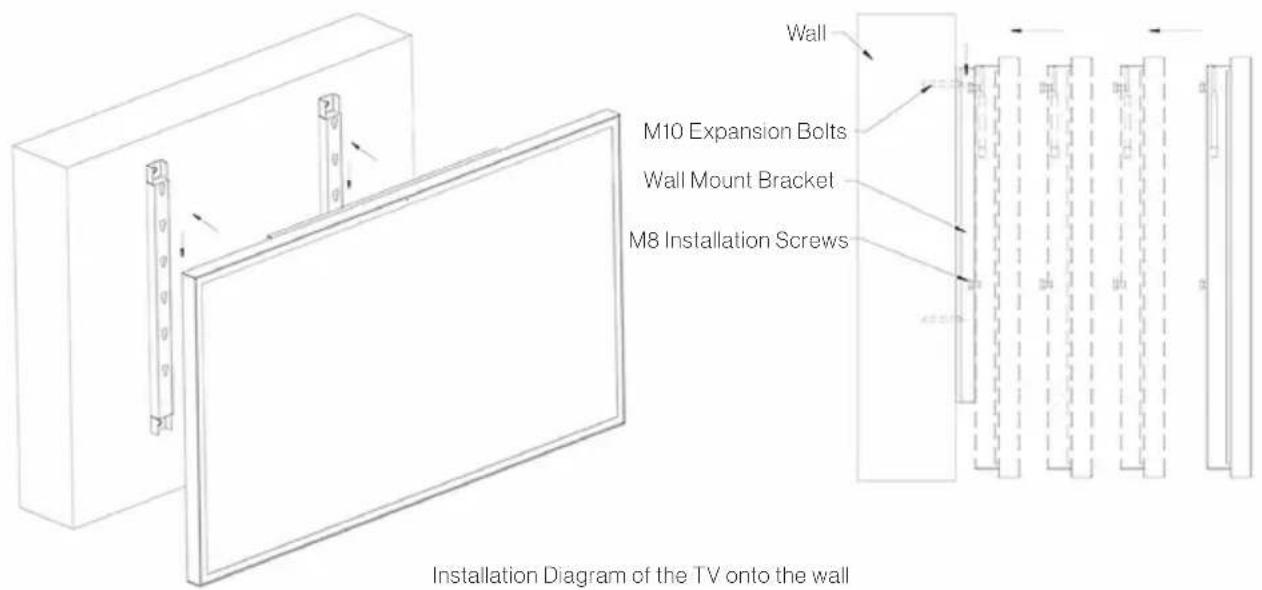

1. Install the TV onto the fixed wall mount bracket.

Wall M10 Expansion Bolts Wall Mount Bracket M8 Installation Screws Installation Diagram of the TV onto the wall

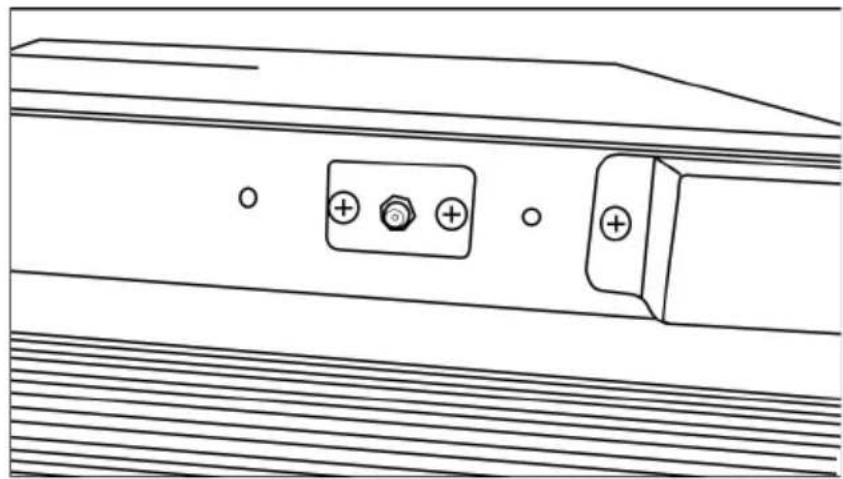

Installation Guide for Wifi External Antenna

- The television is equipped with an external wifi antenna for a wider range of bandwidth. You will find the antenna inside of the packaging materials.

Line drawing of a device panel with three buttons and two circular indicators (no text or symbols)

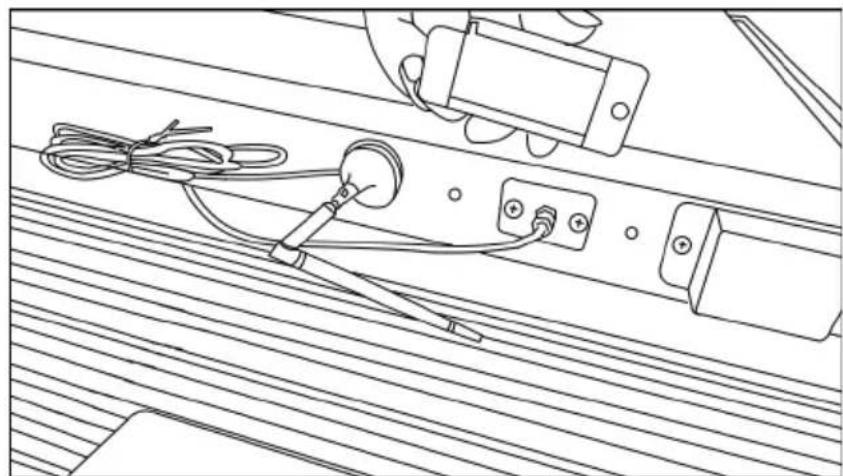

- To connect the antenna, locate the wifi cover on the back of the television. With a phillips head screwdriver, remove the two placement screws. Remove the cover.

Line drawing of a hand holding a handheld device connected to wires on a wooden surface (no text or symbols)

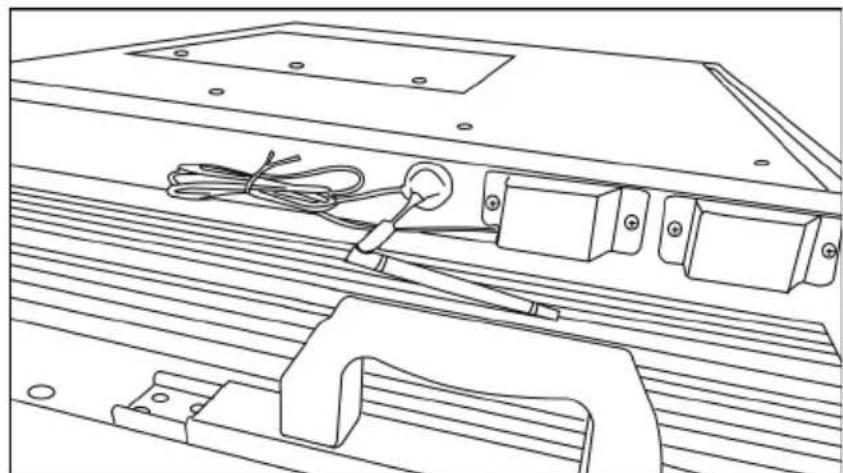

- Feed the wifi cable through the hole in the wifi cover and connect the end of the cable to the port. Then, attach the cover to the television using the two placement screws.

Technical line drawing of a mechanical assembly with wires and components (no text or symbols)

Connect Power

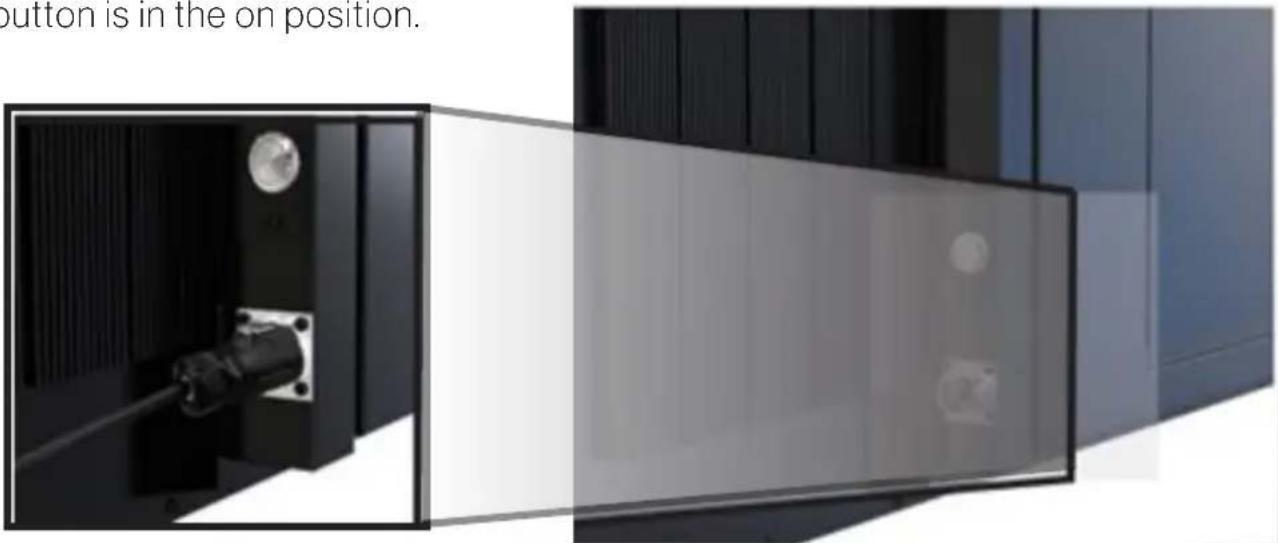

Connect the power cord to a GFCI protected AC outlet with an "in-use" waterproof cover.

CAUTION: Do not connect power cord during cable connecting and TV installation. Once power cord is connected to the GFCI protected AC outlet, make sure the power button is in the on position.

button is in the on position.

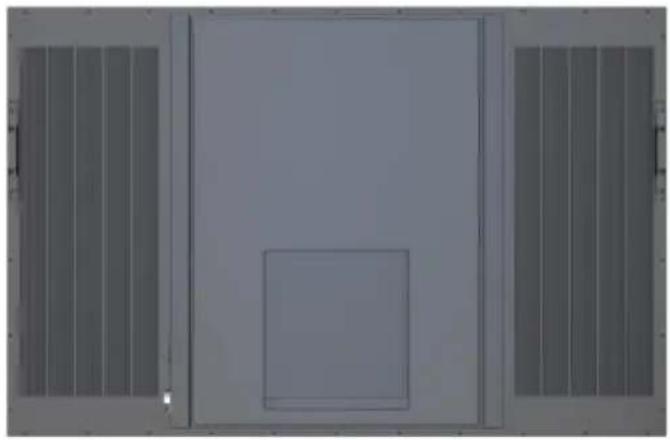

WARNING: TV and GFCI receptacle must be installed a safe distance away from any water source. Be sure to check local electrical codes and comply with their local standards.

Install WebOS Voice Remote Control Battery

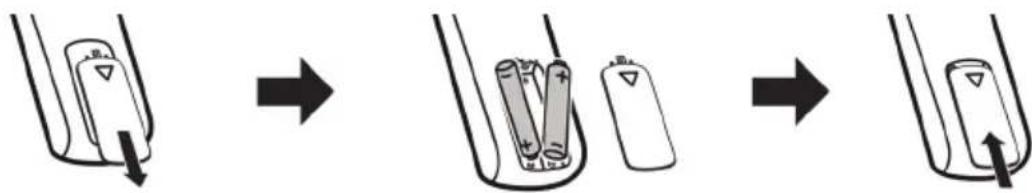

1. The remote control is powered by two (2) AA batteries.
2. Press the top of the battery cover and push back to open.
3. Install the two 1.5V AA batteries in the battery compartment properly.
4. Replace the cover.

NOTE: Protect the remote with the provided silicone sleeve from damage or malfunction due to accidental spillage of liquids. Do not immerse the remote control in water, or expose it to rain to prevent damage or malfunction.

NOTE: Improper use of batteries can result in a chemical leakage or explosion.

• Use only the size and type of battery specified.
• Danger of explosion if batteries are incorrectly replaced.

- If the device is not to be used for a long period of time, remove the battery to prevent damage or injury from possible battery leakage.

- The batteries should not be exposed to excessive heat.

Diagram illustrating battery charging process with three stages: initial discharge, intermediate charge storage, and final discharge.

GETTING STARTED WITH WEBOS TV

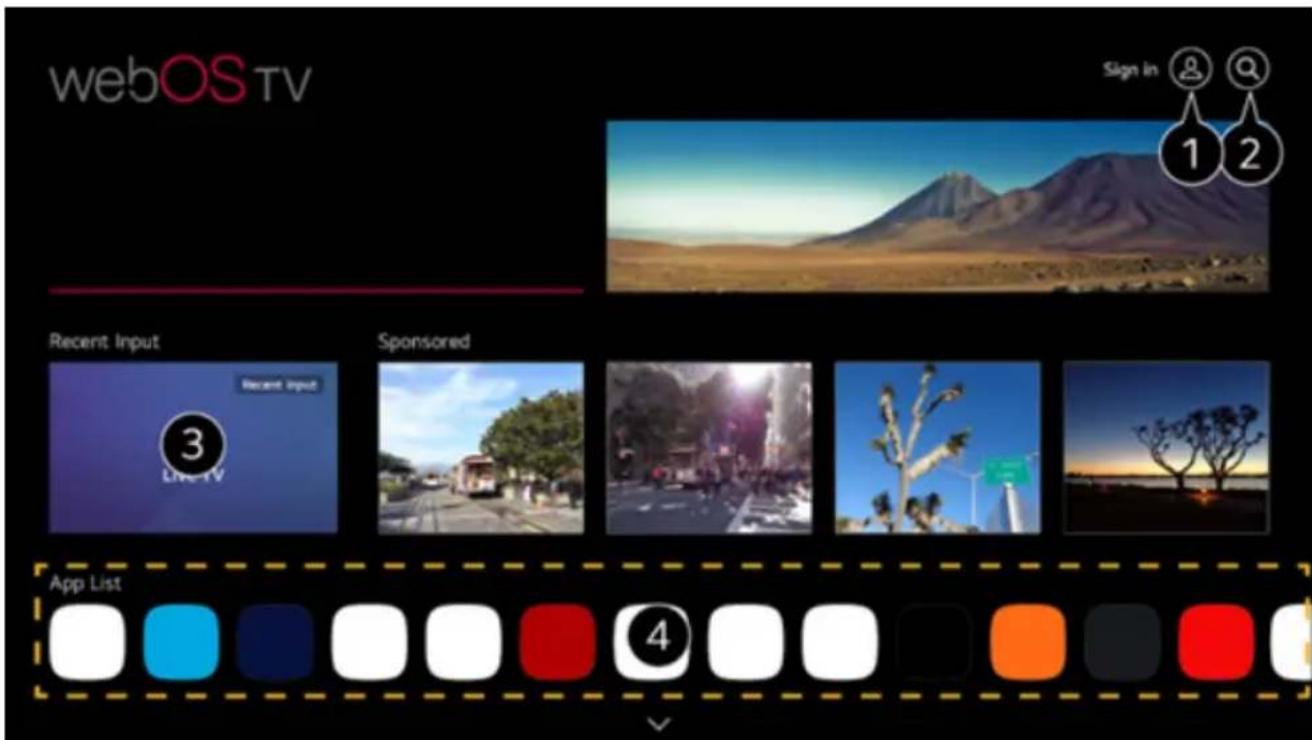

webOS TV Sign in 1 2 Recent Input Sponsored 3 Live-TV App List

Initial Setup

Press the button on the remote control to turn on the TV. Follow the on-screen instructions to finish the initial setup.

Watching TV Broadcasting

The TV must be connected to an antenna/cable or a set-top box that can receive broadcasting to watch any channels, apps or streaming services.

Prepare Live TV

Follow the steps below to finish an antenna/cable connection if the TV is not connected to a broadcast antenna.

1. Connect the broadcast antenna/cable to the TV. Also, connect a piece of equipment that can receive broadcasting such as a set-top box instead of the antenna/cable.
2. Launch / Connection / Device Connection Settings / Universal Control Settings.
3. Start the ⚙ / ⣃ / Channels Channel / Tuning / Auto Tuning. Finds and adds only channels being broadcast.

Enjoy Live TV

Press the button on the remote control. Use the buttons to move to the desired channel then press button to select the channel.

Misty coastal scene at dusk with illuminated wooden poles and a pink sky (no text or symbols)

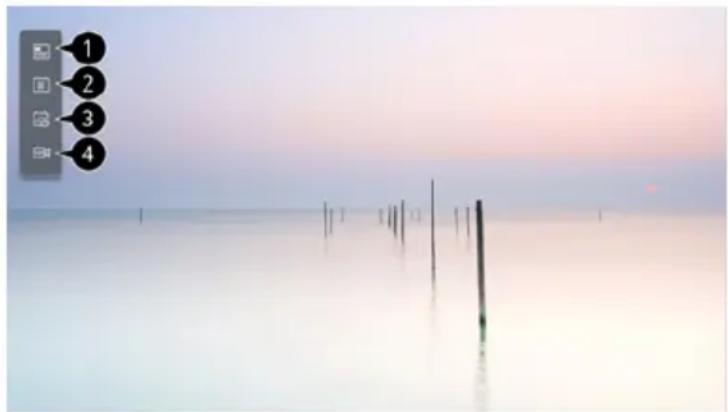

1 Channels: View a list of broadcast content that is currently being broadcast.
2 Guide: Allows viewing programs and the schedule of each program.
3 TV Scheduler: Set the date and time of the desired broadcasting program, and watch the program.

NOTES:

• The channels displayed in Channel List are a configuration of channels provided by the broadcast service provider. If the broadcast service provider has changed its channel configuration without notice, the channels displayed in Channel List may differ from the actual TV channels.
• Settings of the network, region, and auto-channel must be completed to receive normal live broadcast service.

Using Set-Top Box Remote Control or Universal Remote Control

To use a universal remote control, or set-top box connected to the TV, program the universal remote control or the set-top box remote control to control the Furrion TV.

• Refer to the user manual of the set-top box remote control or that of the universal remote control on how to change the settings to control the Furrion TV.
• Furrion branded TV is compatible with LG codes.

Connecting to the Network

Configuring settings for the network, allows for the use of various services such as online contents and applications.

Setting up a Wired Network

Connect the LAN port of the TV and the router using a LAN cable.

NOTE: The router should be connected to the Internet beforehand. If the TV is connected to the network with a LAN cable, the TV will automatically be connected to the network if the router supports DHCP.

If the Network Is Not Automatically Connected

Press / Connection / Network Connection Settings / Wired Connection (Ethernet).

Setting up a Wireless Network

1. Turn on the power of the router connected to the Internet.
2. Press the button on the remote control.
3. Select / Connection / Network Connection Settings / Wi-Fi Connection.
4. When the network search is complete, the list of networks available for connection is shown.
5. Select a network to connect. If the Wireless Router is password protected, enter the password configured for the router.

Network Setting Warnings

• Use standard LAN cable.
• Resetting the modem may fix some network connection problems. Turn the power OFF, disconnect and reconnect it, and then turn the power on to solve the problem.
• The manufacturer is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection.
• The network connection may not work properly because of network settings or the Internet service provider.
• DSL service must use a DSL modem and cable service must use a cable modem. Since only a limited number of network connections may be available, TV network settings may not be used depending on the contract with Internet service provider. (If the contract does not allow more than one device per line, only the already-connected PC may be used.)
• A wireless network can experience interference from other devices that use the 2.4 GHz frequency (wireless phone, Bluetooth device, or microwave oven). Although interference can also happen when using the 5GHz frequency, it is less likely to occur.
• The wireless environment can make wireless network service run slowly.
• Failure to turn off all local home networks may cause excessive traffic on some devices.
• The access point device must support wireless connections and wireless connection feature must be enabled on the device to have AP (access point) connection. Contact the service provider for availability of wireless connections on the access point.
• Check SSID and security settings of the AP. Refer to the appropriate

documentation for SSID and security settings of the AP.

• Invalid settings of network devices (wired/wireless line sharer, hub) can cause the TV to operate slowly or not operate properly. Install the devices correctly according to the appropriate manual and network.
• The connection method may differ depending on the AP manufacturer.
• To solve a problem related to this function, please go to:

/ / Connection / Network Connection Settings / Wired Connection (Ethernet)

- Or -

/ / Connection / Network Connection Settings / Wi-Fi Connection / Advanced Wi-Fi Settings

Using the Home Feature of the WebOS TV

The home screen will be displayed automatically when the TV is turned on. If not, press the button on the remote control.

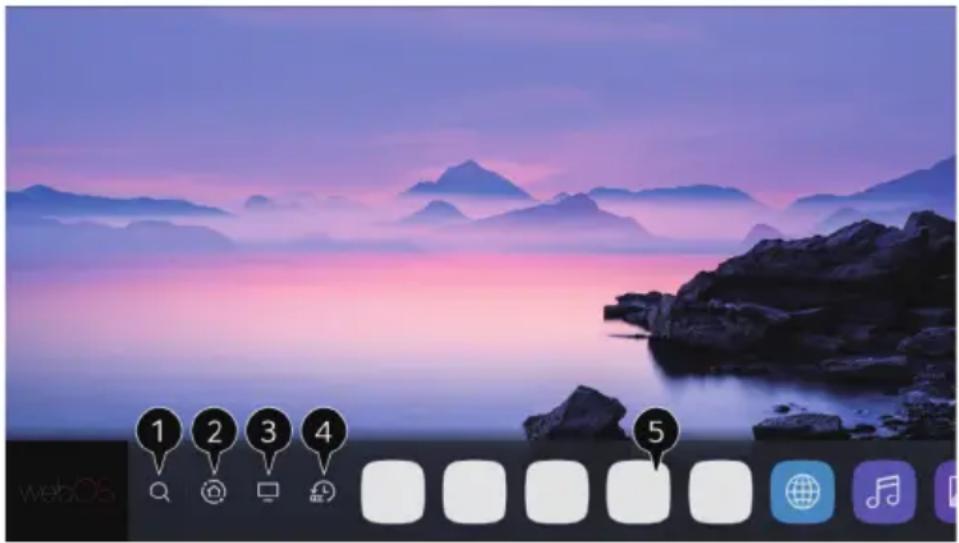

1 2 3 4 5 webOS

1 Launch search

Use △▽◀▶ buttons to navigate to and highlight Q, then press Ⓞ to start searching. A variety of content and information can be searched for using the desired search terms.

NOTE: The network must be connected to use the search feature. The search results may vary depending on the channel, region, network settings, and to whether the terms and conditions have been agreed.

2 Use home dashboard

Use △▽◀▶ buttons to navigate to 🔒 or press and hold the 🔔 button to select home dashboard. Select or control a device (mobile, external device, Home IoT Devices, etc.) connected to the TV.

③ Switch the TV input used recently

Use △▽◀▷ buttons to navigate to and focus on □, the TV can be switched to the recently used TV input in the list quickly.

4 Run or close a recently used app

Press and hold the 🔊 button for 2 seconds or use △ buttons to navigate to and focus on 🔊 to run or close a recently used app in the list of preview area.

5 Run, move or delete the apps installed

Use △▽◀▷ buttons to navigate to and focus on the app, it will provide the preview of the app at the top. so the spp can be checked or run useful features and recommended content on the preview without entering into the app.

NOTE: Some apps may not provide the preview.

Manage WebOS TV Home

To view a list of all apps installed on the TV, change their positions or delete them.

NOTE: The default TV app cannot be edited.

1. Use △▽◀▶ buttons to move to the app to edit, then press and hold the Ⓞ button on the remote control to activate the app edit mode.

Or select the Edit mode button at the right corner of the Home list to enter the App Edit mode.

1. To move the app to the desired position, go to the position and press the Ⓞ button. Apps can be moved with the 🔔 buttons on the remote control.

2. To delete an app, select the X icon above the app.

Move and delete as many apps as before exiting the edit mode.

After the editing is done, press the X icon at the top right to exit the App Edit mode.

Edit Home Edit App List 1 Edit Contents List 2 Depending on your usage pattern, you can set the order of apps automatically or edit them manually. Close 4

1 Apps can be automatically arranged in the order of most frequently used based on the accumulated app usage pattern.
2 A favorite video service channel can also be added to the list.

NOTE: This feature is available only when the network is connected.

SETTINGS

Displays a set of light-weight controls quickly and simply such as Picture Mode, Sound Out, Game Optimiser and so on.

Press the ⏻ button on the remote control.

Image with numbered UI icons pointing to a coastal scene at dusk, overlaid on a soft pink sky.

1 Set the Picture Mode.
2 Set the Sound Mode.
3 Choose the Sound Out.
4 Directs to the Game Optimiser settings
5 Directs to the LED Care settings.
6 Directs to the Network settings.
7 Set more options.

- Long-press ⚙ button of the remote control to run the All settings directly.

8 Add/delete the quick setting items or change their order.

Move to an item that can be set up, press the remote control's Wheel (OK) button once, and then press and hold the Wheel (OK) button to move to the menu.

- The configurable items differ depending on model.

Problem Solution/Issue
TV does not operate	Make sure the power cord is plugged in.Try another AC outlet.Power is off, check fuse or circuit breaker.Unplug unit for an hour, then plug it back in.
Normal picture, but no sound	Check the volume settings.Sound muted? Press button.Try another channel.Check audio cable connections.Check to see if power button is pressed in the ‘on’ position.
The remote control does not work	Make sure the remote control is in range with no obstructions.Check the batteries.Correct operating mode set: TV, VCR etc.
Poor sound or no sound	Station or Cable TV experiencing problems, tune to another station.Check sound adjustments (Volume or Mute).Check for sources of possible interference.Check Digital Sound out Settings. Make sure this setting is set to PCM by going to All settings >Sound >Additional Settings >Digital Sound Out >Select PCM.
Poor picture or no picture	Station or Cable TV experiencing problems, tune to another station.Make sure channels are set into memory.Check antenna or Cable TV connections, adjust antenna.Check for sources of possible interference.Check picture control adjustments.
Poor TV reception	Ensure the antenna amplifier is turned on for Antenna TV.Adjust the antenna position to a stronger signal receiving angle.Check if the Antenna connection is tight.Check if there is power supplied to the Antenna distribution box.Check if the incoming cable is connected to the correct cable / antenna wall connection.
Poor Cable / Satellite TV Reception	Ensure antenna amp is turned off for cable signal.Check if incoming cable is connected correctly.Ensure cable splitter box has power.Check if the incoming cable is connected to the correct cable / Satellite wall connection.Ensure Dish has no obstruction.
TV shuts off	Sleep Timer is set.Power interrupted.
Black and white image from the connected AV device	Check video connections on both the TV and connected AV device. Ensure all video cables are connected firmly.

SPECIFICATIONS

Product specifications may be changed without prior notice due to upgrade of product functions.

Estimated yearly energy consumption indicated on the energy label is measured in accordance with the test procedures for television sets (USA only). The actual energy consumption depends on the usage environment (the content watched, TV settings, etc.).

Screen size 55"
Screen type TFT-LED
Resolution 3840*2160
Input power AC 110-240V,50/60Hz
Audio output L/R,5W x 2,8ohm
Brightness 2500 cd/m2
Aspect ratio 16:9
Dimensions (W x H x D)	49 58" × 28 34" × 3^13/_16" (1260 x 730 x 97mm)
Temperature range -24°F to 140°F(-31° to 60°C)
Weight	97.3 lb./42.5 kg

Screen size	65"
Screen type TFT-LED
Resolution 3840*2160
Input power AC 110-240V,50/60Hz
Audio output L/R,5W x 2,8ohm
Brightness 2500 cd/m2
Aspect ratio 16:9
Dimensions (W x H x D)	58^5/_16" × 33^5/_8" × 3^13/_16" (1481 x 854 x 97mm)
Temperature range	-24°F to 140°F (-31° to 60°C)
Weight	119.5 lb./54.2 kg

Screen size	75"
Screen type TFT-LED
Resolution 3840*2160
Input power AC 110-240V,50/60Hz
Audio output L/R,5W x 2,8ohm
Brightness 2500-2700 cd/m2
Aspect ratio 16:9
Dimensions (W x H x D)	66 15/16" x 38 5/8" x 3 13/16" (1700 x 981 x 97mm)
Temperature range -24°F to 140°F (-31° to 60°C)
Weight 158 lb. /71.5 kg

Auto-brightness ensures the television will not over heat in any weather conditions.

Close-up of a vibrant pink flower with yellow center, set against a beach background with soft waves and sky (no text or symbols)

INPUT & OUTPUT CONNECTIONS
Earphone Jack	LAN	Optical Out	R-AUDIO IN-L	Video in HDMI	in RF in USB
111			1 x Red1 x White	1 x Yellow 3	12

1500 nits

Our TV (2500-2800 nits)

Panoramic landscape of green mountain ranges with a valley and distant village under a cloudy sky (no text or symbols)

TÉLÉVISION INTELLIGENTE D'EXTÉRIEUR LED 4K UHD SÉRIE PRO DE FULL-SUN POUR LES ESPACES COMMERCIAUX ET RÉSIDENTIELS - 55 PO/65 PO/75 PO

MODÈLE (LIPPERT PN)

FUDI55SSA (2024003602)

FUDI65SSA (2024003603)

FUDI75SSA (2024003604)

MANUEL D'UTILISATION

FURRION Full Sun Outdoor Smart TV 2500 NITS FURRION

Modèle Lippert No.
FUDI55SSA 2024003602
FUDI65SSA 2024003603
FUDI75SSA 2024003604

Furrion Innovation Center & Institute of Technology

52567 Independence Ct., Elkhart, IN 46514, USA

APERÇU DE PRODUIT....12

DÉMARRER AVEC WEBOS TV....22

Configuration initiale 22

Pure electrical circuit lines without any symbols

4 inches

Exterior view of a modern office building (no signage)

IR R485 (LAN) USB 2 CYBS (PCA) OPTICAL ATSC/IGDST HEADPHONES USB 1 HDMI 1 HDMI 2 HDMI 3

Line drawing of a device panel with three buttons and two circular indicators (no text or symbols)

Line drawing of a hand holding a handheld device connected to wires on a wooden surface (no text or symbols)

Technical line drawing of an electrical enclosure with wiring and mounting brackets (no text or symbols)

Connector l'alimentation

Exterior view of a black server unit with a plug inserted, showing internal components and a transparent cover (no text or symbols visible)

Diagram illustrating the step-by-step transformation of a battery into a U-shaped tube, showing charge distribution and charge transfer.

DÉMARRER AVEC WEBOS TV

webOS TV Sign in 1 2 Recent Input Sponsored 3 Live-TV App List

Configuration initiale

Foggy lake at dusk with four numbered UI buttons on the left (no text or symbols on the scene itself)

Image showing a misty coastal scene with numbered UI icons on the left side, likely from a software interface.

Close-up of a vibrant pink flower with yellow center, set against a soft beach background (no text or symbols)

Furrion Innovation Center & Institute of Technology

52567 Independence Ct., Elkhart, IN 46514, EE. UU.

Exterior view of a modern office building (no signage)

IR RL45 (LAN) USB 2 CYBS (PCA) OPTICAL ATSC/ISDST HEADPHONES USB 1 HDMI 1 HDMI 2 HDMI 3

Line drawing of a device panel with two buttons and three circular indicators (no text or symbols)

Line drawing of a hand holding a smartphone above a cable and electrical connector (no text or symbols)

Technical line drawing of a mechanical assembly with wires and components (no text or symbols)

Diagram illustrating battery charging process with labeled components and directional arrows

PRIMEROS PASOS CON WEBOS TV

webOS TV Sign in 1 2 Recent Input Sponsored 3 Live-TV App List

Foggy lake at dusk with four numbered UI buttons on the left (no text or symbols on the main scene)

Image showing a misty coastal scene with numbered UI icons pointing to the top panel, likely from a software interface.

Close-up of a vibrant pink flower with yellow center, set against a beach and ocean background (no text or symbols)

Scenic mountain landscape with green slopes and snow-capped peaks under a cloudy sky (no text or symbols)

FURRION®

Furrion, LLC (Furrion) are wholly owned subsidiaries of Lippert Components, Inc. (Lippert) Furrion, LLC (Furrion) sont des filiales en propriété exclusive de Lippert Components, Inc. (Lippert) Furrion, LLC (Furrion) son subsidiarias de propiedad total de Lippert Components, Inc. (Lippert) Furrion, LLC: 52567 Independence Ct., Elkhart, IN, 46514

Furrion Innovation Center & Institute of Technology Centre d'innovation et institut de technologie Furrion Centro de Innovación e Instituto de Tecnología Furrion 22244 Innovation Drive, Elkhart, IN 46514-5514, USA

Toll free/Numéro gratuit/Línea telefónica gratuita:1-800-789-3341 Email/Courriel/Correo electrónico: [e-mail]

©2007-2024 Furrion, LLC. All rights reserved. ©2007-2024 Furrion, LLC. Tous droits réservés. ©2007-2024 Furrion, LLC. Reservados todos los derechos.

For Patent Info: www.Lippert.com/patents Pour des informations sur les brevets: www.Lippert.com/patents Para información sobre patentes: www.Lippert.com/patents

The contents of this manual are proprietary and copyright protected by Lippert. Lippert prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized Lippert representative has been provided. Any unauthorized use shall void any applicable warranty. The information contained in this manual is subject to change without notice and at the sole discretion of Lippert. Revised editions are available for free download from lippert.com.

Please recycle all obsolete materials.
