Product type	Professional cooking appliance (electric braising pan and multiple plate)
Brand	Bartscher
Model	115114
Use	Professional, reserved for trained personnel
Exterior material	Polished stainless steel
Cooking type	Electric braising pan and multiple plate
Temperature range (braising pan)	50 °C to 300 °C
Temperature range (multiple)	50 °C to 300 °C
Tank capacity (multiple)	13 L (M40) or 22 L (M60) depending on version
Water connection	Drinking water, pressure 150-300 kPa
Electrical connection	Omnipolar circuit breaker, grounding, equipotential bonding
Safety	Manual reset safety thermostat
Safety	High sensitivity protection device
Cleaning	Daily cleaning with non-abrasive products, avoid water jets
Maintenance	Inspection and maintenance at least 2 times per year by an approved technician
Spare parts	Heating element, thermostat, indicator light, temperature controller
Installation standards	According to EN1717 standards and current water regulations
Installation	On a metal cabinet, at least 10 cm from walls
Prohibited use	Do not use as a deep fryer
Power supply	To be determined according to specific configuration

Frequently Asked Questions - 115114 BARTSCHER

How to install the appliance?

Installation must be carried out by a qualified installer. The appliance must be placed on a metal cabinet, at least 10 cm from walls. Comply with EN1717 standards and current water regulations.

What water pressure is required?

The water supply pressure must be between 150 kPa and 300 kPa. If the pressure is higher, use a pressure reducer.

How to clean stainless steel surfaces?

Clean with a non-abrasive cloth or sponge, water and a mild cleaning product. Polish in the direction of the grain, rinse and dry thoroughly. Avoid metallic pads and chlorine-based products.

What to do if the appliance does not heat up?

First check that the safety thermostat has not tripped (reset button). If the problem persists, the adjustment thermostat or heating elements may be defective. Contact an approved technician.

How to reset the safety thermostat?

The safety thermostat is manually reset by pressing the reset button. This operation must be carried out only by a qualified or approved technician.

What types of food can be cooked?

The appliance is designed for direct cooking of food: broth, soups, steaks, fish, vegetables, etc. Do not use it as a deep fryer.

Can the appliance be used as a deep fryer?

No, it is strictly forbidden to use the appliance as a deep fryer because the bottom temperature of the tank may exceed 230 °C, which could ignite the oil.

How to drain the tank?

Disconnect the heating, then remove the tank while protecting your hands with suitable gloves. Be careful to avoid hot splashes and prepare a heat-resistant container.

How often to perform maintenance?

Inspection and maintenance of the appliance must be carried out at least twice a year by an approved technician. It is recommended to sign a maintenance contract.

Where to find spare parts?

Use only original spare parts provided by the manufacturer or authorized technical centers. Contact Bartscher after-sales service.

USER MANUAL 115114 BARTSCHER

MULTI-PERFORMANCES COOKING APPLIANCE

INSTRUCTIONS FOR INSTALLATION, OPERATION AND MAINTENANCE

Read the general informations immediately!

GB-IE-MT

SAUTEUSE BASCULANTE,

APPAREIL DE CUISSON MULTIFUNCTION

INSTRUCIONS POUR INSTALLATION, EMPLOI ET ENTRETIEN

MULTI-PERFORMANCES COOKING APPLIANCE

INSTRUCTIONS FOR INSTALLATION, OPERATION AND MAINTENANCE

Read the general informations immediately!

SAUTEUSE BASCULANTE,

FR-BE-LU-CH

APPAREIL DE CUISSON MULTIFUNCTION

INSTRUCIONS POUR INSTALLATION, EMPLOI ET ENTRETIEN

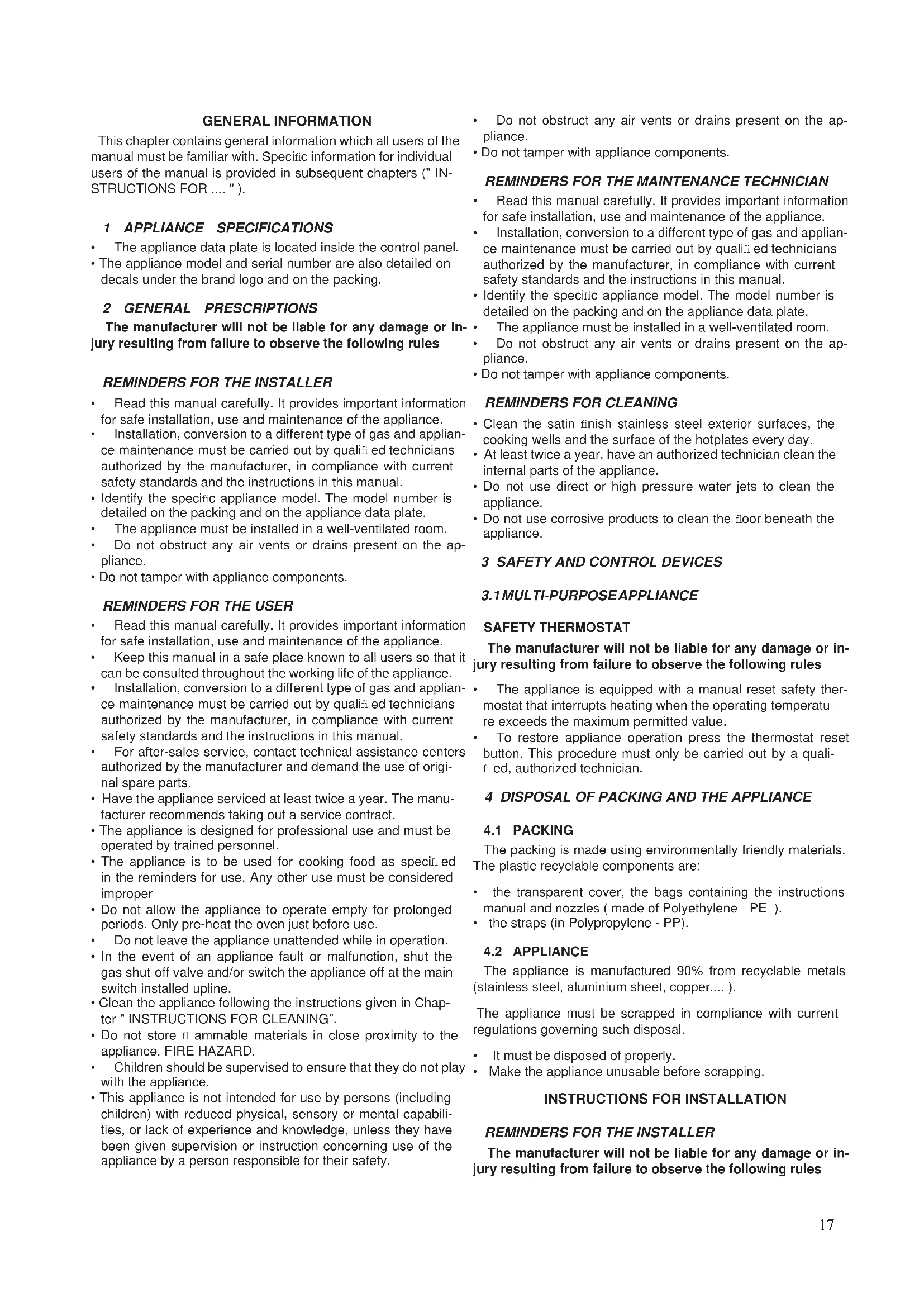

This chapter contains general information which all users of the manual must be familiar with. Specific information for individual users of the manual is provided in subsequent chapters ("INSTRUCTIONS FOR ....").

1 APPLIANCE SPECIFICATIONS

The appliance data plate is located inside the control panel.
- The appliance model and serial number are also detailed on decals under the brand logo and on the packing.

2 GENERAL PRESCRIPTIONS

The manufacturer will not be liable for any damage or injury resulting from failure to observe the following rules

REMARKERS FOR THE INSTALLER

• Read this manual carefully. It provides important information for safe installation, use and maintenance of the appliance.
• Installation, conversion to a different type of gas and appliance maintenance must be carried out by qualified technicians authorized by the manufacturer, in compliance with current safety standards and the instructions in this manual.
• Identify the specific appliance model. The model number is detailed on the packing and on the appliance data plate.
  The appliance must be installed in a well-ventilated room.
• Do not obstruct any air vents or drains present on the appliance.
• Do not tamper with appliance components.

REMARKERS FOR THE USER

• Read this manual carefully. It provides important information for safe installation, use and maintenance of the appliance.
• Keep this manual in a safe place known to all users so that it can be consulted throughout the working life of the appliance.
• Installation, conversion to a different type of gas and appliance maintenance must be carried out by qualified technicians authorized by the manufacturer, in compliance with current safety standards and the instructions in this manual.
• For after-sales service, contact technical assistance centers authorized by the manufacturer and demand the use of original spare parts.
• Have the appliance serviced at least twice a year. The manufacturer recommends taking out a service contract.
• The appliance is designed for professional use and must be operated by trained personnel.
• The appliance is to be used for cooking food as specified in the reminders for use. Any other use must be considered improper
• Do not allow the appliance to operate empty for prolonged periods. Only pre-heat the oven just before use.
• Do not leave the appliance unattended while in operation.
• In the event of an appliance fault or malfunction, shut the gas shut-off valve and/or switch the appliance off at the main switch installed upline.
• Clean the appliance following the instructions given in Chapter "INSTRUCTIONS FOR CLEANING".
• Do not store flammable materials in close proximity to the appliance. FIRE HAZARD.
  Children should be supervised to ensure that they do not play with the appliance.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Do not obstruct any air vents or drains present on the appliance.

• Do not tamper with appliance components.

REMARKERS FOR THE MAINTENANCE TECHNICIAN

• Read this manual carefully. It provides important information for safe installation, use and maintenance of the appliance.
• Installation, conversion to a different type of gas and appliance maintenance must be carried out by qualified technicians authorized by the manufacturer, in compliance with current safety standards and the instructions in this manual.
• Identify the specific appliance model. The model number is detailed on the packing and on the appliance data plate.

The appliance must be installed in a well-ventilated room.
- Do not obstruct any air vents or drains present on the appliance.
- Do not tamper with appliance components.

REMARKERS FOR CLEANING

• Clean the satin finish stainless steel exterior surfaces, the cooking wells and the surface of the hotplates every day.
• At least twice a year, have an authorized technician clean the internal parts of the appliance.
• Do not use direct or high pressure water jets to clean the appliance.
• Do not use corrosive products to clean the floor beneath the appliance.

3 SAFETY AND CONTROL DEVICES

3.1 MULTI-PURPOSE APPLIANCE

SAFETY THERMOSTAT

The manufacturer will not be liable for any damage or injury resulting from failure to observe the following rules

• The appliance is equipped with a manual reset safety thermostat that interrupts heating when the operating temperature exceeds the maximum permitted value.
• To restore appliance operation press the thermostat reset button. This procedure must only be carried out by a qualified, authorized technician.

4 DISPOSAL OF PACKING AND THE APPLIANCE

4.1 PACKING

The packing is made using environmentally friendly materials. The plastic recyclable components are:

• the transparent cover, the bags containing the instructions manual and nozzles (made of Polyethylene - PE).
  the straps (in Polypropylene - PP).

4.2 APPLIANCE

The appliance is manufactured 90% from recyclable metals (stainless steel, aluminium sheet, copper....).

The appliance must be scrapped in compliance with current regulations governing such disposal.

It must be disposed of properly.
- Make the appliance unusable before scrapping.

INSTRUCTIONS FOR INSTALLATION

REMARKERS FOR THE INSTALLER

The manufacturer will not be liable for any damage or injury resulting from failure to observe the following rules

• Read this manual carefully. It provides important information for safe installation, use and maintenance of the appliance.
• Installation, conversion to a different type of gas and appliance maintenance must be carried out by qualified technicians authorized by the manufacturer, in compliance with current safety standards and the instructions in this manual.
• Identify the specific appliance model. The model number is detailed on the packing and on the appliance data plate.
  The appliance must be installed in a well-ventilated room.
• Do not obstruct any air vents or drains present on the appliance.
• Do not tamper with appliance components.

Appliances in the DROP-IN series

• The appliance must be installed in strictc compliance with the directions given in the attached drawings.
• Appliances should only be installed on units made of metal (and not wood and/or other f1 ammable materials).
• Take particular care with the power lead: the channelways must be perfectly smooth with no sharp corners and/or edges. The lead must not, at any point, be subjected to temperatures of more than 50^ above normal room temperature.

5 REFERENCE STANDARDS AND LAWS

Install the appliance in compliance with current safety standards.

Install the appliance in compliance with the prescriptions of EN1717 and the water pollution regulations in force in your country.

6 UNPACKING

Check the state of the packing and in the event of damage, ask the delivery person to inspect the goods.

• Remove the packing
• Remove the protective film from the external panels. Use a suitable solvent to remove any residual adhesive from the panels

7 POSITIONING

• The overall dimensions of the appliance and the position of connections are given on the installation diagram at the start of this manual.
• The appliance can be installed singly or in combination with other appliances in the same product range.
• The appliance is not suitable for integrated installation.
• Position the appliance at least 10cm from adjacent walls. This distance can be reduced in the presence of non-combustible walls or heat-insulated walls.

7.1 APPLIANCE ASSEMBLY WITH BASE

Follow the instructions provided with the type of support utilized.

7.2 JOINING APPLIANCES TOGETHER IN LINE

• Place the appliances side by side and adjust the tops to the same height.
• Unite the appliances using the special unionjoint-coverings supplied upon request

8 CONNECTIONS

The position and dimensions of connections are given in the installation diagram at the start of this manual.

8.1 ELECTRICAL CONNECTIONS

Check that the appliance is designed to operate at the voltage and frequency of the power supply present on site. Check the details given on the appliance data plate.

• At an easily accessible point upline of the appliance, fit an all-pole disconnect switch of suitable capacity with a contact breaking distance of at least 3mm , and a highly sensitive differential protection device. The maximum permitted leakage current is 1mA / kW .
• A flexible rubber cable with insulation specifications not lower than type H05 RN-F must be used for connection.
• Connect the power supply cable to the terminal board as shown in the wiring diagram supplied with the appliance.
• Secure the power supply cable with the cable clamp.
• Protect the power supply cable on the outside of the appliance with a rigid plastic or metal pipe.

8.2 PROTECTIVE EARTH AND EARTH BONDING CONNECTIONS

Connect the appliance to an efficient ground circuit. Connect the earth conductor to the terminal with the symbol located next to the main terminal board.

Connect the metal structure of the appliance to the equipotential node. Connect the conductor to the terminal with the symbol on the outside part of the bottom.

8.3 CONNECTION TO THE WATER SUPPLY

The appliance must be connected to a potable water supply. The water inlet pressure must be between 150kPa and 300 kPa. Use a pressure reducer if the inlet pressure is above the maximum permitted level.

• Install a mechanical filter and a shut-off valve upstream of the appliance in an easily accessible point.
• Make sure the water circuit is free from ferrous particles before connecting the fiiter and the appliance.
• Seal any unused connectors with a plug.
• Once the appliance has been installed, check for gas leaks at the connection points.

8.4 CONNECTION TO THE WATER DRAIN

The water drainage system must be provided using materials resistant to temperatures of 100^ . The bottom of the appliance must not be subjected to steam produced by drainage of hot water.

9 COMMISSIONING

See Chapter "INSTRUCTIONS FOR MAINTENANCE"

INSTRUCTIONS FOR USE

REMARKERS FOR THE USER

The manufacturer will not be liable for any damage or injury resulting from failure to observe the following rules

• Read this manual carefully. It provides important information for safe installation, use and maintenance of the appliance.
• Keep this manual in a safe place known to all users so that it can be consulted throughout the working life of the appliance.

• Installation, conversion to a different type of gas and appliance maintenance must be carried out by qualified technicians authorized by the manufacturer, in compliance with current safety standards and the instructions in this manual.

• For after-sales service, contact technical assistance centers authorized by the manufacturer and demand the use of original spare parts.

• Have the appliance serviced at least twice a year. The manufacturer recommends taking out a service contract.
• The appliance is designed for professional use and must be operated by trained personnel.
• The appliance is to be used for cooking food as specified in the reminders for use. Any other use must be considered improper
• Do not allow the appliance to operate empty for prolonged periods. Only pre-heat the oven just before use.
• Do not leave the appliance unattended while in operation.
• In the event of an appliance fault or malfunction, shut the gas shut-off valve and/or switch the appliance off at the main switch installed upline.
• Clean the appliance following the instructions given in Chapter "INSTRUCTIONS FOR CLEANING".
• Do not store fll ammable materials in close proximity to the appliance. FIRE HAZARD.
  Children should be supervised to ensure that they do not play with the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not obstruct any air vents or drains present on the appliance.
• Do not tamper with appliance components.

10 USING THE ELECTRIC BRATT PAN

REMARKERS FOR USE

• CAUTION! Don't use this unit as a fryer!
• IMPORTANT Don't start heating with an empty cooking container!

FILLING AND EMPTYING THE COOKING CONTAINER

Filling

• Fill the well until the water is level with the maximum level indicated on the wall of the cooking container. Do not use the appliance with the water level above the maximum indicated level.

Emptying

• Switch-off heating.
• Take off container from appliance.
• To do this follow this indications:protect hands from heat (for example usingsuitable gloves);protect body from accidental hot sprinkleduring lifting, transport and emptying of container.
• The container where hot foods are emptied must be large enough and of heat resistant material.

SWITCHING ON AND OFF

The thermostat control knob has the following positions:

0 Off

50 Minimum temperature

100-250 Intermediate temperatures

300 Maximum temperature

Switching on

• Turn the thermostat knob to the chosen temperature setting for cooking.
  The yellow indicator light switches on.
• The yellow indicator light switches off when the oven reaches the set temperature.

Switching off

• Turn the thermostat knob to position "0".

11 USING THE MULTI-PURPOSE APPLIANCE

REMARKERS FOR USE

• The appliance is designed for direct cooking of foods (stewed dishes, soups, steaks, hamburgers, fish, vegetables, etc.).
• The hotplate must not be used for indirect heating or cooking of foods in pots, pans, etc..
• Do not use the appliance as a fryer, the temperature on the bottom of the pan exceeds 230^ , meaning oil could catch fire.
• At the end of each day, clean the well thoroughly in order to prevent the formation of corrosive deposits.
• The model M40 has one zone of cooking with amax capacity well of 13lt. The model M60 has two zones of cooking with amax capacity well of 22lt.

SWITCHING ON AND OFF

The thermostat control knob has the following positions:

0 Off

50 Minimum temperature

100-200 Intermediate temperatures

300 Maximum temperature

Switching on

• Turn the thermostat knob to the chosen temperature setting for cooking.
  The yellow indicator light switches on.
• The yellow indicator light switches off when the oven reaches the set temperature.

Switching off

• Turn the thermostat knob to position "0".

12 PROLONGED DISUSE

Before any prolonged disuse of the appliance, proceed as follows:

• Clean the appliance thoroughly.
• Rub stainless steel surfaces with a cloth soaked in Vaseline oil to create a protective film.
• Leave pot open.
• Shut off taps and main switches upline of appliances.

Following prolonged disuse, proceed as follows:

• Inspect the appliance thoroughly before using it again.
• Allow electric appliances to operate at the lowest temperature for at least 60 minutes.

INSTRUCTIONS FOR CLEANING

REMARKERS FOR CLEANING

The manufacturer will not be liable for any damage or injury resulting from failure to observe the following rules

• Clean the satin finish stainless steel exterior surfaces, the cooking wells and the surface of the hotplates every day.
• At least twice a year, have an authorized technician clean the internal parts of the appliance.
• Do not use direct or high pressure water jets to clean the appliance.
• Do not use corrosive products to clean the floor beneath the appliance.

SATIN FINISH STAINLESS STEEL SURFACES

• Clean the surfaces with a cloth or sponge using water and proprietary non-abrasive detergents. Follow the direction of the satin finish lines. Rinse repeatedly and dry thoroughly.
• Do not use pan scourers or other iron items.
• Do not use chemical products containing chlorine.
• Do not use sharp objects which might scratch and damage the surfaces.

COOKING WELLS

• Clean the wells by bringing the water to the boil, with the addition of grease remover detergent if necessary
• Remove any limescale deposits with a proprietary limescale remover

INSTRUCTIONS FOR MAINTENANCE

REMARKERS FOR THE MAINTENANCE TECHNICIAN

The manufacturer will not be liable for any damage or injury resulting from failure to observe the following rules

• Read this manual carefully. It provides important information for safe installation, use and maintenance of the appliance.
• Installation, conversion to a different type of gas and appliance maintenance must be carried out by qualified technicians authorized by the manufacturer, in compliance with current safety standards and the instructions in this manual.
• Identify the specific appliance model. The model number is detailed on the packing and on the appliance data plate.
  The appliance must be installed in a well-ventilated room.
• Do not obstruct any air vents or drains present on the appliance.
• Do not tamper with appliance components.

13 COMMISSIONING

Following installation, conversion to a different type of gas or any maintenance operations, check appliance operation. In the event of any malfunction, consult the next Paragraph "Troubleshooting".

13.1 ELECTRICAL APPLIANCES

Switch on the appliance as directed in the instructions and reminders for use given in Chapter "INSTRUCTIONS FOR USE" and check:

the current values of each phase.
- the correct operation of the heating elements.

14 TROUBLESHOOTING

REMARKERS FOR REPLACING COMPONENTS.

• Disconnect the appliance electric supply, if present, before carrying out any operation.
• After replacing a gas system component, check for gas leaks at connection points.
• After replacing an electrical system component, check it is correctly wired.

14.1 ELECTRIC BRATT PAN

The appliance does not heat.

Possible causes:

Temperature thermostat defective.
Heating elements defective.

Heating cannot be adjusted

Possible causes:

Temperature thermostat defective.

14.2 MULTI-PURPOSE APPLIANCE

The appliance does not heat.

Possible causes:

Temperature thermostat defective.
Heating elements defective.
- Safety thermostat tripped.

Heating cannot be adjusted

Possible causes:

Temperature thermostat defective.

15 REPLACING COMPONENTS

REMARKERS FOR REPLACING COMPONENTS.

• Disconnect the appliance electric supply, if present, before carrying out any operation.
• After replacing a gas system component, check for gas leaks at connection points.
• After replacing an electrical system component, check it is correctly wired.

15.1 ELECTRIC BRATT PAN

Replacing the heating element

• Pull out the control knobs, remove control panel and the container.
• Remove and replace the component.
• Re-assemble all parts. For assembly, proceed in reverse order.

Replacing the temperature regulator

Pull out the control knobs, remove control panel.
- Remove and replace the component.
- Re-assemble all parts. For assembly, proceed in reverse order.

15.2 MULTI-PURPOSE APPLIANCE

Replacing the heating element and the indicator light

• Remove the control panel.
• Remove and replace the component.
• Re-assemble all parts. For assembly, proceed in reverse order.

Replacing the working thermostat and safety thermostat

• Remove the control panel.
• Remove the bulb from its seat on the well.
• Remove and replace the component.
• Re-assemble all parts. For assembly, proceed in reverse order.

16 CLEANING THE INTERIOR

Check the condition of the inside of the appliance.
- Remove any built-up dirt.
- Check and clean the fumes exhaust system.

17 MAIN COMPONENTS

17.1 ELECTRIC BRATT PAN

Heating element
Indicator light
Temperature regulator

17.2 MULTI-PURPOSE APPLIANCE

Working thermostat
Safety thermostat
Heating element
Indicator light

INFORMATIONS GENERALES 23
1 DONNÉES DE L'APPAREIL 23
2 AVENTISSEMENTS GENERAUX 23
AVERTISSEMENTS POUR L'INSTALLATEUR 23
AVERTISSEMENTS POUR L'UTILISATEUR 23
AVERTISSEMENTS POUR LE TECHNICIEN PREPOSE A L'ENTRETIER 23
AVERTISSEMENTS POUR LE NETTOYAGE 23
3 DISPOSITIFS DE SECURITE ET DE CONTROLLE 23
3.1 MULTIPLE 23
4 ELIMINATION DE L'EMBALLAGE ET DE L'APPAREIL 23
INSTRUCTIONS POUR L'INSTALLATION 24
AVERTISSEMENTS POUR L'INSTALLATEUR 24
5 NORMES ET TEXTES DE LOI DE RÉFERENCE 24
6 DEBALLAGE 24
7 MISE EN PLACE 24
8 RACCORDEMENTS 24
9 MISE EN SERVICE. 25
INSTRUCTIONS POUR L'UTILISATION 25
AVERTISSEMENTS POUR L'UTILISATEUR 25
10 UTILISATION DE LA BRAISIERÉ ELECTRIQUE 25
11 UTILISATION DE LA MULTIPLE 25
12 PERIODES D'INACTIVITE 26
INSTRUCTIONS POUR LE NETTOYAGE 26
AVERTISSEMENTS POUR LE NETTOYAGE 26
INSTRUCTIONS POUR L'ENTRETIEN 26
AVERTISSEMENTS POUR LE TECHNICIEN PREPOSE A L'ENTRETIEN 26
13 MISE EN SERVICE. 26
14 RÉSOLUTION DES DYSFONCTIONNEMENTS 26
AVERTISSEMENTS POUR LE REMPLACEMENT DE PIECES 26
14.1 BRAISIERÉ ELECTRIQUE 26
14.2 MULTIPLE 26
15 REMPLACEMENT DE PIECES 26
AVERTISSEMENTS POUR LE REMPLACEMENT DE PIECES 26
15.1 BRAISIERÉ ELECTRIQUE 27
15.2 MULTIPLE 27
16 NETTOYAGE DES PIECES INTERNES 27
17 PIECES PRINCIPALES 27
17.1 BRAISIERÉ ELECTRIQUE 27
17.2 MULTIPLE 27

INFORMATIONS GENERALES

VEILIGHEIDSTHERMOSTAAT

4 AFVOER VAN DE VERPAKKING EN HET APPARAAT ALS AFVAL

4.1 VERPAKKING

8.4 VERBINDING MET DE WATERAFVOERPUNTEN
