USER MANUAL CU-PC1SEU JVC

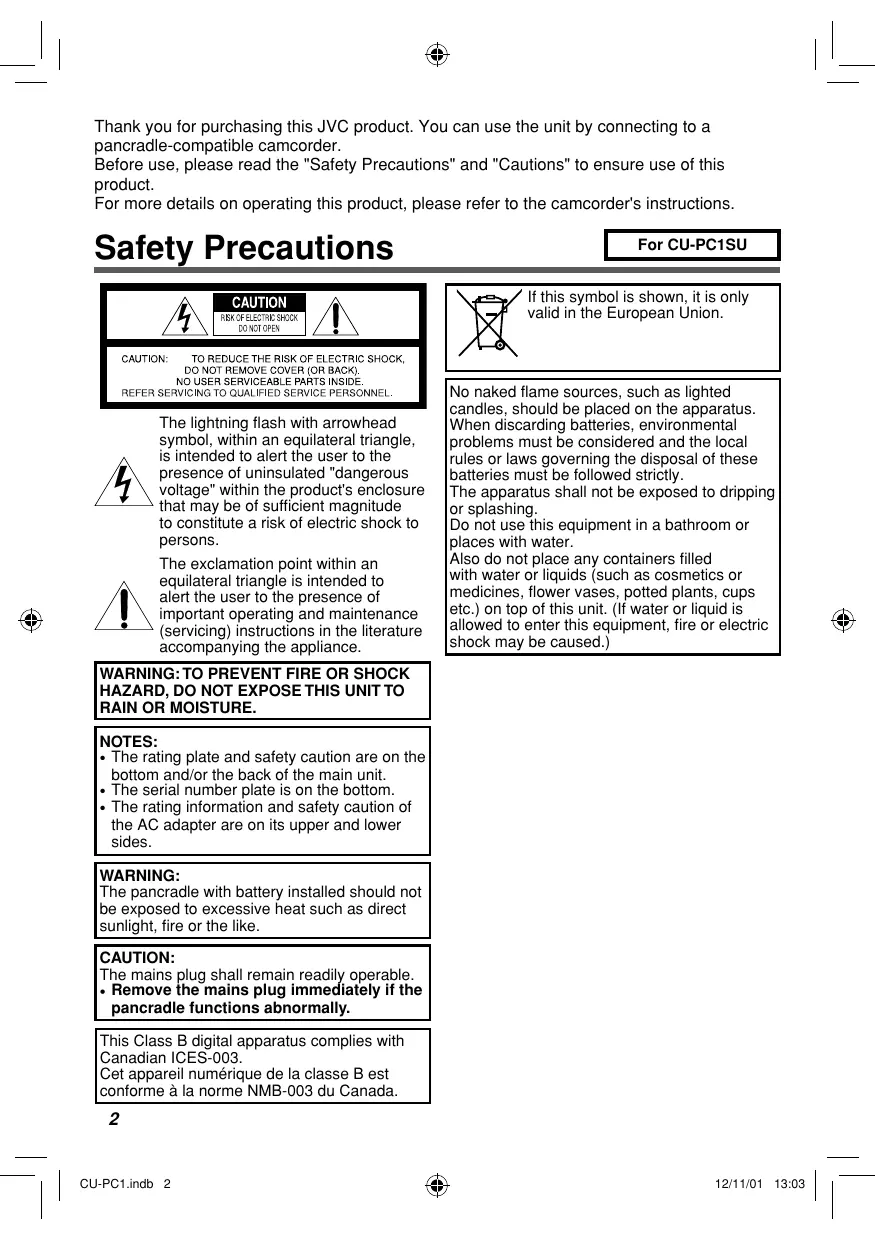

CU-PC1SU/CU-PC1SE/CU-PC1SAG PANCRADLE ENGLISH INSTRUCTIONS SCHWENKHALTERUNG BEDIENUNGSANLEITUNG DEUTSCH MANUEL D’INSTRUCTIONS FRANÇAIS GEBRUIKSAANWIJZING NEDERLANDS Thank you for purchasing this JVC product. You can use the unit by connecting to a pancradle-compatible camcorder.

Before use, please read the "Safety Precautions" and "Cautions" to ensure use of this product. For more details on operating this product, please refer to the camcorder's instructions.

For CU-PC1SU If this symbol is shown, it is only valid in the European Union.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

No naked flame sources, such as lighted candles, should be placed on the apparatus.

When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly. The apparatus shall not be exposed to dripping or splashing. Do not use this equipment in a bathroom or places with water. Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups etc.) on top of this unit. (If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

NOTES: • The rating plate and safety caution are on the bottom and/or the back of the main unit. • The serial number plate is on the bottom. • The rating information and safety caution of the AC adapter are on its upper and lower sides. WARNING: The pancradle with battery installed should not be exposed to excessive heat such as direct sunlight, fire or the like. CAUTION: The mains plug shall remain readily operable. • Remove the mains plug immediately if the pancradle functions abnormally. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

When using the AC adapter in areas other than the USA The provided AC adapter features automatic voltage selection in the AC range from 110 V to 240 V.

USING HOUSEHOLD AC PLUG ADAPTER In case of connecting the unit's power cord to an AC wall outlet other than American National Standard C73 series type use an AC plug adapter, called a "Siemens Plug", as shown. For this AC plug adapter, consult your nearest JVC dealer. Plug Adapter

• Remove the AC adapter from the AC wall outlet when not in use.

• Do not leave dust or metal objects adhered to the AC wall outlet or AC adapter (power/DC plug).

• Be sure to use the supplied AC adapter. • Do not use the supplied AC adapter with other devices. Changes or modifications not approved by JVC could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 8. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 9. Only use attachments/accessories specified by the manufacturer. 10. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. 11. Unplug this apparatus during lightning storms or when unused for long periods of time. 12. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. CAUTION! The following notes concern possible physical damage to this unit and to the user. Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the unit. This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Thank you for purchasing this JVC product. You can use the unit by connecting to a pancradle-compatible camcorder.

Before use, please read the "Safety Precautions" and "Cautions" to ensure use of this product. For more details on operating this product, please refer to the camcorder's instructions.

IMPORTANT (for owners in the U.K.) Connection to the mains supply in the United Kingdom. DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer. BE SURE to replace the fuse only with an identical approved type, as originally fitted, and to replace the fuse cover. If nonetheless the mains plug is cut off be sure to remove the fuse and dispose of the plug immediately, to avoid possible shock hazard by inadvertent connection to the mains supply. If this product is not supplied fitted with a mains plug then follow the instructions given below: DO NOT make any connection to the Larger Terminal coded E or Green. The wires in the mains lead are coloured in accordance with the following code: Blue to N (Neutral) or Black Brown to L (Live) or Red If these colours do not correspond with the terminal identifications of your plug, connect as follows: Blue wire to terminal coded N (Neutral) or coloured black. Brown wire to terminal coded L (Live) or coloured Red. If in doubt — consult a competent electrician. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. M/D of the equipment is month and year of production.

For CU-PC1SE CAUTIONS:

• To prevent shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified personnel. • When you are not using the AC adapter for a long period of time, it is recommended that you disconnect the power cord from AC outlet. NOTES: • The rating plate and safety caution are on the bottom and/or the back of the main unit. • The serial number plate is on the bottom. • The rating information and safety caution of the AC adapter are on its upper and lower sides. WARNING: The pancradle with battery installed should not be exposed to excessive heat such as direct sunlight, fire or the like. CAUTION: The mains plug shall remain readily operable. • Remove the mains plug immediately if the pancradle functions abnormally. CAUTIONS: • Be sure to use the supplied AC adapter. • Do not use the supplied AC adapter with other devices. No naked flame sources, such as lighted candles, should be placed on the apparatus. When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly. The apparatus shall not be exposed to dripping or splashing. Do not use this equipment in a bathroom or places with water. Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups etc.) on top of this unit. (If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

The following notes concern possible physical damage to this unit and to the user. Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the unit. CAUTION: To avoid electric shock or damage to the unit, first firmly insert the small end of the power cord into the AC Adapter until it is no longer wobbly, and then plug the larger end of the power cord into an AC outlet. Information on Disposal of Old Electrical and Electronic Equipment (applicable for countries that have adopted separate waste collection systems)

Products with the symbol (crossed-out wheeled bin) cannot be disposed as household waste.

Old electrical and electronic equipment should be recycled at a facility capable of handling these items and their waste by products. Contact your local authority for details in locating a recycle facility nearest to you. Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment. Dear Customer,

This apparatus is in conformance with the valid

European directives and standards regarding electromagnetic compatibility and electrical safety. European representative of JVC KENWOOD Corporation is: JVC Technical Services Europe GmbH Postfach 10 05 04 61145 Friedberg Germany

SOME DO’S AND DON’TS ON THE SAFE USE OF EQUIPMENT This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

DO read the operating instructions before you attempt to use the equipment. DO ensure that all electrical connections (including the mains plug, extension leads and interconnections between pieces of equipment) are properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug when making or changing connections. DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment. DO be careful with glass panels or doors on equipment. DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any way — switch off, withdraw the mains plug and consult your dealer. DON’T remove any fixed cover as this may expose dangerous voltages. DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off using the switch on the equipment and make sure that your family knows how to do this. Special arrangements may need to be made for infirm or handicapped people. DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of road safety. It is illegal to watch television whilst driving. DON’T listen to headphones at high volume, as such use can permanently damage your hearing. DON’T use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always fit the manufacturer’s approved stand or legs with the fixings provided according to the instructions. DON’T allow electrical equipment to be exposed to rain or moisture. ABOVE ALL • NEVER let anyone especially children push anything into holes, slots or any other opening in the case — this could result in a fatal electrical shock; • NEVER guess or take chances with electrical equipment of any kind — it is better to be safe than sorry!

Thank you for purchasing this JVC product. You can use the unit by connecting to a pancradle-compatible camcorder.

Before use, please read the "Safety Precautions" and "Cautions" to ensure use of this product. For more details on operating this product, please refer to the camcorder's instructions.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. CAUTIONS: • If you notice smoke or a peculiar smell comingfrom this unit or AC Adapter, shut it down and unplug it immediately. Continue using the unit or AC Adapter under these conditions could lead to fire or electric shock. Contact your JVC dealer. Do not attempt to repair the malfunction yourself. • To prevent shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified personnel. • When you are not using the AC adapter for a long period of time, it is recommended that you disconnect the power cord from AC outlet. • In certain areas, use the conversion plug depending on the type of your AC wall outlet. NOTES: • The rating plate and safety caution are on the bottom and/or the back of the main unit. • The serial number plate is on the bottom. • The rating information and safety caution of the AC adapter are on its upper and lower sides. WARNING: This unit with battery installed should not be exposed to excessive heat such as direct sunlight, fire or the like.

For CU-PC1SAG CAUTION:

The mains plug shall remain readily operable. • Remove the mains plug immediately if the pancradle functions abnormally. CAUTION: To avoid electric shock or damage to the unit, first firmly insert the small end of the power cord into the AC Adapter until it is no longer wobbly, and then plug the larger end of the power cord into an AC outlet. No naked flame sources, such as lighted candles, should be placed on the apparatus. When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly. The apparatus shall not be exposed to dripping or splashing. Do not use this equipment in a bathroom or places with water. Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups etc.) on top of this unit. (If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.) CAUTIONS: • Be sure to use the supplied AC adapter. • Do not use the supplied AC adapter with other devices.

The following notes concern possible physical damage to this unit and to the user. Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the unit.

If this symbol is shown, it is only valid in the European Union.

Component Names and Connections

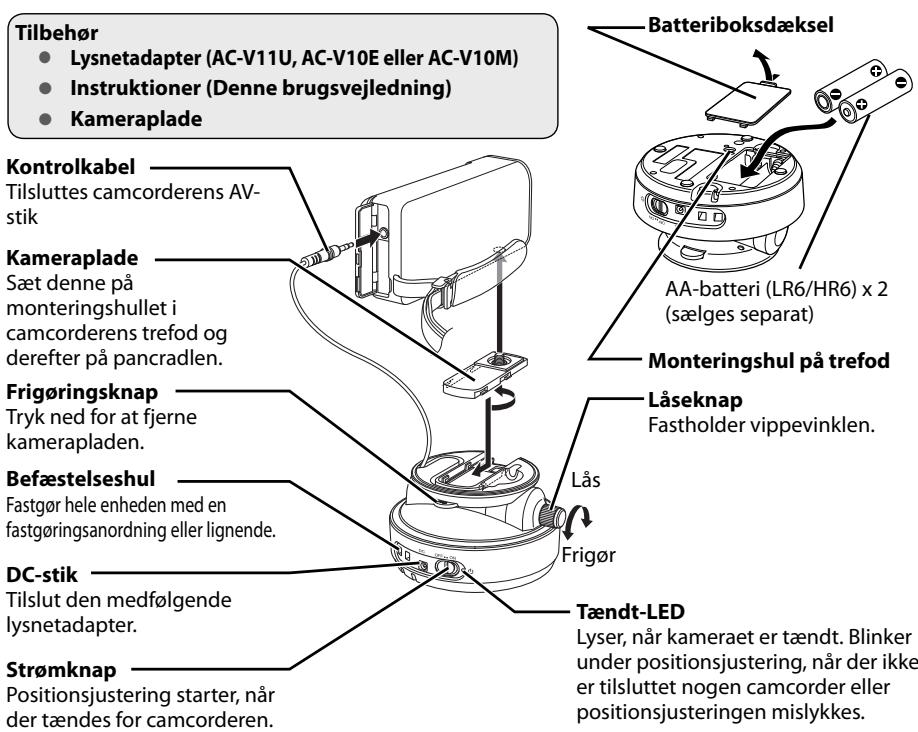

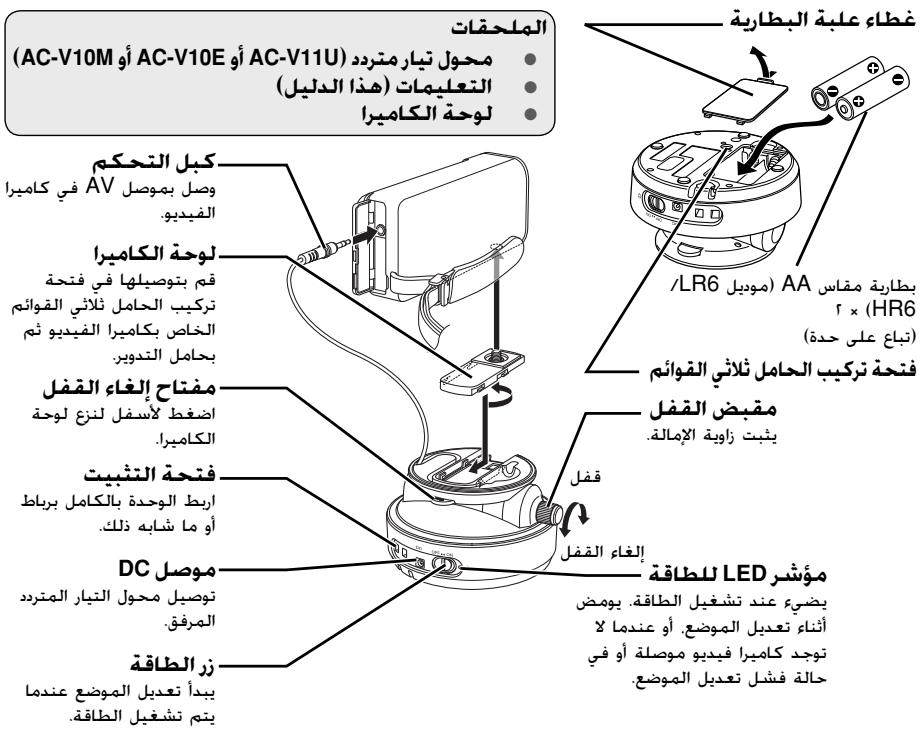

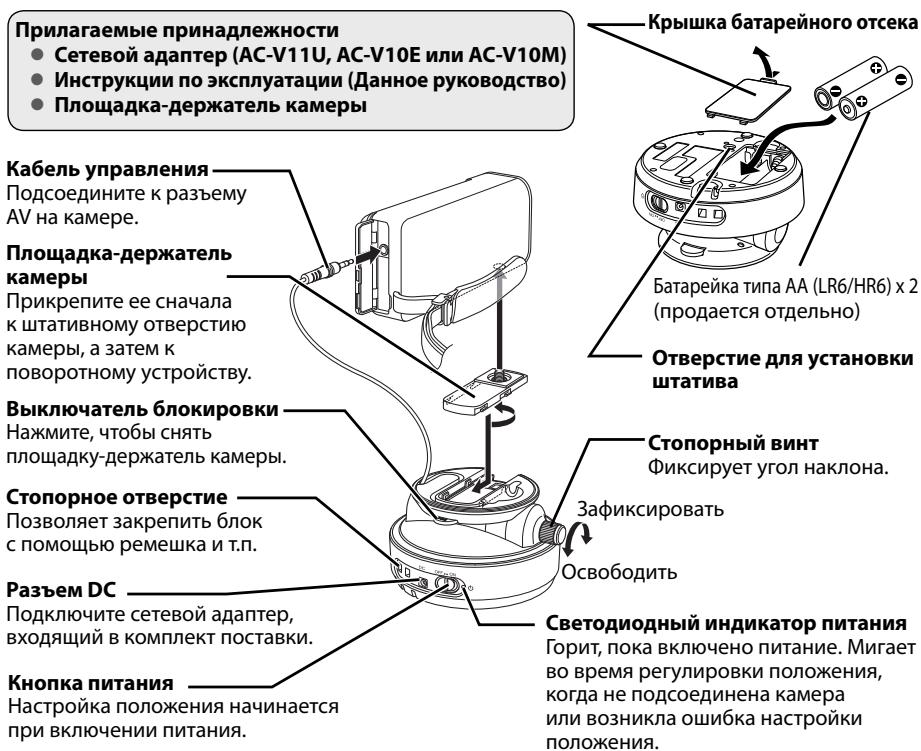

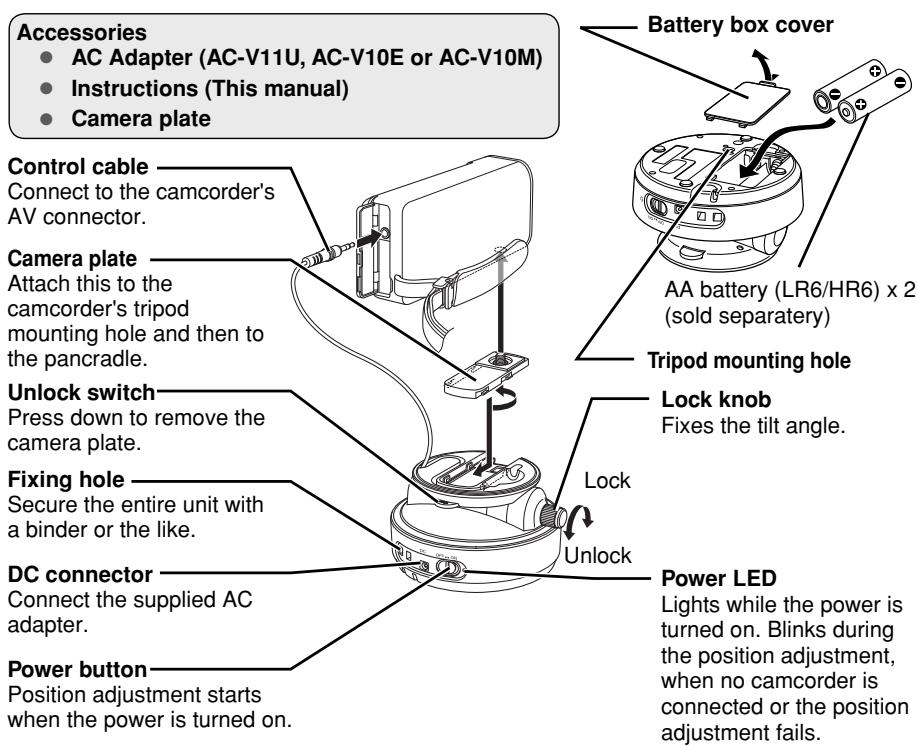

● AC Adapter (AC-V11U, AC-V10E or AC-V10M) ● Instructions (This manual) ● Camera plate Control cable Connect to the camcorder's AV connector. Camera plate Attach this to the camcorder's tripod mounting hole and then to the pancradle.

AA battery (LR6/HR6) x 2

(sold separatery) Tripod mounting hole

Press down to remove the camera plate. Fixing hole Secure the entire unit with a binder or the like. DC connector Connect the supplied AC adapter.

Fixes the tilt angle. Lock Unlock

Power LED Lights while the power is turned on. Blinks during the position adjustment,

Power button when no camcorder is Position adjustment starts connected or the position when the power is turned on. adjustment fails. *Do not connect an HDMI cable to the camcorder while it is connected to the pancradle.

Pancradle Power supply Power consumption Dimensions (mm) Mass Movable area Operating environment Continuous operation time

Using the AC adapter: DC 5.2 V Using batteries: AA size alkaline batteries (LR6): 1.5 V x 2, AA size nickel-metal hydride rechargeable batteries (HR6): 1.2 V x 2

0.8 W, Rated current consumption: 1.0 A (when using the AC adapter) 113 x 67 x 107 (4 1/2'' x 2 11/16'' x 4 1/4'') (W × H × D) (including the camera plate) Approx. 225 g (0.5 lbs) (excluding the battery) Pan: Approx. 90° (Electric), Tilt: Approx. 20° (Manual) Operating temperature: 5 ˚C to 40 ˚C (41 ˚F to 104 ˚F), Storage temperature: – 20 ˚C to 50 ˚C (− 4 ˚F to 122 ˚F), Relative humidity: 35 % to 80 % Approx. 6 hours (when using the alkaline batteries) (The operation time may be shorter depending on the usage conditions.)

AC adapter (AC-V11U)

Power supply AC 110 V to 240 V, 50 Hz/60 Hz Power consumption DC 5.2 V, 1.0 A Dimensions (mm) 66 x 28 x 47 (2 5/8'' x 1 1/8'' x 1 7/8'') (W × H × D, excluding AC cord and AC plug) Mass Approx. 71 g (0.16 lbs) Operating temperature

0 °C to 40 °C (32 °F to 104 °F)

AC adapter (AC-V10E)

AC 110 V to 240 V, 50 Hz/60 Hz

DC 5.2 V, 1.0 A Dimensions (mm)

72 x 28 x 59 (W × H × D, excluding AC cord and AC plug)

Operating temperature

0 °C to 40 °C AC 110 V to 240 V, 50 Hz/60 Hz

DC 5.2 V, 1.0 A Dimensions (mm)

83 x 28 x 40 (W × H × D, excluding AC cord and AC plug)

Operating temperature

Specifications and appearance are subject to change without notice due to product improvements.

Main Unit • For safety, DO NOT

... open the pancradle's chassis.

... disassemble or modify the unit. ... allow inflammables, water or metallic objects to enter the unit. ... remove the battery pack or disconnect the power supply while the power is on. ... leave the battery pack attached when the pancradle is not in use. ... place naked flame sources, such as lighted candles, on the apparatus. ... expose the apparatus to dripping or splashing. ... leave dust or metal objects adhered to the power plug or an AC wall outlet. ... insert any objects in the pancradle. Avoid using the unit ... in places subject to excessive humidity or dust. ... in places subject to soot or steam such as near a cooking stove. ... near appliances generating strong magnetic or electric fields (speakers, broadcasting antennas, etc.). ... in places subject to extremely high (over 40 ˚C or 104 ˚F) or extremely low (under 0 ˚C or 32 ˚F) temperatures. DO NOT leave the unit ... in places of over 50 ˚C (122 ˚F).

... in places where humidity is extremely low

(below 35 %) or extremely high (above 80 %). ... in direct sunlight. ... in a closed car in summer. ... near a heater. ... in high places such as on a TV. Leaving the unit in high places while a cable is connected may result in a malfunction if the cable is caught and the unit falls onto the floor. To • protect the unit, DO NOT ... allow it to become wet. ... drop the unit or strike it against hard objects. ... subject it to shock or excessive vibration during transportation. ... keep the lens directed at extremely bright objects for long periods. ... expose the lens to direct sunlight. ... swing it excessively when using the hand strap. ... swing the soft pancradle case excessively when the pancradle is inside it. ... store the pancradle in a dusty or sandy area. • To prevent the unit from dropping, • When using the pancradle with a tripod, attach the pancradle to the tripod securely. If the pancradle drops, you may be injured and the pancradle may be damaged. When a child uses the unit, there must be parental guidance.
