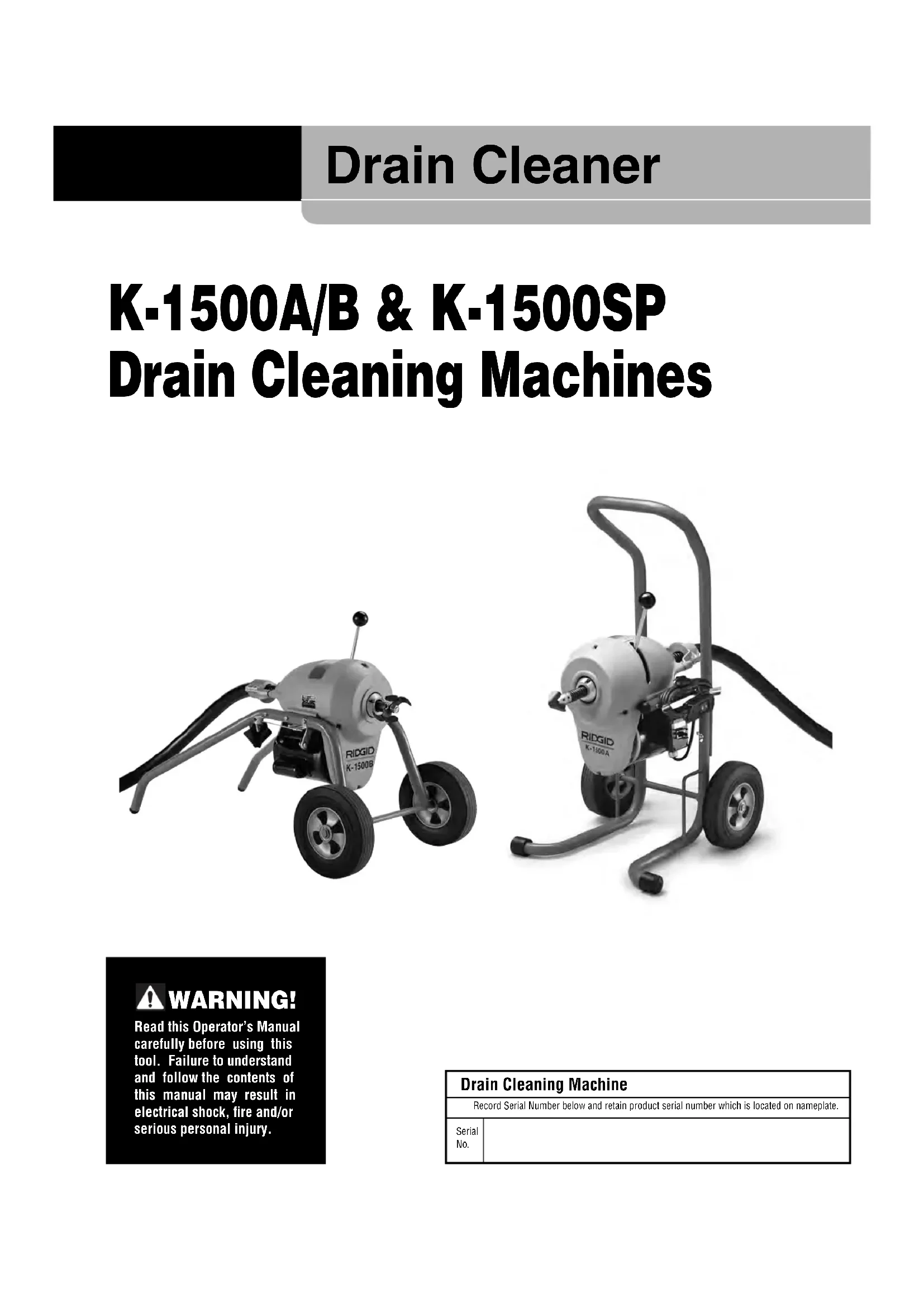

K1500A - Drain cleaning machine RIDGID - Free user manual and instructions
Find the device manual for free K1500A RIDGID in PDF.
📄
Document temporarily unavailable
The manual is currently being transferred to our new server. It will be accessible again in a few hours. Thank you for your patience.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product type | Electric drain cleaner (pipe cleaning machine) |
| Brand | RIDGID |
| Model | K1500A |
| Application | Cleaning of pipes 2" to 10" (50 to 250 mm) diameter |
| Power supply | 115 V / 60 Hz (230-240 V / 50 Hz optional) |
| Motor power | 3/4 HP |
| Rated current | 10.4 A |
| Cable speed | 710 rpm |
| Cable diameter | 7/8" (22 mm) or 1 1/4" (32 mm) |
| Maximum cleaning distance | 175' (53 m) with 7/8" cable; 200' (61 m) with 1 1/4" cable |
| Dimensions (L × W × H) | 16" × 20 3/4" × 41 1/2" (406 × 527 × 1054 mm) |
| Weight | 92 lb (41.7 kg) |
| Chassis type | A-frame with two rear wheels and vertical handle |
| Control | FOR/OFF/REV switch (forward, stop, reverse) |
| Clutch | Instant engagement clutch lever, instant return to neutral |
| Electrical protection | Ground fault circuit interrupter (GFCI) integrated in power cord |
| Standard equipment | A-1 cleaning glove, A-12 pin wrench, A-34-12 rear cable guide |
| Maintenance | Quarterly lubrication of mechanisms; oil jaws after each use; rinse and lubricate cables |
| Warranty | Lifetime warranty (product lifespan) against defects in materials and workmanship |
Frequently Asked Questions - K1500A RIDGID
What are the essential safety precautions before using the K1500A?
Before each use, check the proper operation of the ground fault circuit interrupter. Always wear RIDGID cleaning gloves, safety glasses, and non-slip shoes. Ensure the work area is dry and well-lit. Inspect the cable and tools for any signs of wear. Never use the machine with your feet in water.
How to choose the right cable diameter for my job site?
The K1500A uses two cable diameters: 7/8" (22 mm) for pipes 2" to 4" (50-100 mm) and 1 1/4" (32 mm) for pipes 3" to 10" (75-250 mm). The choice depends on the pipe diameter and distance. For example, the 1 1/4" cable allows cleaning up to 200 feet.
How to safely use reverse (REV)?
Reverse should only be used to free a cleaning tool stuck in an obstruction. Turn the switch to OFF, then to REV. Briefly engage the clutch to release the tool, then immediately switch back to forward. Prolonged use in reverse can damage the cable and cause injury.
How to add an additional cable section?
Turn off the machine and secure the cable by folding it into the conduit. Thread a new cable section through the front of the machine (female connector first) until about one foot protrudes from the front. Connect it to the cable already in place, then resume operation. Never add more than one section at a time.
What regular maintenance is required for the K1500A?
Lubricate exposed mechanisms (rocker arm, bearing) every three months with grease. After each use, oil the clutch jaws. Rinse cables thoroughly with clean water and apply RIDGID rust inhibitor. Store the unit in a dry, weather-protected place.
How to check cable wear?
Visually inspect the cable before each use. Signs of wear: flattening of outer coils, excessive corrosion, broken strands. A worn cable can break suddenly and cause serious injury. Replace any damaged cable immediately.
What to do if the cleaning tool gets stuck in the pipe?
Immediately release the clutch lever to stop the cable. Turn the switch to OFF. If necessary, use reverse (REV) briefly to free the tool. Never force the cable. If the blockage persists, remove the cable and try again with another tool.
What accessories are recommended for the K1500A?
RIDGID offers a wide range of cleaning tools (augers, grease cutters, brushes) and cables. Use only RIDGID accessories designed for this model. Consult the RIDGID catalog for the complete list. The main ones are: C-11, C-12, C-14, C-15 cables and T-1 to T-47 tools.
How to adjust the drive belt tension?
Remove the belt cover. Loosen the lock nut, then turn the adjustment bolt until the belt is tight. Retighten the nut. Check tension periodically. A loose belt can reduce performance and cause premature wear.
How to store the K1500A after use?
Clean the machine and cables with clean water to remove corrosive residues. Lubricate the cables. Store the unit in a dry, frost-free place out of reach of children. If the machine has been exposed to negative temperatures, let it run idle for 10 to 20 minutes before use.
